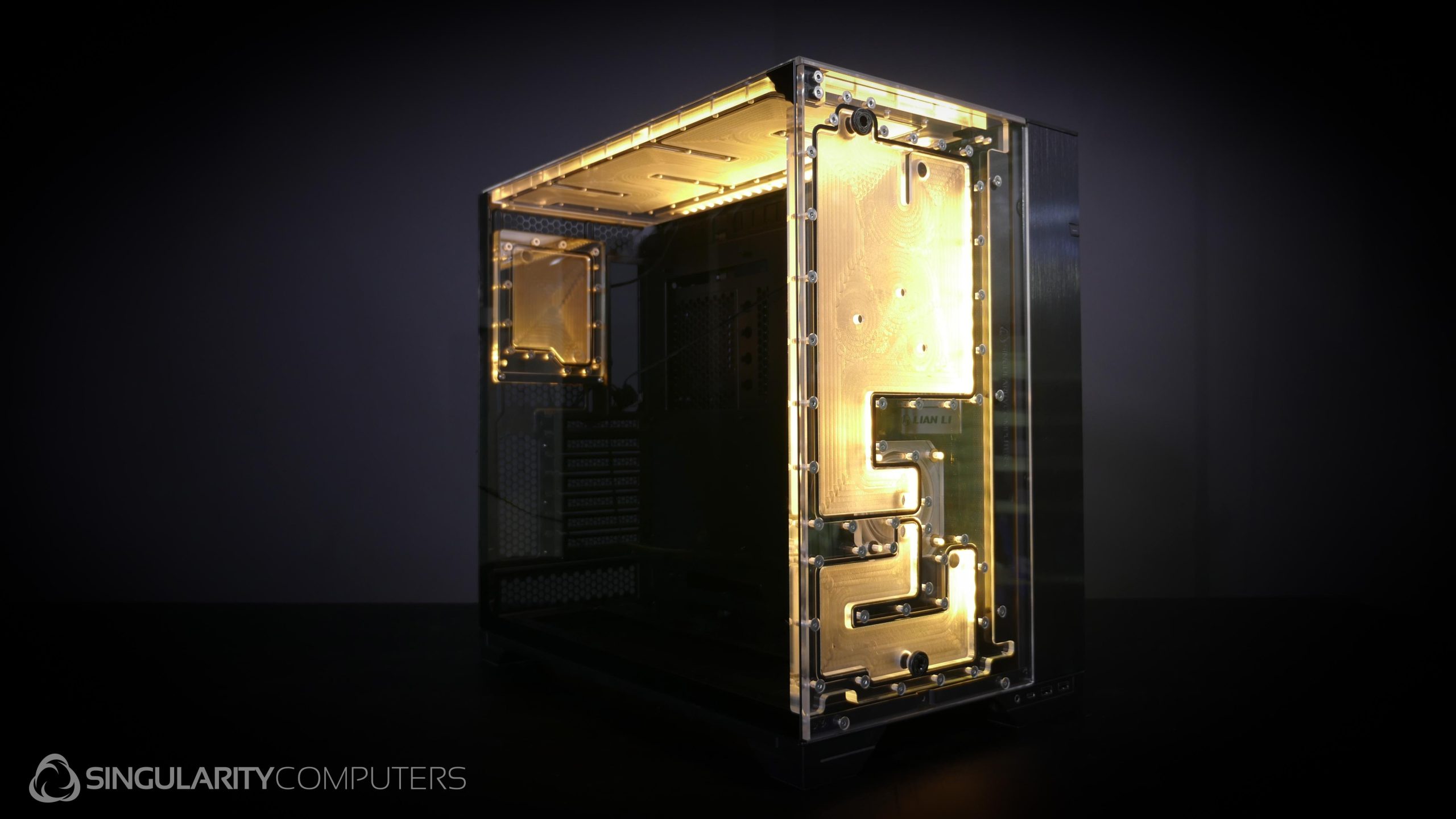

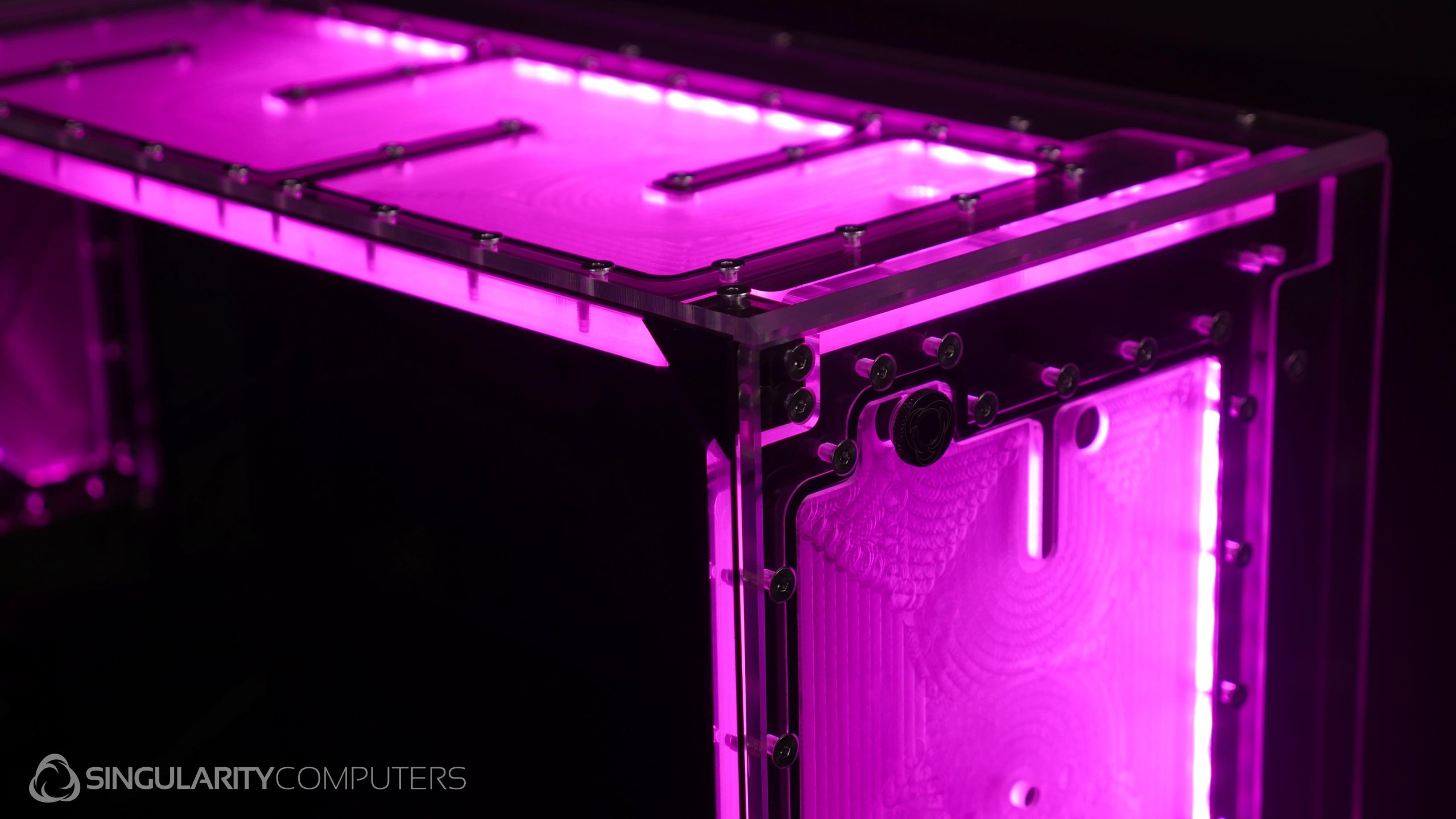

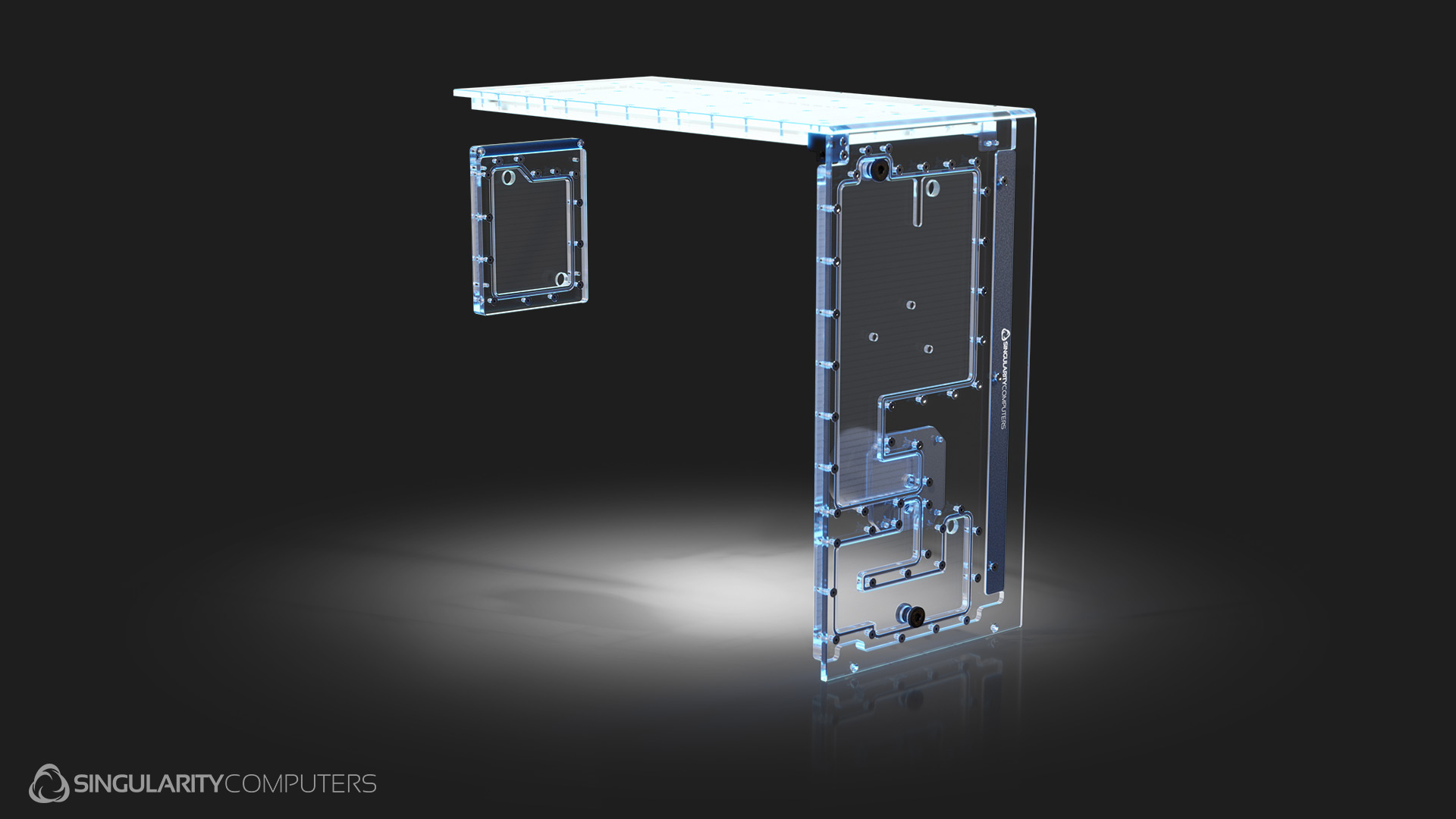

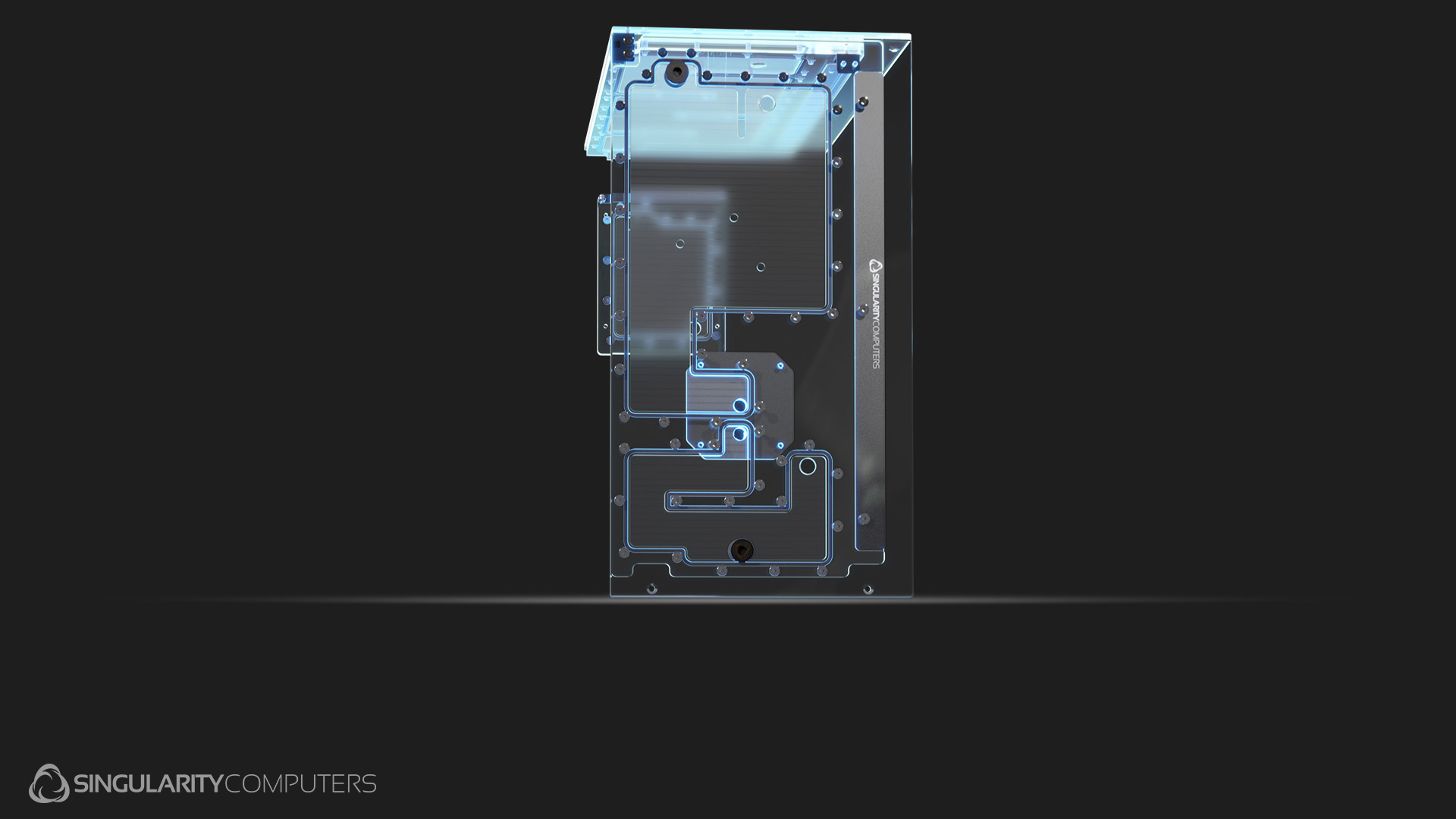

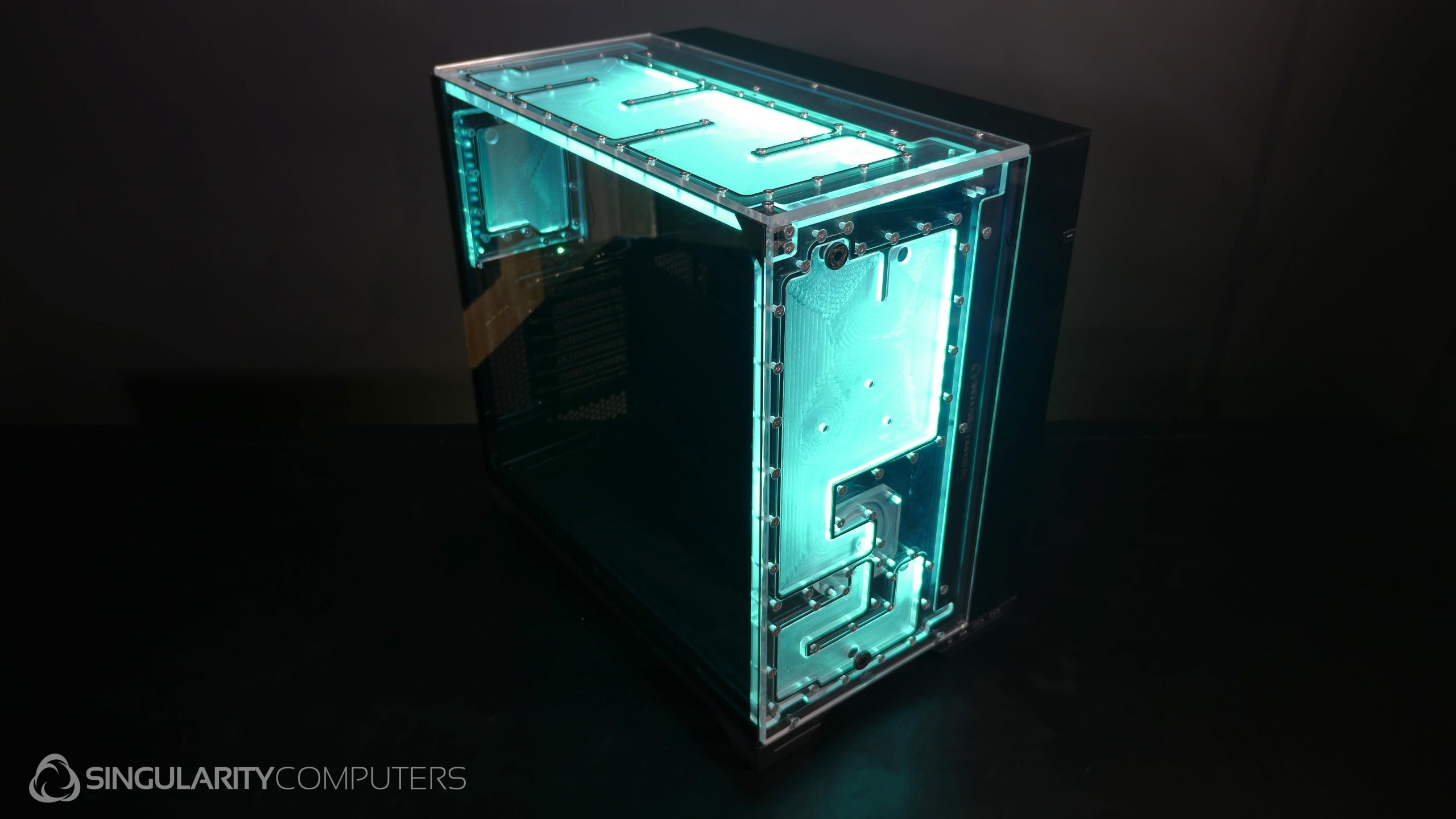

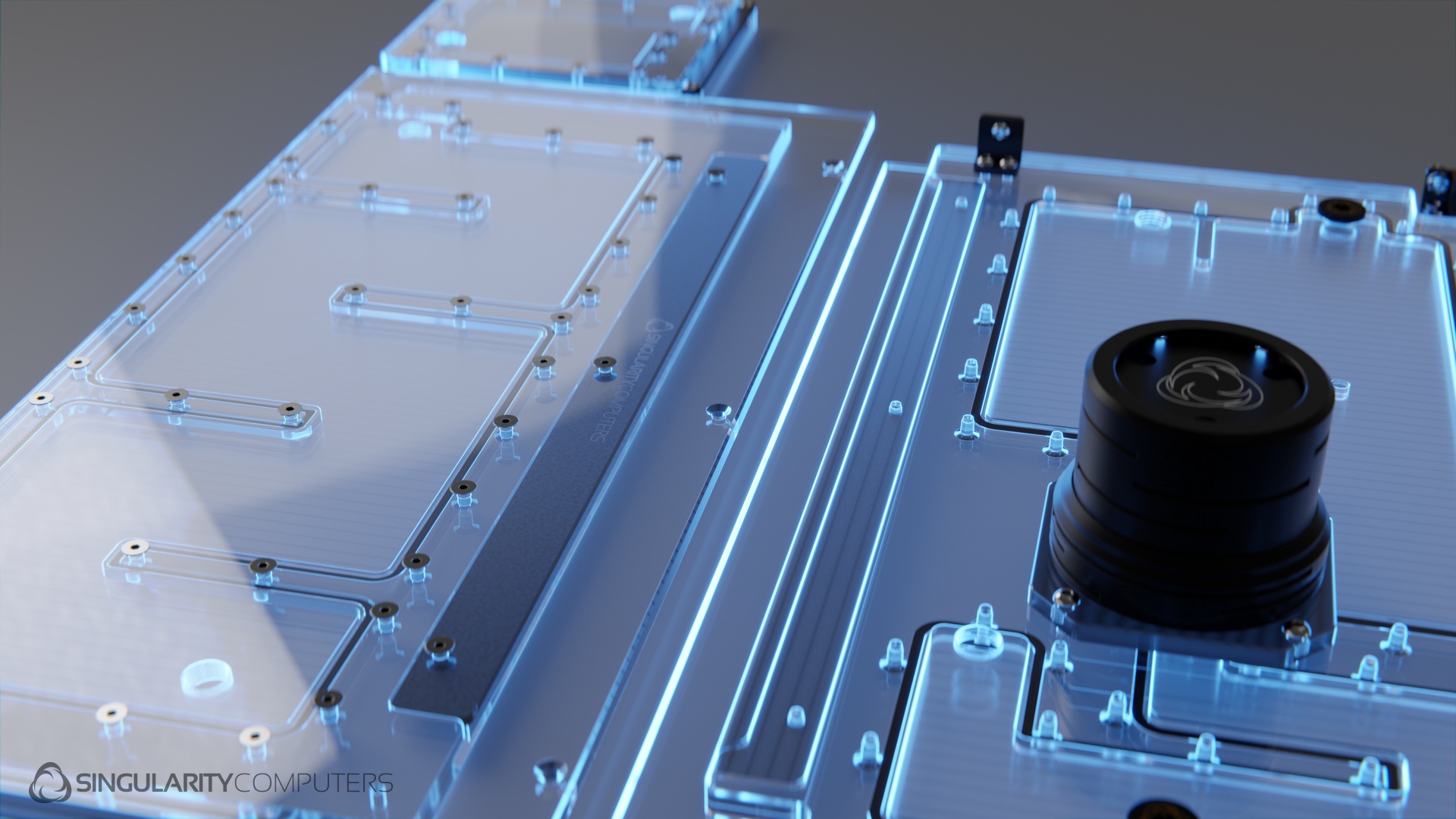

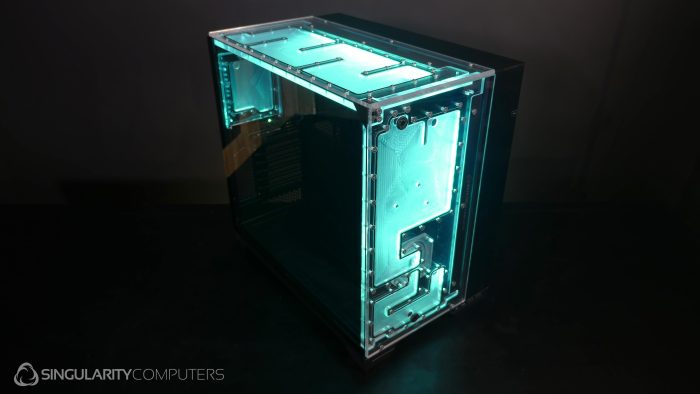

Lian Li O11 Vision Distribution Plate Set

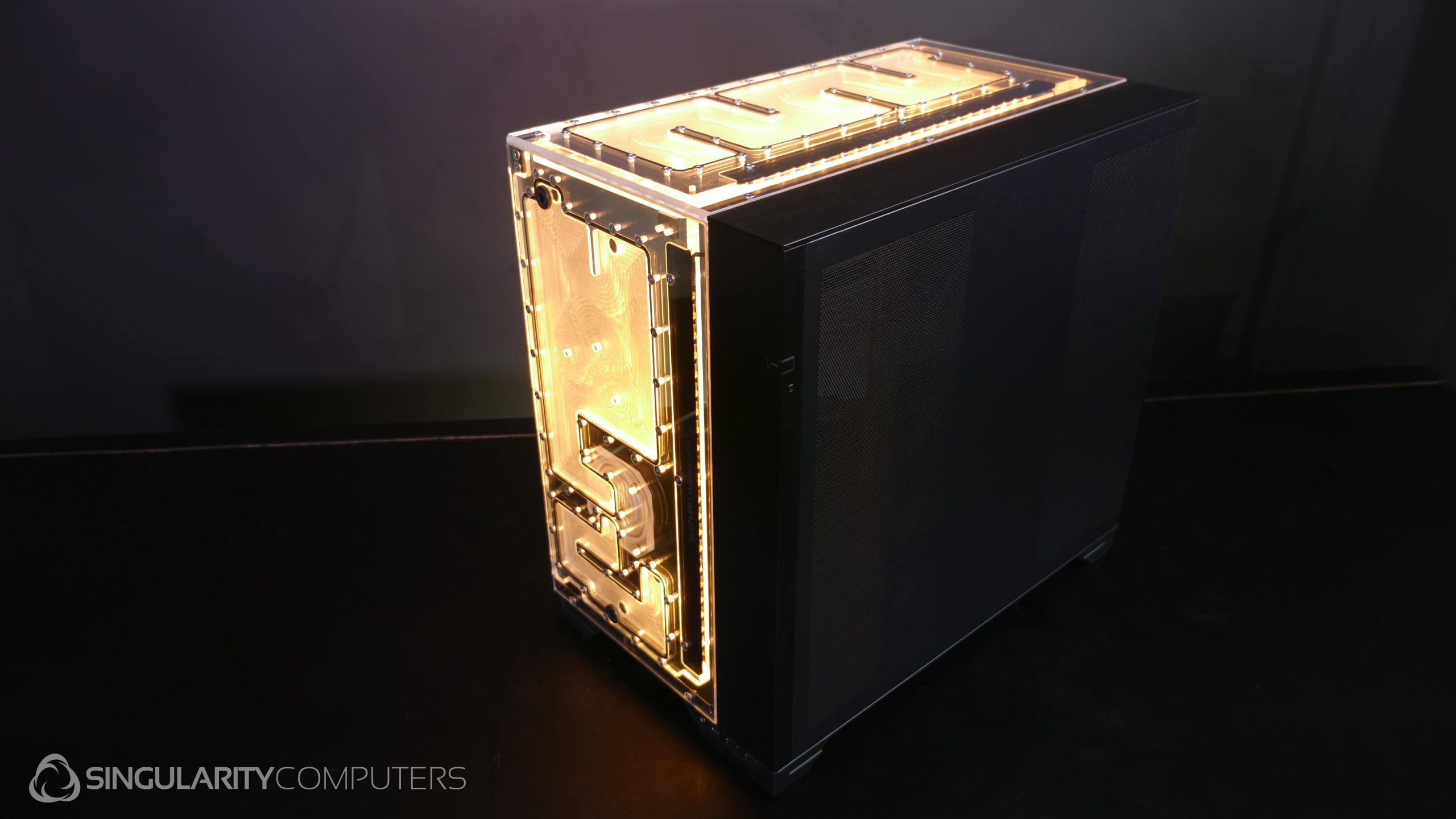

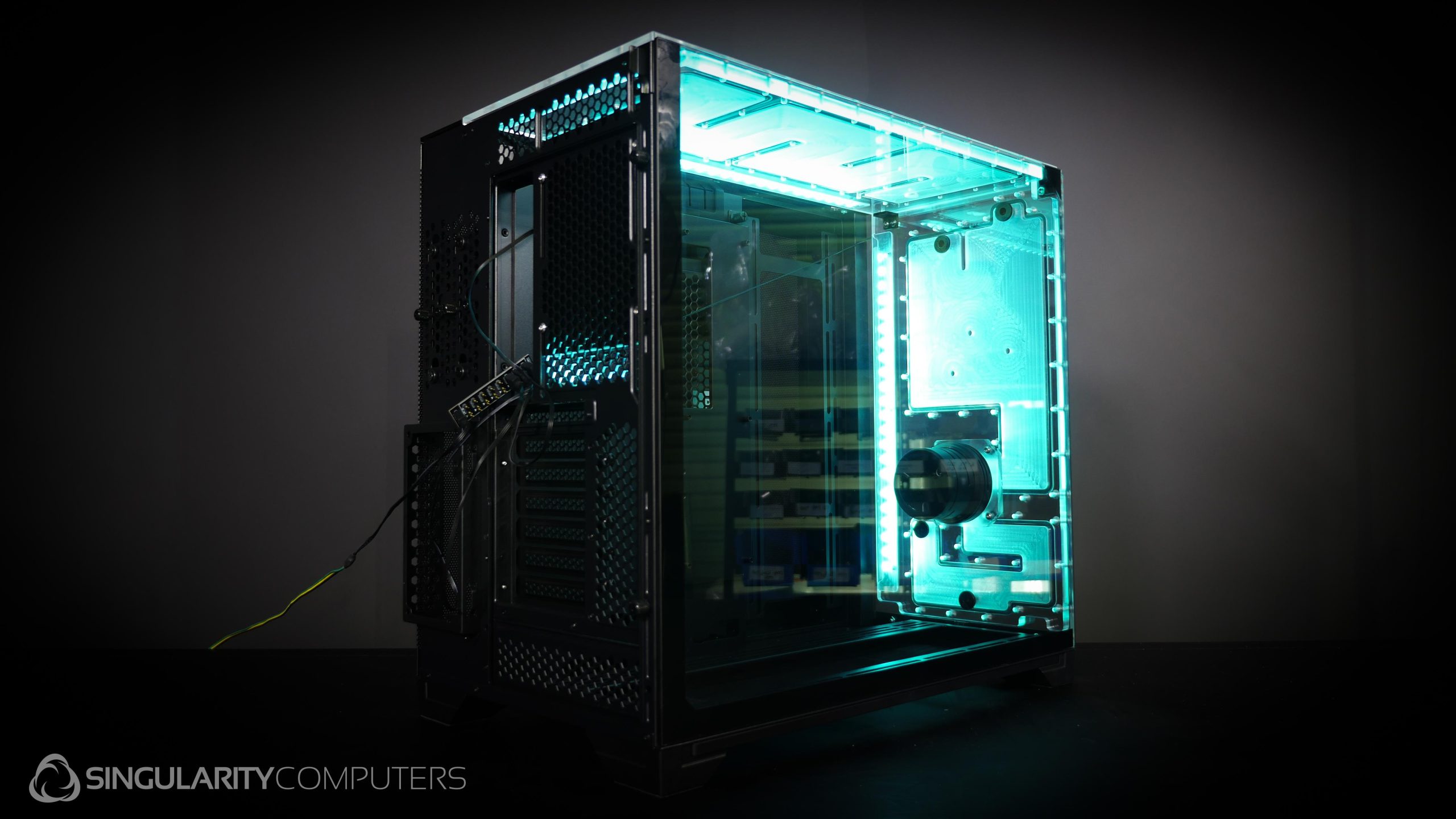

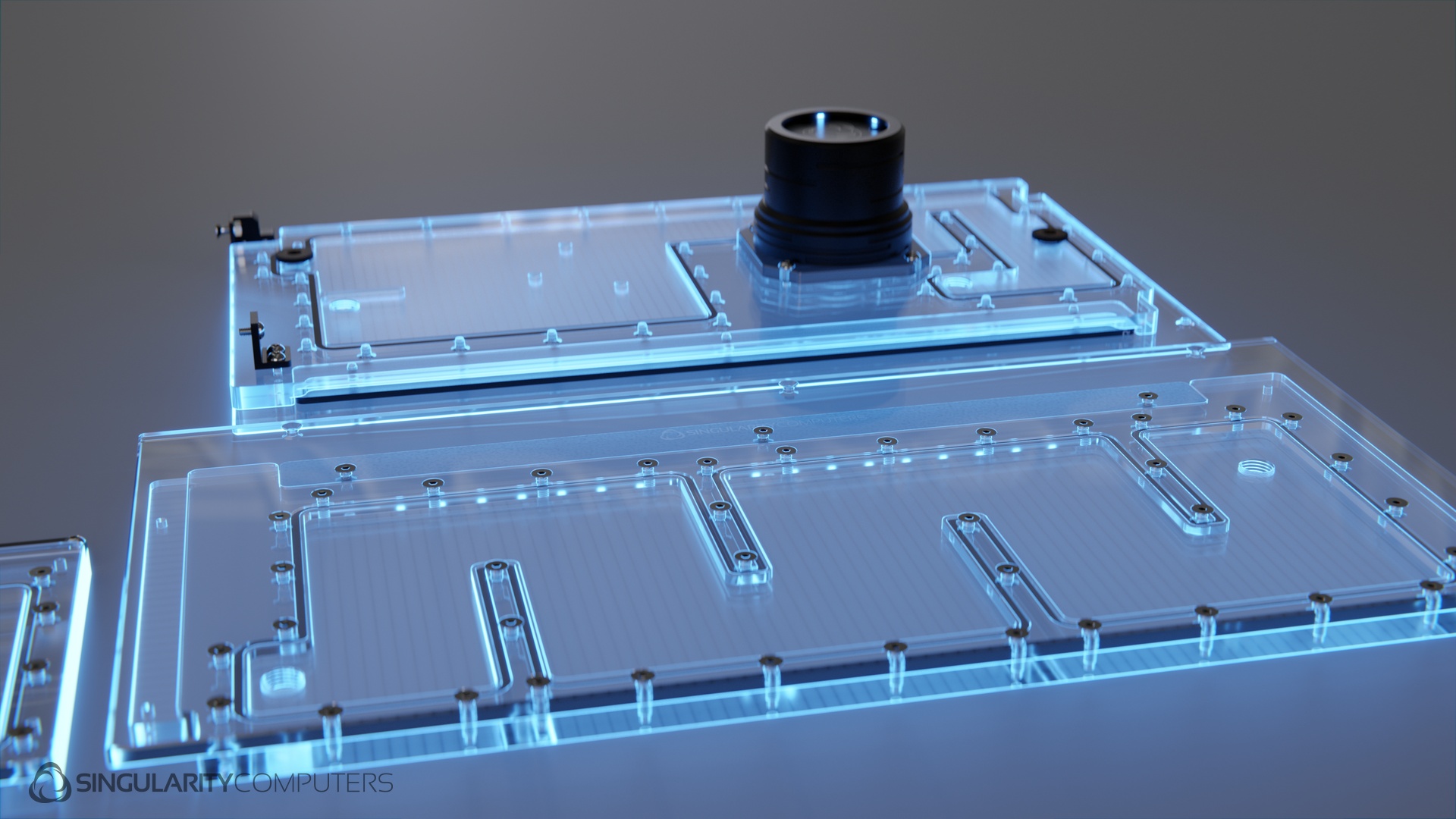

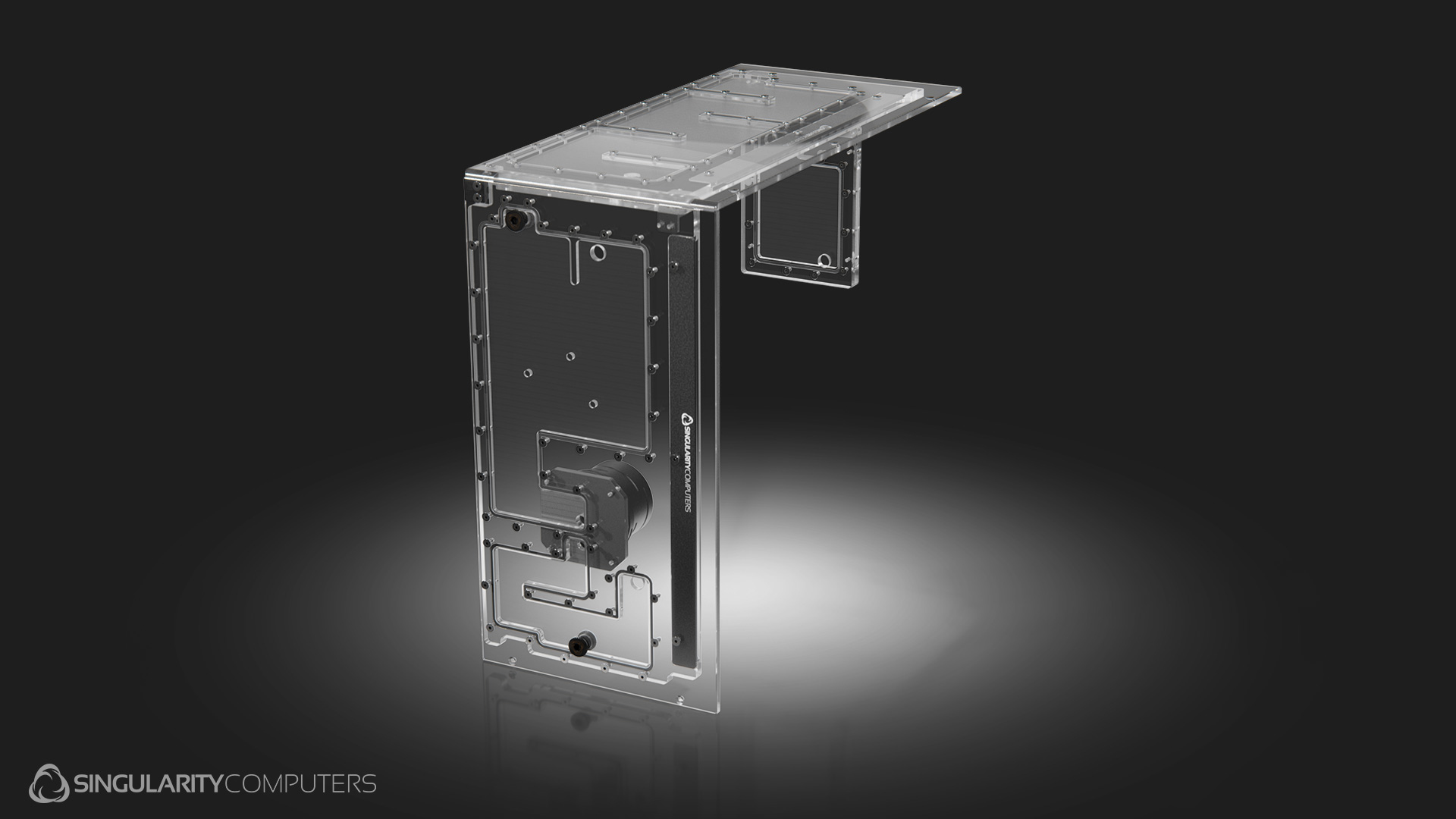

The Lian Li O11 Vision Distribution Plate Set includes three distribution plates. The front and top distribution plates replace the stock tempered glass front and top panels on the case. The rear distribution plate mounts on the rear fan mounting position above the expansion slots. There is a single and dual loop version. The single loop version has a single D5 pump top and reservoir integrated in the front distribution plate. The dual loop version has two separate D5 pump tops and reservoirs integrated. There is also an option to select the distribution plate set without the rear distribution plate, but the top and front distribution plates must be used together otherwise they cant be mounted on the case. The distribution plates are built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. Each Distribution Plate has an integrated ARGB LED strip with a cover and there is a Back Plate included to cover the rear side of the Rear Distribution Plate, select from the different color options below for the covers.
Pump not included. Compatible with any D5 Pump.
Note: Lian Li have many case versions, this distribution plate is only compatible with the Lian Li O11 Vision, not the Compact version of the case.
US$349.00 US$449.00Price range: US$349.00 through US$449.00
Lian Li O11 Vision Single Loop Distribution Plate Set Flow Diagram

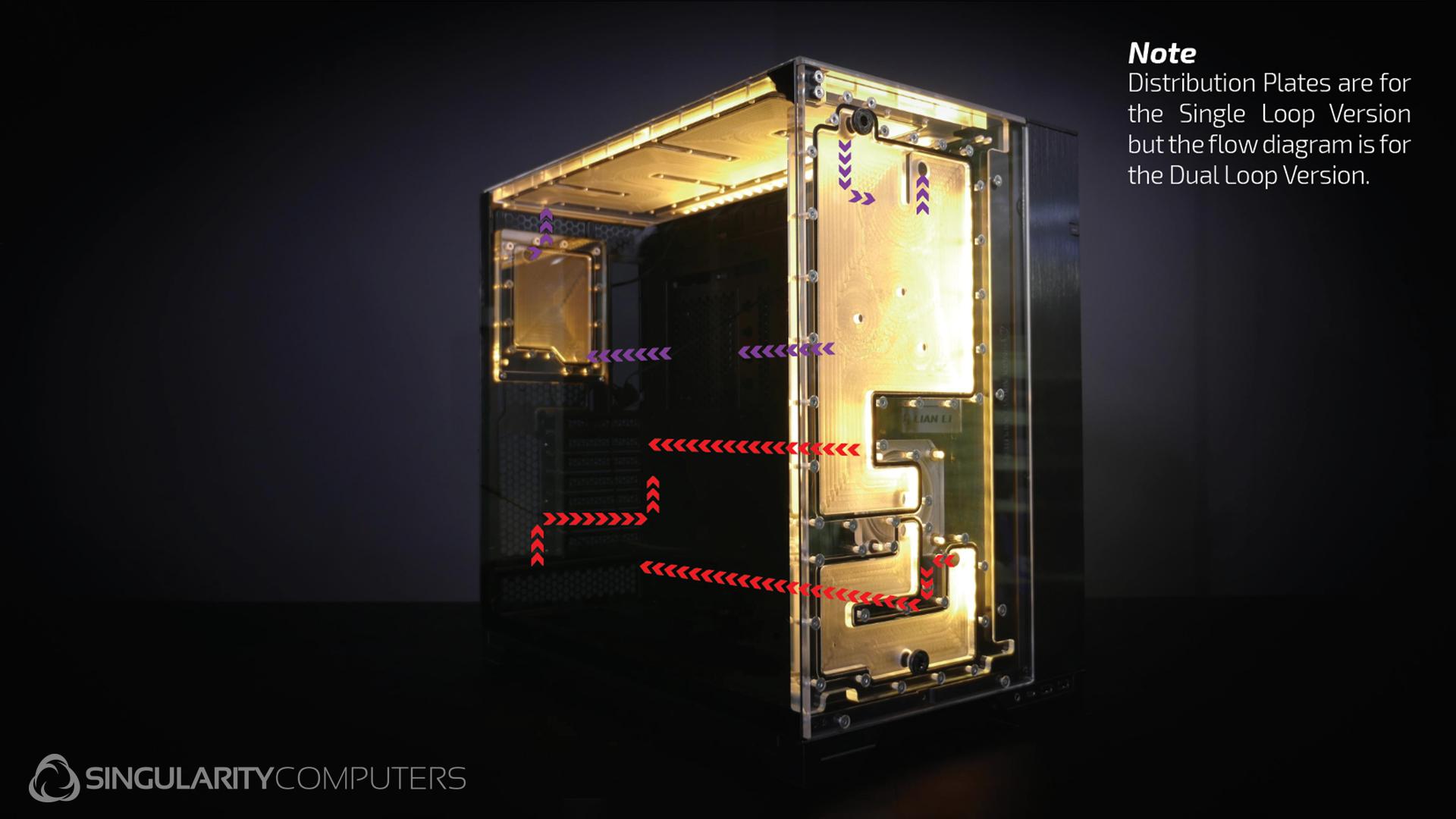

Lian Li O11 Vision Dual Loop Distribution Plate Set Flow Diagram

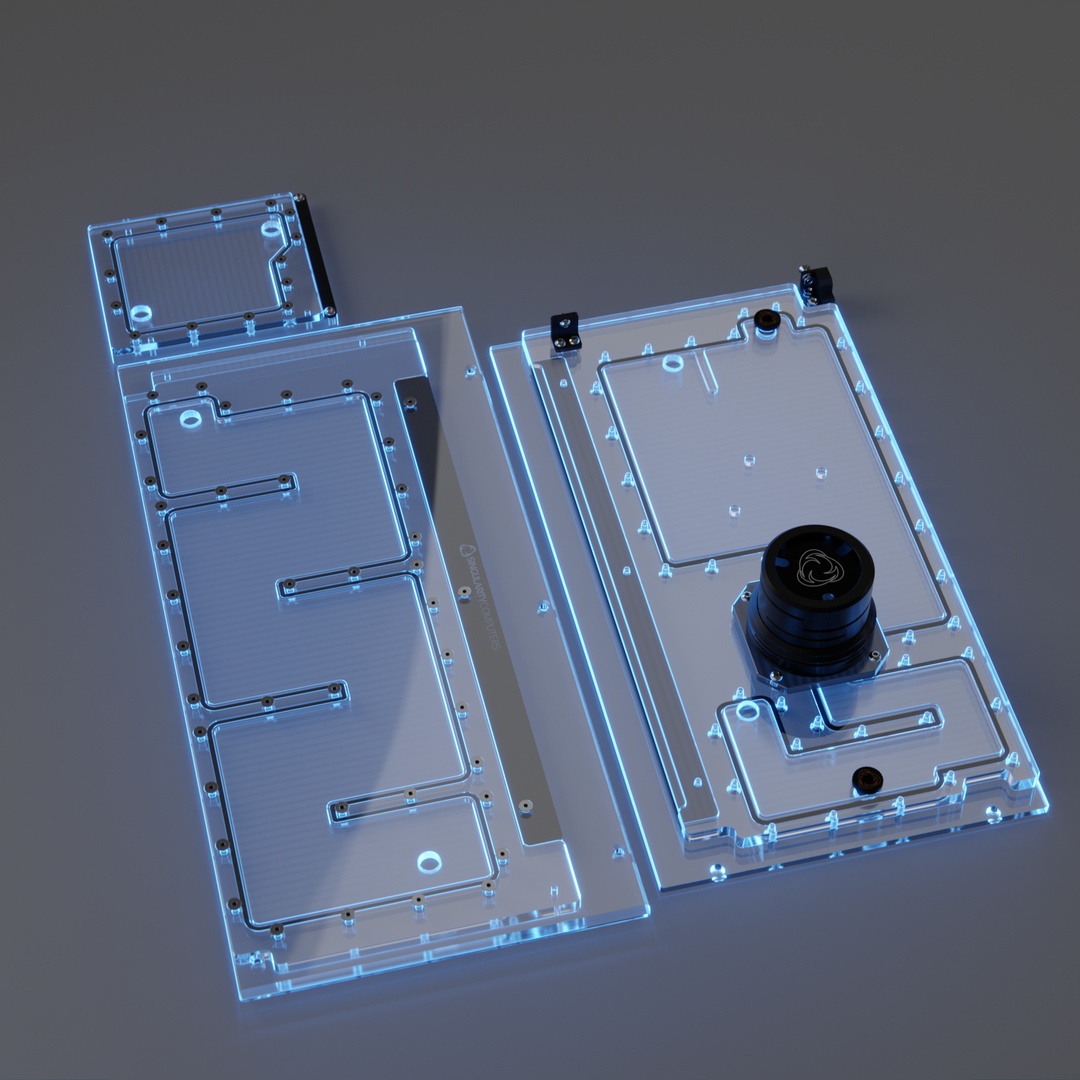

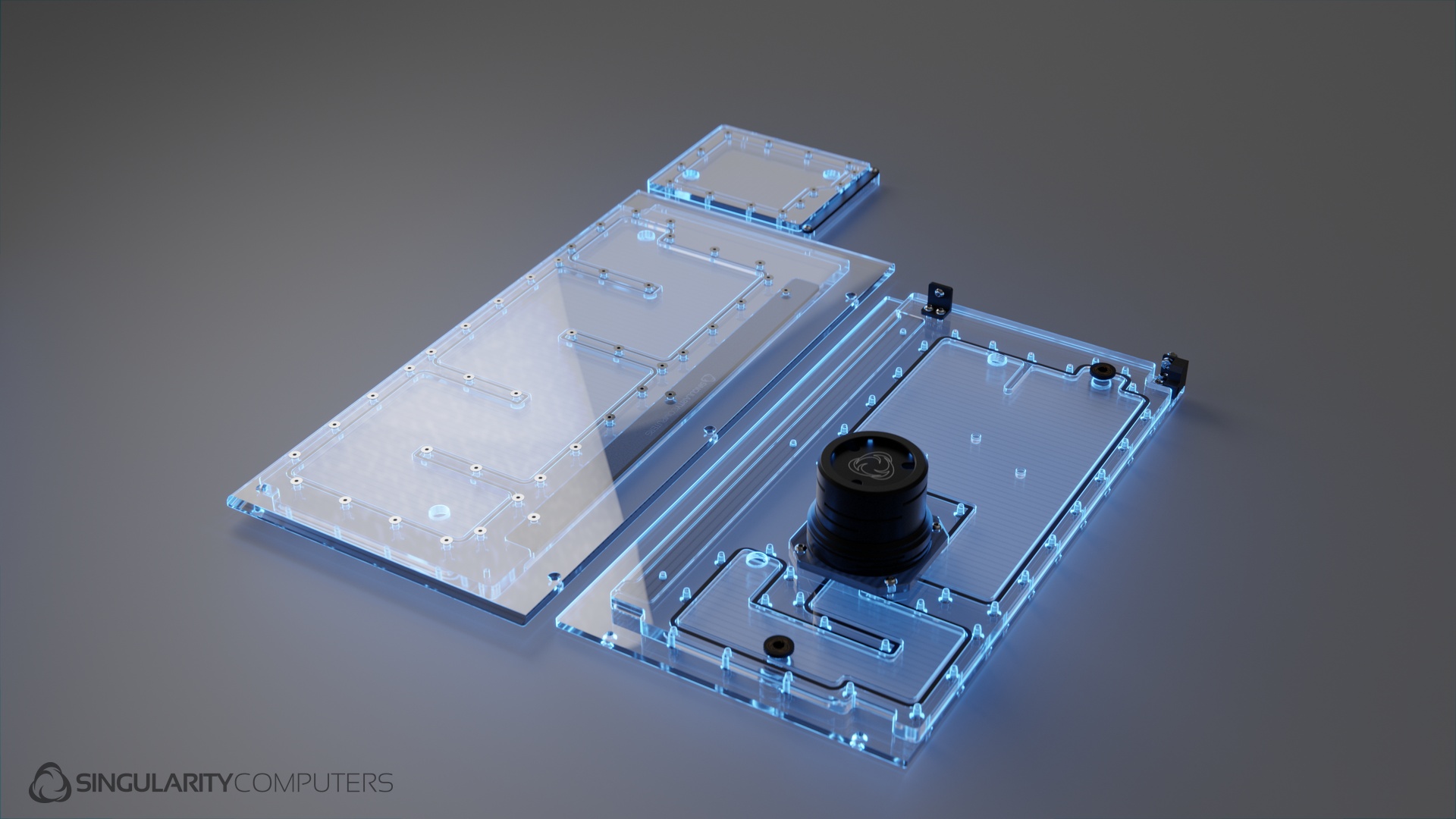

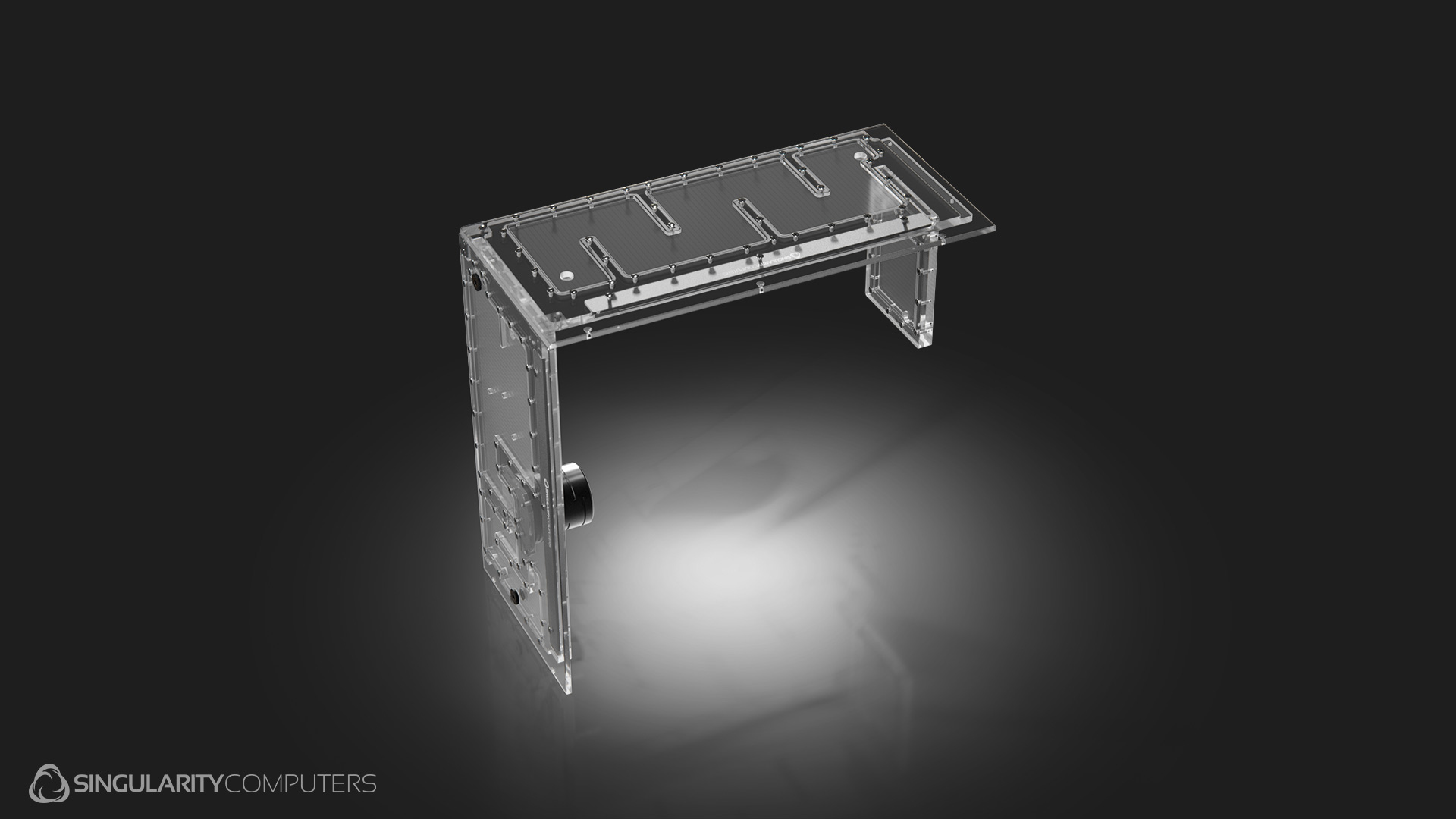

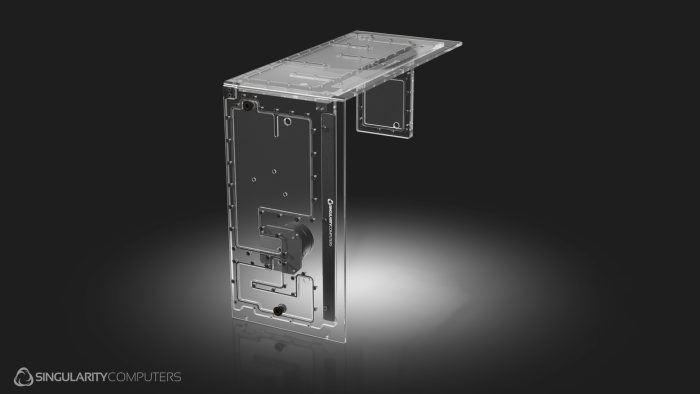

Lian Li O11 Vision Distribution Plate Set
Specifications:
Lian Li O11 Vision Distribution Plate Set. The set can be purchased together or they can be purchased separately (select above).

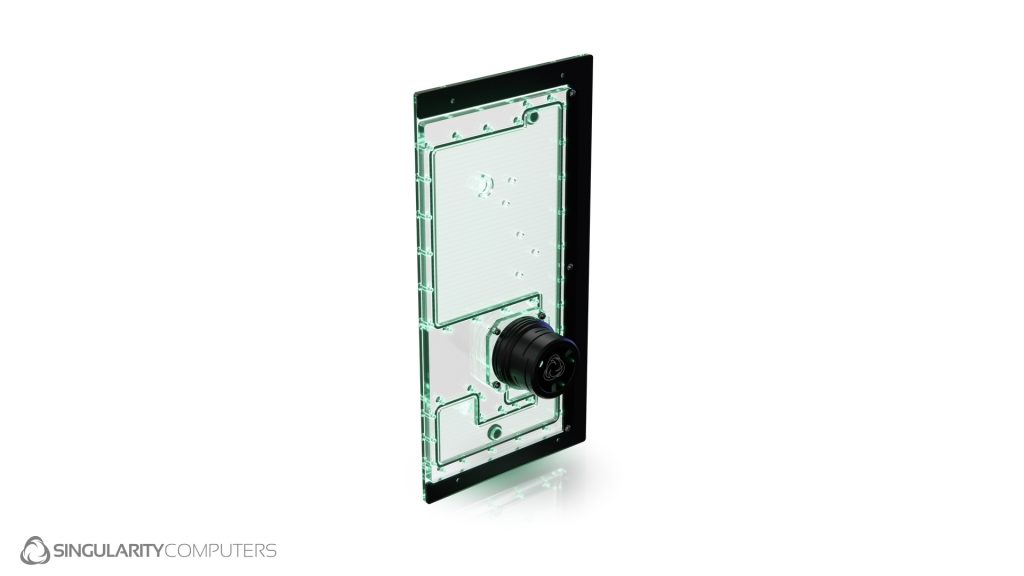

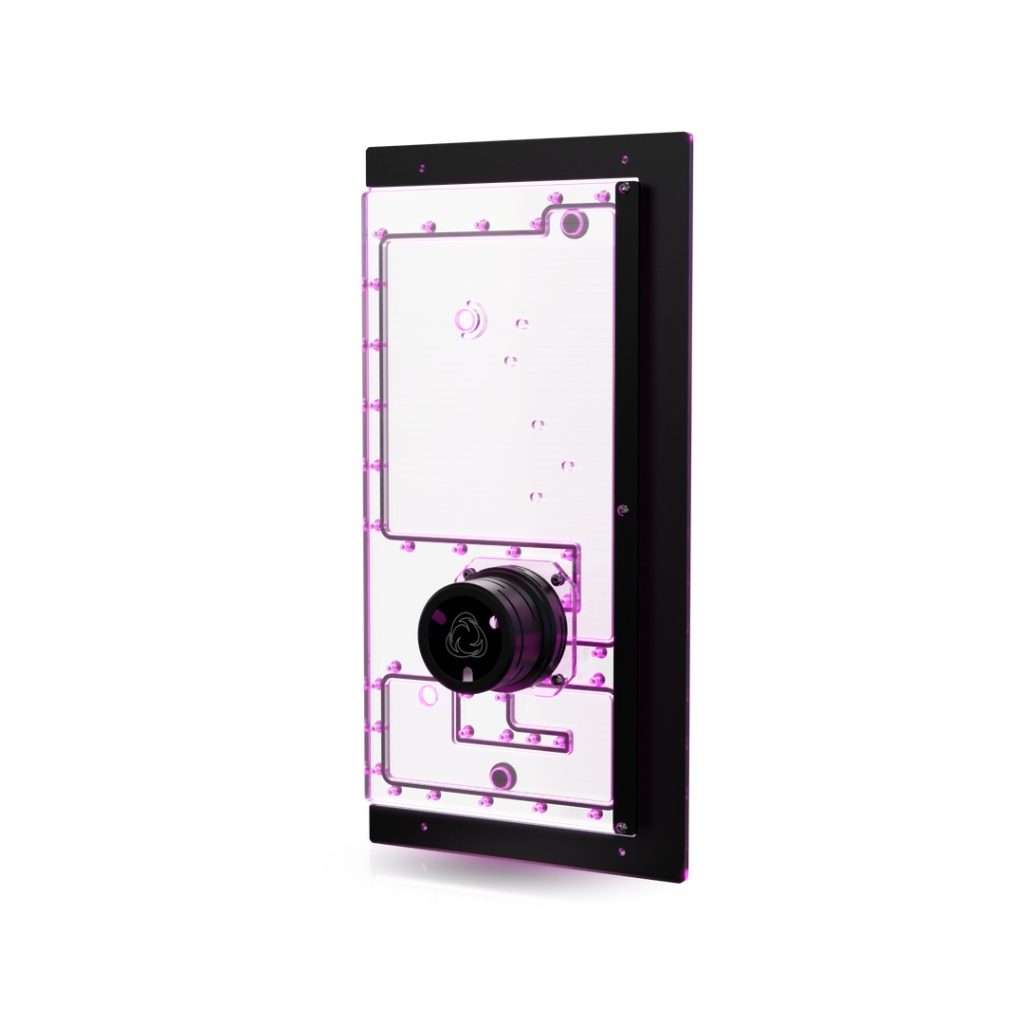

Lian Li O11 Vision Front D5 Reservoir Distribution Plate.
Lian Li O11 Vision Top Distribution Plate.
Lian Li O11 Vision Rear Distribution Plate.
Integrated Reservoir.
Integrated D5 Pump Top.
D5 Pump Cover CNC Machined Anodized Aluminum (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable x3.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.

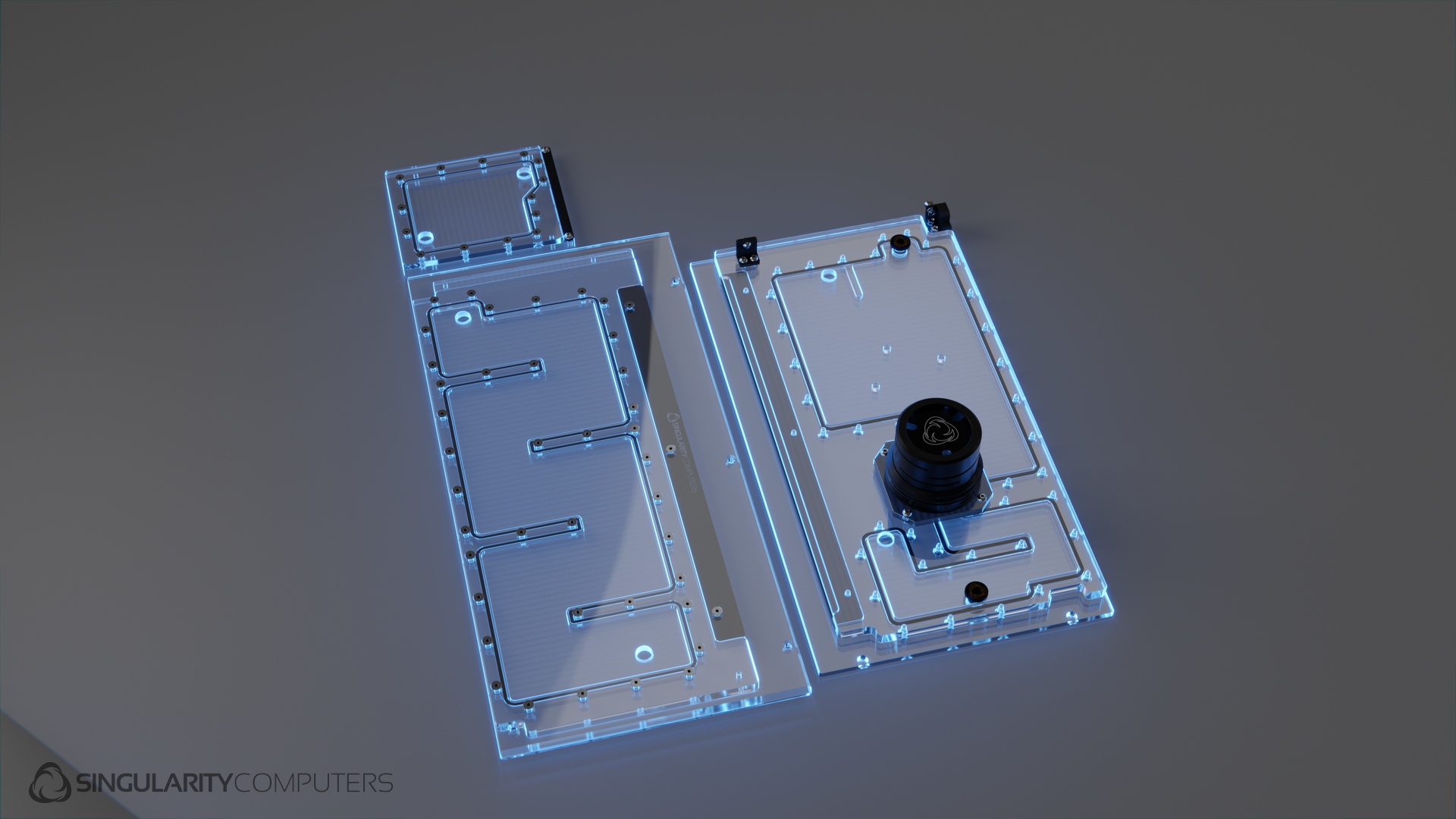

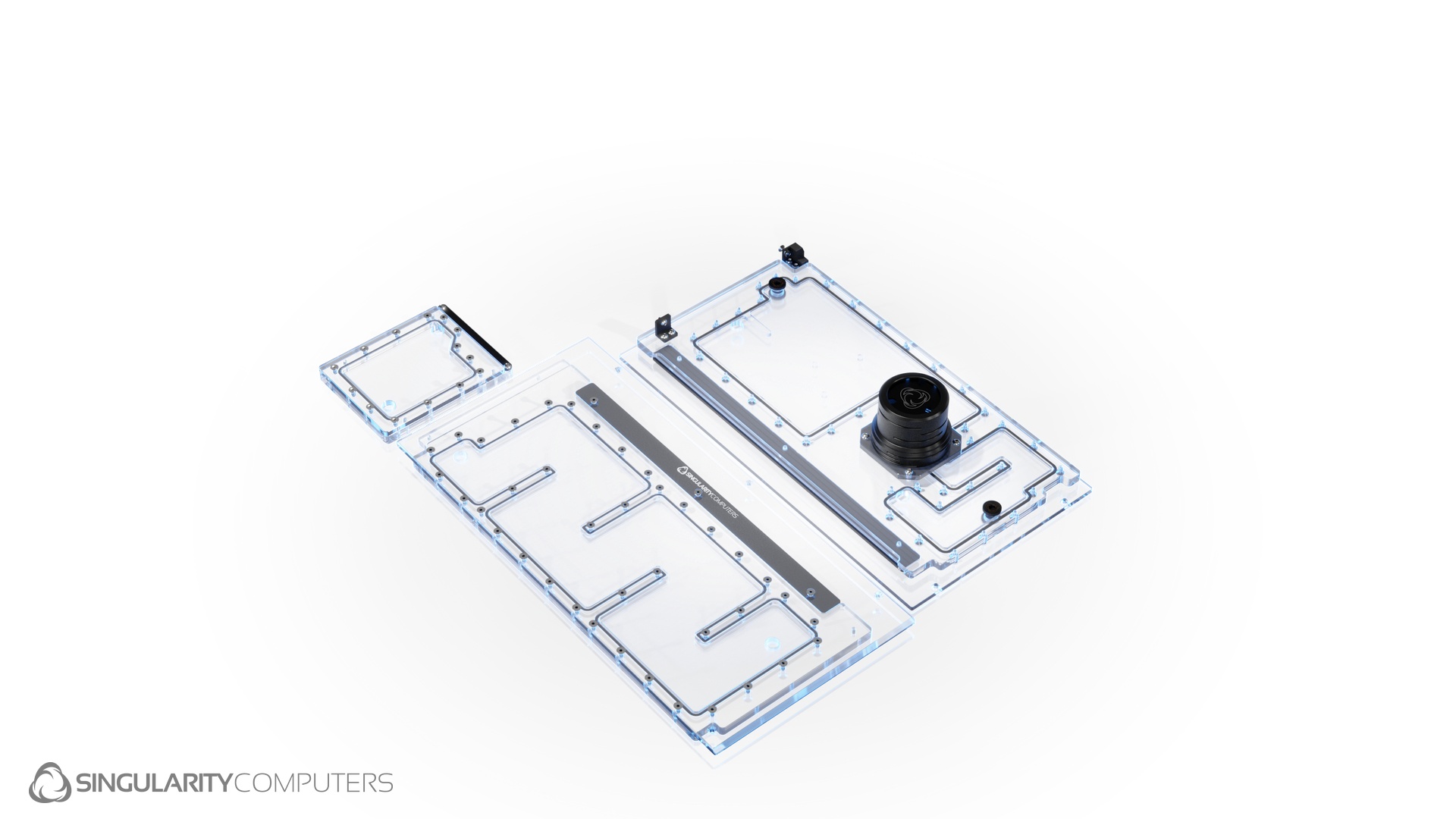

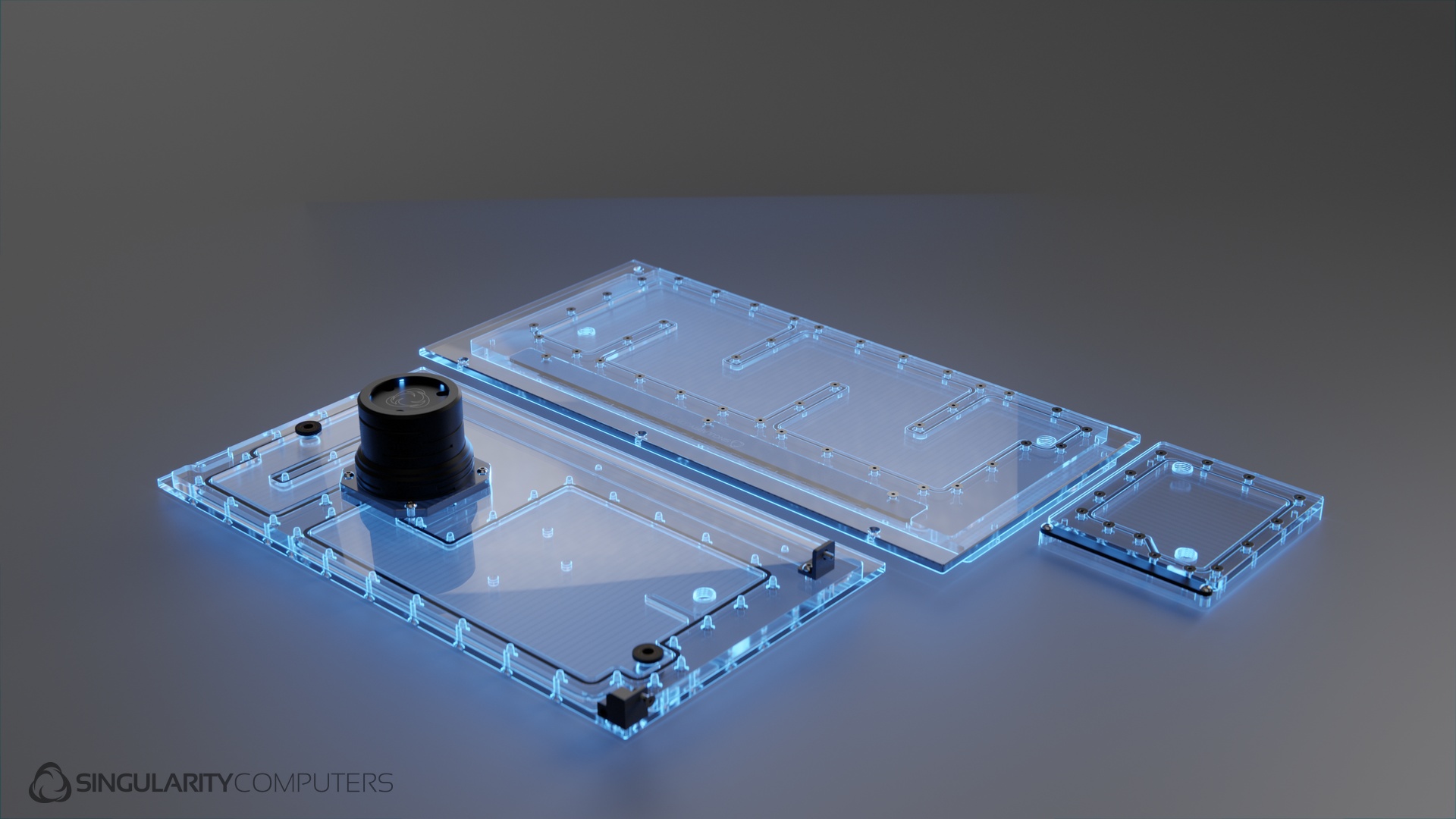

Single Loop Distribution Plate Set
Packaged Dimensions: L: 600mm x W: 400mm x H: 100mm.
Packaged Weight: 8kg.
Single Loop Distribution Plate Set (without rear distribution plate)
Packaged Dimensions: L: 600mm x W: 400mm x H: 90mm.
Packaged Weight: 7.5kg.
Installation:
This distribution plate set includes a top, front, and rear panel distribution plate. The top and front distribution plates replace the stock tempered glass top and front panels. The rear distribution plate mounts on the rear fan mounting location above the expansion slots. See installation manual link below.

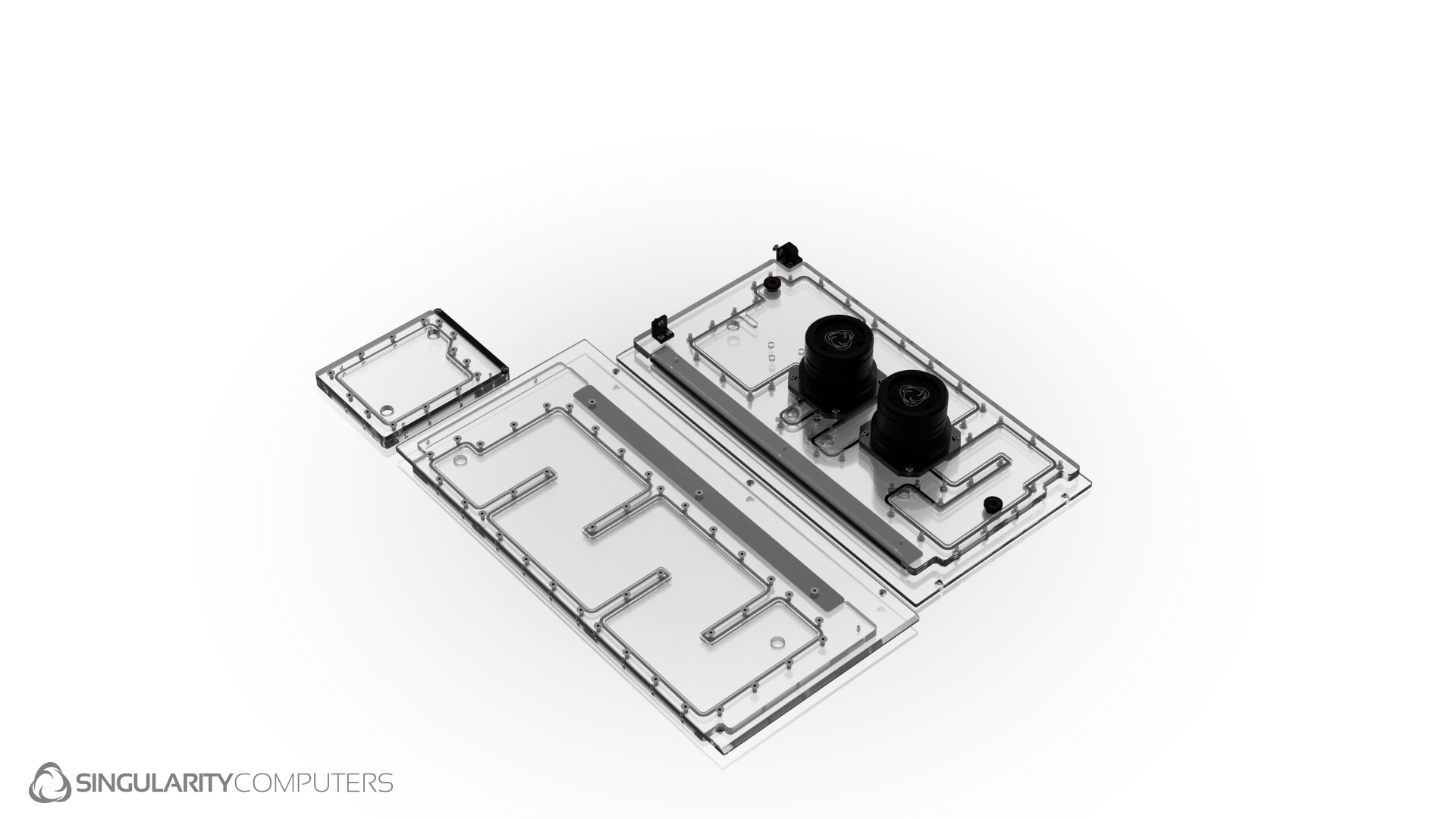

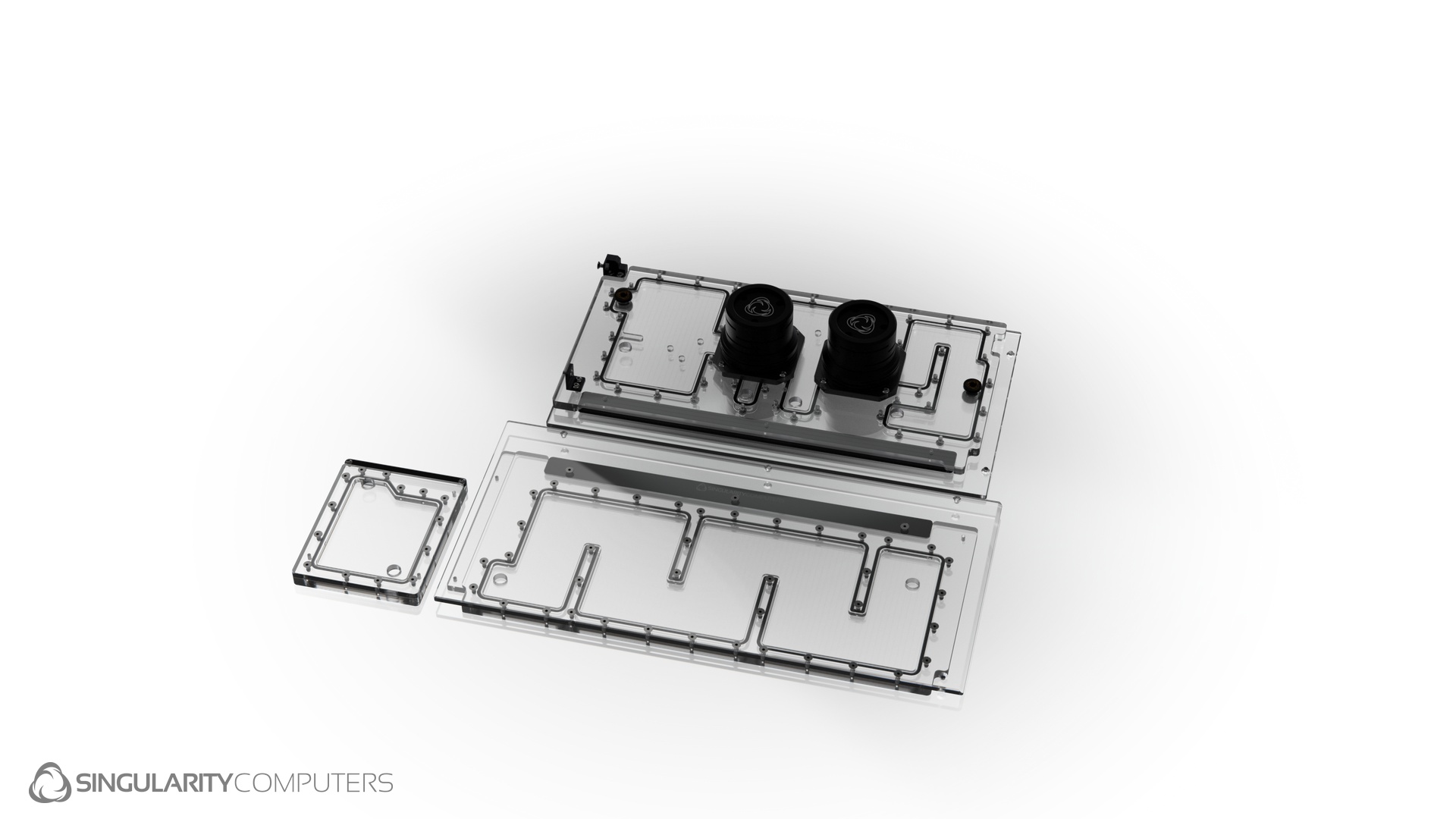

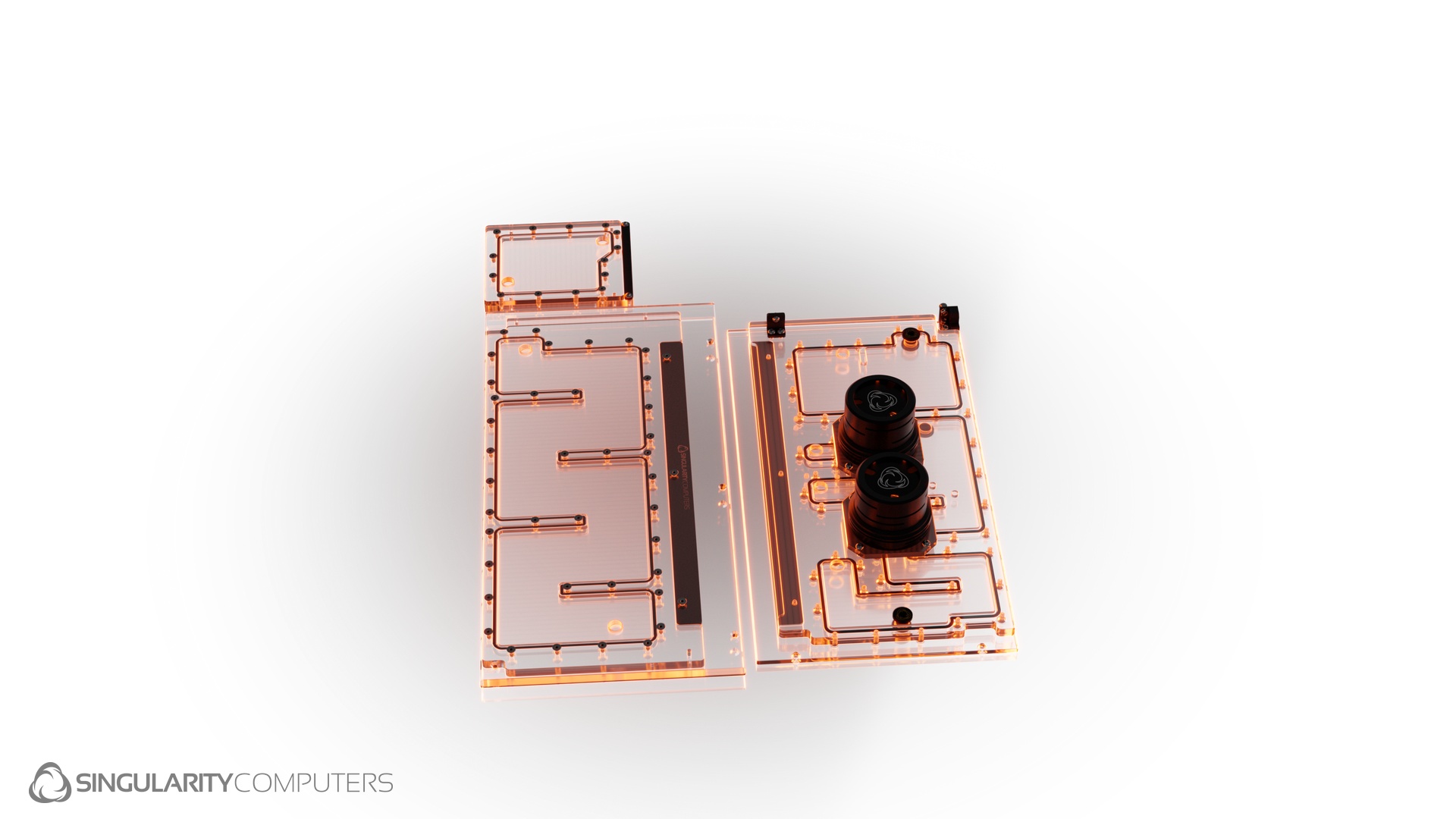

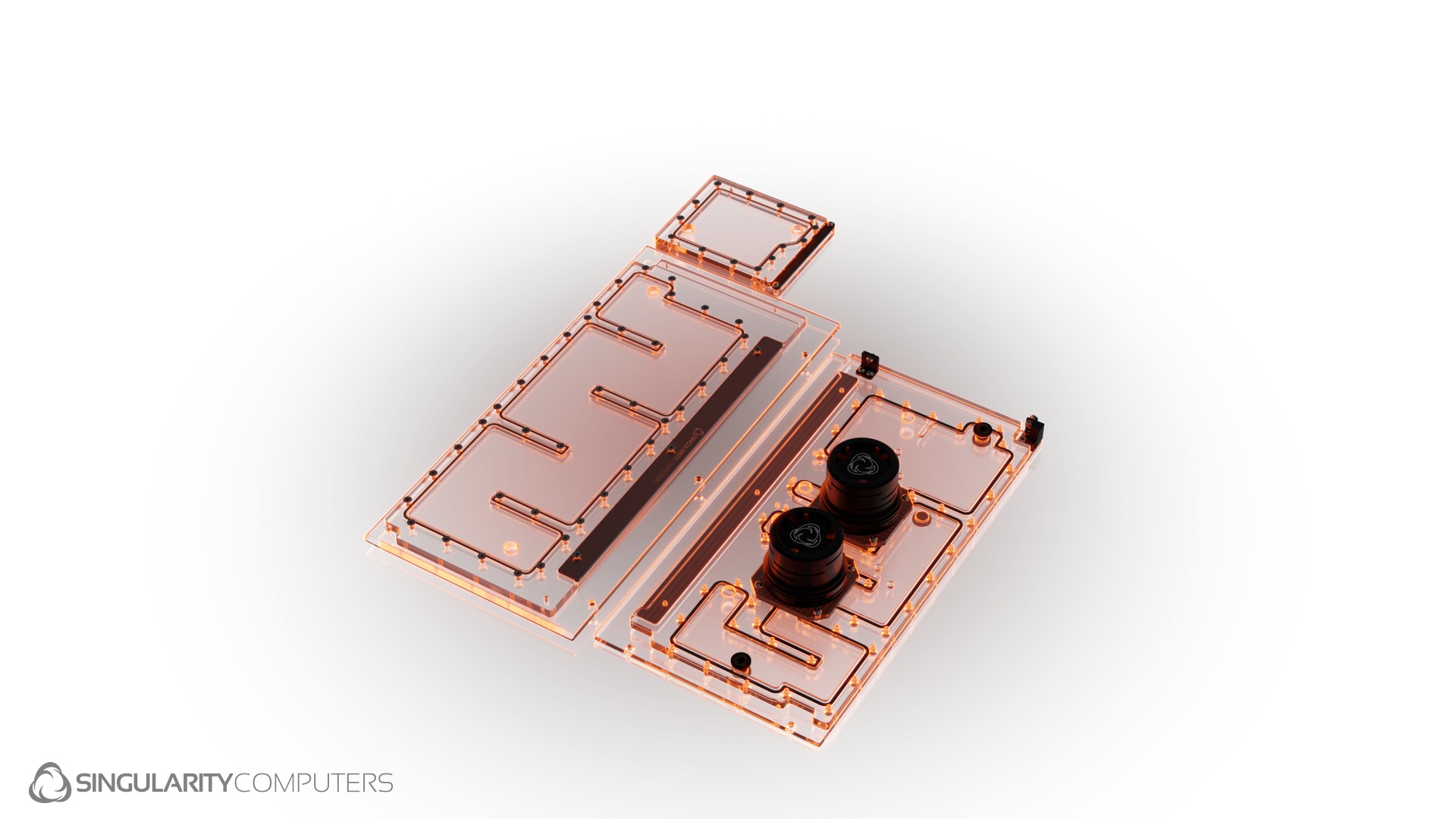

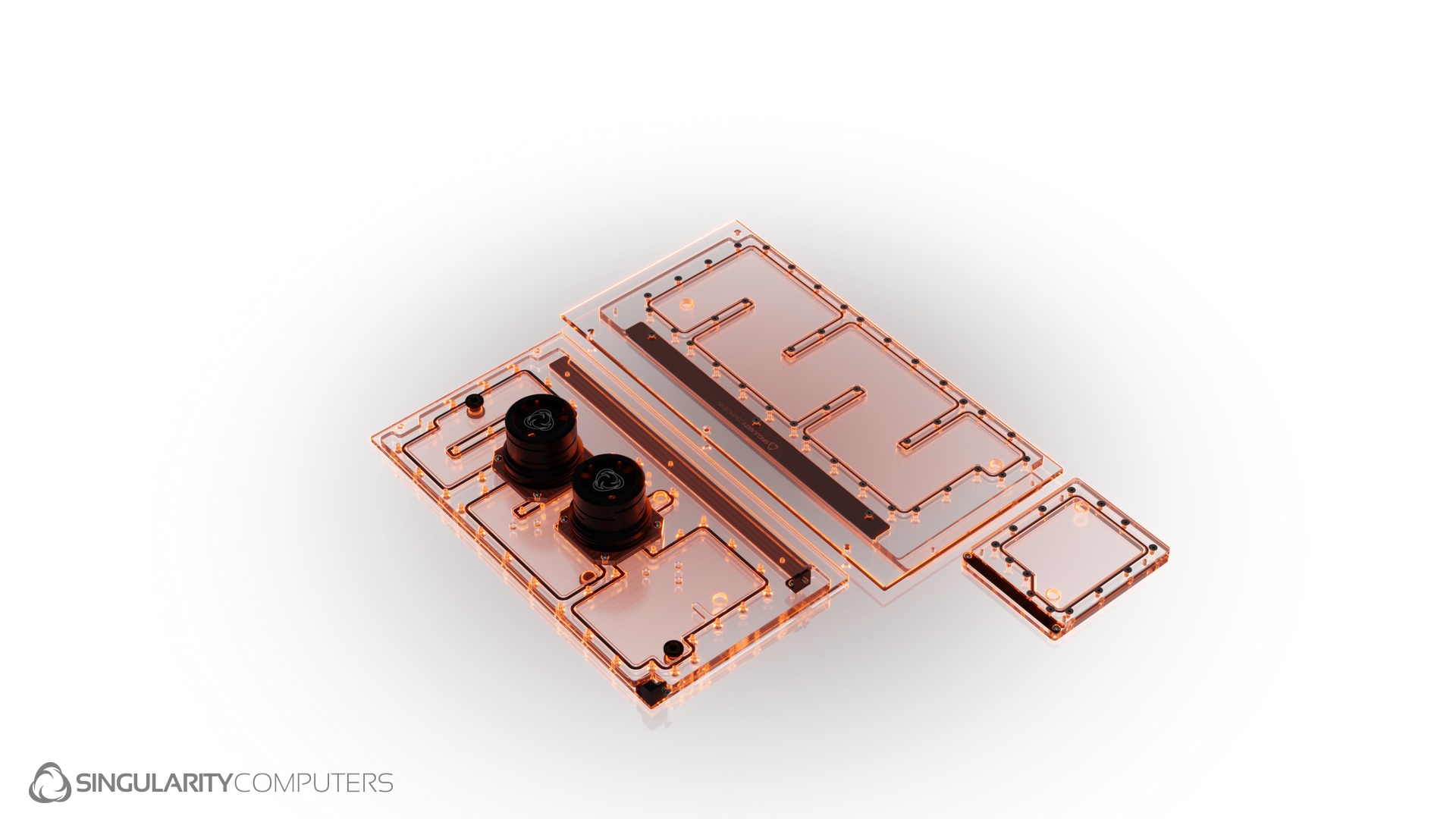

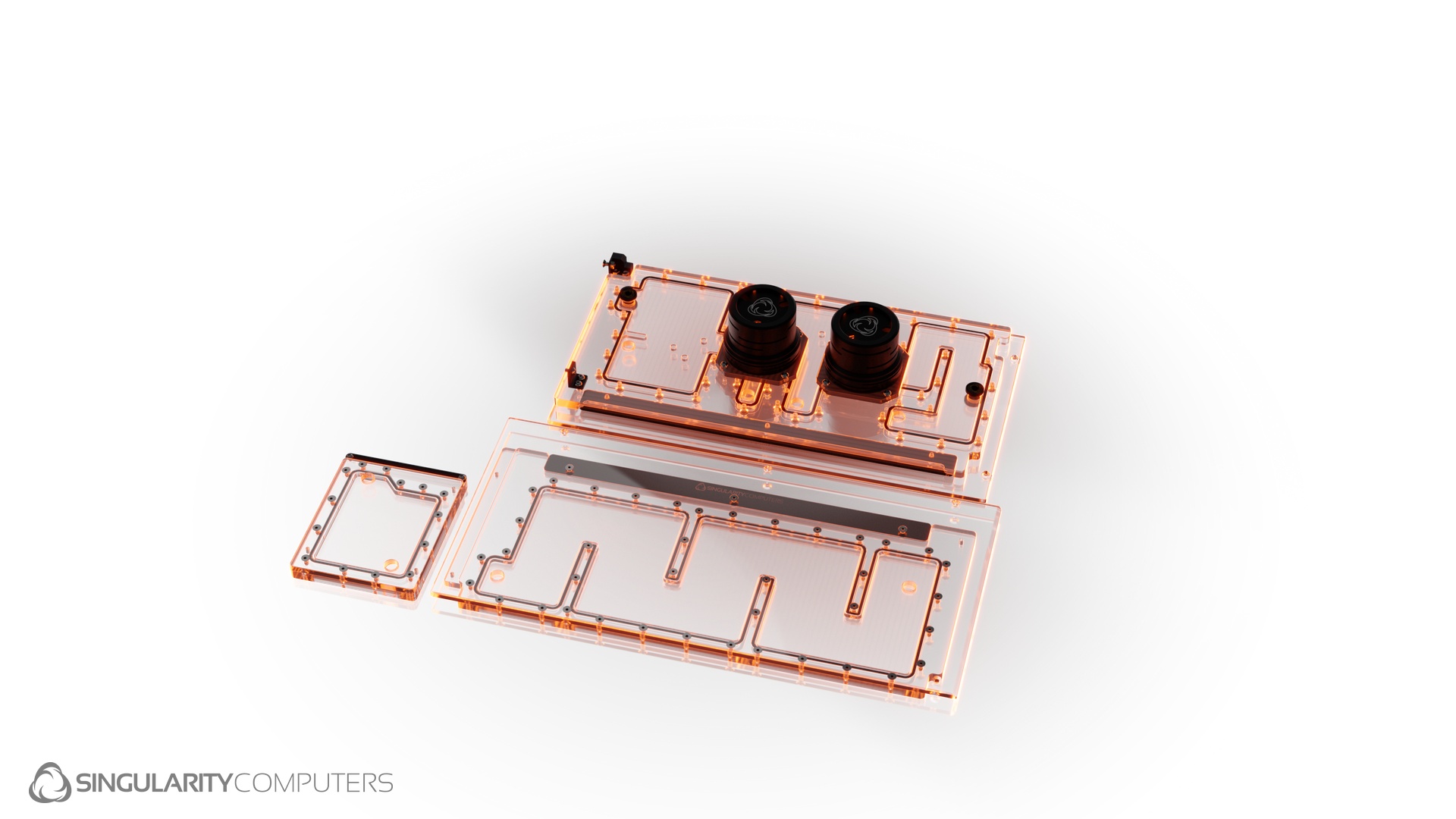

Lian Li O11 Vision Dual Loop Distribution Plate Set
Specifications:
Lian Li O11 Vision Dual Loop Distribution Plate Set. These Distribution Plates can be purchased together or they can be purchased separately (select above).
Lian Li O11 Vision Dual Loop Front Distribution Plate.
Lian Li O11 Vision Dual Loop Top Distribution Plate.
Lian Li O11 Vision Dual Loop Rear Distribution Plate.
Integrated Reservoirs x2.
Integrated D5 Pump Top x2.
D5 Pump Covers CNC Machined Anodized Aluminum x2 (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable x3.
Fasteners: Stainless Steel.
D5 O-Rings: Silicone Clear x2.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dual Loop Distribution Plate Set
Packaged Dimensions: L: 600mm x W: 400mm x H: 100mm.
Packaged Weight: 8kg.
Dual Loop Distribution Plate Set (without rear distribution plate)
Packaged Dimensions: L: 600mm x W: 400mm x H: 100mm.
Packaged Weight: 7kg.
Installation:
This distribution plate set includes a top, front, and rear panel distribution plate. The top and front distribution plates replace the stock tempered glass top and front panels. The rear distribution plate mounts on the rear fan mounting location above the expansion slots. See installation manual link above.
RELATED PRODUCTS

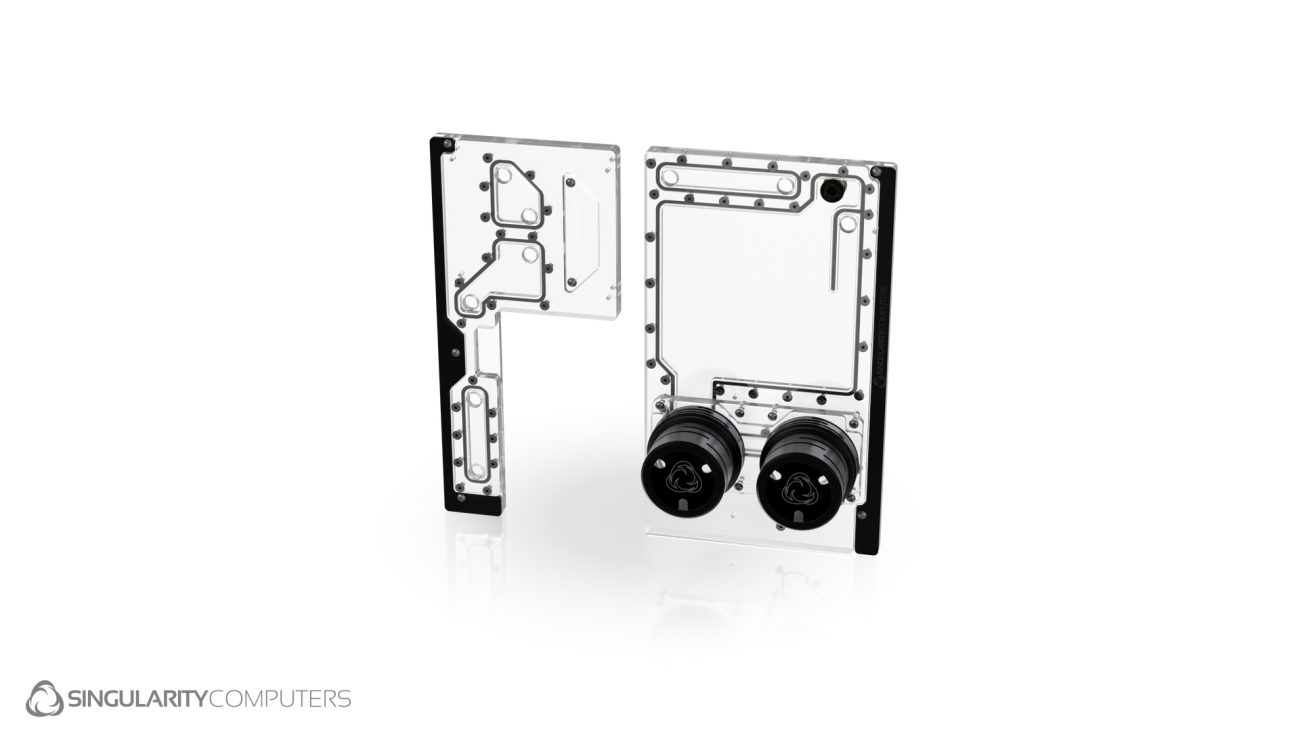

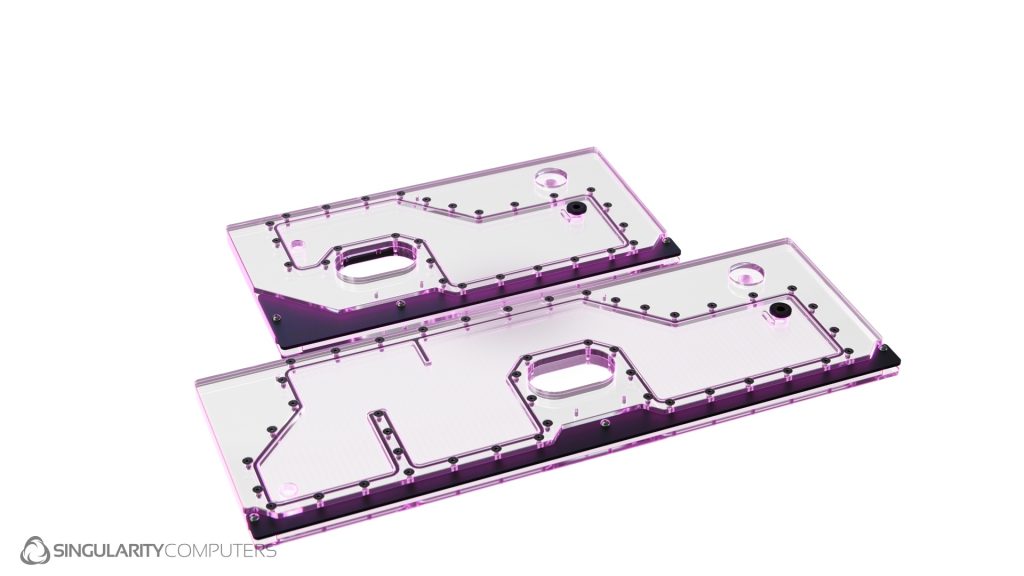

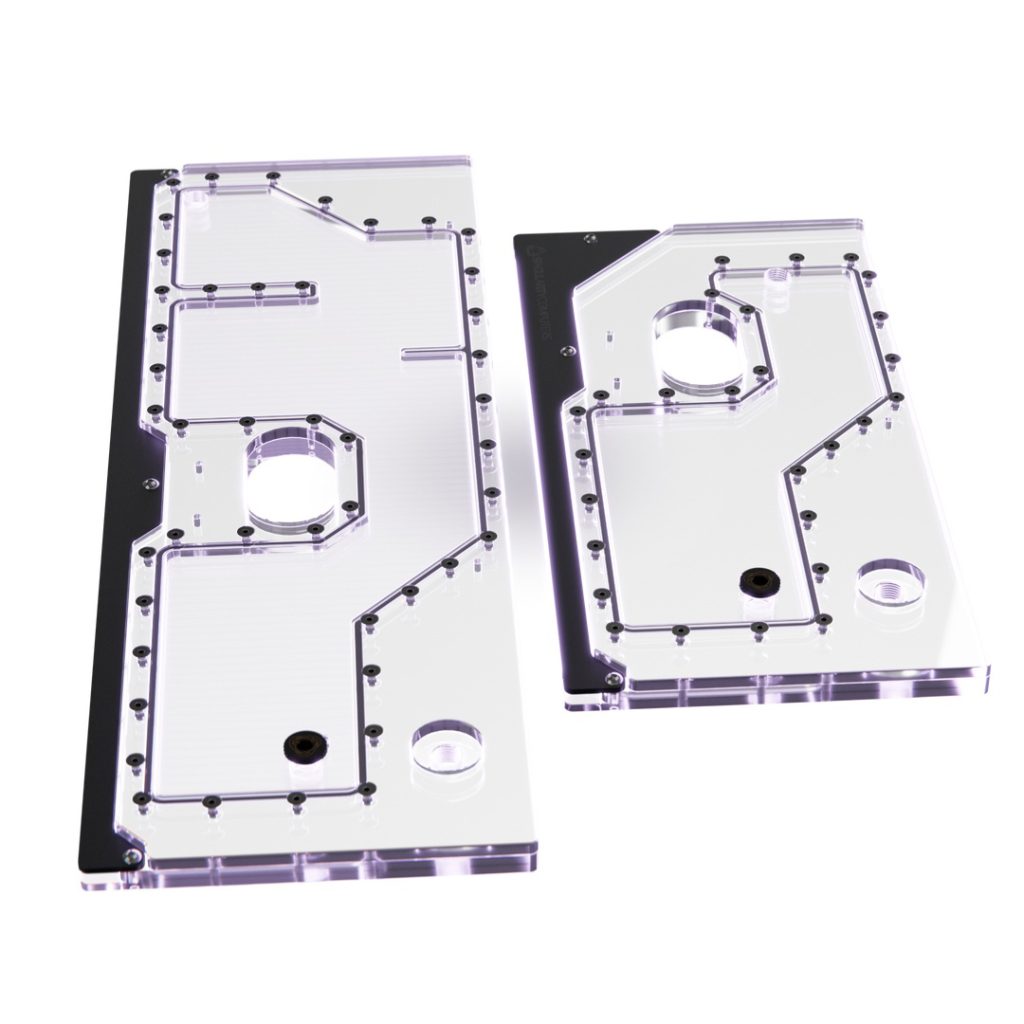

Lian Li V3000+ Single Loop Distribution Plate Set
US$129.00 US$399.00Price range: US$129.00 through US$399.00

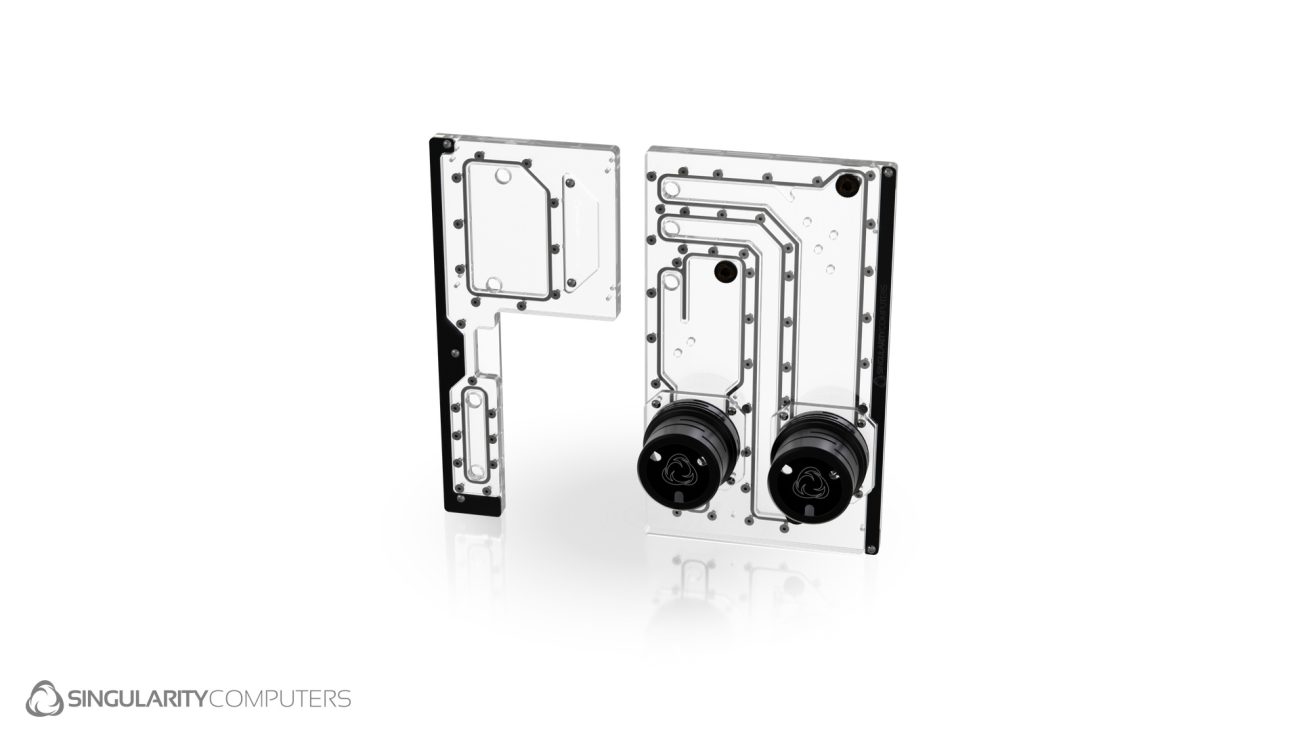

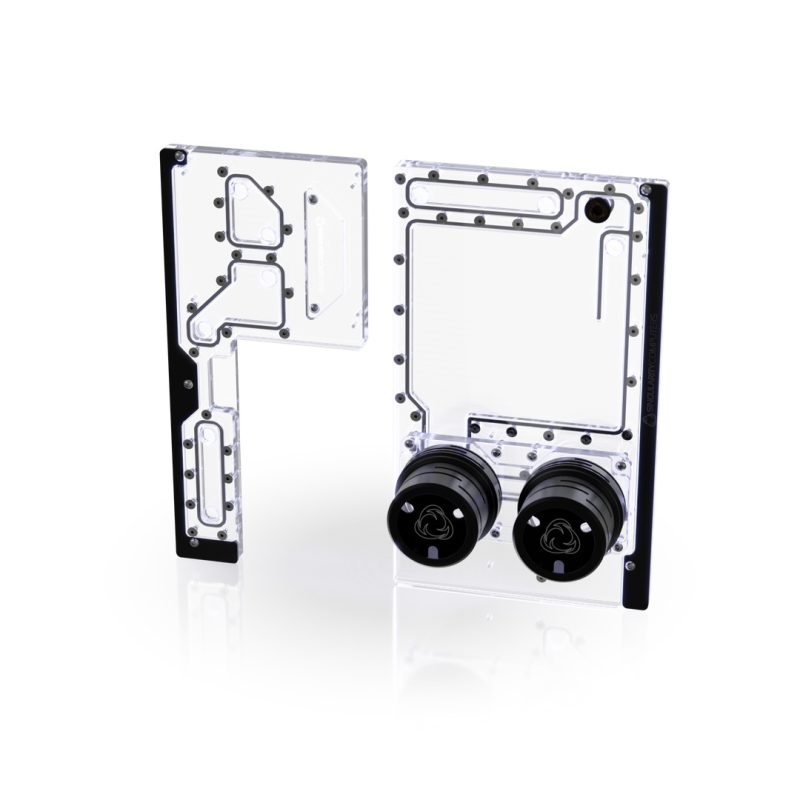

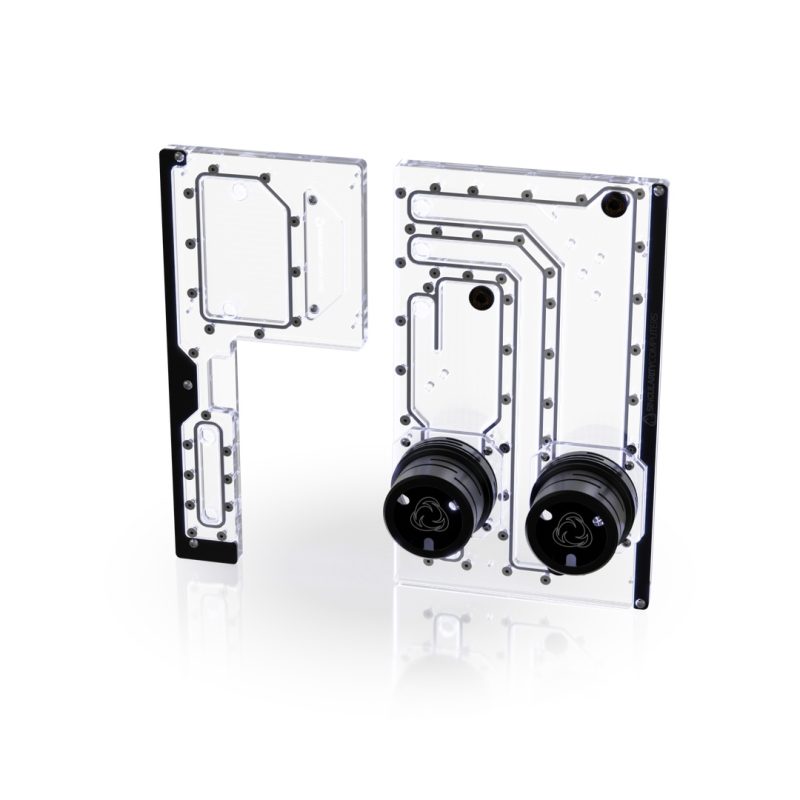

Lian Li V3000+ Dual Loop Distribution Plate Set
