Portal ITX Wall Mount Water-cooling Case

In stock

Order processing time 1-2 days.

  • Open wall-mounted ITX water-cooling display case
  • Supports 2x 240mm or 280mm radiators, one on each side of the motherboard
  • No radiator or fan thickness limitations
  • Integrated distribution plate with D5 pump top and reservoir
  • Integrated loop routing for short, clean tubing runs
  • Supports horizontal or vertical GPU mounting
  • Compatible with ITX motherboards and SFX power supplies

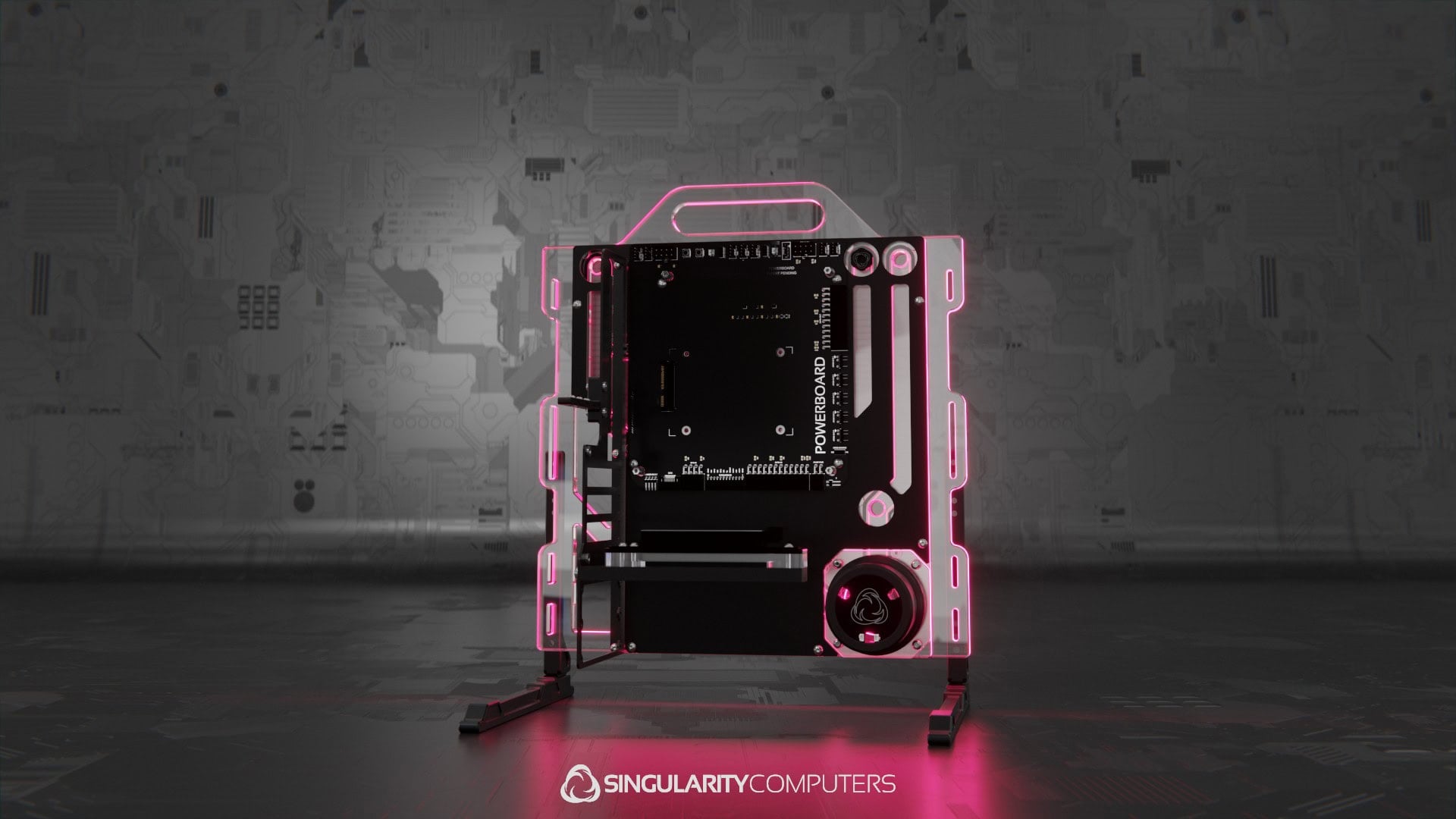

  • Optional PowerBoard for improved cable management
  • Customizable acrylic cover colors and finishes

Note: PowerBoard coming soon.

Manuals

US$299.00

Select Case Colour Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$23.92 Silver Mirror +US$23.92 Gold Mirror +US$23.92 Satin Black

Rear, Top and Front Panel Covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select GPU Mount USD $29-99
Horizontal GPU Mount +US$29.00 Vertical GPU Mount +US$99.00 Horizontal GPU Mount(+US$29.00)

GPU Mount

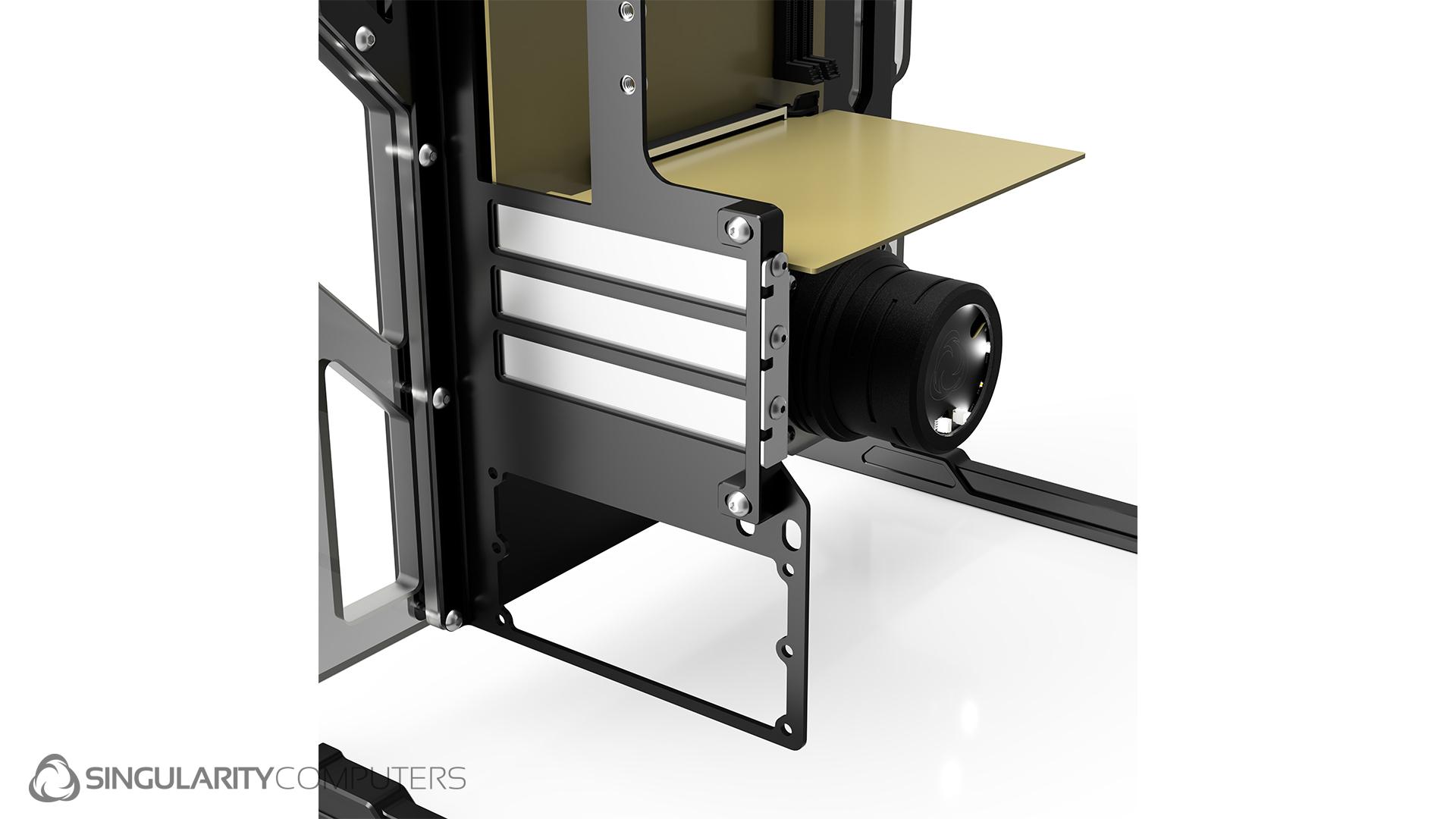

Horizontal GPU Mount: CNC milled 6061 anodized aluminium Horizontal GPU mount bracket.

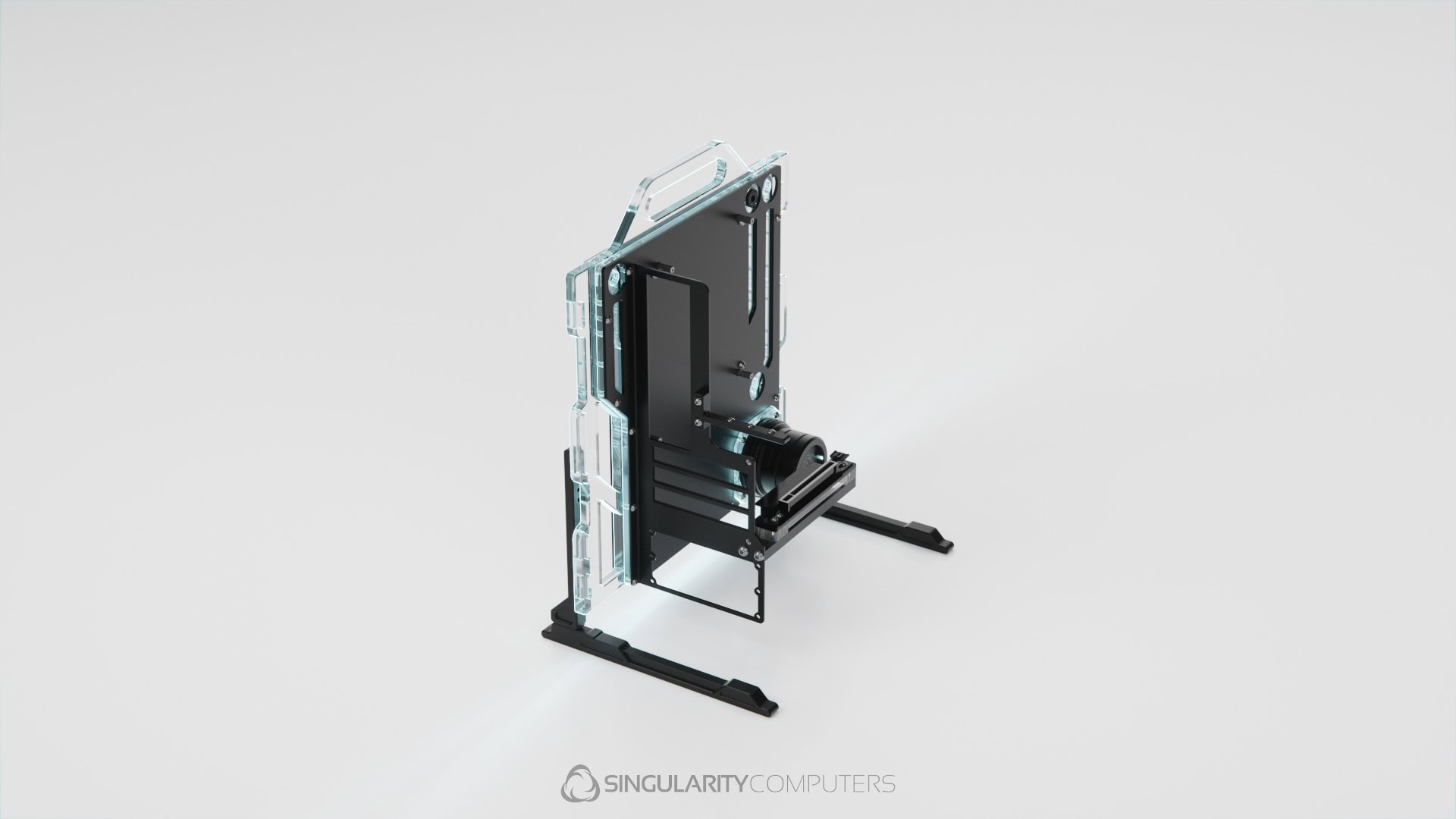

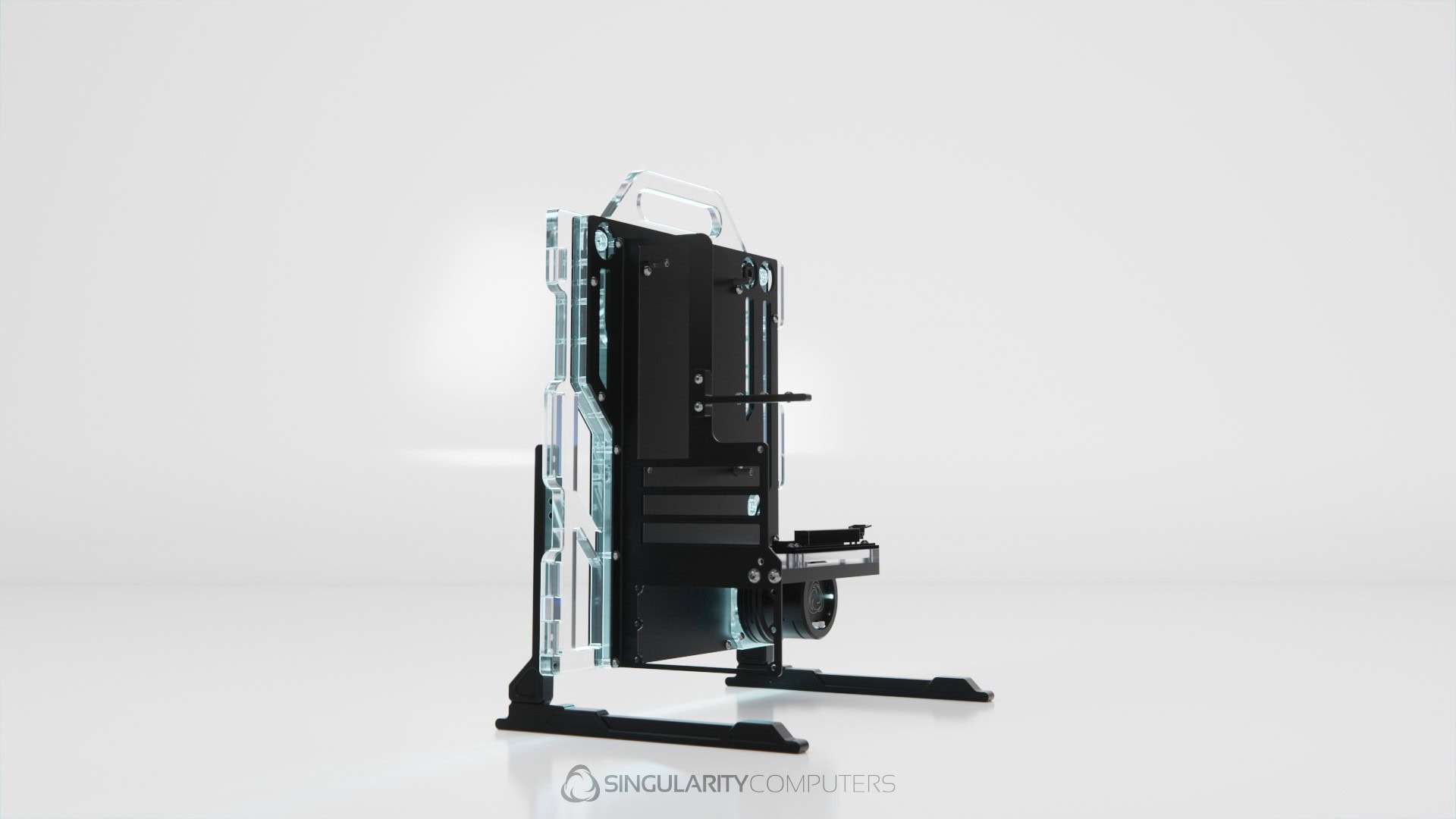

Vertical GPU Mount: CNC milled 6061 anodized aluminium and acrylic mount with PCIE 5.0 Riser Cable.

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x1 (optional) USD $4
None Yes +US$24.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Mounting

VESA Mount (optional) USD $29
None Yes +US$29.00

Vesa Mount
Powdercoated Steel VESA Mount Plate for wall mounting.

Additional options

Atlas Stand Set (optional) USD $119
None Yes +US$119.00

Atlas Stand Set
CNC machined black anodized 6061 aluminum legs and feet for standing the case on a desk if it will not be wall mounted.

  • 1x Portal ITX Wall Mount Water-cooling Case
    US$299.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003374 SKU: SC-PORT-WM-ITX Categories: ,

Description

Read More +Read Less − full description

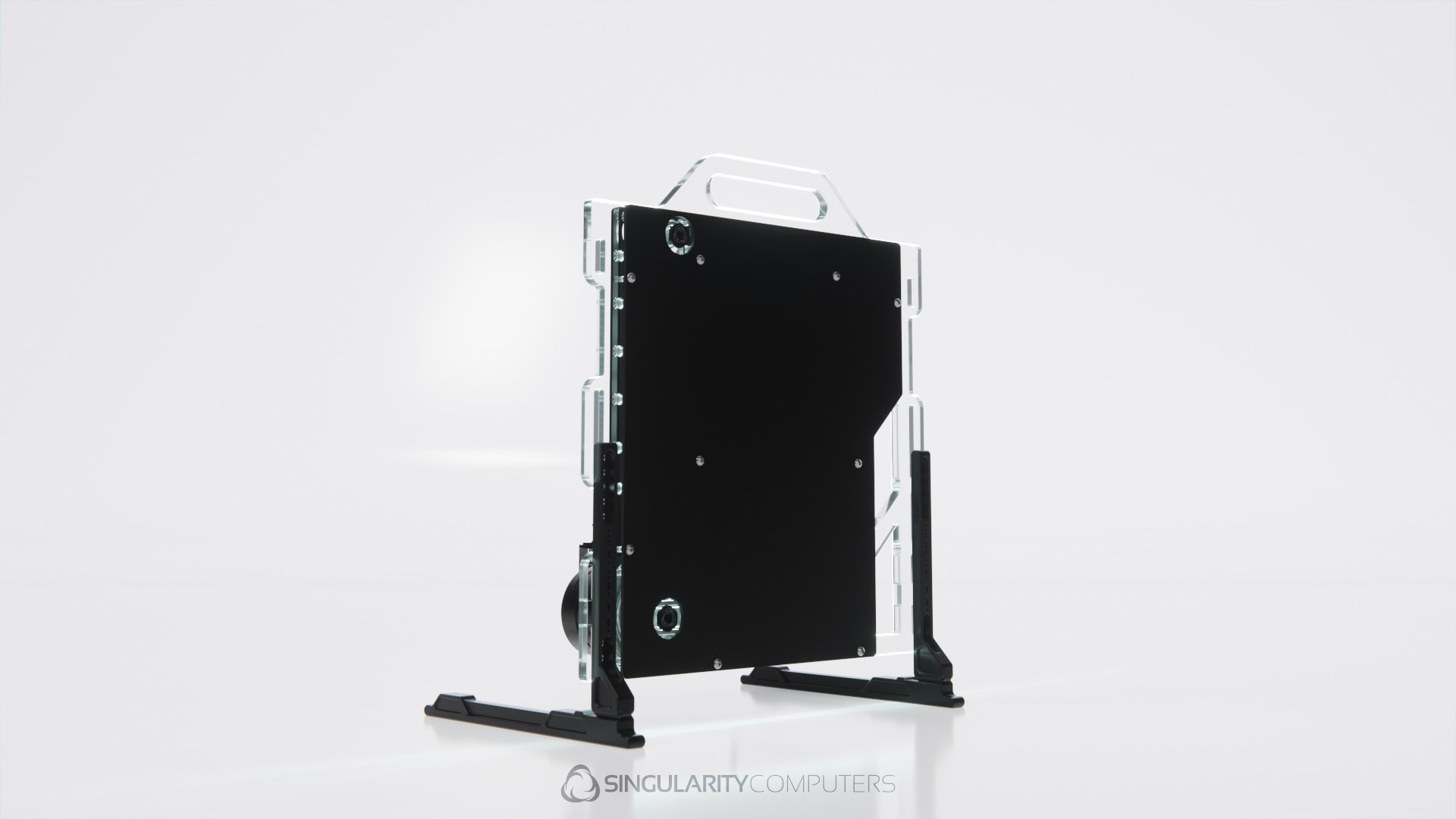

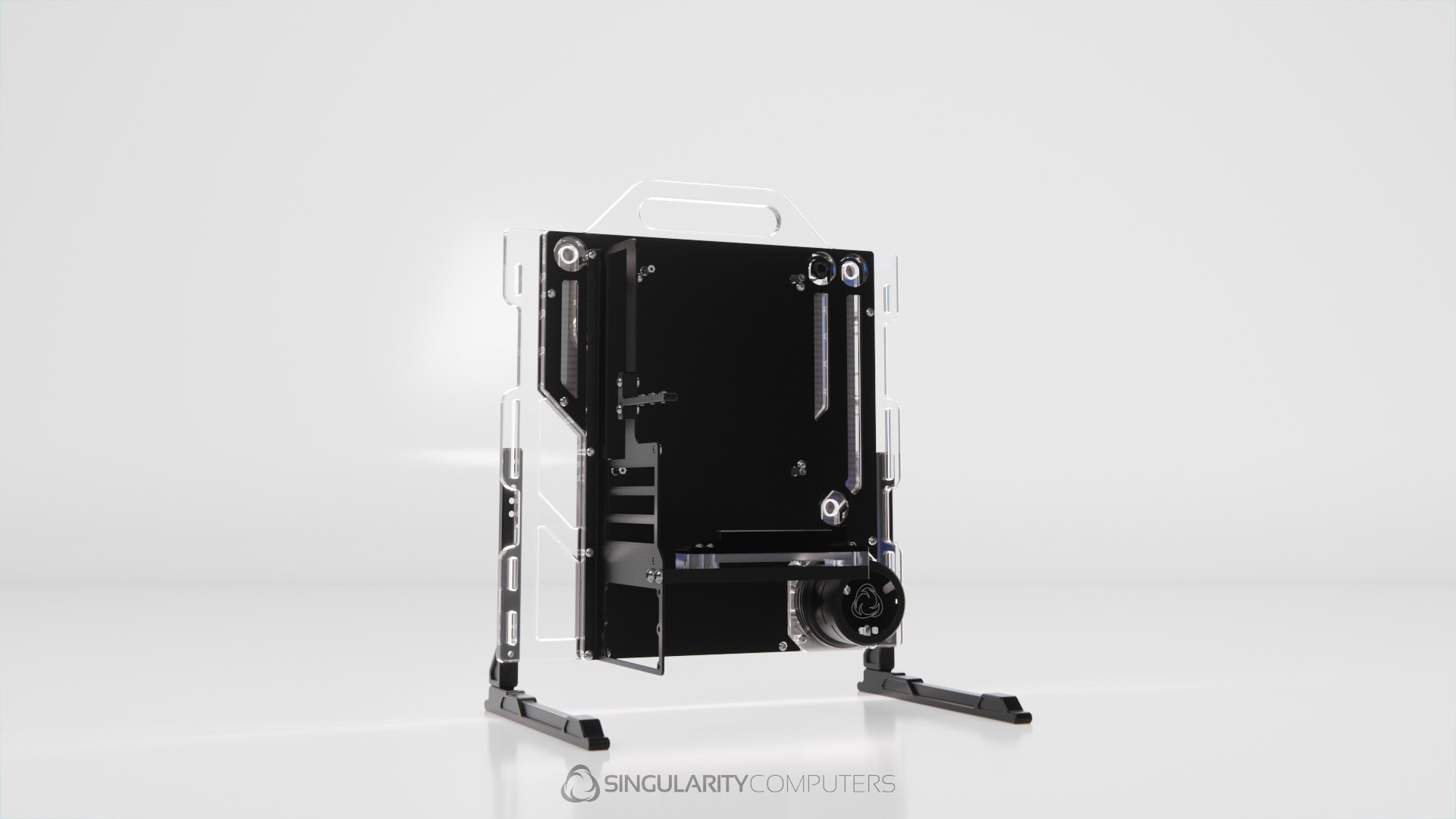

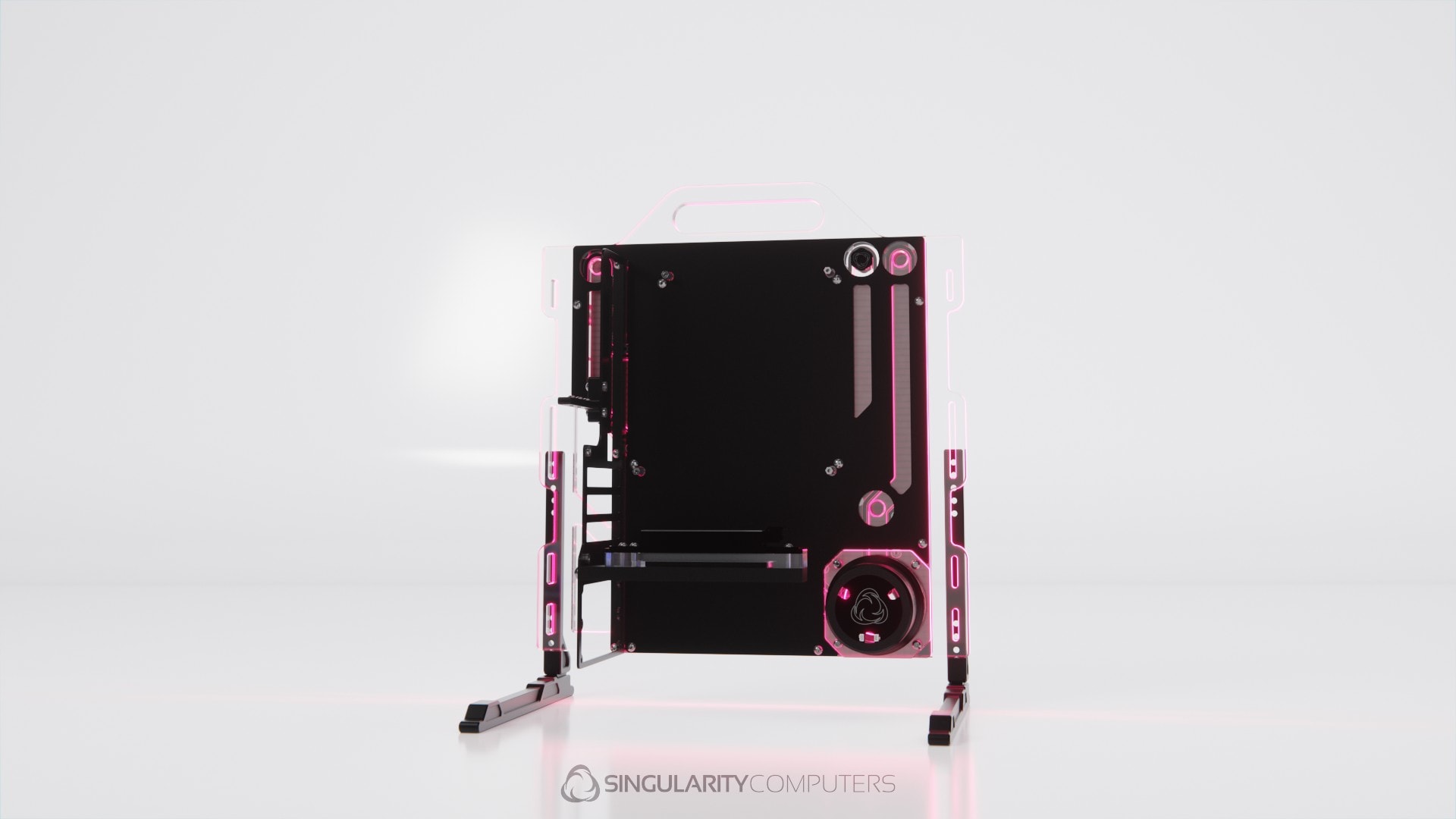

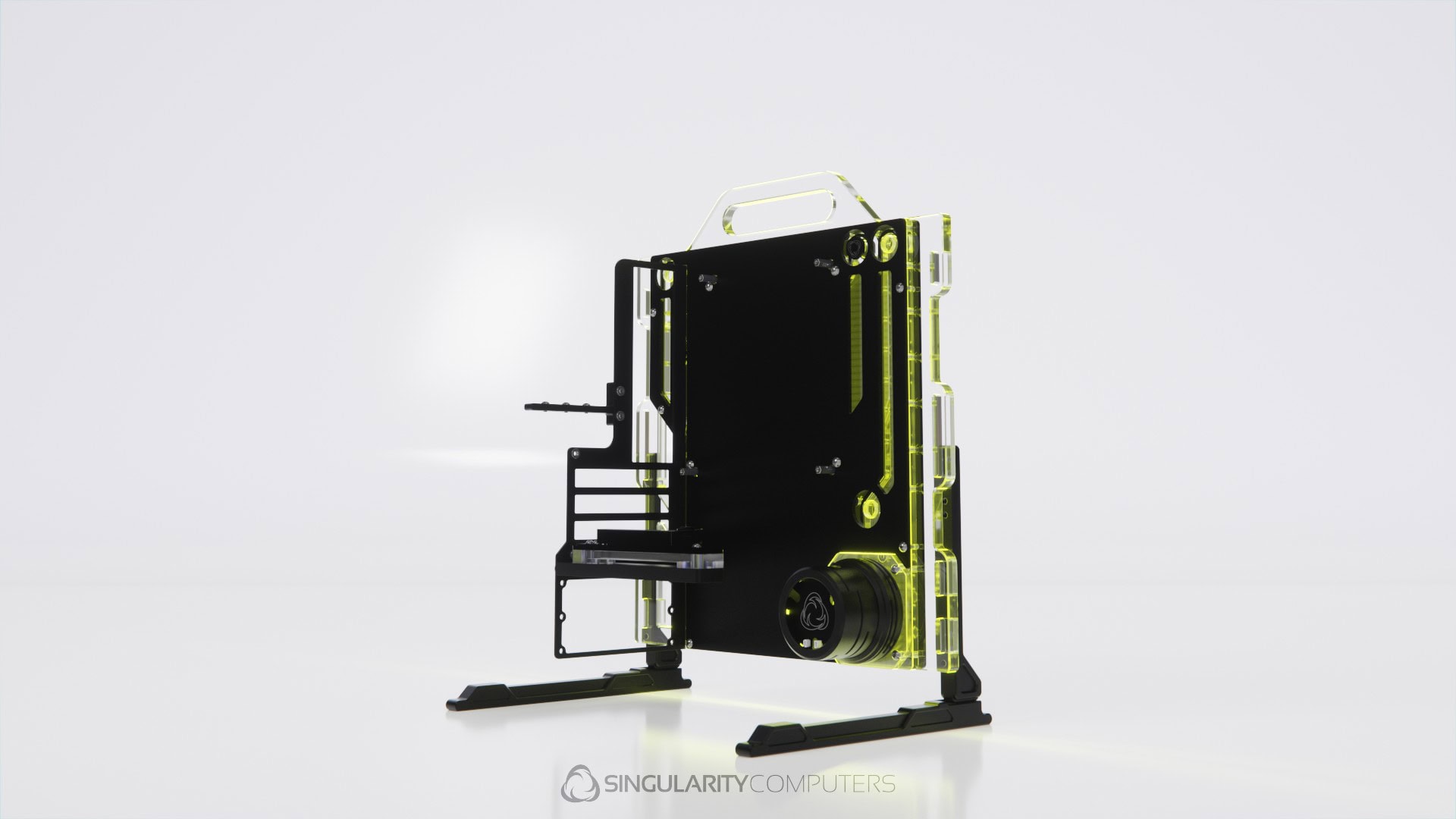

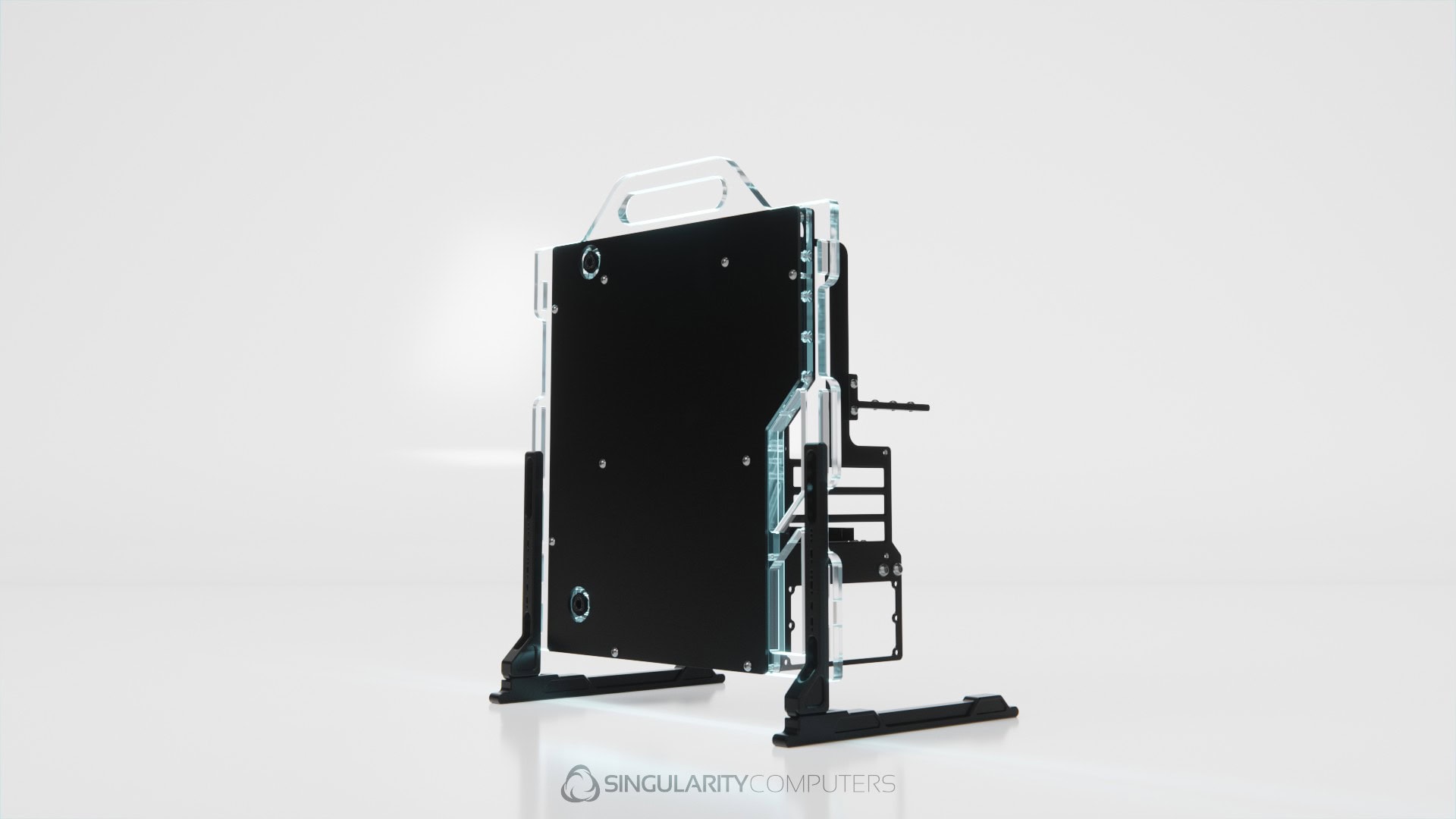

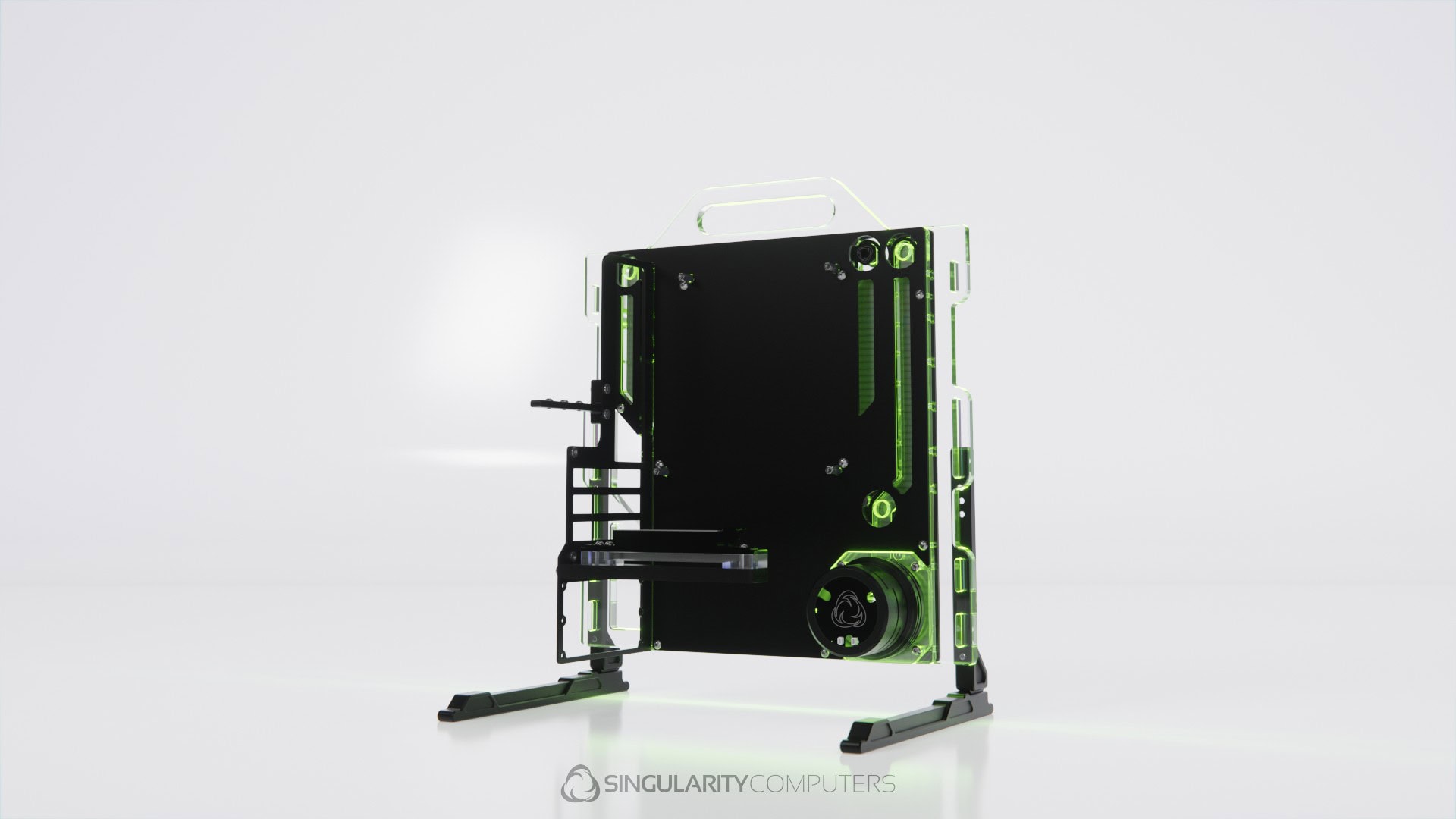

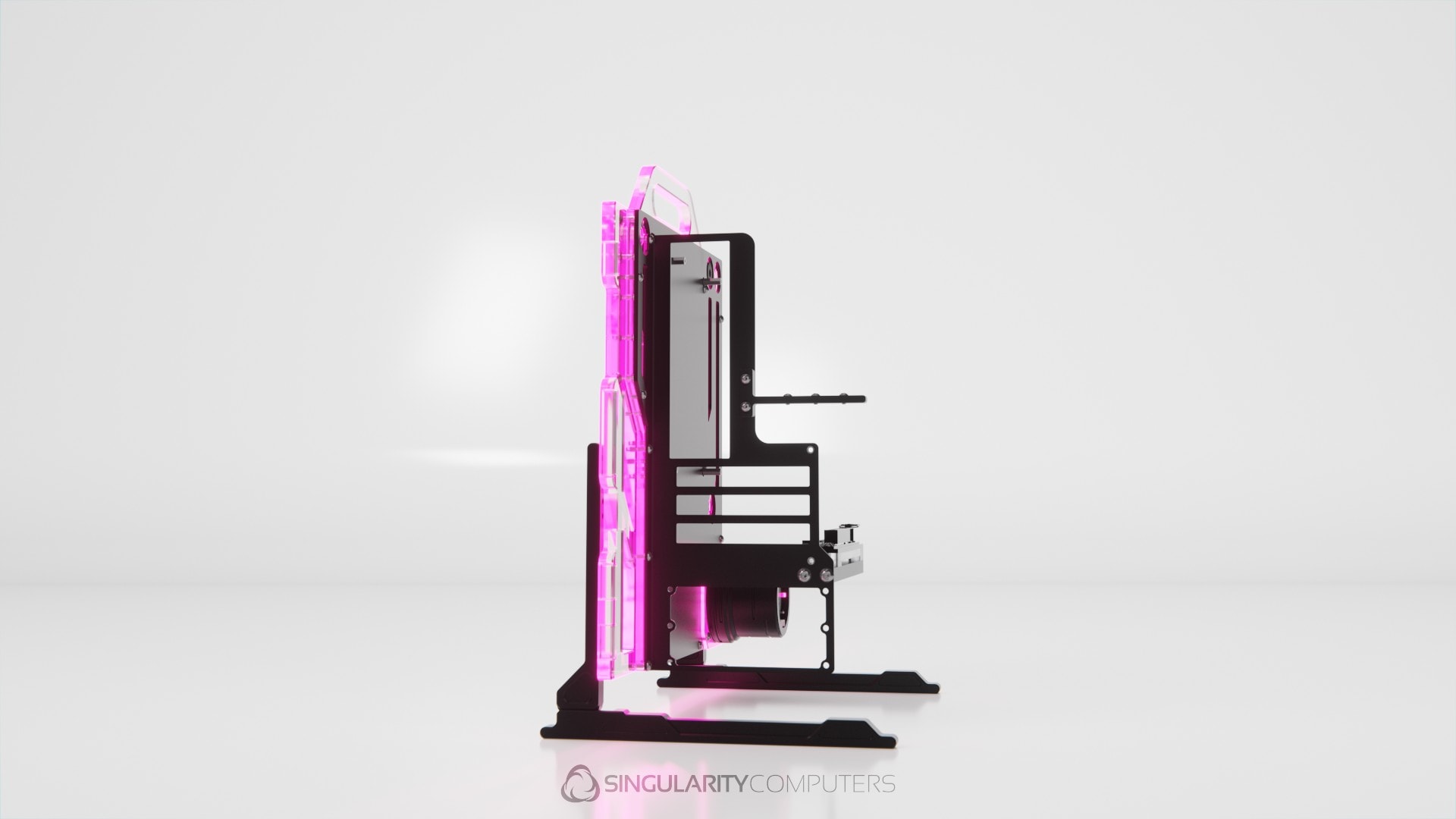

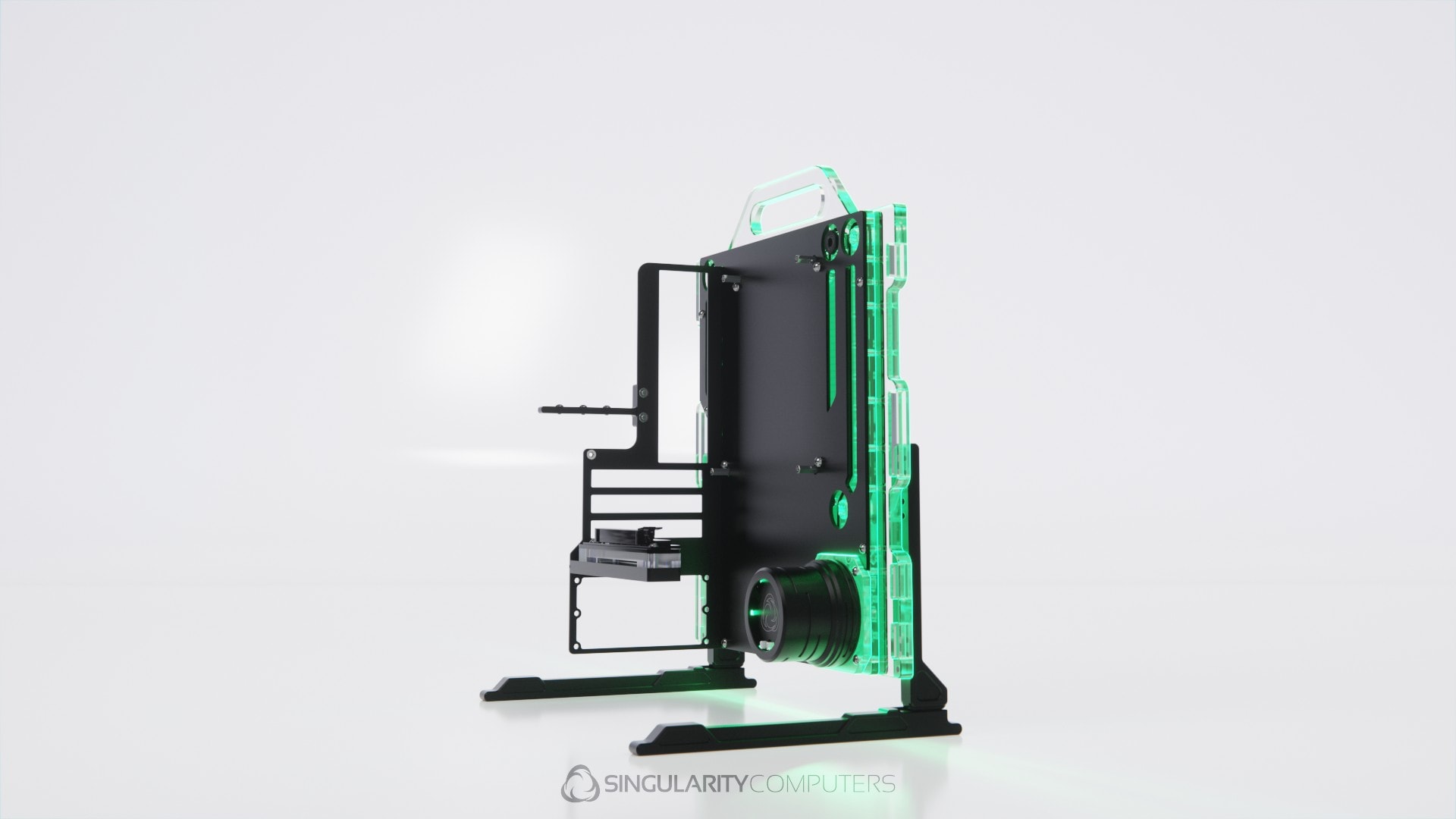

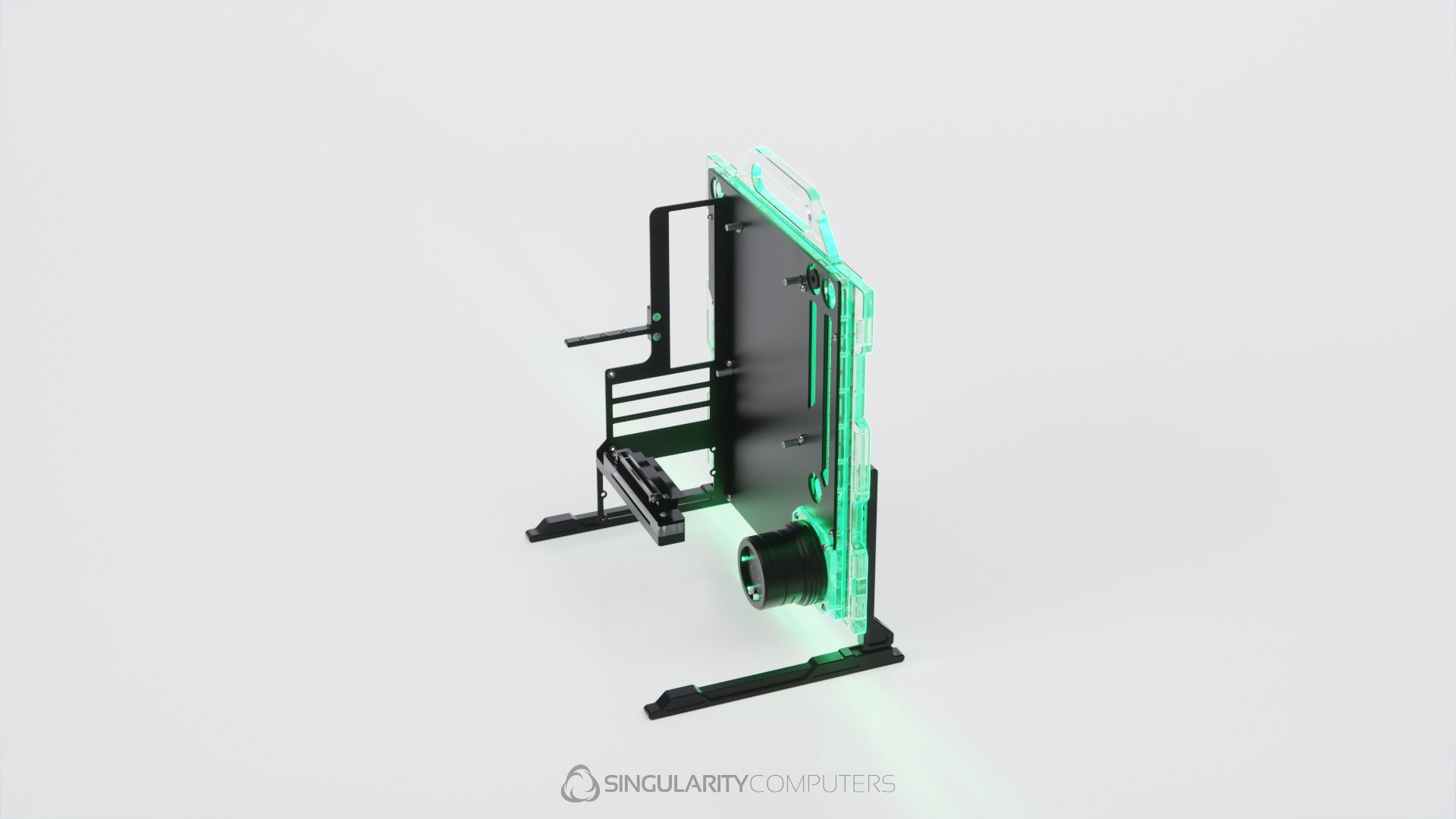

Portal ITX Wall Mount Water-cooling Case is an open wall mounted display case. It fits 2x 240mm or 280mm radiators, one on each side of the motherboard. There is no limitation to radiator or fan thickness. It has an integrated distribution plate with D5 pump top and reservoir and parts of the loop are also integrated for short and clean loop routing. The GPU mounts horizontally or vertically depending on the options selected below. Portal fits and ITX motherboard and SFX PSU. There is a PowerBoard option to improve cable management. Select Acrylic cover color and finish options below.

Specifications

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x12 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Motherboard Form Factor: E-ATX, ATX, Mini-DTX, Mini-ITX.
Case Dimensions: TBA.
Case Weight: TBA.
Packaged Dimensions: TBA. (Case is flat packed and requires partial assembly).
Packaged Weight: TBA.
Radiators: 240mm or 280mm x2 with unlimited thickness for radiators and fans.
Maximum GPU Length: Unlimited.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: 250mm.
Front Panel I/O: No Front I/O. Vandal Switch 16mm Power & Reset.
Vertical GPU Mount: x1 with PCIE 5.0 Riser.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Folding Steel, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
