Portal Wall Mount Water-cooling Case

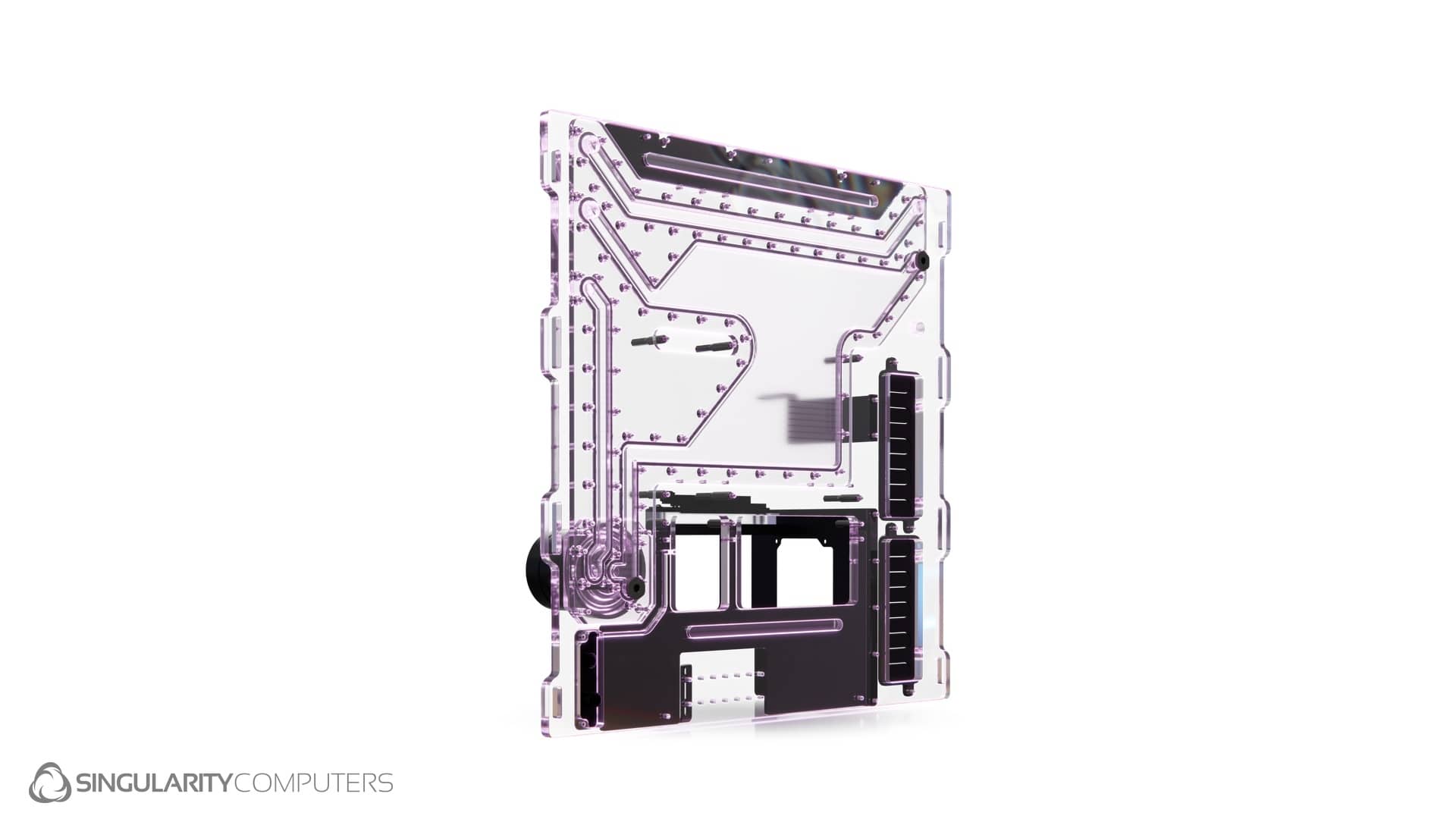

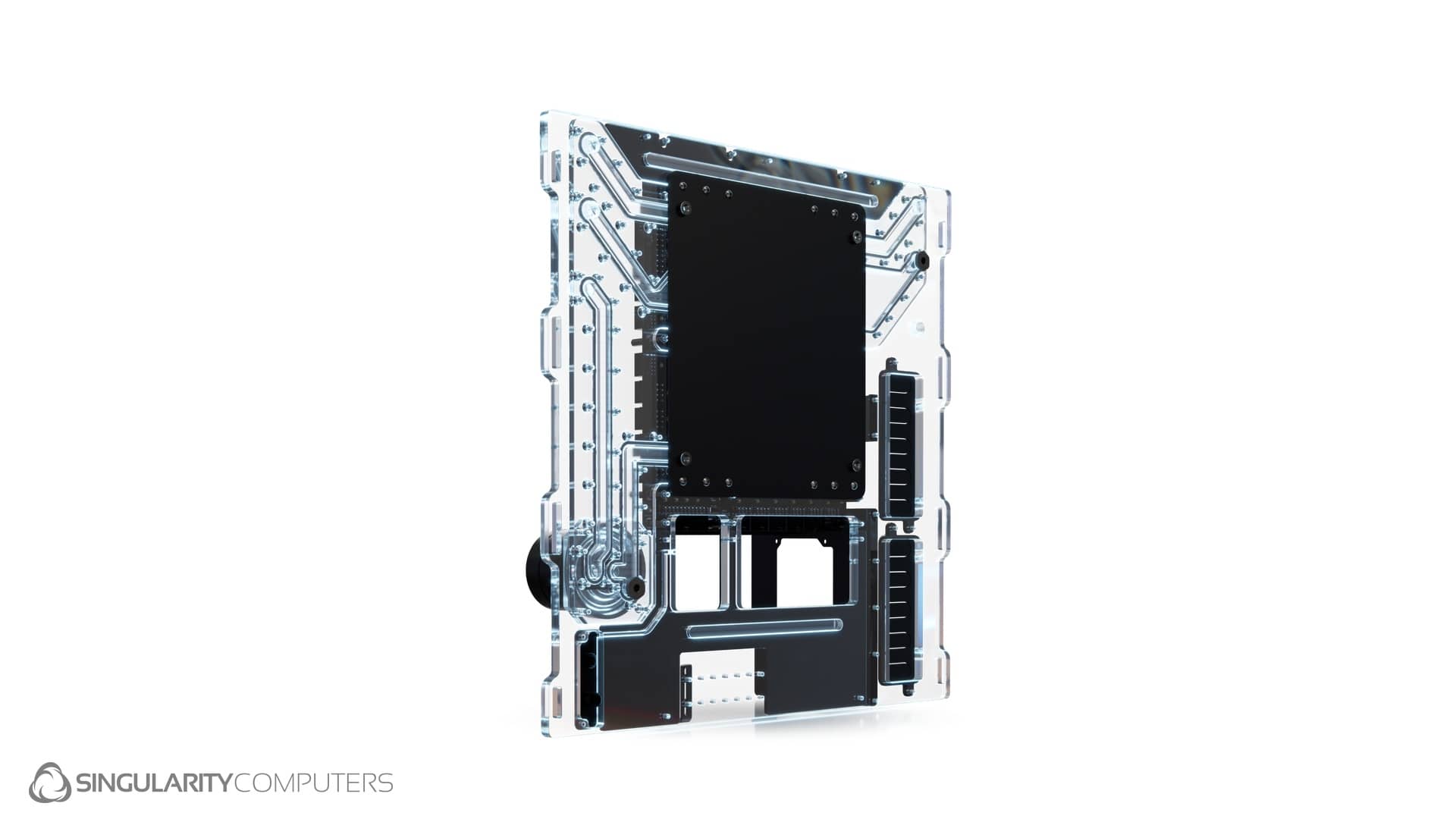

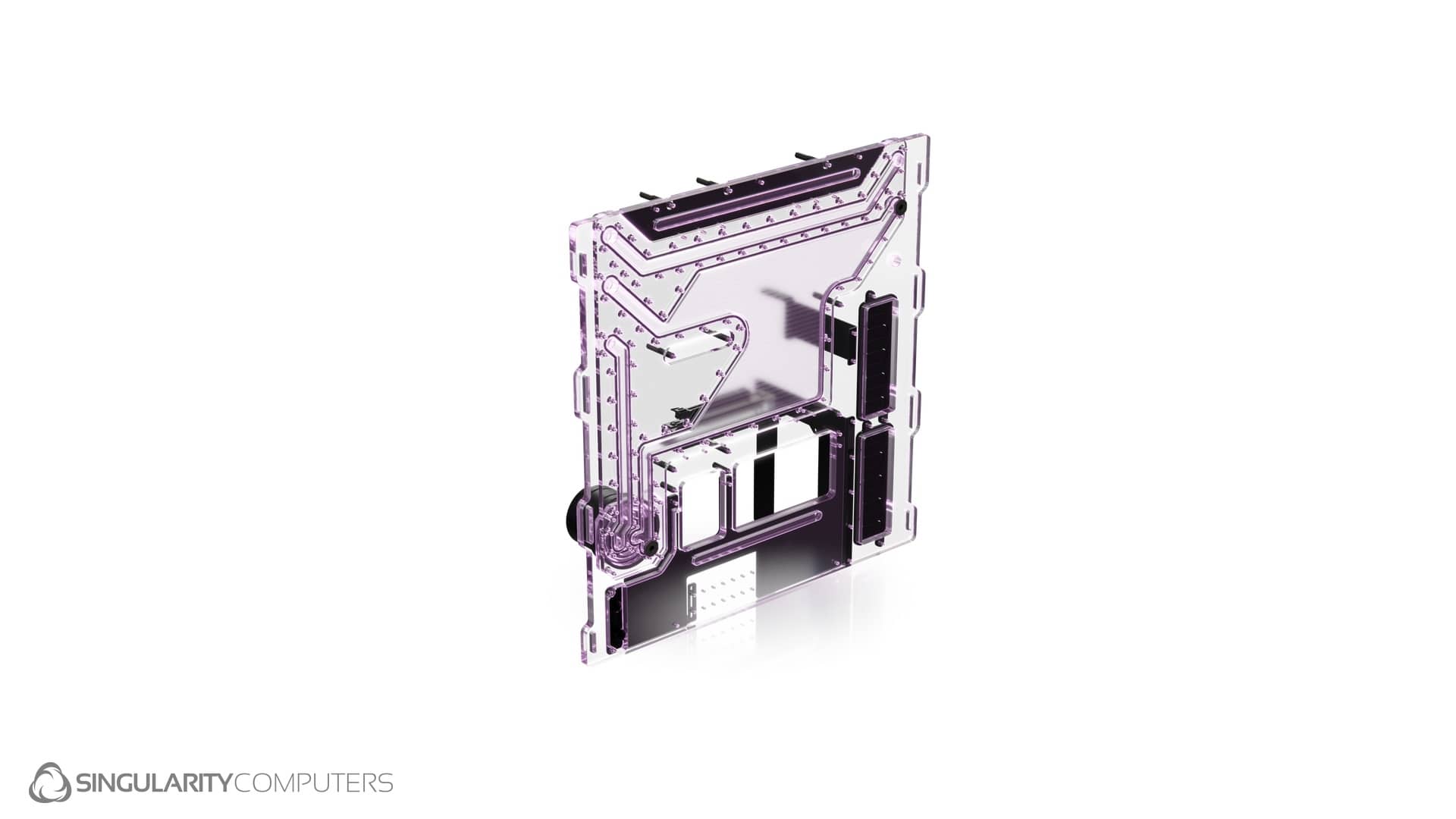

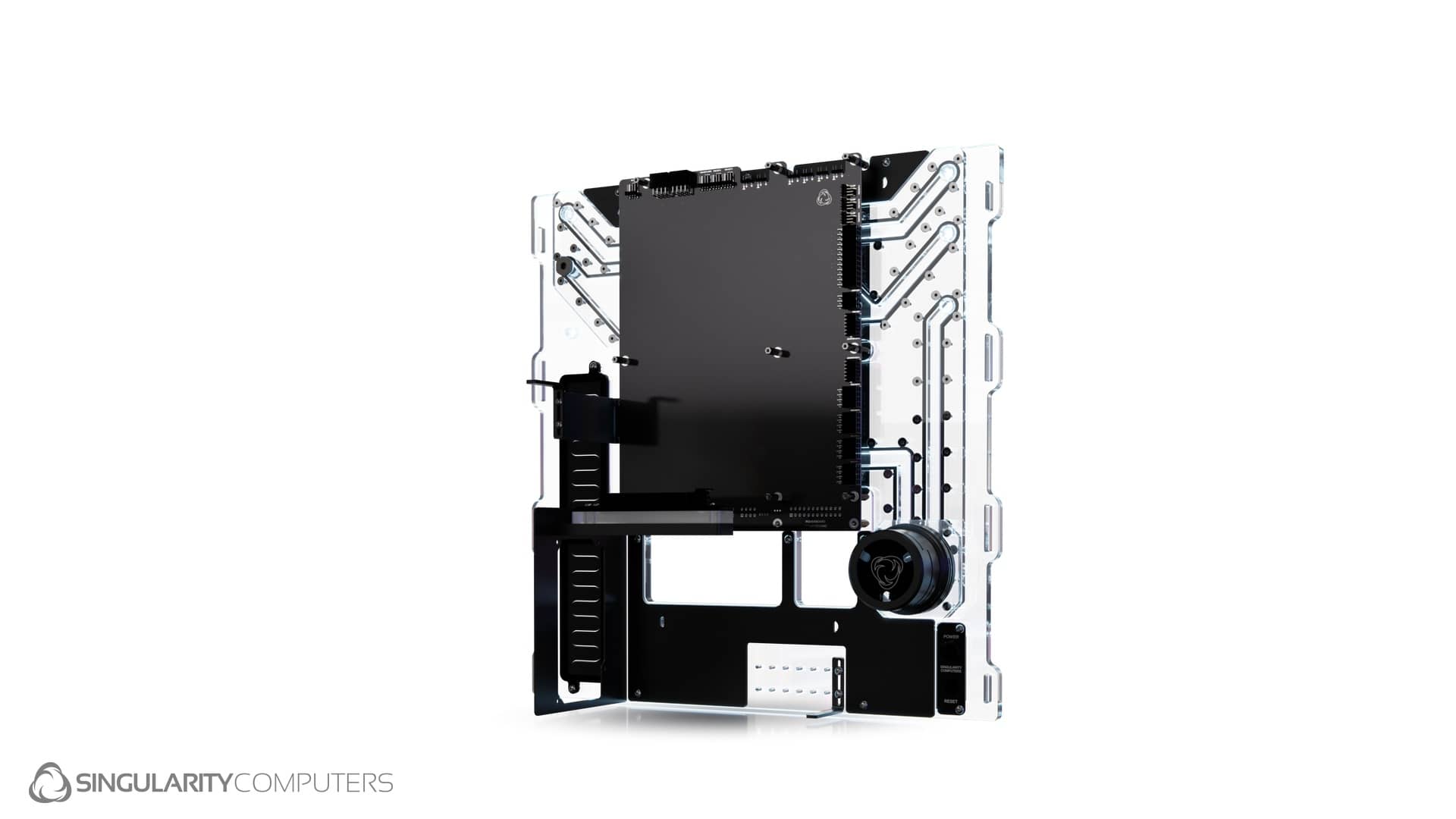

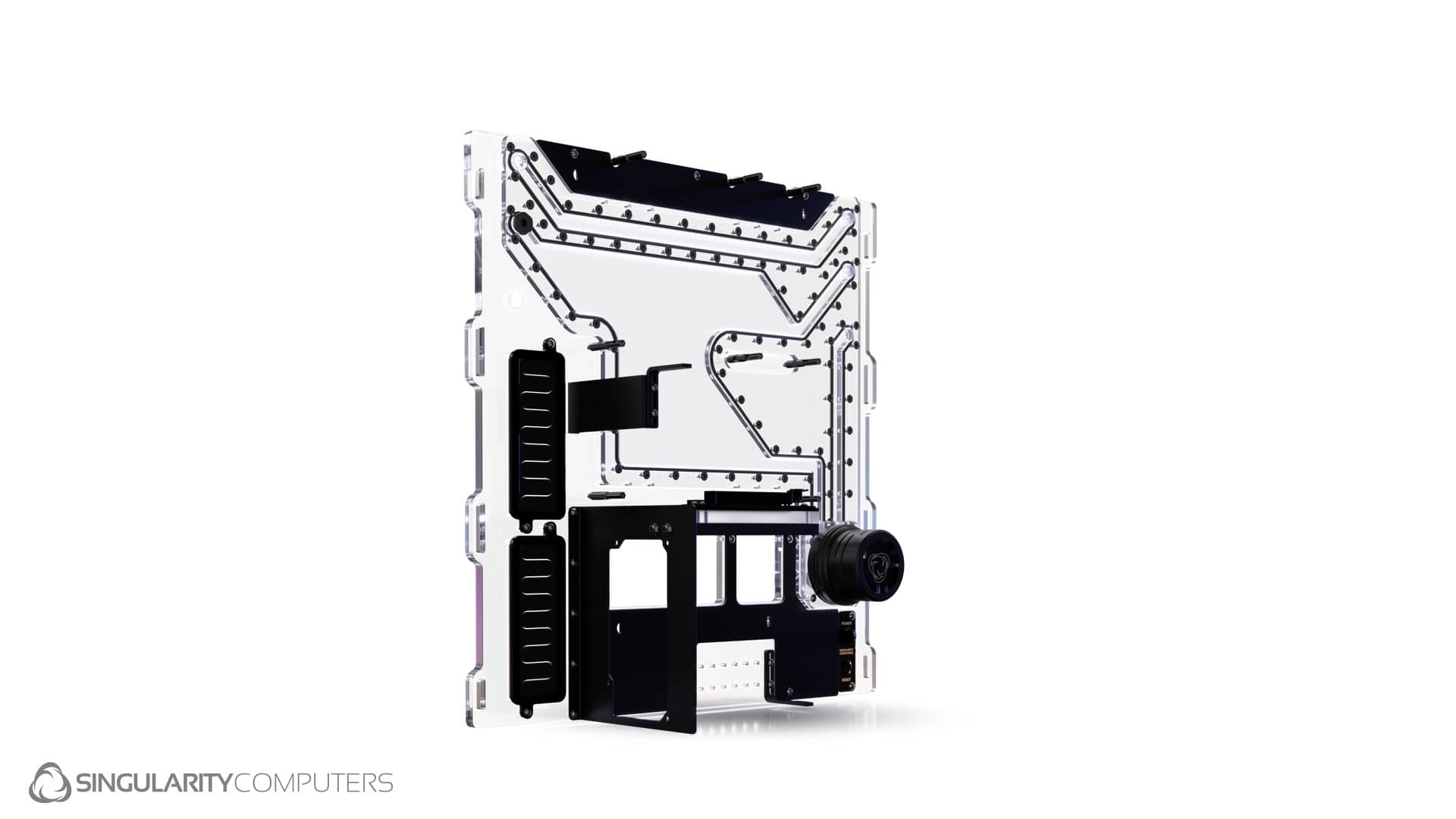

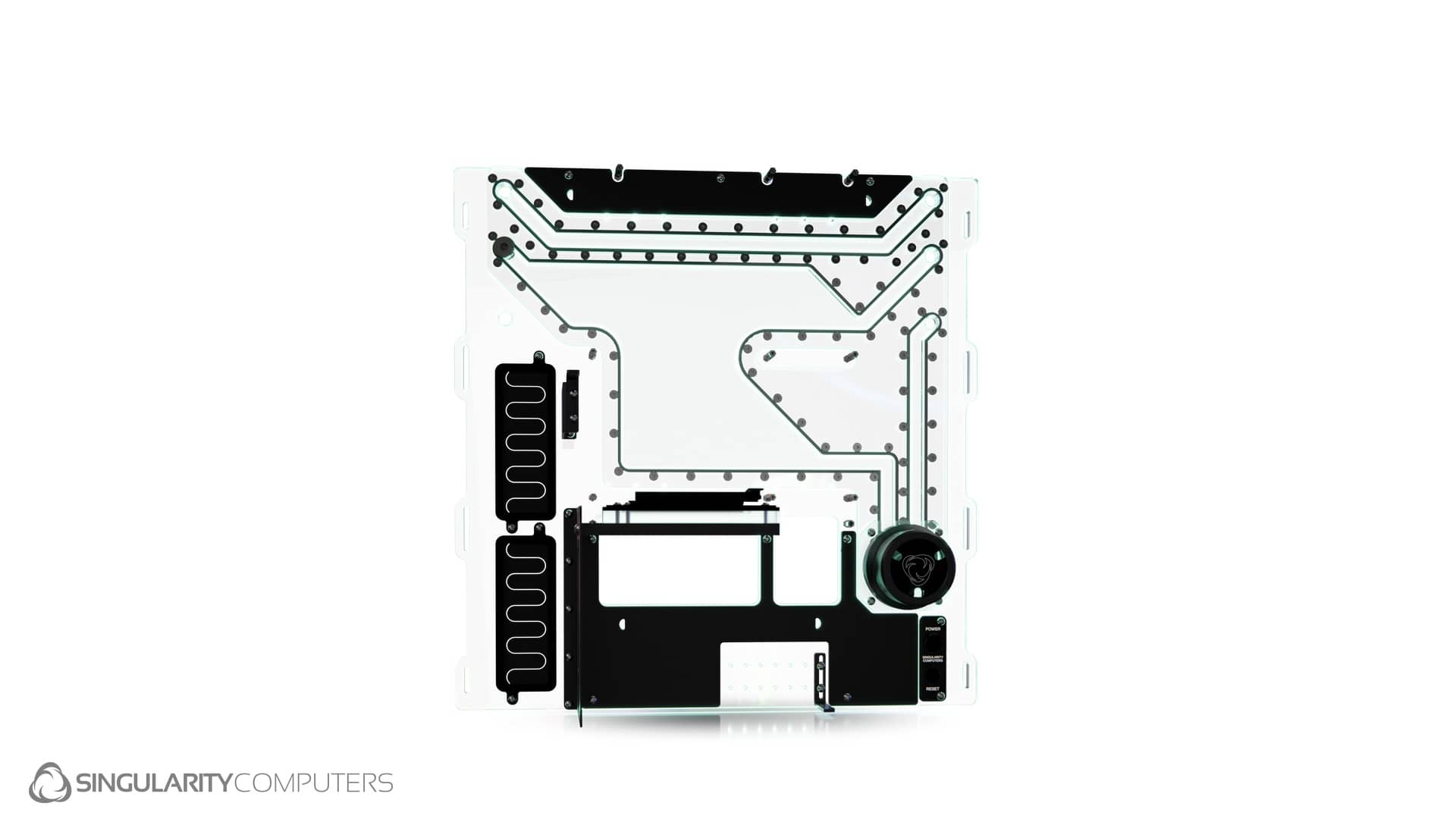

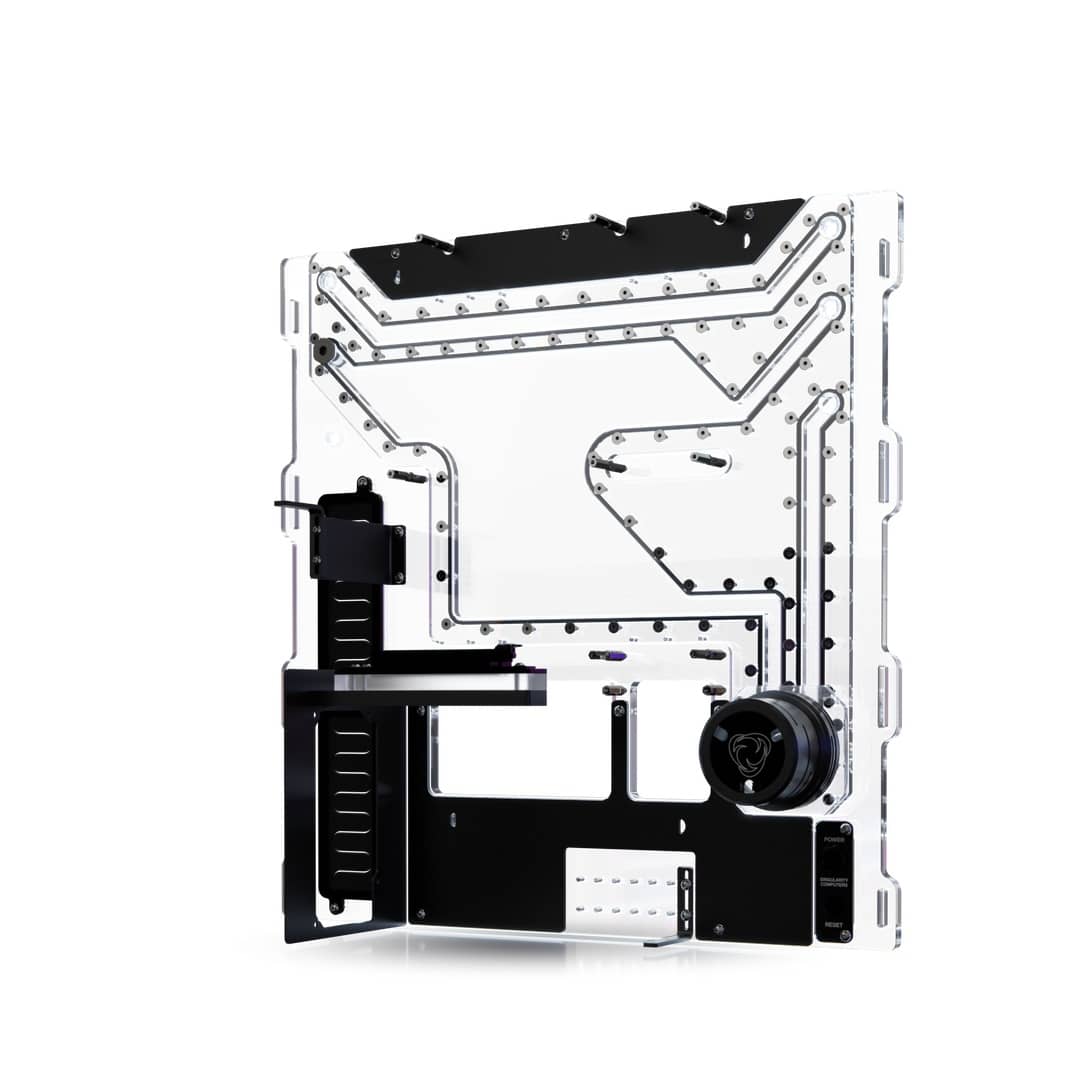

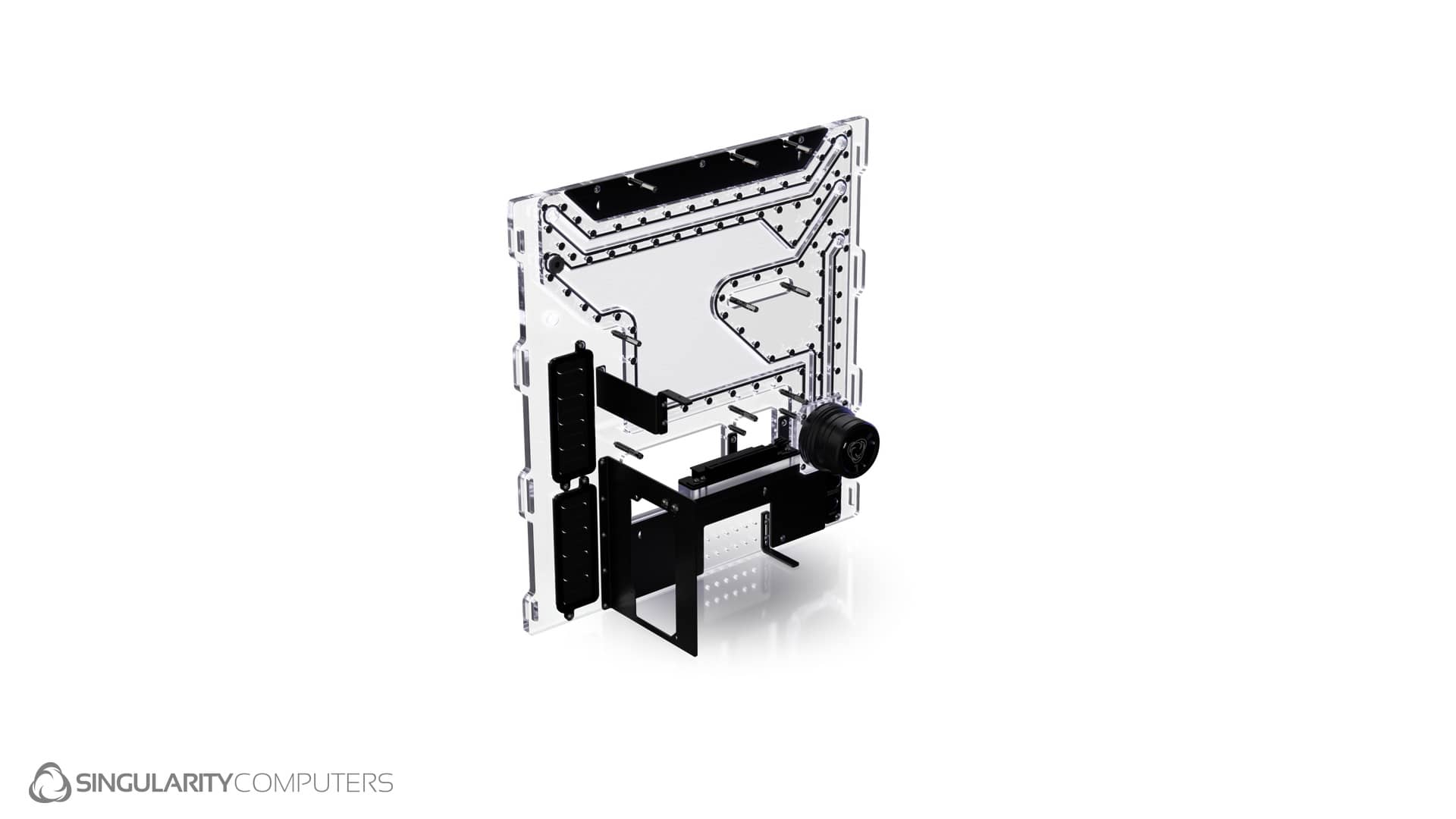

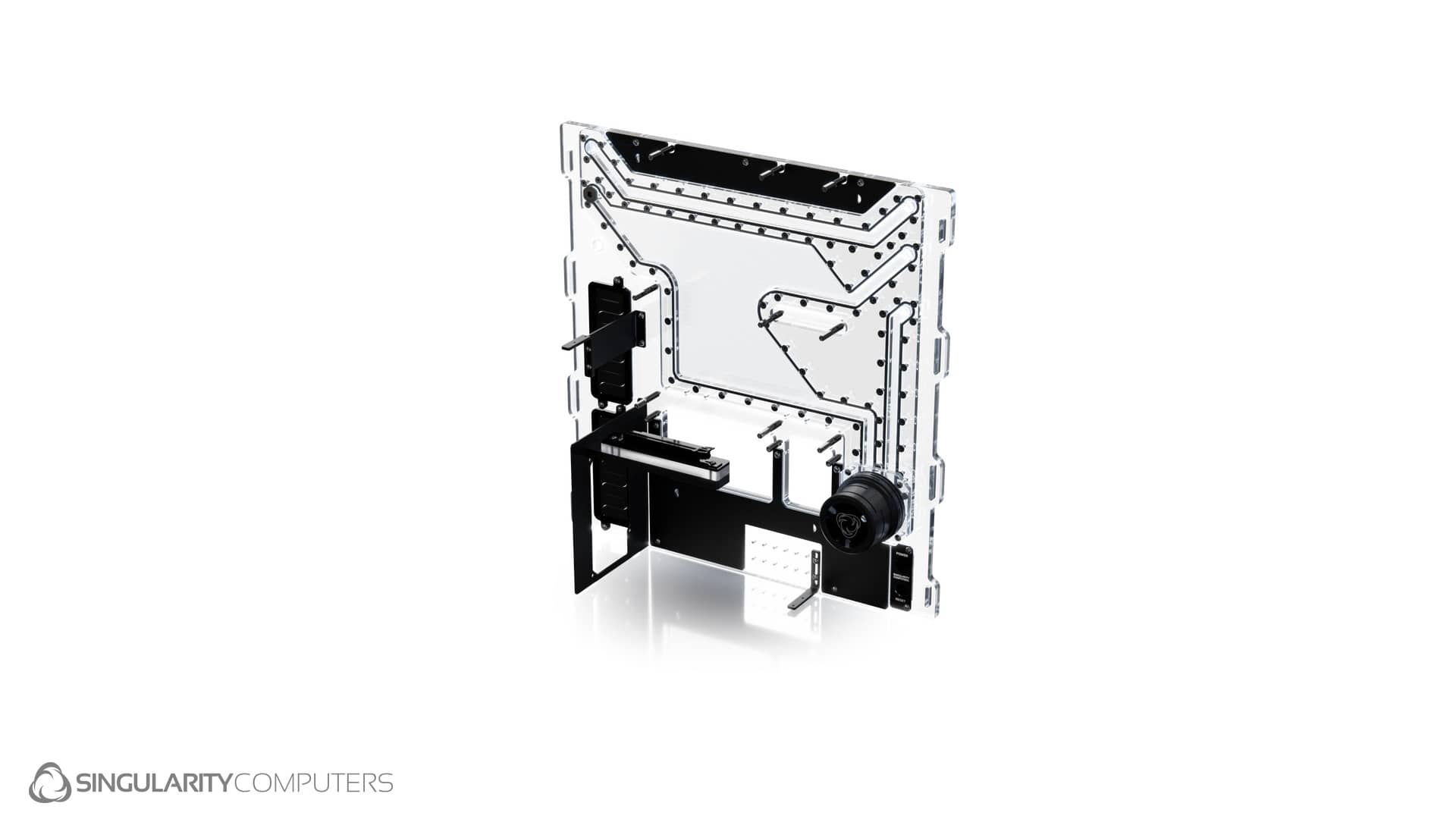

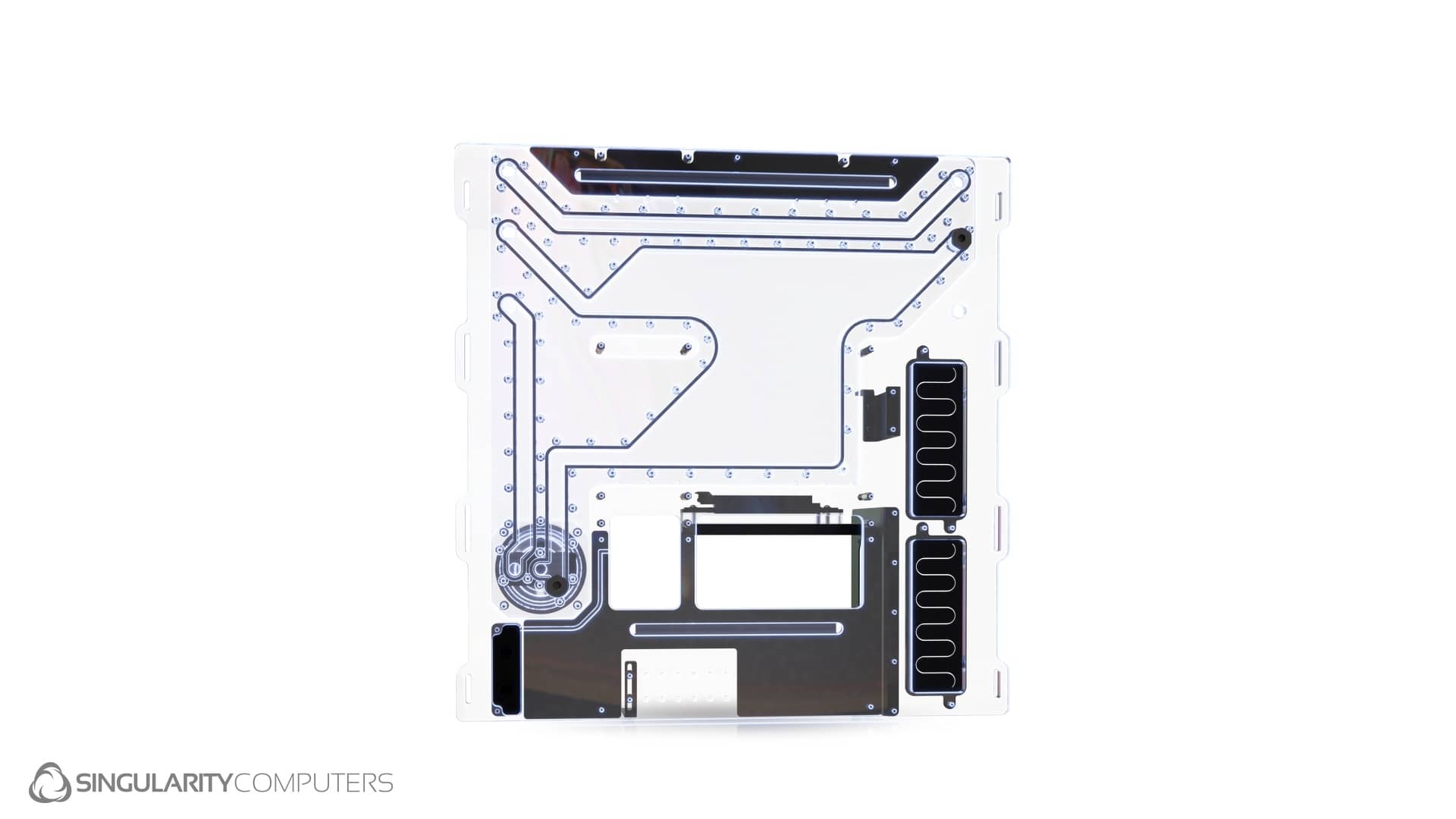

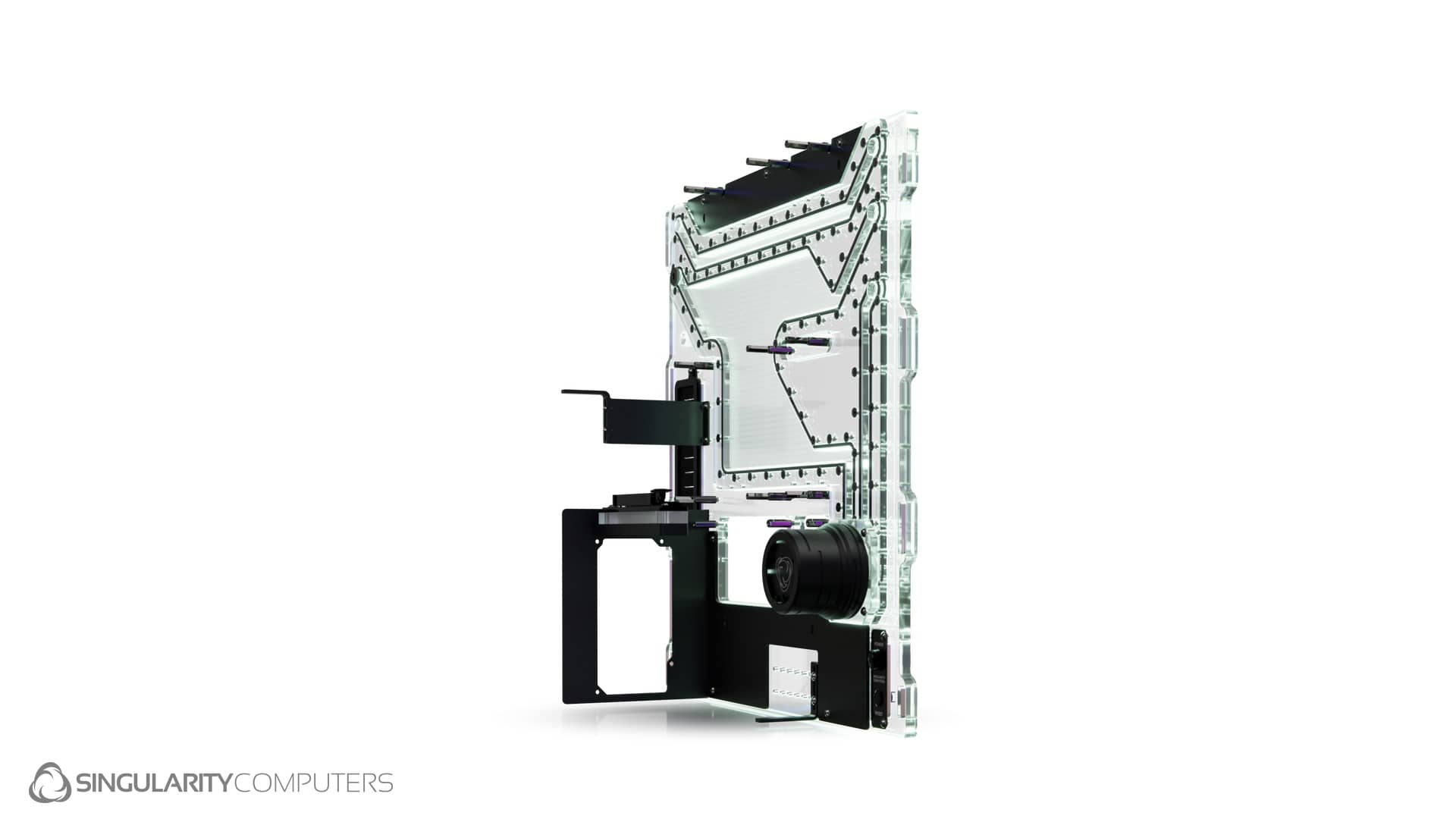

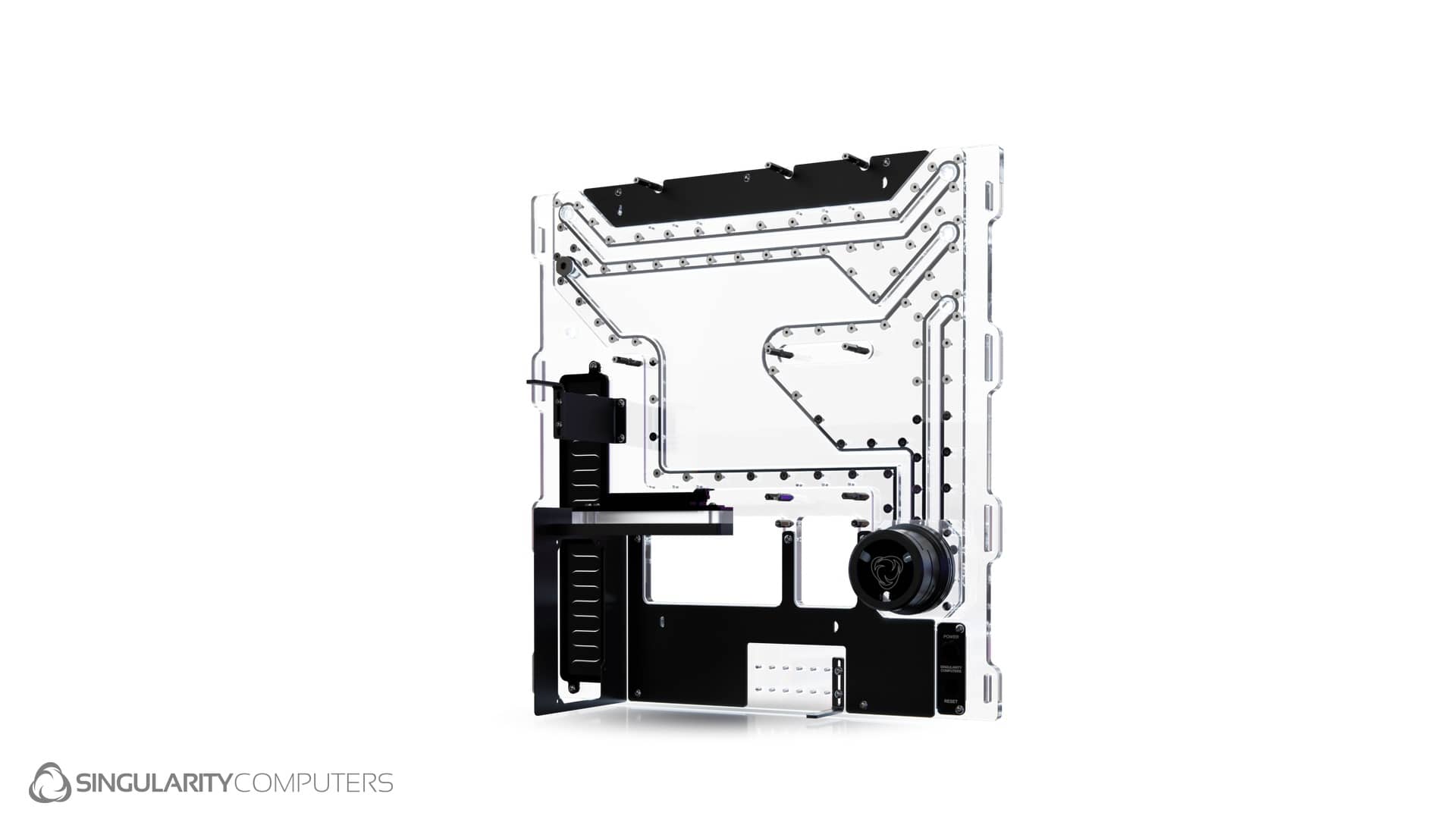

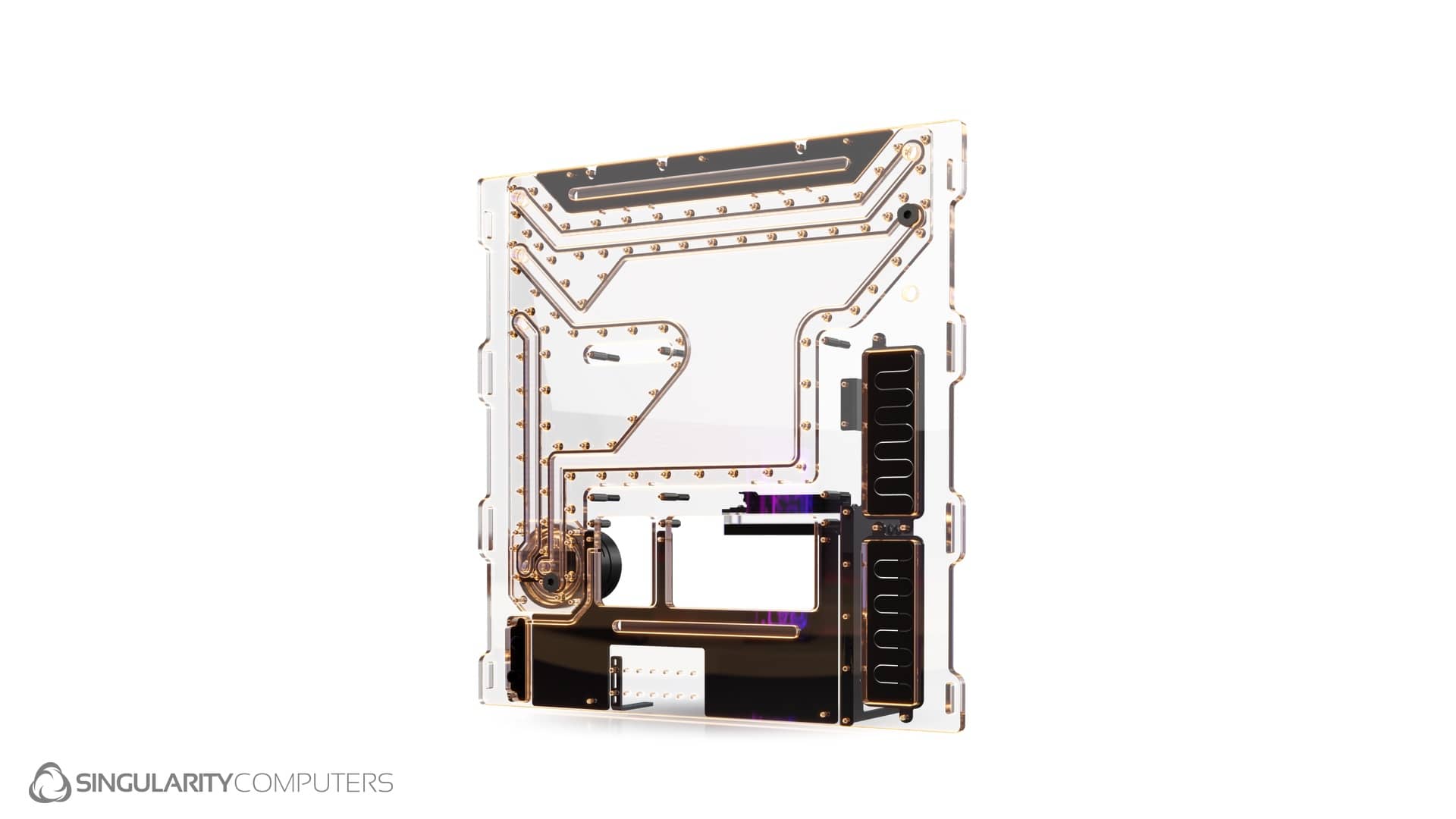

Portal is an open wall mounted display case. It fits 2x 420mm radiators, one on each side of the motherboard. There is no limitation to radiator or fan thickness. It has an integrated distribution plate with D5 pump top and reservoir and parts of the loop are also integrated for short and clean loop routing. The GPU mounts vertically and a full sized ATX PSU fits underneath. It fits ATX or E-ATX motherboards. Motherboard and GPU cables pass through to the back of the case and can be run down the wall. There is a PowerBoard option to improve cable management. Portal has power and reset buttons in the bottom right corner.
Pump not included. Compatible with any D5 Pump.
US$399.00
Portal Wall Mount Water-cooling Case Flow Diagram
Specifications:
Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x12 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Motherboard Form Factor: E-ATX, ATX, Mini-DTX, Mini-ITX.
Case Dimensions: TBA.
Case Weight: TBA.
Packaged Dimensions: L: 600mm x W: 500mm x H: 100mm. (Case is flat packed and requires partial assembly.)
Packaged Weight: 8kg.
Radiators: 420mm x2 with unlimited thickness for radiators and fans.
Maximum GPU Length: Unlimited.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: 250mm.
Front Panel I/O: No Front I/O. Vandal Switch 16mm Power & Reset.
Vertical GPU Mount: x1 with PCIE 5.0 Riser.
VESA Mount: 200mm x 200mm M6.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Folding Steel, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Addon Information
PowerBoard VESA Mount
Touch Power Button
PowerBoard: The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Absolute PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.
VESA Mount: 200mm x 200mm M6, thick steel plate with M6 Threads For VESA wall mounting.
Touch Power Button: Touch Activated Power Button to replace the stock Vandal Switch.
