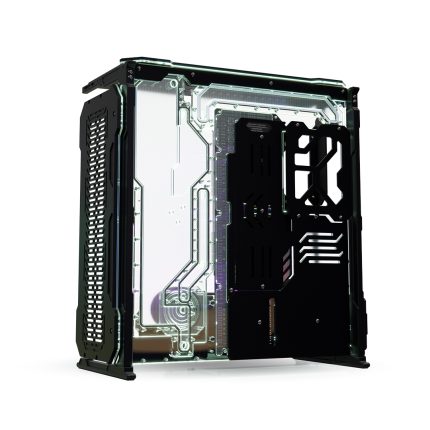

Spectre 4-M Water-cooling Case
Spectre 4-M Water-cooling Case Original price was: US$1,199.00.Current price is: US$1,019.15.

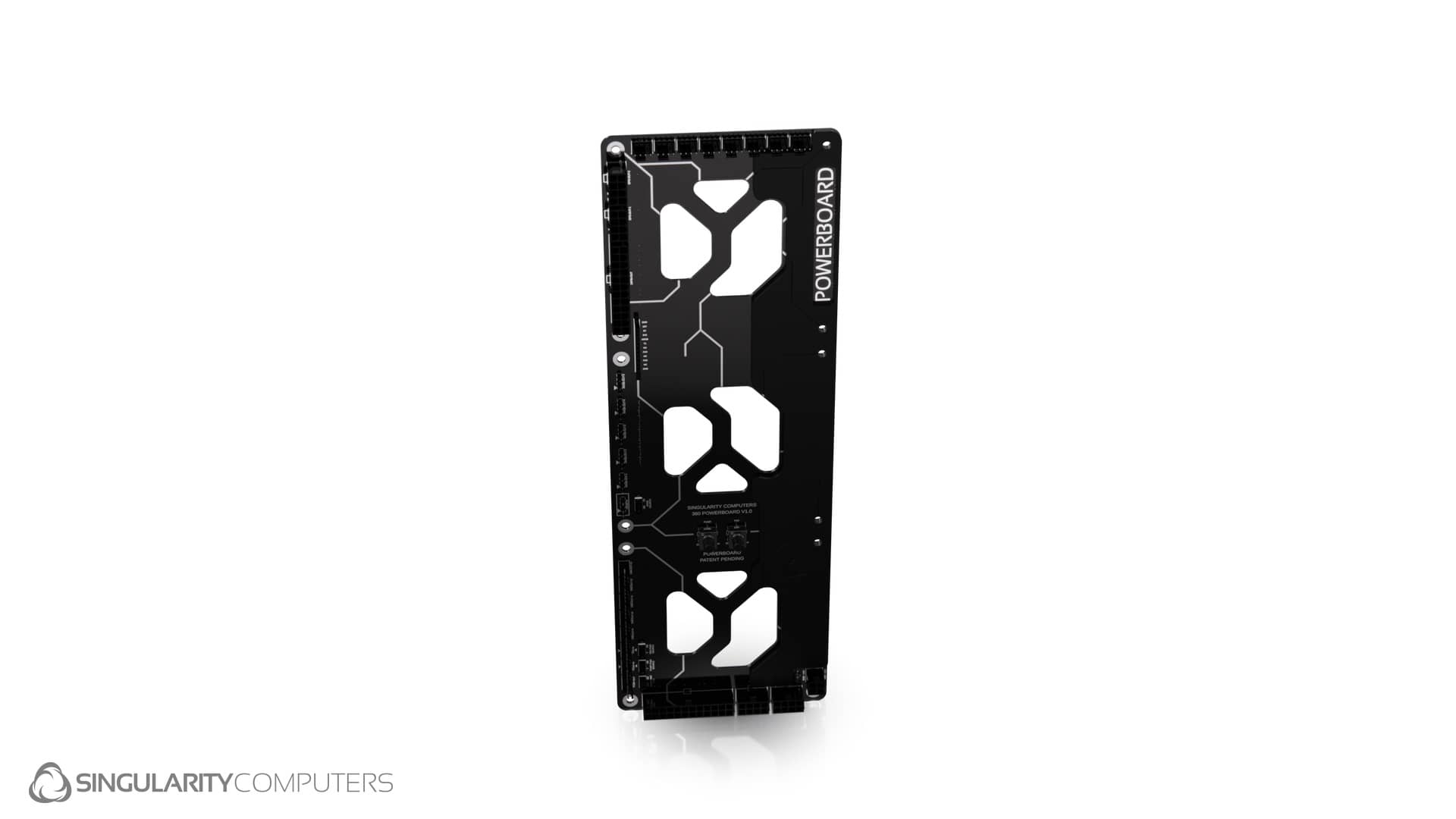

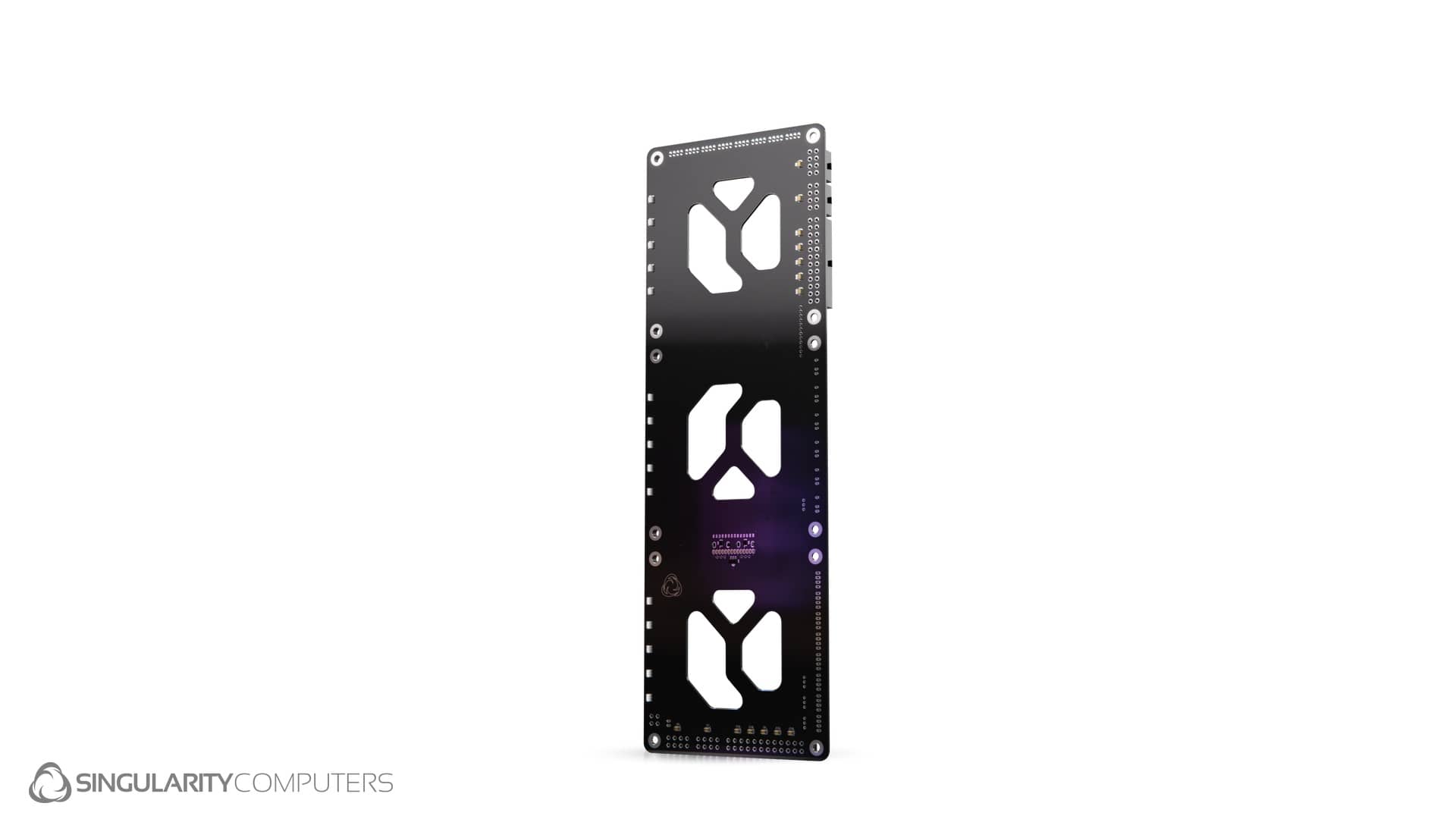

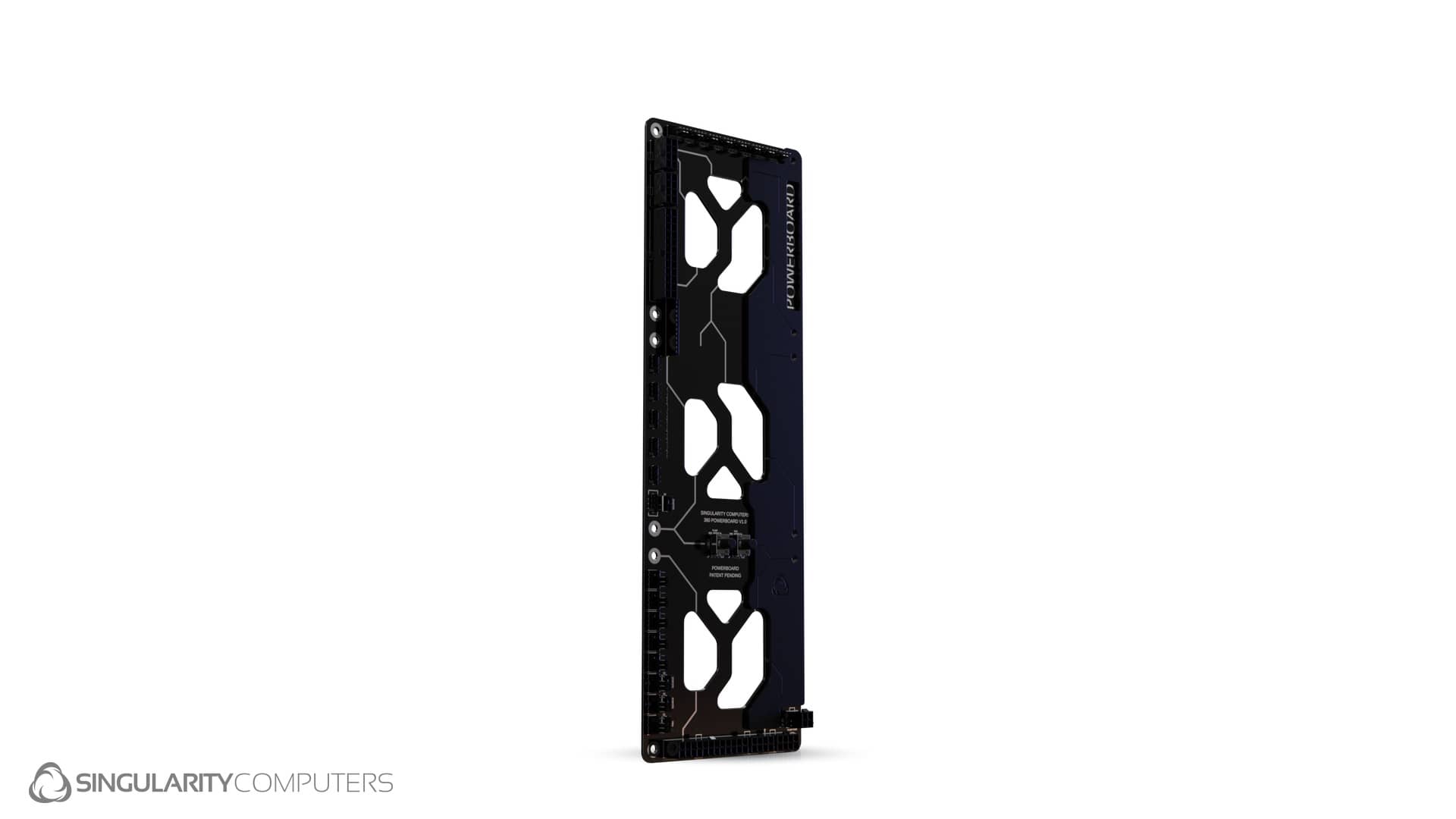

PowerBoard Universal 360mm

Installs onto any 360mm radiator mount or radiator. It is designed for cases which have a 360mm radiator mount to the right of the motherboard including Lian Li O11 (most versions), Hyte Y60 and Y70, NZXT H5, H6 and H9, Antec Constellation, Corsair 3500X and 6500 series, Thermaltake Core series and many more. If you have any questions contact us via the form below.
The PowerBoard Universal 360mm has the 24pin and 2x 8pin EPS connections integrated and comes included with cables. It has an inbuilt PWM hub with one zone for the fans with 13 outputs and one zone for the pump with one output. It has adjustable RPM curves based on coolant temperature. It also has an ARGB hub with x5 output connections with 15 ARGB LEDs built in to light up the right side of the PowerBoard. It can be installed onto a 360mm radiator mount or radiator.

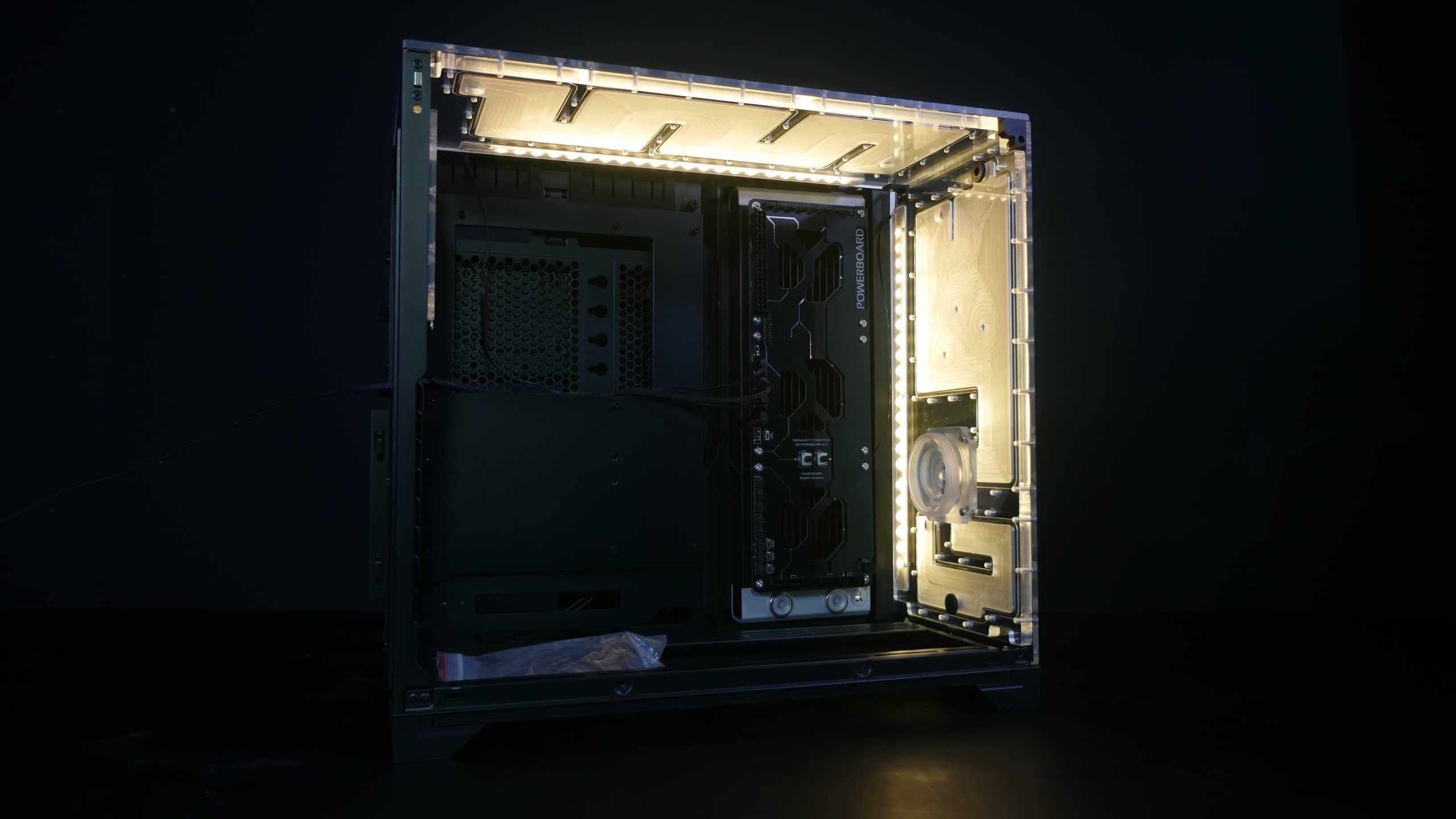

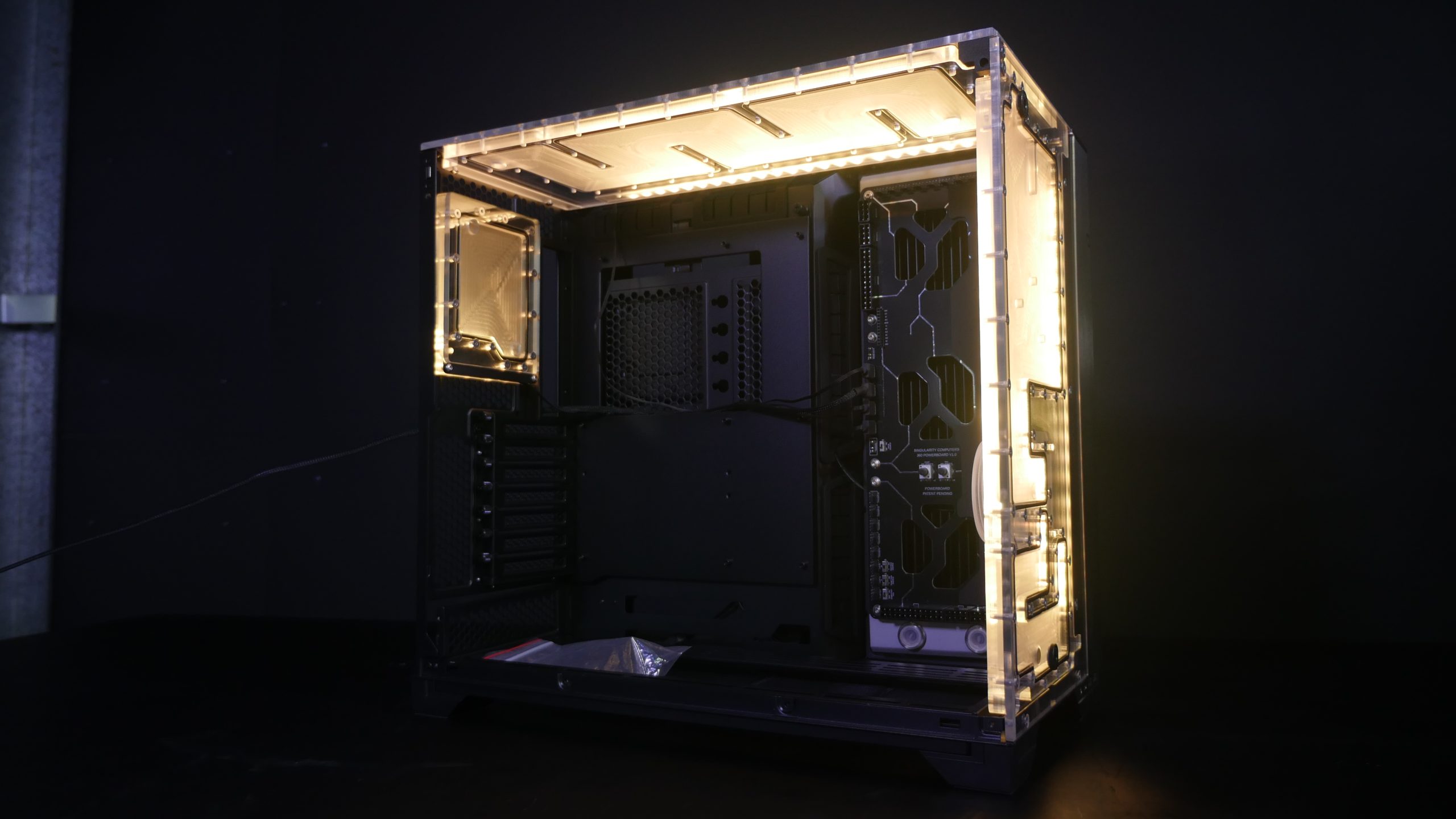

Build Gallery

US$189.00 US$398.00Price range: US$189.00 through US$398.00

If you are mounting to a radiator select which fastener type your radiator uses. If you are mounting to a radiator mount select ‘Standard Mounting’.

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror +US$10.00 Silver Mirror +US$10.00 Gold Mirror +US$10.00 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror Silver Mirror Gold Mirror Satin Black

CNC milled black anodised pump cover with ARGB lights and Singularity Computers Logo.

Black Silver Black

CNC milled black anodised pump cover and heatsink for the DDC Pump with laser etched Singularity Computers logo.

None Yes

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00

Monitor RPMs, Temperatures, Voltages and control ARGB Lighting.

None Yes +US$129.00
None Yes +US$29.00

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00

Custom black sleeved cables which connect from the PSU to the GPU.

8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1
SKU: N/A Categories: ,

Manual

Gallery

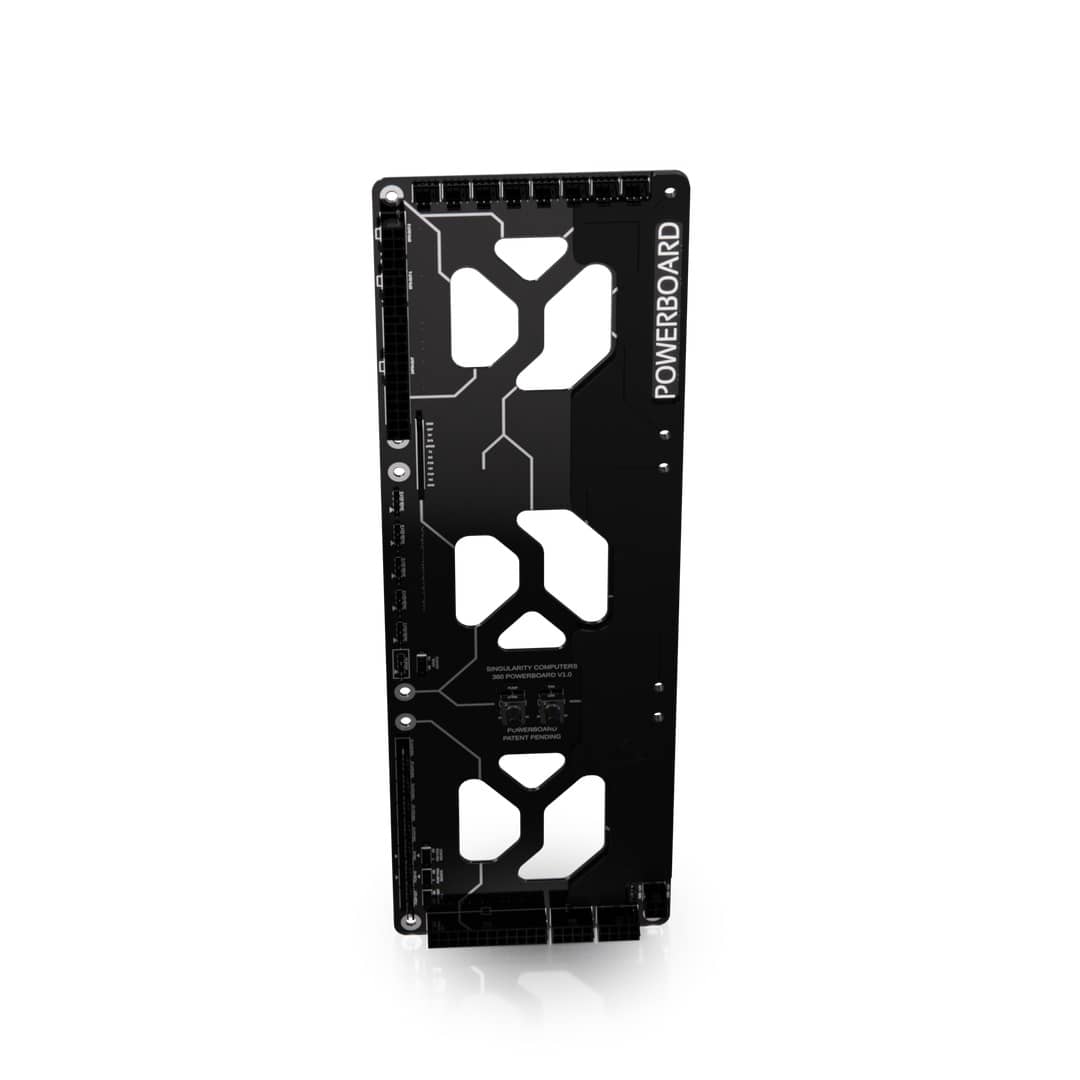

Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821), a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It eliminates the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!

Specifications:
PowerBoard Universal 360mm (selectable above on its own or with the PowerBoard)
Cables: PowerBoard Linking Cables: 18AWG wire black sleeved: 24pin x1. 8pin EPS x2. PWM Fan Linking Cable Black Sleeved 50cm x2. RGB Linking Cable Black 50cm x1.
Electronics Integration:
Inputs: 24pin x1. 8pin EPS x2. PWM x2. ARGB x1.
Outputs: 24pin x1. 8pin EPS x2. 4pin ATX PUMP x1. PWM x13. ARGB x5. ARGB built in LEDs x15. 12Pin header. PSU jumpstart switch. Control source switch x3. Potentiometers x2.
Fasteners: Stainless steel.
Manufacturing Process: PCB. Laser.
Materials:
PCB. Satin Black Acrylic.

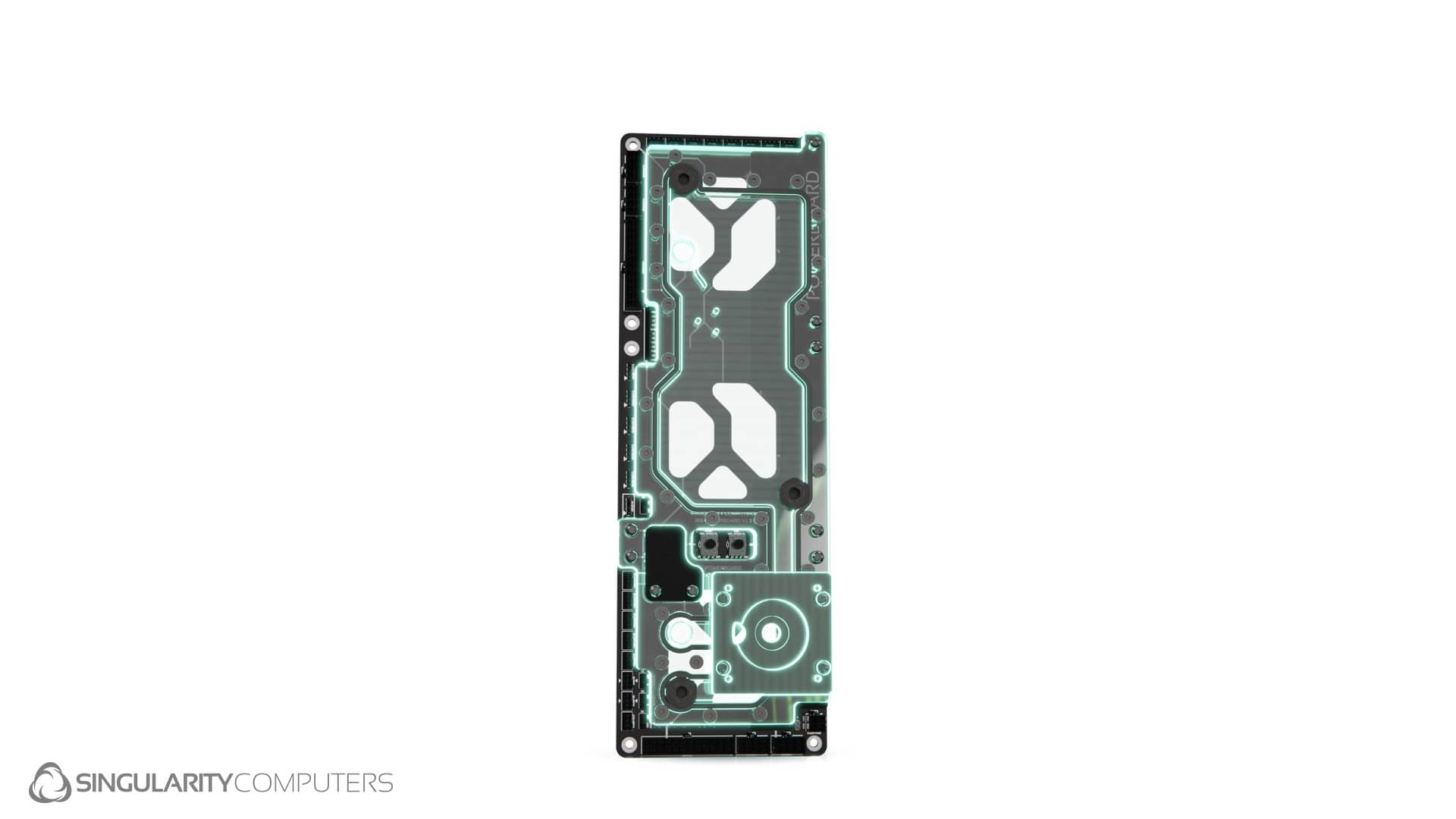

PowerBoard Universal 360mm Distribution Plate (selectable above on its own or with the PowerBoard)
Lighting: Integrated ARGB PCB with 30cm black cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Product Weight & Dimensions:

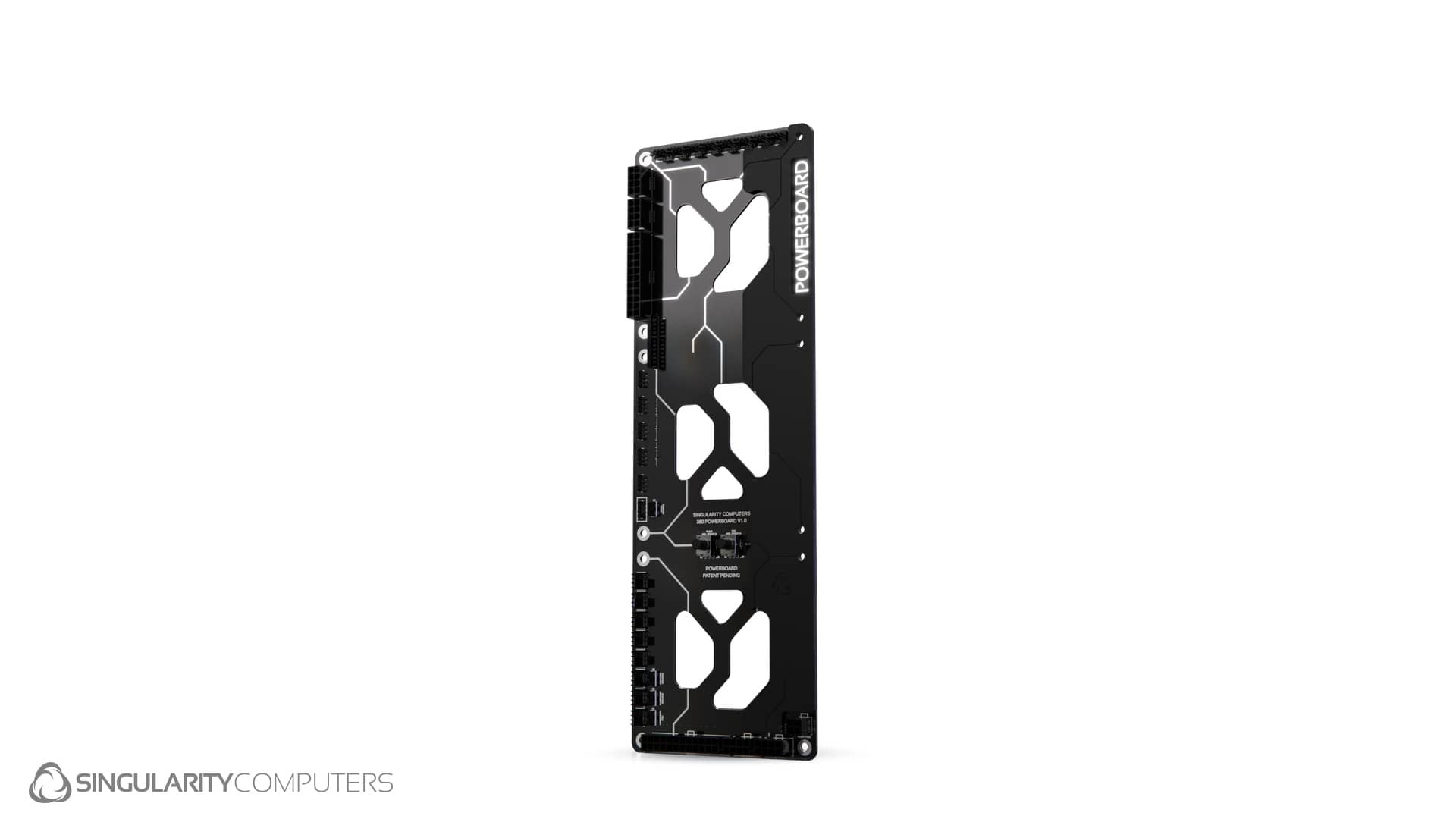

PowerBoard Universal 360mm: L: 360mm x W: 120mm x H: 20mm. 0.3kg.
Packaged: L: 400mm x W: 150mm x H: 50mm. 0.5kg.
PowerBoard Universal 360mm & DDC Distribution Plate: L: 360mm x W: 120mm x H: 26mm. 1.2kg.
Packaged: L: 400mm x W: 150mm x H: 50mm. 1.8kg.

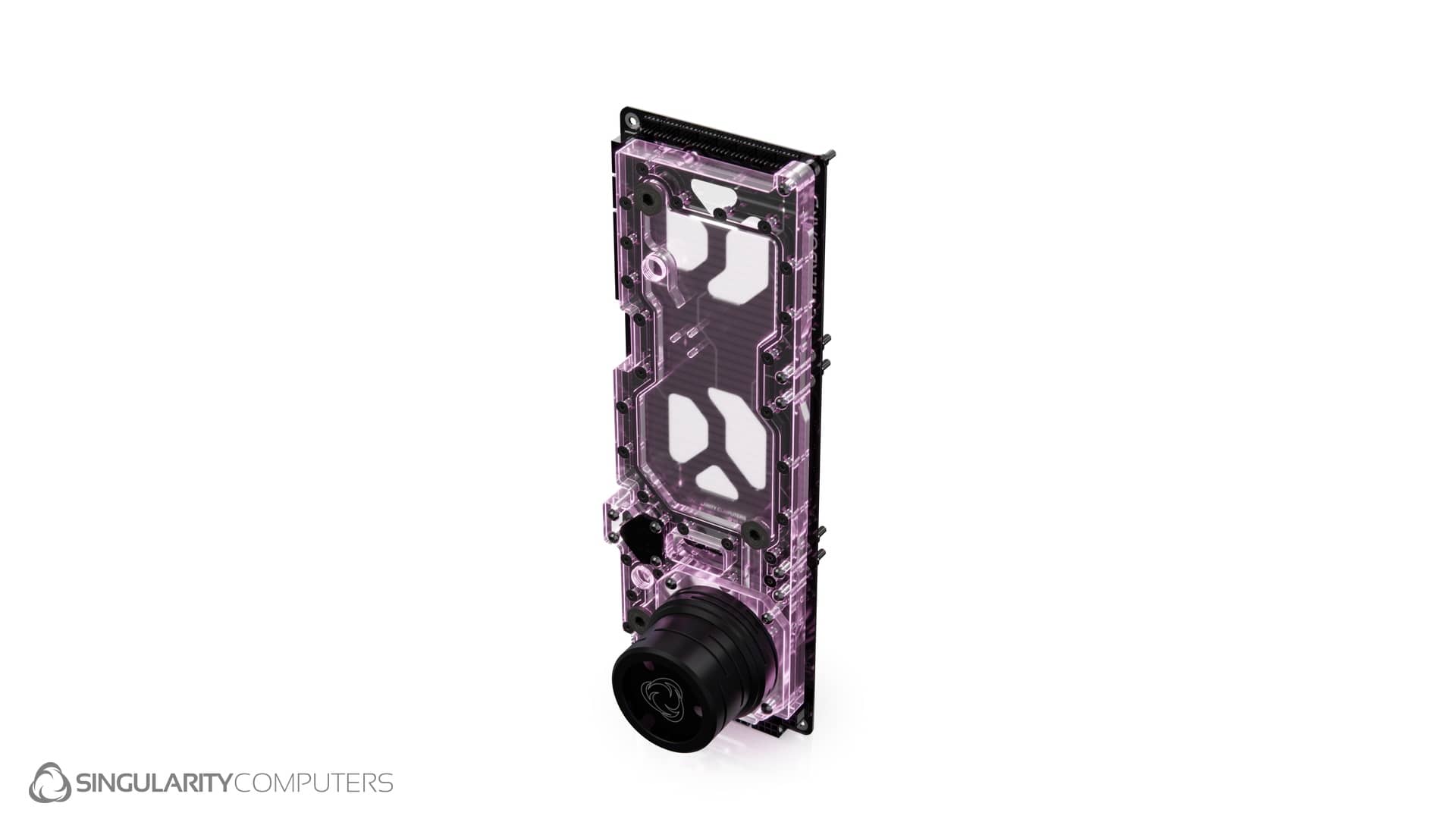

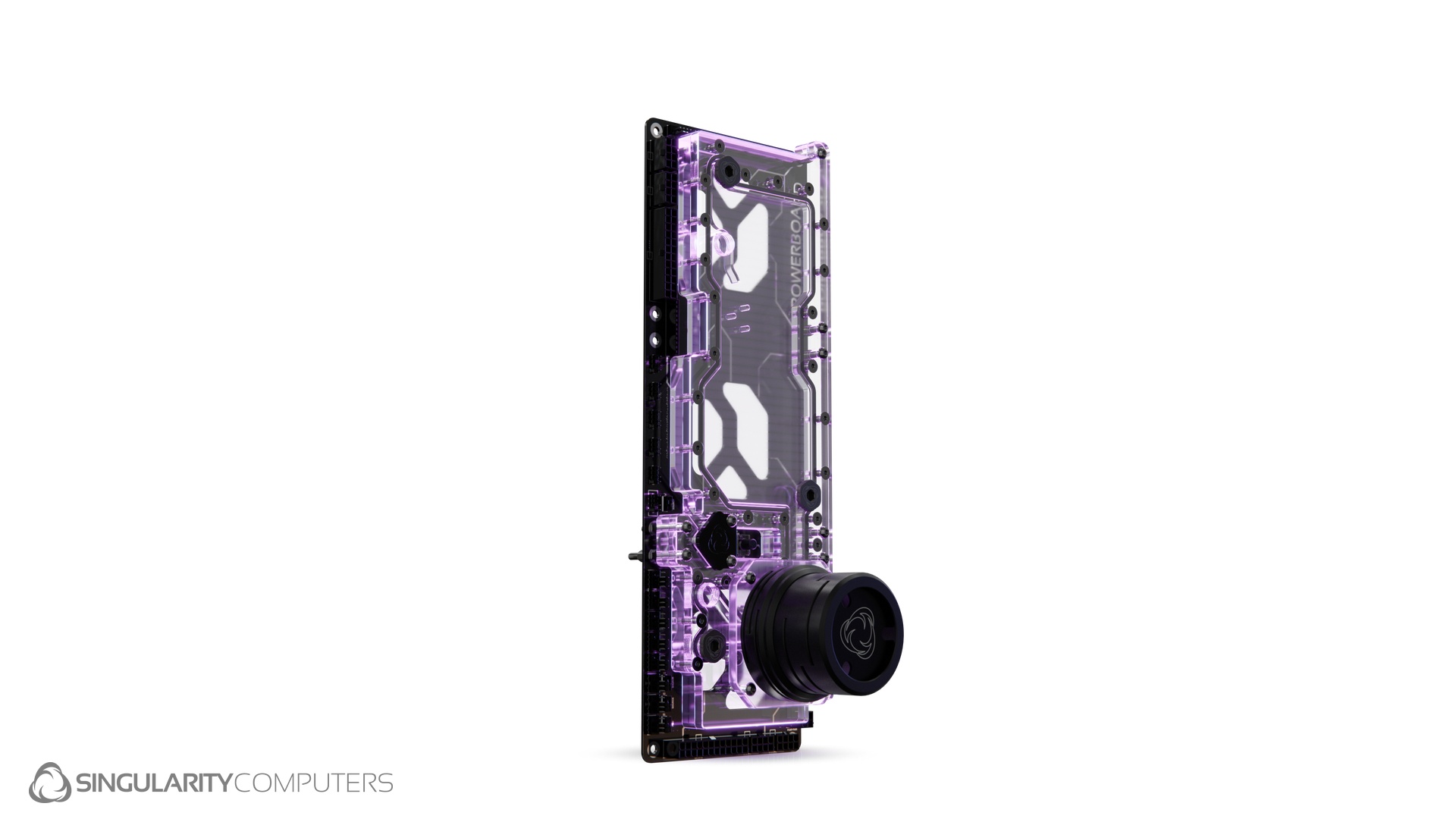

PowerBoard Universal 360mm & D5 Distribution Plate: L: 360mm x W: 120mm x H: 38mm. 1.5kg.
Packaged: L: 400mm x W: 150mm x H: 50mm. 1.8kg.

Features:

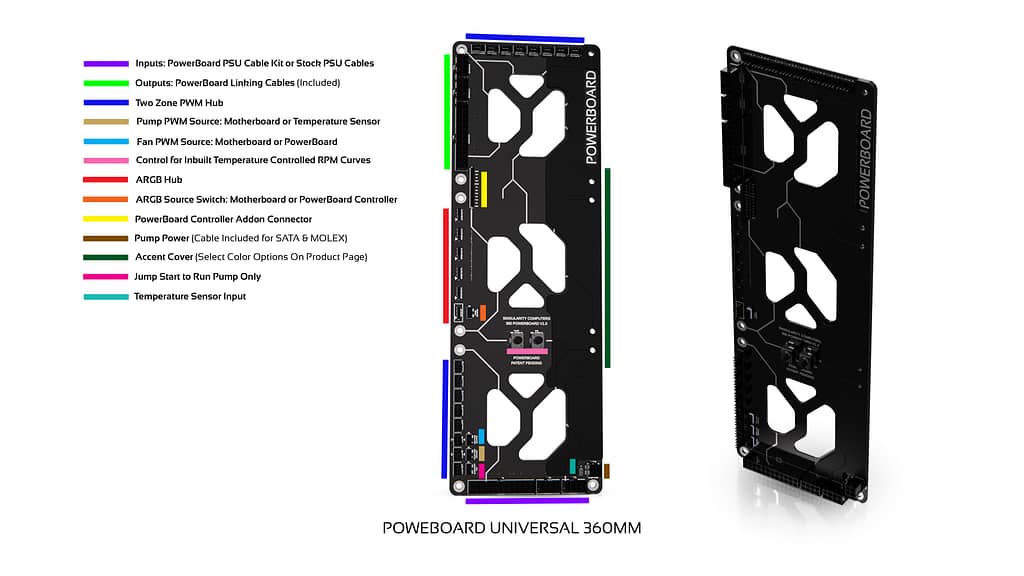

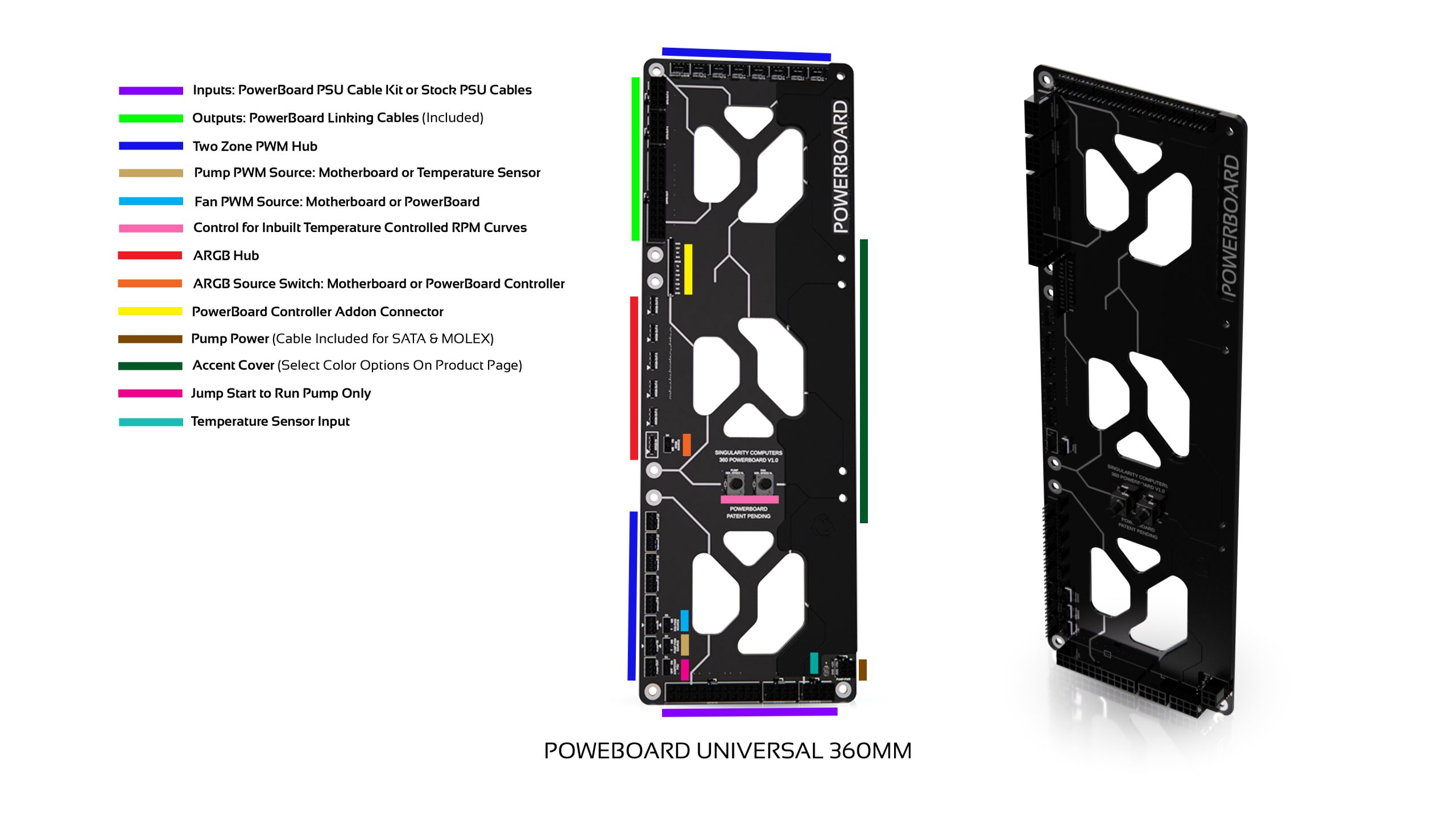

The PowerBoard is a PCB integrating 24pin, EPS, PWM and ARGB Hubs, Fan and Pump speed control, 12pin header for a FanGuardian, switches and a dedicated header for powering a pump. The PowerBoard has x15 ARGB LEDs positioned under the right side of the PCB. The PSU Jumpstart switch allows to turn on the power supply and the pump without booting the motherboard, this way the loop can be filled easier, especially when the pump speed is lowered with the potentiometer. There is a source switch for fan, pump and ARGB headers which allows for an easy choice between motherboard and PowerBoard built-in PWM control.
Hubs: PWM Fan Hubs x1 with 13x outputs. Pump input x1 and output x1. The fan and pump output have coolant temperature-based PWM control or can be switched to motherboard PWM control. The built-in PWM control on the PowerBoard is independent of the motherboard and no software is needed.
PWM Control:
2x potentiometers to set the minimum PWM speed.
Temperature sensor inputs:
x1. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
Essentially the PowerBoard is a distribution plate for cables also integrating other features and functions. It is a new method for cables allowing standardization of cable lengths and making cable management almost unnecessary.

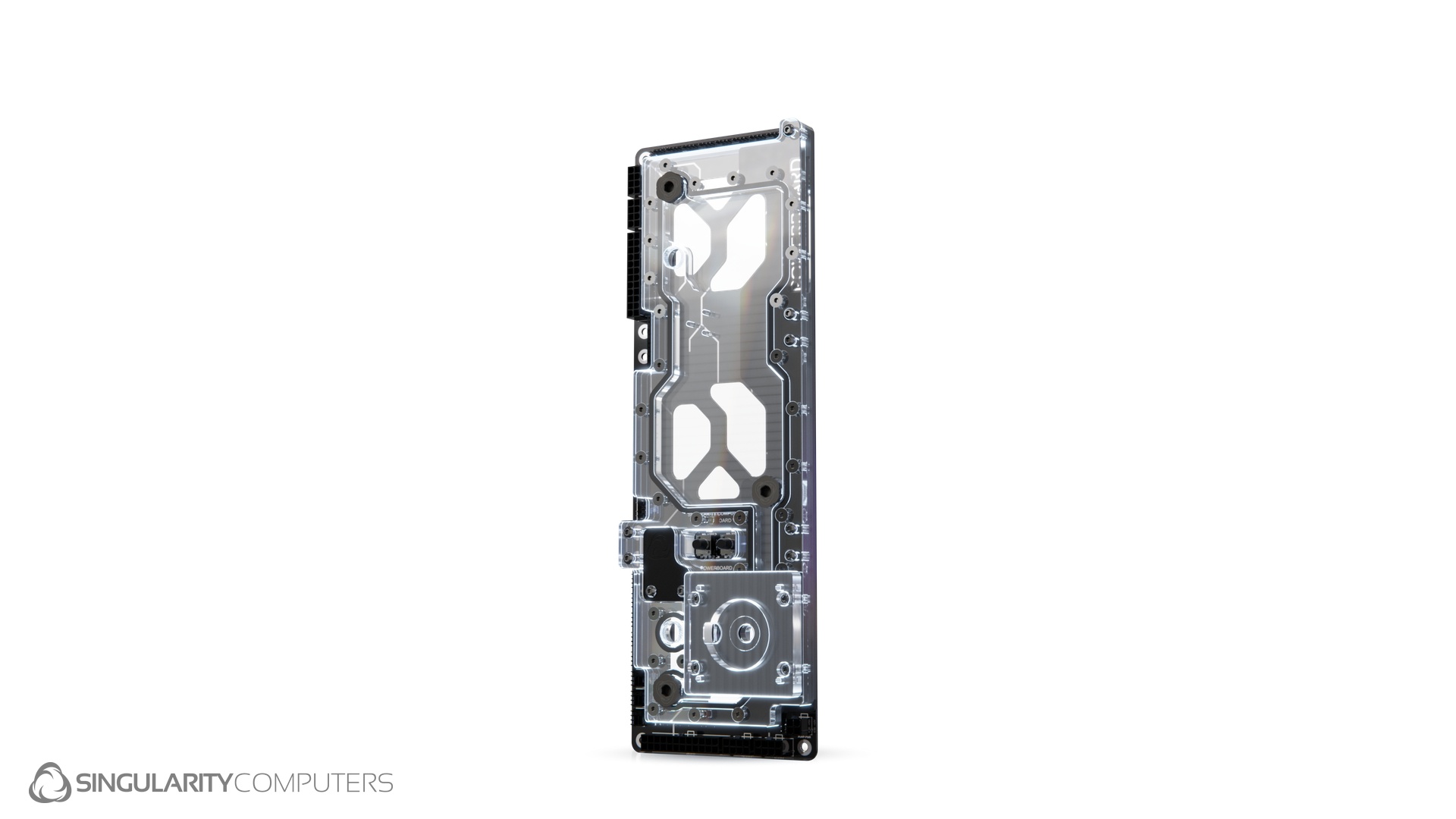

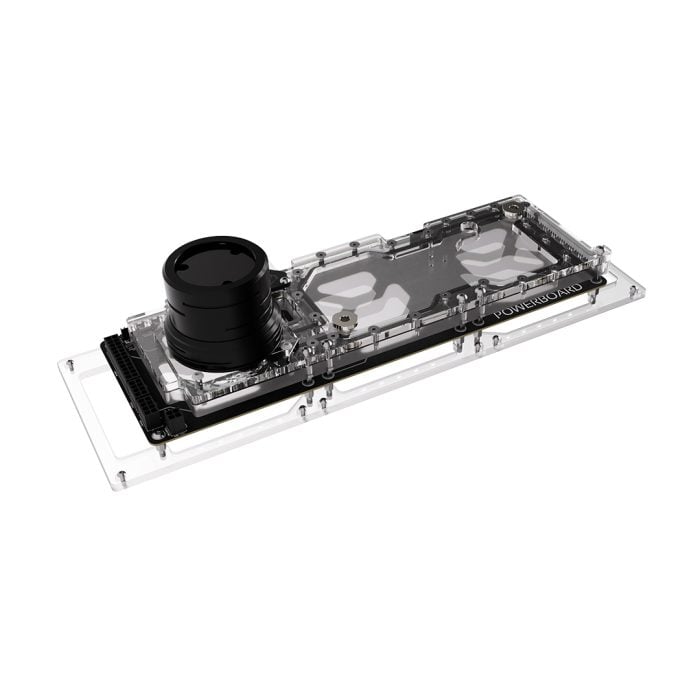

The distribution plate adds a DDC reservoir combination to the PowerBoard and has an inlet, outlet, fill and drain port. The reservoir is designed to make filling and draining as easy as possible.

Installation:
Installs onto any 360mm radiator mount or radiator (select radiator fastener options above). The distribution plate installs onto the PowerBoard. It is designed for the Lian Li O11 cases which have a radiator mount to the right of the motherboard and cases with a similar layout such as the Hyte Y60 and Y70, NZXT H9 etc. please refer to user manual and documentation.

Addon Information

FanGuardian PowerBoard Controller

DDC Pump Cover                                                                                                                                                                                D5 Pump Cover

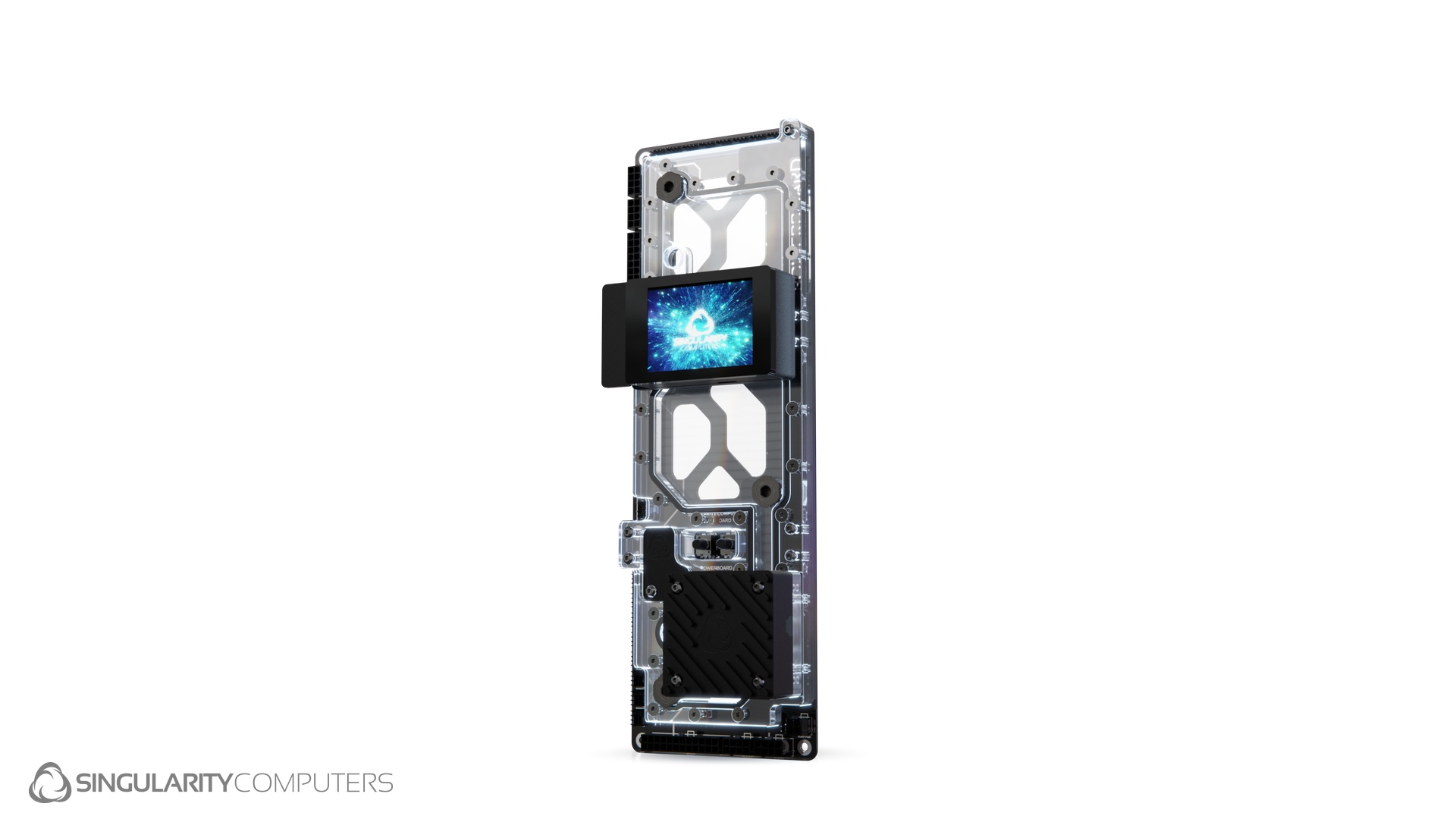

FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.

DDC Pump Cover: The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.

D5 Pump Cover: The Singularity Computers D5 Pump Cover is built from CNC machined anodized aluminum. It covers the D5 to improve aesthetics. It also has an ARGB PCB with a logo and ARGB daisy chain to connect more SC ARGB devices



If you have a question about case compatibility contact us below and we will get back to you.
