PowerBoard ATX/E-ATX Universal

In stock

Order processing time 1-2 days.

  • Universal PowerBoard designed for a wide range of ATX and EATX cases
  • Integrated 24-pin motherboard power connection
  • Four 8-pin EPS connections for flexible motherboard layouts
  • Additional 6-pin PCIe power connection for compatible motherboards
  • Three 8-pin PCIe connections plus 12VHPWR / 12V-2×6 connection
  • EPS connections support 4-pin or 8-pin configurations with different cables
  • PCIe connections support 6-pin or 8-pin configurations with different cables
  • Integrated PWM hub with 8 output connections
  • Integrated ARGB hub with 5 output connections

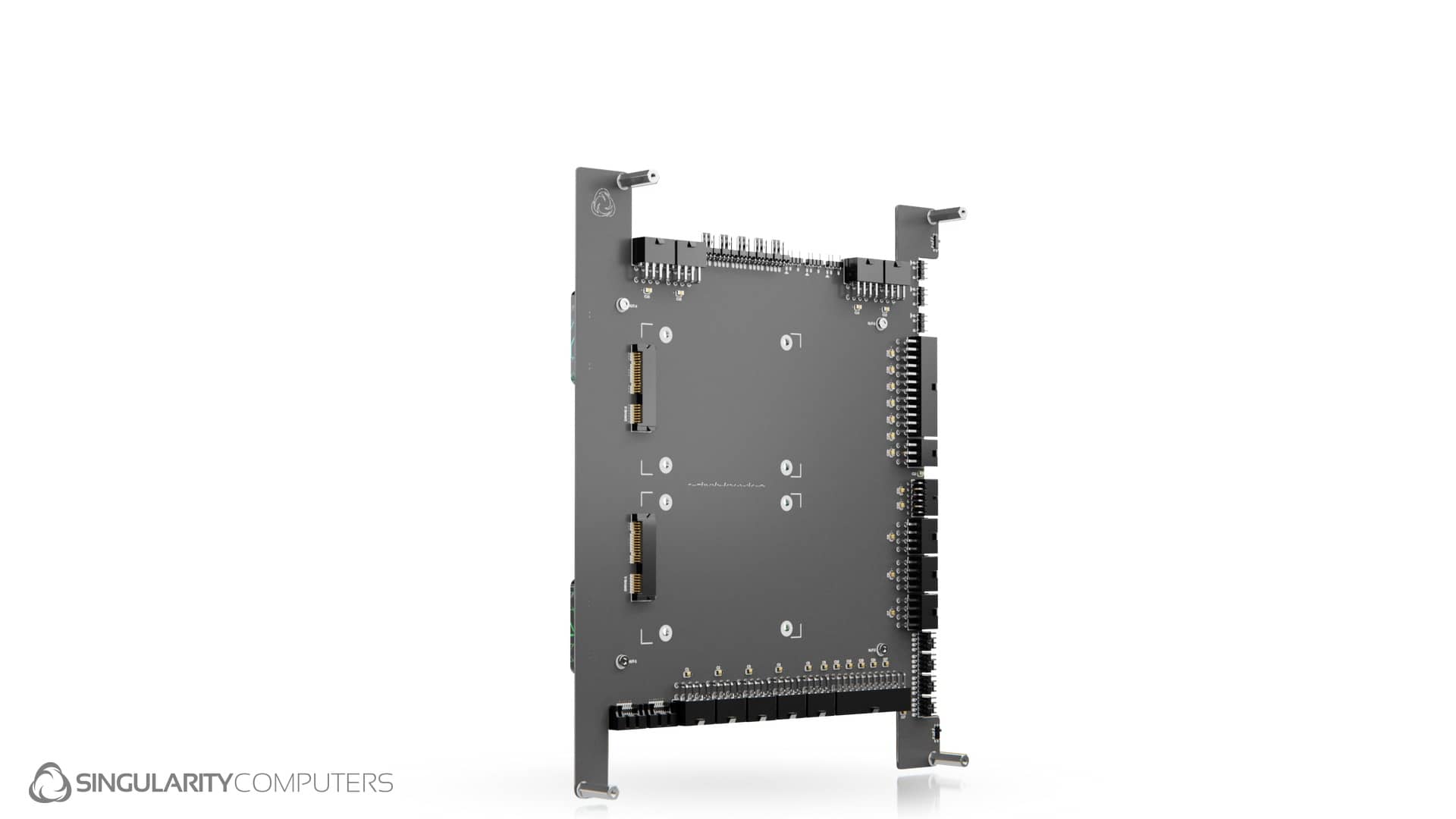

  • Two direct-mount SATA 2.5” connections

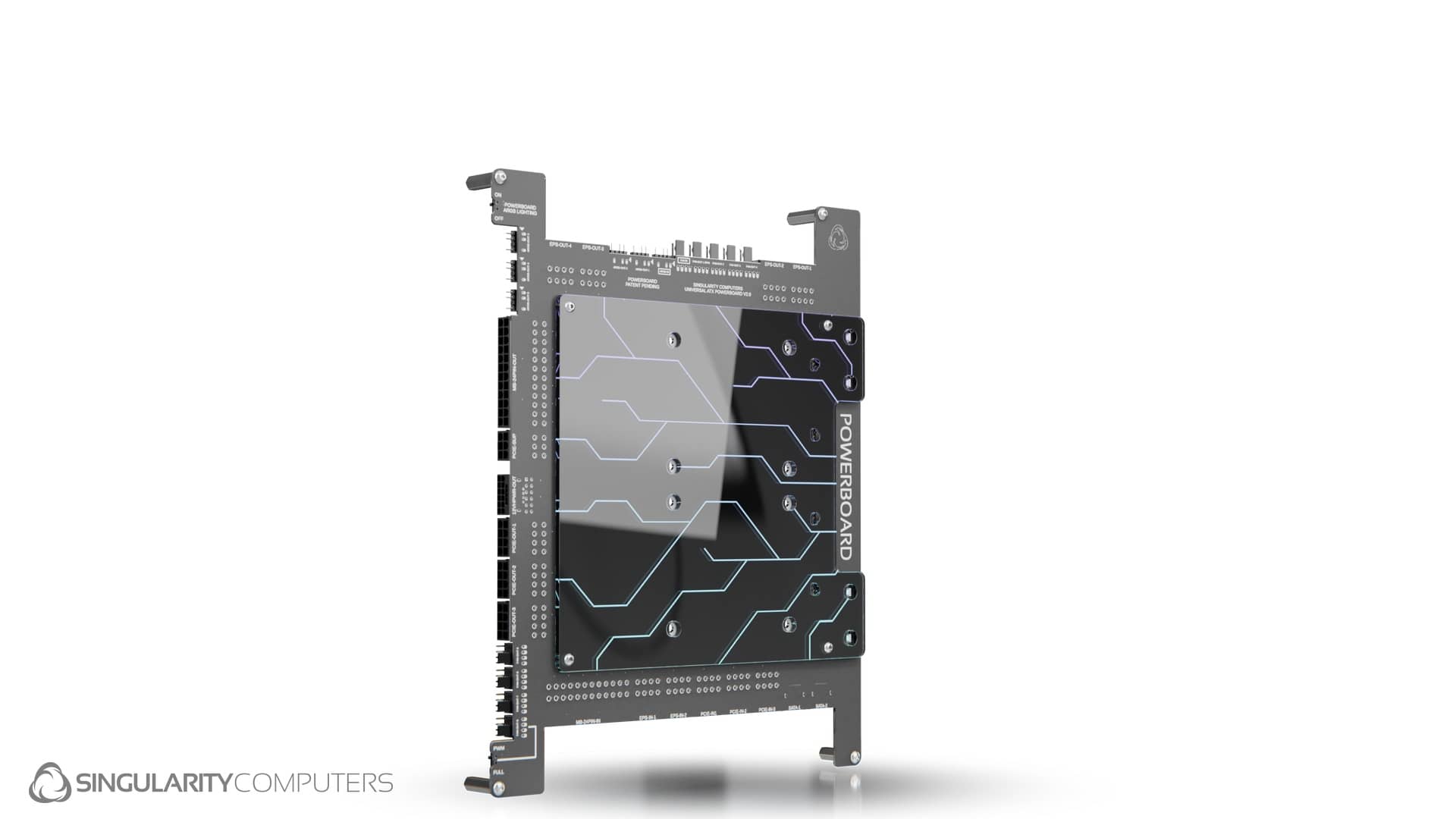

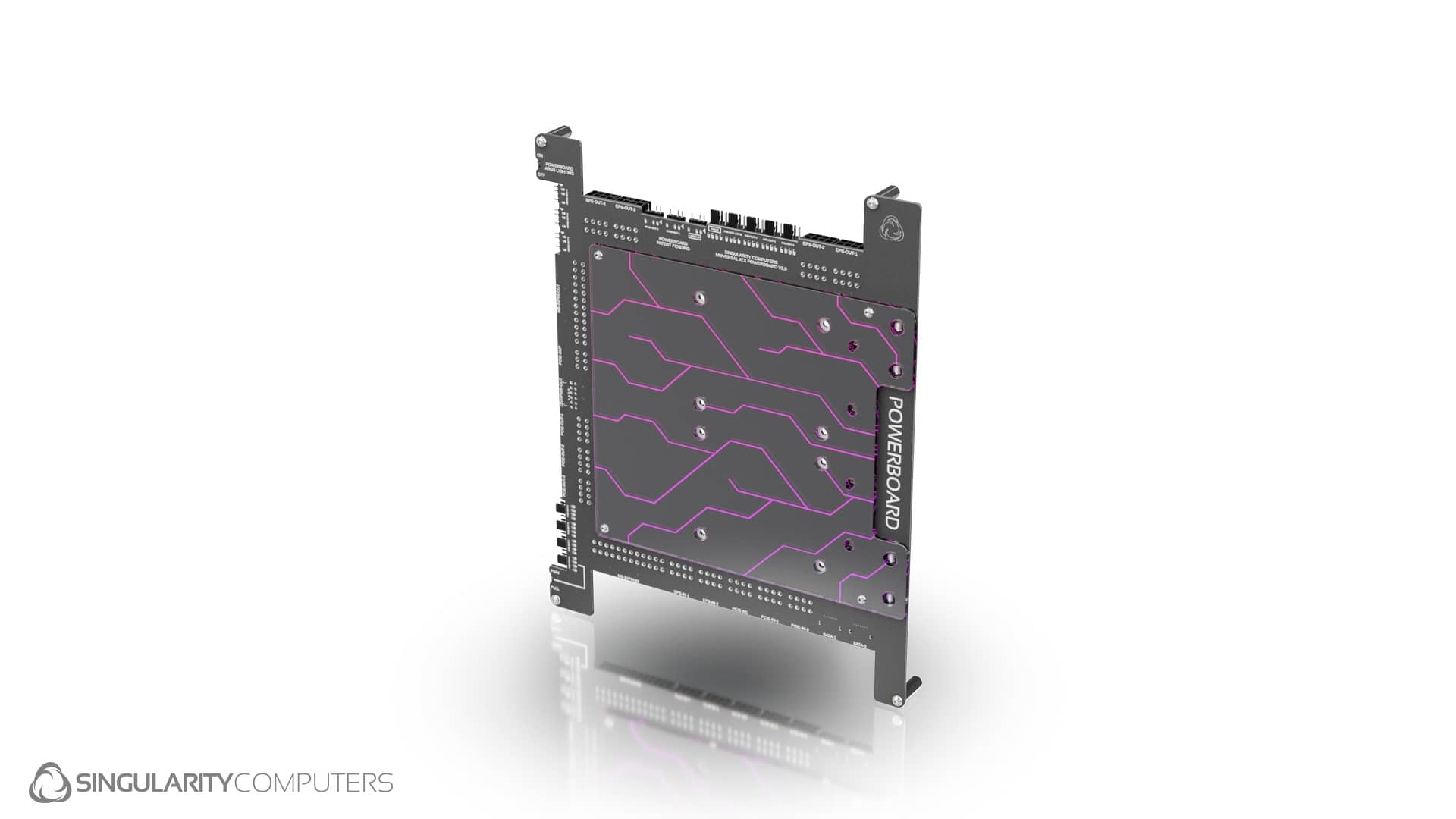

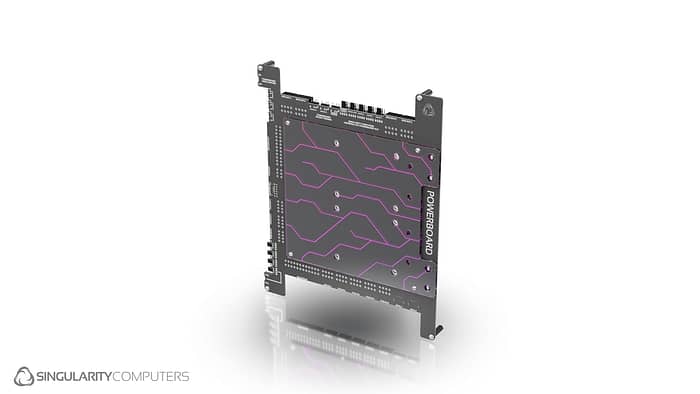

  • Four integrated ARGB LEDs illuminate the rear laser-etched acrylic cover

PowerBoard Compatibility List

Manuals

US$199.00

Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Optional Add-Ons

Enhance your purchase with these recommended extras

PowerBoard

PowerBoard PSU Cable Kit (optional) USD $79
None Yes +US$79.00

PowerBoard PSU Cable Kit
Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs.

Shift Motherboard 24pin 90 Degree Adaptor (optional) USD $24.50
None Yes +US$24.50

Shift Motherboard 24pin 90 Degree Adaptor
The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.

  • 1x PowerBoard ATX/E-ATX Universal
    US$199.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182004548 SKU: SC-PB-UN Category:

Description

Read More +Read Less − full description

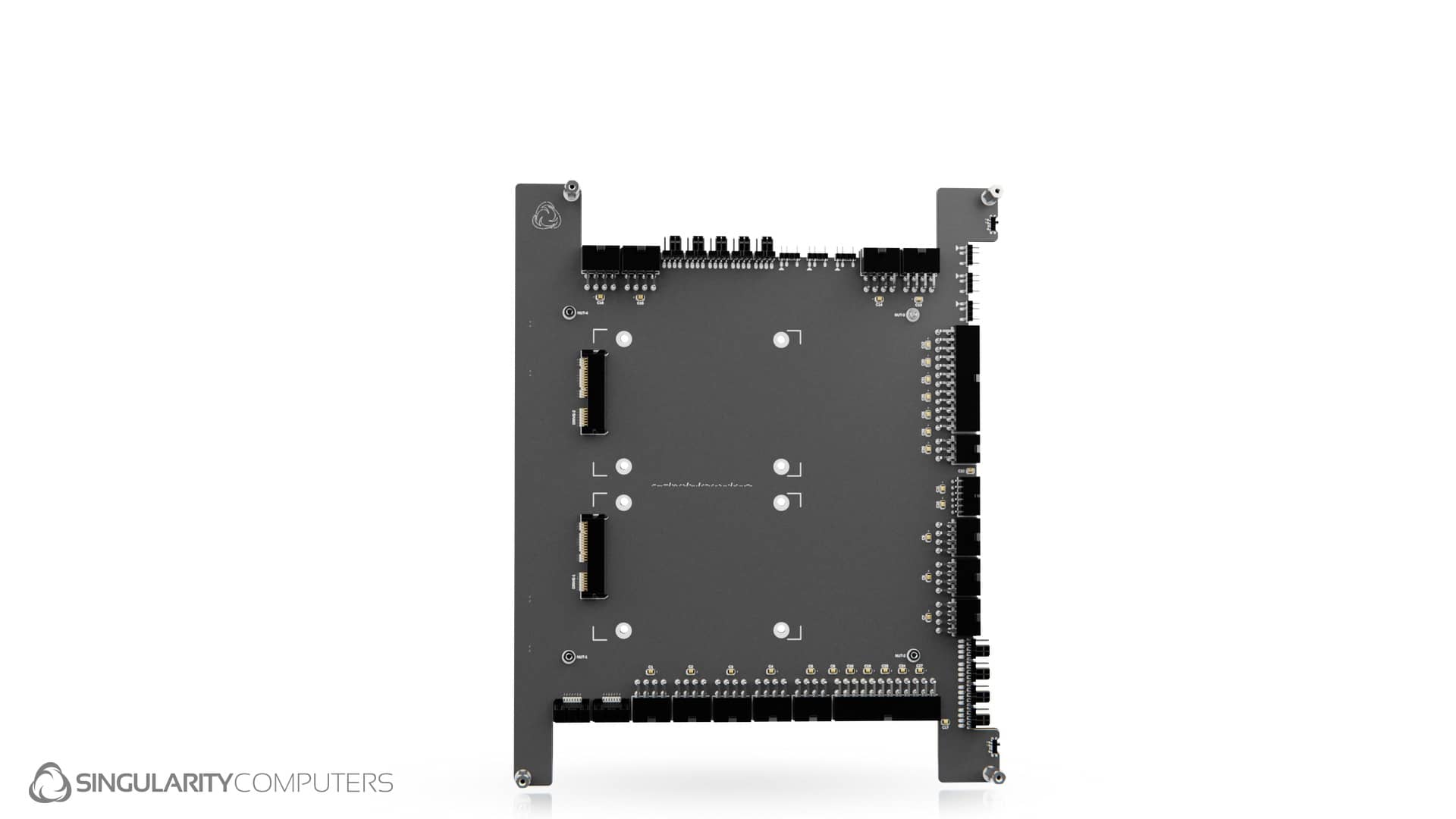

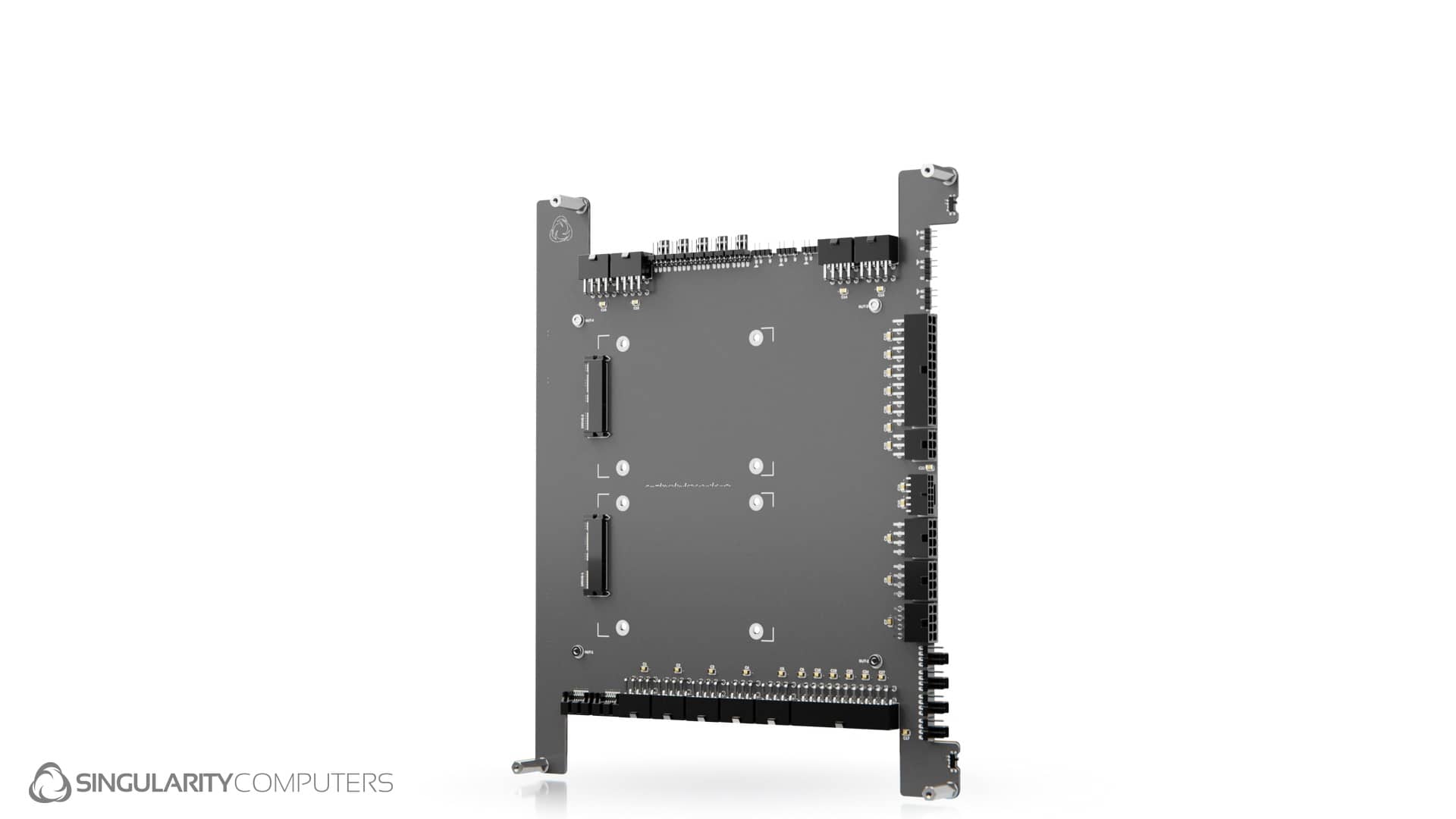

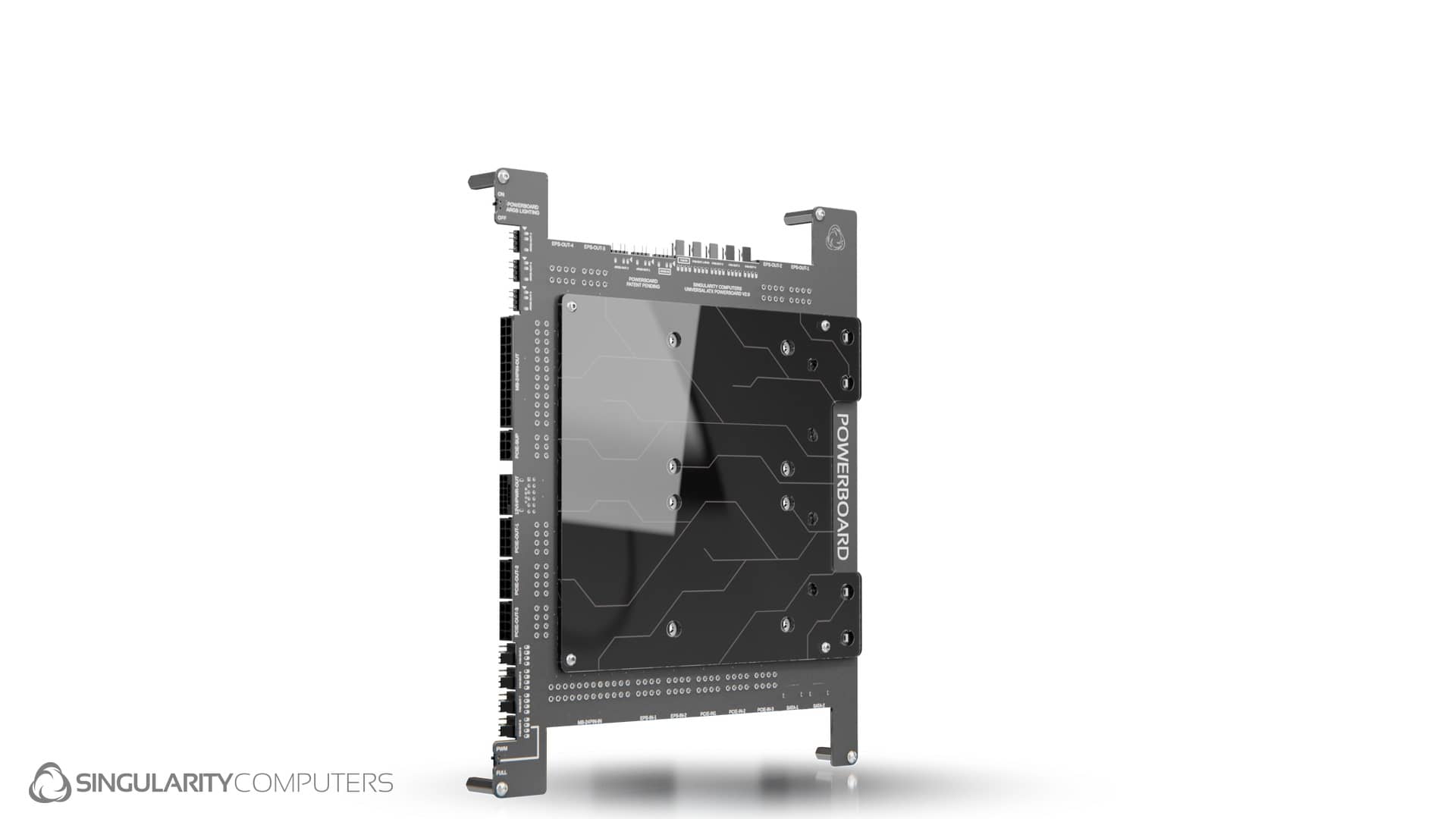

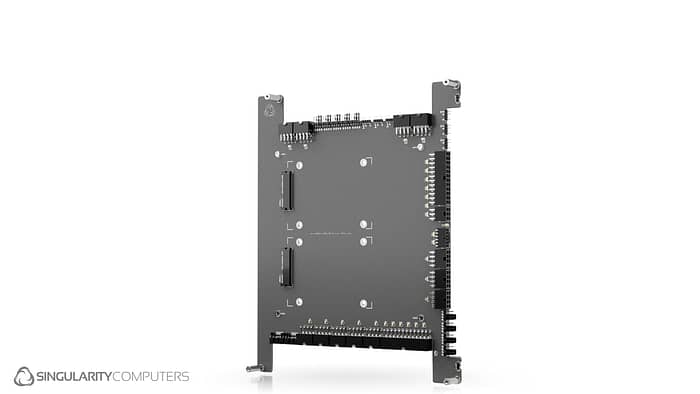

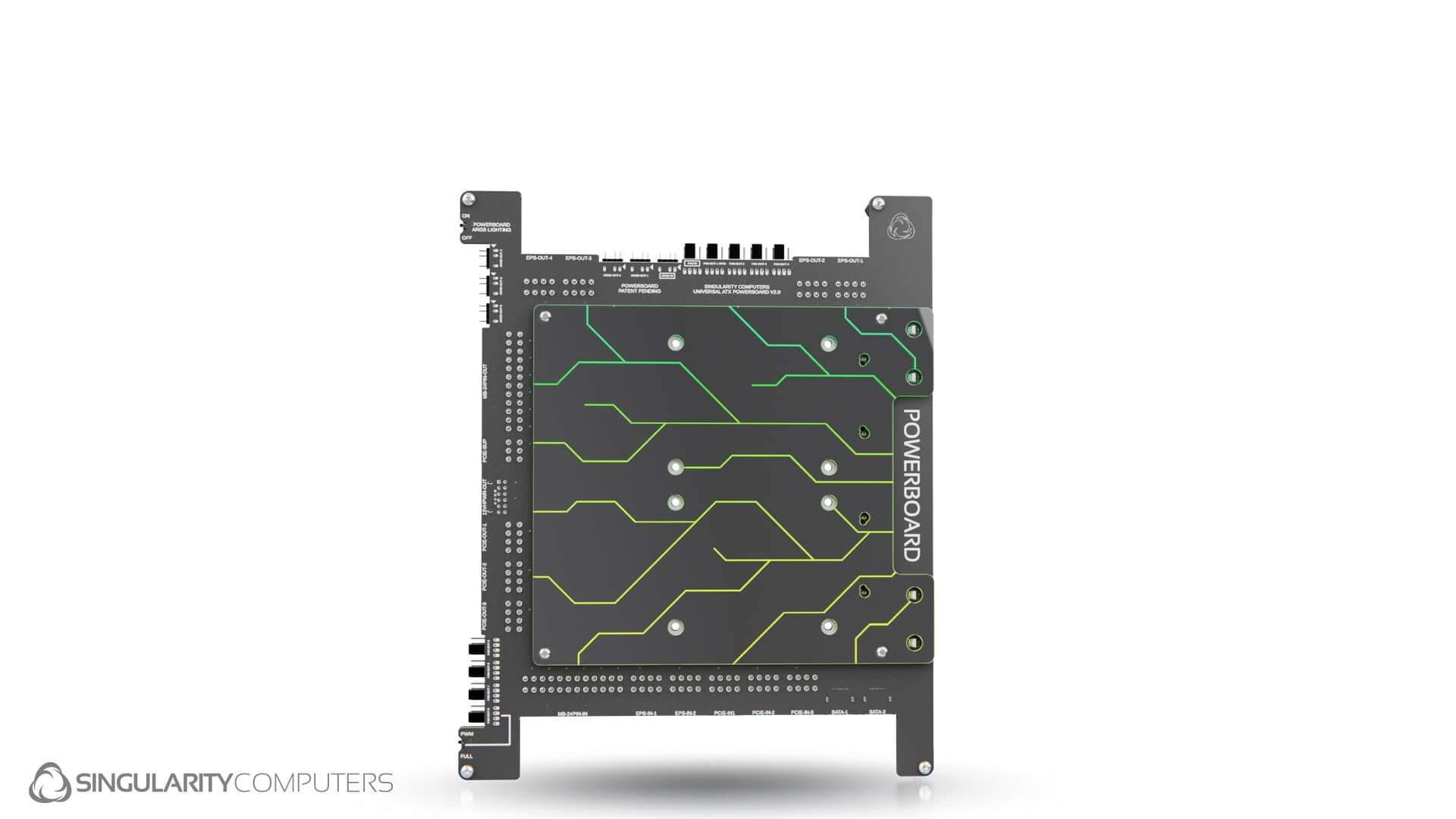

The PowerBoard ATX/EATX  Universal is the first PowerBoard which was not designed specifically for one case, instead it is designed to fit as many ATX and EATX cases as possible. The PowerBoard Universal has the 24pin integrated and it has 4x 8pin EPS connections in different locations for different motherboard layouts. It has a 6pin PCIE extra power connection for motherboards which require it. It has 3x 8pin PCIE connections and a 12VHPWR/12V-2×6 connection. The EPS can be used as 4pin or 8pin and the PCIE can be used as 6pin or 8pin with different cables. It has an inbuilt PWM hub with x8 output connections and an ARGB hub with x5 output connections. It also has x2 direct mount SATA 2.5” connections and 4 ARGB LEDs built in to light up the rear laser etched acrylic cover.

Note: These are only the cases we have looked at or tested so far. Please contact us below with your requests for case compatibility below and we can check and get back to you.



Specifications

Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It integrates and routes the 24pin, EPS and PCIE cables very close to the components so that standardized short cables can be used. This means that cable management is no longer necessary. It integrates ARGB and PWM hubs and on some PowerBoards SATA. The PowerBoard also has integrated ARGB LEDs placed to light up the PowerBoard and/or surrounding components.
The purpose of the PowerBoard is to eliminate the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!

Specifications:
PowerBoard ATX/E-ATX Universal
Cables: PowerBoard Linking Cables: 18AWG wire black sleeved: 24pin x1. 8pin EPS x2. 8pin PCIE x3. PWM Fan Extension Cable Black Sleeved 50cm. RGB Extension Cable Black 50cm.
Electronics Integration:
Inputs: 24pin x1. 8pin EPS x2. 8pin PCIE x3. PWM x1. ARGB x1. SATA x2.

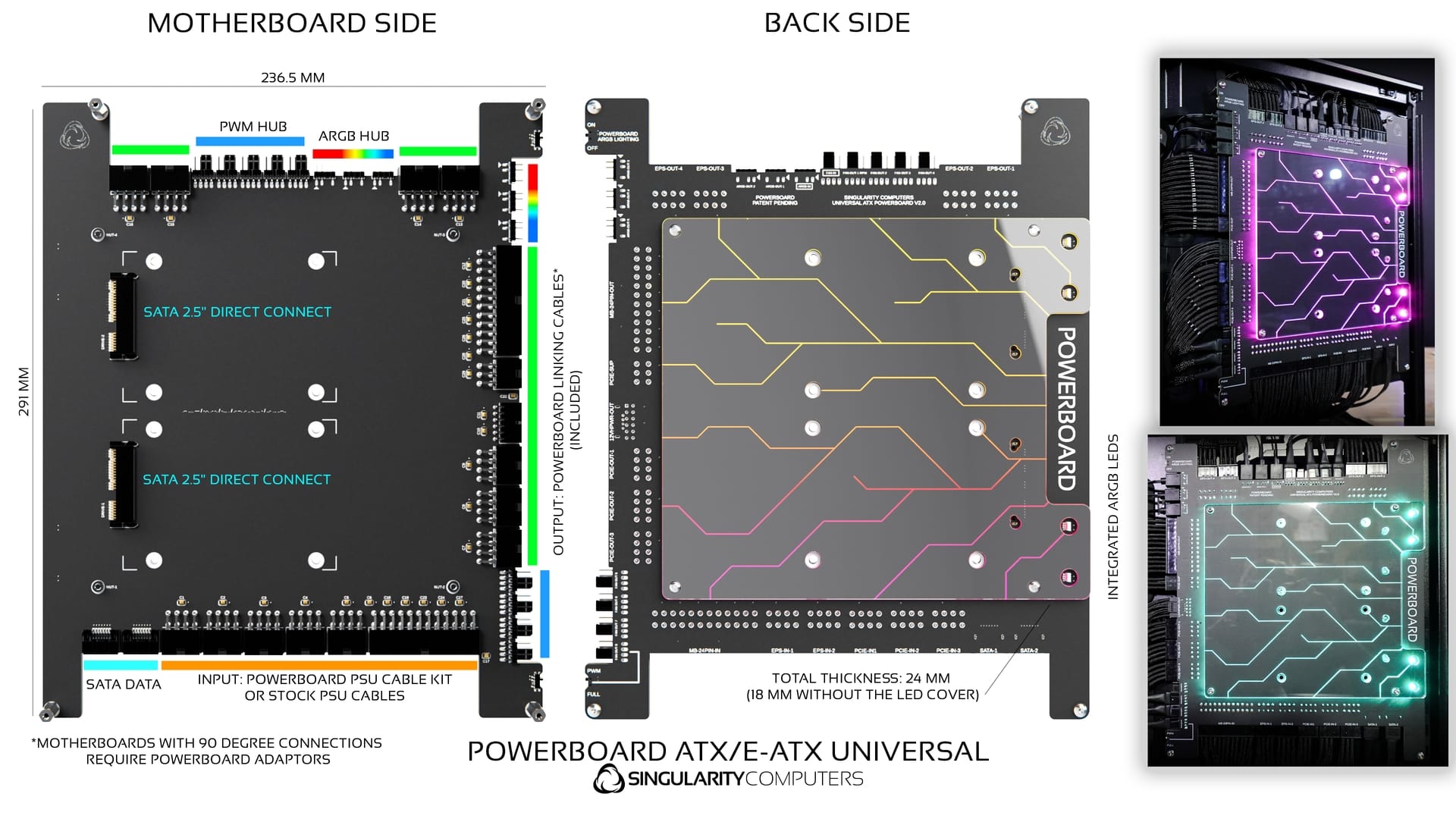

Outputs: 24pin x1. 8pin EPS x4. 8pin PCIE x3. 12V2x6/PCIE 5.1 x1. SATA Direct Mount x2. PWM x8. ARGB x5. ARGB built in LEDs x4 and on/off switch. Power and Reset Buttons.
Product Dimensions: L: 395mm x W: 391.5mm x H: 25mm.
Product Weight: 1kg.
Packaged Dimensions: L: 430mm x W: 395mm x H: 50mm.
Packaged Weight: 1kg.
Fasteners: Stainless steel.
Manufacturing Process: PCB. Laser.
Materials: PCB. Clear Cast Acrylic.

Compatibility:
Form Factor: ATX and E-ATX.
Full compatibility list: (Here)
These are only the cases we have looked at or tested so far. Please contact us below with your requests for case compatibility and we can check and get back to you.

Installation:
Replace the existing motherboard tray stand offs on your case with the ones included with the PowerBoard. Then mount the female to female stand offs onto the threads which are exposed on the back of the motherboard tray. Then attach the PowerBoard to the stand offs.

If you have a question about case compatibility contact us below and we will get back to you.
