PowerBoard PC-O11D

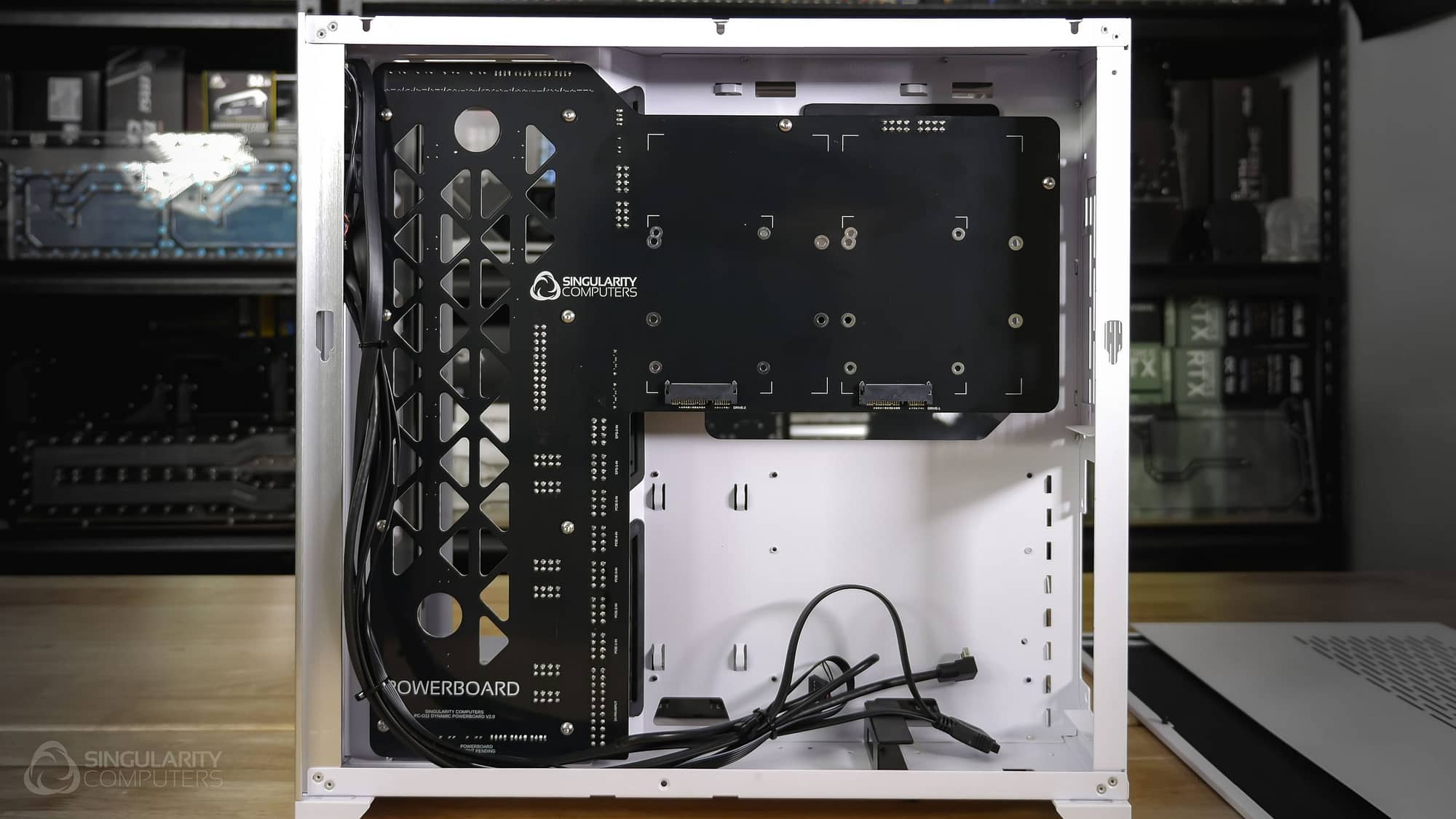

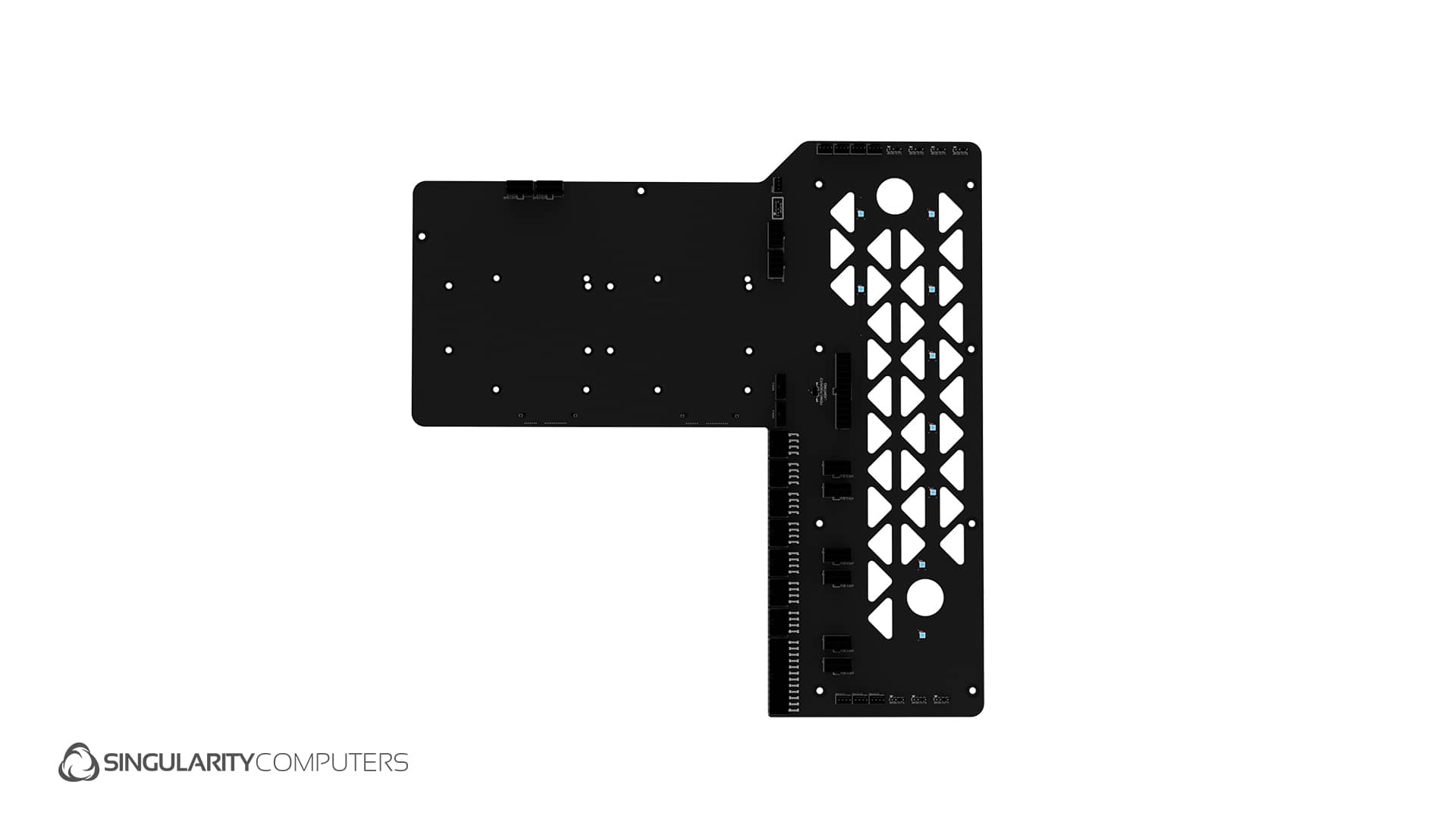

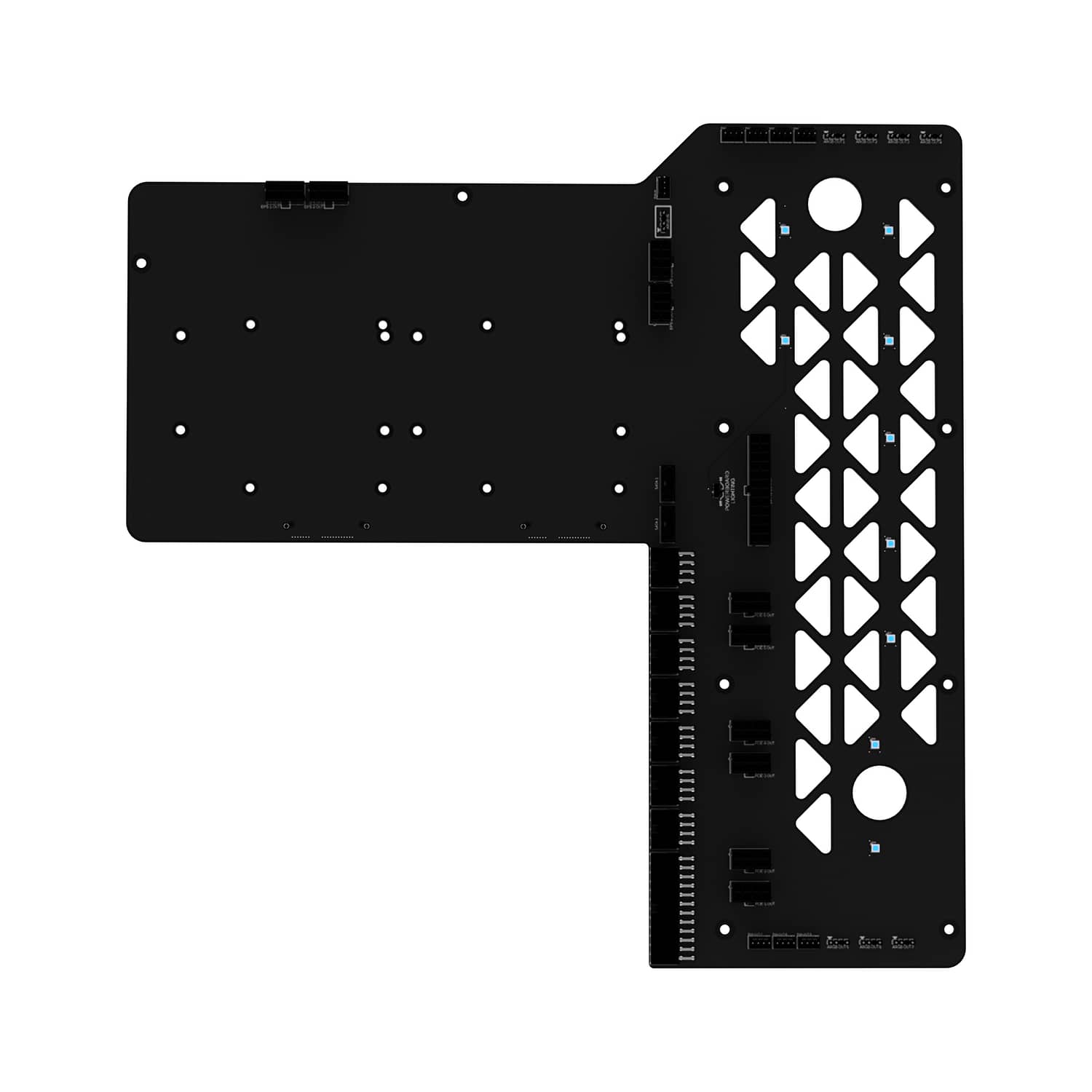

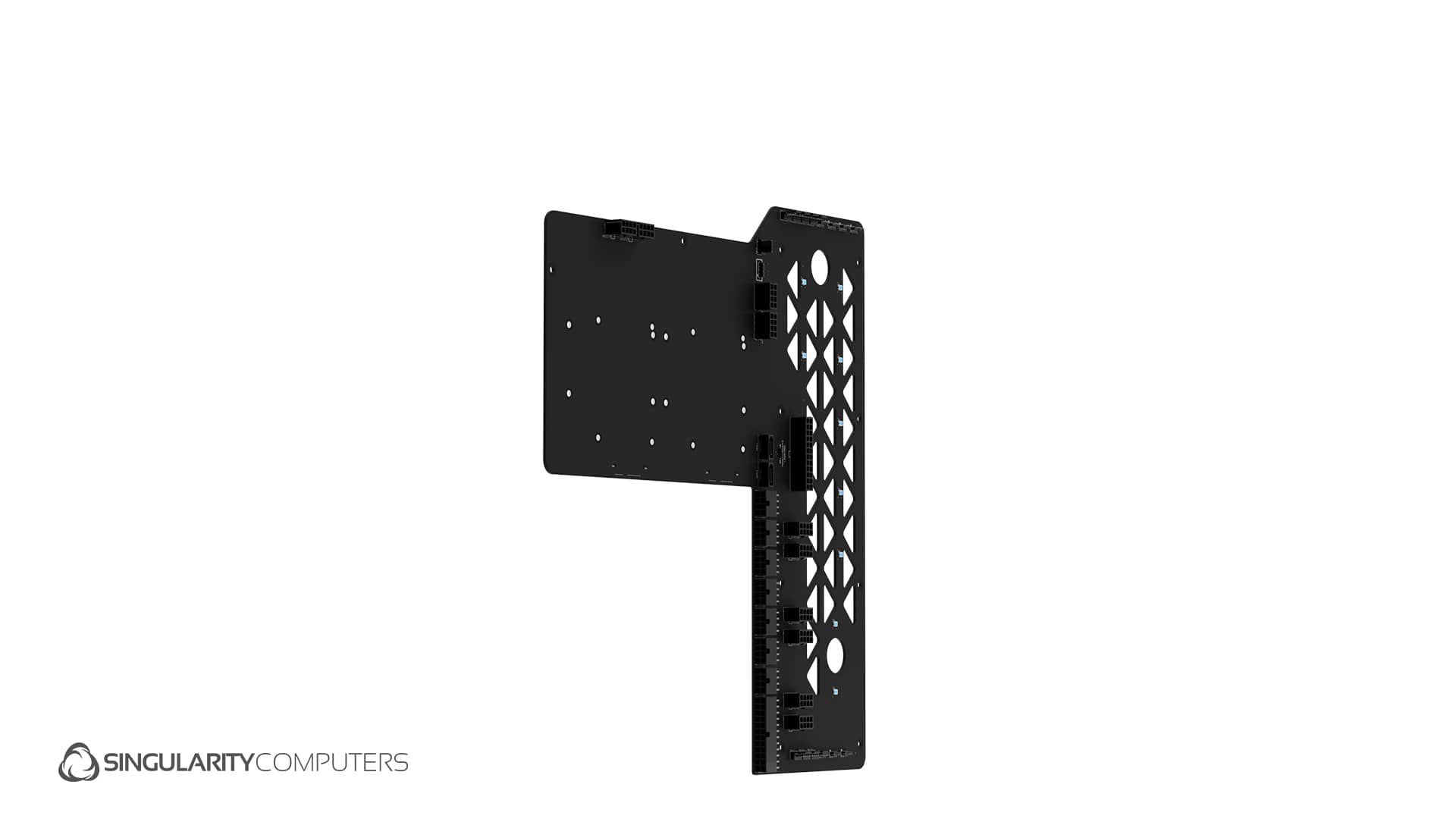

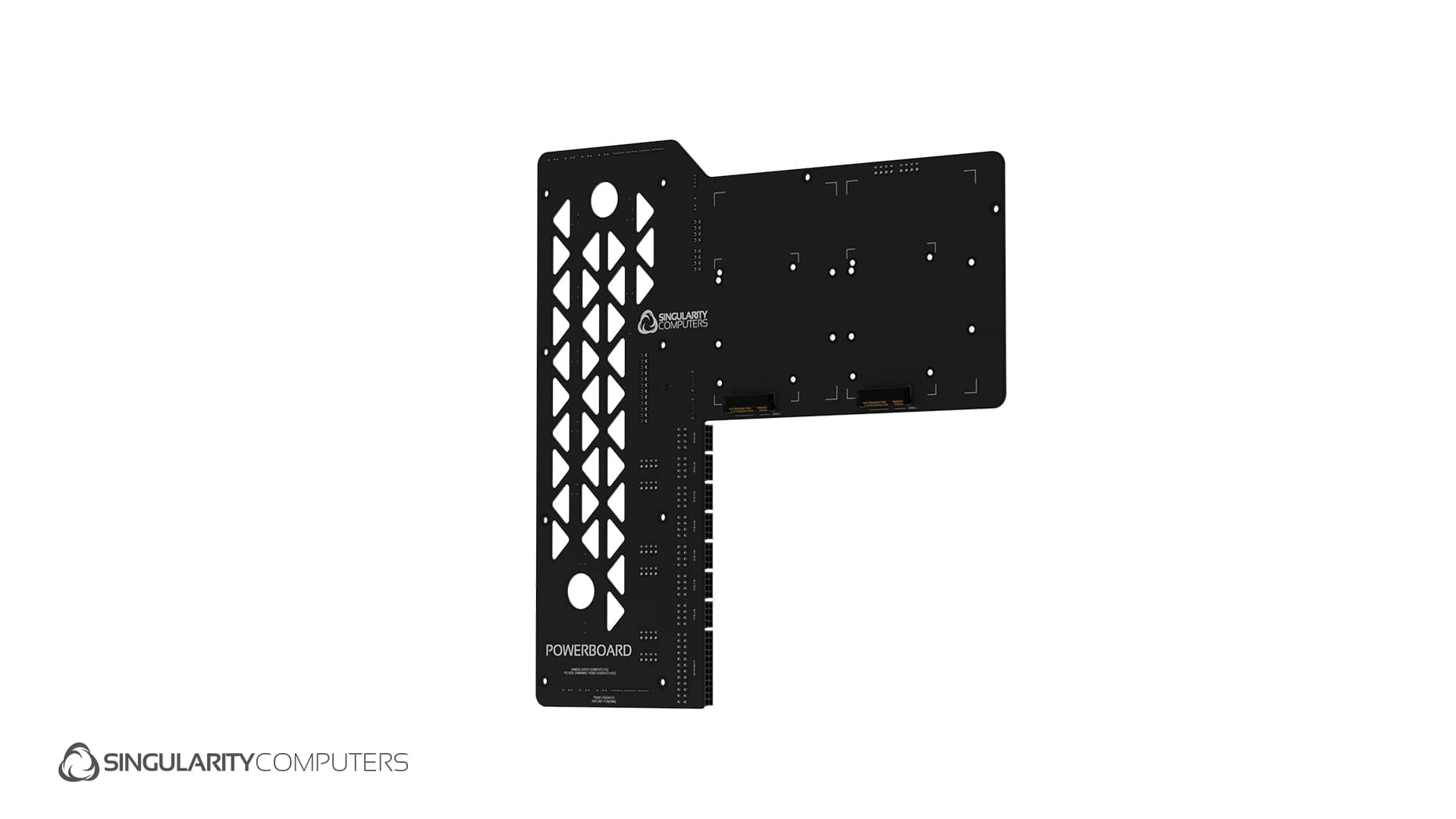

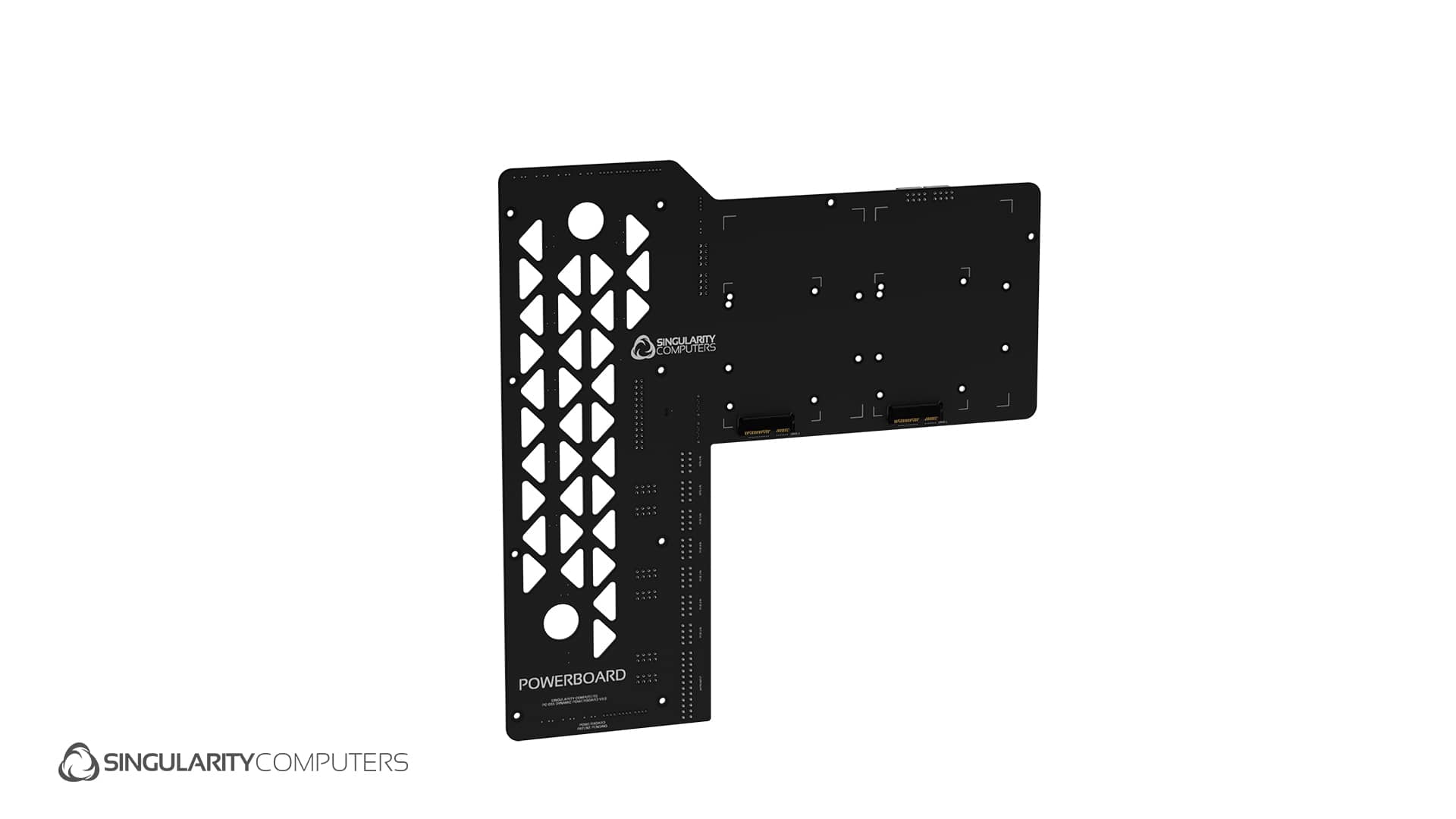

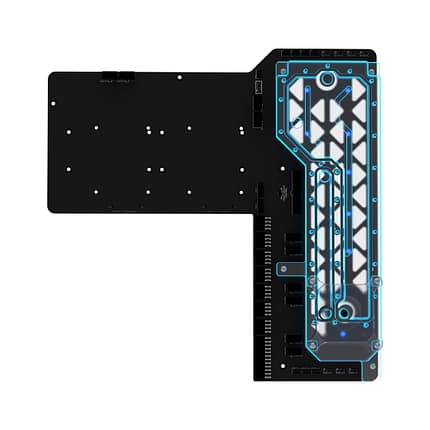

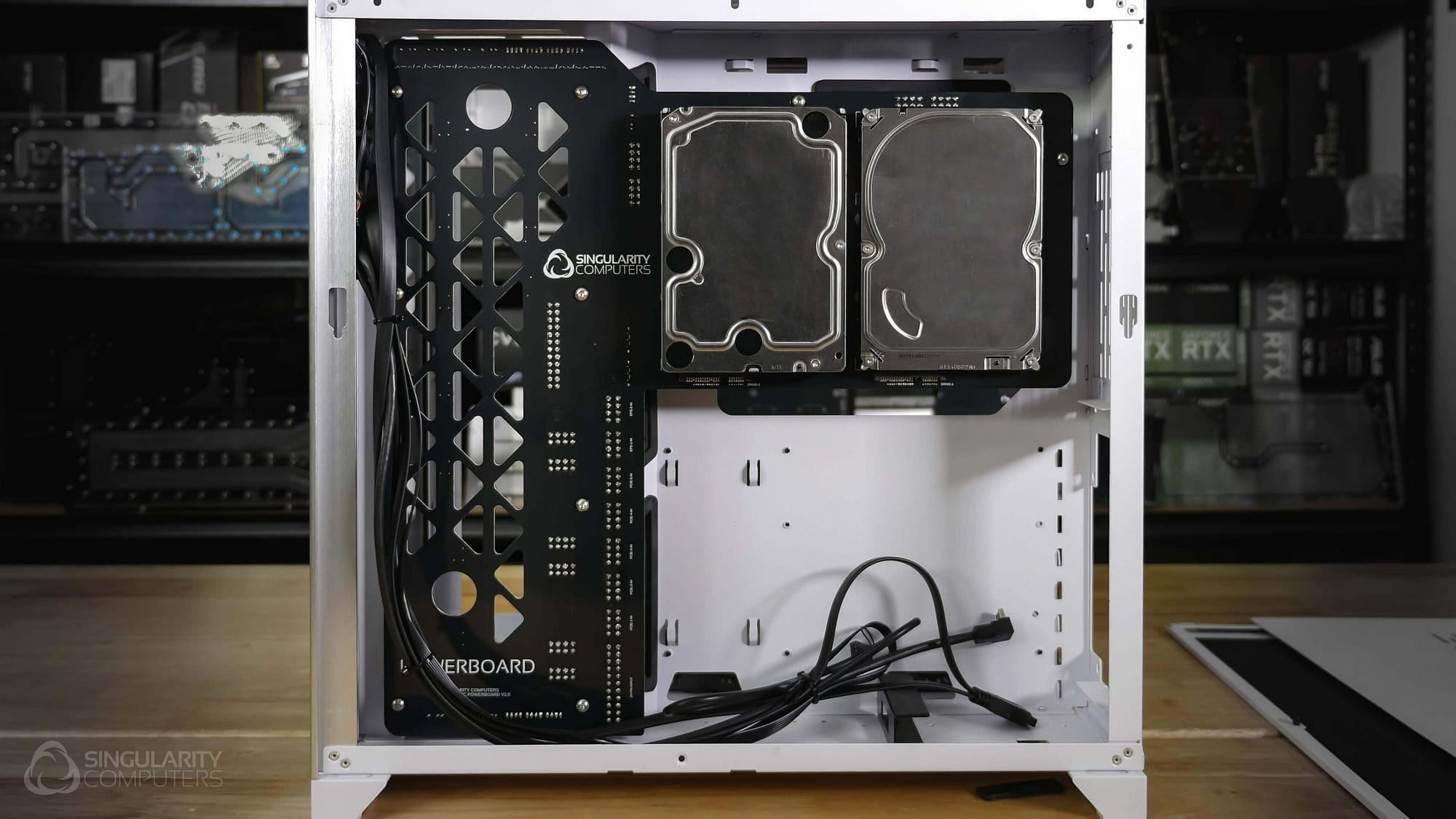

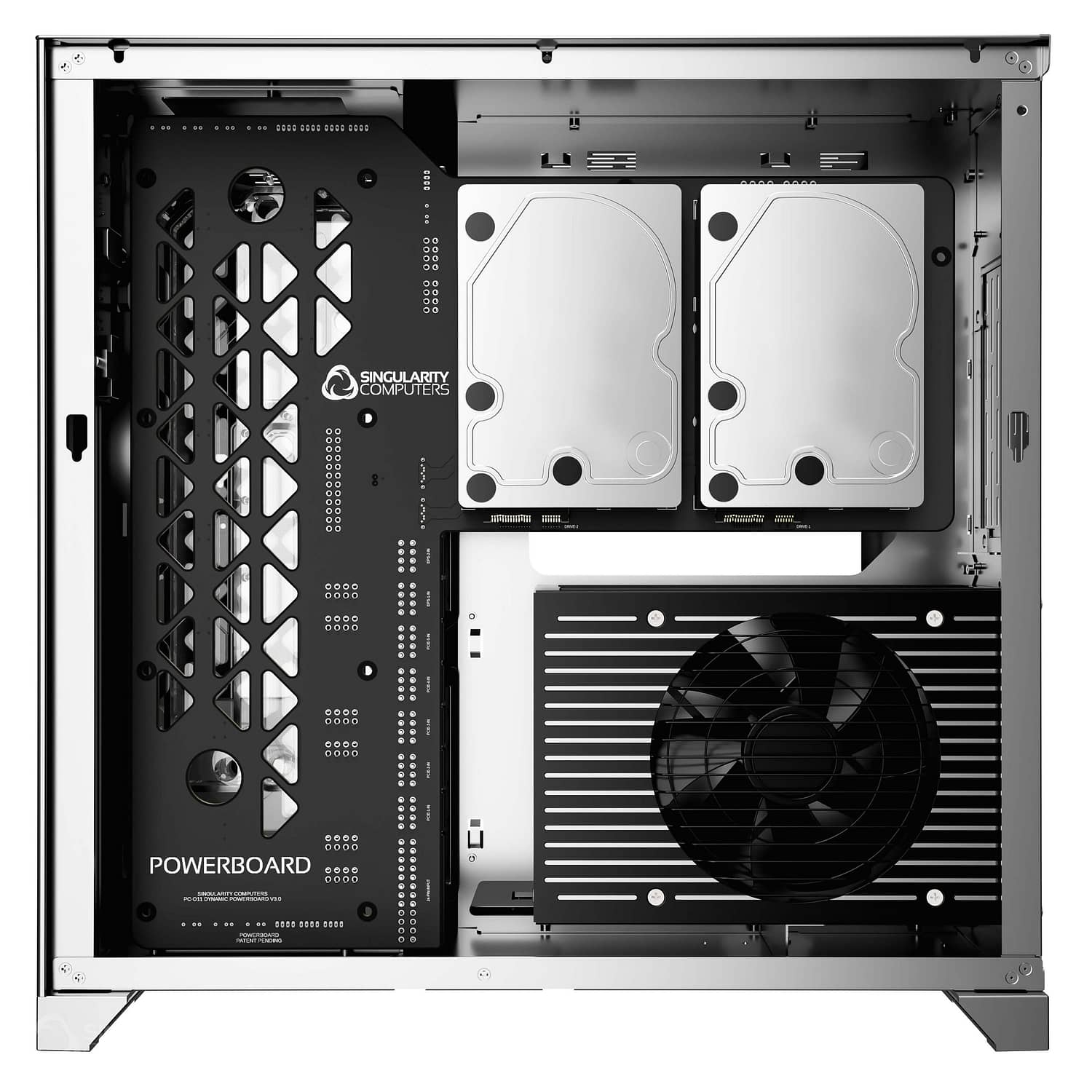

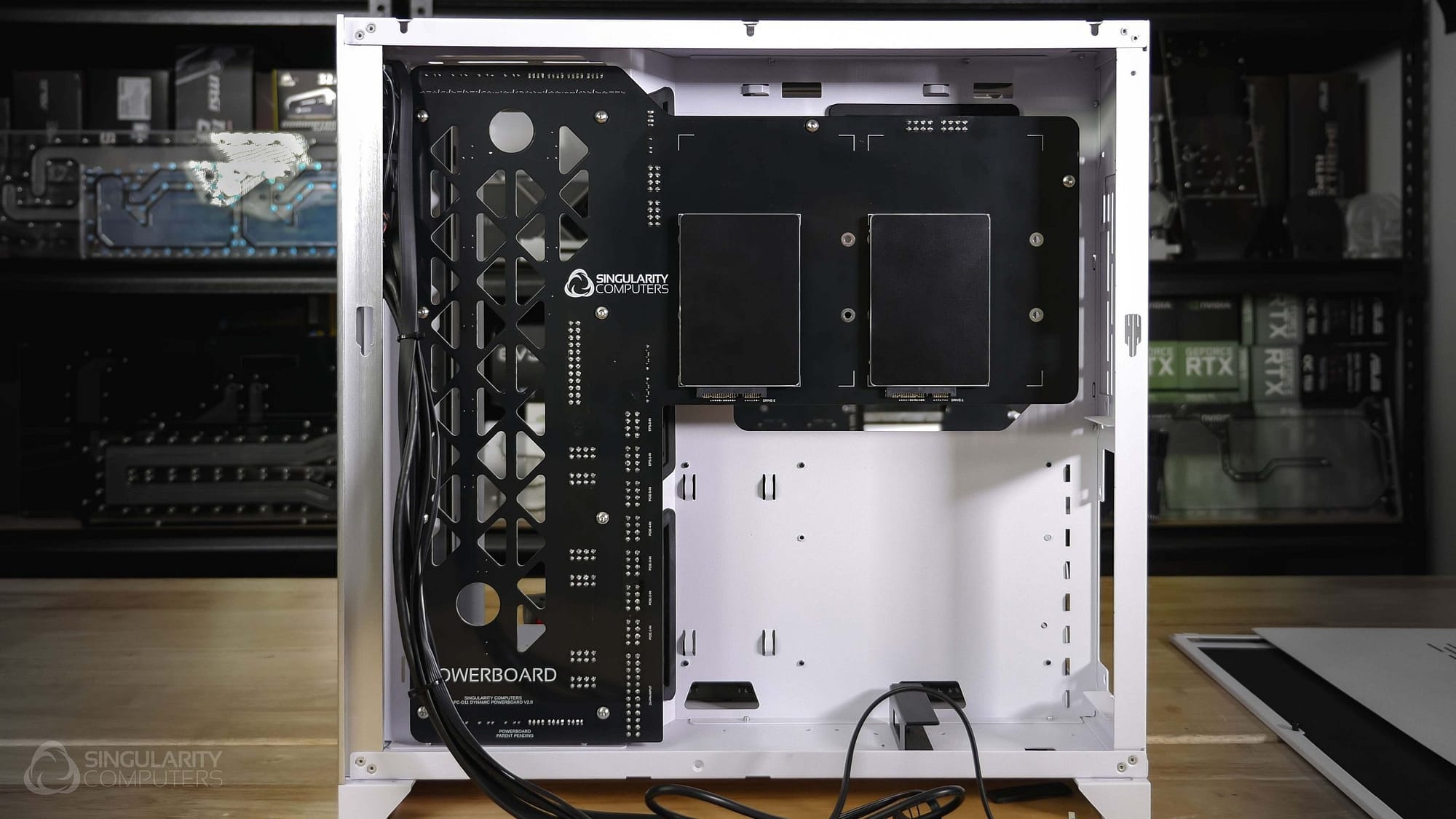

The PowerBoard PC-O11D fits onto the rear side of the motherboard tray in the Lian Li PC-O11D. It integrates 2x 2.5” or 3.5” drive mounting positions, ARGB and PWM hubs. It also has a position for an optional D5 Reservoir Distribution Plate available separately. It has integrated LEDs to light up the Distribution Plate. Integrating all these components into one creates a far cleaner build!
Note: Motherboards with 90 degree 24pin, EPS and/or 6pin Supplementary connections will require PowerBoard Adaptors available here.
The following cables are included with the product: 24pin x1, 8pin EPS x2. You can select either 12VHPWR or 8pin PCIE x3 below.
If other cables are required they are available
Here
Optional PowerBoard PSU Cable Kit is available
Here
For motherboards with 90 degree connectors adaptors are available
Here
US$299.00
Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It integrates and routes the 24pin, EPS and PCIE cables very close to the components so that standardized short cables can be used. This means that cable management is no longer necessary. It integrates ARGB and PWM hubs and on some PowerBoards SATA. The PowerBoard also has integrated ARGB LEDs placed to light up the PowerBoard and/or surrounding components.
The purpose of the PowerBoard is to eliminate the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!
Connections:
24pin Input & Output.
8pin EPS Inputs x2 Outputs x4. (A total of 7 EPS and PCIE outputs can be used at the same time).
8pin PCIE Inputs x5 Outputs x6. (A total of 7 EPS and PCIE outputs can be used at the same time).
PWM Inputs x1 Outputs x7.
ARGB Inputs x1 Outputs x7.
SATA Data Inputs x2 Outputs x2.
Specifications & Included Items:
Singularity Computers PowerBoard PC-O11D.
Product Weight: 0.5kg.
Product Dimensions: H: 395mm x W: 391.5mm x Thickness: 16mm.
Packaged Dimensions: W: 395mm x L: 430mm x H: 40mm.
Packaged Weight: 1kg.
Fasteners:
6-32 x 0.25” Button Head Hex Black Steel: x8.
M3 x 4mm Button Head Hex Stainless Steel: x8.
M4 x 12mm Button Head Hex Stainless Steel: x4.
M4 x 6mm Button Head Hex Stainless Steel: x20.
M4 Female Stand Off Brass 10mm x 8.
M4 Female Stand Off Brass 50mm x 2.
M4 Male Threaded Standoff Brass 6.5mm (F) 10mm: x4.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1.
Installation:
Installs onto the rear side of the motherboard tray, please refer to user manual and documentation.
