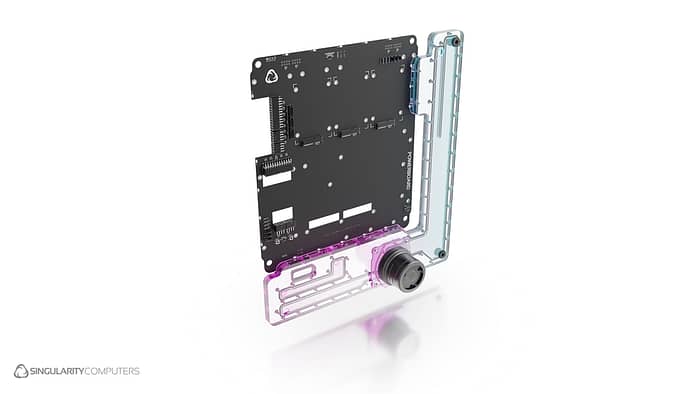

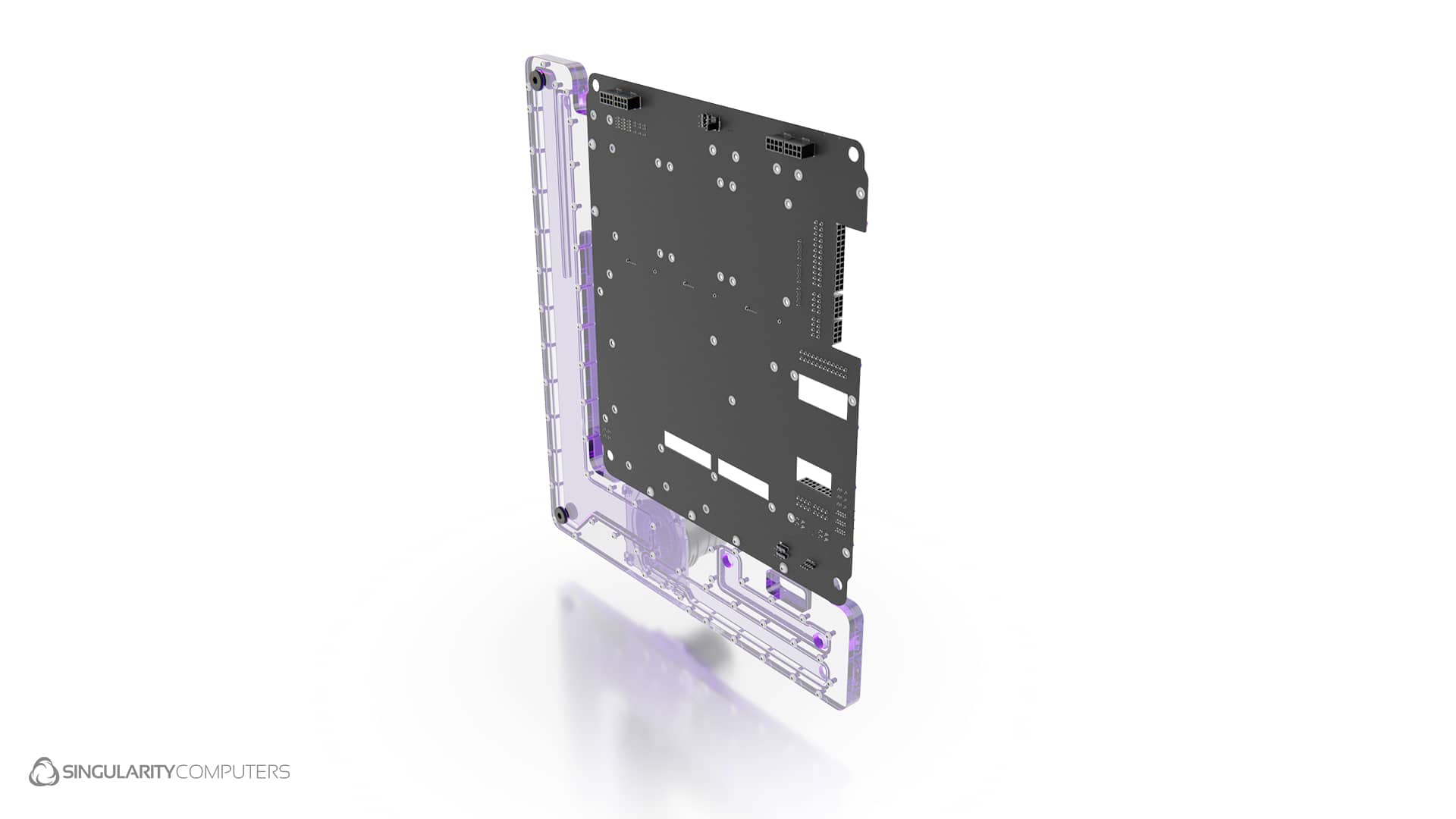

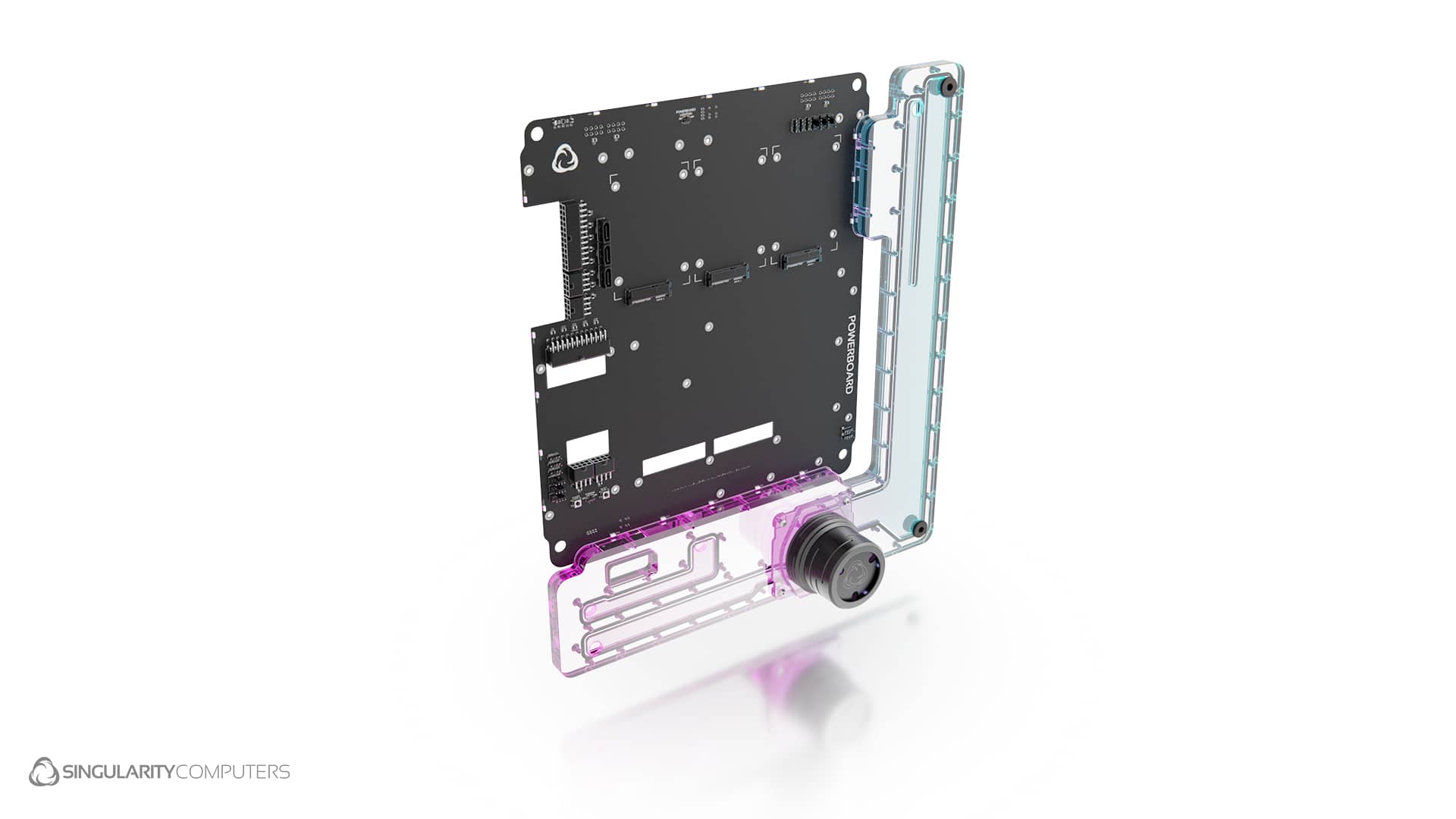

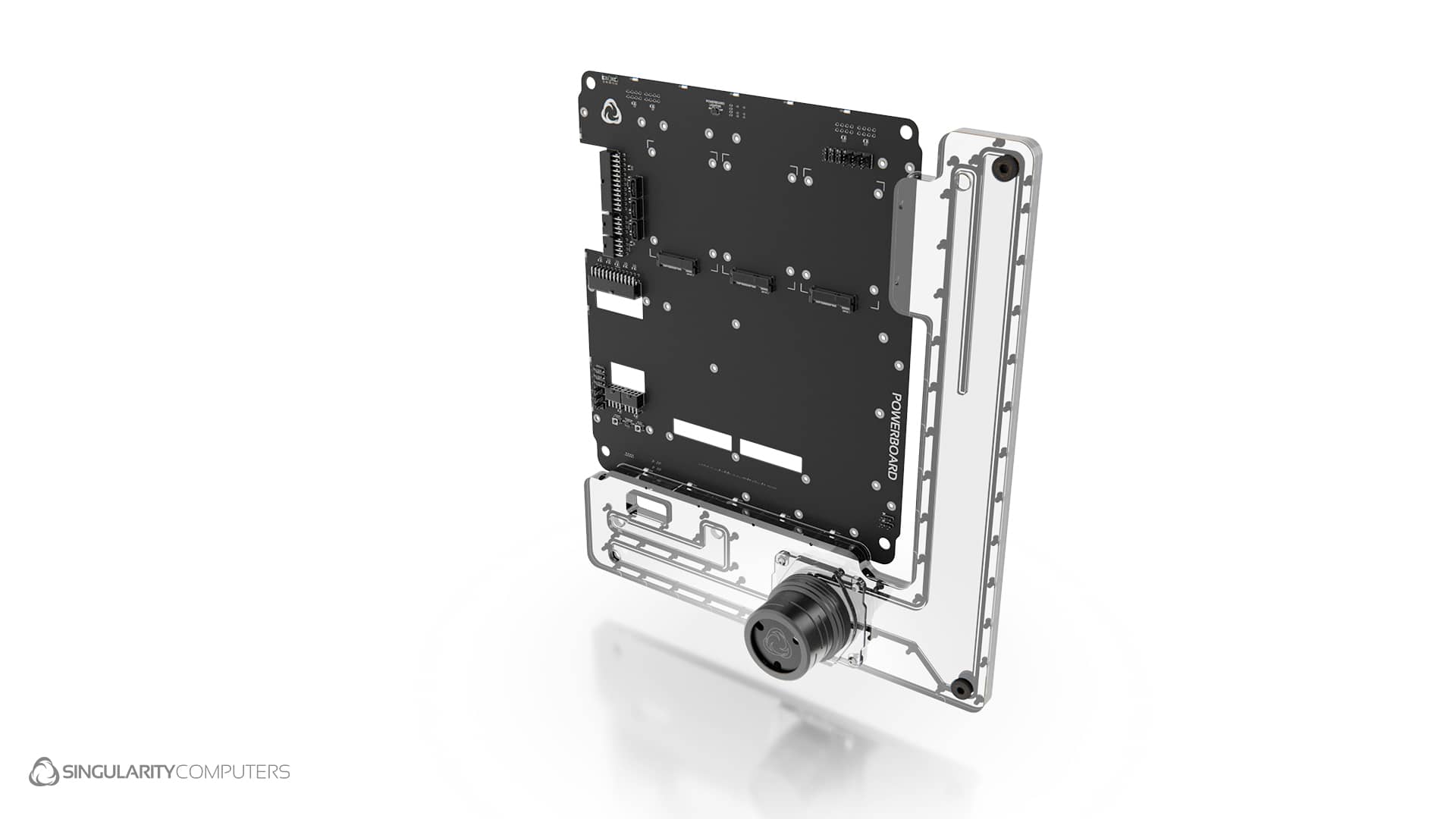

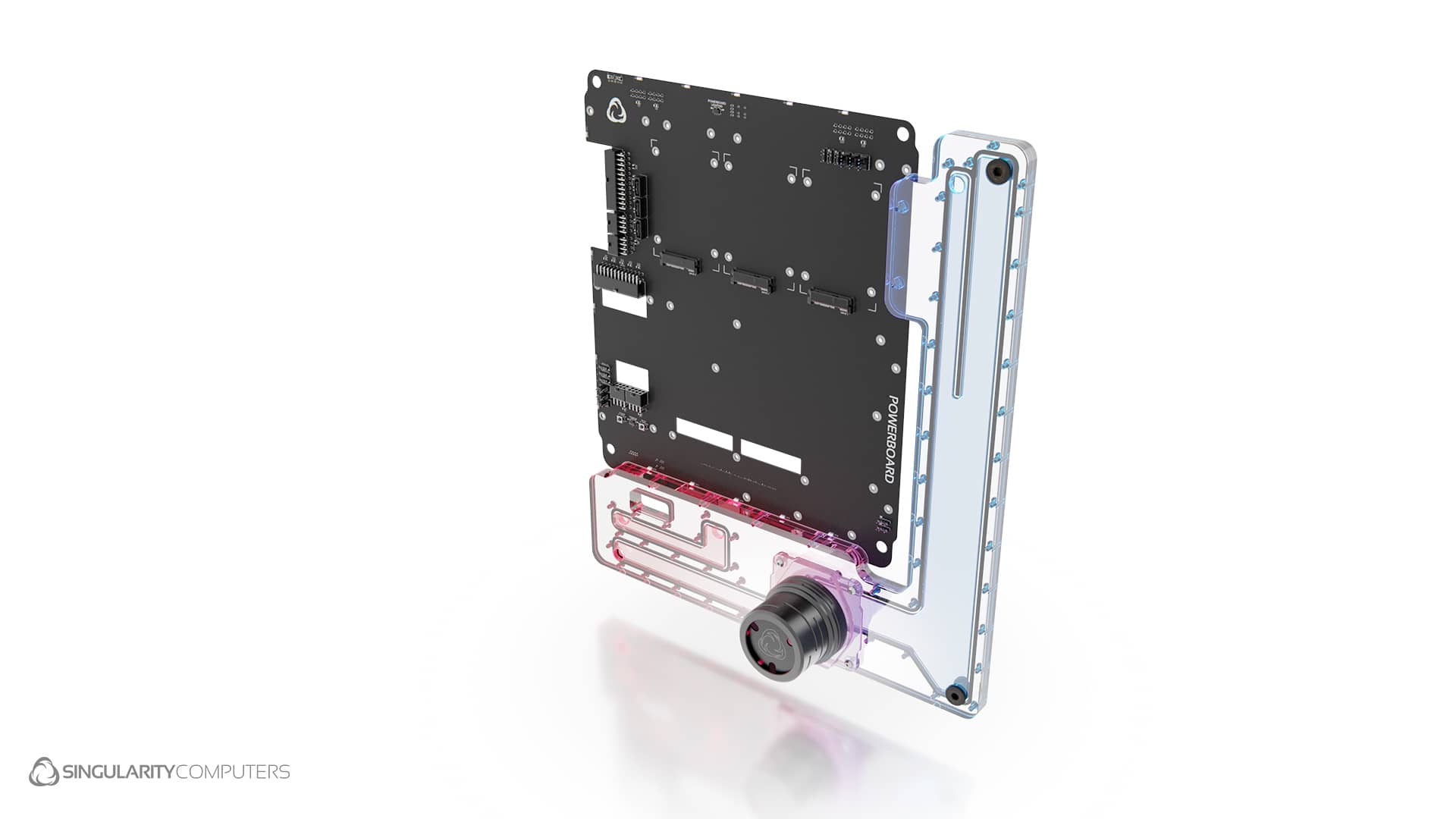

PowerBoard & Distribution Plate EVGA E1

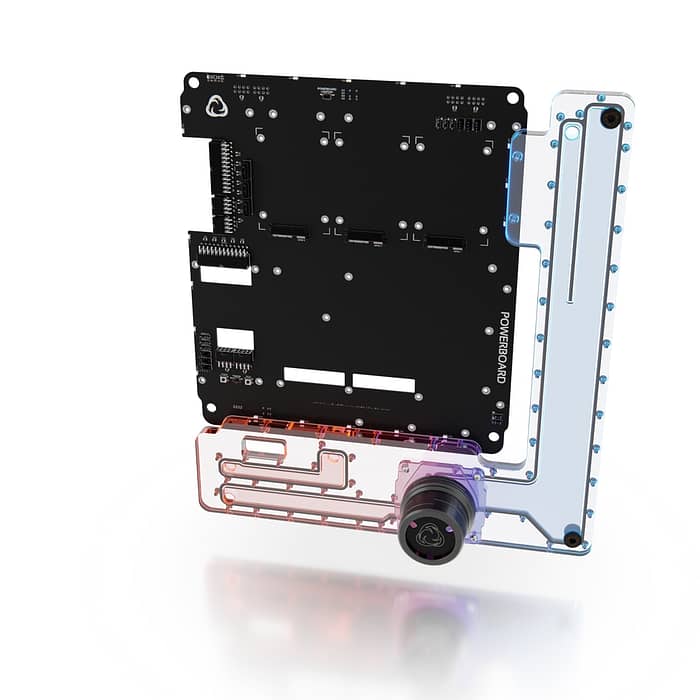

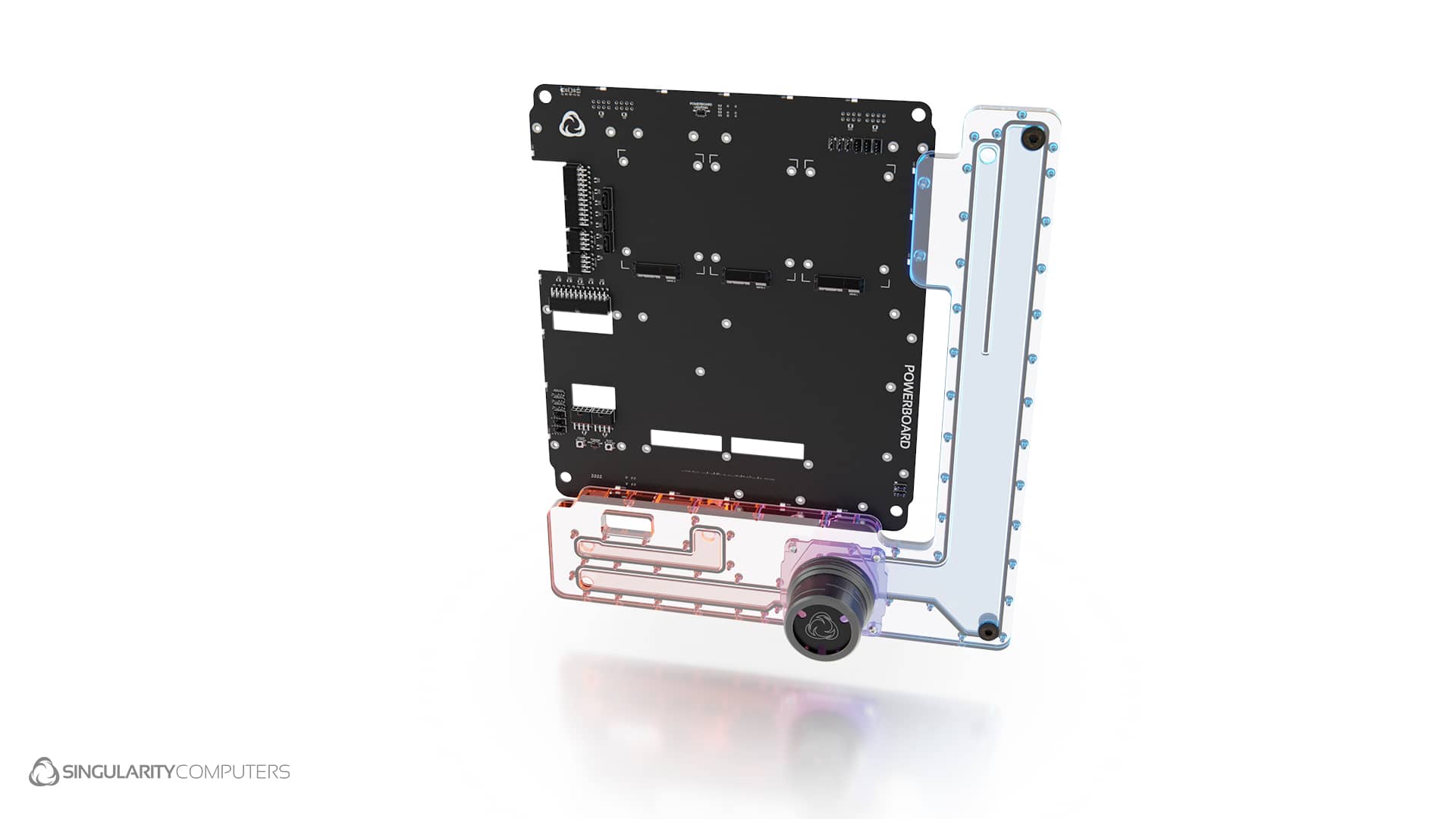

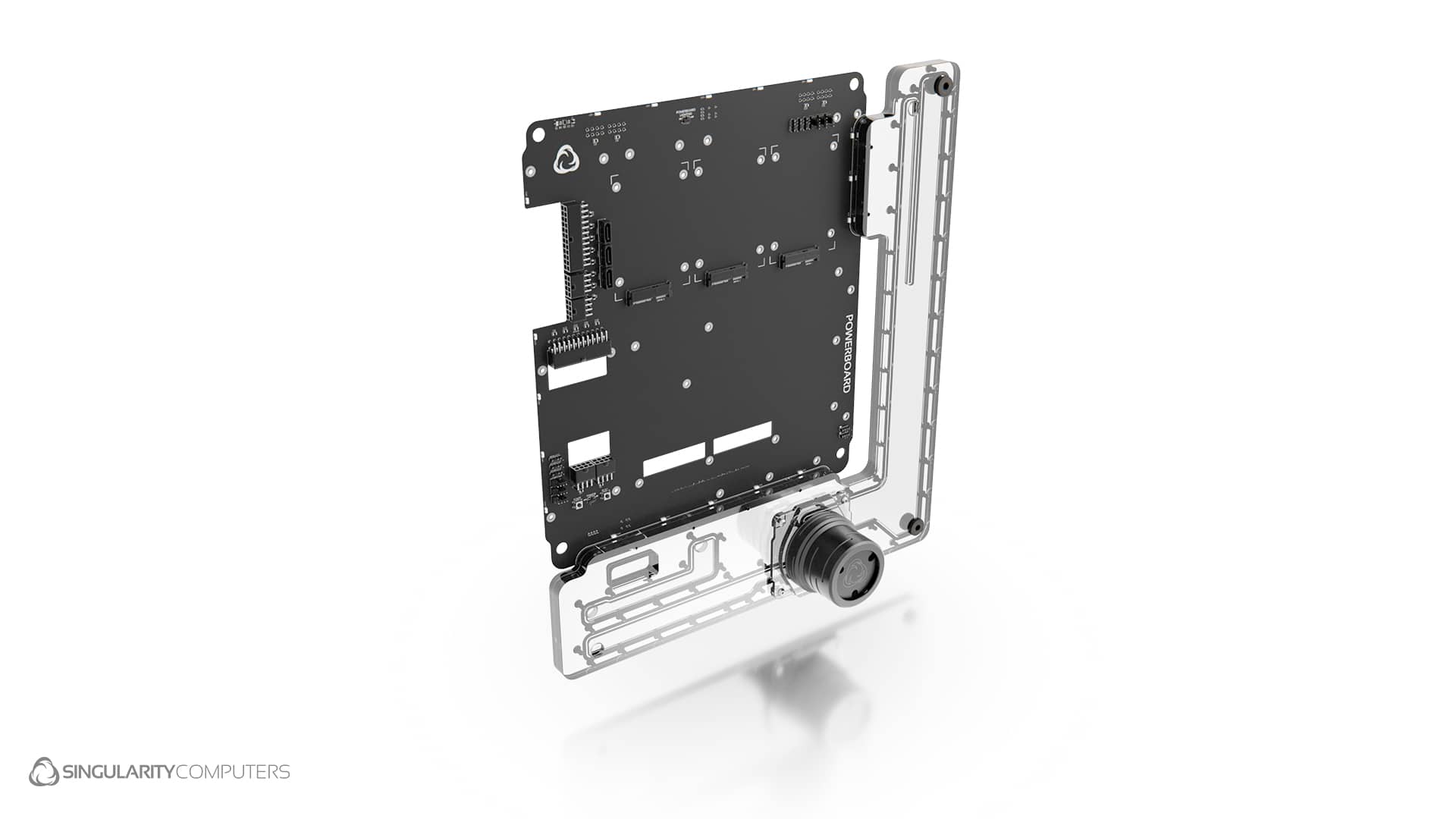

The EVGA E1 is an extremely unique open case with a Carbon Fiber frame which benefits greatly from our PowerBoard and Distribution Plate. The E1 has very little in the way of cable management and all the cables are fully visible from both sides of the case. With the PowerBoard cable management is perfected, becoming almost unnecessary. PWM and ARGB hubs are integrated reducing the clutter of more cables and hubs. There are three direct connect 2.5” SATA mounts meaning there is no need for SATA Power Cables. There are x18 integrated ARGB LEDs meaning extra LED strips are not necessary. The PowerBoard also has other integrated features such as a touch activated power button and extra power and reset buttons.

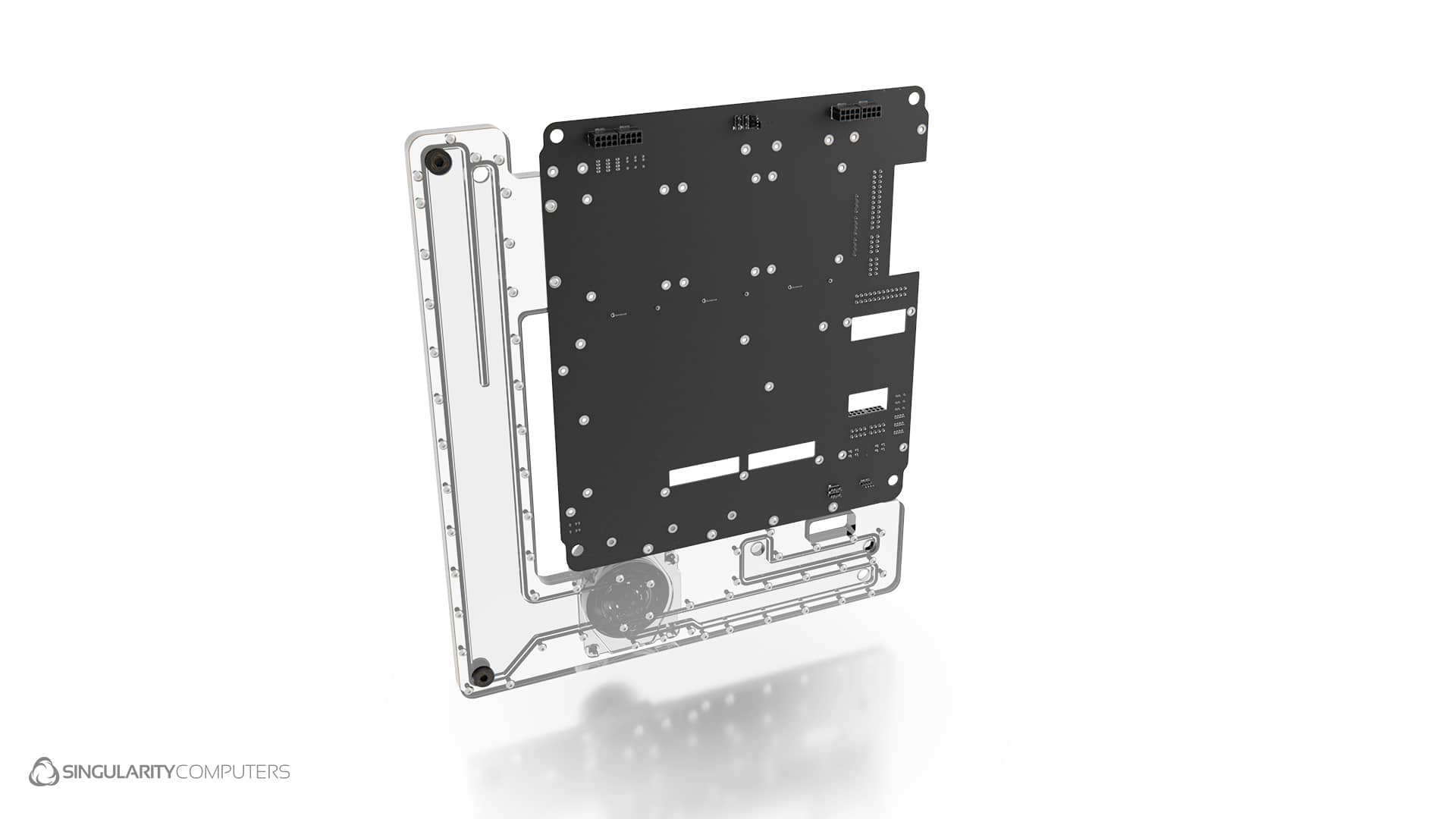

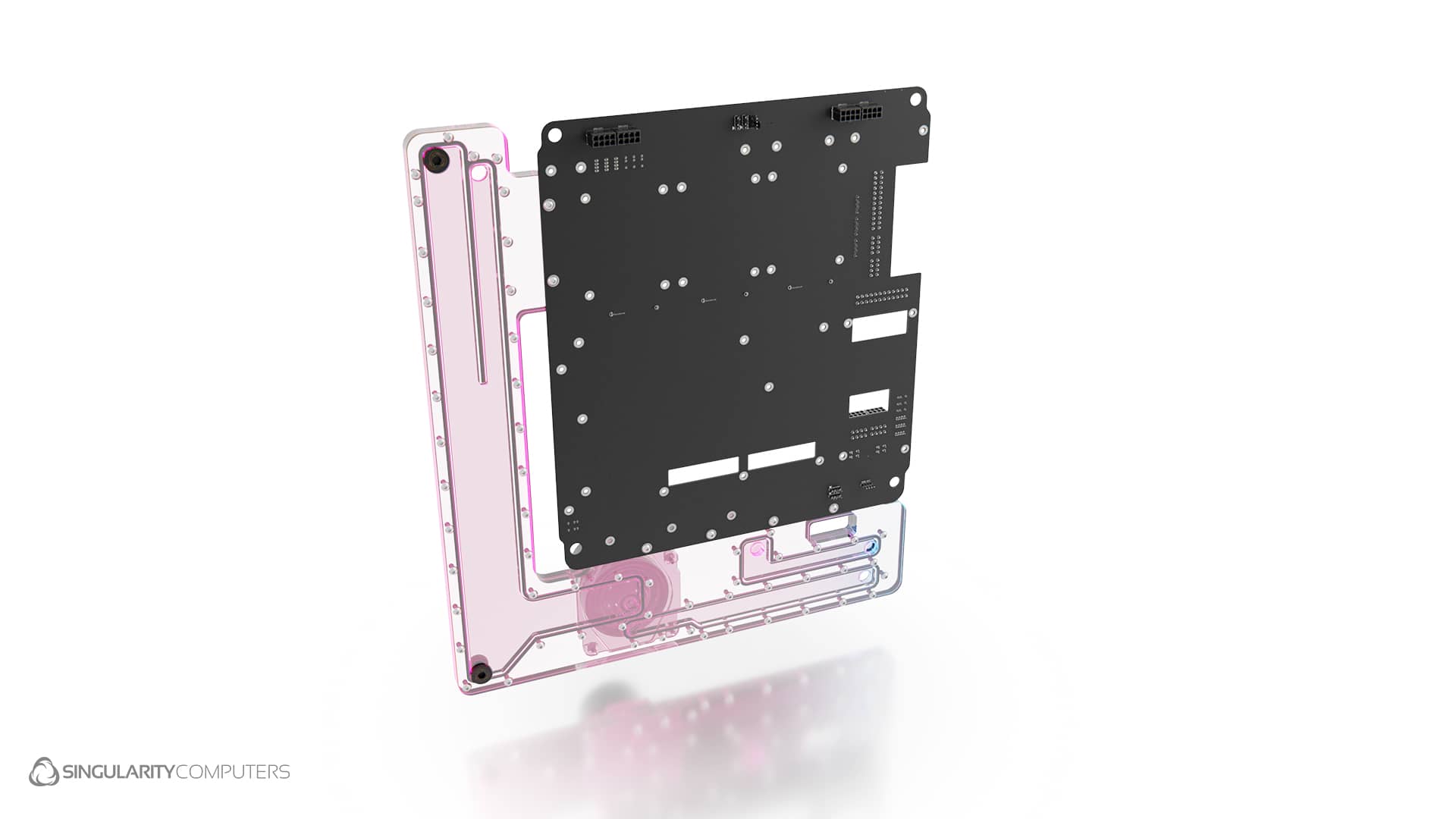

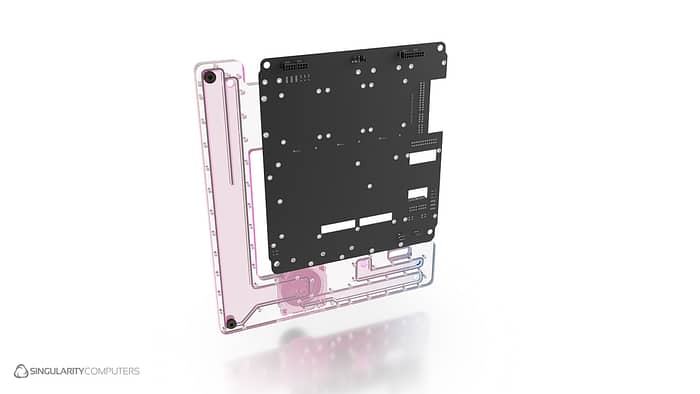

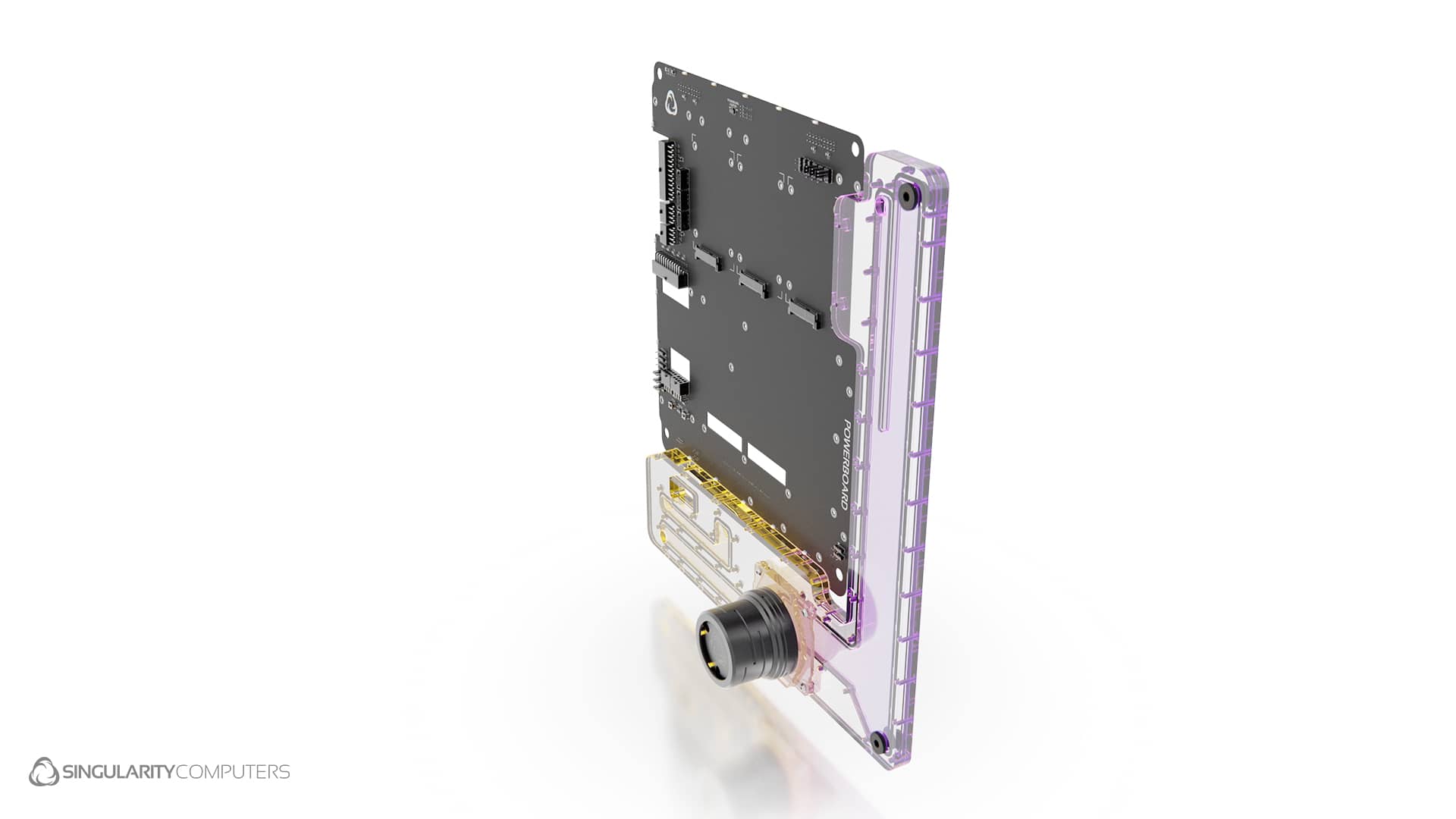

The water-cooling loop is also on full display from both sides in the E1. Our distribution plate integrates the reservoir, D5 pump, D5 Pump Top, fill port, drain port, and parts of the cooling loop, greatly reducing tube runs and cleaning up the loop. A separate pump/reservoir combo would be hard to fit into the E1, and it would make it look cluttered with all the extra tube, fittings and connections. Integrated into the distribution plate the reservoir and D5 pump top saves a lot of space and looks cleaner, also optimizing flow.
The following cables are included with the product: 24pin Inverted 15cm x1. 24 Inverted 10cm x1. 8pin EPS 15cm x2. 8pin EPS Inverted 10cm x2.
If other cables are required they are available
Here
Optional PowerBoard PSU Cable Kit is available
Here
Note: Pump/s not included.
US$799.00
Singularity Computers PowerBoard:

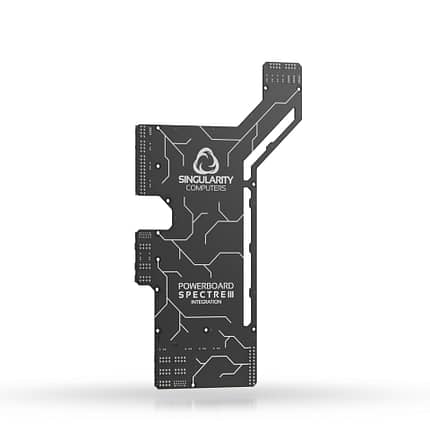

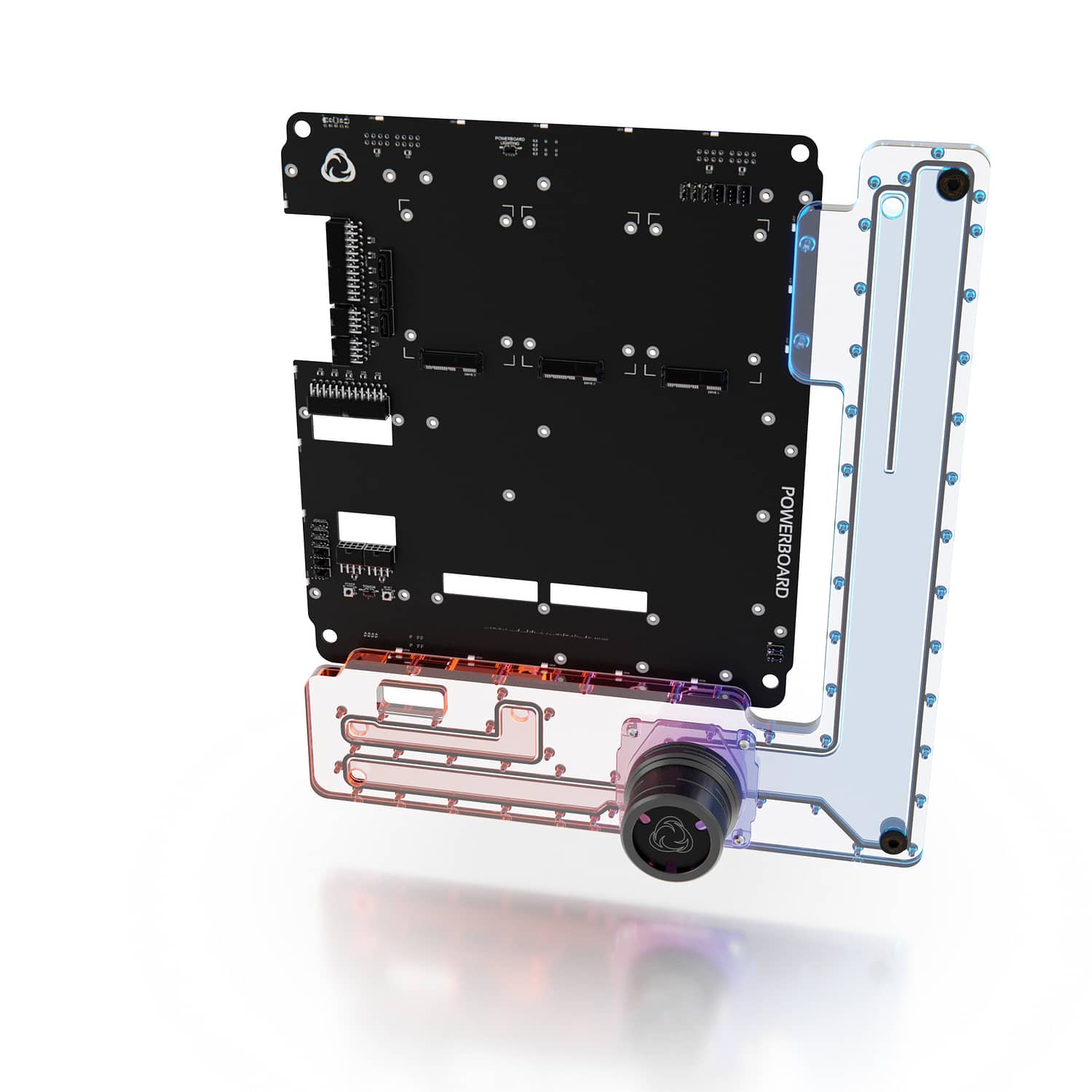

Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It integrates and routes the 24pin, EPS and PCIE cables very close to the components so that standardized short cables can be used. This means that cable management is no longer necessary. It integrates ARGB and PWM hubs and on some PowerBoards SATA. The PowerBoard also has integrated ARGB LEDs placed to light up the PowerBoard and/or surrounding components.
The purpose of the PowerBoard is to eliminate the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!
Specifications & Included Items:
SC PowerBoard EVGA E1.
SC Distribution Plate EVGA E1.
Cables: PowerBoard Linking Cables: 18AWG wire Black Sleeved. 24pin Inverted 15cm x1. 24 Inverted 10cm x1. 8pin EPS 15cm x2. 8pin EPS Inverted 10cm x2. RGB Extension Cable Black 50cm. PWM Fan Extension Cable Black Sleeved 50cm. Touch Activated Power Button Linking Cables x4.
PSU Cable Cover: Cast Acrylic. Laser Cut. Satin Black.
Electronics Integration: Inputs: 24pin x1. 8pin EPS x2. PWM x1. ARGB x1. SATA x3. Outputs: 24pin x1. 8pin EPS x6 (only two can be used at the same time but there are multiple outputs to suit different motherboards). SATA Direct Mount x3. PWM x6. ARGB x11. ARGB built in LEDs x18 and on/off switch. Power and Reset Buttons. Touch activated power button with on/off switch.
Water-cooling Integration: Reservoir, D5 pump top, D5 pump cover, fill port, drain port and parts of the loop. Ports standard G1/4” BSPP x 7. Pump not included, compatible with all D5 pumps. Drives: 2.5” x3 Direct Mounts.
Product Dimensions: H: 395mm x W: 391.5mm x Thickness: 100mm.
Product Weight: 3kg.
Packaged Dimensions: W: 395mm x L: 430mm x H: 100mm.
Packaged Weight: 4kg.
Fasteners: Stainless steel.
Manufacturing Process: PCB. CNC Router. CNC Laser.
Materials: PCB. Cast Acrylic. Stainless Steel.
Assembly: Assembled by hand.
Features:
Integrated Liquid Cooling Features: Reservoir, D5 Pump Top, D5 Pump Cover, Fill Port, Drain Port, parts of the cooling loop.
PowerBoard Integration: The PowerBoard is a PCB integrating 24pin, EPS, PWM and ARGB Hubs, SATA and Power and Reset Buttons. The SC PowerBoard EVGA E1 also has an integrated touch sensing Power Button. The PowerBoard has x18 ARGB LEDs positioned around the external perimeter to optimally light up the distribution plate and the build. The LEDs can be switched on or off. Essentially the PowerBoard is a distribution plate for cables also integrating other features and functions. It is a new method for cables allowing standardization of cable lengths and making cable management almost unnecessary. The SC PowerBoard EVGA E1 also comes included with a standard set of black sleeved linking cables including 24pin x1, 8pin EPS x2, ARGB 50cm x1, PWM 50cm x1, and a cable set for the touch activated power button meaning that these cables don’t have to be purchased separately.
Reduced build time due to integration: With the pump, reservoir, fill and drain ports, parts of the water-cooling loop, the core component cables, PWM and ARGB hubs all integrated there is less assembly to be done. Also, less fittings and tube are needed. No cable management for the core component cables thanks to the PowerBoard integration.
Integration Cost Component: A large portion of the case cost is due to the integration. These are components you do not have to purchase for your build. The pump, reservoir, cables, hubs, less fittings, less tube, no lighting, no cable combs, or cable management components.
Installation:
Replaces the existing motherboard tray, please refer to user manual and documentation.
