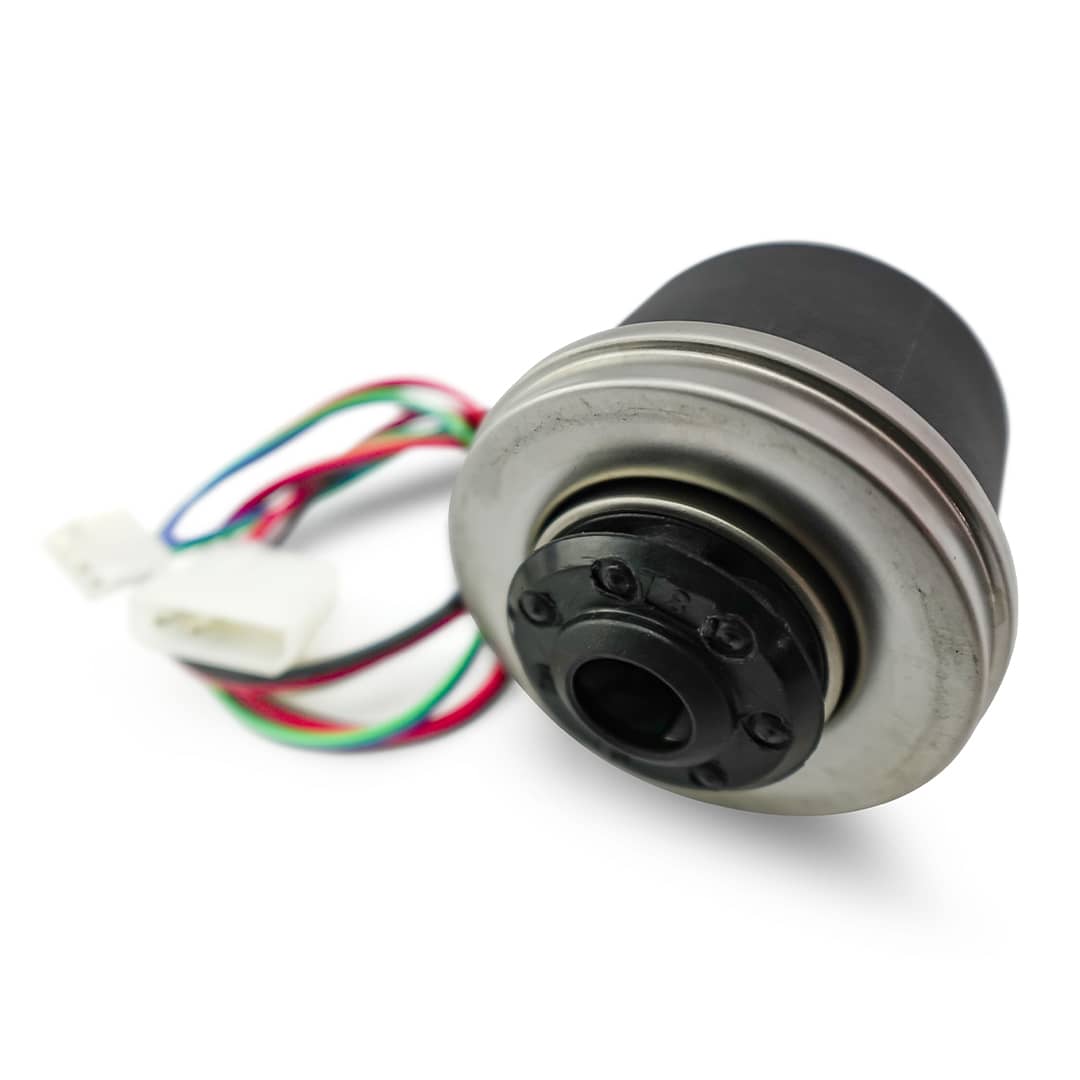

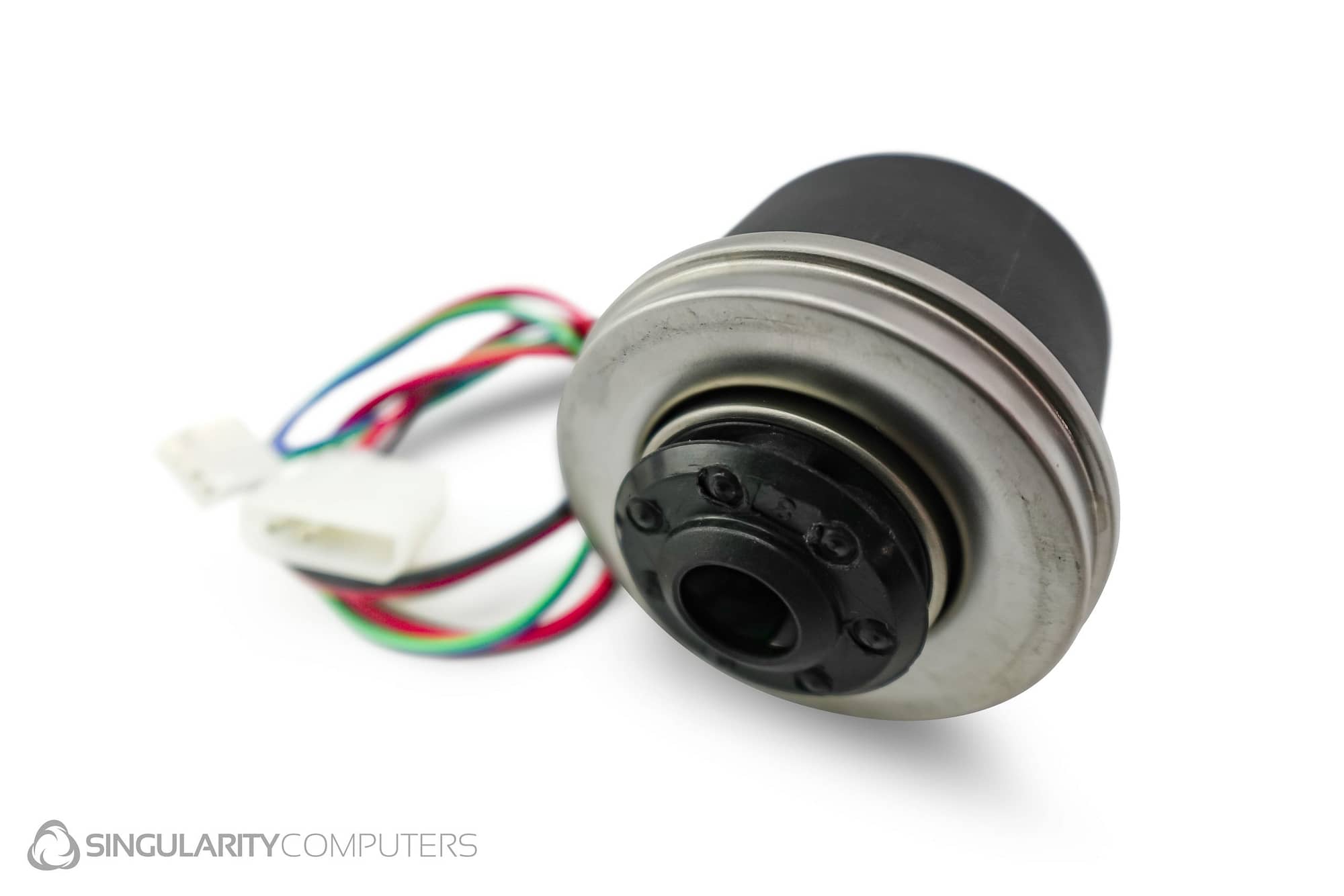

Protium D5 PWM Pump
The Protium D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM. This pump can be used with all Singularity Computers products which fit a D5 Pump including all versions of Spectre, Wraith, Resonance, Protium and custom distribution plates with an integrated D5 pump top.
US$94.00
Specifications:
Dimensions (L x W x H): 65 x 65 x 57 mm
Motor design: Electronically commutated spherical motor
Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-Rings, aluminium oxide, hard carbon
Rated voltage: 12V DC
Power consumption: max. 30W
Voltage range: 8-24V DC
Pressure head at 12 V: 3,7 m
Max. flow rate: 1500 l/h
Acceptable media: Water, water-glycol mixtures
Max. system temperature: 60°C
Max. system pressure: 1,5 bar

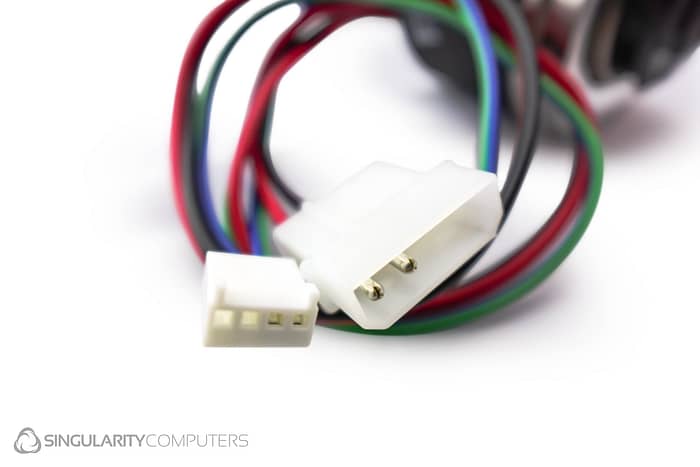

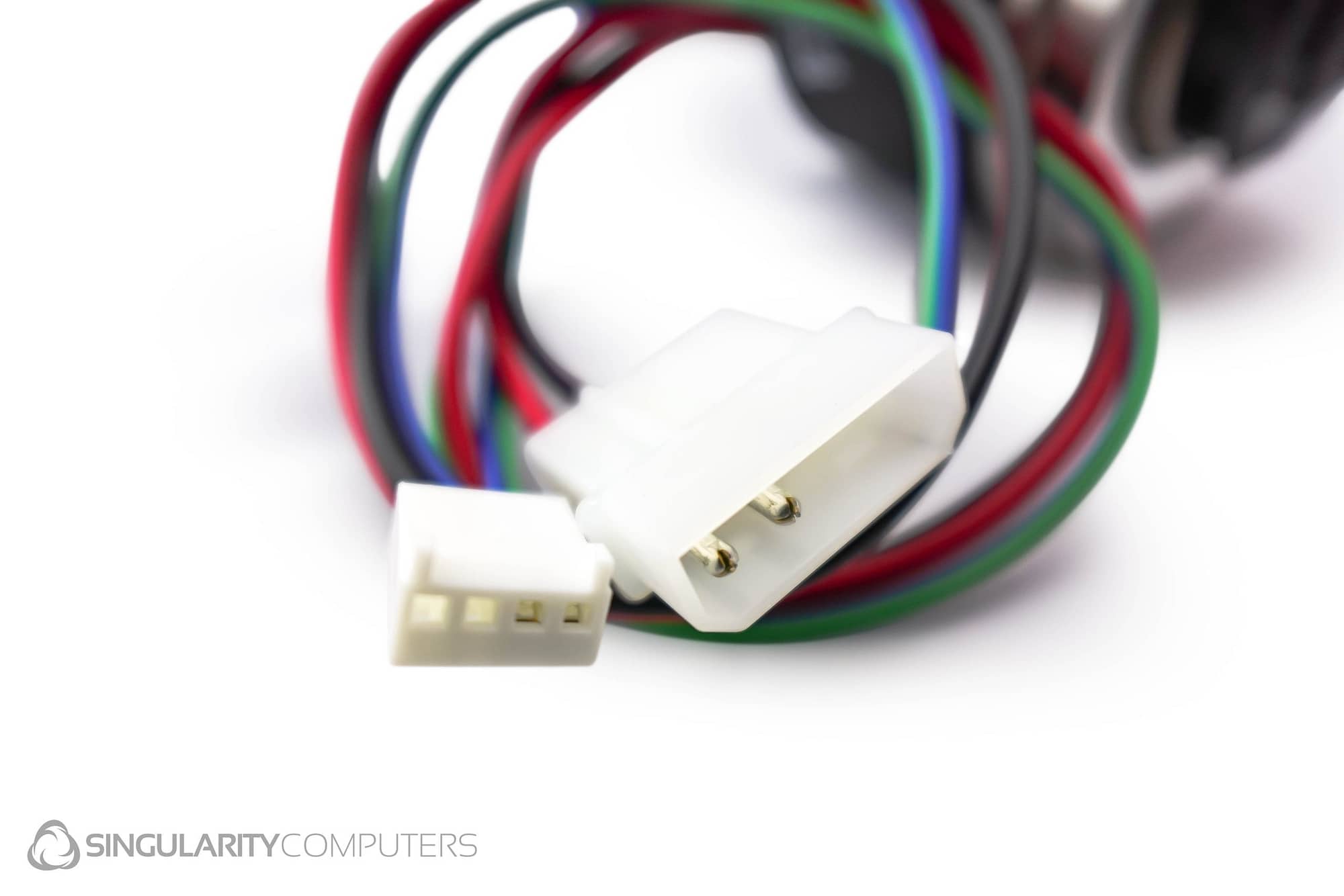

Power supply: 4Pin Molex
Rotational speed monitoring: yes (via 4pin PWM)
PWM: Yes
Packaged Dimensions: 85mm x 85mm x 85mm
Packaged Weight: 0.5kg
Installation:
Compatible with any product which fits a D5 pump.
