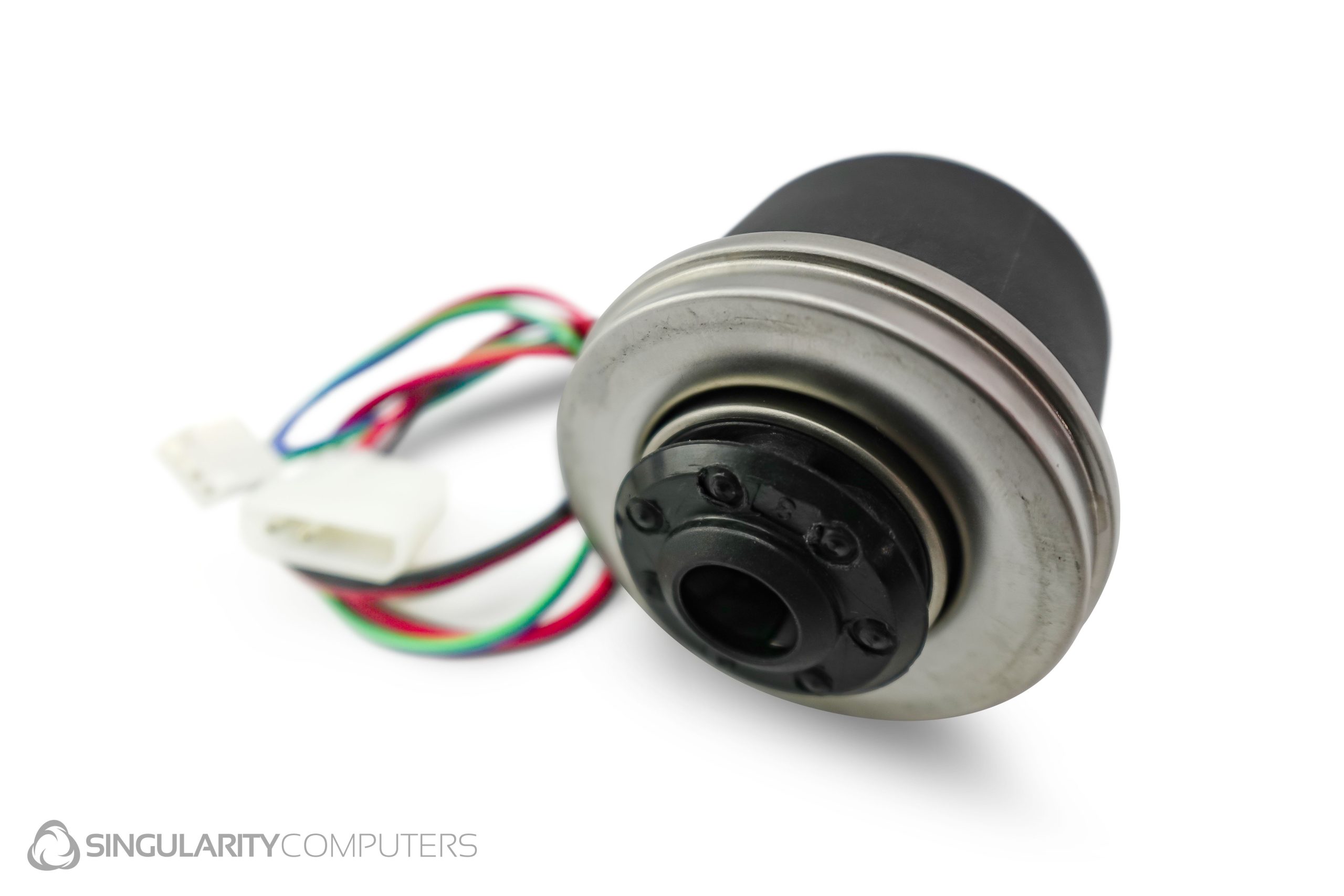

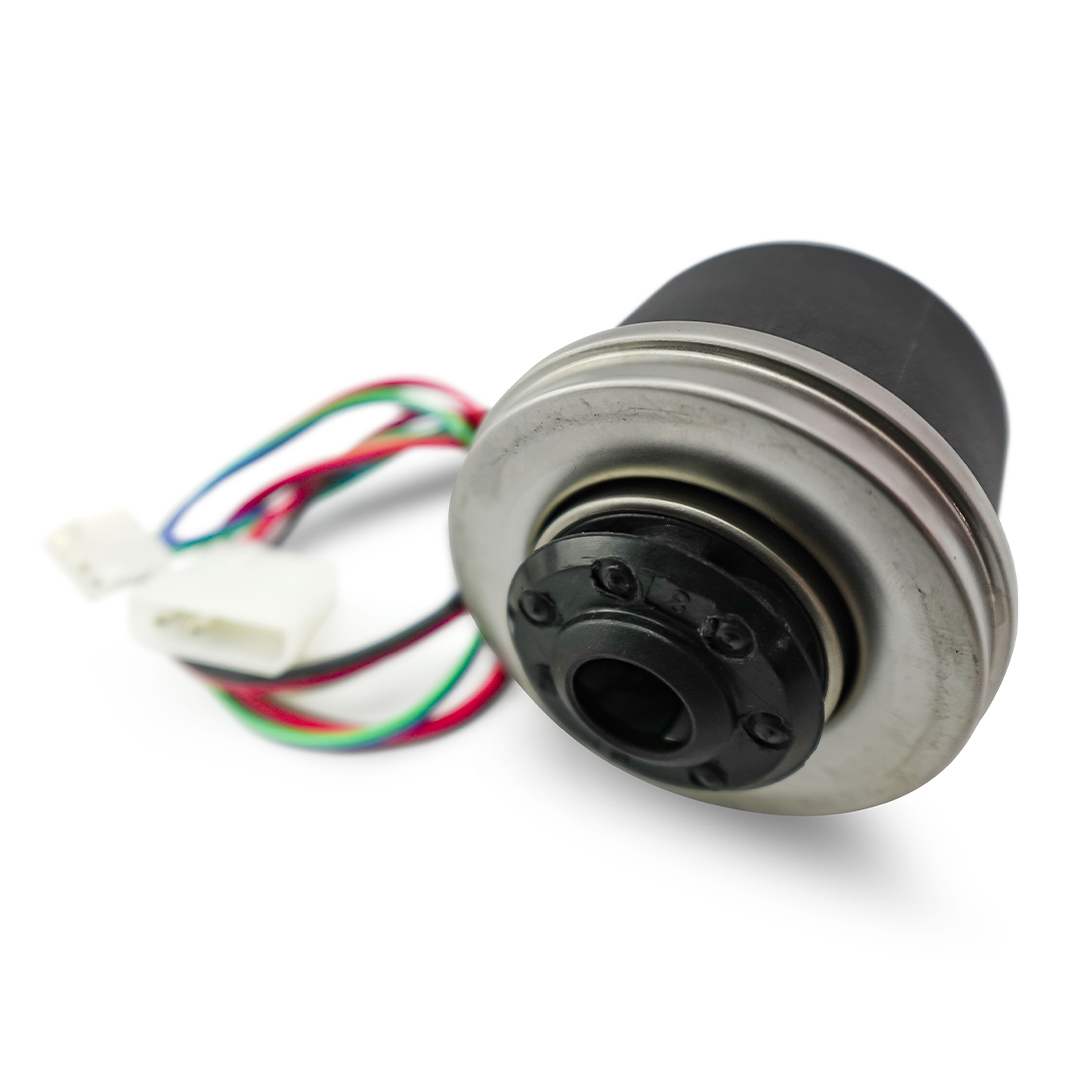

D5 Pump
The D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM. This pump can be used with all Singularity Computers products which fit a D5 Pump including all versions of Spectre, Wraith, Resonance, Protium and custom distribution plates with an integrated D5 pump top.
US$94.00
Specifications:
Motor design: Electronically commutated spherical motor.
Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-Rings, aluminium oxide, hard carbon.
Rated voltage: 12V DC.
Power consumption: max. 30W.
Voltage range: 8-24V DC.
Pressure head at 12 V: 3,7 m.
Max. flow rate: 1500 l/h.
Acceptable media: Water, water-glycol mixtures.
Max. system temperature: 60°C.
Max. system pressure: 1,5 bar.

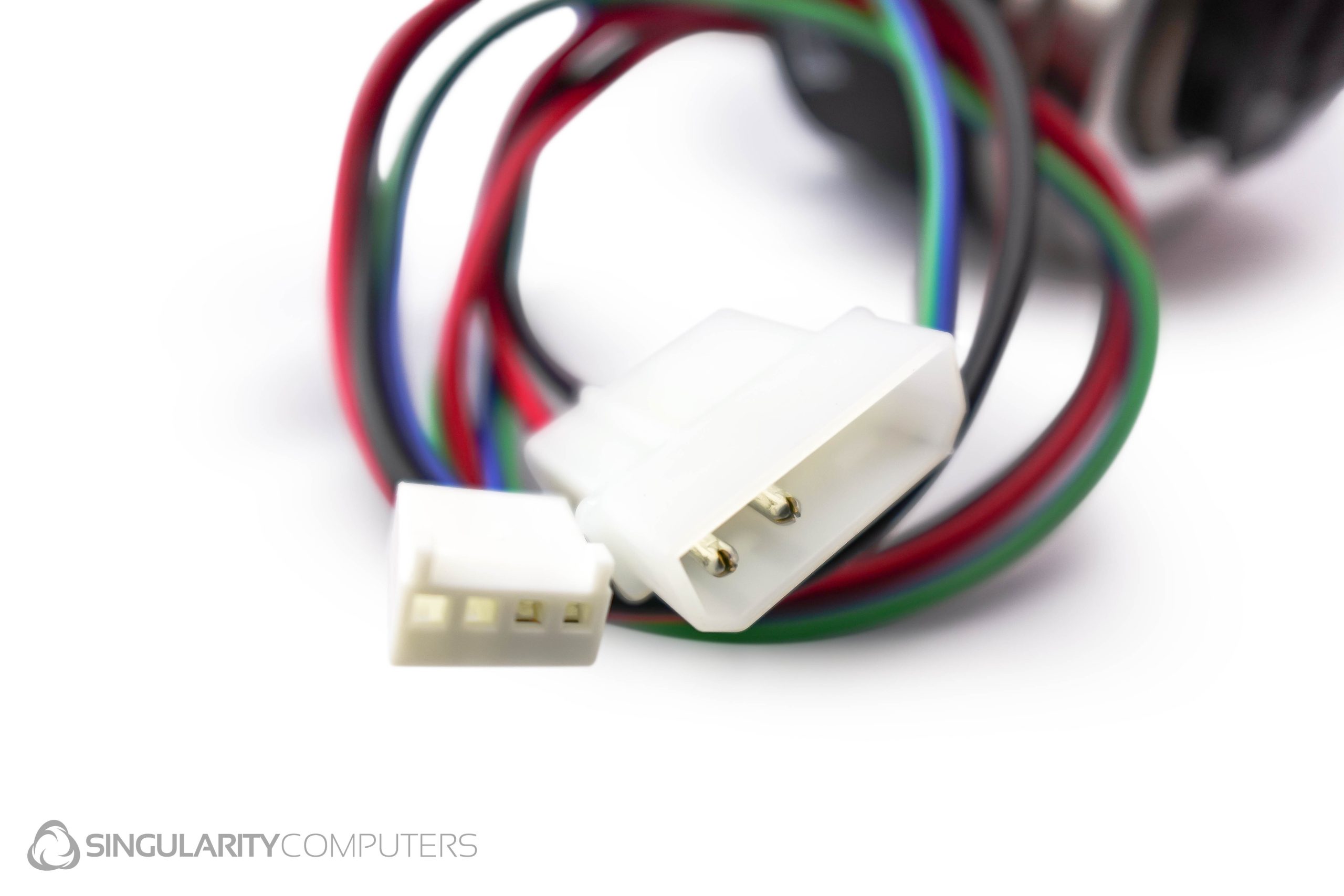

Power supply: 4Pin Molex.
Rotational speed monitoring: Yes (via 4pin PWM).
PWM: Yes.
Dimensions: L: 65mm x W: 65mm x H: 57 mm.
Packaged Dimensions: L: 85mm x W: 85mm x H: 85mm.
Packaged Weight: 0.5kg.
Installation:
Compatible with any product which fits a D5 pump.
