Spectre 4 Aevum Dark Limited Edition Water-cooling Case
Limited to 99 cases.
Aevum Meaning: Noun edit · (principally): time as a single, unified, continuous and limitless entity; infinite time, time without end; to wit: eternity, agelessness

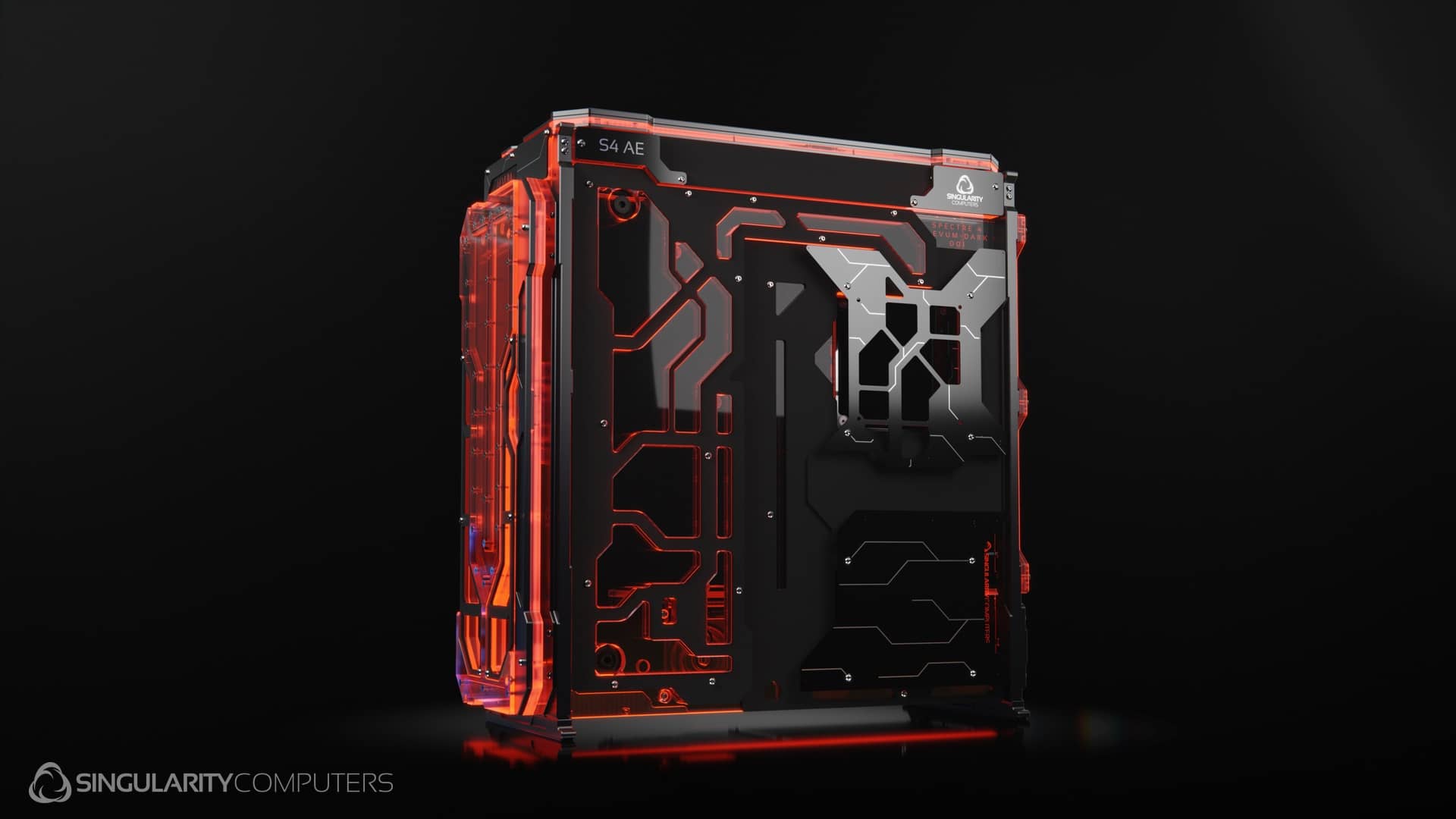

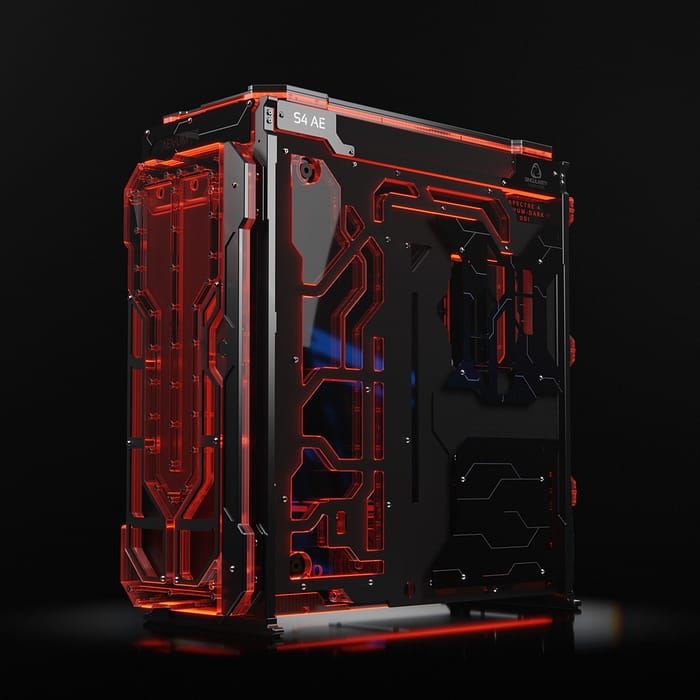

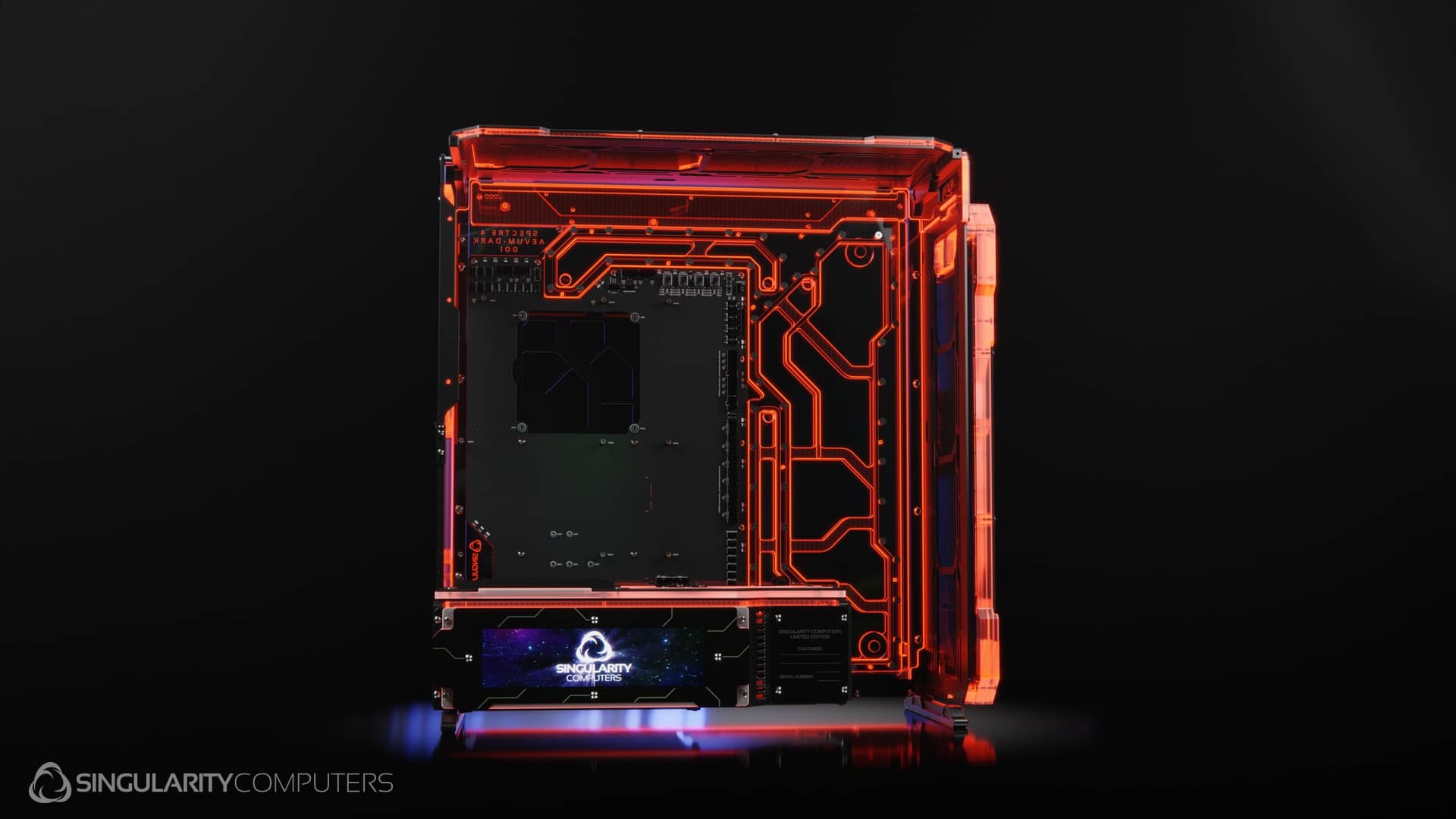

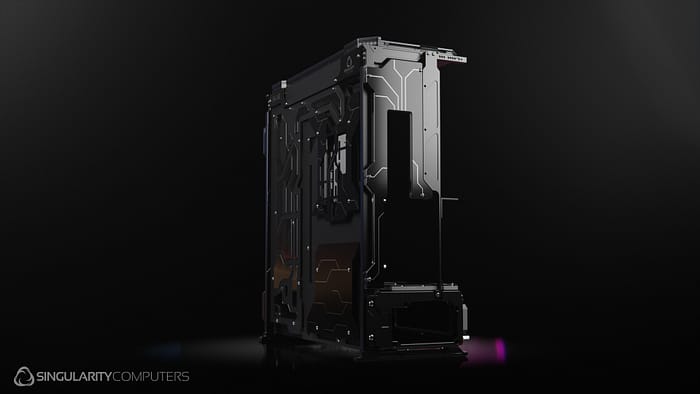

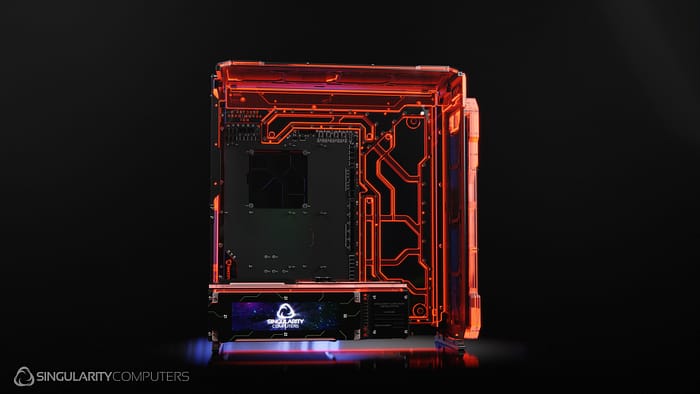

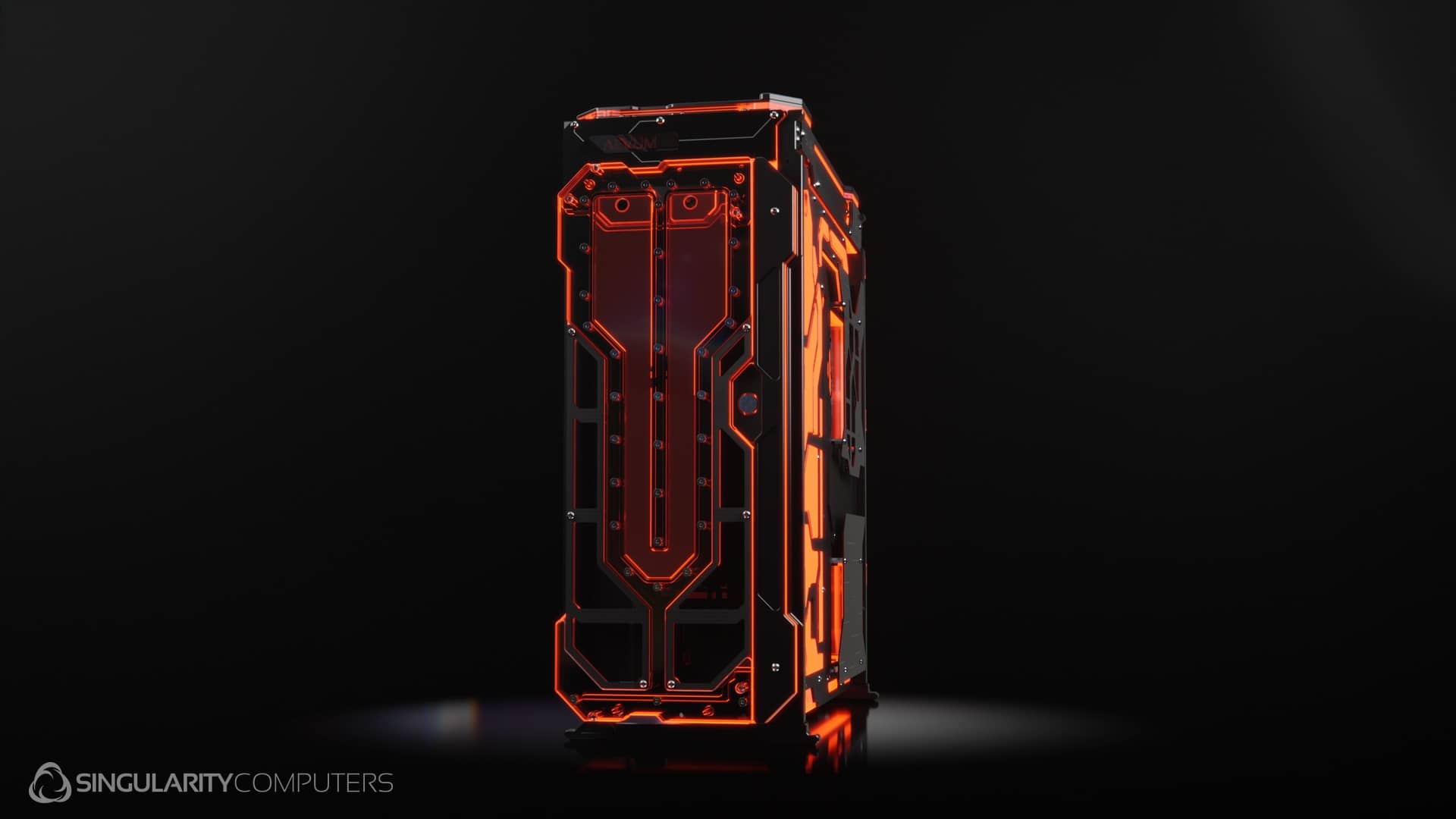

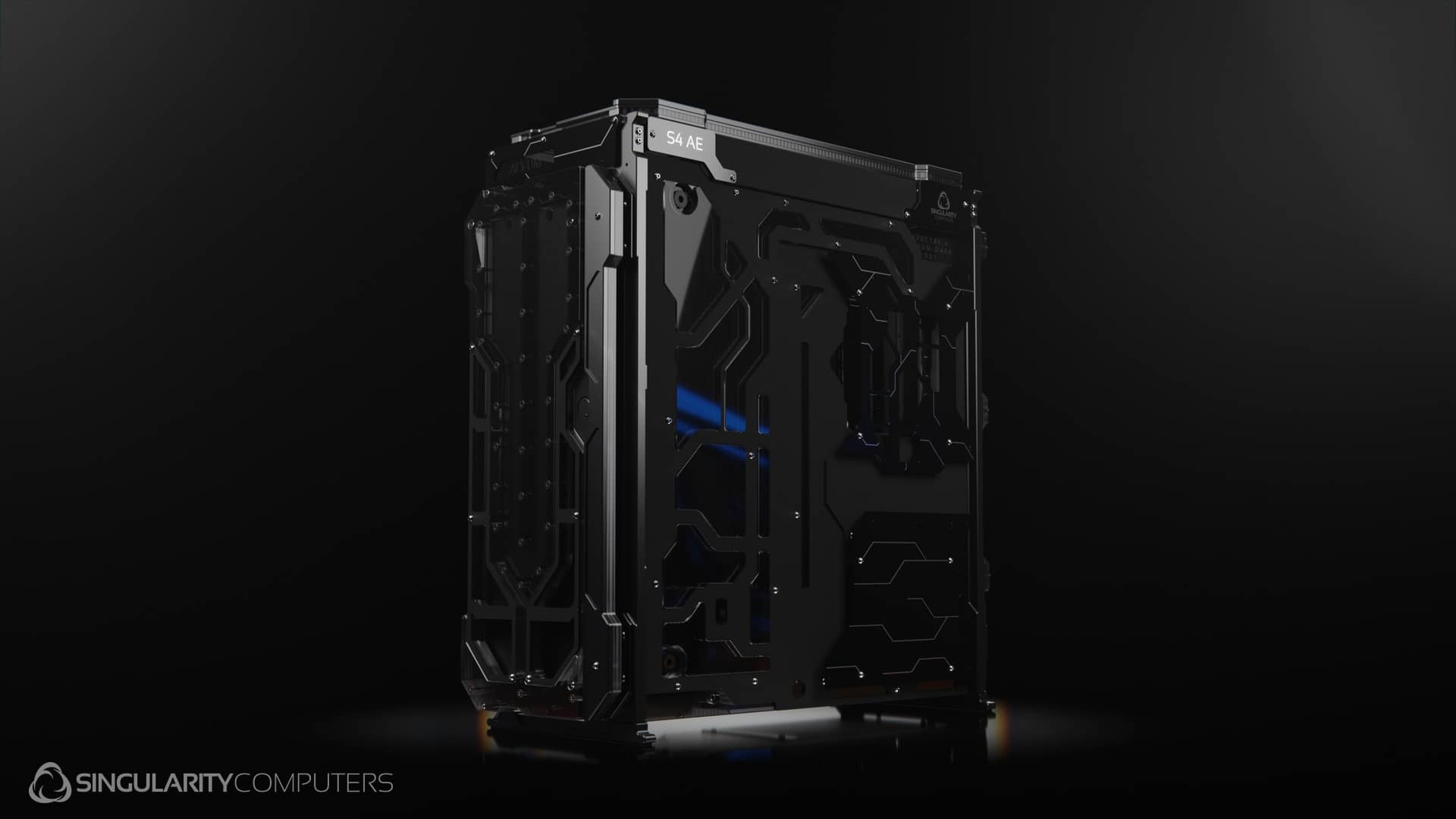

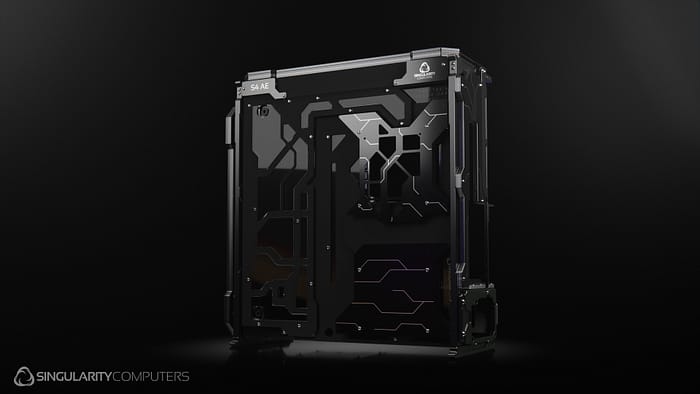

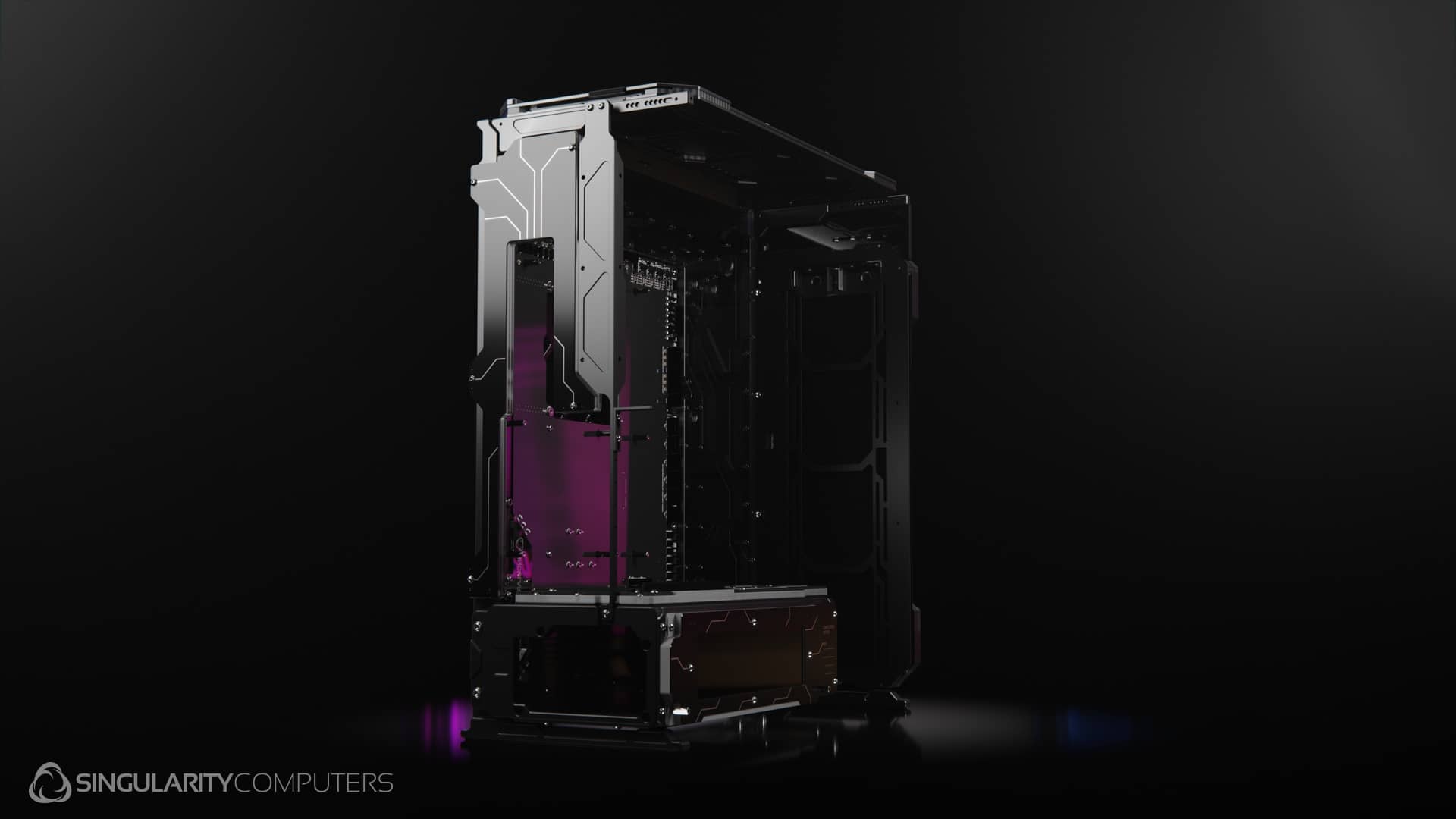

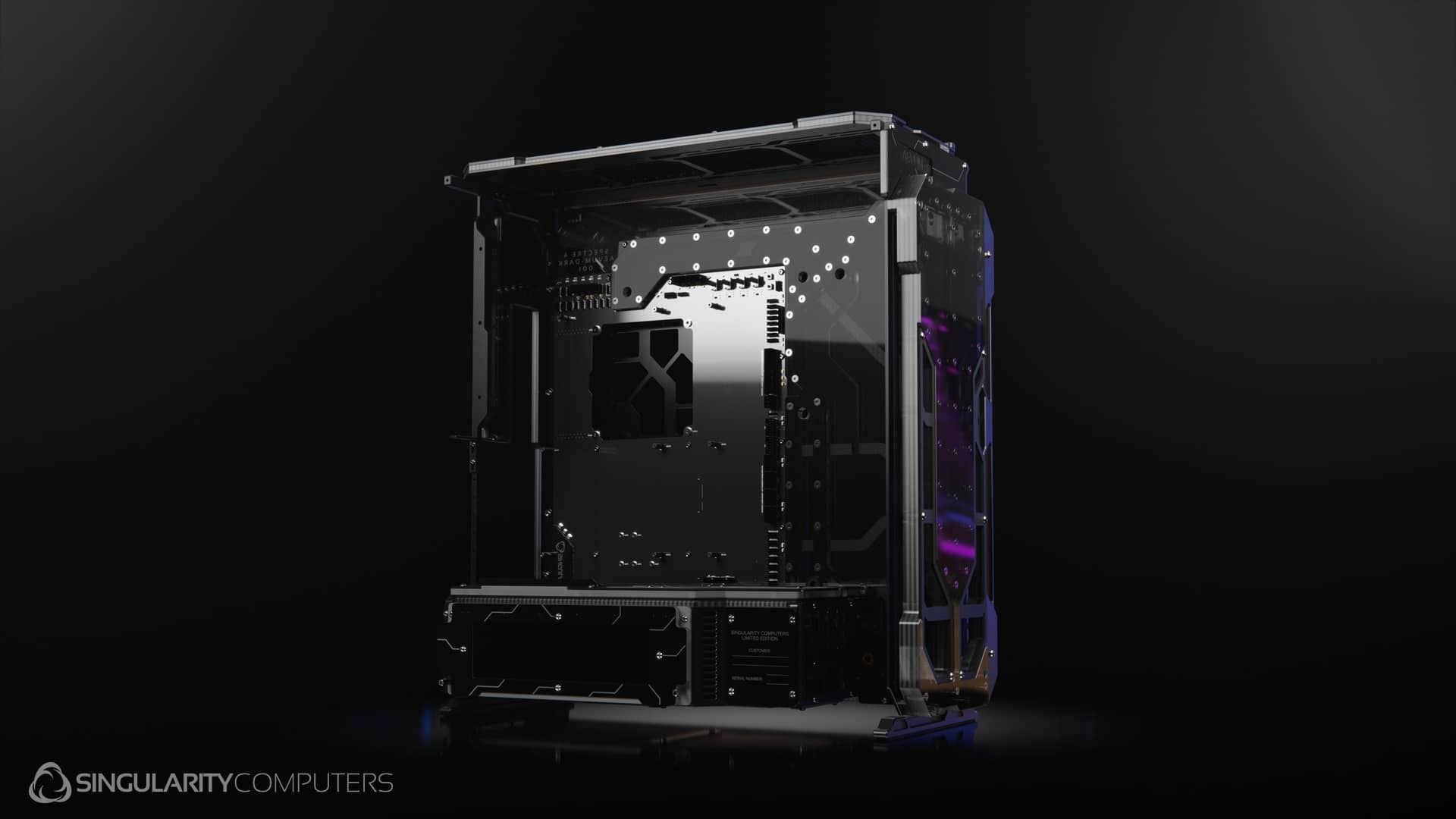

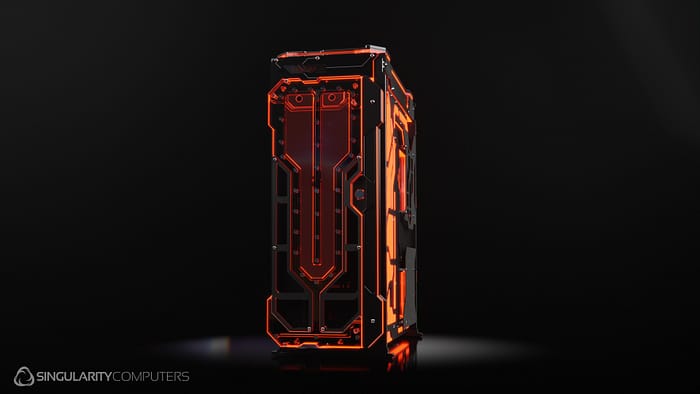

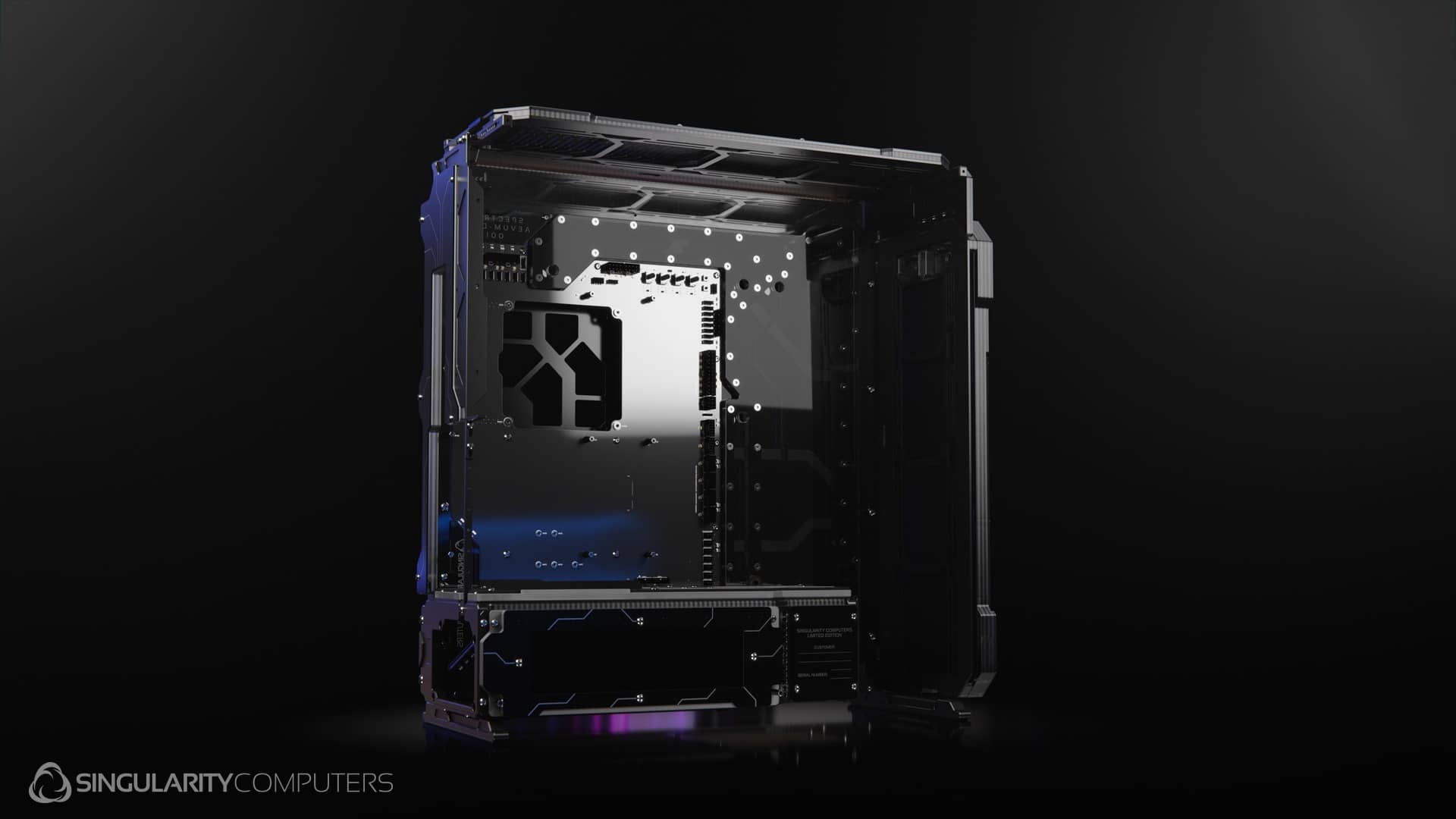

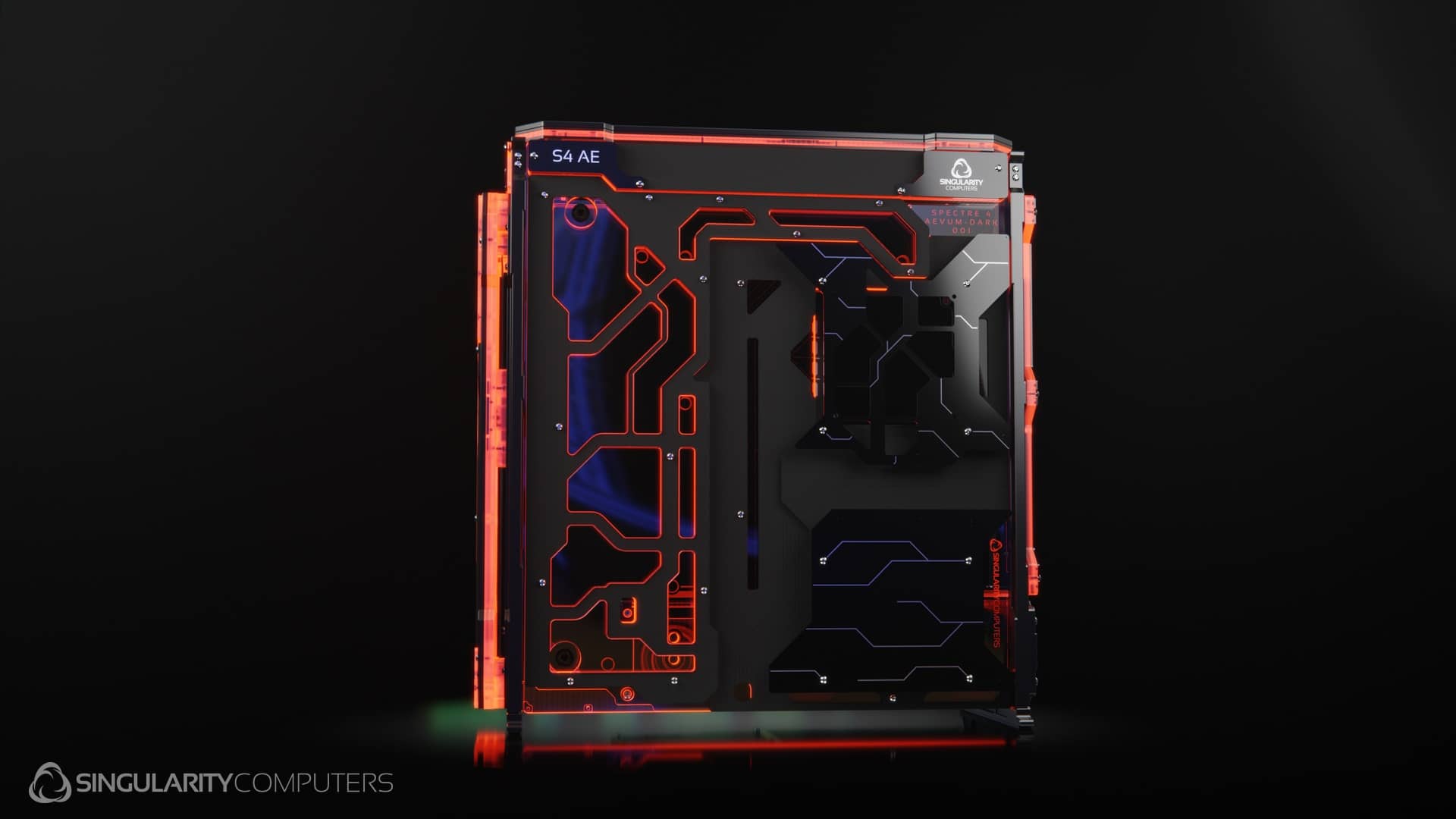

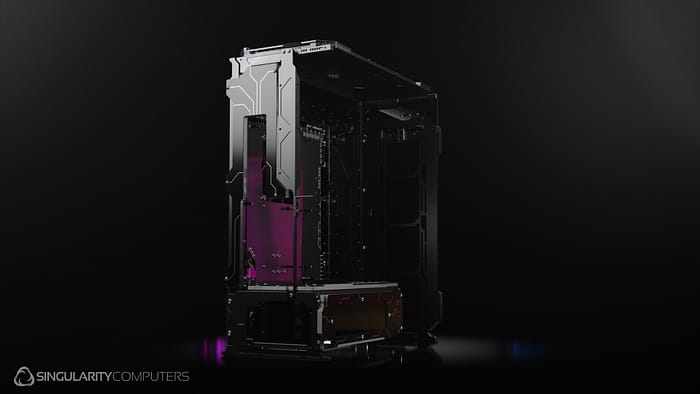

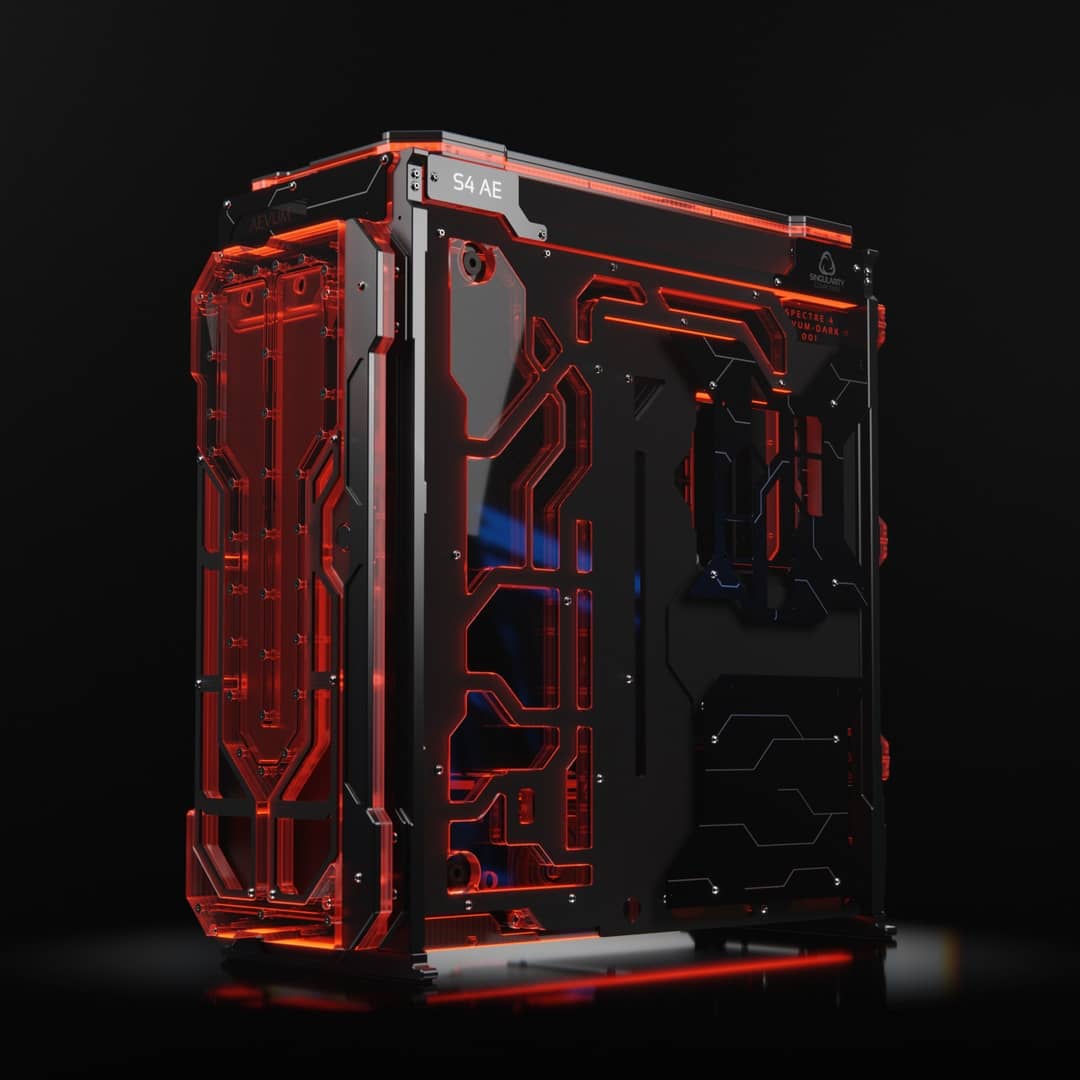

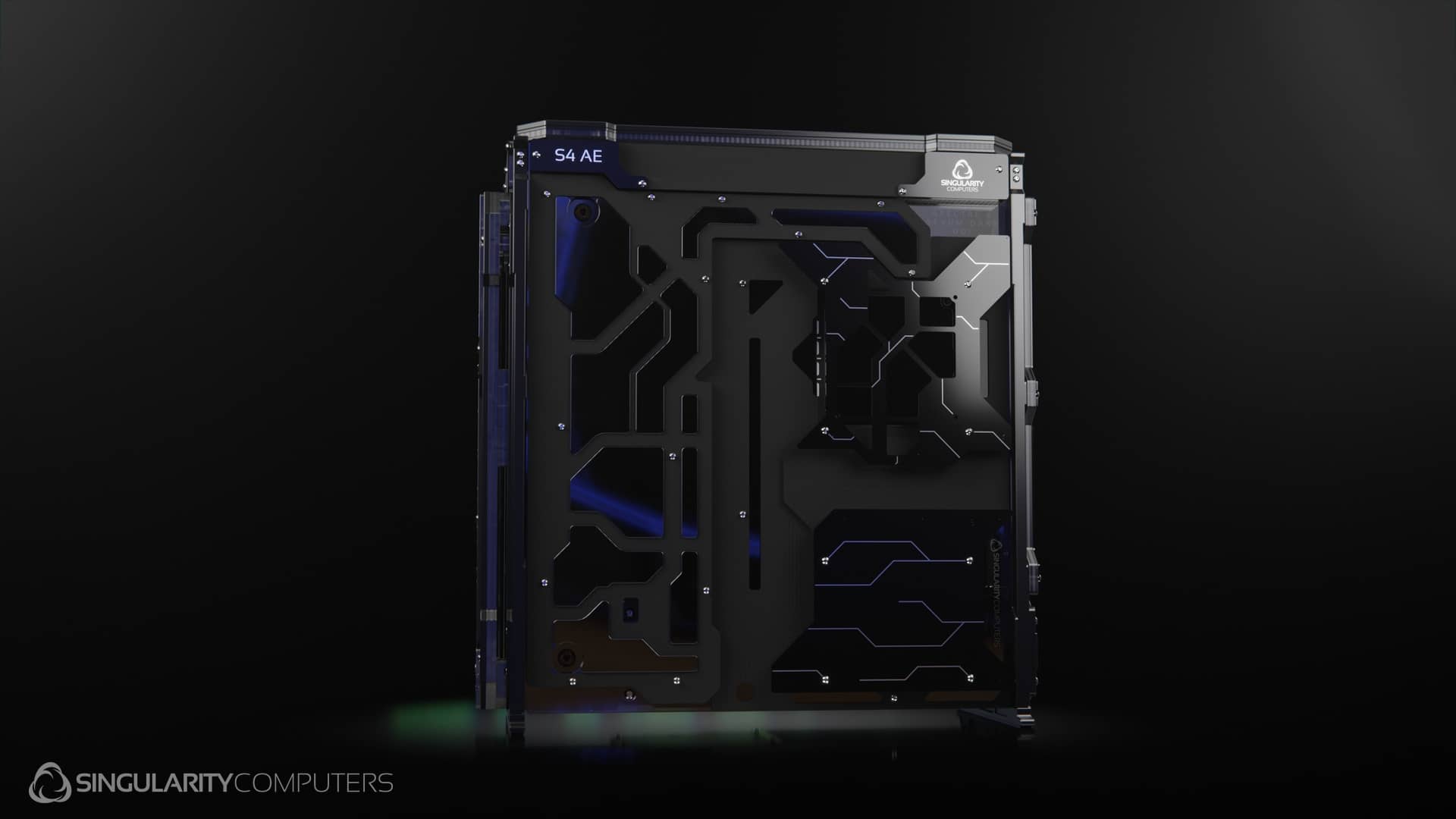

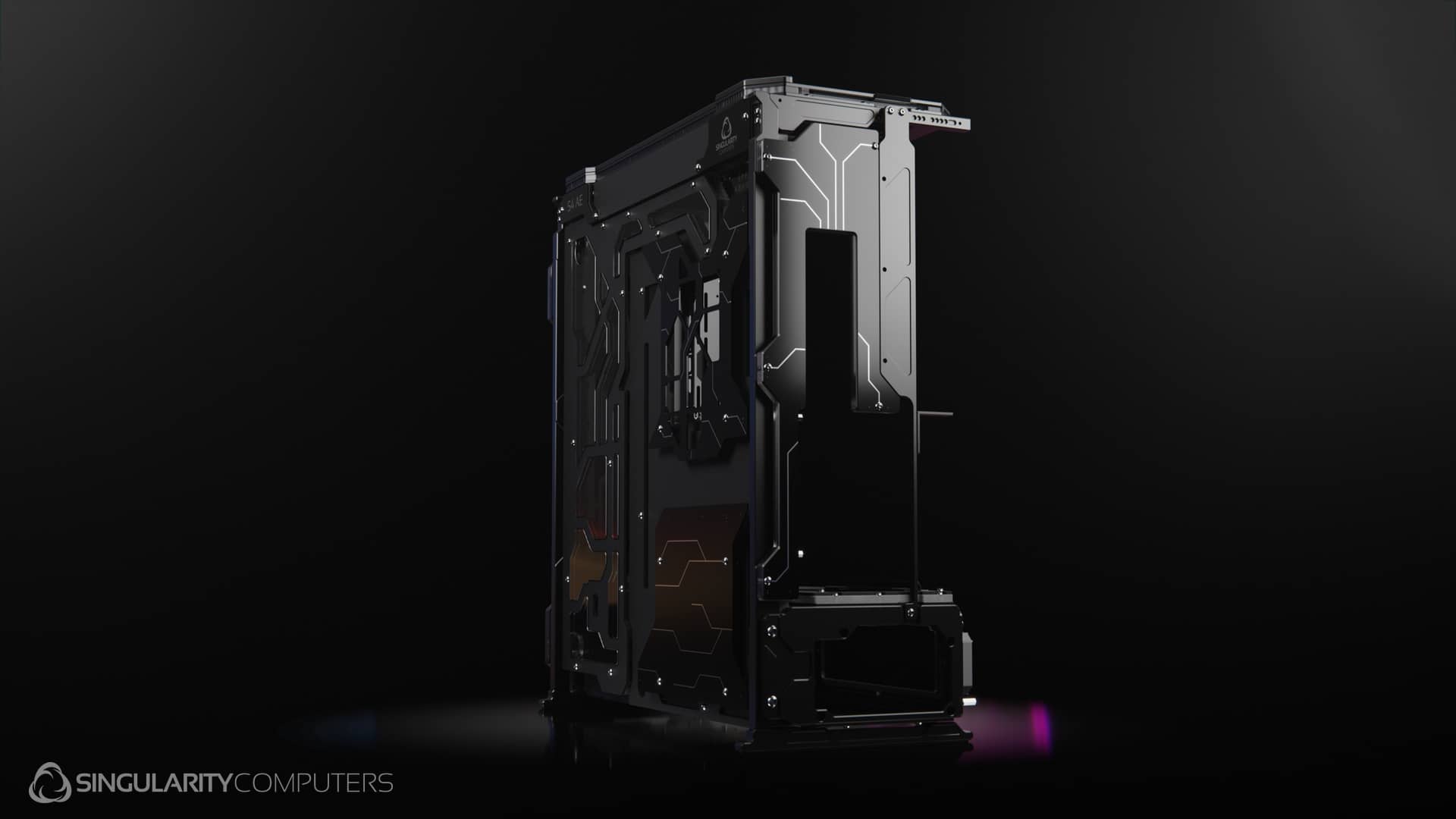

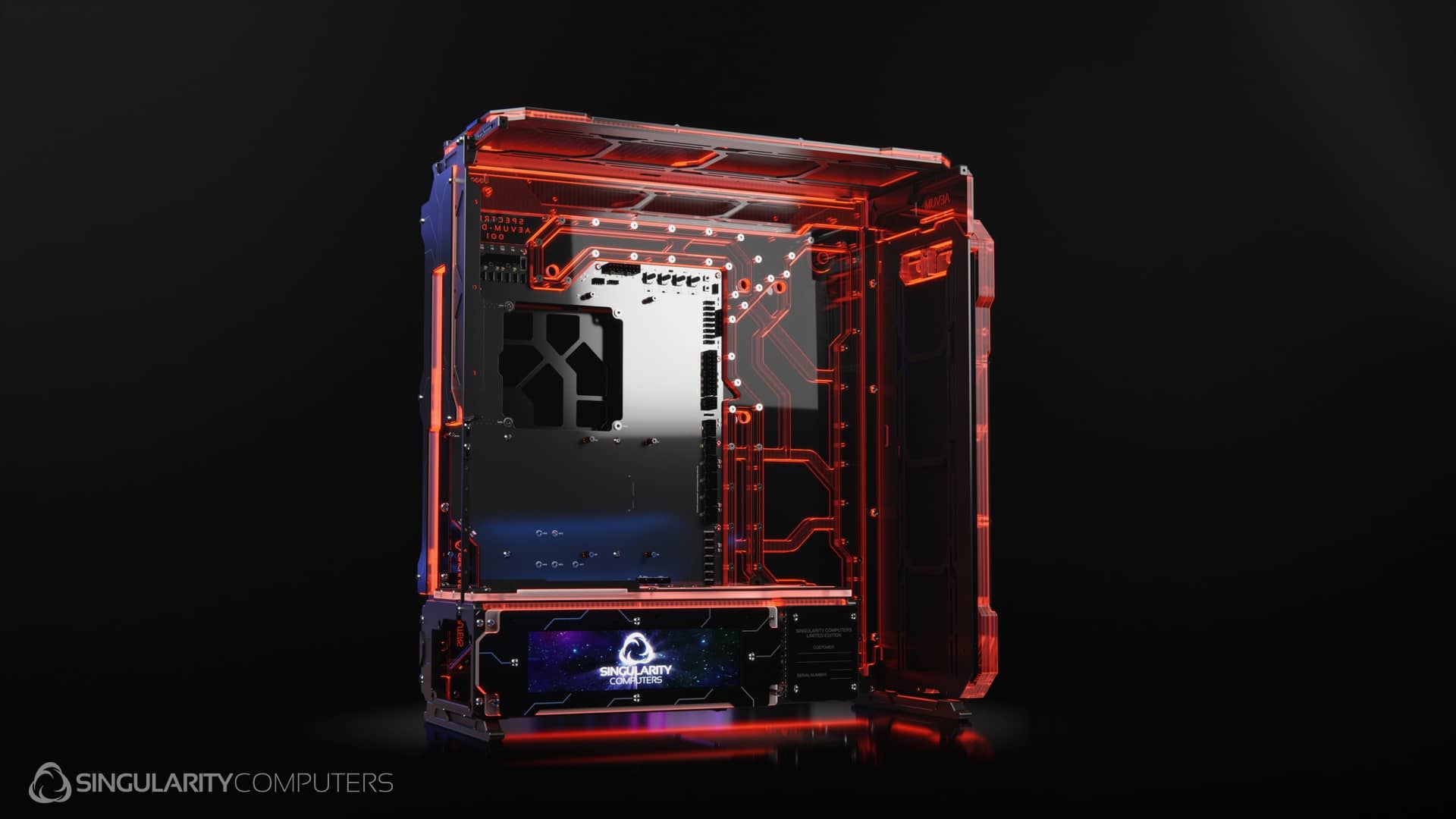

Spectre 4 Aevum Dark has a black anodized metal frame. The distribution plates all have a grey/dark tinted rear layer with clear front layers. Aevum Dark comes with PCB covers which replace many of the acrylic covers which are on the standard Aevum. These have integrated LEDs for superior lighting without the need for LED strips. It also has a cover over the rear IO panel area. It comes with plate mounted on the PSU Side Shroud which has the cases limited edition number and can be personalised with the customers name.
Pump not included. Compatible with any D5 Pump.
US$2,499.00
Spectre 4 Aevum (With All Addons) Flow Diagram
Personalise your PCB Cover Kit PSU Side Shroud Panel (optional)
Aevum is a Time and Space themed limited edition (time being the 4th dimension). It is a heavily upgraded version of Spectre 4 with a new graphite anodizing color. The distribution plate is far more detailed and has a completely different design with more intricate machining particularly in the reservoir area. The rear covers and PSU shroud panels also have a more detailed design with extra glowing LED sections. Additionally, it comes included with an Aevum version of the front distribution plate and a 1920×480 60Hz IPS screen mounted on the PSU Shroud.
Spectre 4 is the ultimate extreme water-cooling case with more water-cooling features than any case on the market. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features.
Spectre 4 introduces a new distribution plate design with two thicker layers and countersunk fasteners which enhances durability, quality, and aesthetics. The design for the 6061 CNC machined frame is completely new with greatly improved strength and updated aesthetics.
The PowerBoard comes with a vast range of new features including improved lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more.
Spectre 4 fits x2 360mm or 420mm radiators, it has a 140mm fan mount behind the motherboard to cool the rear of the CPU socket, two 2.5” drive mounts integrated on the PowerBoard (one is also compatible with 3.5” drives) and a touch activated power button. It also comes with dust filters on all fans positions.
Features new to Spectre 4
New frame design with greatly improved strength and updated aesthetics.
420mm or 360 radiators x2.
100mm thickness for radiators and fans.
Much larger PSU shroud for long PSUs and cables.
PSU shroud covers the pump and improves cable management.
New distribution plate design with two 10mm layers and countersunk bolts.
140mm fan to cool the rear of the CPU socket.
Dust filters on all fan positions.
Full glowing top and front panel layers.
Multi layered top and front panels.
Multi zone PWM hubs.
Temperature based RPM control.
RPM curve adjustment.
Dedicated pump RPM and power headers.
Temperature sensor inputs.
12pin header for addon devices.
Improved ARGB and UV lighting.
Standby lighting.
Integrated PowerBoard 2.5” mount plus a 2.5”/3.5” mount.
PSU jump-start for powering pumps only.
Temperature sensor port.
Internal drain port.
Protective covers for feet.
Specifications
Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Front distribution plate.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs. With coolant temperature-based RPM control or motherboard control Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB: x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x28 Integrated ARGB 90-degree LEDs and x28 UV 90-degree LEDs around the external perimeter of the PowerBoard. There are dip switches to turn the ARGB and UV LEDs on or off separately and stand-by UV lighting can be disabled.
Power and Reset Buttons.
PowerBoard direct mount 1 x 2.5” and 1 x 2.5”/3.5” SATA 3.0 6Gb/s accessible from the back of the distribution plate.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen: 1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
LED Strips: ARGB 5V 50cm x6 (pre-installed).
Motherboard Form Factor: XL-ATX (Up to: 290mm Wide & 350mm High).
E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Case Dimensions: L: 575mm x W: 250mm x H: 615mm.
Case Weight: 19kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 22.5kg.
Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.
Radiators: 420mm/360mm X2 with 100mm of thickness for radiators and fans.
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Spectre 4 Versions
| Spectre 4 | Spectre 4 Aevum | Spectre 4 Aevum Chrome | Spectre 4 Aevum Dark | Spectre 4 Aevum Gold | Spectre 4 Aevum Valhalla | Spectre 4 Enterprise | Spectre 4 Quantum | Spectre 4-M | Spectre 4-M Dark | |
| Distribution Plates | x1 | x2 | x2 | x2 | x2 | x3 | x1 | x2 | x1 | x2 |
| Distribution Plate Layers | x2 | x4 | x4 | x4 | x4 | x4 | x2 | x2 | x3 | x3 |
| PowerBoard | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Motherboard Form Factor | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX, SSI-EEB, SSI-CEB | Up to E-ATX, SSI-EEB, SSI-CEB | Up to E-ATX | Up to E-ATX |
| IO Slots | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 7 | 7 |
| Radiators | 2x 360mm/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360mm/420mm + 3x 360mm or MO-RA3 | 2x 360mm/420mm + 3x 360mm or MO-RA3 | 2x 360mm | 2x 360mm |
| Radiator Thickness | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 45mm | 45mm |
| Pump/s | D5 | D5 | D5 | D5 | D5 | D5 | 2x D5 | 2x D5 | D5 | D5 |
| Reservoir | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Case Dimensions | 610mm x 245mm x 560mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 560mm | 610mm x 245mm x 560mm | 486mm x 245mm x 528mm | 506mm x 245mm x 528mm |
| 1920×480 60Hz Screen | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | Yes |
| Limited Edition | No | Yes | Yes | Yes | Yes | Yes | No | No | No | No |
| Individually Numbered | No | Yes | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| Rear CPU Socket Fan | Yes | Yes | Yes | Yes | Yes | Yes | No | No | Yes | Yes |
| Dust Filters | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Multi Zone PWM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated Pump PWM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated Pump Power | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Temperature Based RPM Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RPM Curve Adjustment | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PSU Jump Start | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PSUs | x1 | x1 | x1 | x1 | x1 | x1 | x1 (2nd can be added with optional addon) | x1 (2nd can be added with optional addon) | x1 | x1 |
| Water-cooling Loops | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x2 | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) |
| Color | Black | Black & Graphite | Silver Mirror | Black & Grey Tinted | Gold | White | Black | Black and Silver or Black and Gold | Silver | Black & Grey Tinted |
| Drives | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x2 2.5” if GPU/s not vertically mounted | x2 2.5” if GPU/s not vertically mounted | x2 x2.5” | x2 x2.5” |
| PCB Covers with integrated ARGB | No | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes |
| Personalised etched name and serial number | No | No | Yes | Yes | Yes | No | No | Yes | No | No |
Addon Information
Dual Loop Side Panel Distribution Plate Dark Elite Top Panel Distribution Plate Dark
PSU Shroud & Rear IO Distribution Plate Dark FanGuardian PowerBoard Controller

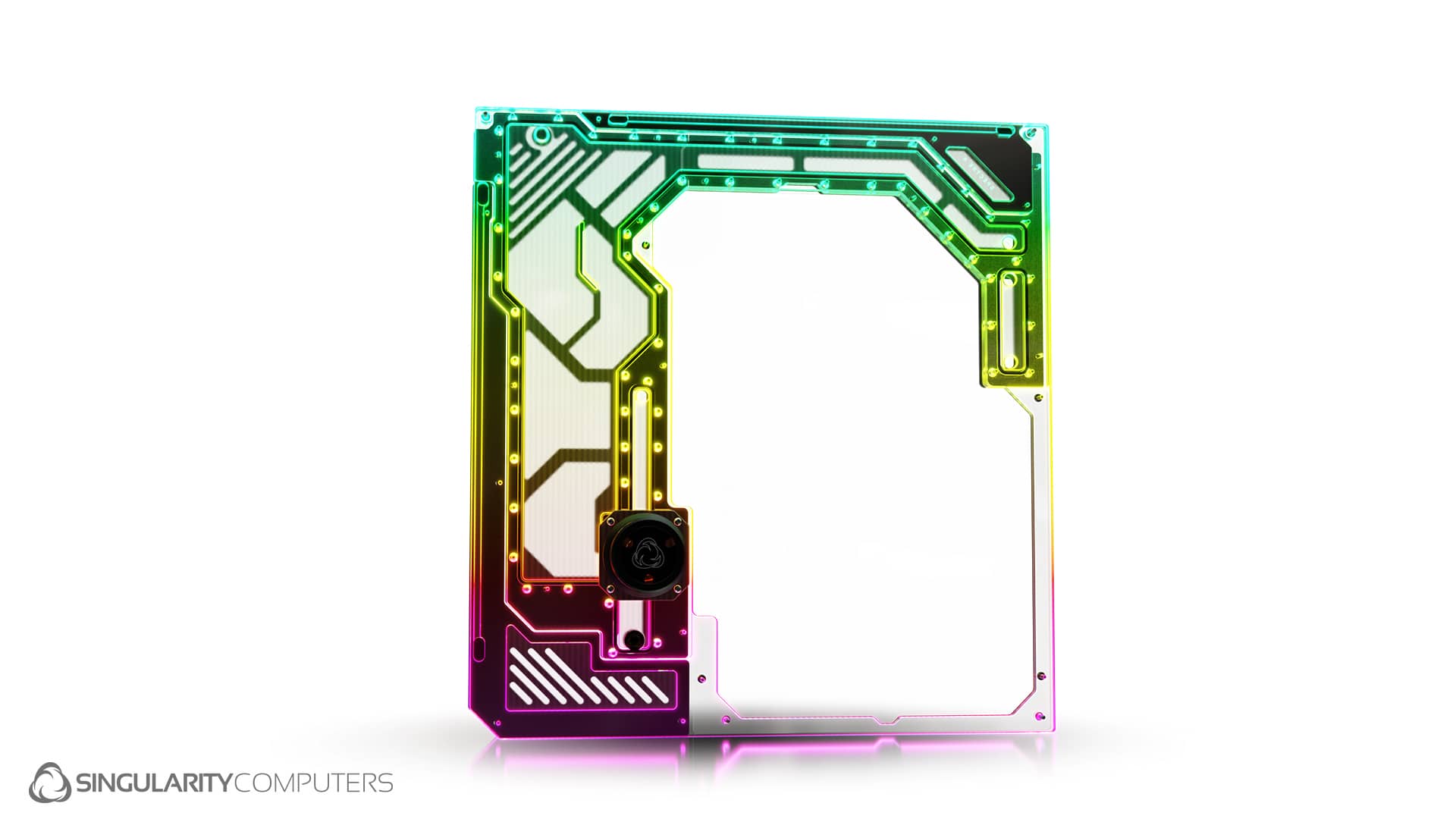

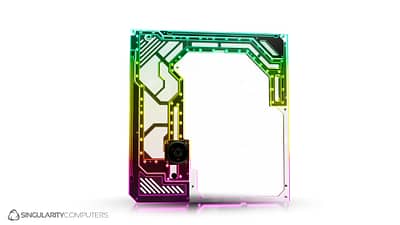

Dual Loop Side Panel Distribution Plate Dark: The Spectre 4 Aevum Dual Loop Side Panel is designed for Spectre 4 Aevum Limited Edition Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.

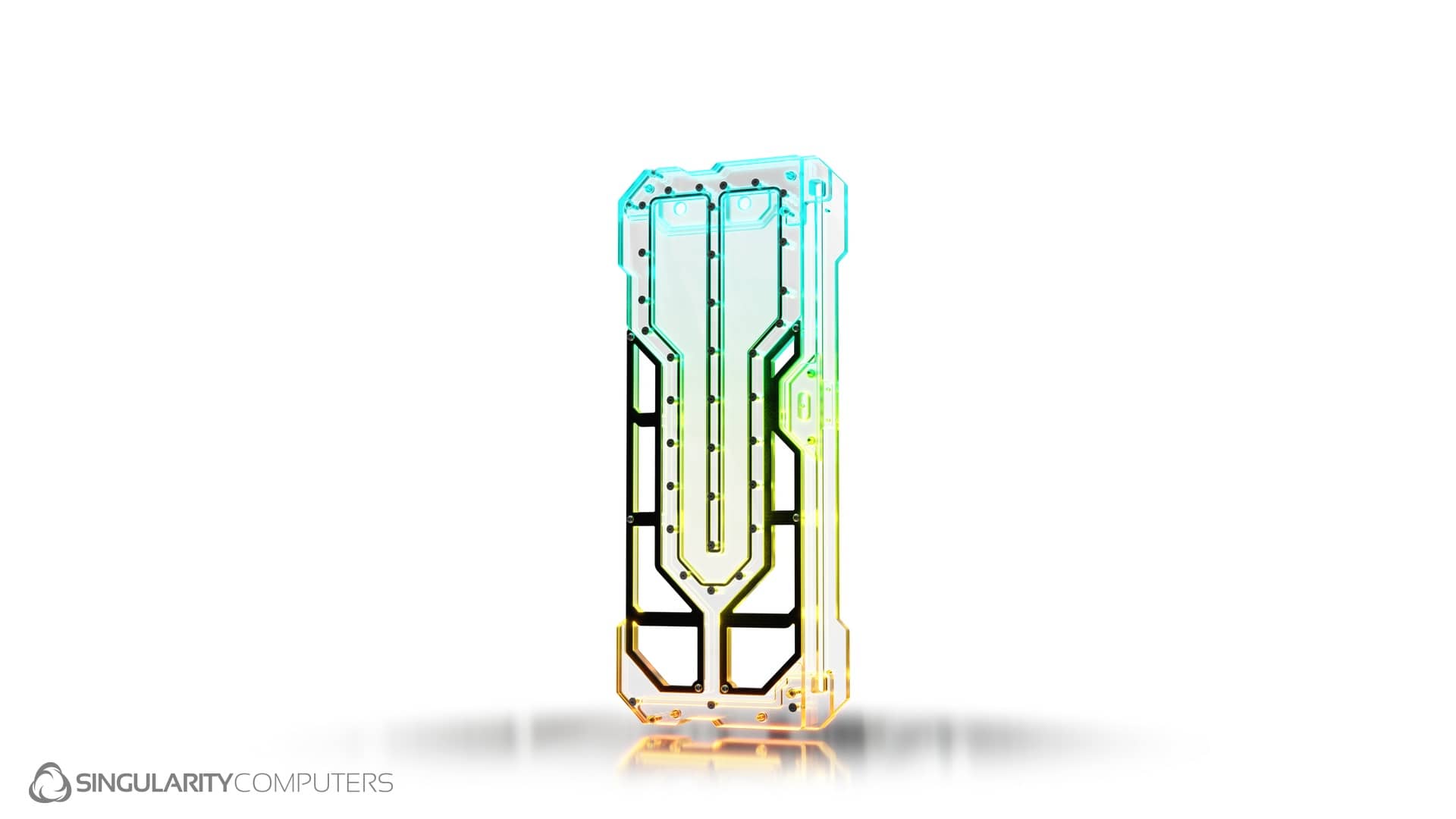

Elite Top Panel Distribution Plate Dark: The Spectre 4 Elite has an all-new design with greatly increased ventilation, and it is larger to fit onto the 420mm radiator panels of Spectre 4. Spectre 4 Aevum Elite is designed to be used with the Spectre 4 Aevum Limited Edition Water-cooling Case. It has two thicker acrylic panels and countersunk fasteners to improved durability, quality, and aesthetics. It replaces the front radiator panel which enhances the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. The main purpose is an aesthetic feature, although it does increase fluid volume. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached and there is ventilation around the perimeter of the distribution plate and through the ventilated sections on the front. There is an LED strip positioned on the edge of the distribution plate so that it glows.
PSU Shroud & Rear IO Distribution Plate: The Spectre 4 PSU Shroud & Rear IO Distribution Plates are designed for both Spectre 4 & Spectre 4 Aevum Water-cooling Cases and are compatible with all addons. They can be used in single or dual loop mode, with or without the Spectre 4 & Spectre 4 Aevum Dual Loop Side Panel. They can also be used independently of each other. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. The PSU Shroud Distribution Plate can be used with horizontal or vertically mounted GPUs. It sits on top of the PSU shroud and works well with GPU water-blocks which have ports on the end. Similar to the Spectre Elite Front and Top Panel Distribution Plates, these Distribution Plates are primarily designed to improve aesthetics although they can improve the loop layout in some scenarios.
FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.
