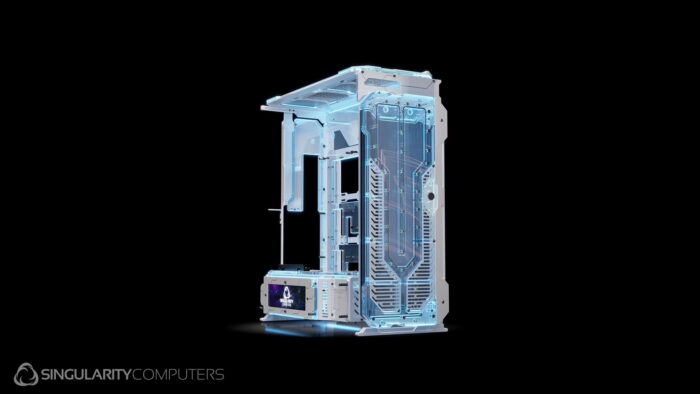

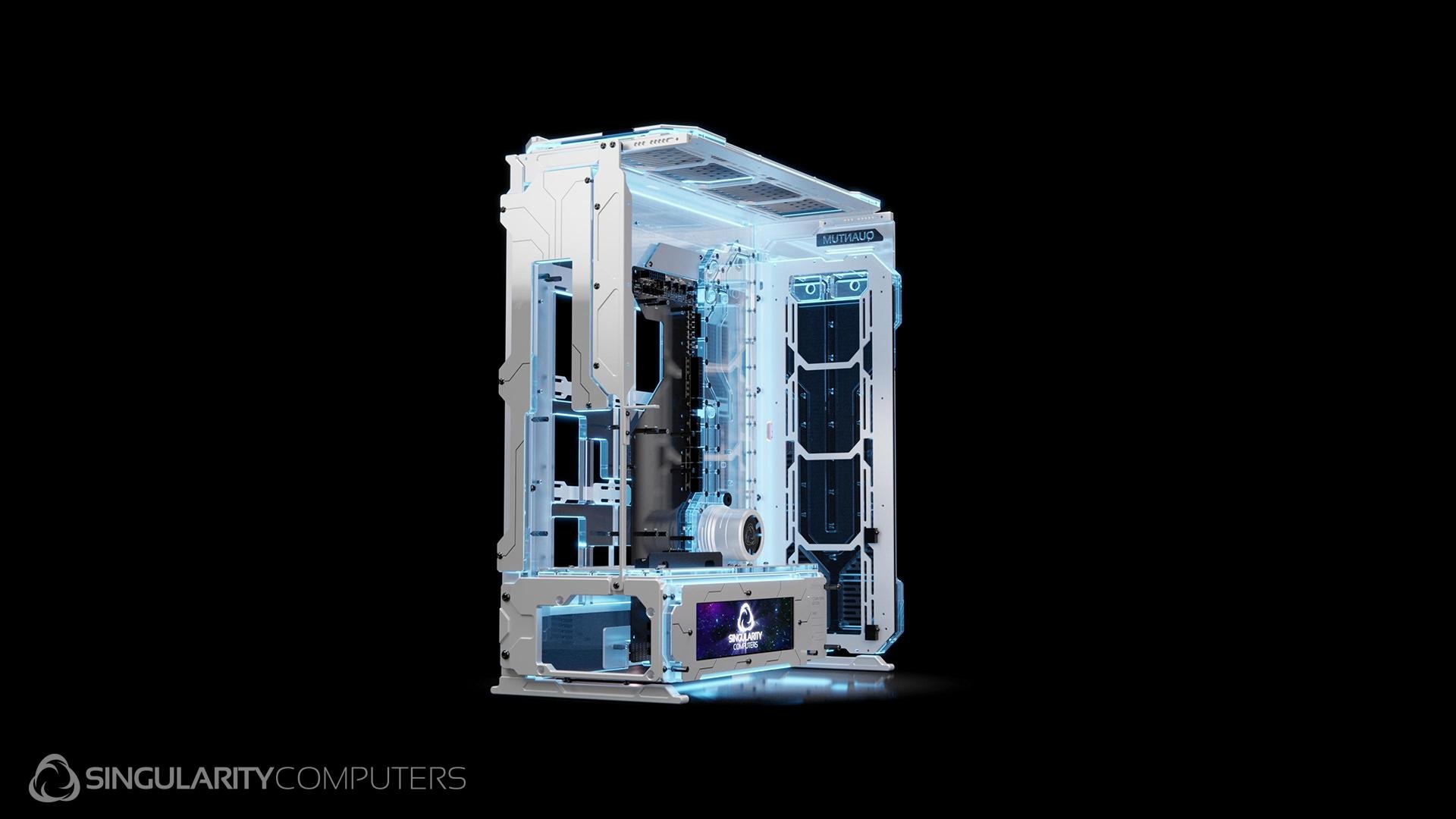

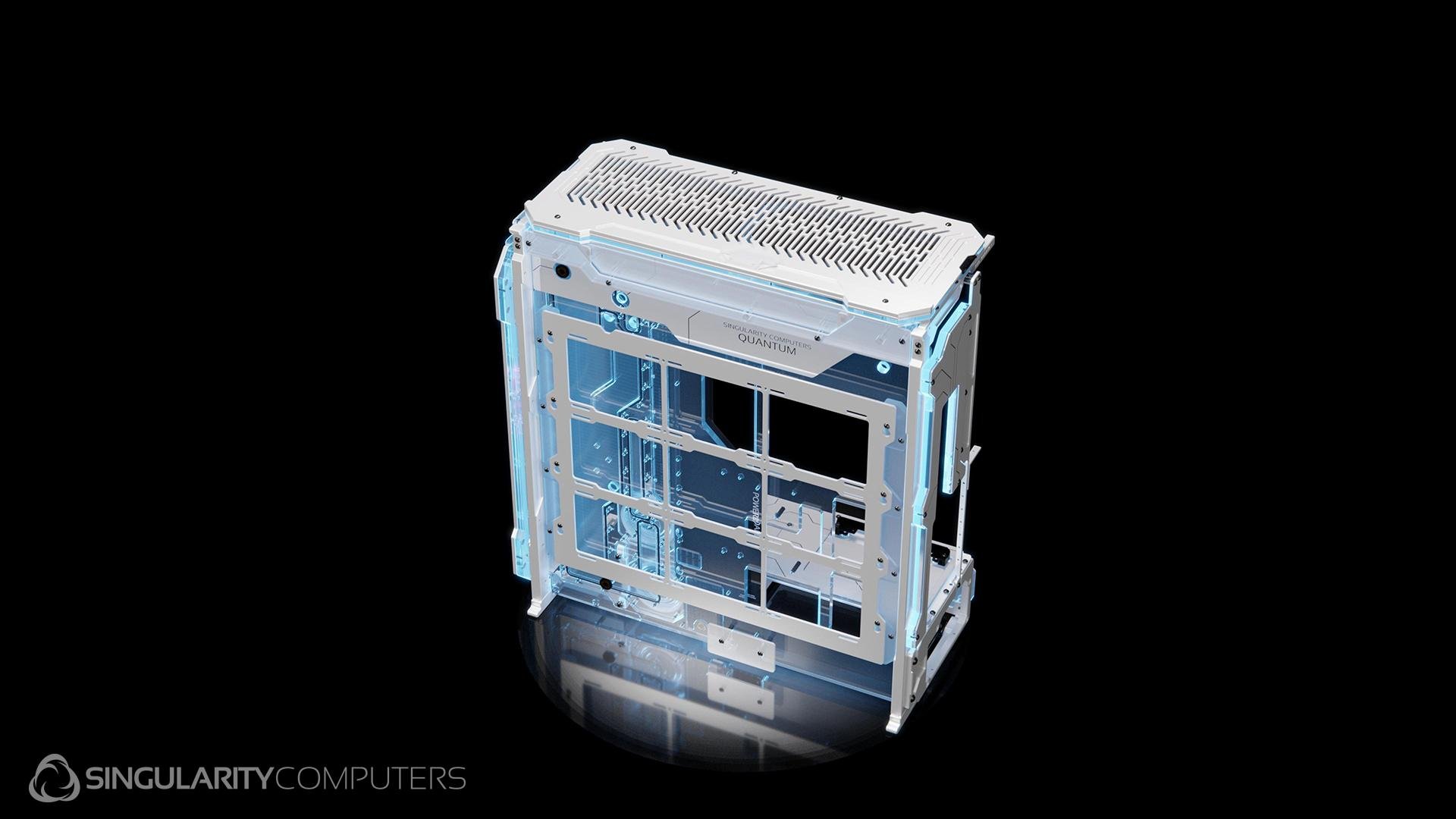

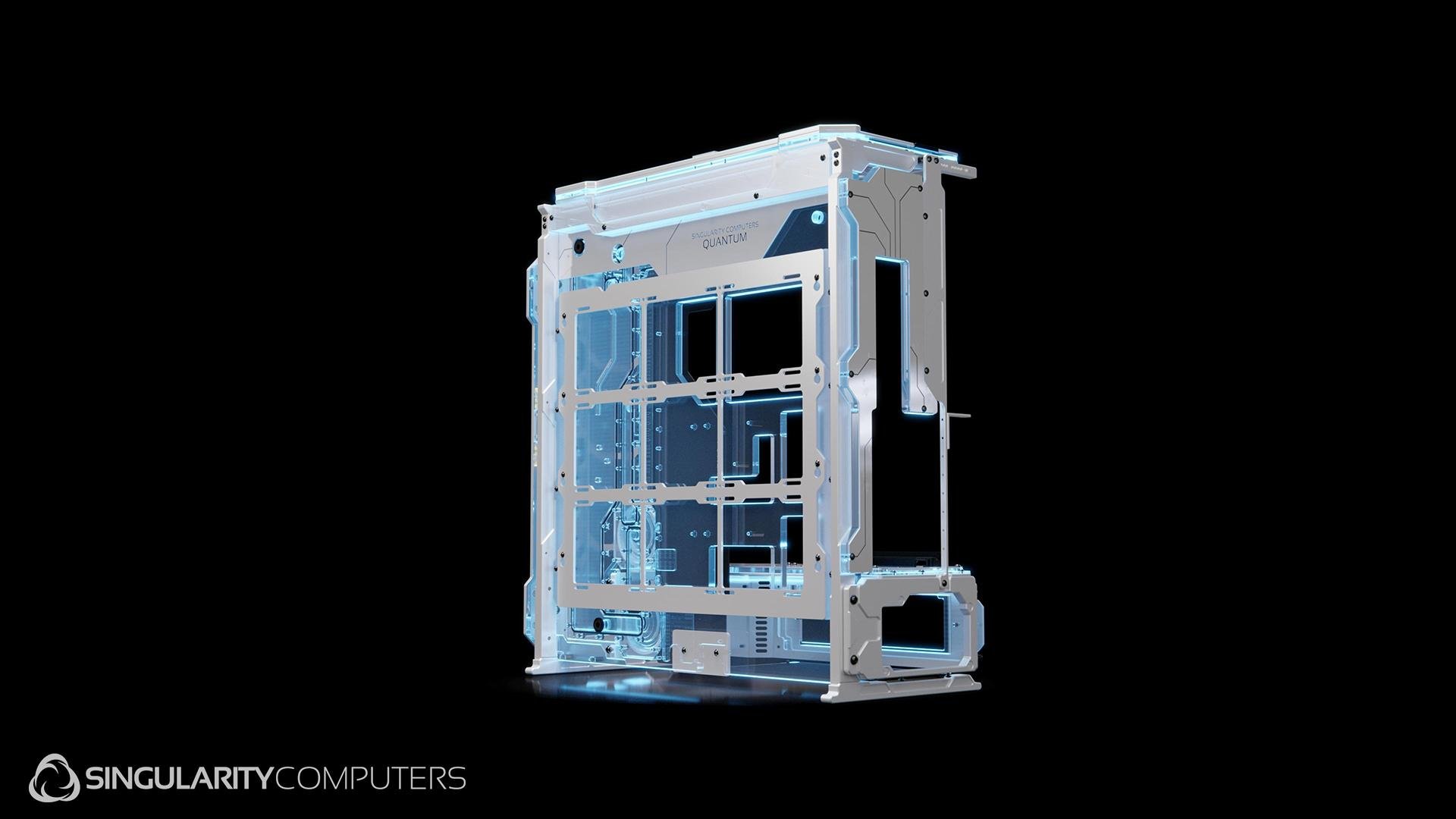

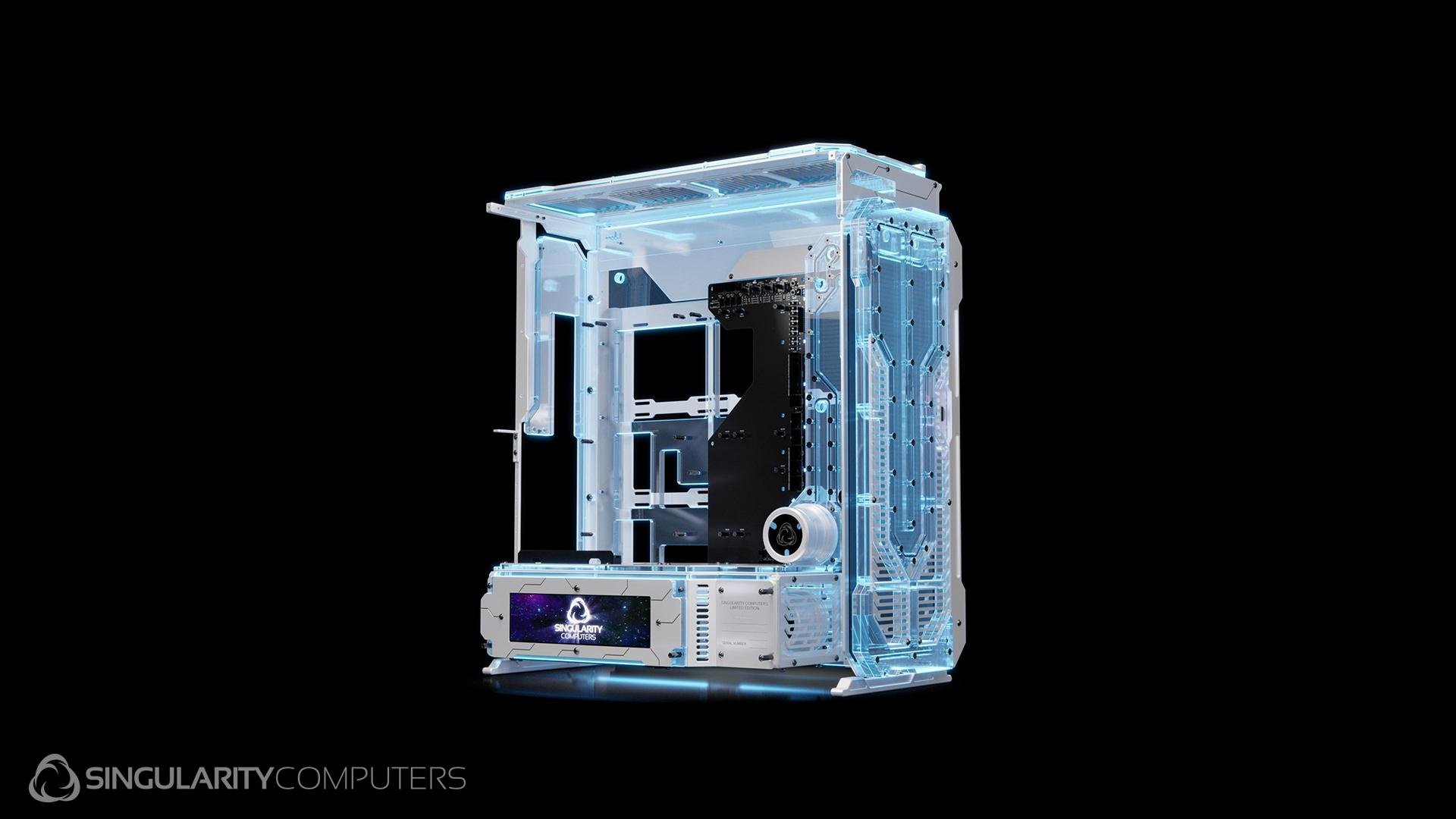

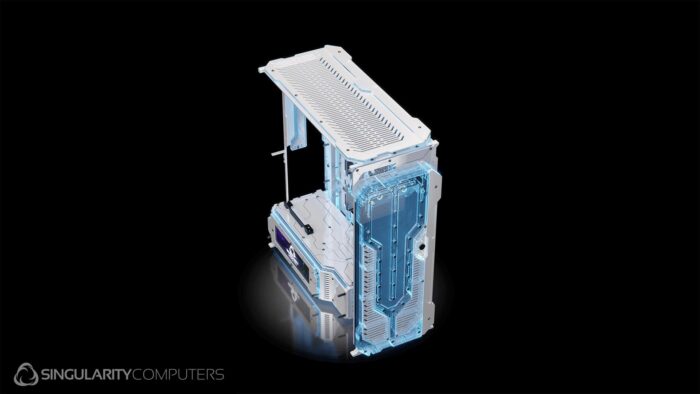

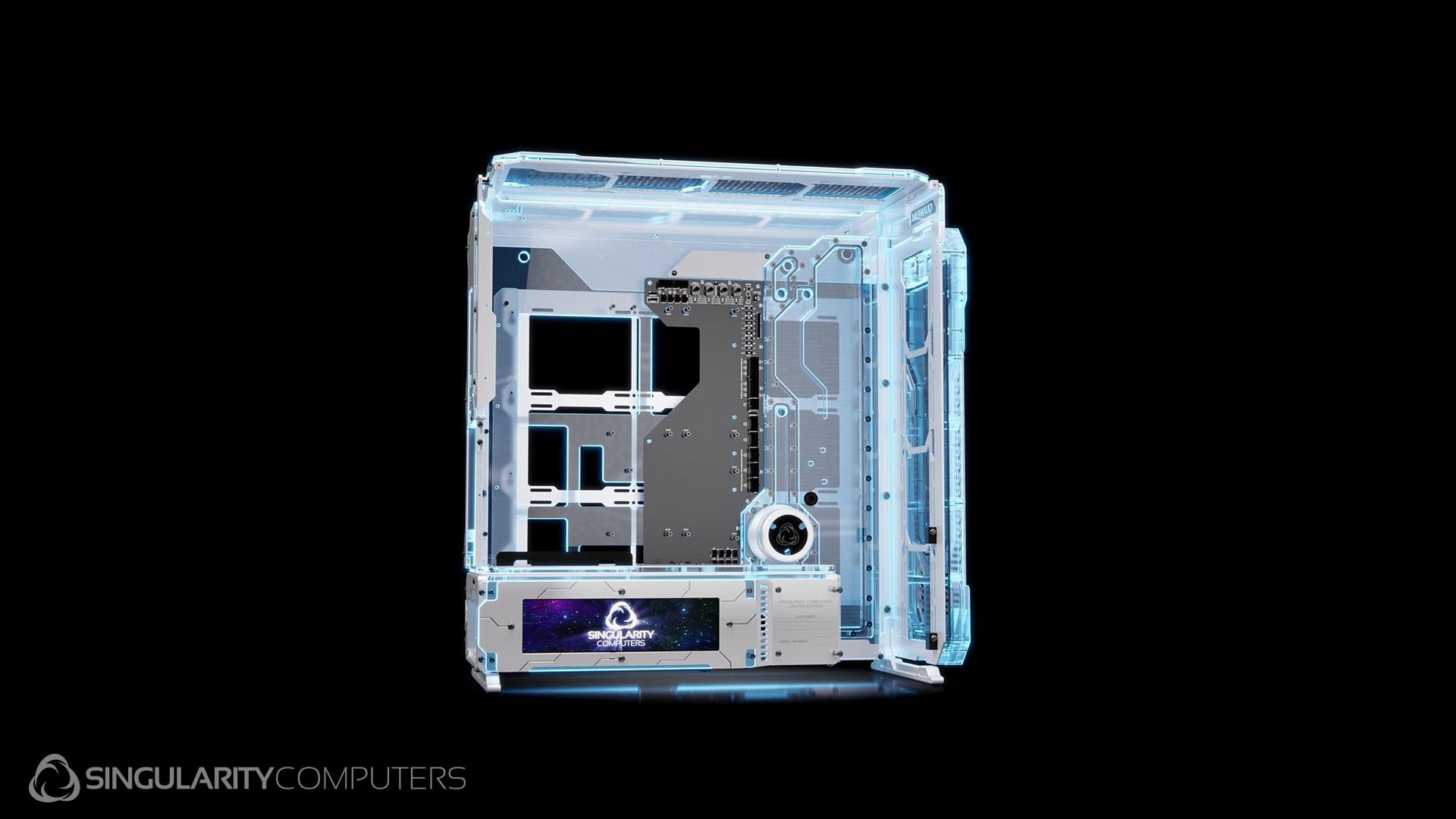

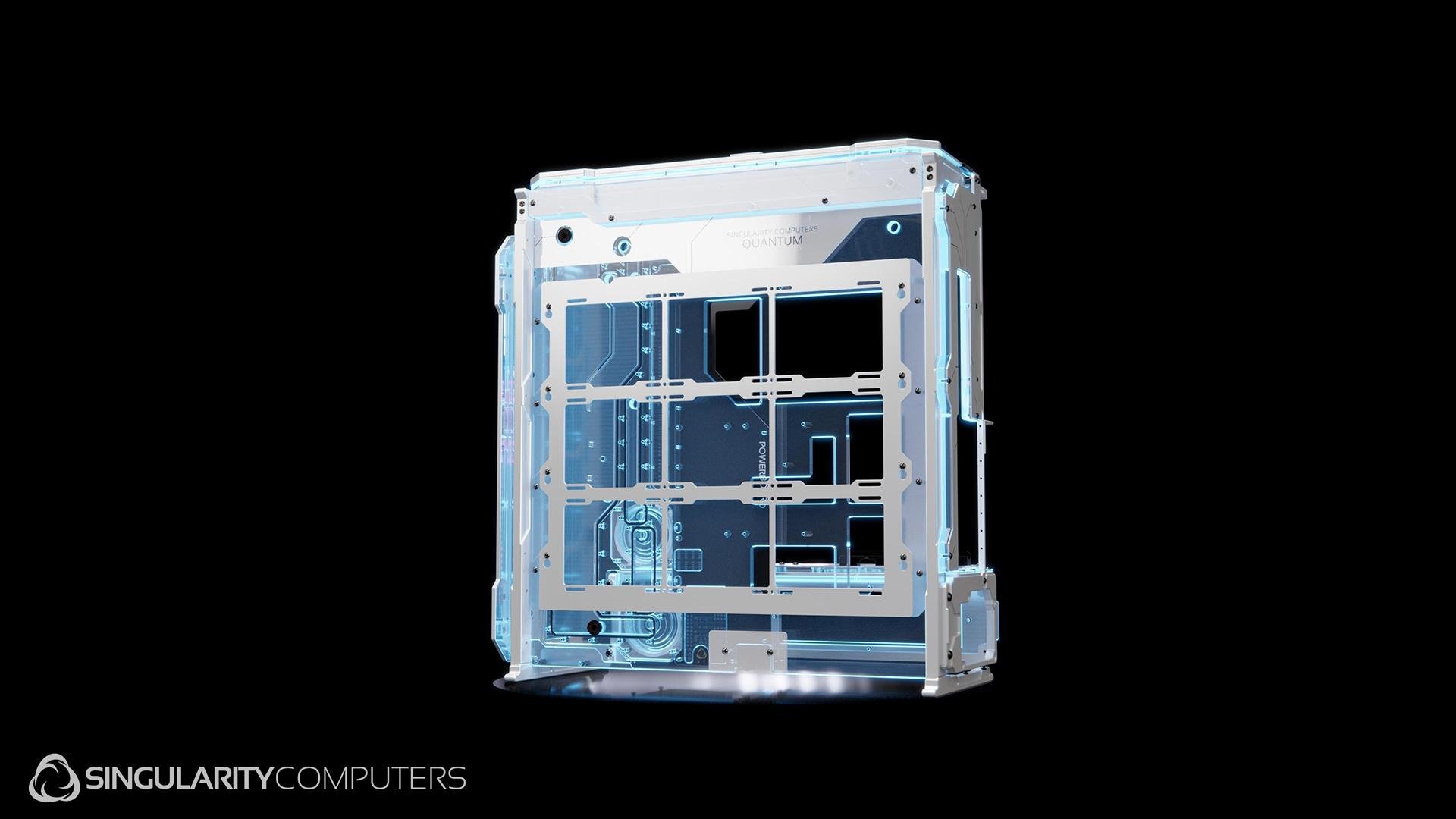

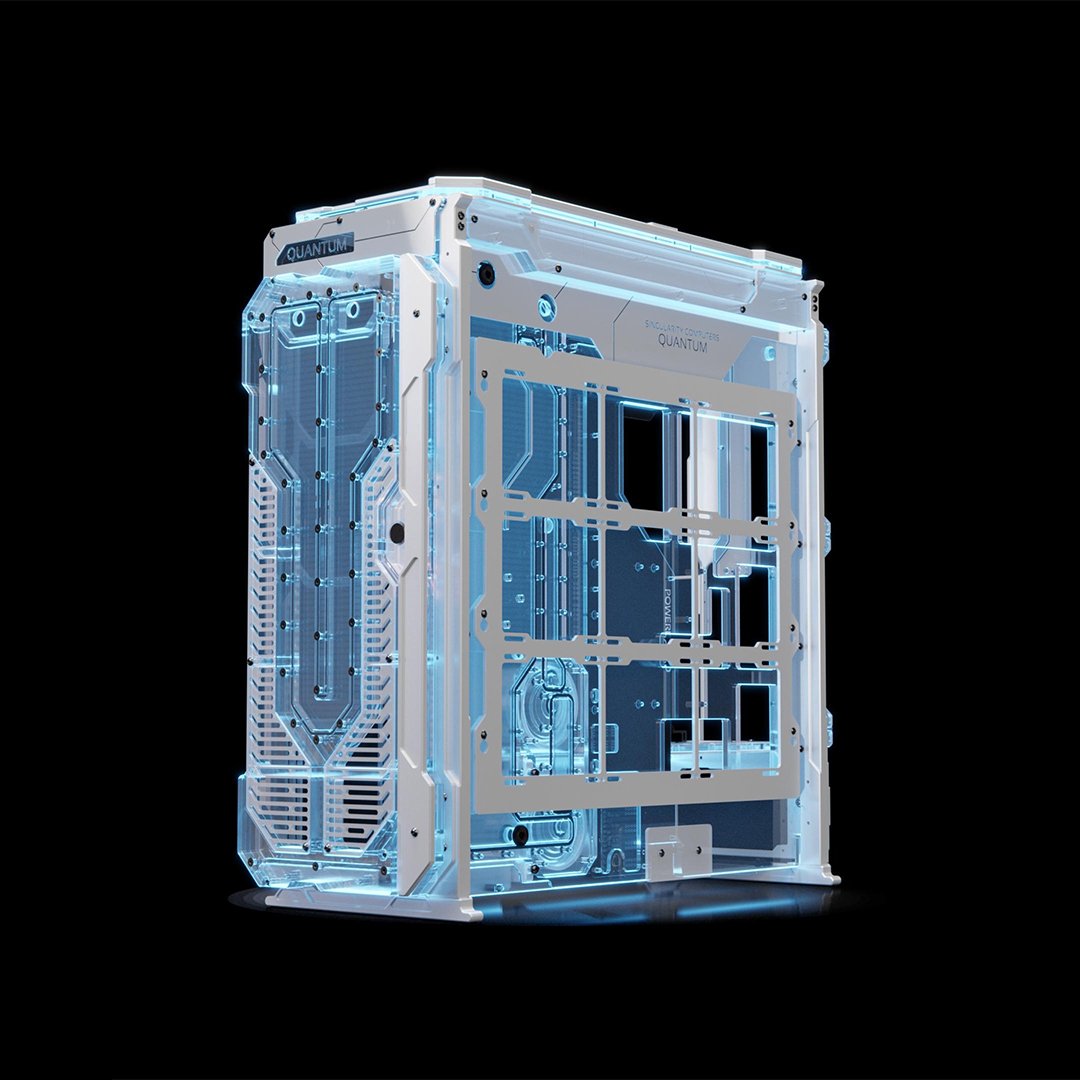

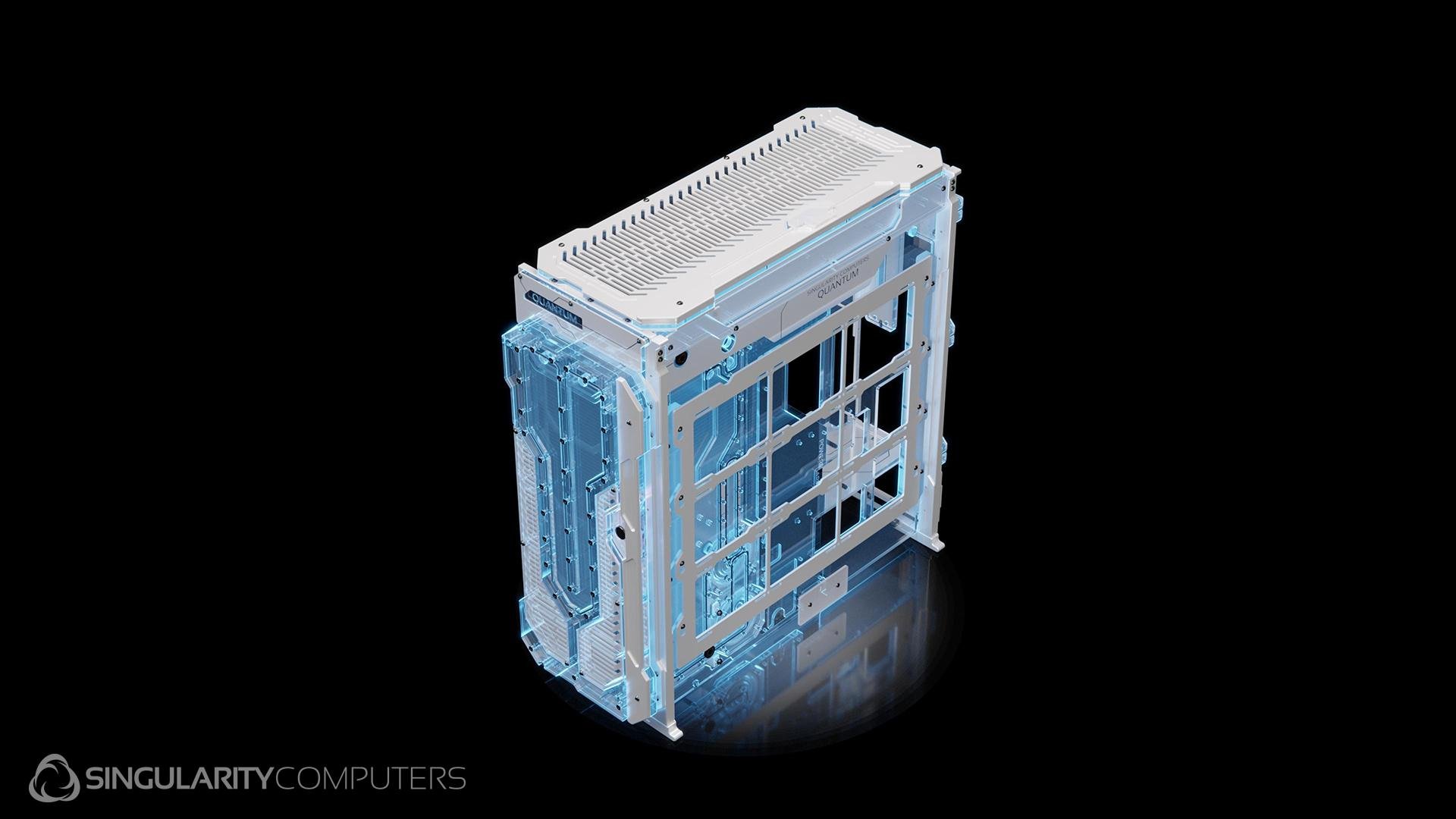

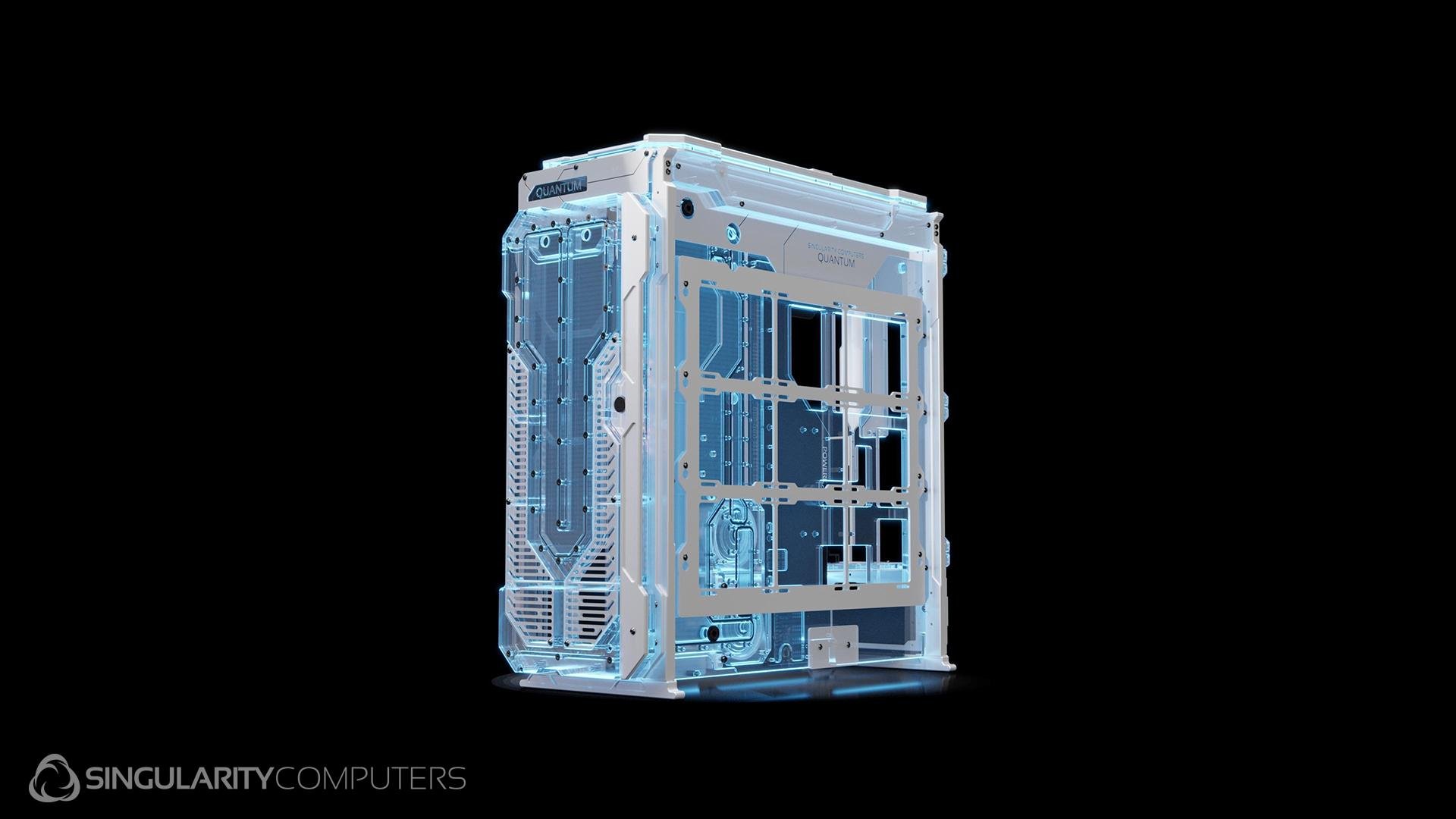

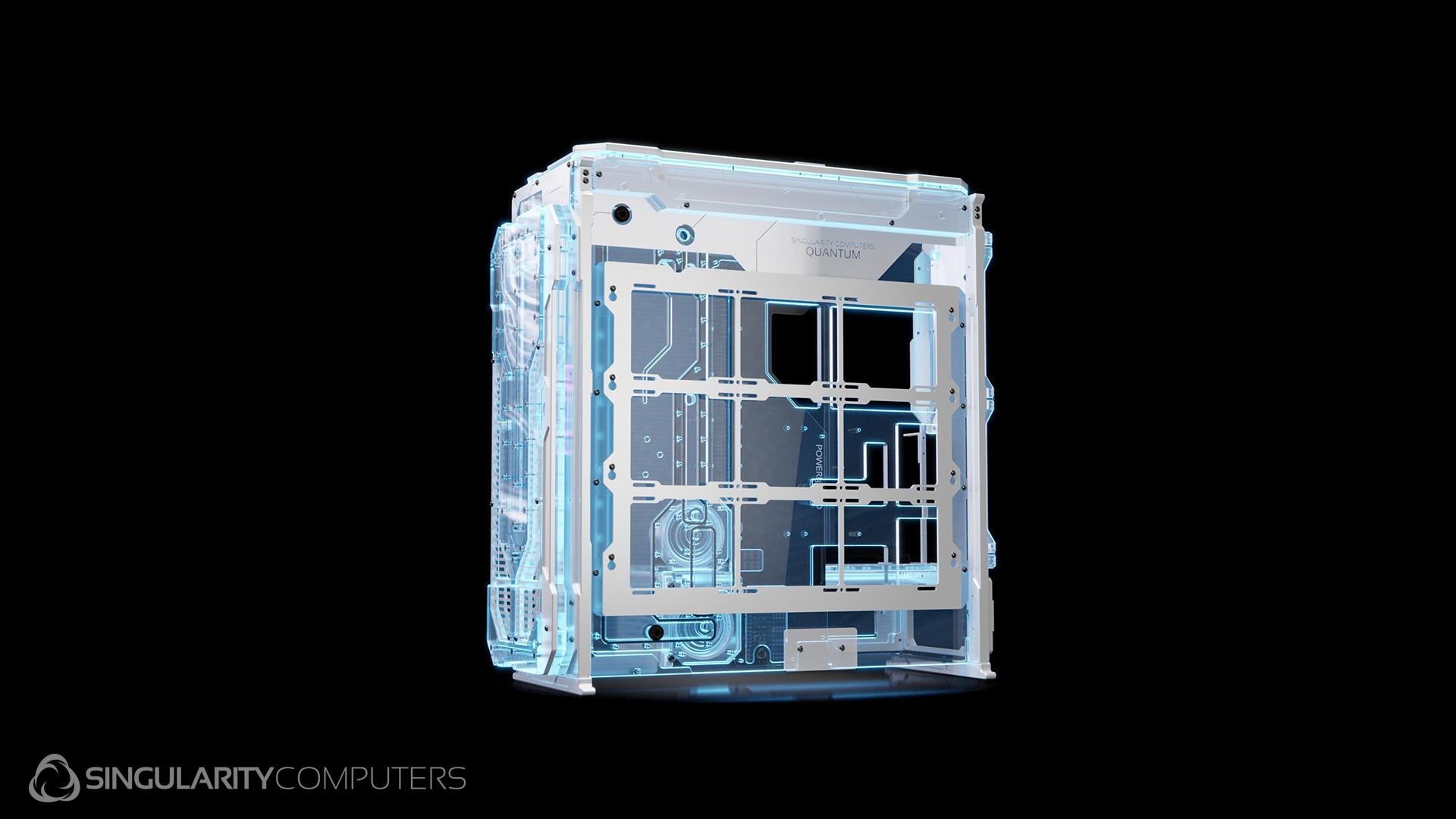

Spectre 4 Quantum Valhalla Limited Edition Workstation Case

In stock

Order processing time 1 week.

  • Extreme water-cooling workstation case with integrated rear-wall distribution plate
  • Patented PowerBoard eliminates cable management while integrating advanced features
  • Supports E-ATX, SSI-EEB and SSI-CEB motherboards
  • Supports up to 2x 420mm or 360mm internal radiators
  • Supports up to 3x 360mm external radiators or a MO-RA3
  • Second ATX PSU mount for high-power workstation systems
  • Integrated 1920×1080 60Hz IPS PSU Shroud Screen
  • Eight external PCB covers, including five with integrated LEDs
  • Daisy-chained PCB lighting eliminates RGB cable clutter
  • Valhalla Limited Edition features an all-white finish with white PCB covers and silver details

Note: Compatible with the MO-RA IV 400.

Manuals

US$2,599.00

Limited to 20 Cases
Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Input your motherboard brand and model and we will provide the correct cables for it.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Dual Loop Side Panel Distribution Plate (optional) USD $649
None Yes +US$649.00

Spectre 4 Dual Loop Side Panel
The Spectre 4 Dual Loop Side Panel is an addon for all Spectre 4 cases. It adds another D5 Pump Top and Reservoir to the case which can be used for dual loops, or to add a second pump and reservoir for a single loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated reservoir, D5 pump top, D5 Pump Cover and two ARGB LED strips. There are 7 ports which are positioned for connections to the GPU loop and top radiator. It also has a fill, drain and temperature sensor port.

Spectre 4 Dual Loop Side Panel FanGuardian Mount (optional) USD $79
None Yes +US$79.00

Spectre 4 Dual Loop Side Panel FanGuardian Mount
The Spectre 4 Dual Loop Side Panel FanGuardian Mount is an addon for the latest version of the Spectre 4 Dual Loop Side Panel. It mounts the FanGuardian PowerBoard Controller in the front bottom corner of the Dual Loop Side Panel under the pump. This puts it on the outside of the case in a far more visible location where the touch screen can easily be accesses. There is a longer cable included for the FanGuardian to connect it to the PowerBoard.

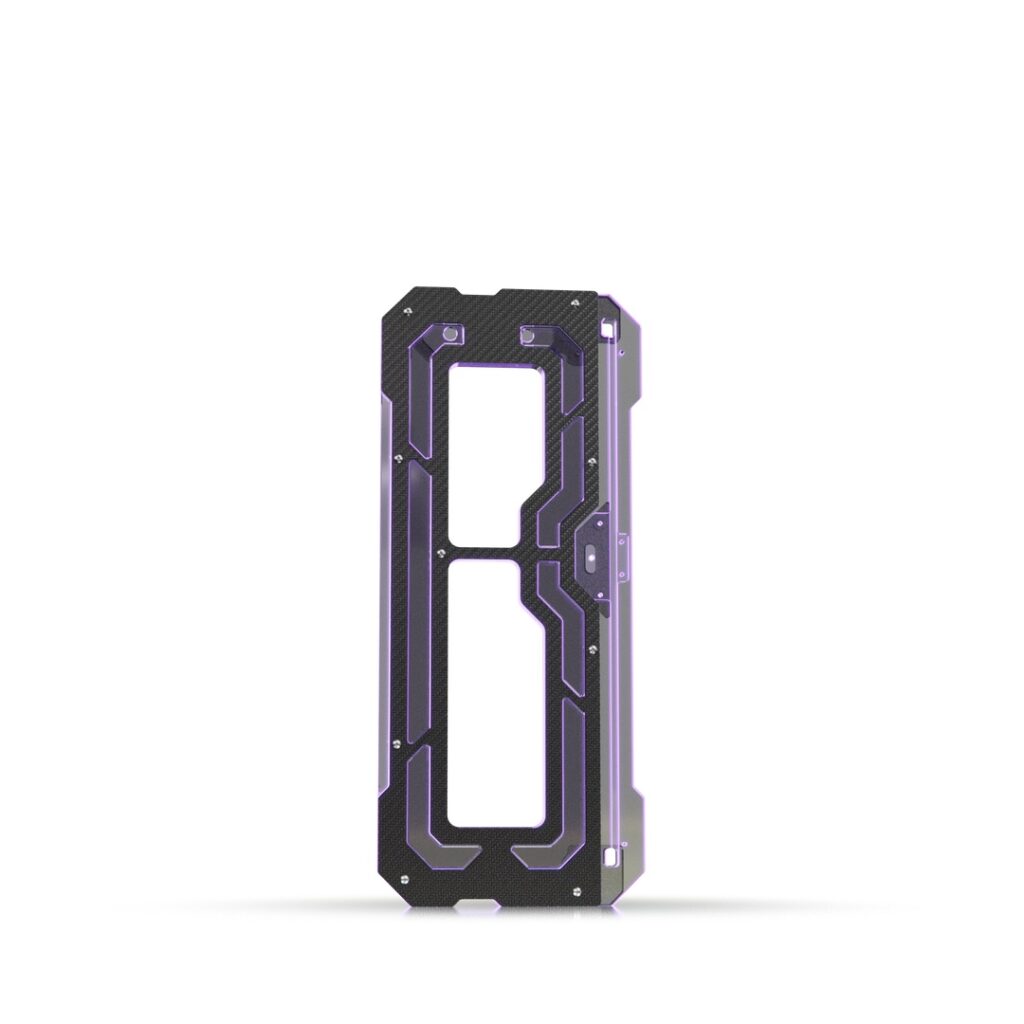

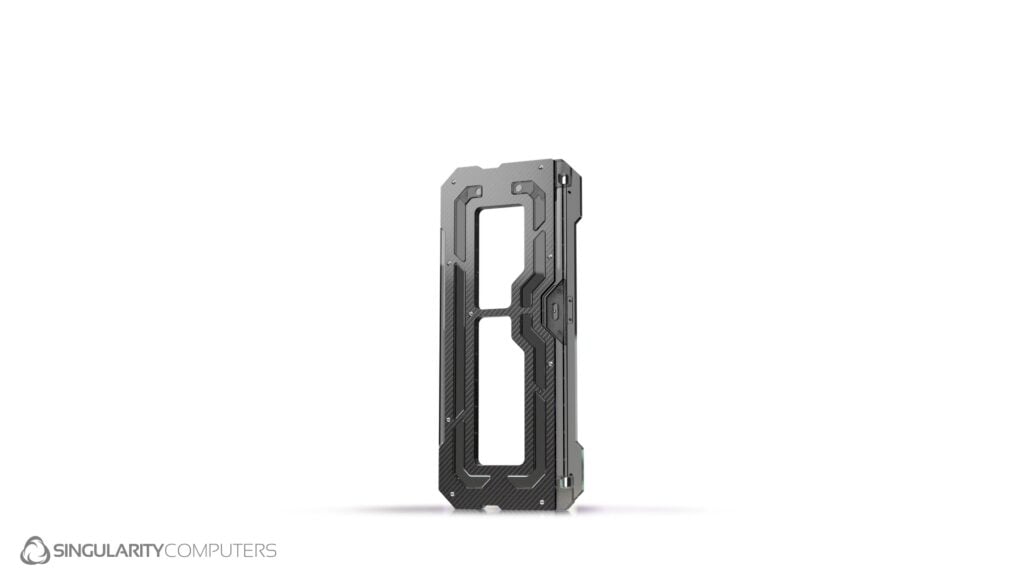

Elite Top Panel Distribution Plate Carbon (optional) USD $499
None Yes +US$499.00

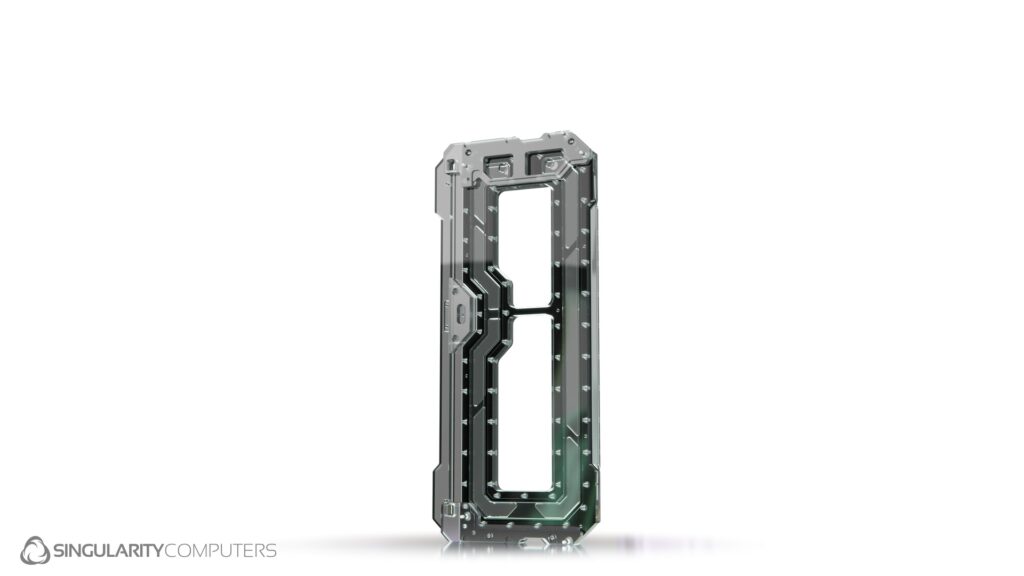

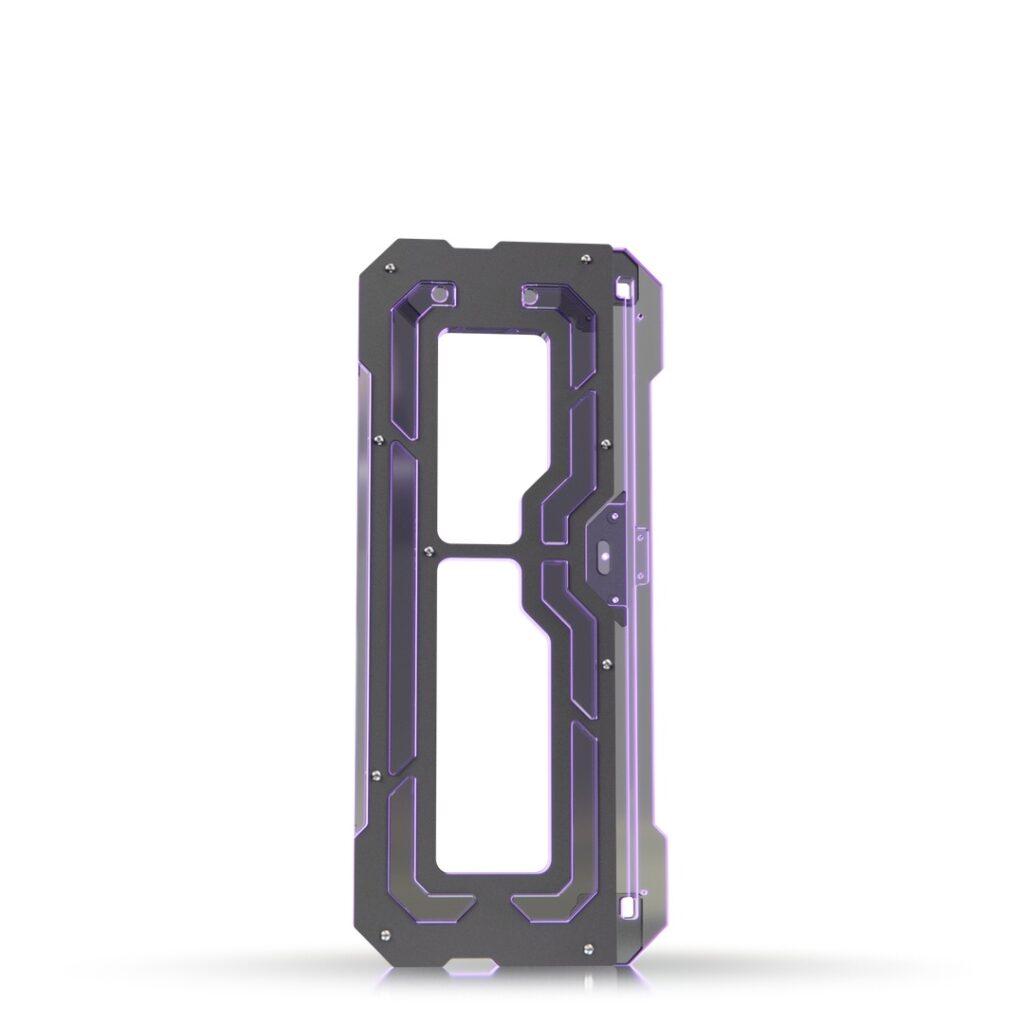

Spectre 4 Elite
Distribution Plate for the Top Panel (Front is included).
Spectre 4 Elite is a distribution plate for the front or top panels of Spectre 4 cases. This distribution plate is an aesthetic addon which replaces the front radiator panel enhancing the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached. There is an LED strip positioned on the edge of the distribution plate so that it glows.

Rear IO Distribution Plate (optional) USD $99
None Yes +US$99.00

Spectre 4 Rear IO Distribution Plate
The Spectre 4 PSU Shroud & Rear IO Distribution Plates are designed for all Spectre 4 Cases and are compatible with all addons (The PSU Shroud Distribution Plate does not fit on Spectre 4 Enterprise or Spectre 4 Quantum). They can be used in single or dual loop mode, with or without the Spectre 4 Loop Side Panel. They can also be used independently of each other. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. Similar to the Spectre Elite Front and Top Panel Distribution Plates, these Distribution Plates are primarily designed to improve aesthetics although they can improve the loop layout in some scenarios.

Water Cooling

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

D5 Pump x3 (optional) USD $312
None Yes +US$312.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

SC Fittings Package Spectre 4 Advanced (optional) USD $308.80
None Yes +US$308.80

SC Fittings Package Spectre 4 Advanced
Fittings needed for standard case with up to x1 Spectre 4 Elite, The Rear IO & PSU Shroud Distribution Plates.
Included Fittings:
– 16mm Hardline Compression: x8.
– 90 Degree Rotary: x12.
– 90 Degree Dual Rotary: x4.
– 20mm Extension: x4.
– 25mm Extension: x1.
– Telescopic Fitting Large: x2.
– Telescopic Fitting Small: x1.
– Temperature Sensor Fitting: x1.
– Low Profile Drain Valve: x1.

SC Cerakote Fittings Package Spectre 4 Advanced (optional) USD $108.8
None Armour Black +US$108.80 Cobalt +US$108.80 Gold +US$108.80 Midnight Bronze +US$108.80 Polar Blue +US$108.80 Ruby Red +US$108.80 Shimmer Aluminum +US$108.80 Sniper Grey +US$108.80 Stormtrooper White +US$108.80

SC Cerakote Fittings Package Spectre 4 Advanced
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

SC Fittings Package Spectre 4 Extreme (optional) USD $542.80
None Yes +US$542.80

SC Fittings Package Spectre 4 Extreme
Fittings needed with Spectre 4 Elite x2, Spectre 4 Dual Loop Side Panel or all addon distribution plates.
Included Fittings:
– 16mm Hardline Compression: x14.
– 90 Degree Rotary: x16.
– 90 Degree Dual Rotary: x7.
– 20mm Extension: x7.
– 25mm Extension: x3.
– Telescopic Fitting Large: x5.
– Telescopic Fitting Small: x4.
– Temperature Sensor Fitting: x2.
– Low Profile Drain Valve: x2.

SC Cerakote Fittings Package Spectre 4 Extreme (optional) USD $192
None Armour Black +US$192.00 Cobalt +US$192.00 Gold +US$192.00 Midnight Bronze +US$192.00 Polar Blue +US$192.00 Ruby Red +US$192.00 Shimmer Aluminum +US$192.00 Sniper Grey +US$192.00 Stormtrooper White +US$192.00

SC Cerakote Fittings Package Spectre 4 Extreme
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

PowerBoard

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

PowerBoard PSU Cable Kit (optional) USD $79
None Yes +US$79.00

PowerBoard PSU Cable Kit
Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs.

Shift Motherboard 24pin 90 Degree Adaptor (optional) USD $24.50
None Yes +US$24.50

Shift Motherboard 24pin 90 Degree Adaptor
The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.

Mounting

Second PSU Mount (optional) USD $99
None Yes +US$99.00

Spectre-4-Dual-PSU-Mount
Mounts a second PSU inside of the front panel.

Finish & personalisation

PSU Side Shroud PCB Customization
We can laser etch your name, build name or any text less than 30 characters onto the PSU Shroud. Enter text in the box below.

Additional options

Rear Panel (optional) USD $199
None Yes +US$199.00

Spectre 4 Rear Panel
The Spectre 4 Enterprise & Quantum Rear Panel is an addon for the Spectre 4 Enterprise and Quantum Water-cooling Cases. These cases come with a rear radiator mount designed to fit a MORA IV 400 or 3x 360mm radiators. This addon is to replace the rear radiator mount to improve the aesthetics, if you do not want to install radiators. It is built from CNC machined acrylic and mounts onto the rear of the main case distribution plate, it comes included with ARGB lighting.

  • 1x Spectre 4 Quantum Valhalla Limited Edition Workstation Case
    US$2,599.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188001707 SKU: SC-S4-QUANT-V Category:

Description

Read More +Read Less − full description

Spectre 4 Quantum Workstation Case is an extreme water-cooling case designed for workstations. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features. Spectre 4 Quantum fits large motherboards including E-ATX, SSI-EEB and CEB. It has large cooling capacity fitting up to 2x 420mm or 360mm radiators internally, and 3x 360mm radiators or a MO-RA3 externally. It has a second ATX PSU mount and a 1920×1080 60Hz IPS Screen mounted on the PSU Shroud. Spectre 4 Quantum is our first case with PCB covers instead of acrylic covers like our other cases. It includes x8 PCB covers on the outside of the case, x5 of which have integrated LEDs. These PCBs are daisy chained so that there is no RGB cable mess or cable management.

Spectre 4 Quantum Valhalla Limited Edition Workstation Case is an all-white version. All the metal parts are white and the PCB covers are also white with silver details and logos.

Specifications

Water-cooling Integration:
Reservoir, Pump Tops, Pump Covers, Fill Port, Drain Ports, Parts of water-cooling loop.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pumps: (Not included): Compatible with all D5 pumps.
Electronics Integration:
PowerBoard and x8 other PCB Covers x5 of which have integrated LEDs. Options for Gold and Silver (select above).
Connectors: 24pin x1. PCIE 8pin x4. 12VHPWR x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs, with coolant temperature-based RPM control or motherboard control. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB Headers: x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x20 Integrated ARGB 90-degree LEDs around the external perimeter of the PowerBoard.
Power and Reset Buttons.
4pin ATX header x2 to power up to 4 pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen: 1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12VHPWR (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Pump Power Cable 4pin ATX to SATA & Molex x2.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
Motherboard Form Factor: SSI-EEB, SSI-CEB, XL-ATX (Up to: 305mm Wide & 350mm High).
E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Storage: x2.5” x2 (can only be used with horizontally mounted GPU/s).
Radiators: Internal: 420mm/360mm X2 with 100mm of thickness for radiators and fans. External: 360mm x3, MO-RA3 120 or MO-RA IV 400, with no thickness limitations for radiators or fans. (Front radiator cannot be used with Second PSU).
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
PSU: ATX PSU Mounts x2 which support up to 240mm long PSUs with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 550mm x W: 250mm x H: 615mm.
Case Weight: 14kg.
Package Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Package Weight: 16kg.

Spectre 4 Versions
Spectre Spectre 4 Aeternus Spectre 4 Aeternus Dark Spectre 4 Aeternus Valhalla Spectre 4 Carbon Spectre 4 Enterprise Spectre 4 Quantum Spectre 4-M Spectre 4-M Dark Spectre 4-M Valhalla
Distribution Plates x2 x1 x2 x2 x2 x1 x2 x1 x2 x2
Distribution Plate Layers x2 x4 x4 x4 x4 x2 x2 x2 x3 x3
PowerBoard Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Motherboard Form Factor Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX, SSI-EEB, SSI-CEB Up to E-ATX, SSI-EEB, SSI-CEB Up to ATX Up to ATX Up to ATX
IO Slots 8 8 8 8 8 8 8 7 7 7
Radiators 2x 360mm/420mm 2x 360mm/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm 2x 360mm 2x 360mm
Radiator Thickness 60mm 60mm 60mm 60mm 60mm 60mm 60mm 45mm 45mm 45mm
Pump/s D5 D5 D5 D5 D5  2x D5  2x D5 D5 D5 D5
Reservoir Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Case Dimensions 550mm x 250mm x 615mm 610mm x 245mm x 560mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 560mm 610mm x 245mm x 560mm 486mm x 245mm x 528mm 506mm x 245mm x 528mm 506mm x 245mm x 528mm
1920×480 60Hz Screen No No Yes Yes Yes Yes Yes No Yes Yes
Limited Edition Yes Yes Yes Yes Yes No Yes No No No
Individually Numbered Yes Yes Yes Yes Yes No Yes No Yes Yes
Rear CPU Socket Fan Yes Yes Yes Yes Yes No No Yes Yes Yes
Dust Filters No Yes Yes Yes Yes Yes Yes No No No
Multi Zone PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump Power Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Temperature Based RPM Control Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
RPM Curve Adjustment Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSU Jump Start Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSUs x1 x1 x1 x1 x1 x1 (2nd can be added with optional addon) x1 (2nd can be added with optional addon) x1 x1 x1
Water-cooling Loops x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel)
Color Black with Silver Flake & Clear Black & Clear Black & Grey Tinted White & Clear Carbon Fiber, Black & Clear Black & Clear Black, Clear & Silver or Gold Black & Clear Black & Grey Tinted White & Clear
Drives x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x2 2.5” if GPU/s not vertically mounted x2 2.5” if GPU/s not vertically mounted x2 x2.5” x2 x2.5” x2 x2.5”
Personalised etched name and serial number No No Yes Yes Yes No Yes No No No
Carbon Fiber No No No No Yes No No No No No
PCB Covers with integrated ARGB Yes Yes Yes Yes Yes No Yes No Yes No

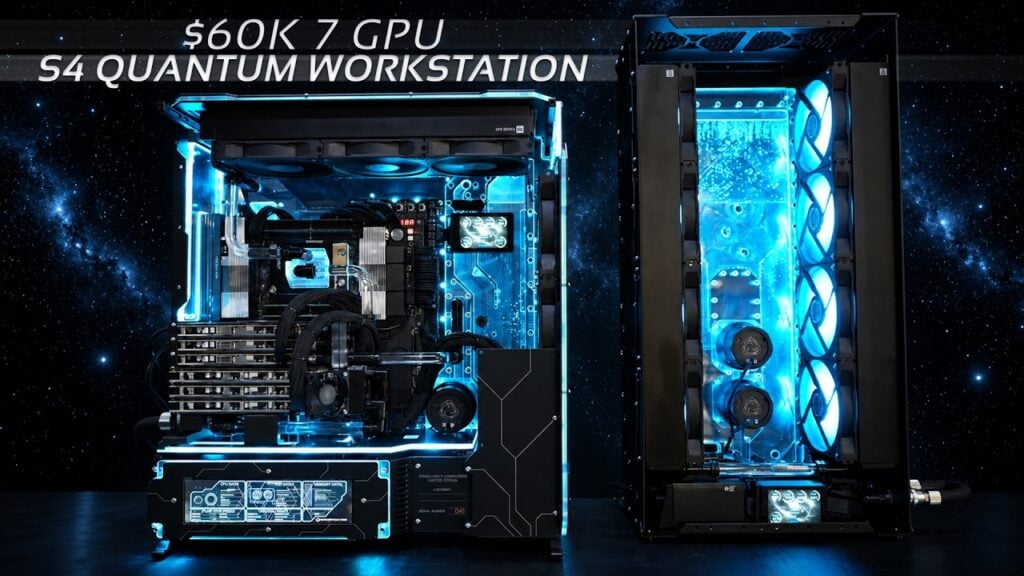

Video
