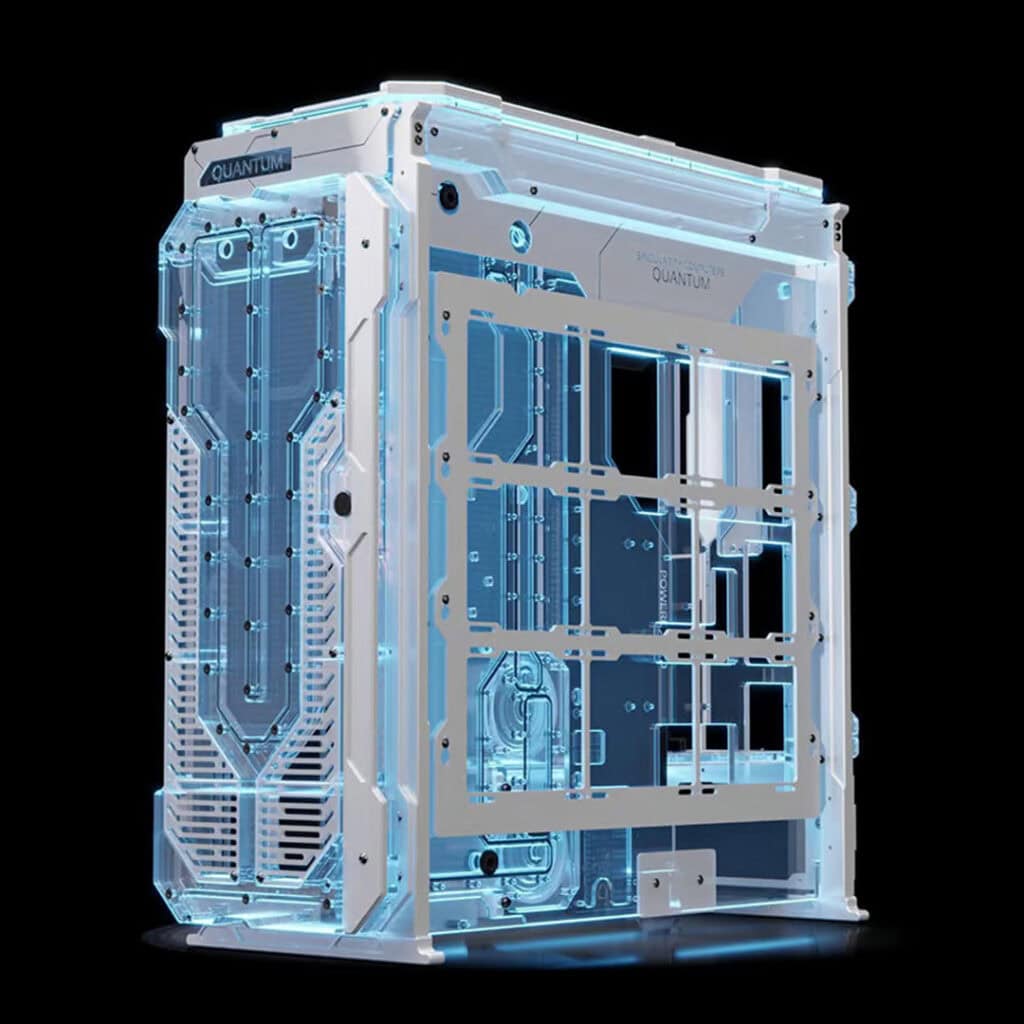

Spectre 4 Quantum Limited Edition Workstation Case

Water-cooling Integration:
Reservoir, Pump Tops, Pump Covers, Fill Port, Drain Ports, Parts of water-cooling loop.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pumps: (Not included): Compatible with all D5 pumps.
Electronics Integration:
PowerBoard and x8 other PCB Covers x5 of which have integrated LEDs. Options for Gold and Silver (select above).
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs, with coolant temperature-based RPM control or motherboard control. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB Headers: x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x20 Integrated ARGB 90-degree LEDs around the external perimeter of the PowerBoard.
Power and Reset Buttons.
4pin ATX header x2 to power up to 4 pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen: 1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Pump Power Cable 4pin ATX to SATA & Molex x2.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
Motherboard Form Factor: SSI-EEB, SSI-CEB, XL-ATX (Up to: 305mm Wide & 350mm High). E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Storage: x2.5” x2 (can only be used with horizontally mounted GPU/s).
Radiators: Internal: 420mm/360mm X2 with 100mm of thickness for radiators and fans. External: 360mm x3, MO-RA3 120 or MO-RA IV 400, with no thickness limitations for radiators or fans. (Front radiator cannot be used with second PSU).
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
PSU: ATX PSU Mount supports up to 240mm long PSUs with a large amount of space for cables. (Second ATX PSU Mount available see above add on option).
Front Panel I/O: No Front I/O.
Power Button: Touch Activated.
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2^nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 550mm x W: 250mm x H: 615mm.
Case Weight: 14kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 16kg.

Dual Loop Side Panel Distribution Plate                                                                                                                                      Dual Loop Side Panel FanGuardian Mount

Spectre 4 Enterprise & Quantum Rear Panel                                                                                                                            Elite Top and/or Front Distribution Plate

Rear IO Distribution Plate                                                                                                                                                                      FanGuardian PowerBoard Controller

Protium 3.0 D5 Pump                                                                                                                                                                               PowerBoard PSU Cable Kit

Shift Motherboard 24pin 90 Degree Adaptor

Dual Loop Side Panel Distribution Plate: The Spectre 4 Dual Loop Side Panel is an addon for all Spectre 4 cases. It adds another D5 Pump Top and Reservoir to the case which can be used for dual loops, or to add a second pump and reservoir for a single loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated reservoir, D5 pump top, D5 Pump Cover and two ARGB LED strips. There are 7 ports which are positioned for connections to the GPU loop and top radiator. It also has a fill, drain and temperature sensor port.

Spectre 4 Dual Loop Side Panel FanGuardian Mount: The Spectre 4 Dual Loop Side Panel FanGuardian Mount is an addon for the latest version of the Spectre 4 Dual Loop Side Panel. It mounts the FanGuardian PowerBoard Controller in the front bottom corner of the Dual Loop Side Panel under the pump. This puts it on the outside of the case in a far more visible location where the touch screen can easily be accesses. There is a longer cable included for the FanGuardian to connect it to the PowerBoard.

Elite Top and/or Front Distribution Plate: Spectre 4 Elite is a distribution plate for the front or top panels of Spectre 4 cases. This distribution plate is an aesthetic addon which replaces the front radiator panel enhancing the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached. There is an LED strip positioned on the edge of the distribution plate so that it glows.

Spectre 4 Enterprise & Quantum Rear Panel: The Spectre 4 Enterprise & Quantum Rear Panel is an addon for the Spectre 4 Enterprise and Quantum Water-cooling Cases. These cases come with a rear radiator mount designed to fit a MORA IV 400 or 3x 360mm radiators. This addon is to replace the rear radiator mount to improve the aesthetics, if you do not want to install radiators. It is built from CNC machined acrylic and mounts onto the rear of the main case distribution plate, it comes included with ARGB lighting.

Rear IO Distribution Plate: The Spectre 4 Rear IO Distribution Plate is designed for both Spectre 4 & Spectre 4 Aevum Water-cooling Cases and is compatible with all addons. It can be used in single or dual loop mode, with or without the Spectre 4 & Spectre 4 Aevum Dual Loop Side Panel. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. Similar to the Spectre Elite Front and Top Panel Distribution Plates, this Distribution Plate is primarily designed to improve aesthetics although it can improve the loop layout in some scenarios.

FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.

PowerBoard PSU Cable Kit: Designed to be connected from the PSU to the PowerBoard. Stock PSU cables will work with the PowerBoard on the input side but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.

Shift Motherboard 24pin 90 Degree Adaptor: Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables. Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.

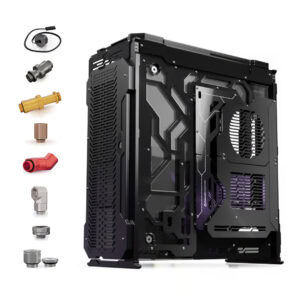

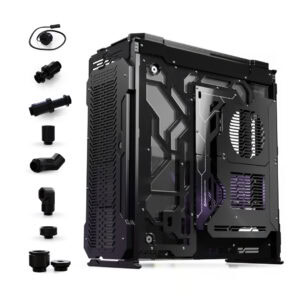

SC Fittings Package Spectre 4

Included Fittings:
16mm Hardline Compression x8.
90 Degree Rotary: x10.
90 Degree Dual Rotary: x2.
20mm Extension: x4.
Telescopic Fitting Large: x2.
Telescopic Fitting Small: x1.
Temperature Sensor Fitting x1.
Low Profile Drain Valve x1.

SC Fittings Package Spectre 4 Advanced

Included Fittings:
16mm Hardline Compression x8.
90 Degree Rotary: x12.
90 Degree Dual Rotary: x4.
20mm Extension: x4.
25mm Extension: x1.
Telescopic Fitting Large: x2.
Telescopic Fitting Small: x1.
Temperature Sensor Fitting x1.
Low Profile Drain Valve x1.

SC Fittings Package Spectre 4 Extreme

Included Fittings:
16mm Hardline Compression x14.
90 Degree Rotary: x16.
90 Degree Dual Rotary: x7.
20mm Extension: x7.
25mm Extension: x3.
Telescopic Fitting Large: x5.
Telescopic Fitting Small: x4.
Temperature Sensor Fitting x2.
Low Profile Drain Valve x2.
