Spectre 4 Rear IO Distribution Plate

In stock

Order processing time 1-2 days.

  • Designed for all Spectre 4 Cases
  • Compatible with all Spectre 4 addons
  • Supports single or dual loop configurations
  • Pass-throughs for the Dual Loop Side Panel
  • Primarily designed to enhance aesthetics and loop layout

Manuals

US$99.00

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003176 SKU: SC-SPEC-4-RIODP Category:

Description

Read More +Read Less − full description

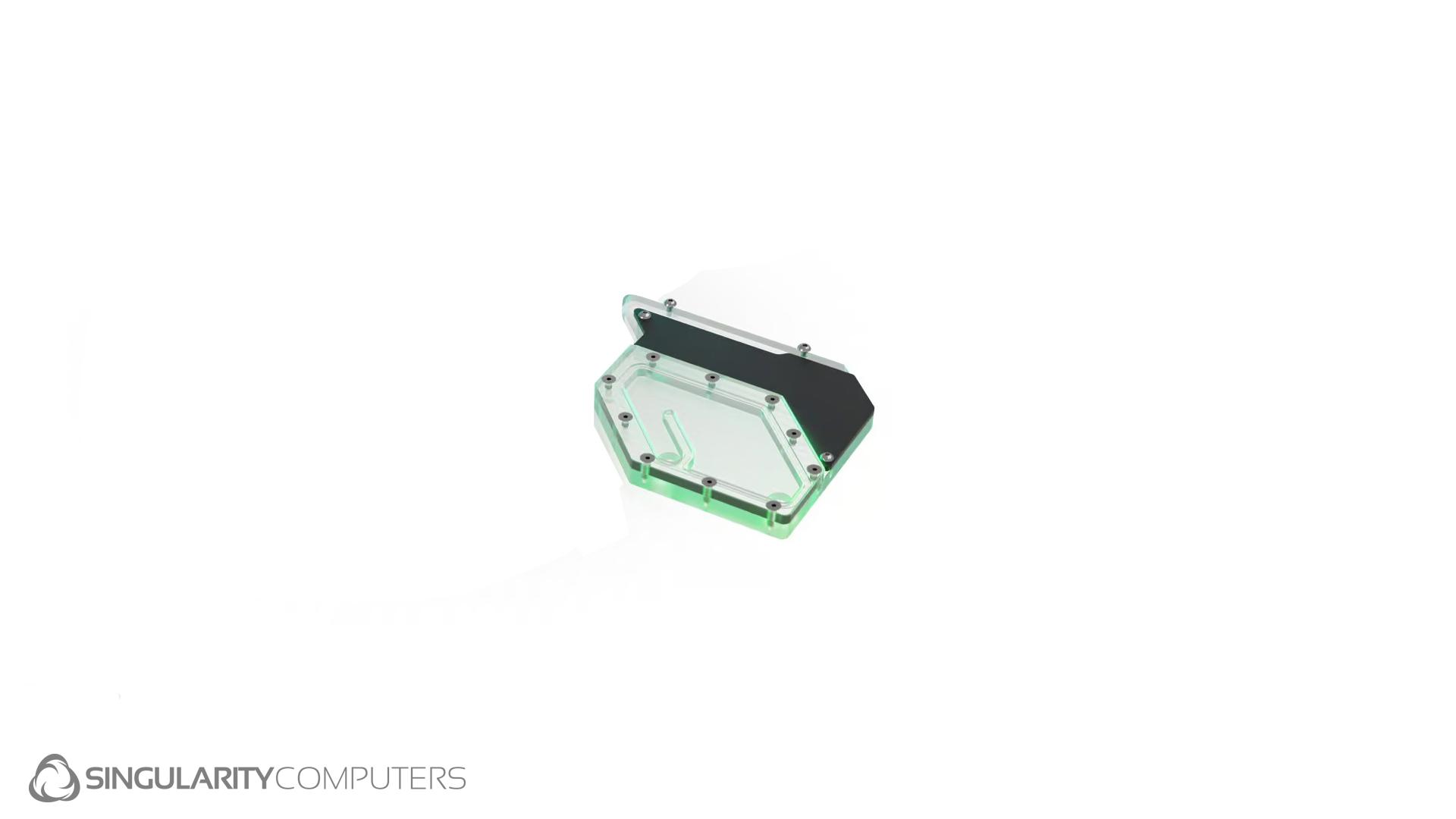

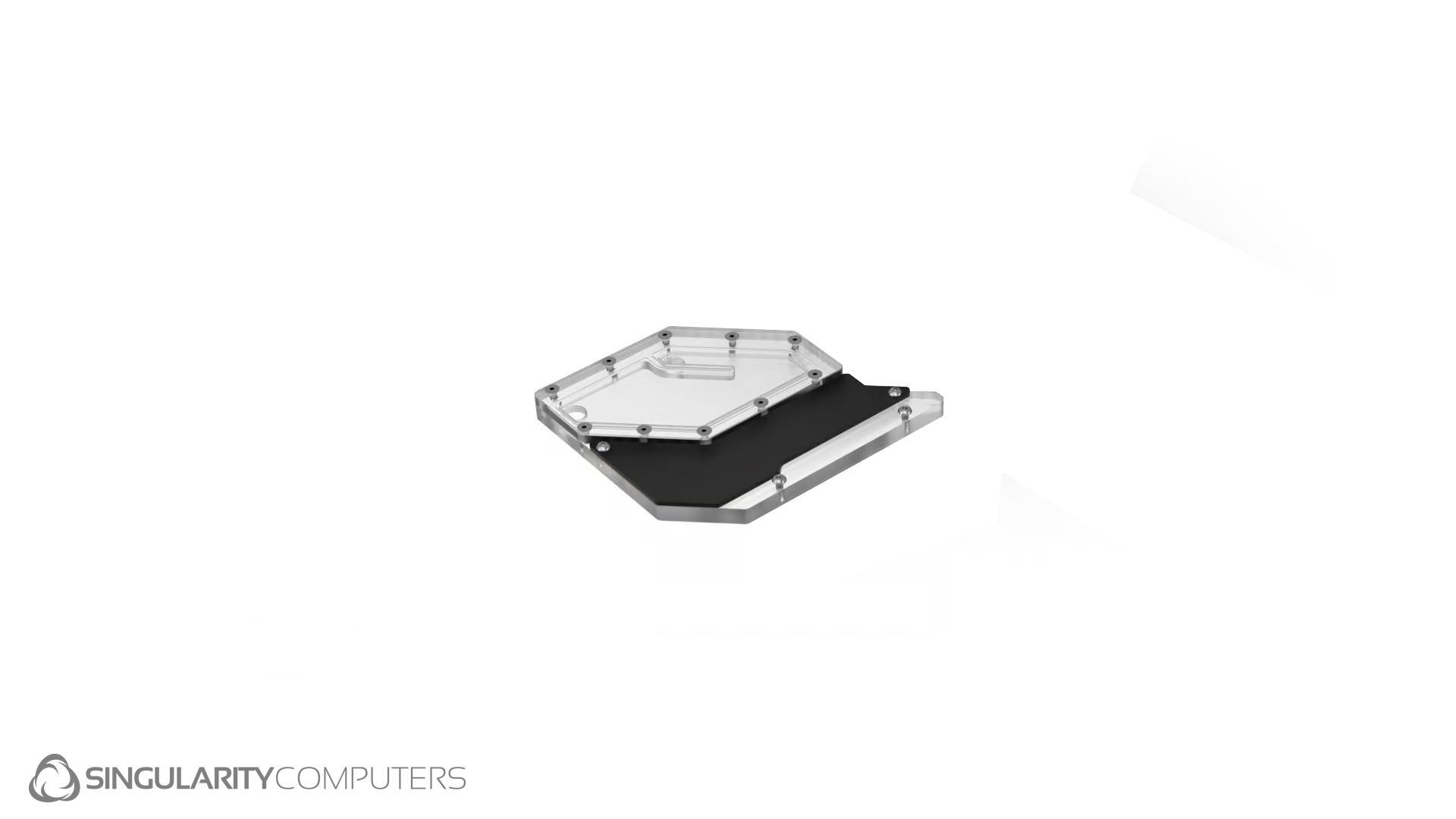

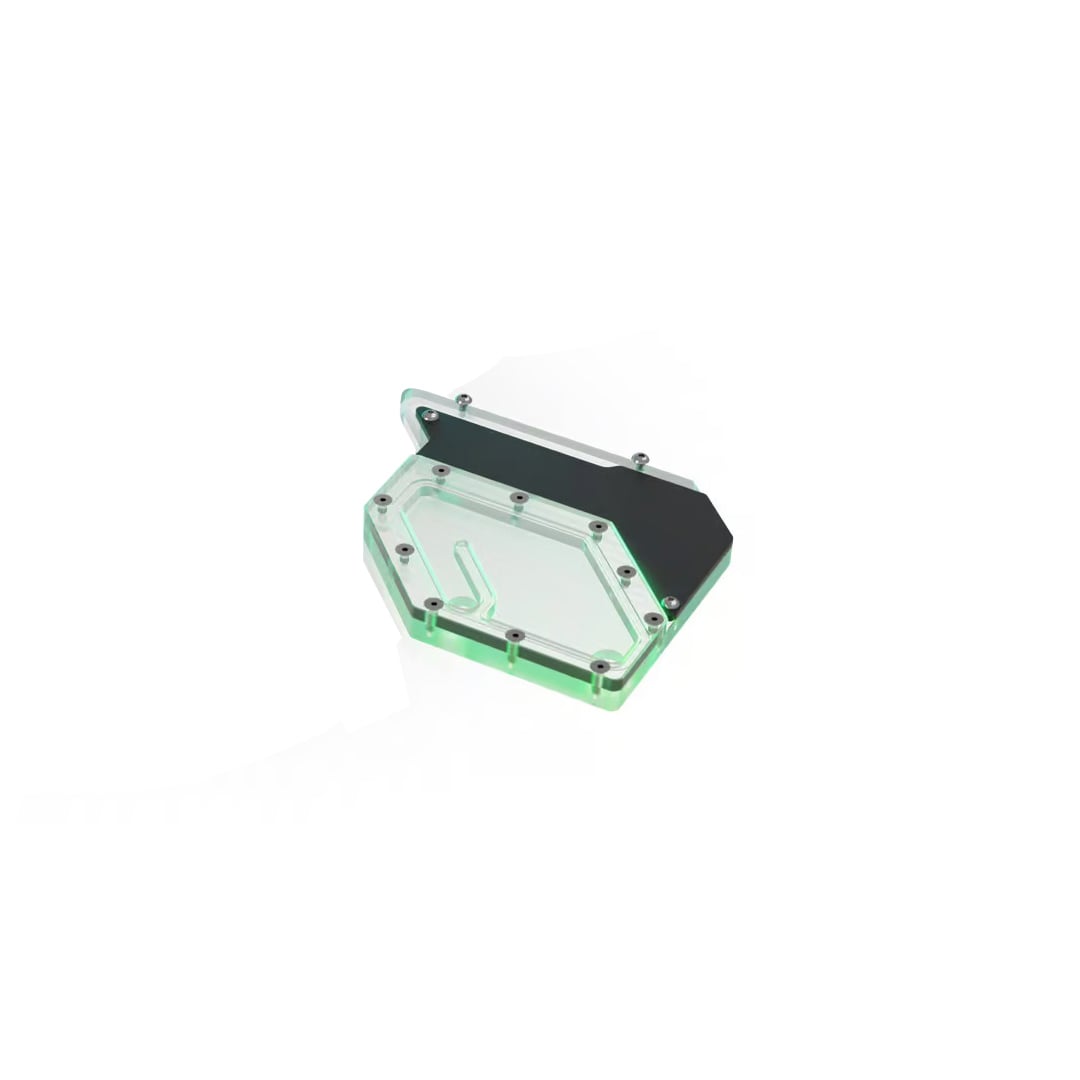

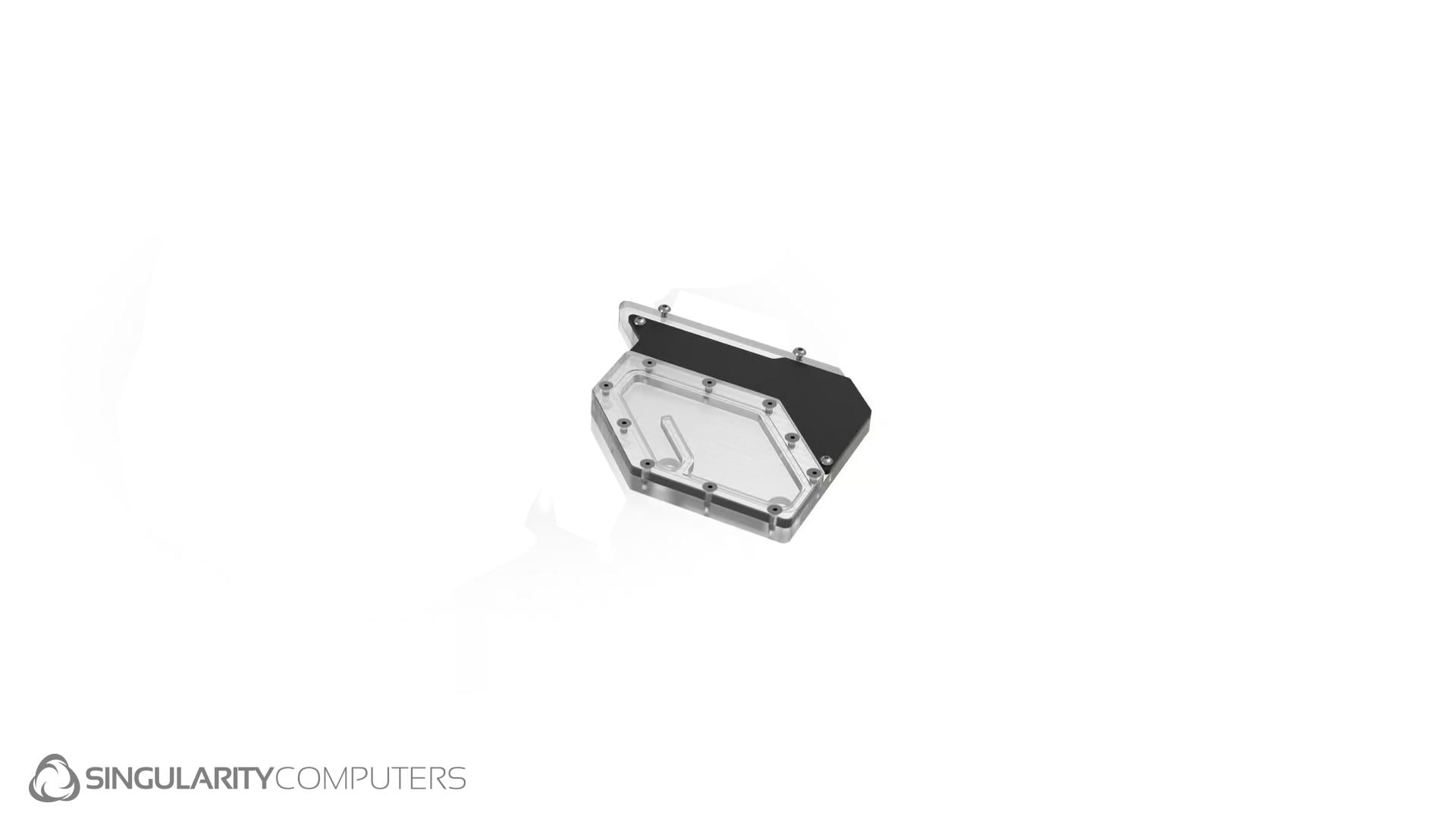

The Spectre 4 Rear IO Distribution Plate is designed for all Spectre 4 Cases and is compatible with all addons. It can be used in single or dual loop mode, with or without the Spectre 4 Loop Side Panel. It can also be used independently of each other. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. Similar to the Spectre Elite Front and Top Panel Distribution Plates, this Distribution Plate is primarily designed to improve aesthetics although it can improve the loop layout in some scenarios.

Specifications

Spectre 4 Rear IO Distribution Plate.
LED Strip: 30cm ARGB 5V with 50cm black cable.
Materials: Cast Acrylic.
Gaskets: Silicone Black.
Fasteners: Stainless Steel Silver.
Manufacturing Process: CNC Mill. CNC Router. Laser Cutter.
Assembly: Assembled by hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Dimensions: L: 100mm x H: 16mm x W: 100mm.
Weight: 0.5kg.
Packaged Dimensions: L: 200mm x W: 200mm x H: 100mm.
Packaged Weight:1kg.

Compatibility:
Spectre 4 Enterprise.
Spectre 4 Quantum.

Installation:
Designed for all Spectre 4 Cases and compatible with all addons.  It can be used in single loop or dual loop scenarios also with the Dual Loop Side Panel. The Rear IO Distribution Plate installs onto the inside of the Rear IO Panel.
