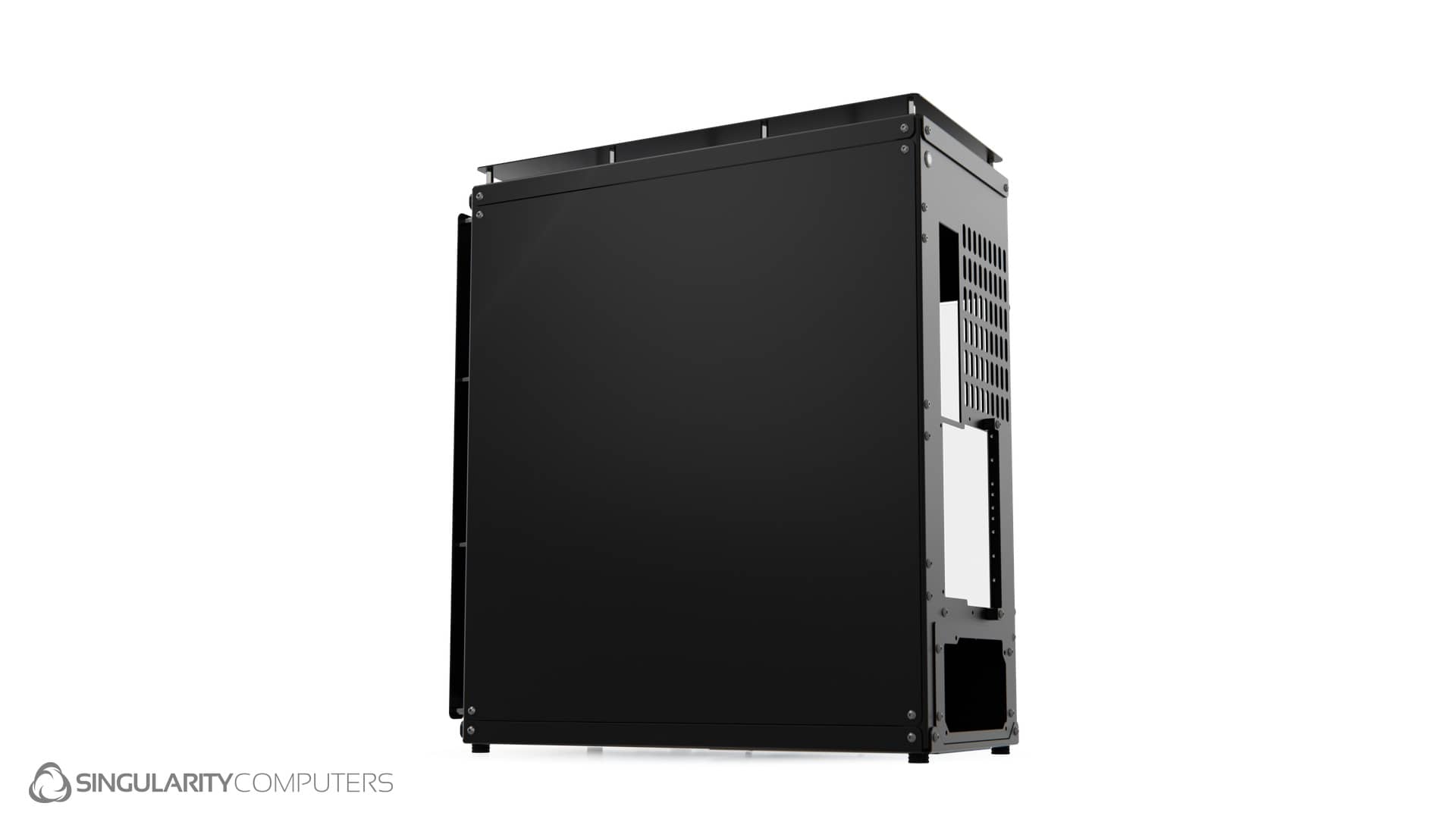

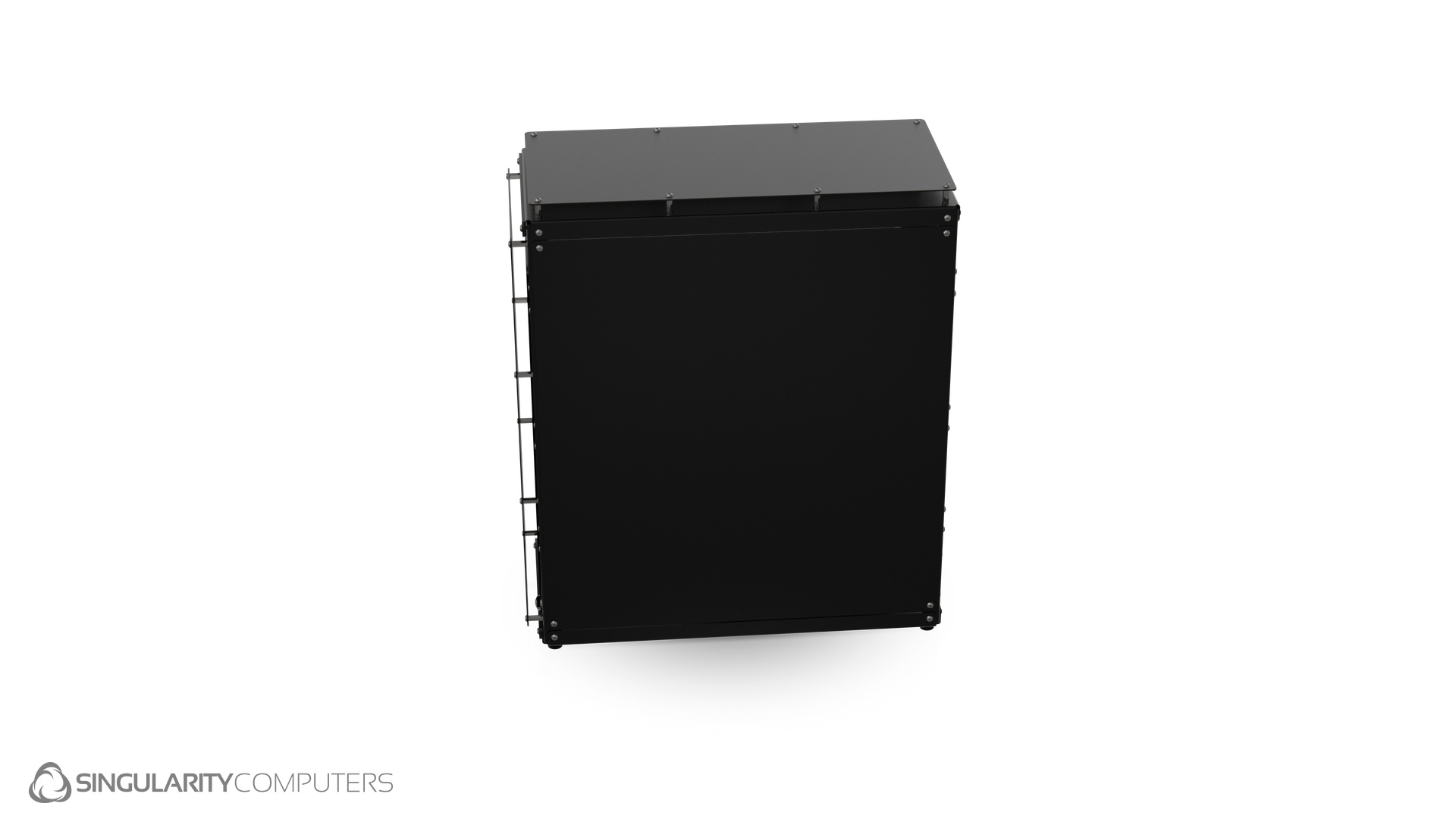

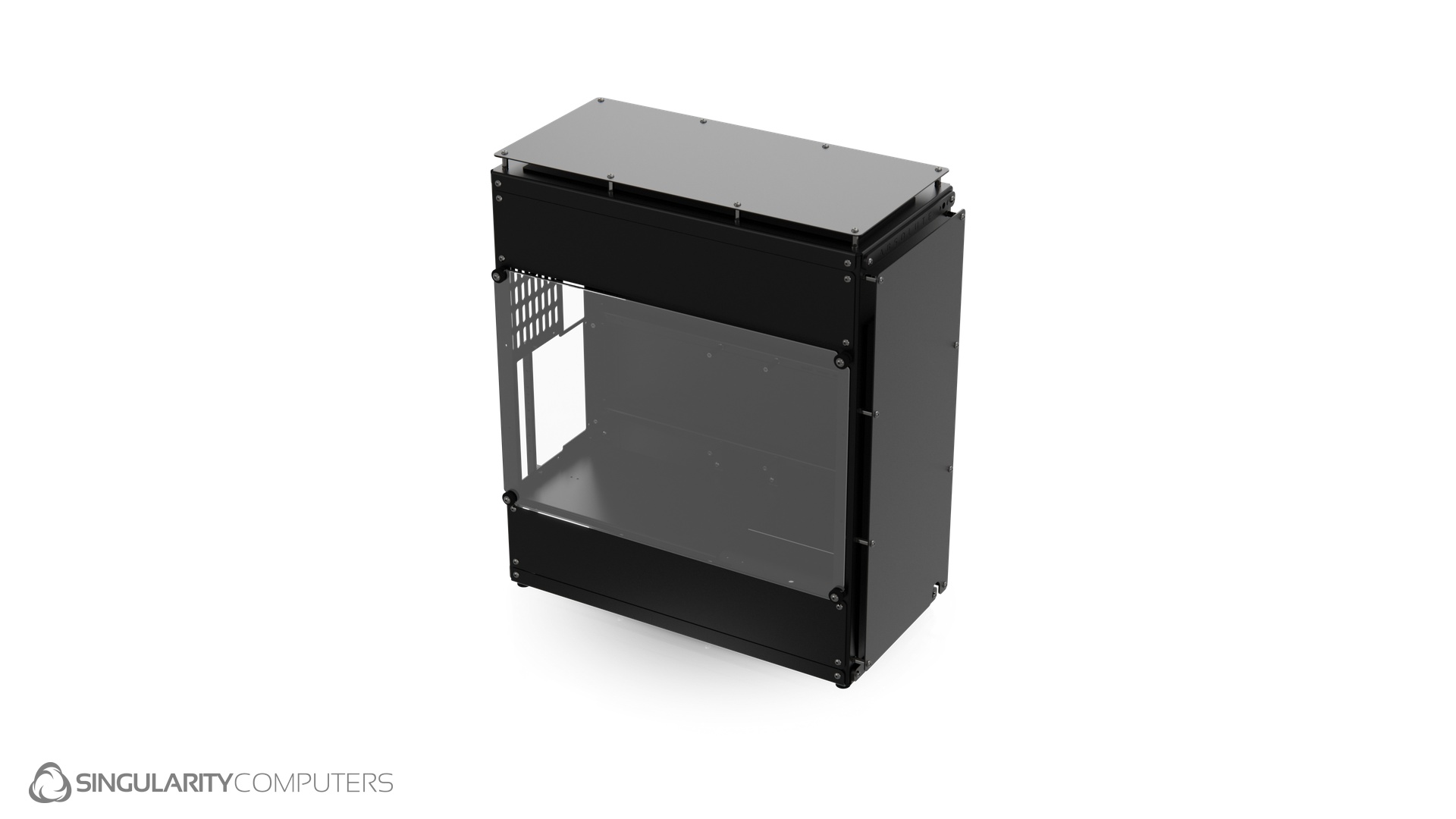

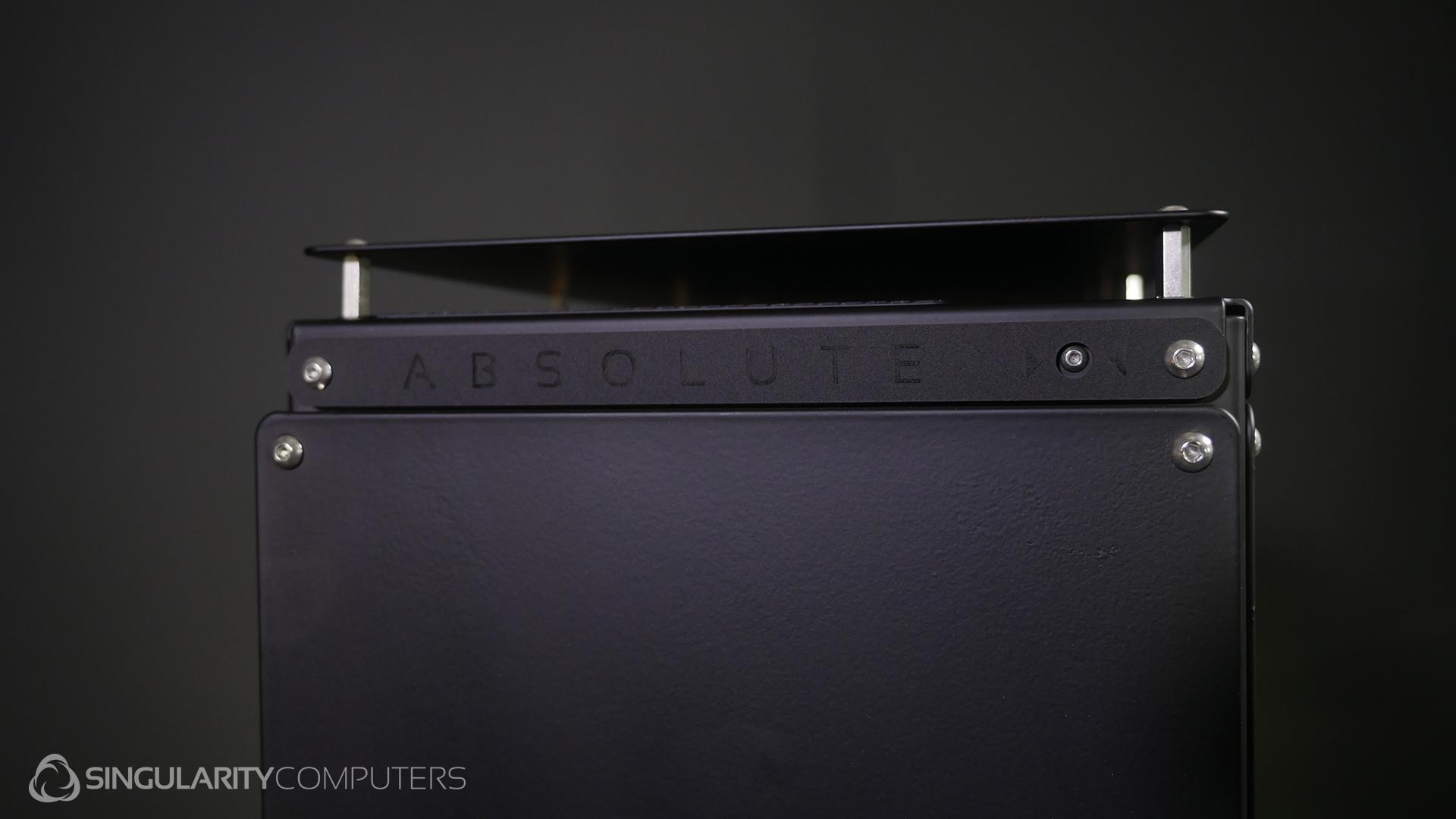

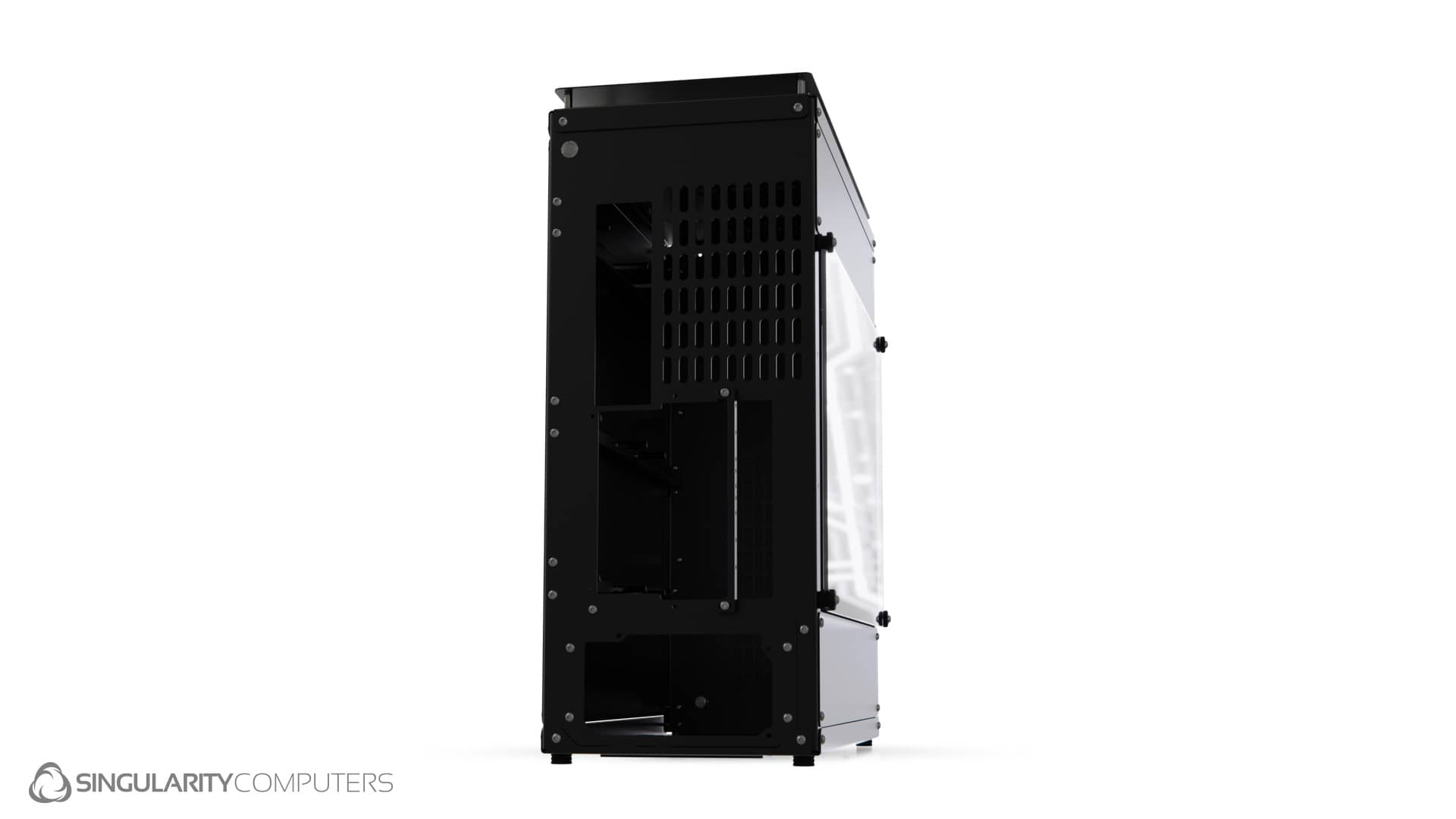

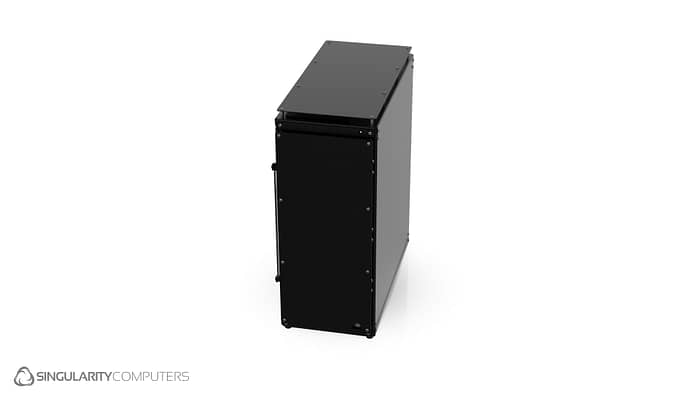

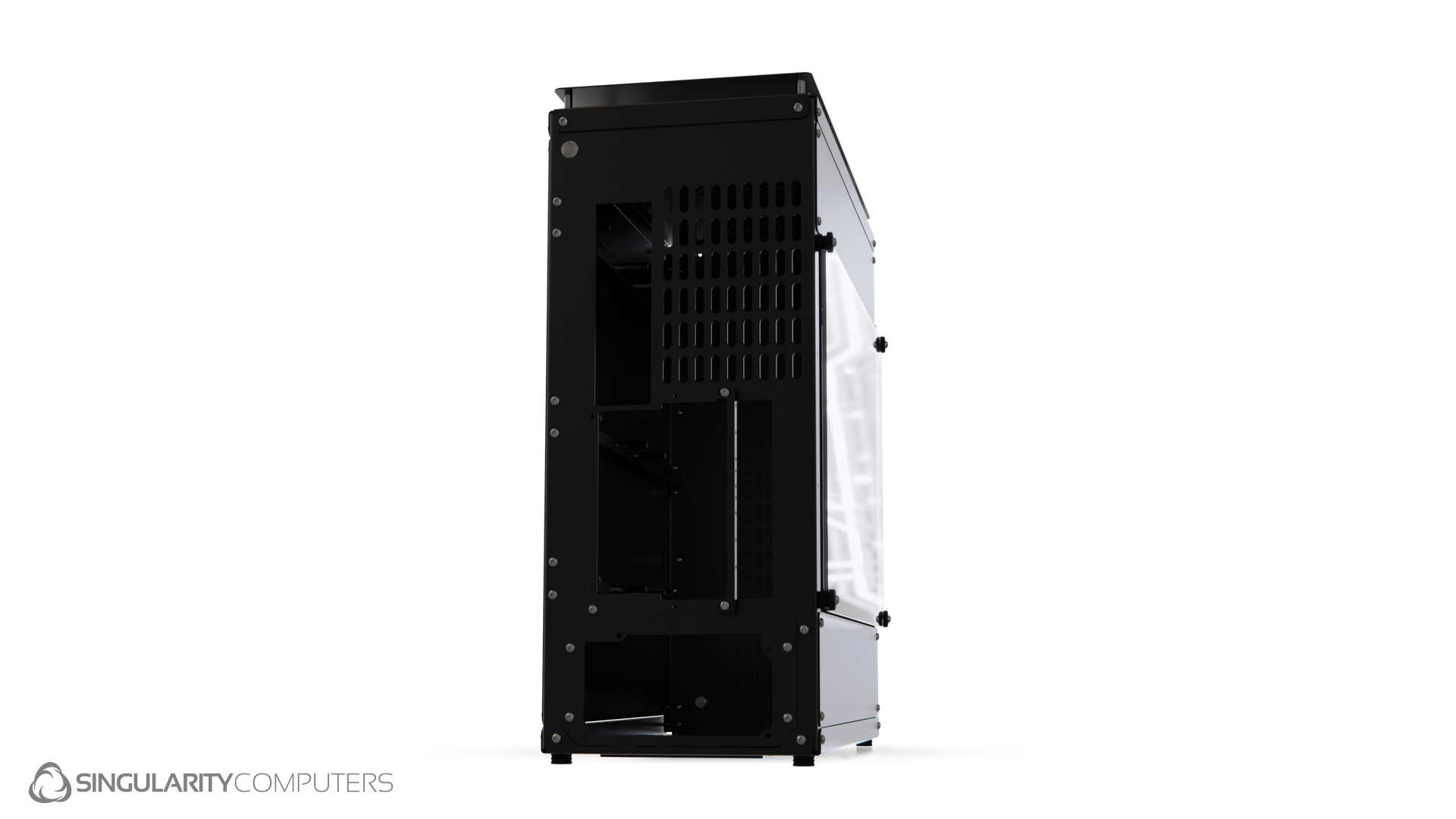

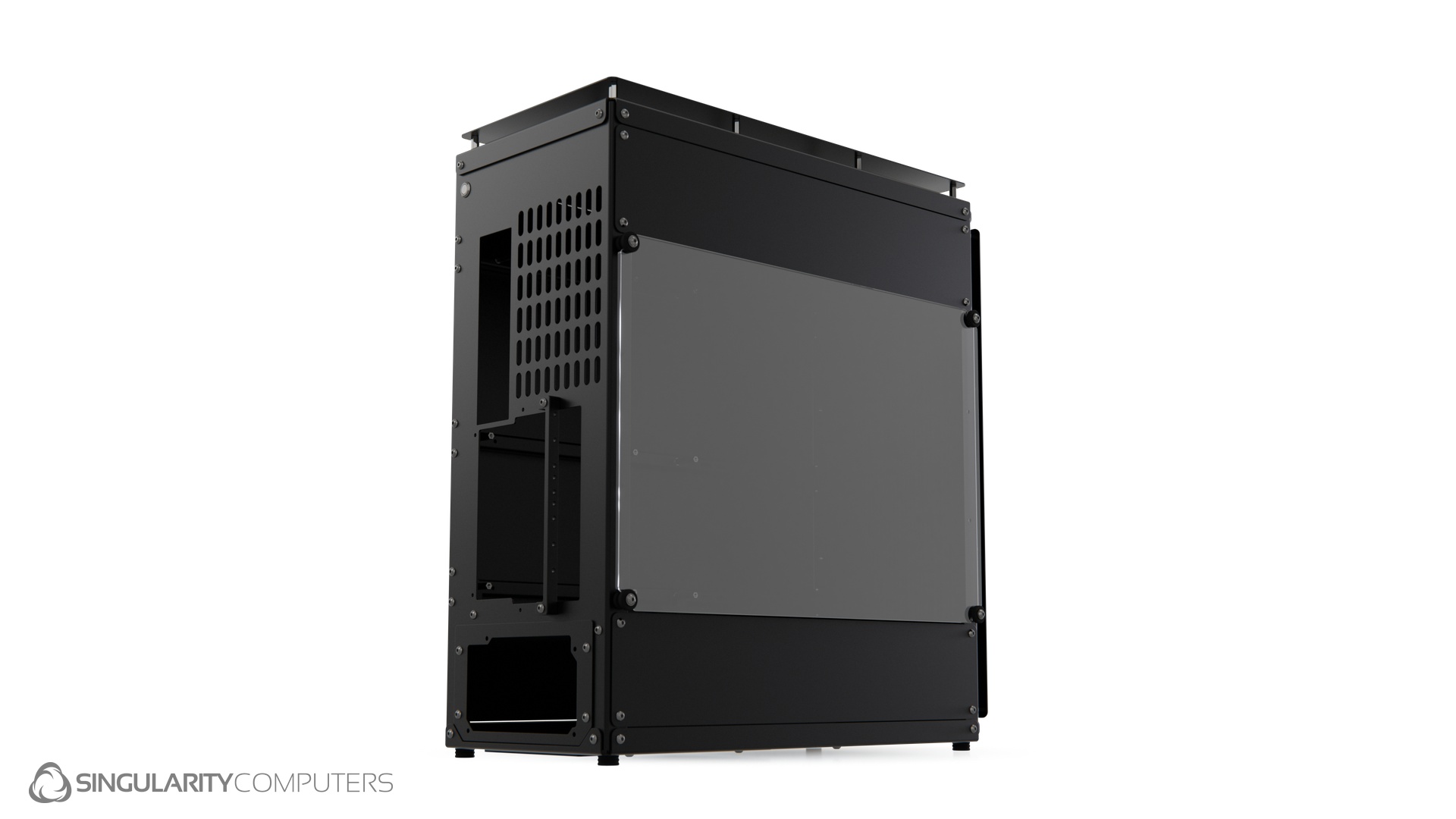

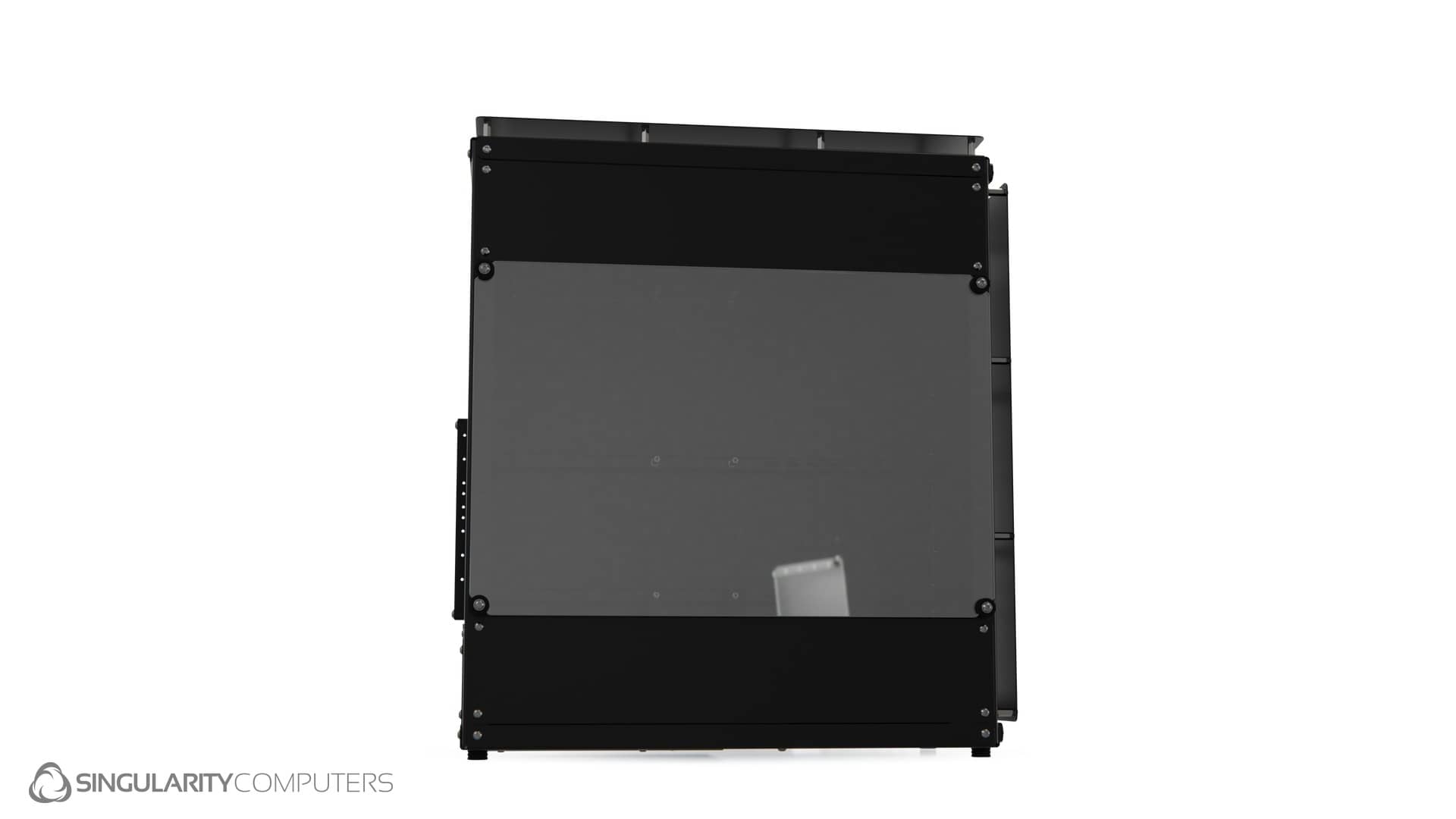

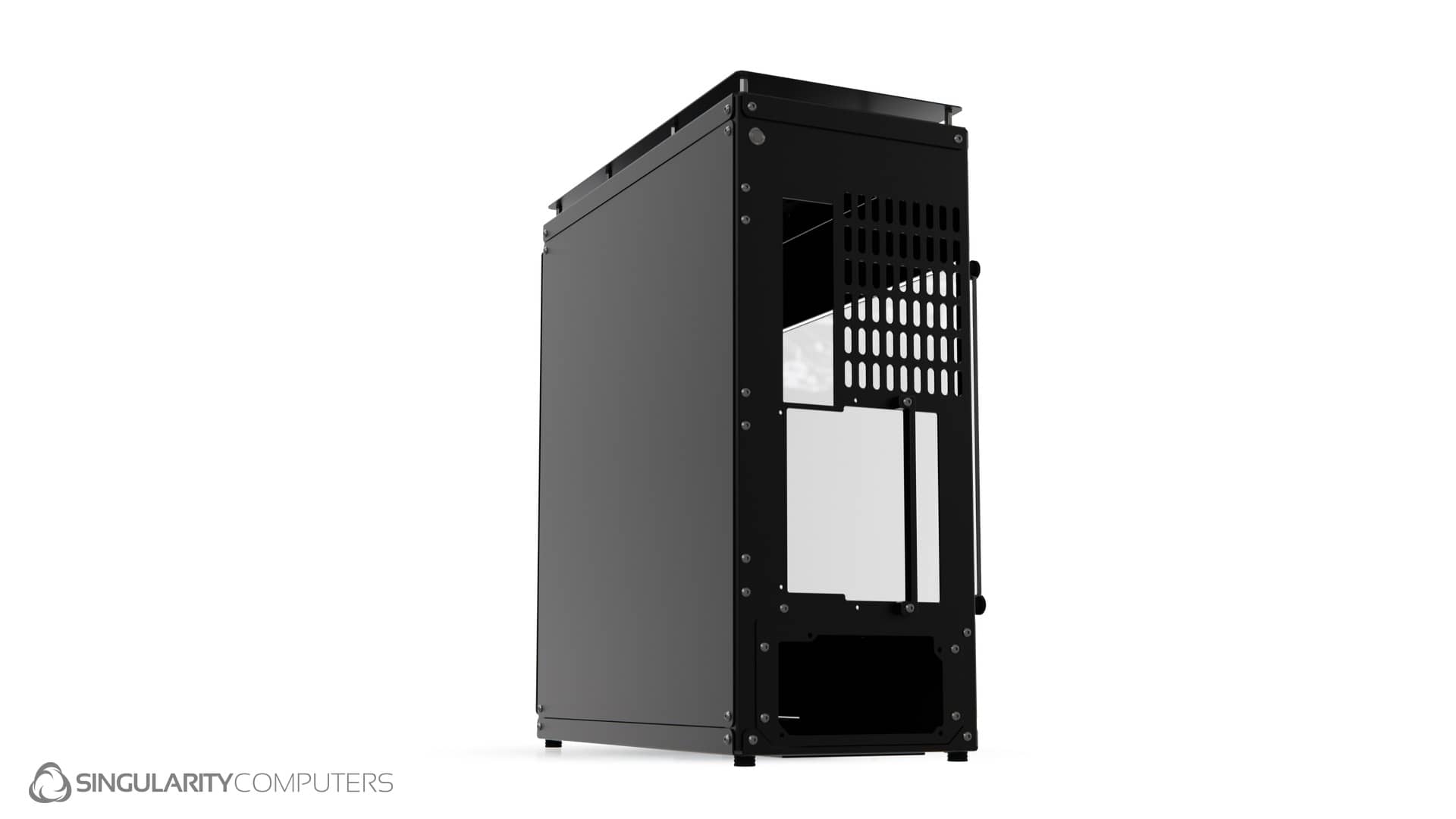

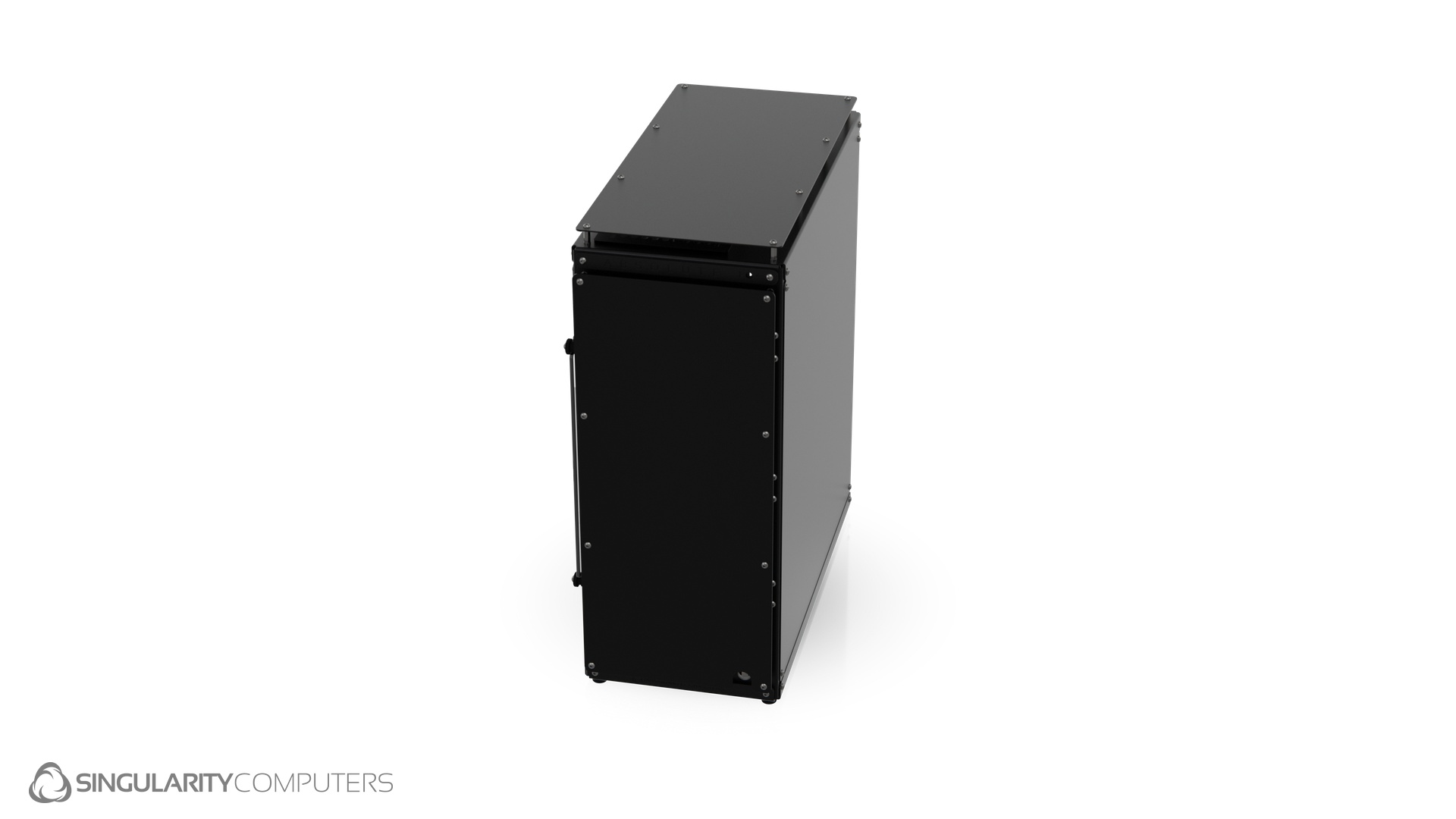

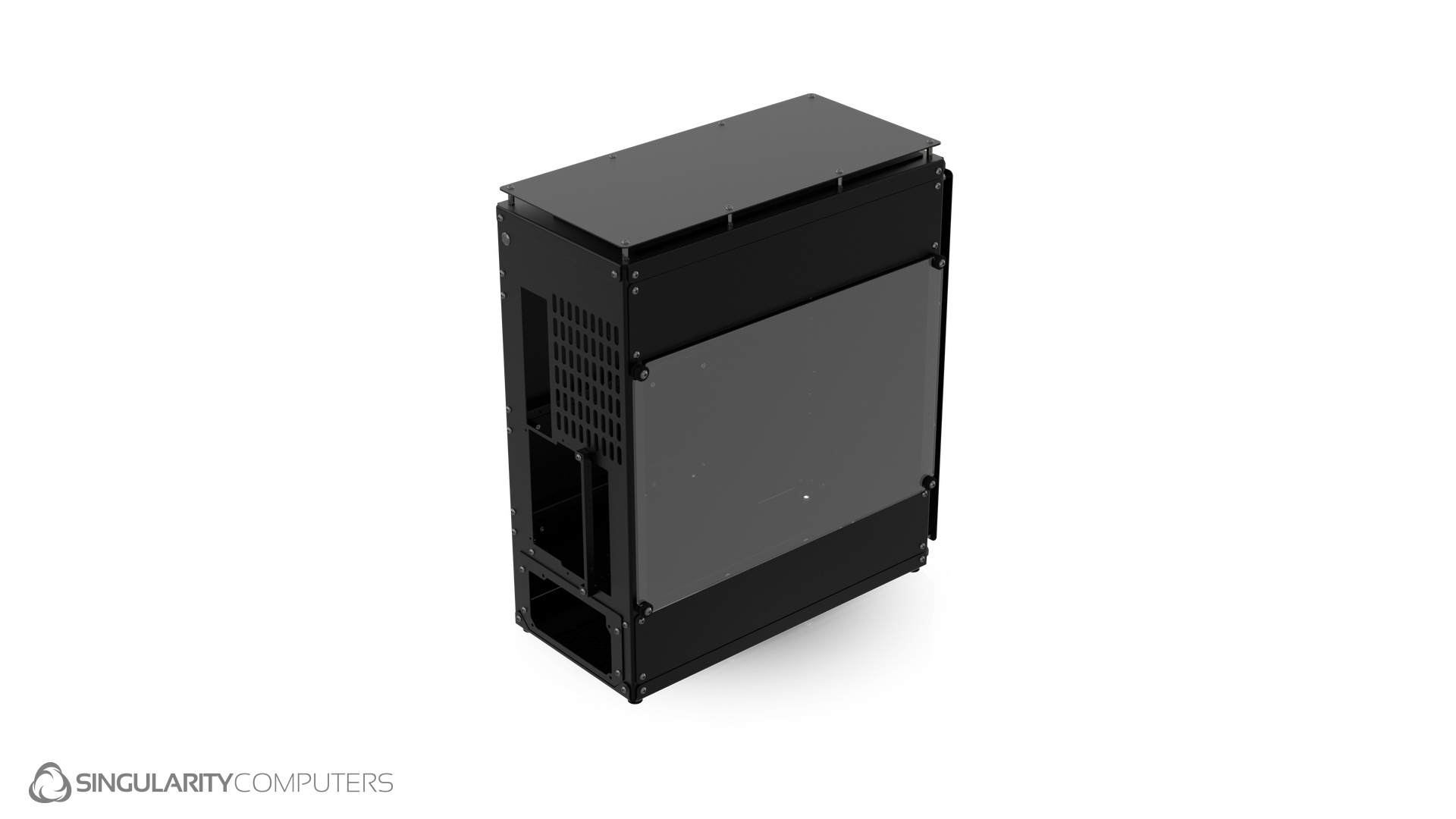

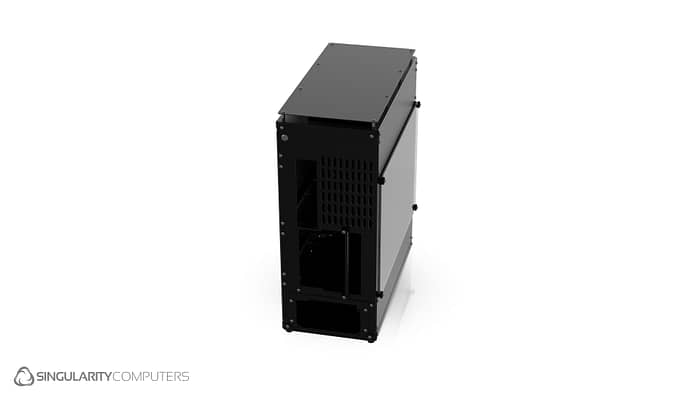

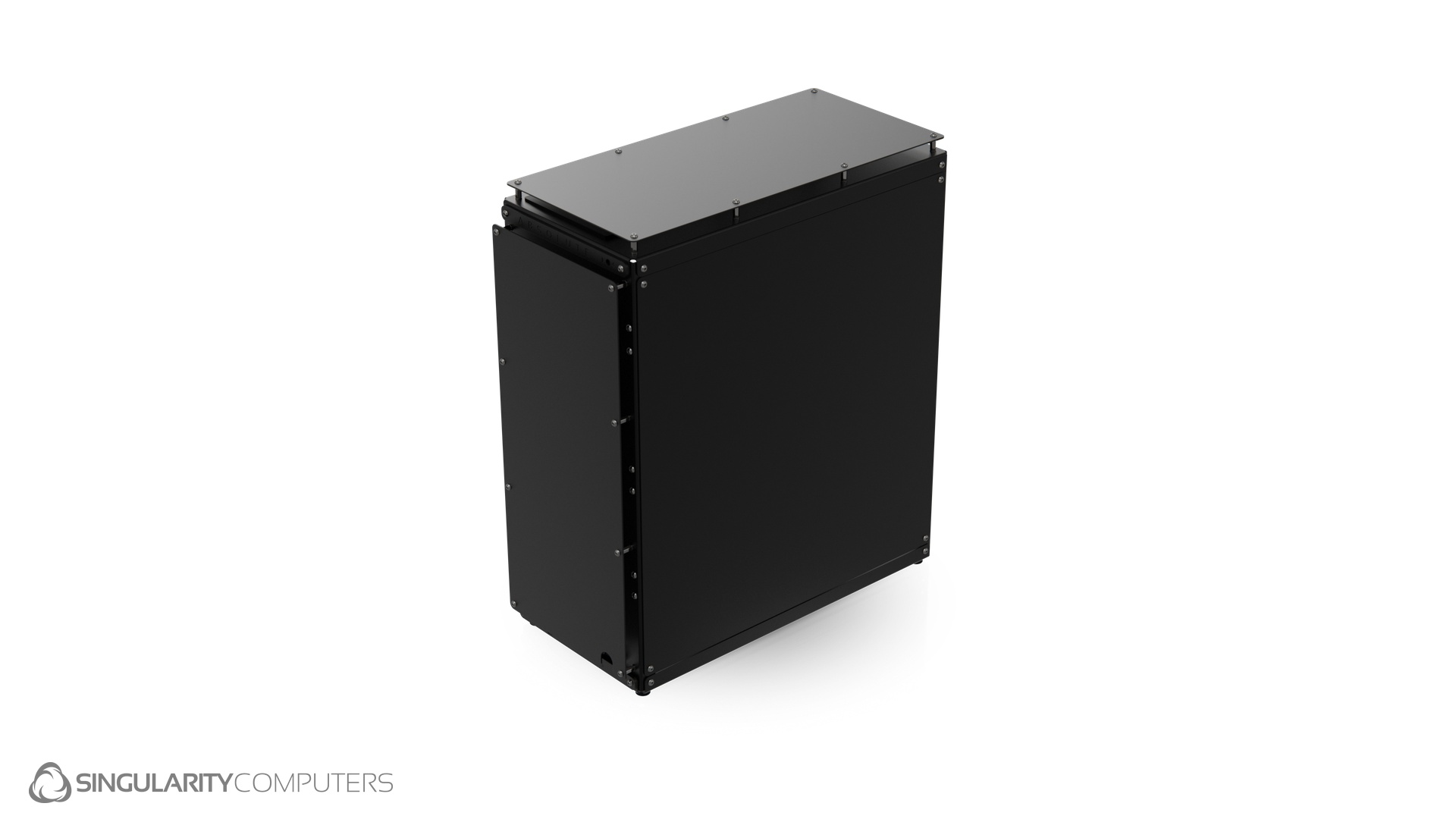

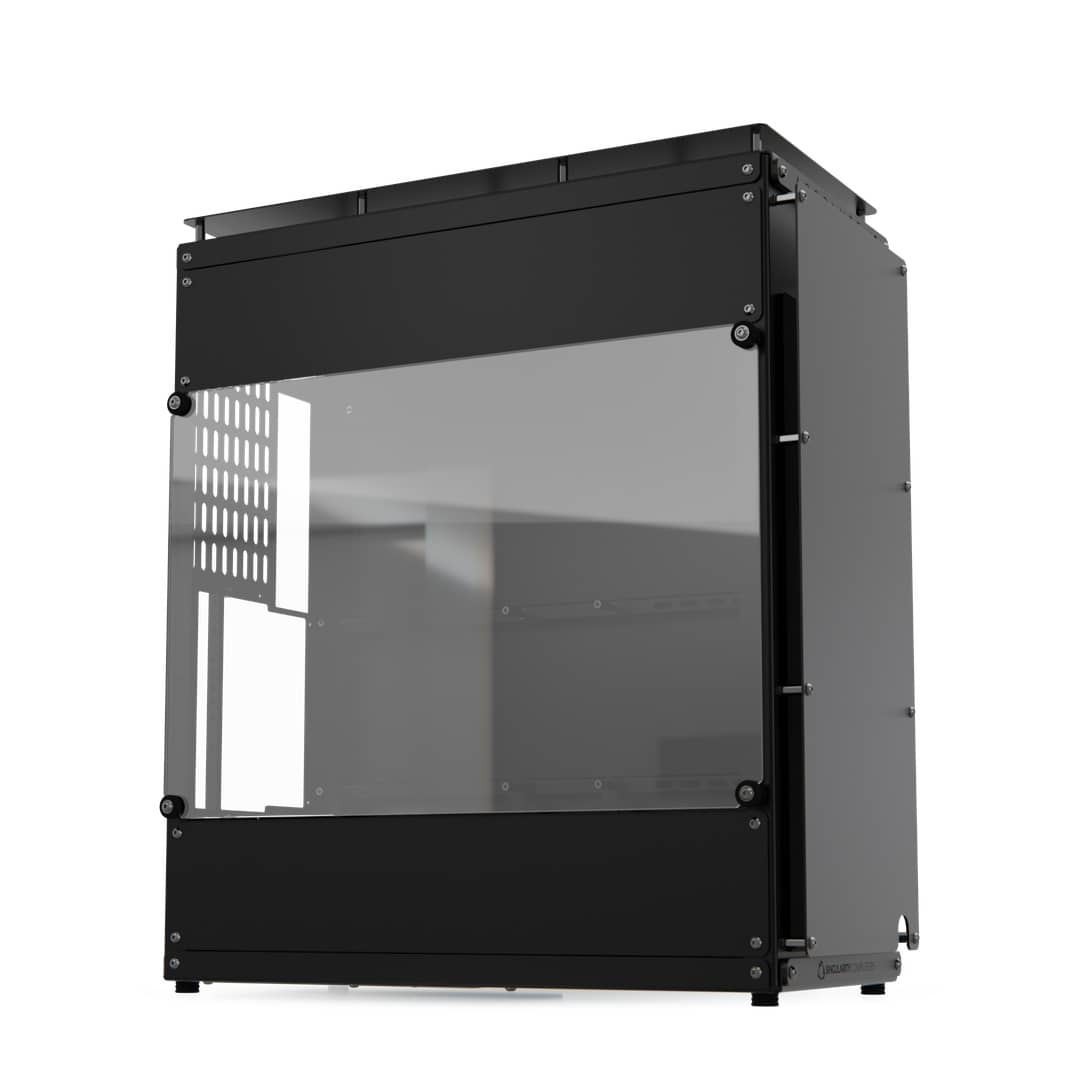

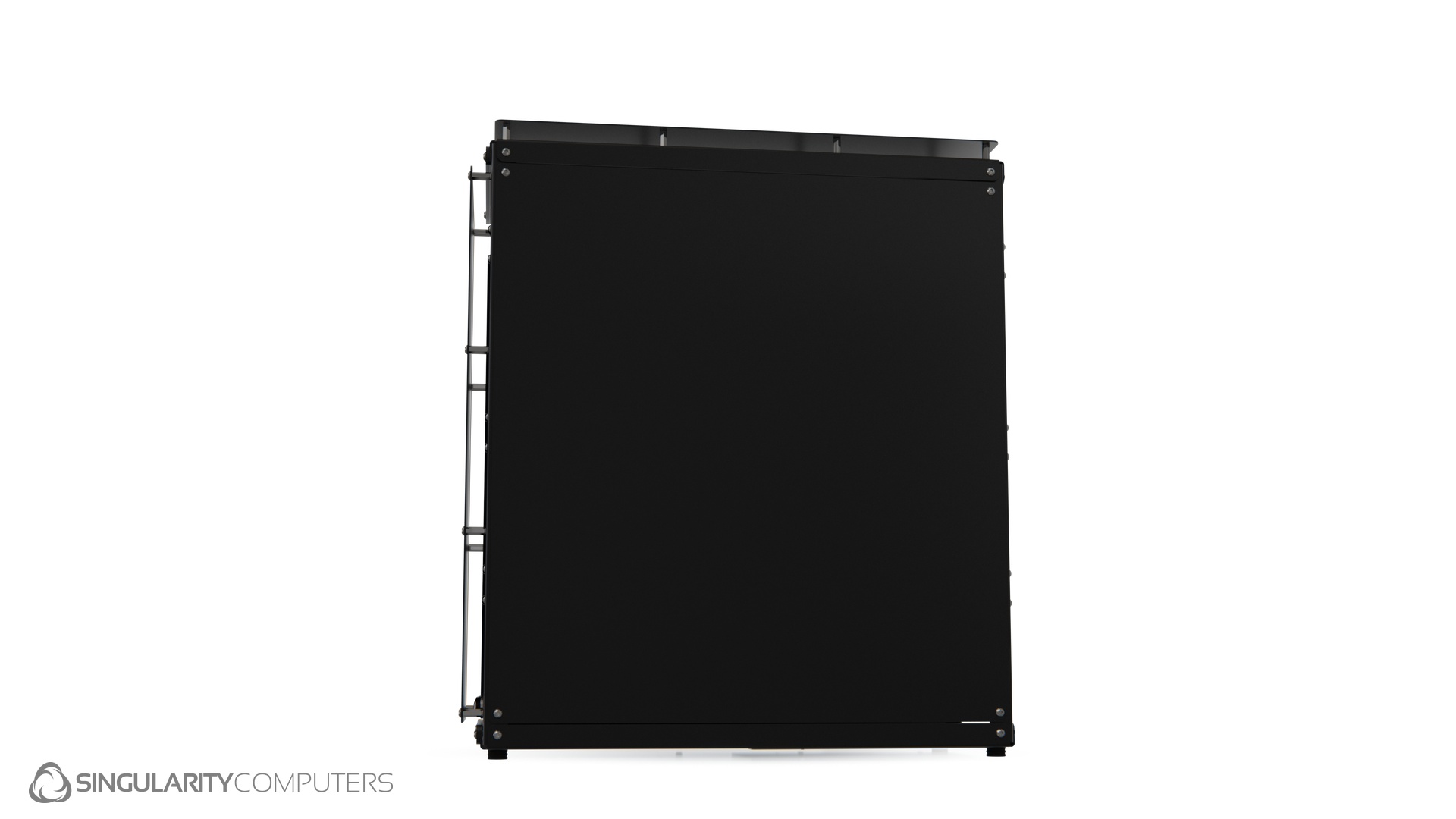

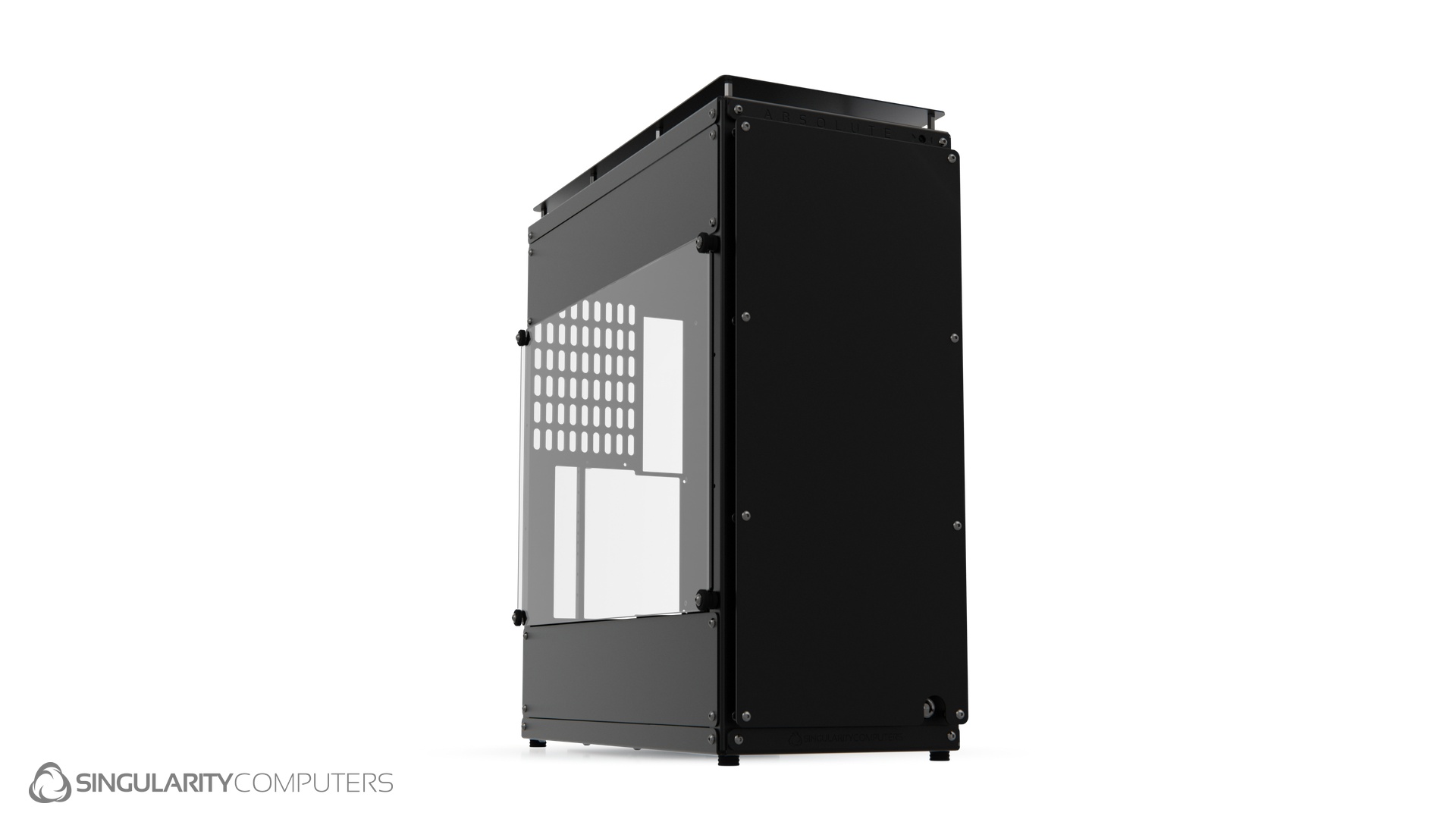

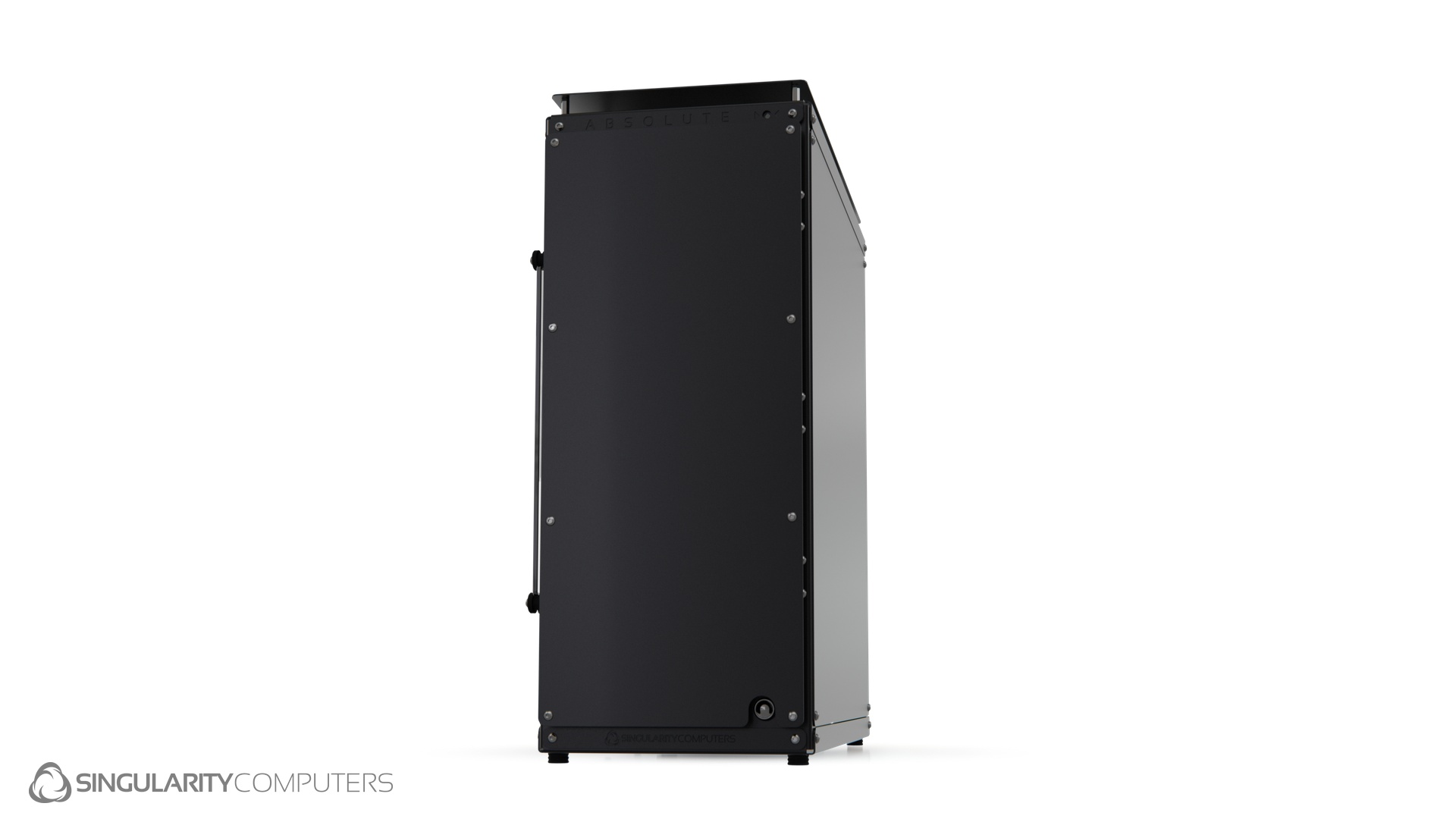

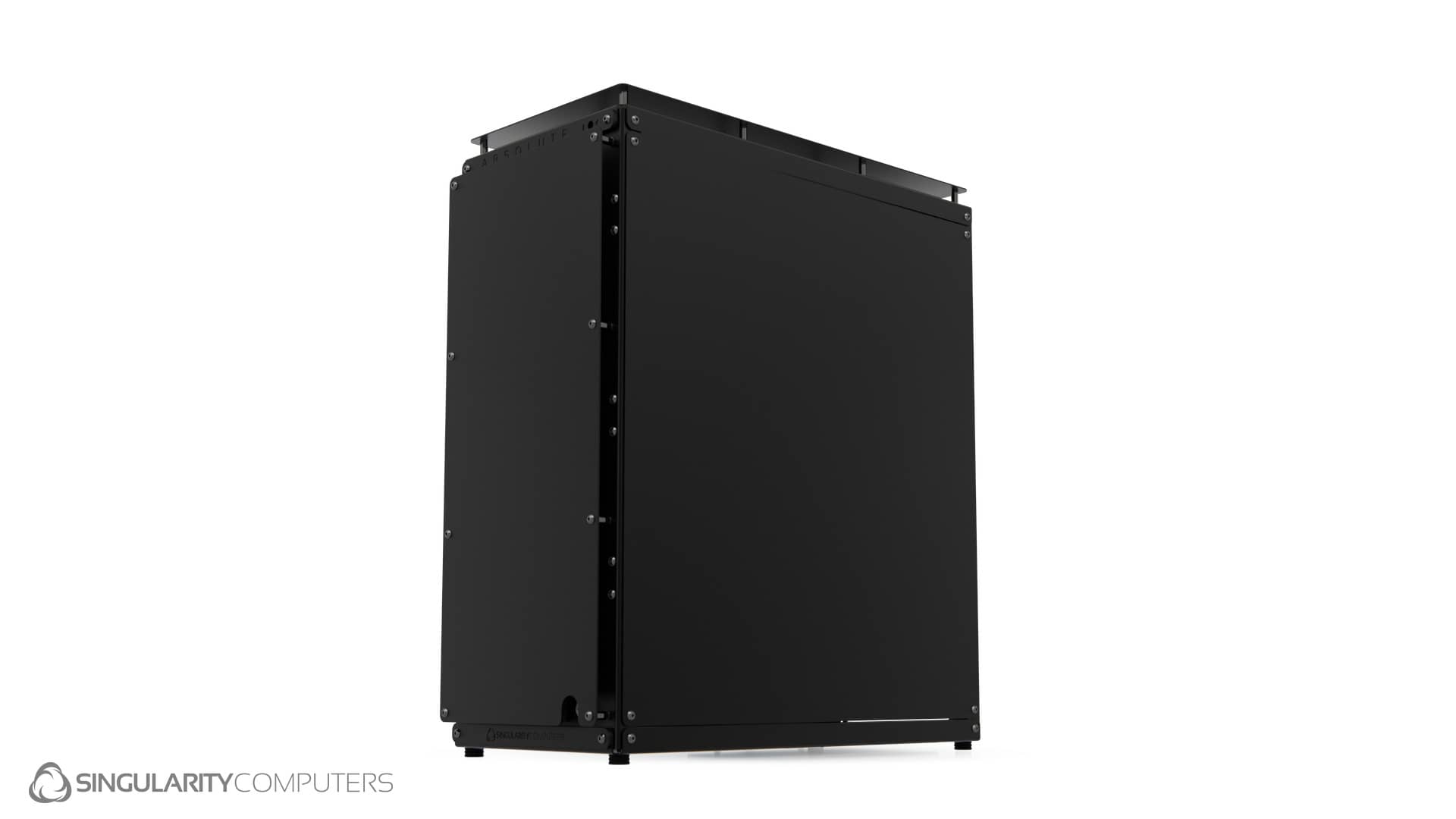

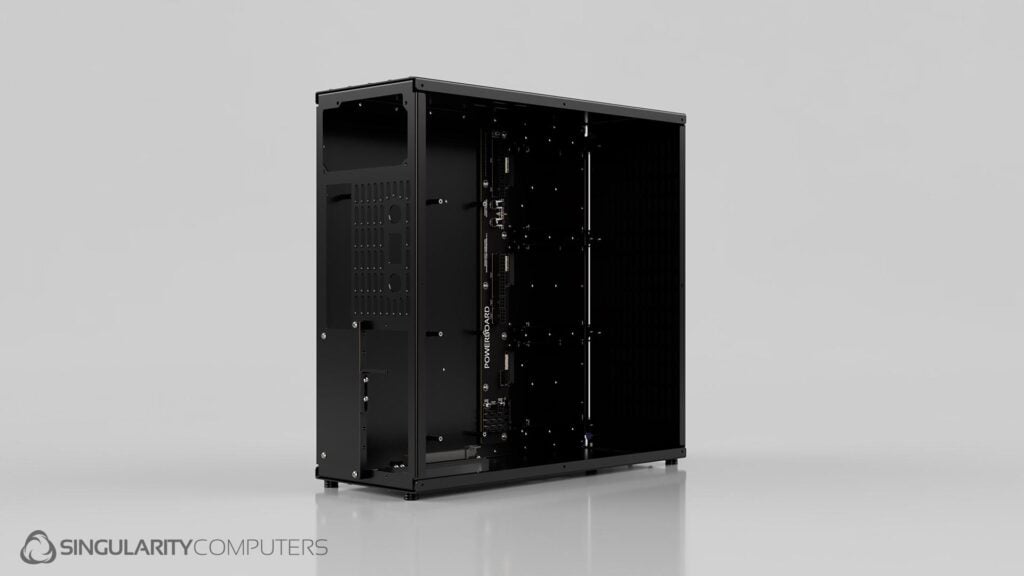

Absolute Case

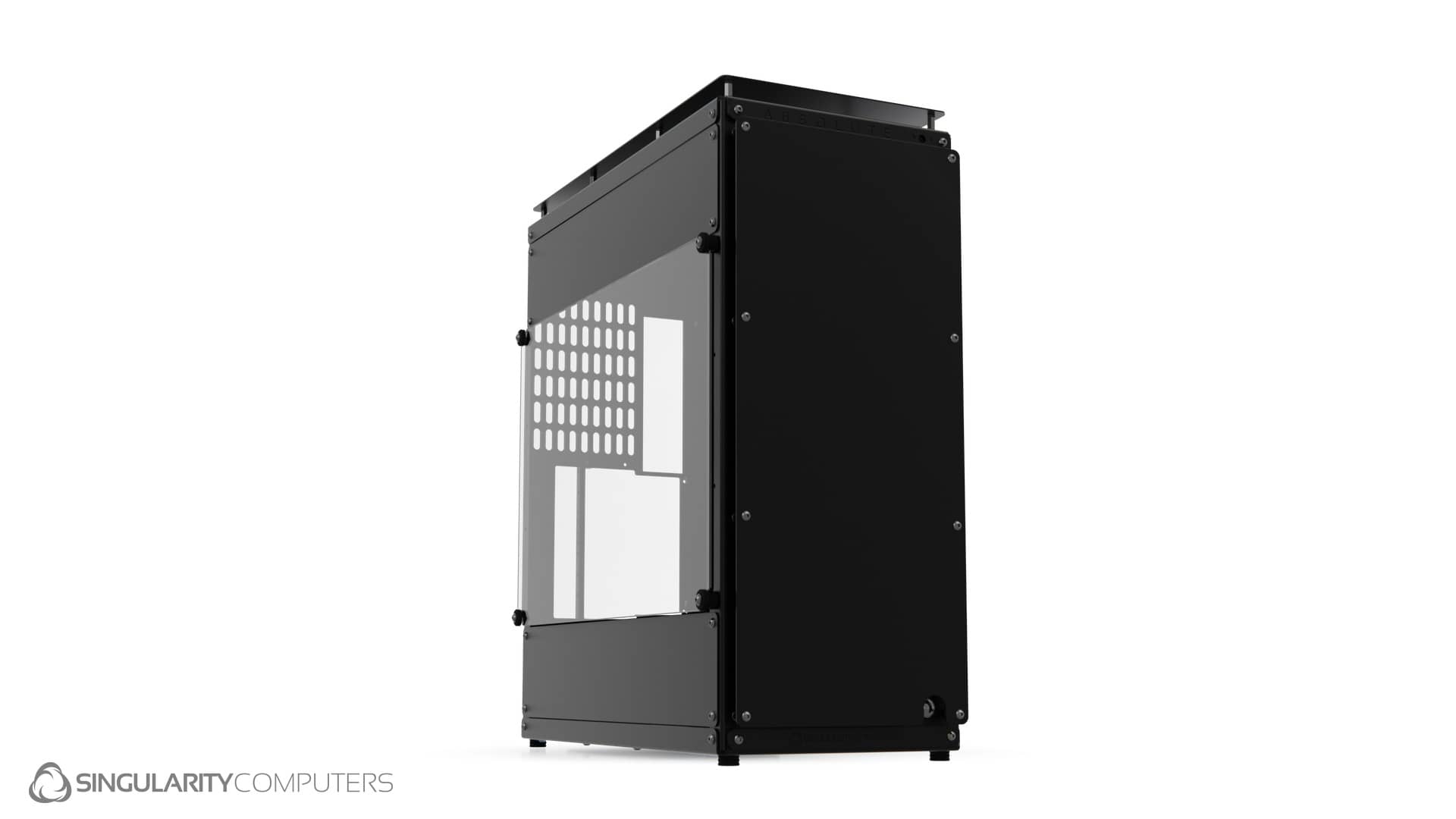

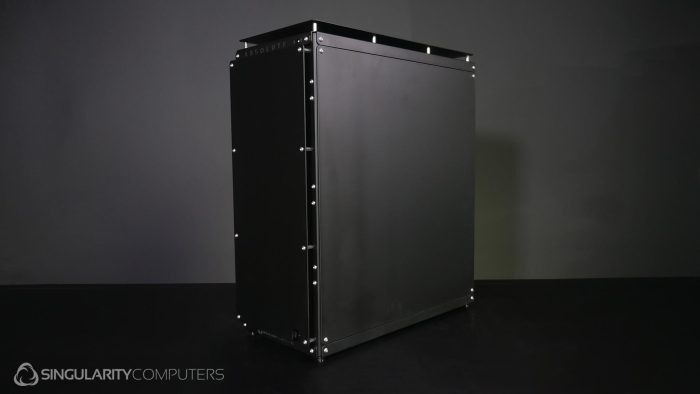

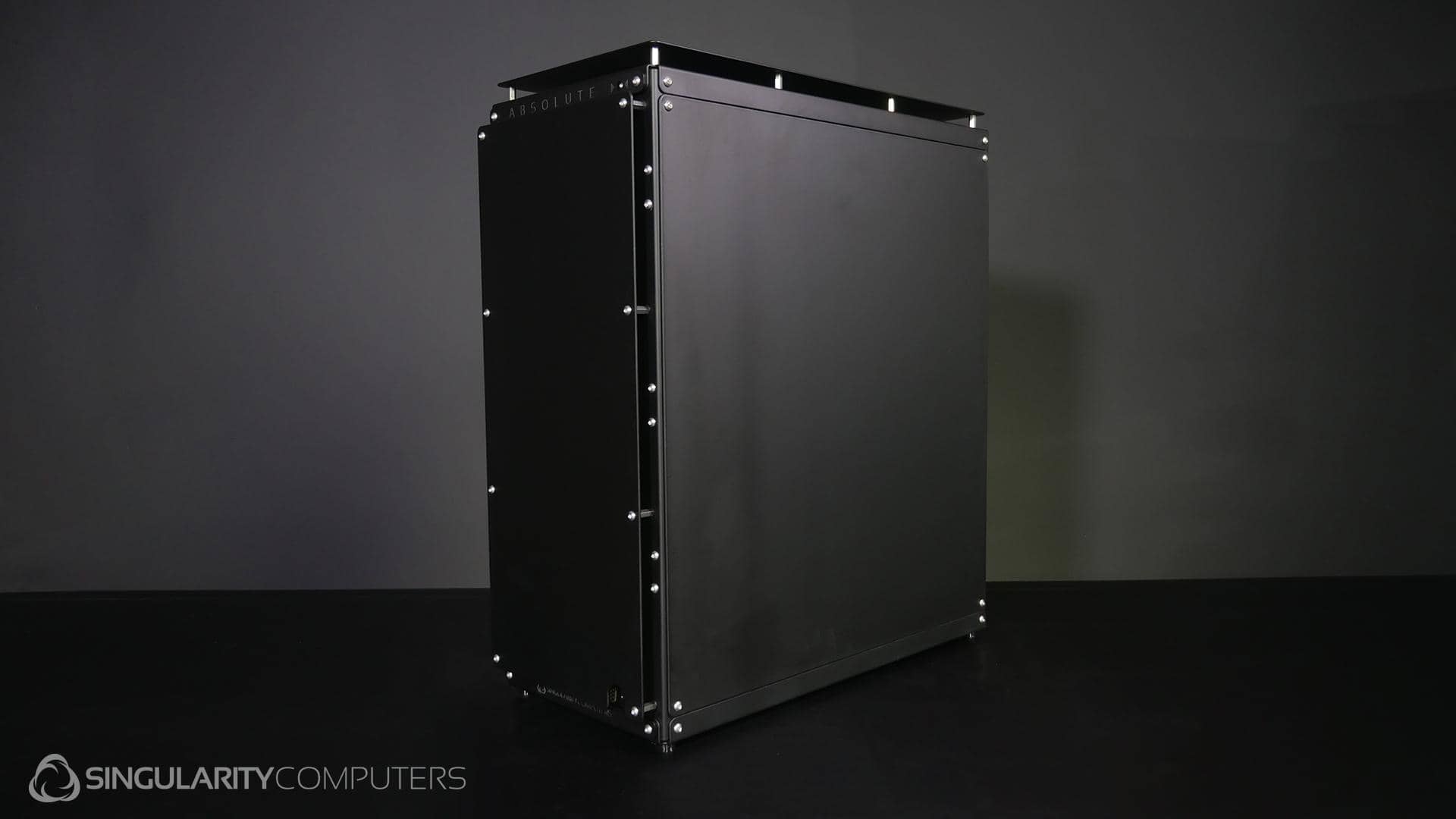

Absolute is designed for water-cooling and modding enthusiasts. It fits 2x 360mm radiators up to 45mm thick and has been properly designed for water-cooling with ample space for tube runs, radiator and fan clearances etc. It is an extremely versatile case which is easy to modify. There are no rivets so it can be broken down to the individual pieces and easily re assembled afterwards. The outer panels can be replaced with other materials or modified. The construction is solid and reliable with 3 thick rails for the motherboard tray and a PSU shroud. There are many add-ons available for Absolute.

See Add-on images below.

Build Gallery

Original price was: US$249.00.Current price is: US$174.30.

D5 Reservoir Combo.

None Yes +US$229.00

The distribution plate will remain transparent, this colour is only for the case and distribution plate cover panels.

Satin Black Gloss Black Gloss White Carbon Mirror Silver Mirror Gold Mirror Satin Black

Secret touch activated power button.

None Yes +US$29.00

Tempered glass window instead of the stock acrylic window.

None Yes +US$29.00

Ventilated panels for the side, top and front.

None Yes +US$29.00

PCIE 5.0 Riser Cable & Vertical GPU Mount.

None Yes +US$79.00

Mount an extra 3x 360mm radiators to the back panel.

None Yes +US$79.00

Singularity Computers patented PowerBoard integration. See details in the specifications below.

None Yes +US$149.00

Custom black sleeved cables which connect from the PowerBoard to the GPU.

None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00
EAN: 9351182004999 SKU: SC-AB-C Categories: ,

Manual

Gallery

Specifications:
Absolute Case: 1.5mm Black Powder Coated Steel.
Fasteners: Stainless Steel.
Motherboard: ITX, DTX, ATX, EATX (up to 285mm wide).
PSU: ATX (up to 220mm long).
Expansion slots: x7.
Radiators: 360mm up to 45mm thick x2.
Fans: 120mm x6.
Drive mounts: 3.5” x1. 2.5” x5.
Dimensions: L: 470mm x W: 230mm x H: 530mm.
Weight: 12kg.
Packaged Dimensions: L: 730mm x W: 120mm x H: 530mm.
Packaged Weight: 14kg.

Installation:
See manual link above.

Addon Information

D5 Reservoir Distribution Plate



Touch Power Button                                                                                                                                                                                 Tempered Glass Window

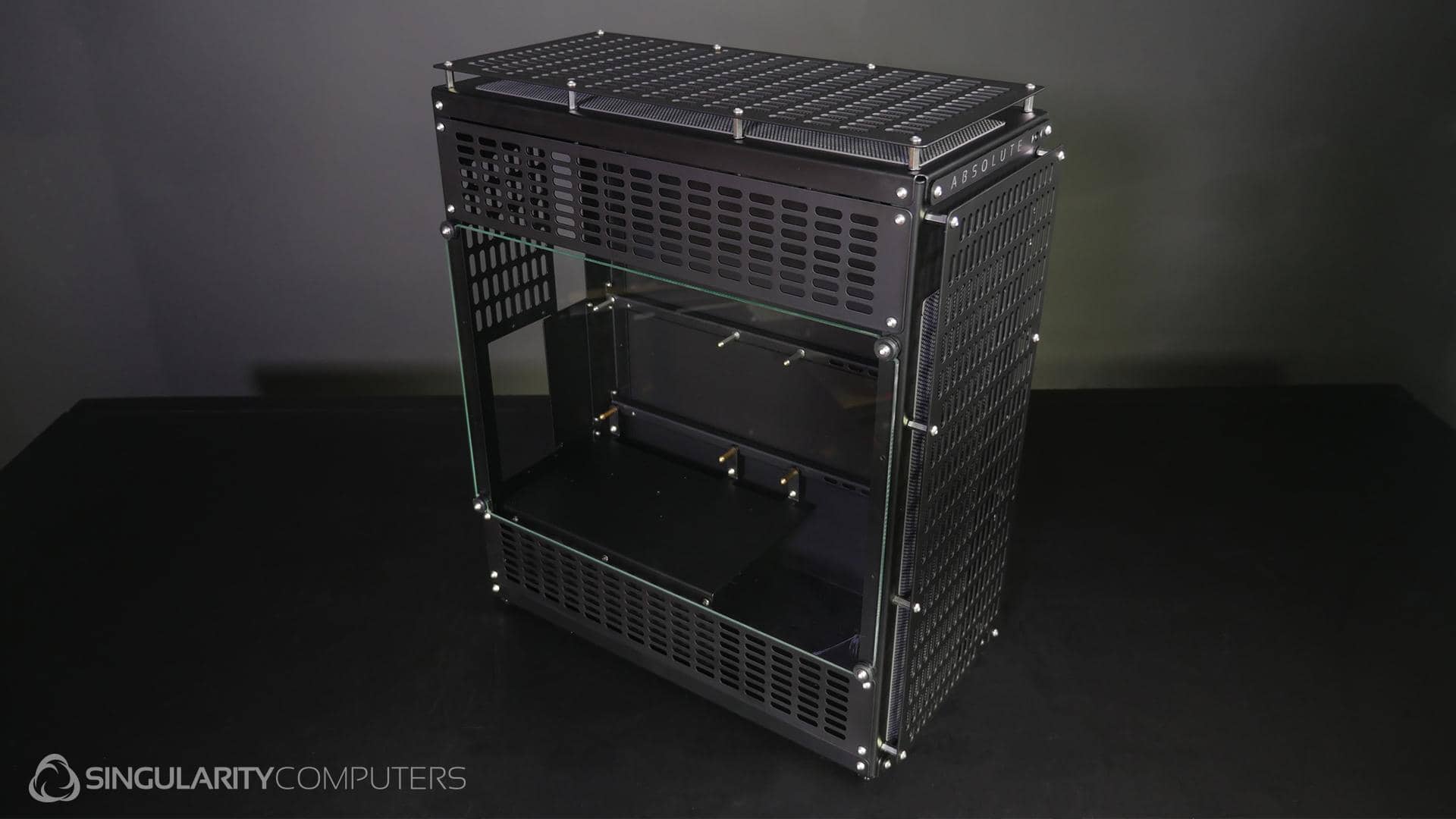

Ventilated Panels



Vertical GPU Mount



Rear 3x360mm Radiator Mount                                                                                                                                                        PowerBoard

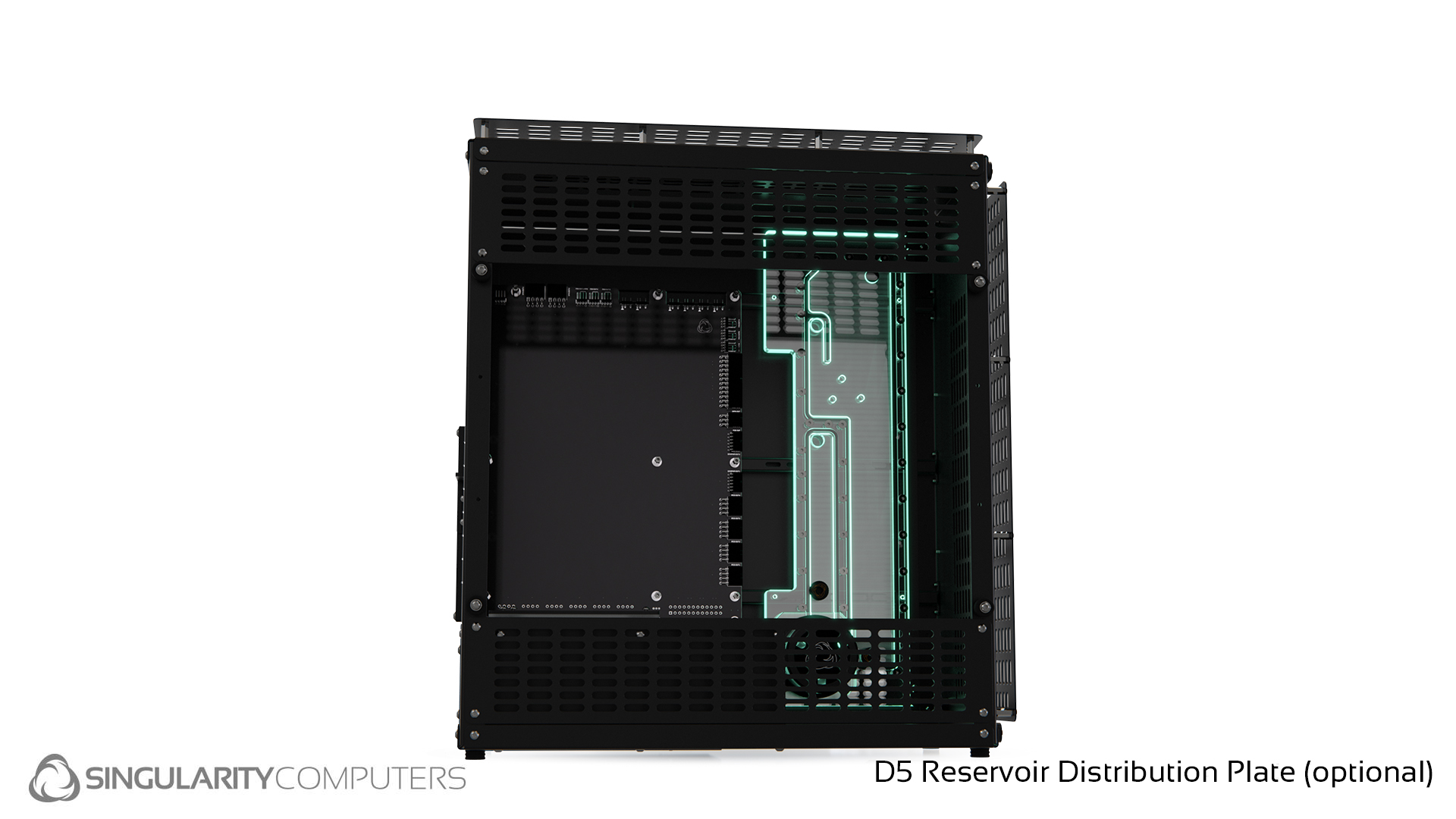

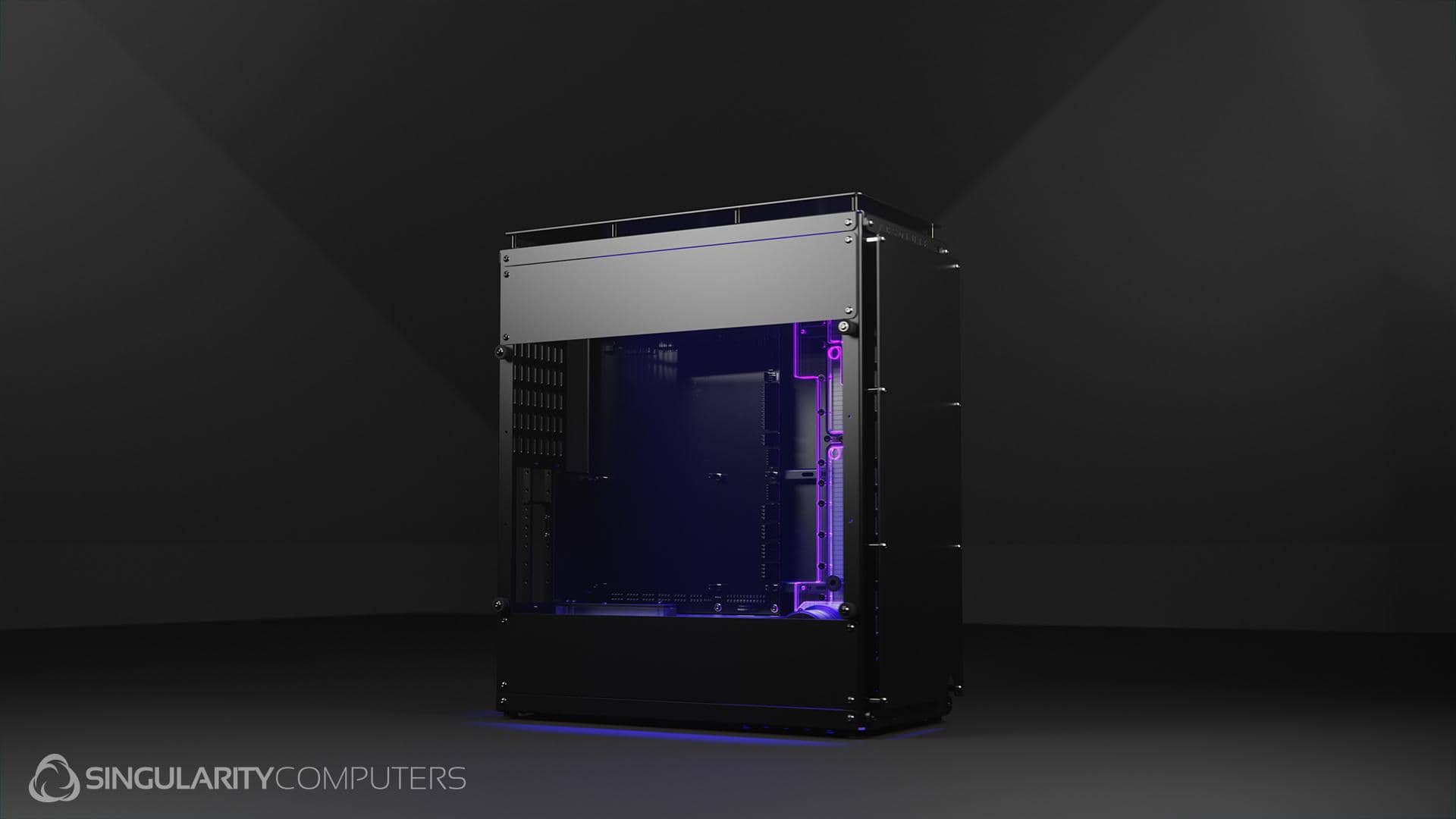

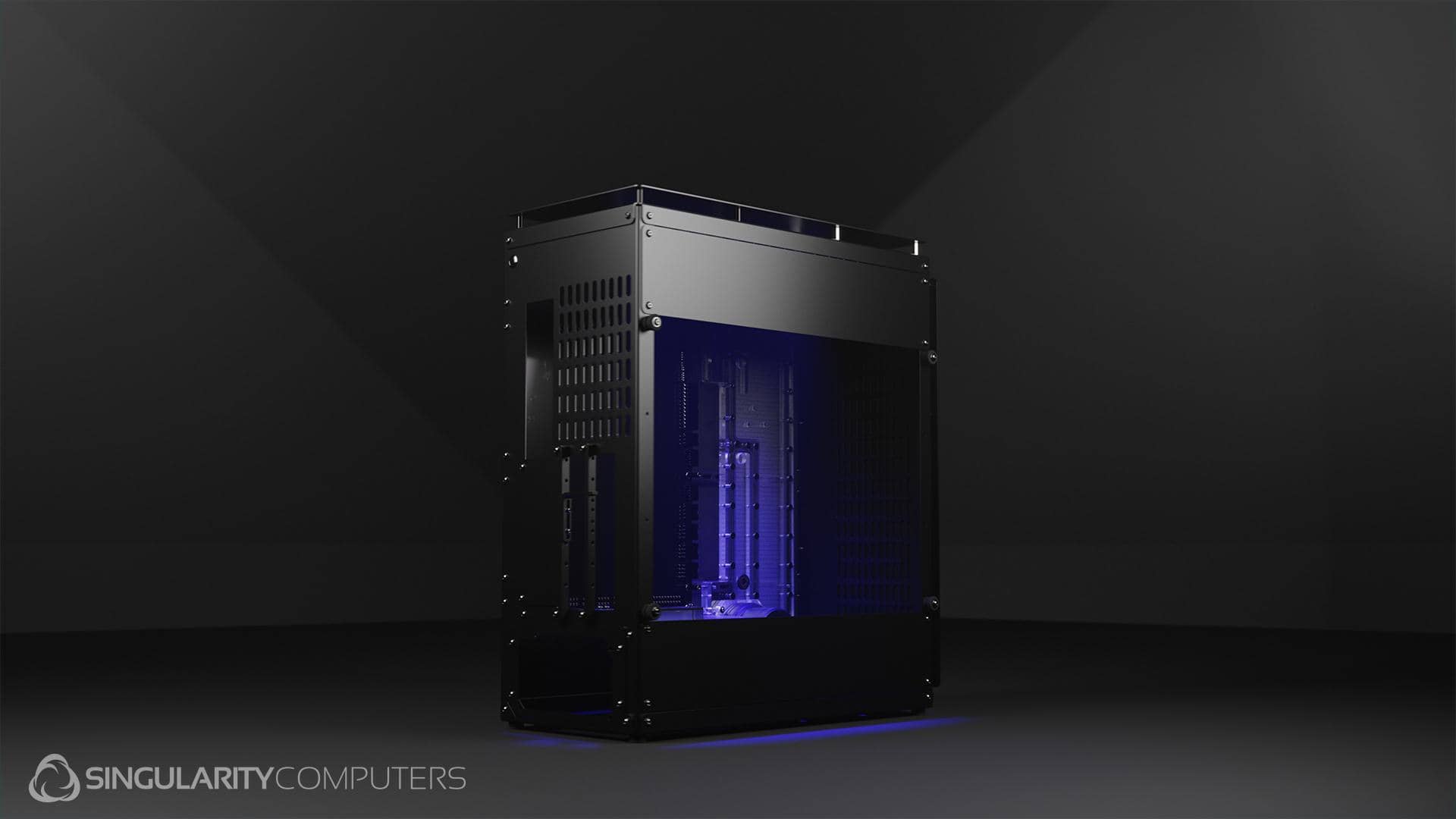

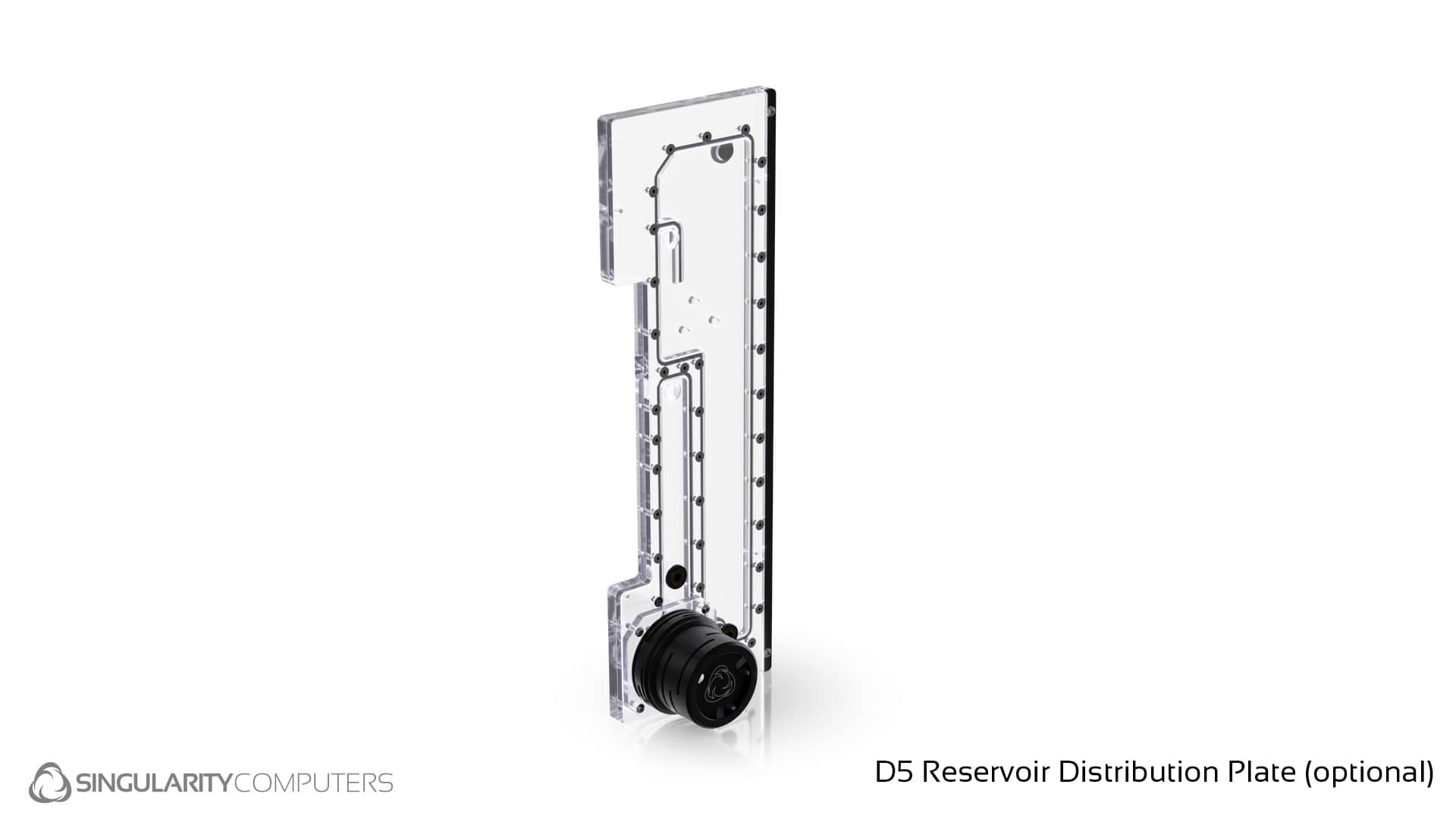

D5 Reservoir Distribution Plate: The Absolute Case D5 Reservoir Distribution Plate adds a D5 and Reservoir Combination to Absolute. A Distribution Plate is the most compact way to add a pump and reservoir to a build. It also improves the loop routes and is a major visual feature. This distribution plate has an integrated reservoir, D5 pump top and D5 cover. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.  It has an integrated ARGB LED strip with a cover, select from the colour options below for the covers.

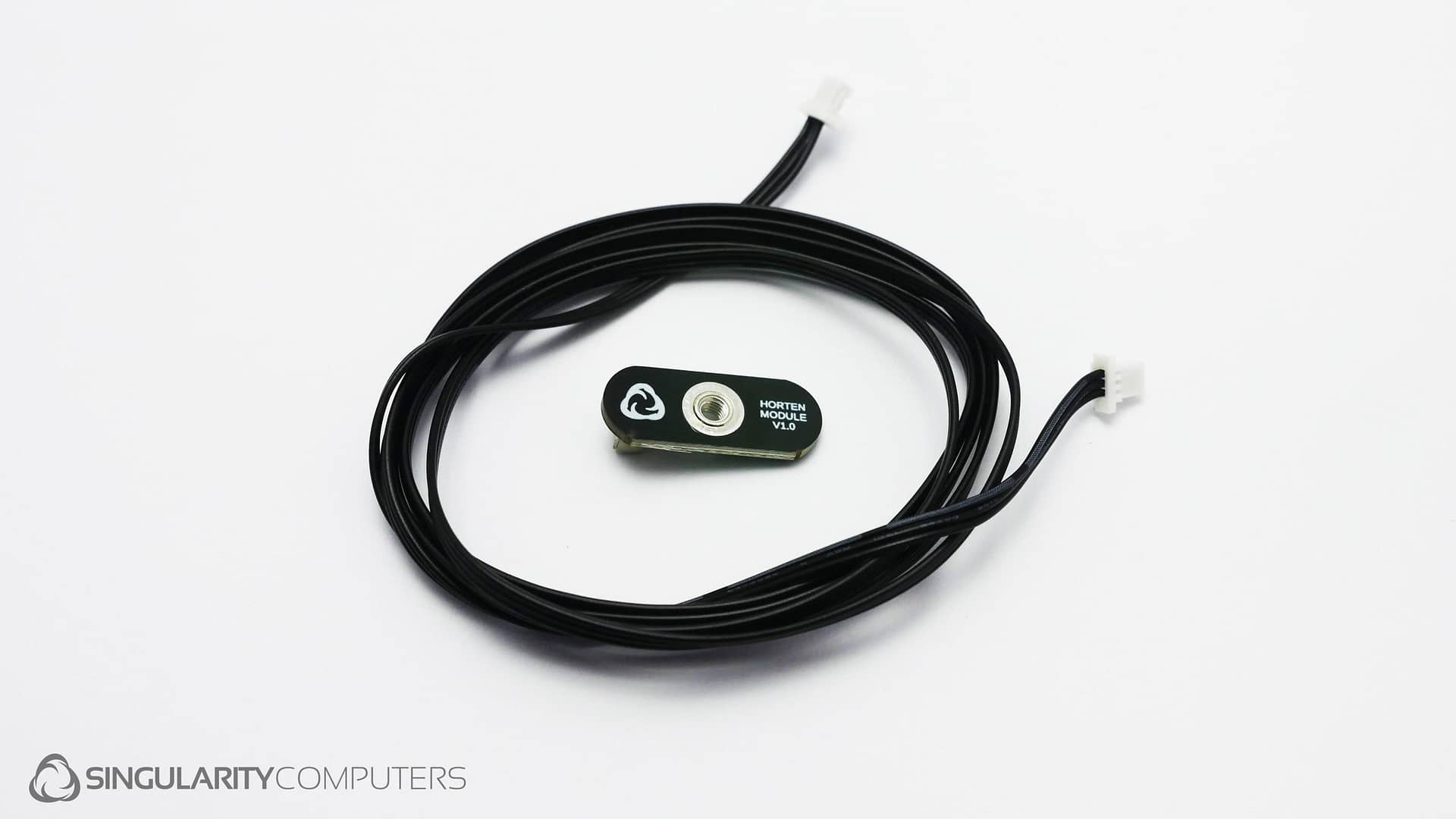

Touch Power Button: The Absolute & Impact Case Touch Power Button comes included with many of our cases. For Absolute and Absolute Impact Cases it is an addon which also needs the the PowerBoard & Impact to work. It connects to the PowerBoard via the included cable and mounts to top of the front panel. It turns one of the fasteners into a secret power button, all you have to do is touch it for 1 second and the system will turn off or on.

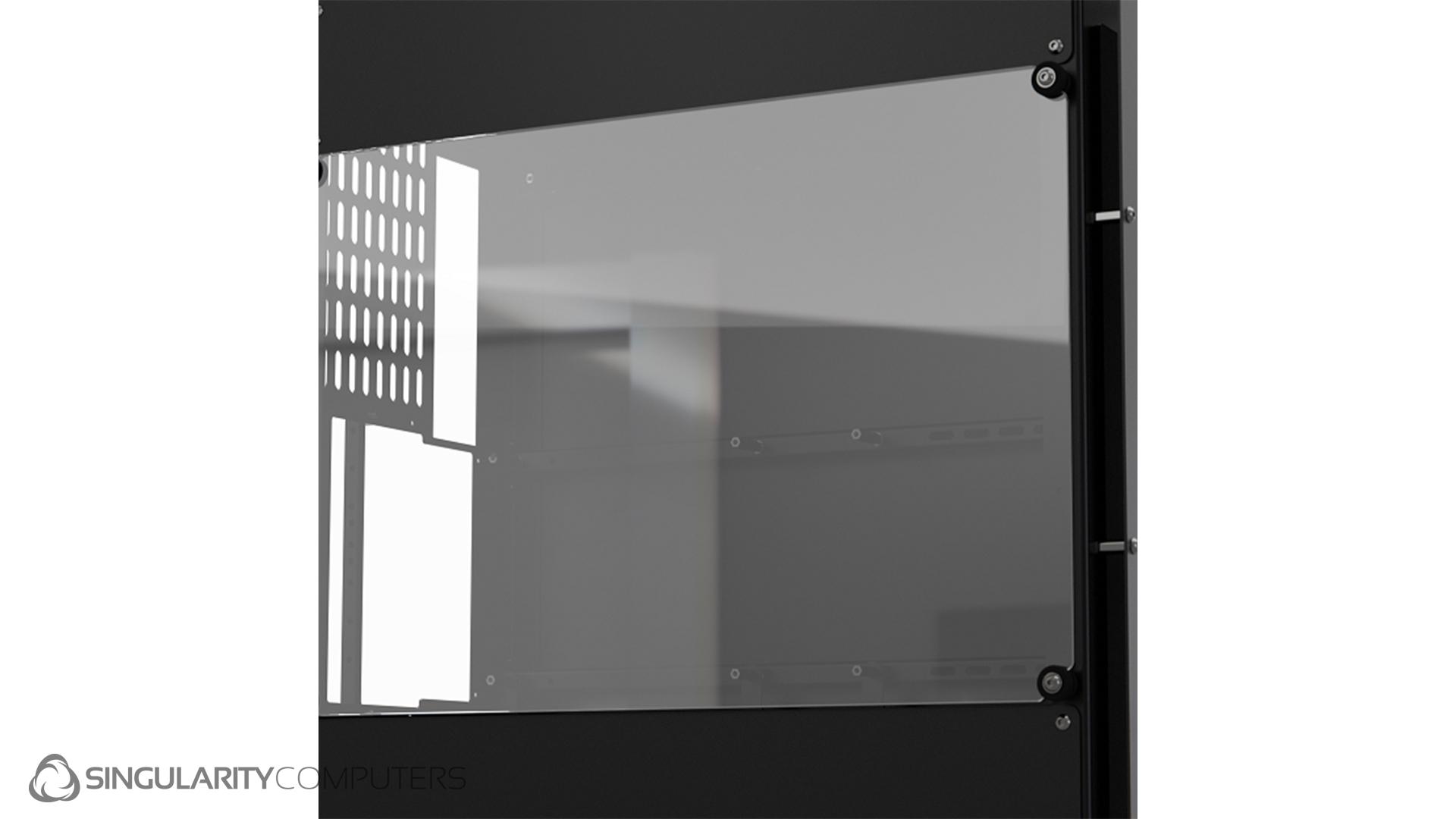

Tempered Glass Window: Tempered glass window instead of the stock acrylic window.

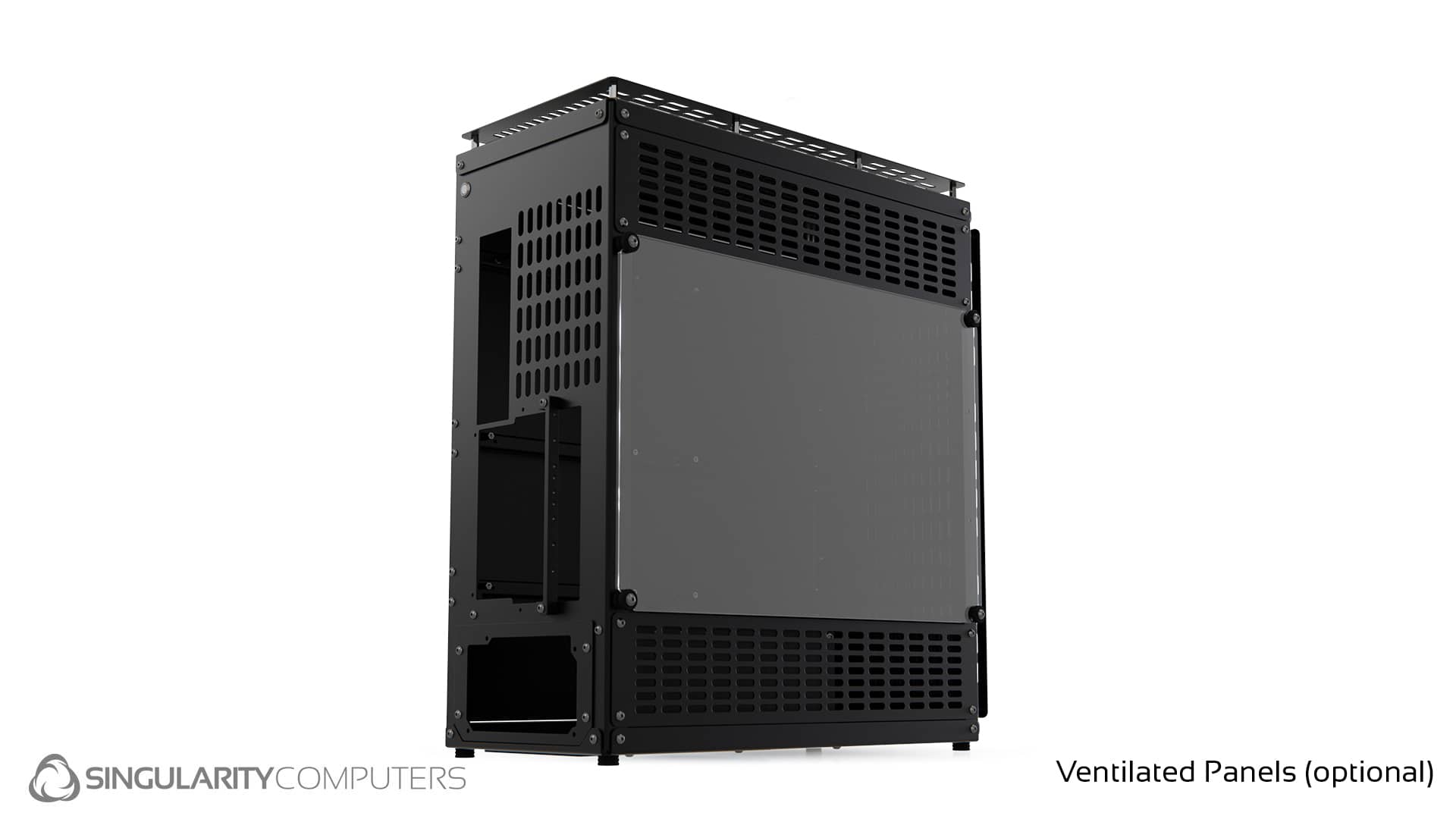

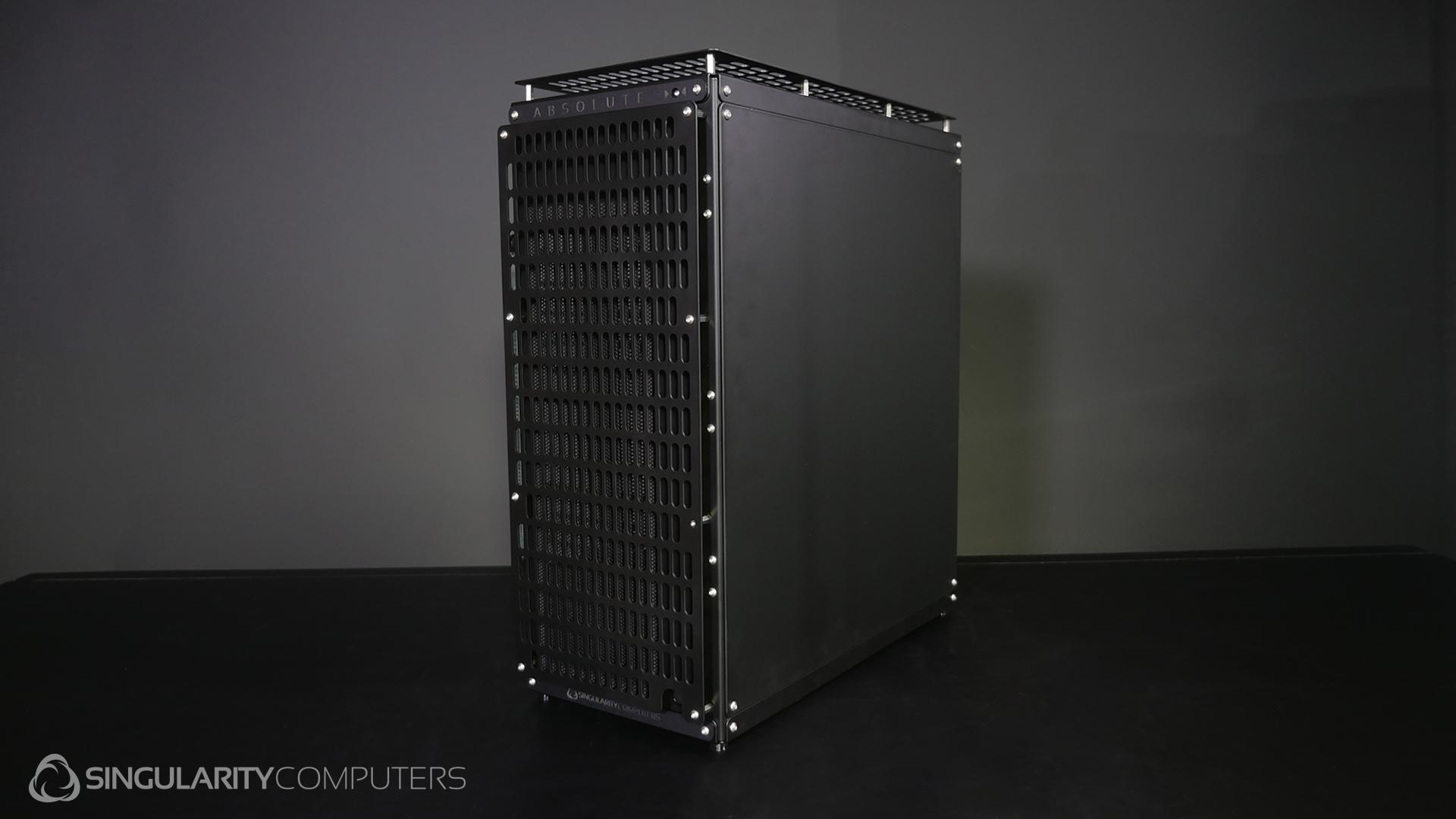

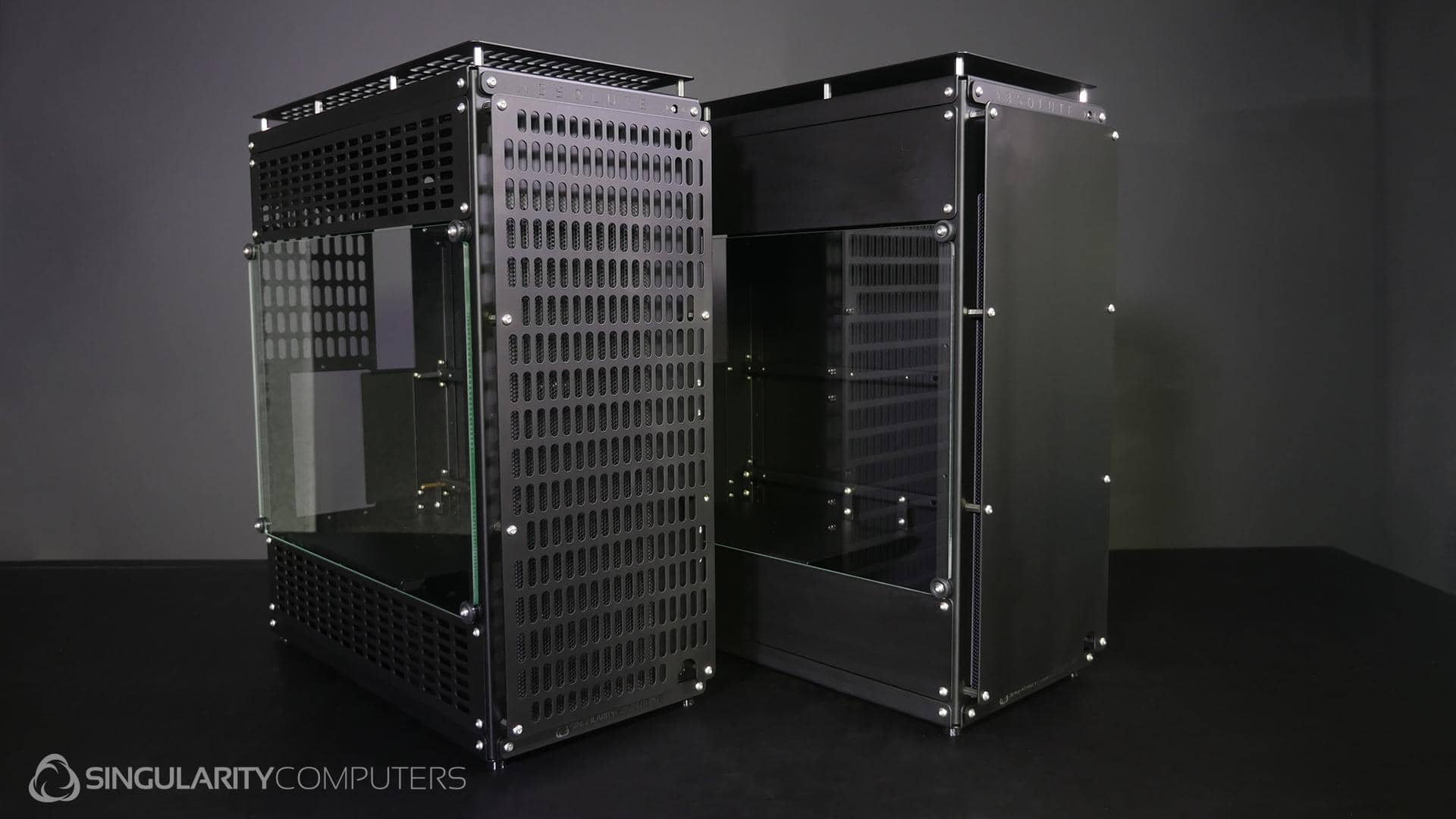

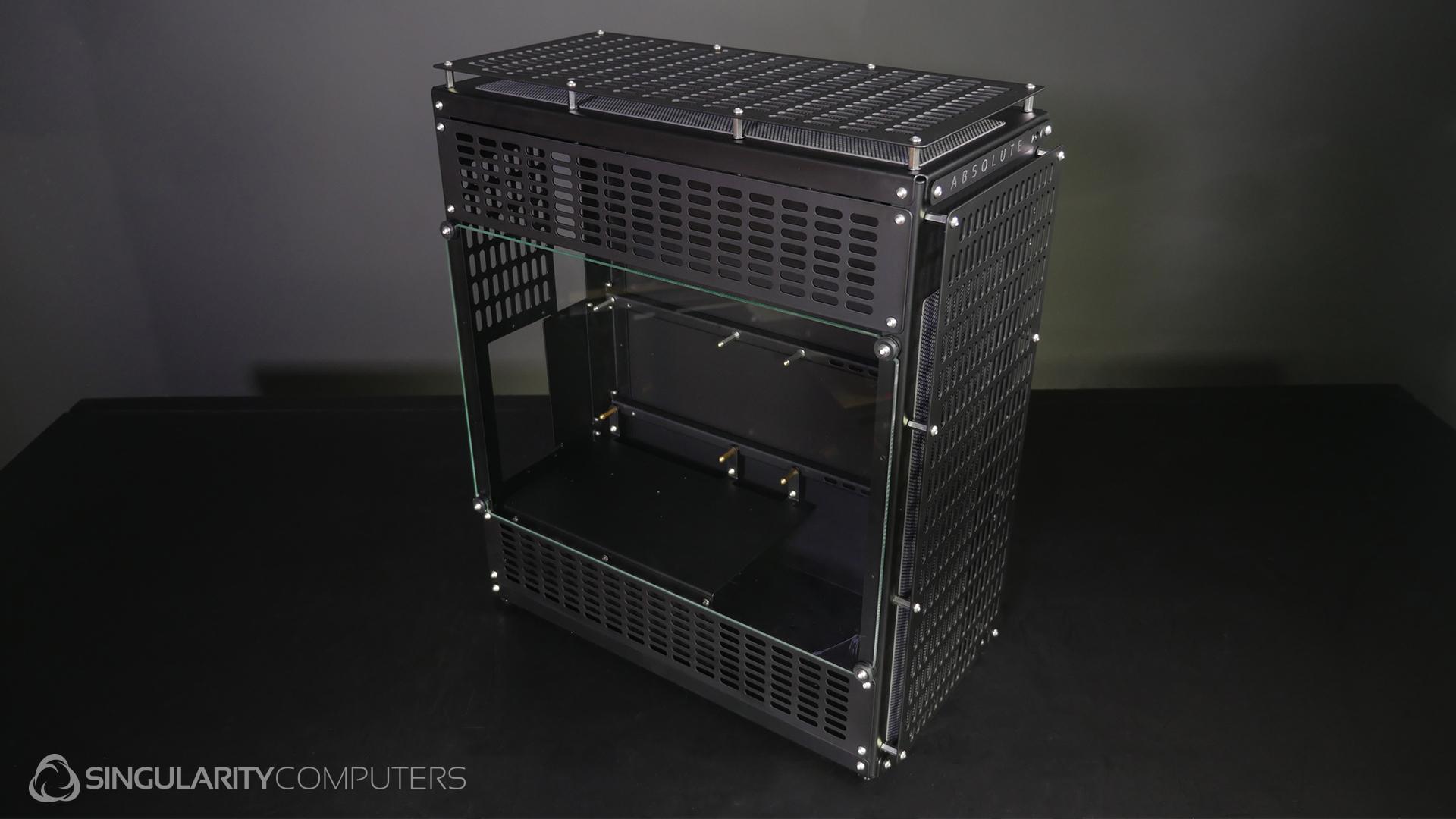

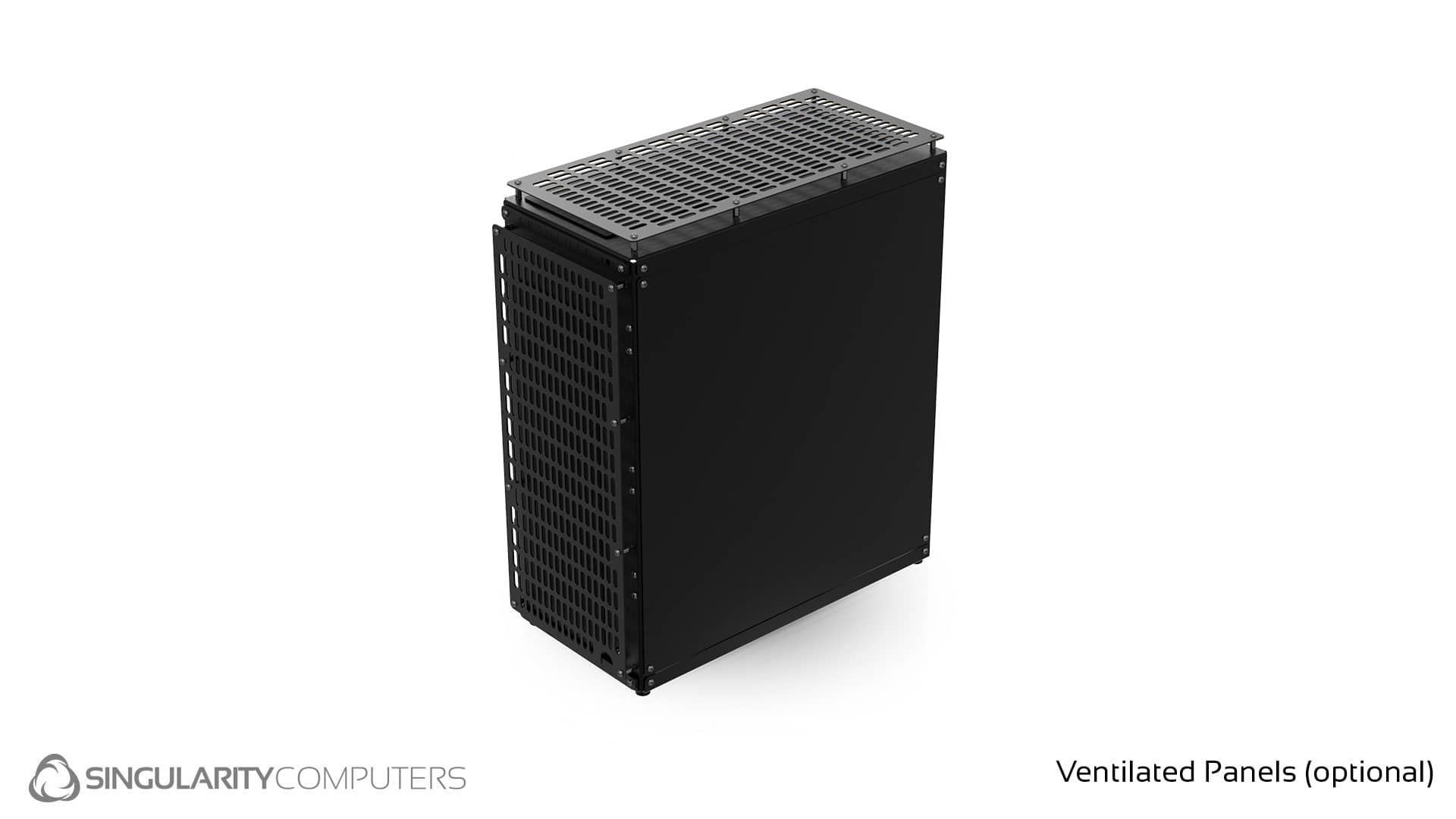

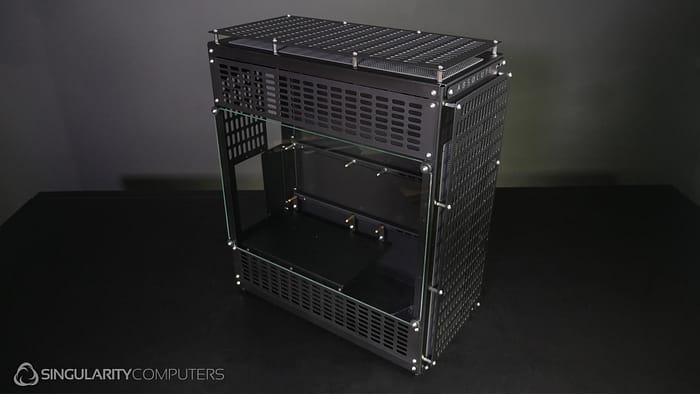

Ventilated Panels: Ventilated panels for the side and front.

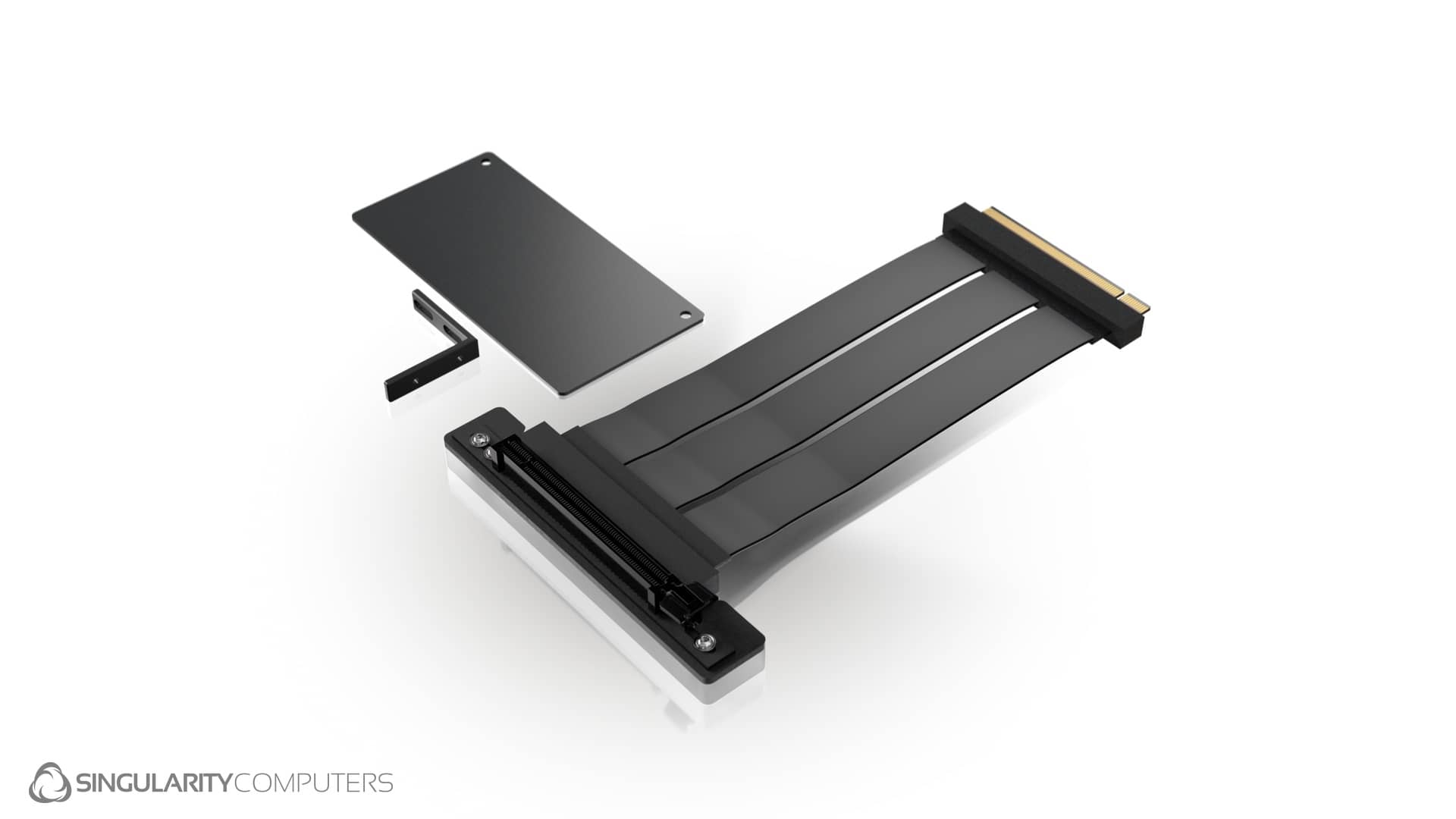

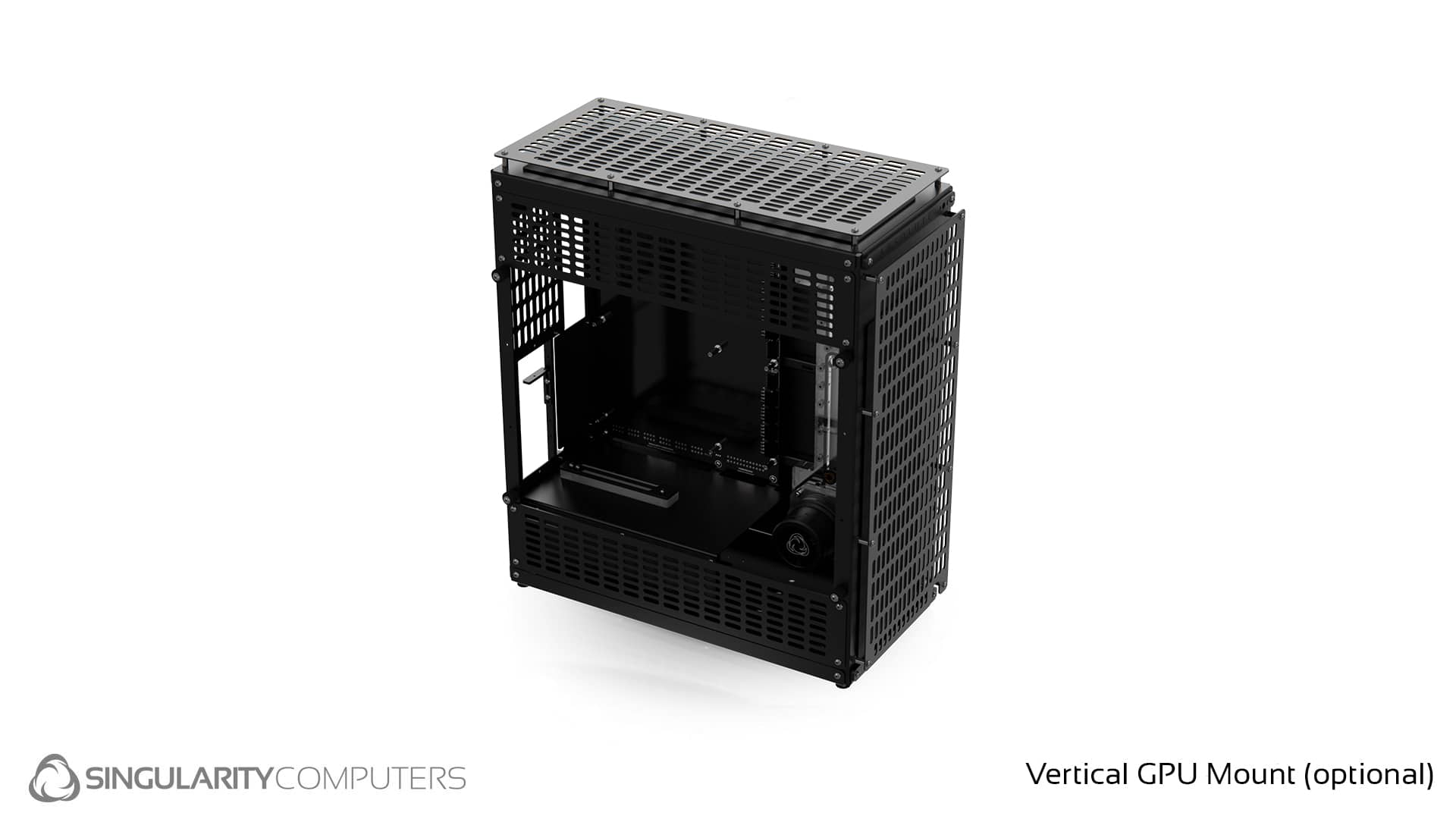

Vertical GPU Mount: The Absolute Case Vertical GPU Mount is an important aesthetic addition and improves the layout particularly if you are water-cooling. The mounting components are built from 1.5mm Black Powder Coated Steel and it comes included with a PCIE 4.0 Riser Cable.

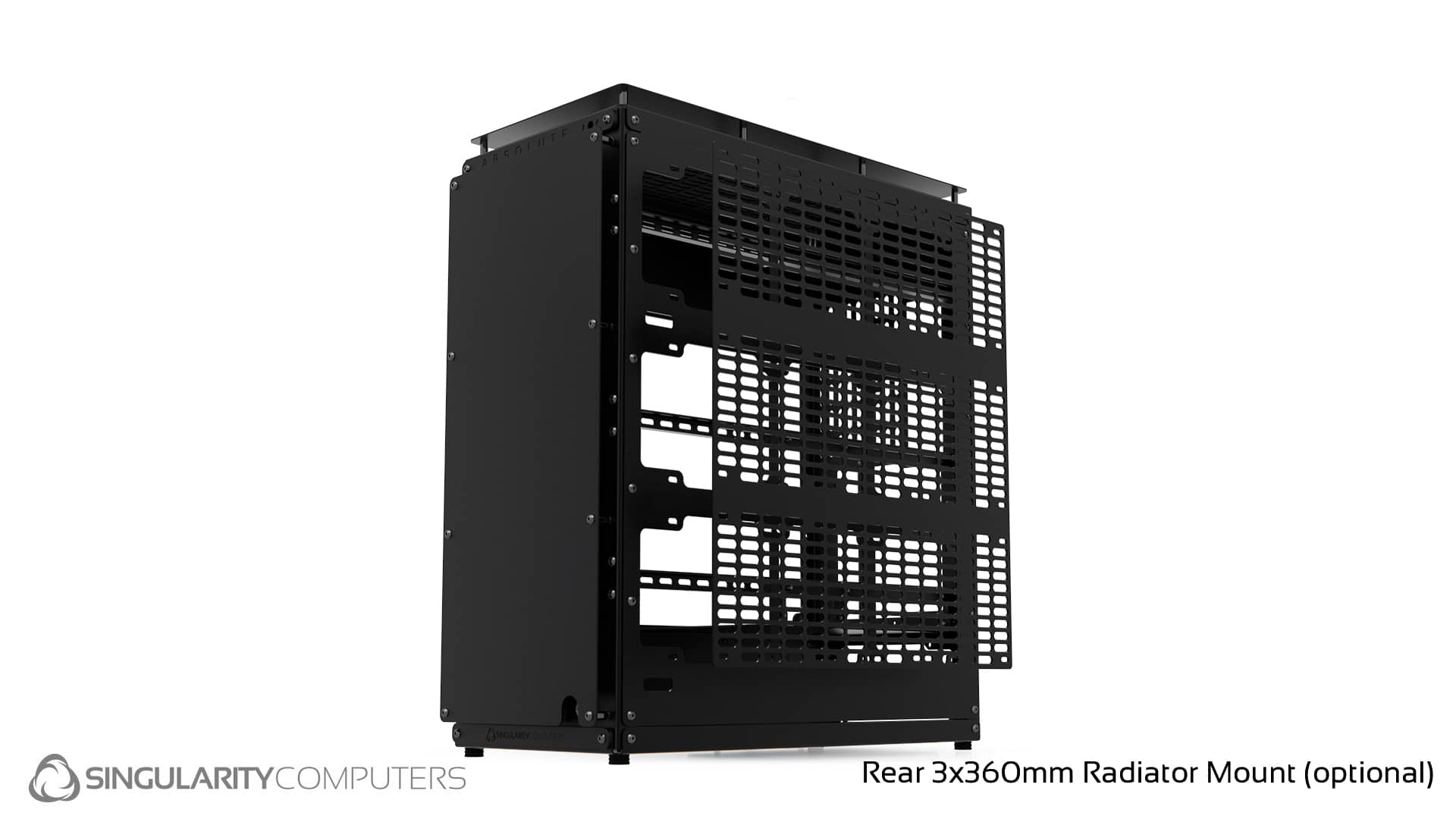

Rear 3x360mm Radiator Mount: Mount an extra 3x 360mm radiators to the back panel.

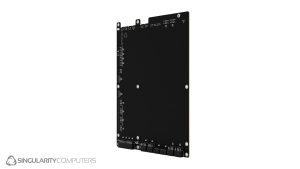

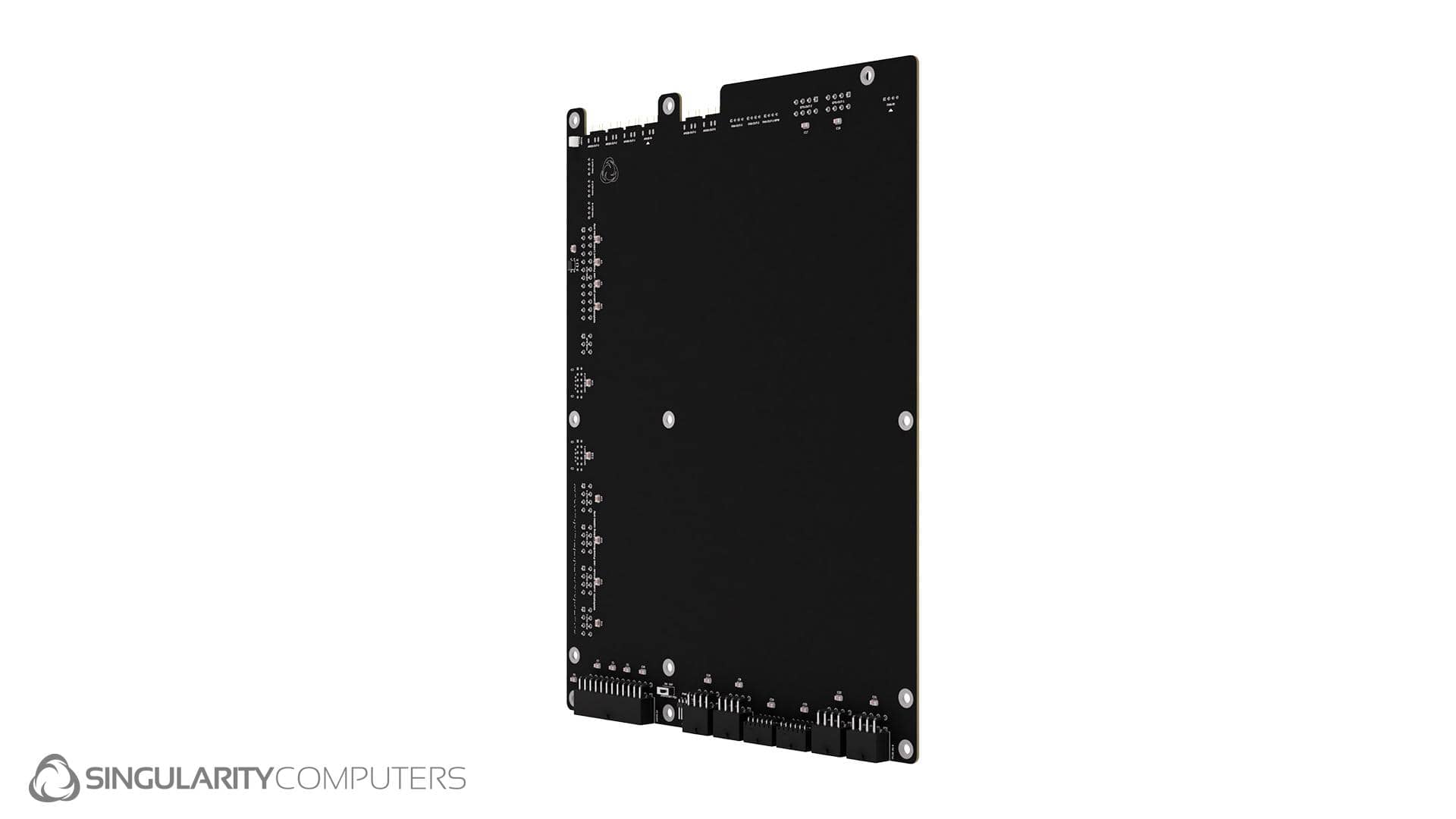

PowerBoard: The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Absolute PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.
