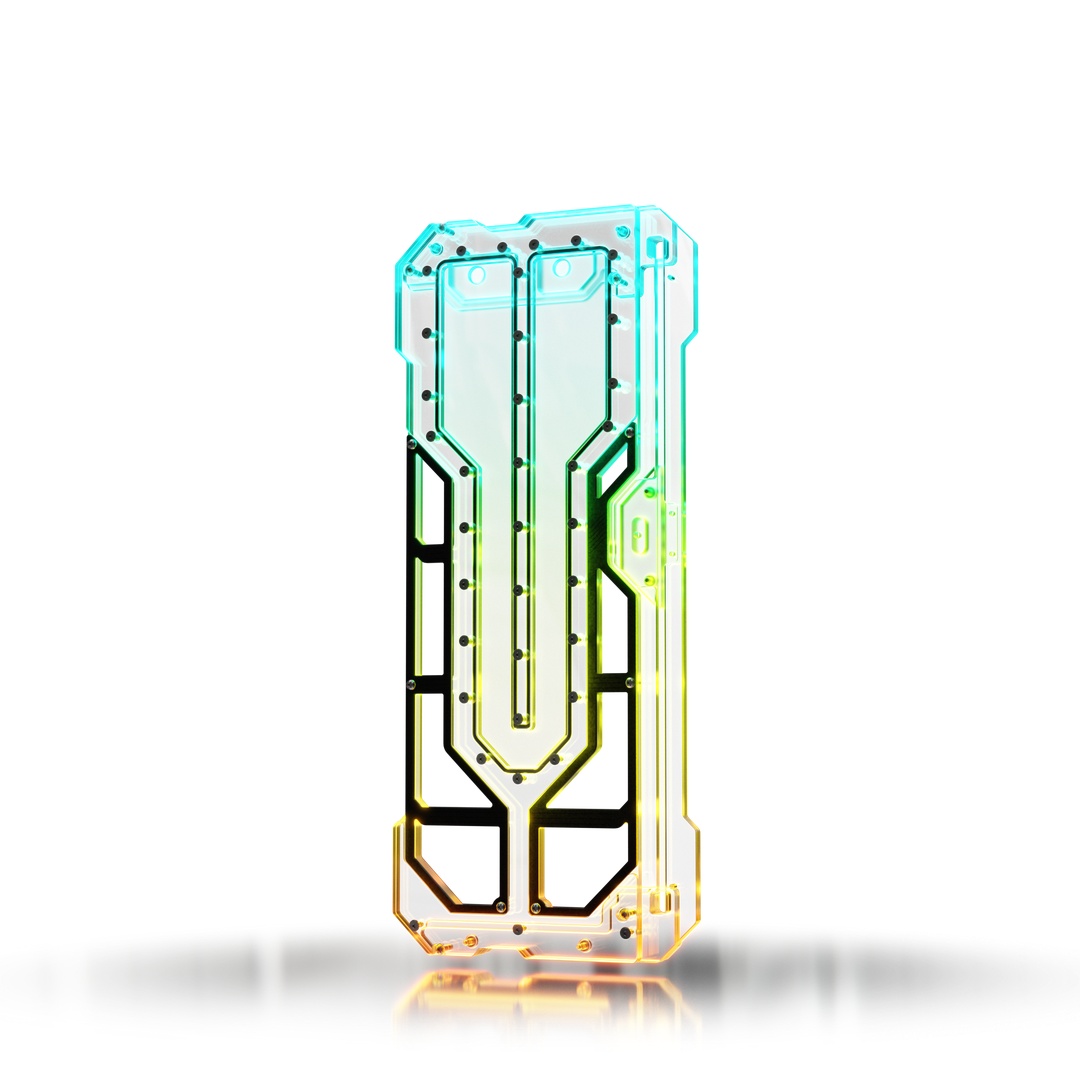

Spectre 4 Aevum Elite
US$449.00
Arterial 2 Dual 560mm Water-box
US$599.00 US$899.00Price range: US$599.00 through US$899.00

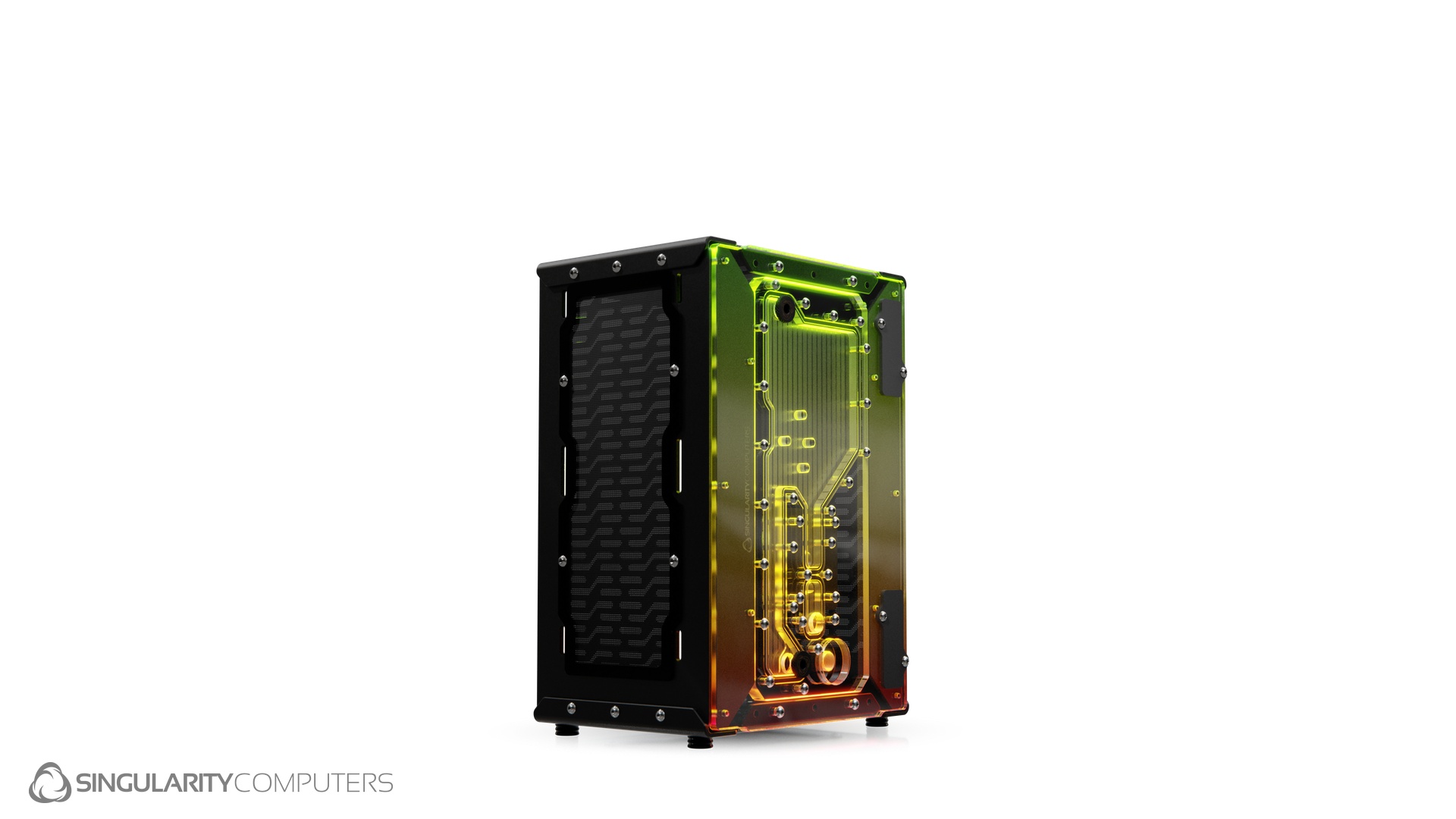

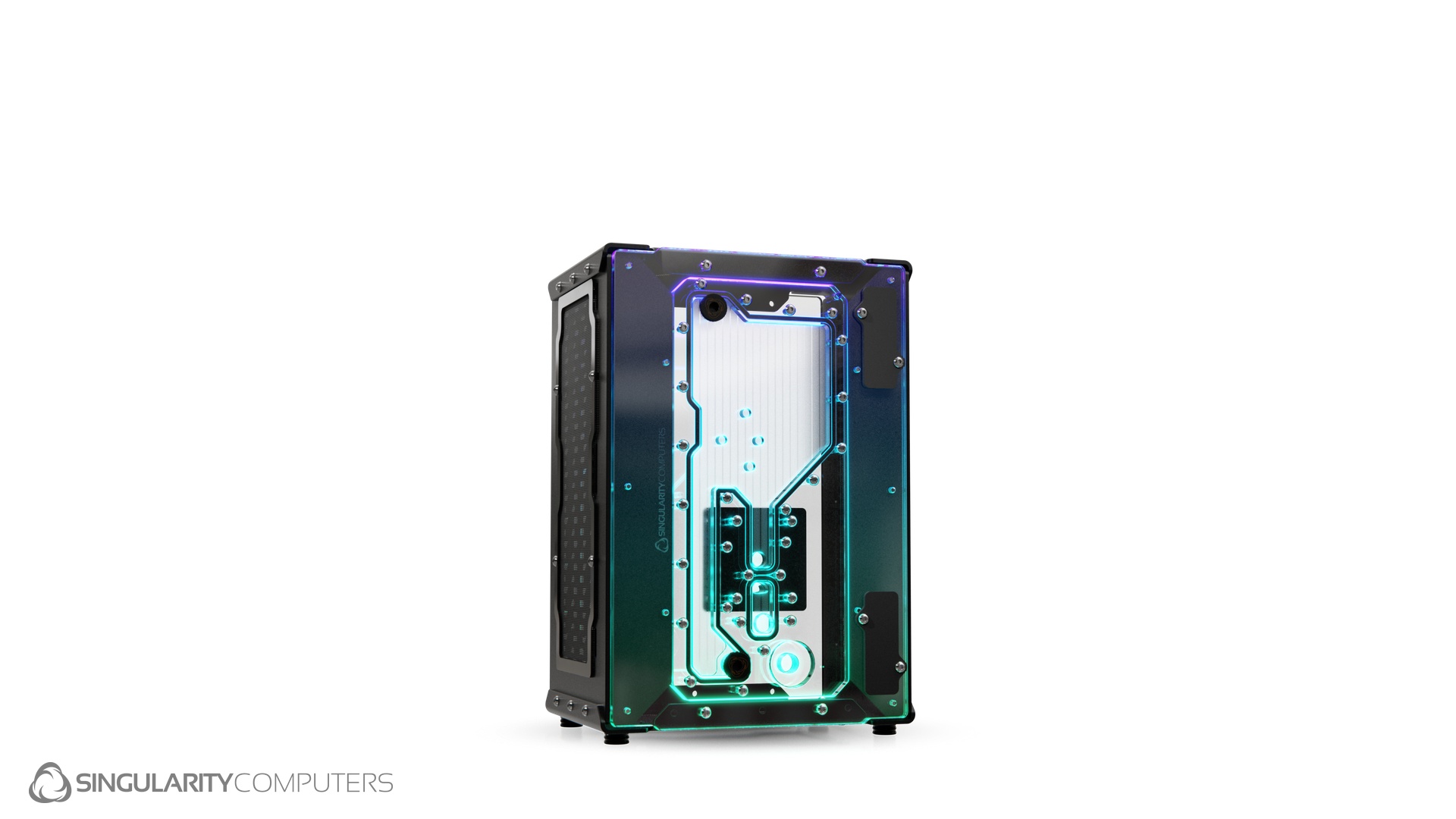

Arterial 2 Mini Dual 240mm Water-box

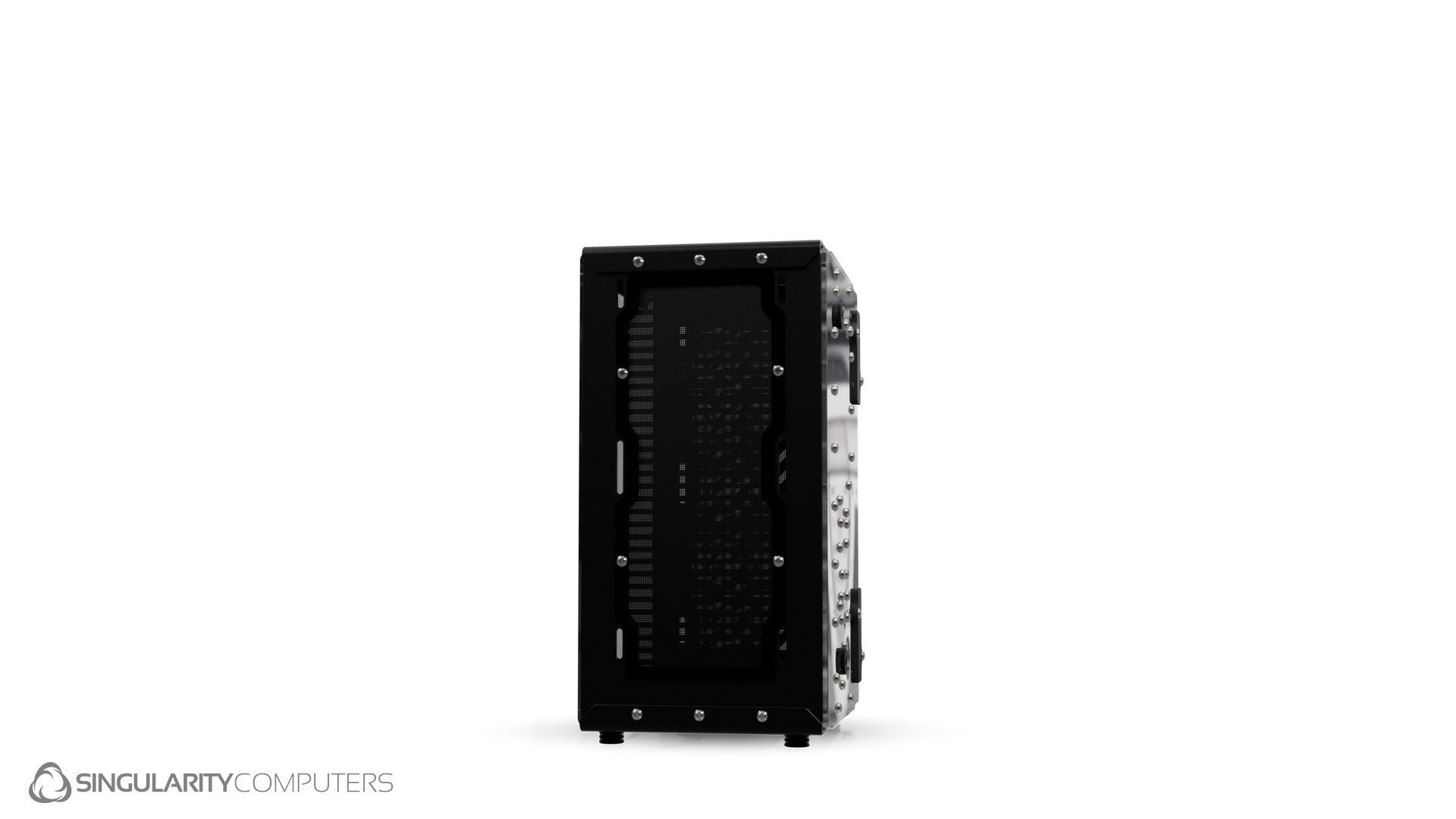

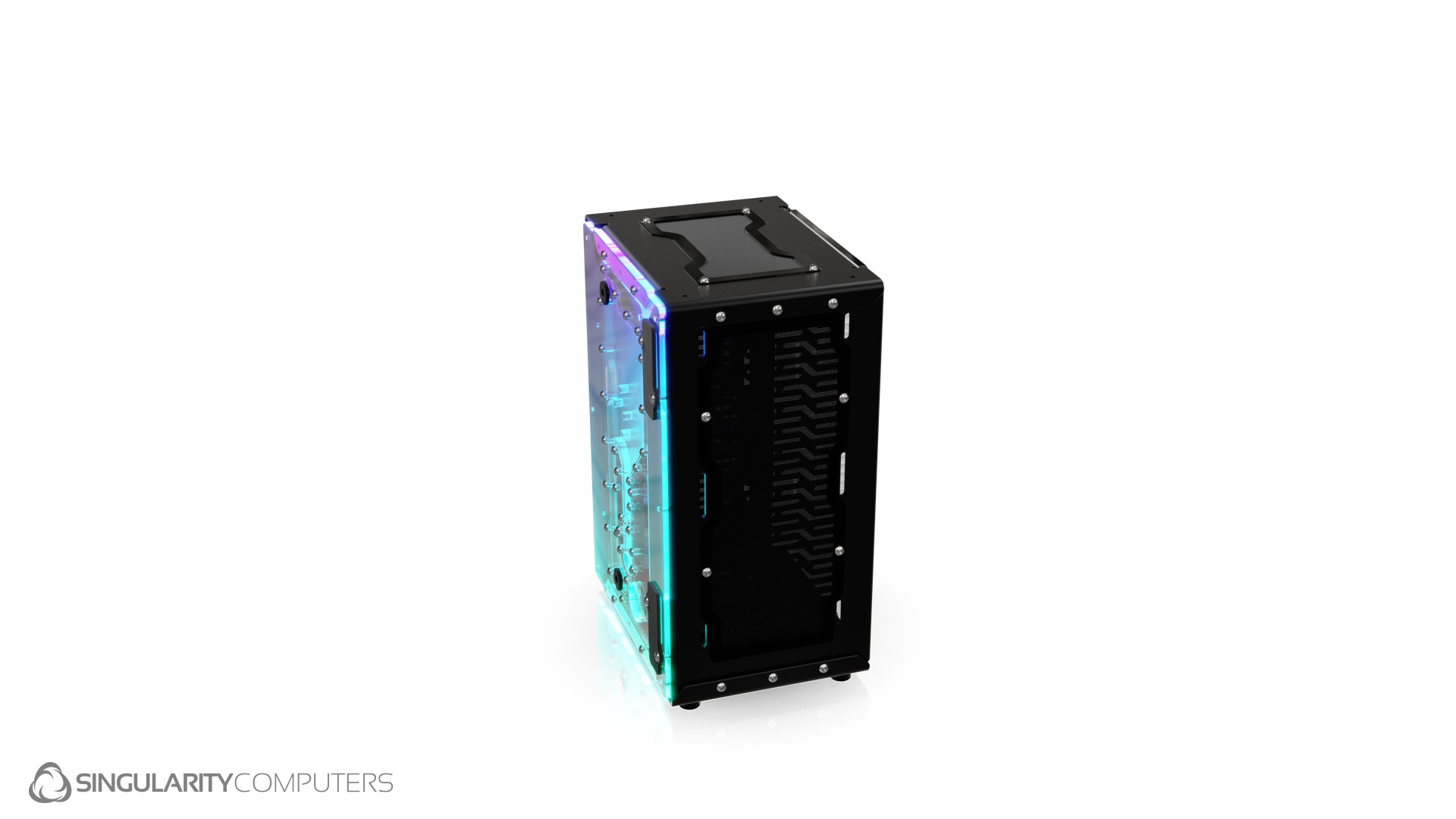

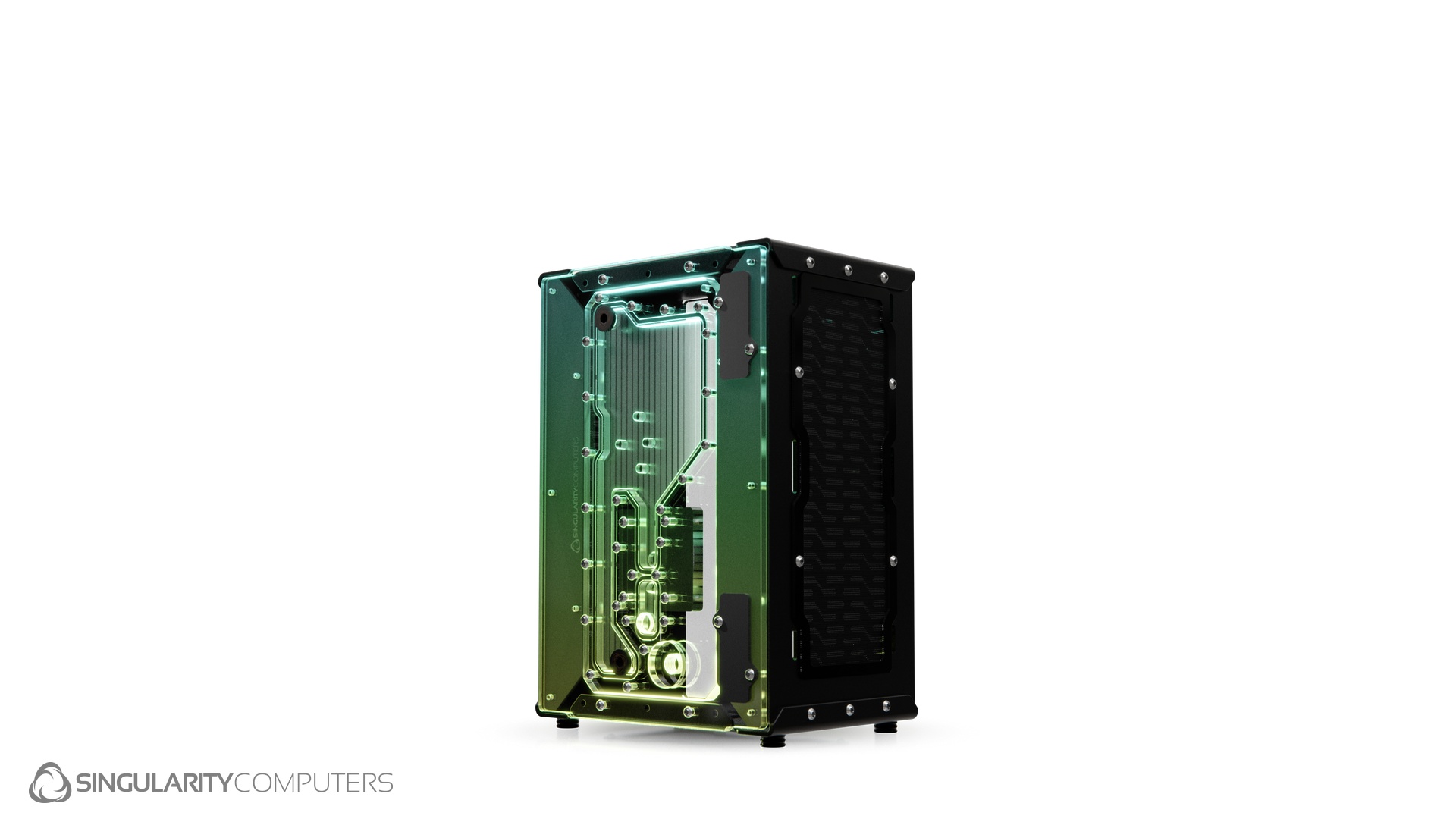

Arterial 2 Mini Dual 240mm Water-box is a dedicated high-end water-cooling enclosure with a distribution plate which integrates a reservoir and pump top. It fits dual 30mm thick 240mm radiators with a single set of fans and a DDC. All components are CNC machined, the enclosure is built from 3mm 6061 aluminum, the distribution plate from cast acrylic and the fasteners are stainless steel.
Arterial 2 has been completely redesigned. The enclosure is now built from folded aluminum which greatly improves strength and gives a more streamlined aesthetic. All ventilation is now dust filtered. The distribution plate has been re designed for increased fluid volume.
Pump not included. Compatible with any DDC Pump.
US$299.00 US$399.00Price range: US$299.00 through US$399.00
Specifications
Arterial Water-box Enclosure. 6061 Aluminum. CNC Machined. Anodized.
Distribution Plate. Clear Cast Acrylic. CNC Machined.
DDC Pump Top. Clear Cast Acrylic. CNC Machined.
Acrylic Side Panel Window. X1. Clear Cast Acrylic. CNC Machined.
Spectrum 2.0 50cm 5V D-RGB LED Strip. X1.
Dimensions: L: 155mm x W: 220mm x H: 320mm.
Weight: 4kg.
Packaged Dimensions: L: 200mm x W: 300mm x H: 400mm.
Packaged Weight: 5kg.
Installation:
See installation manual at the link above.
Addon Information
Mega-Node Mini-Node
DDC Pump Cover

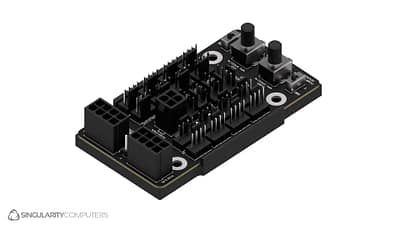

Mega-Node: A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-1-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mega-Node has 16 fan outputs and 1 pump output.

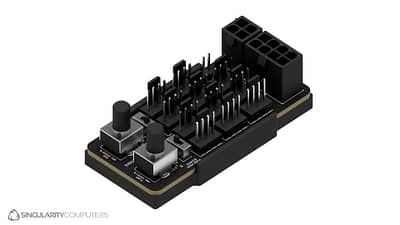

Mini-Node: A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need for a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mini-Node has 8 fan outputs and 1 pump output.

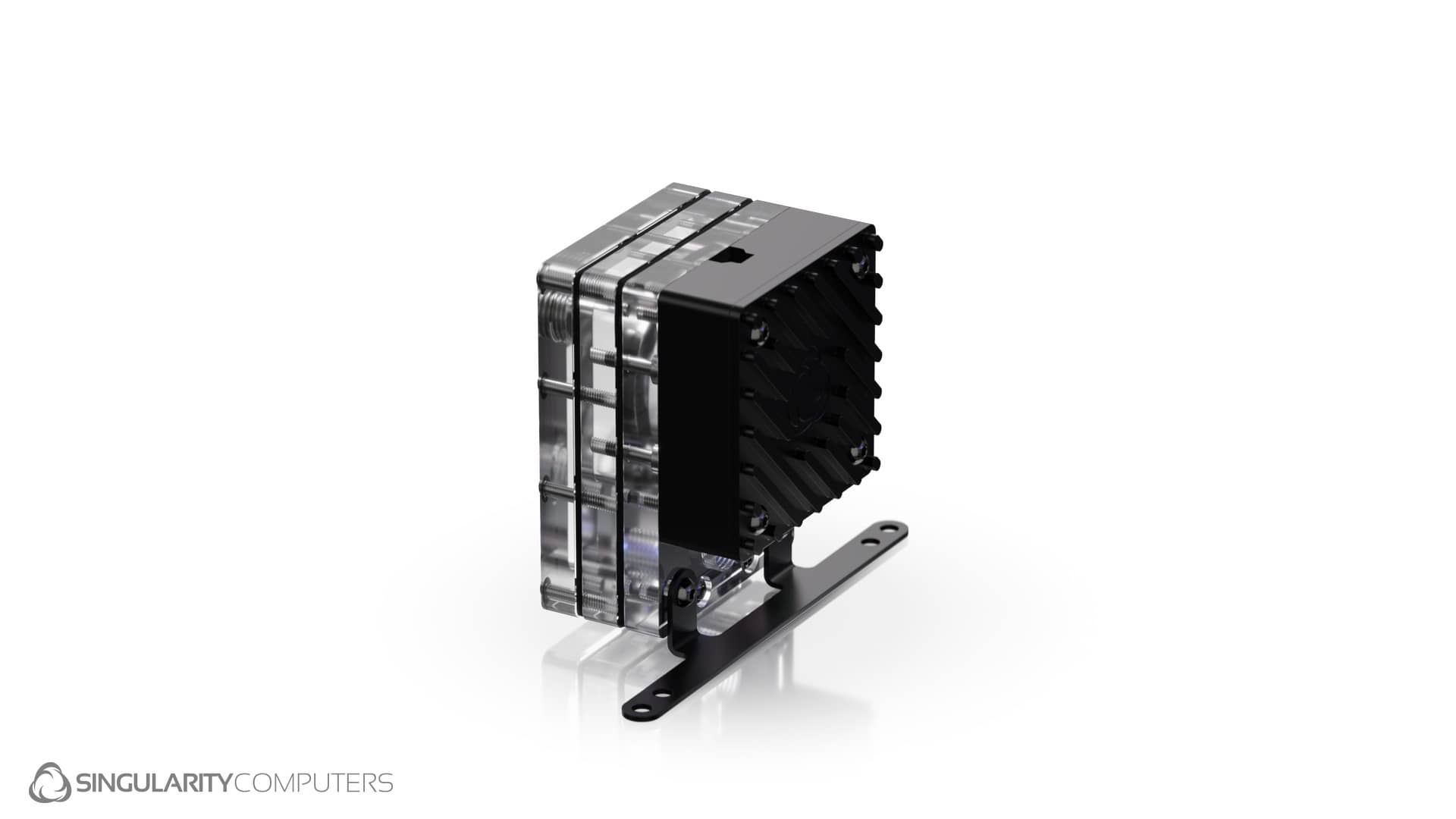

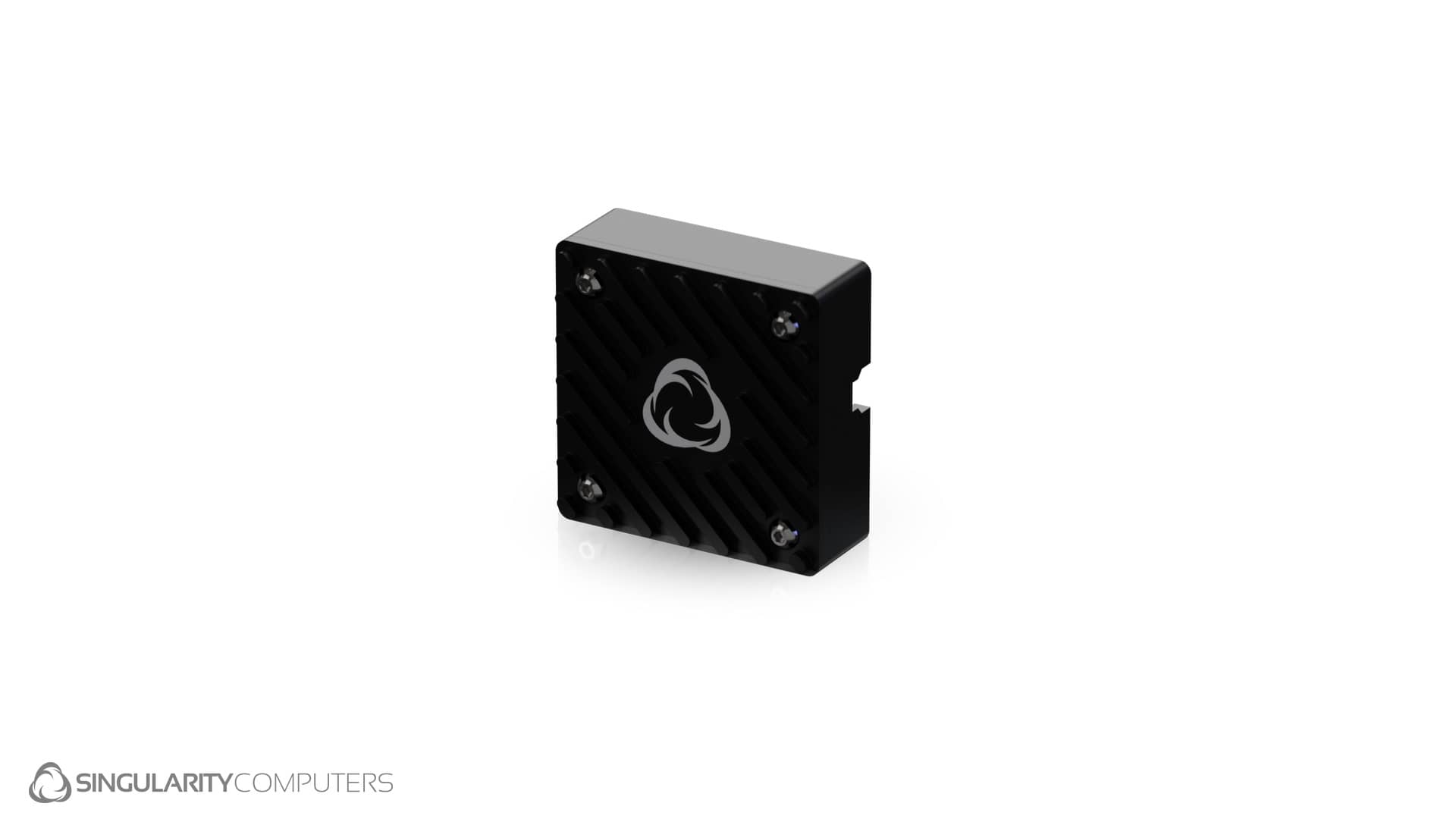

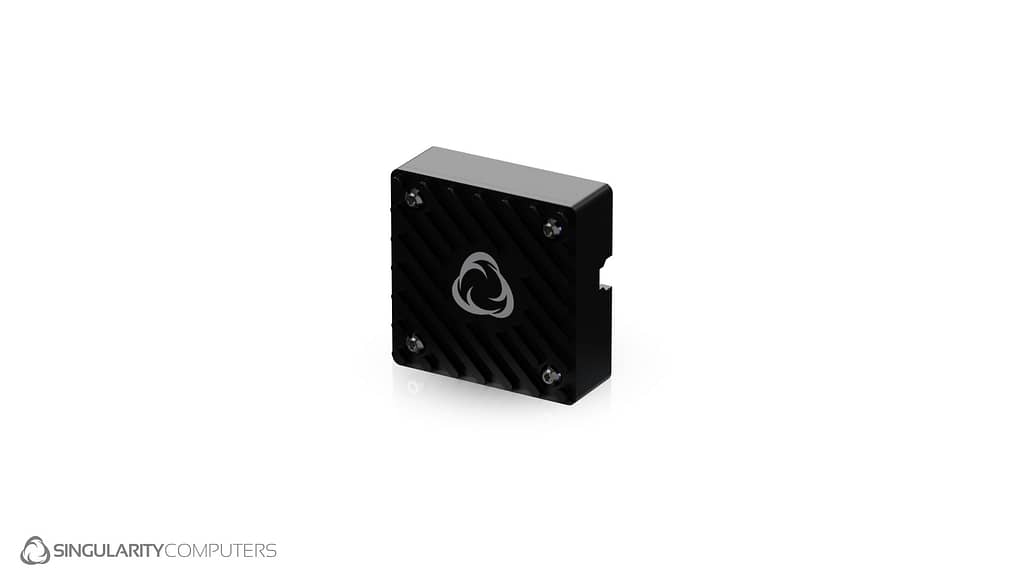

DDC Pump Cover: The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.
