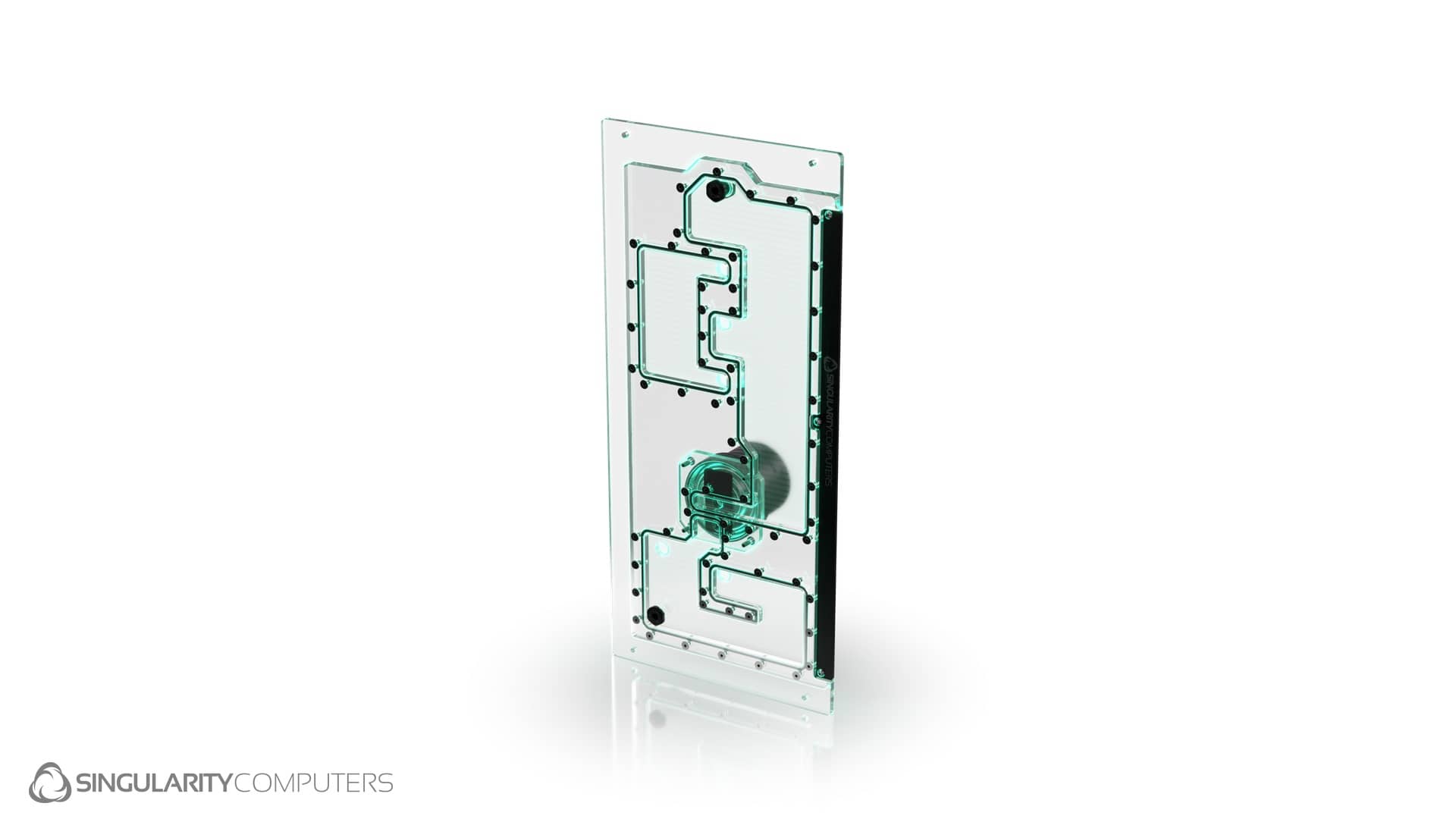

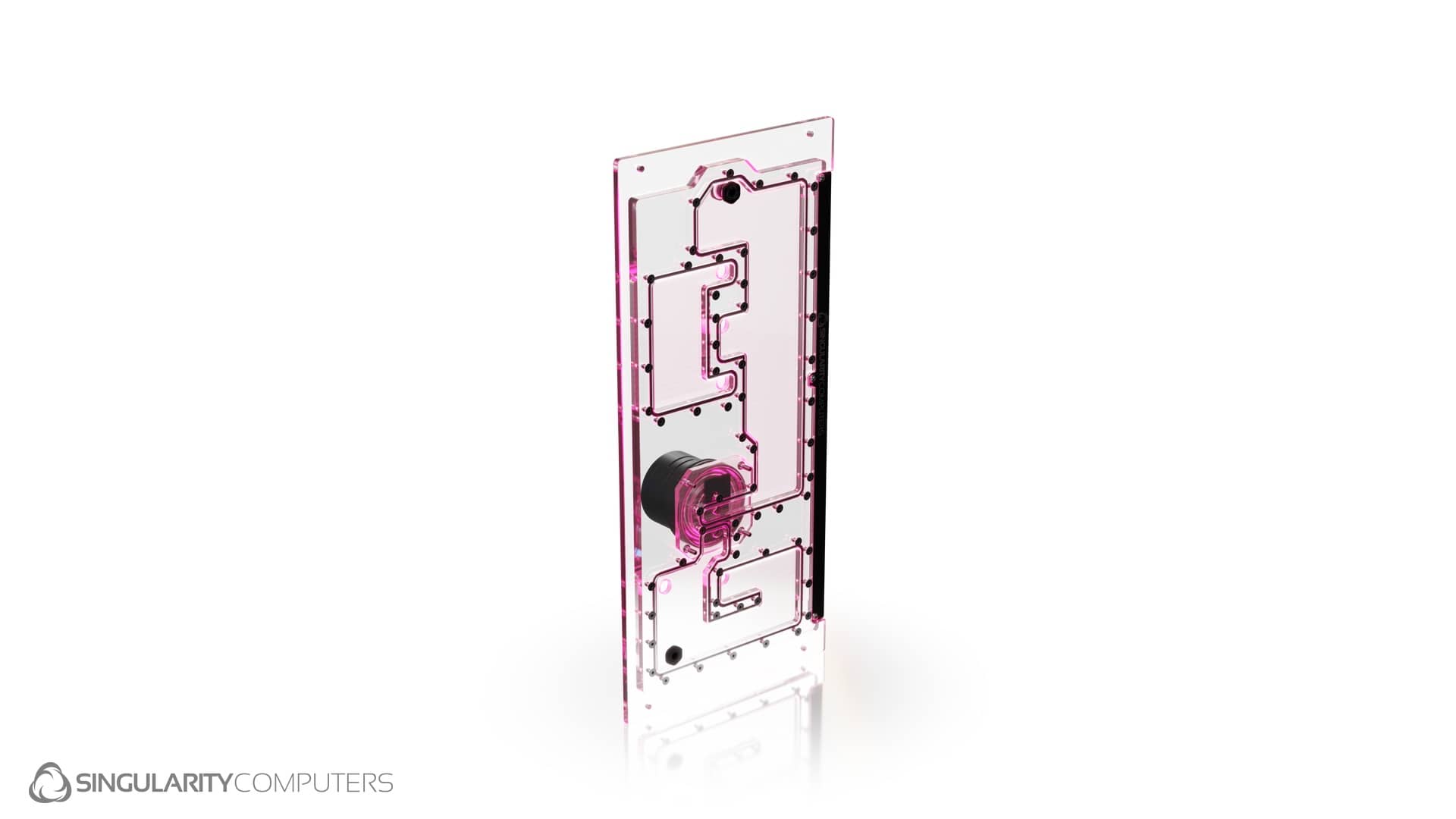

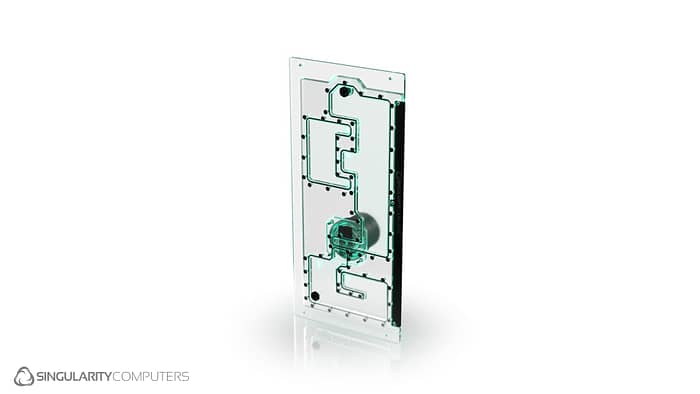

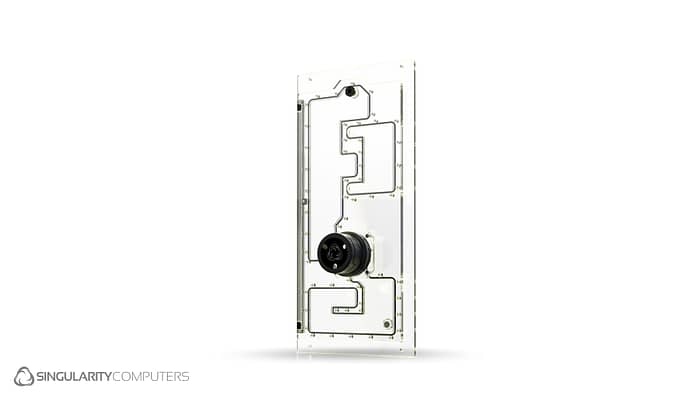

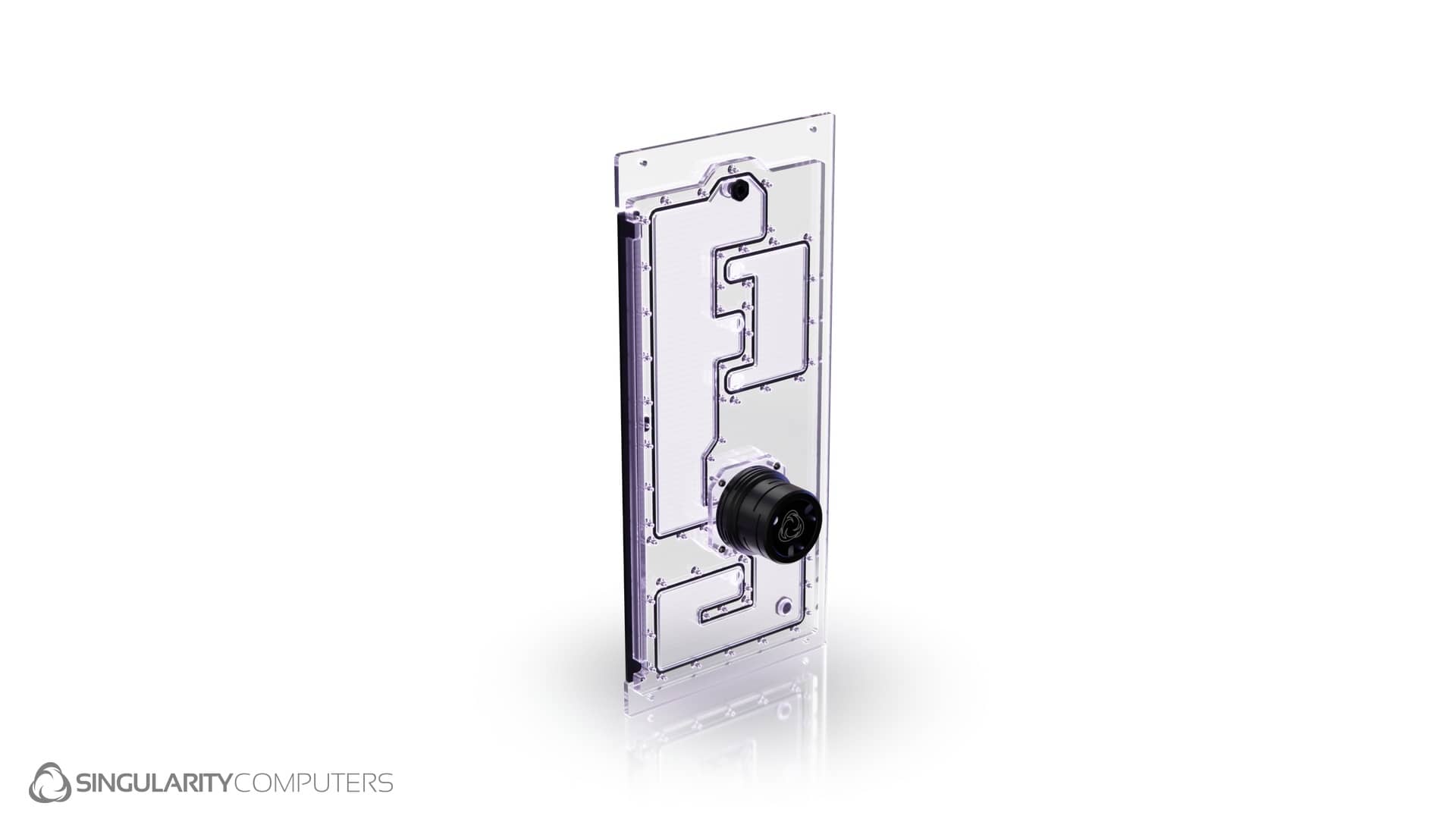

Lian Li PC-O11 XL EVO Front D5 Reservoir Distribution Plate

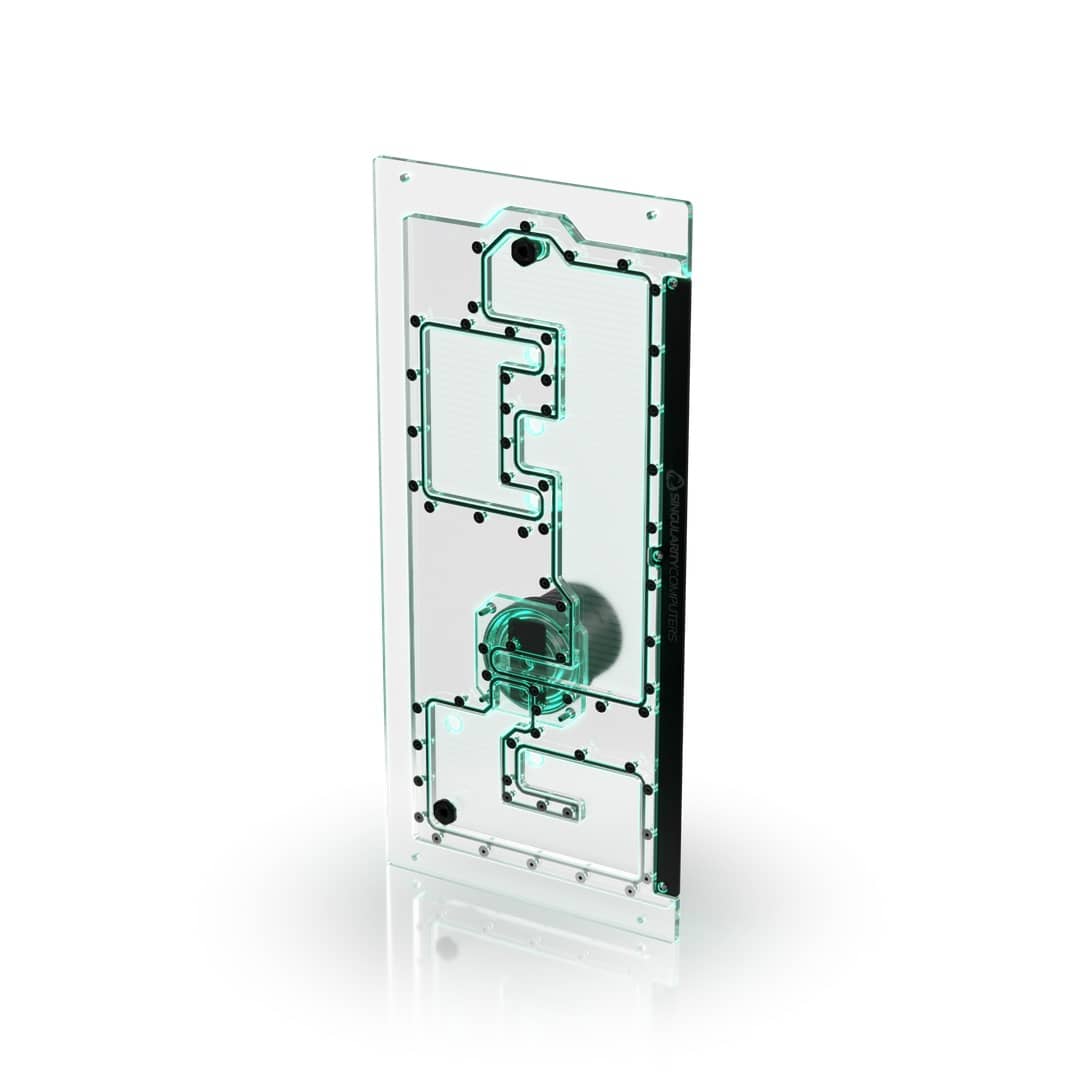

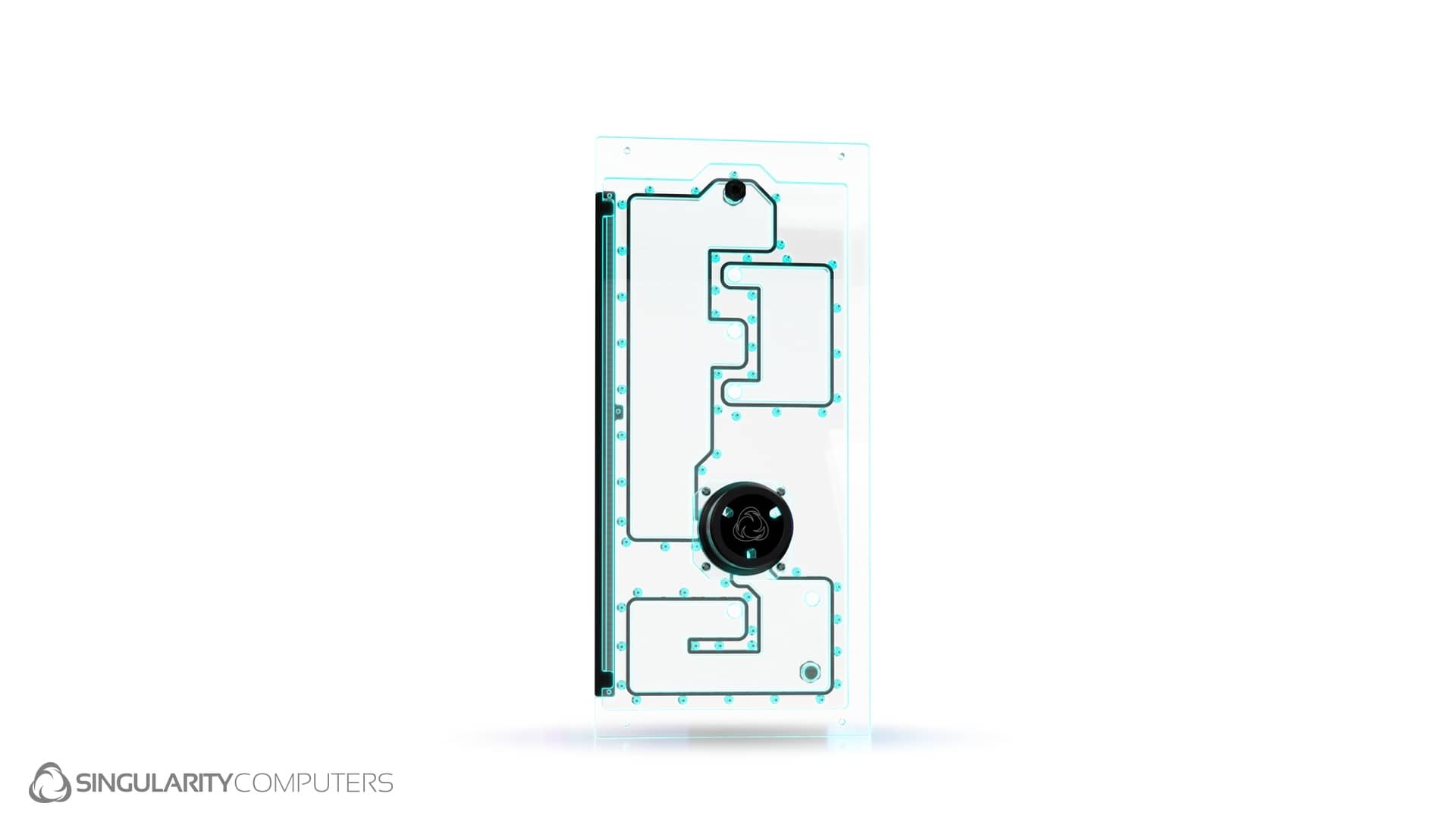

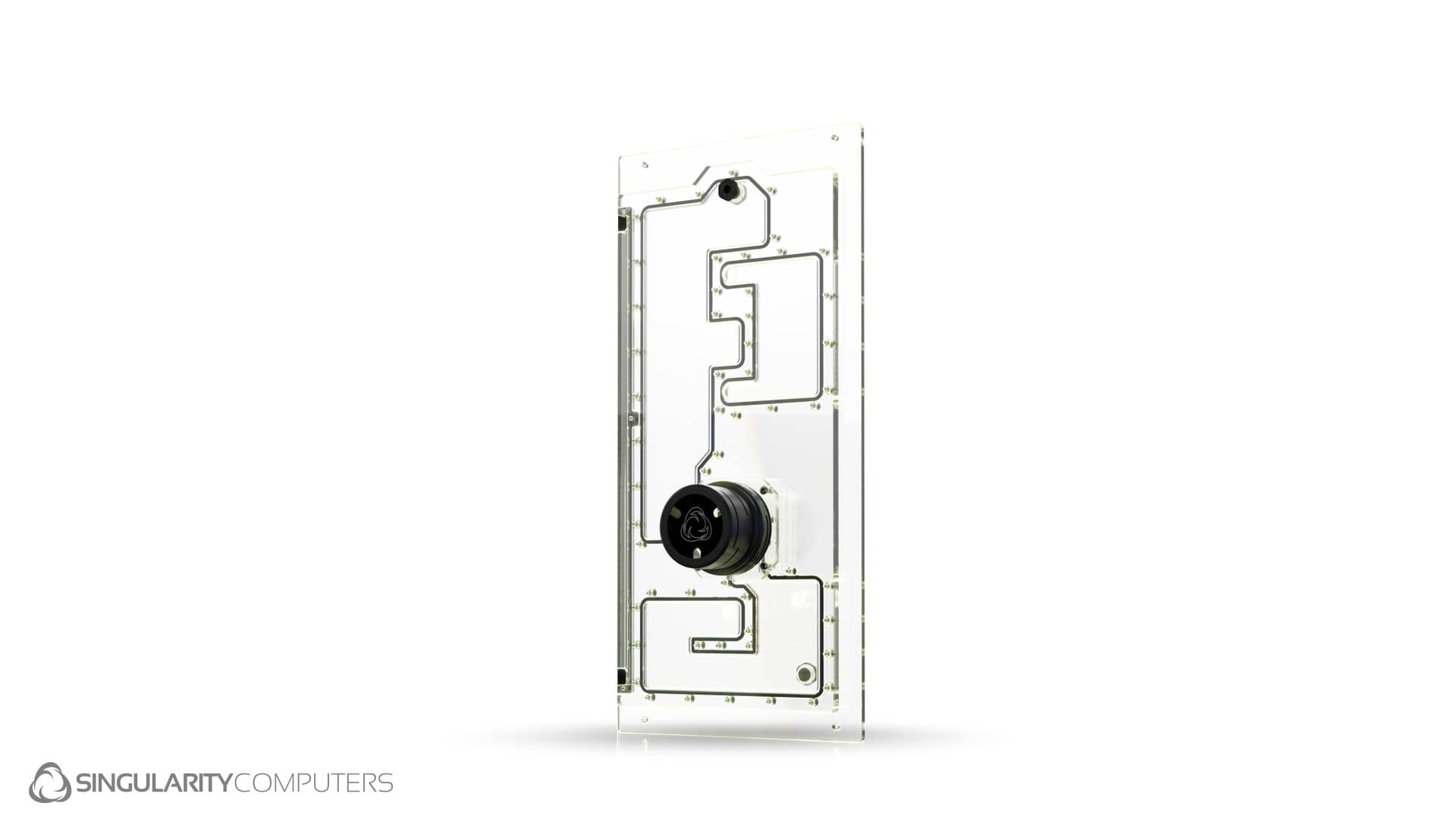

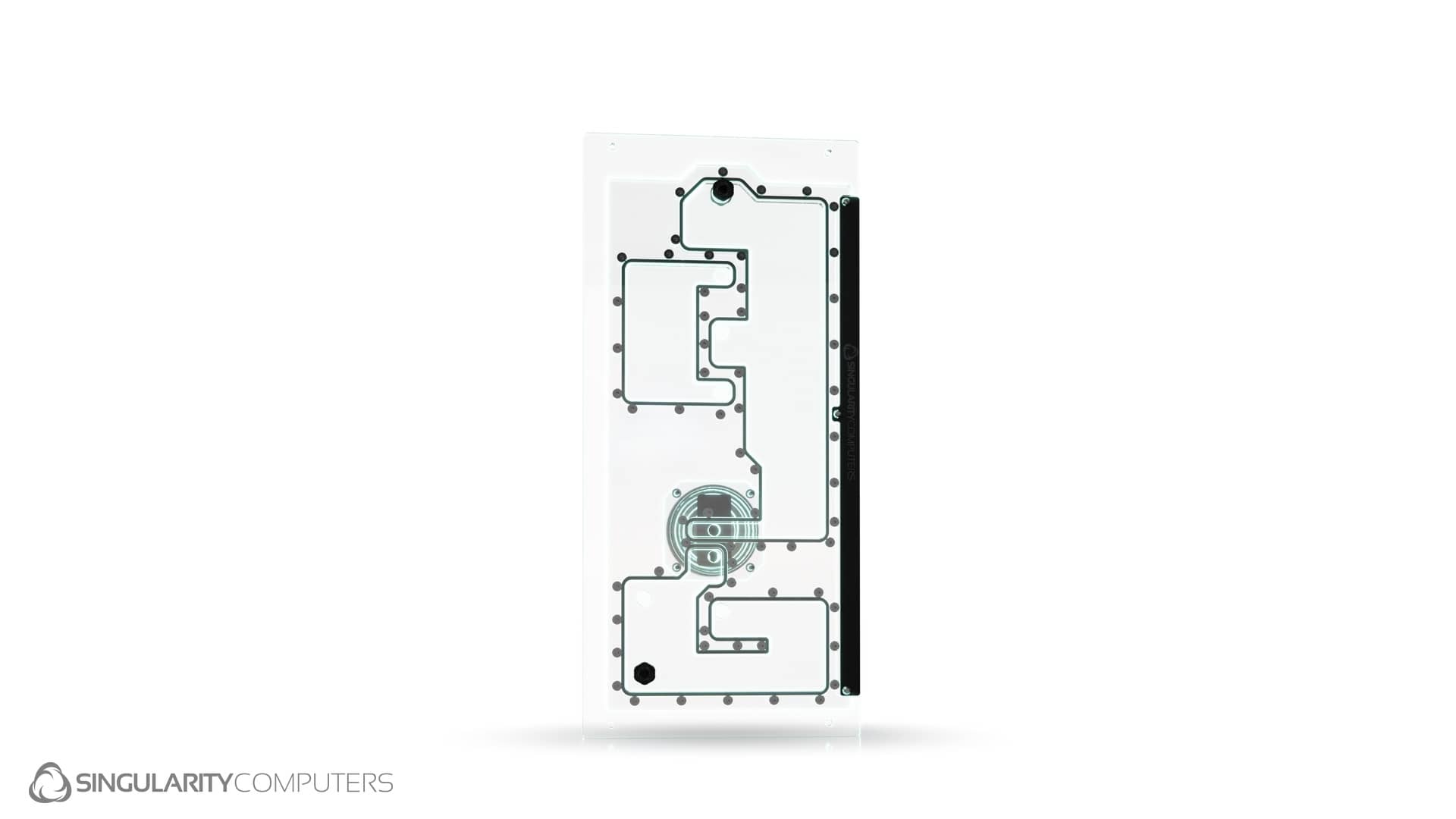

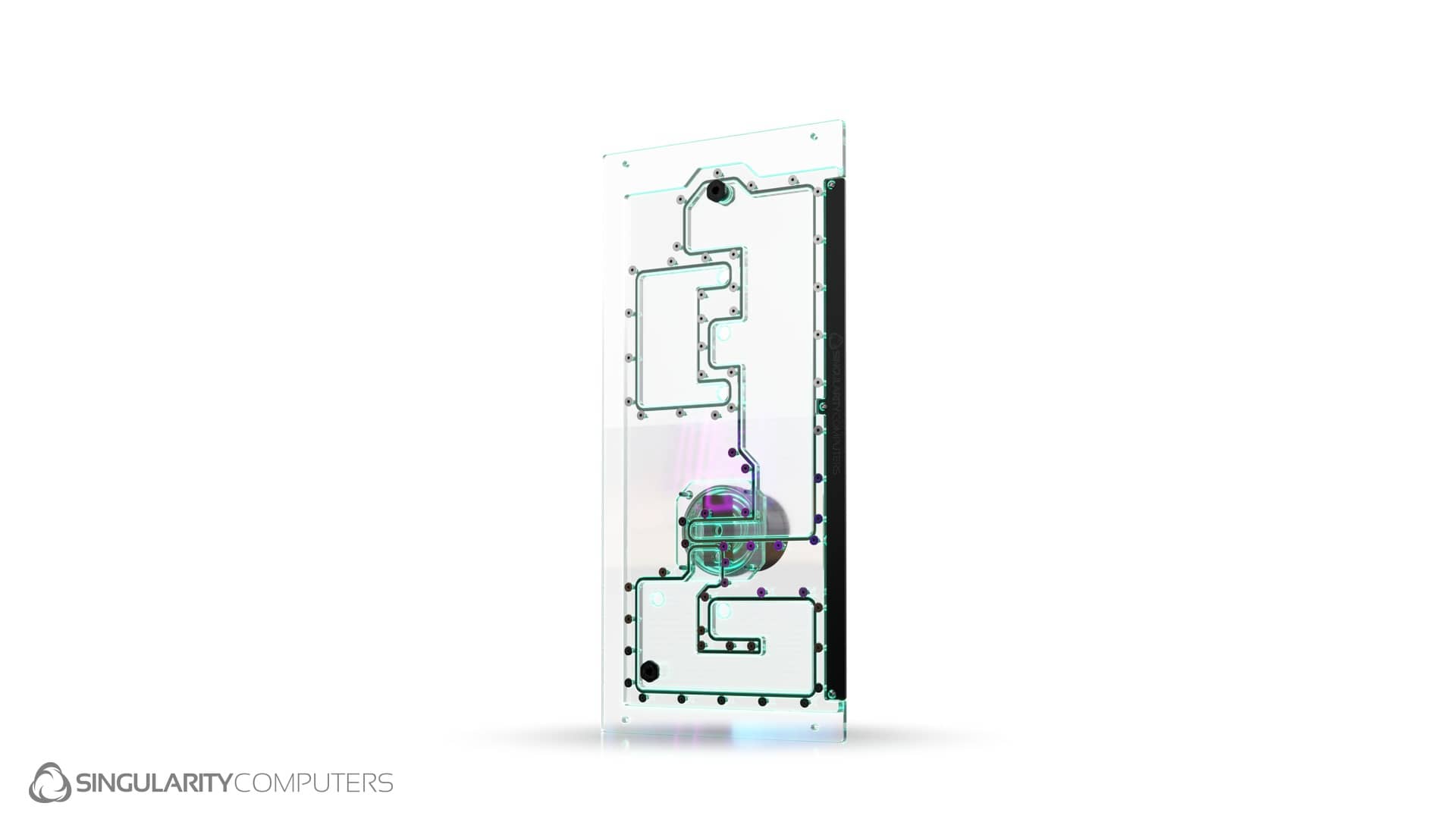

Front Panel Distribution Plate for the Lian Li-O11D XL EVO. It attaches to the front panel and replaces the original glass. It mounts to existing holes to the case so there is no need for modifications. It has an integrated reservoir and D5 pump top. This distribution plates can be used on its own, it does not require other distribution plates. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip with an Accent Cover. Select from the different color options below for the Accent Cover.

Pump not included. Compatible with any D5 Pump.

Note: Lian Li have many case versions, this distribution plate is only compatible with the Lian Li O11 XL EVO.
Compatible with the case in reverse orientation.

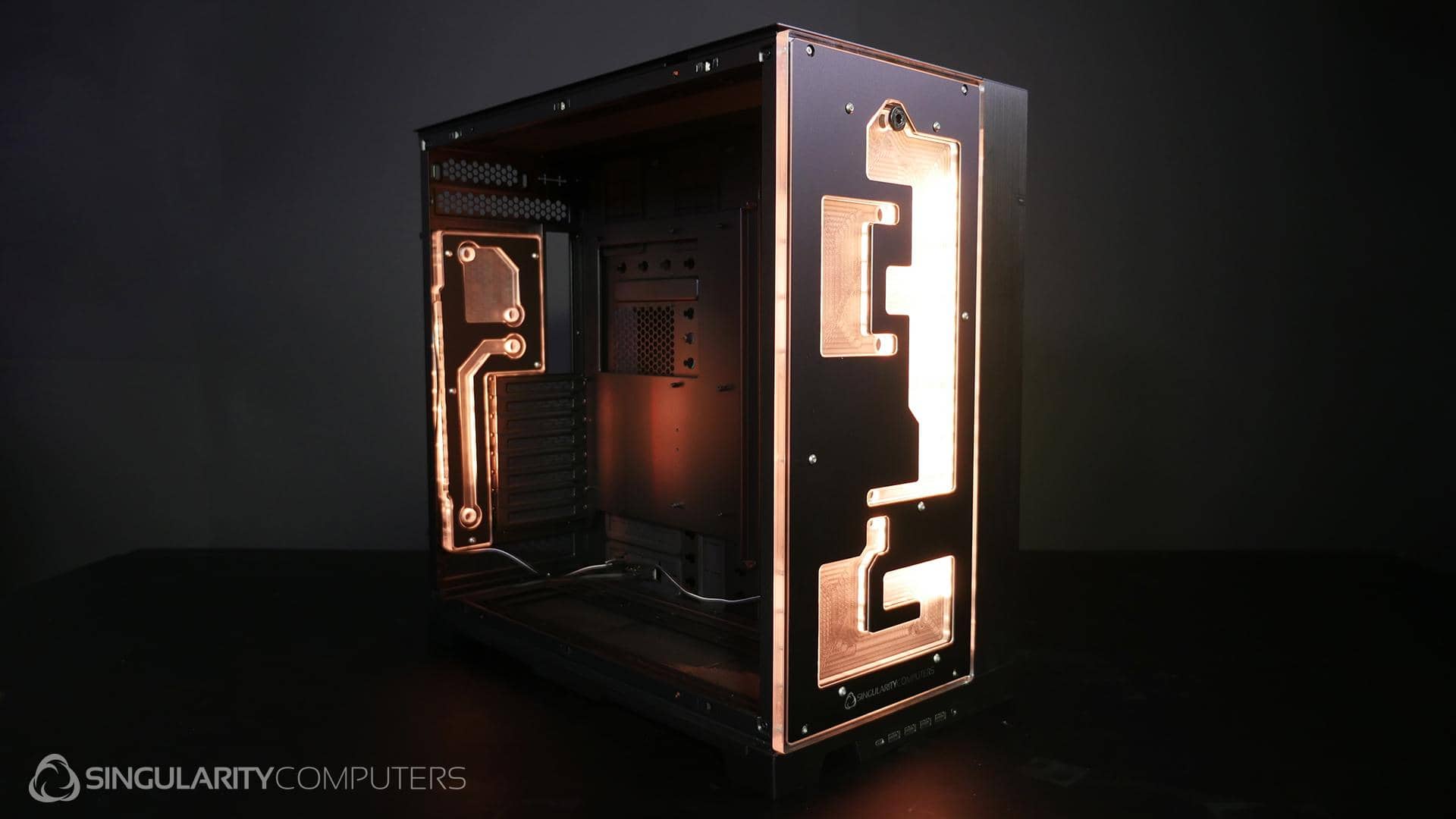

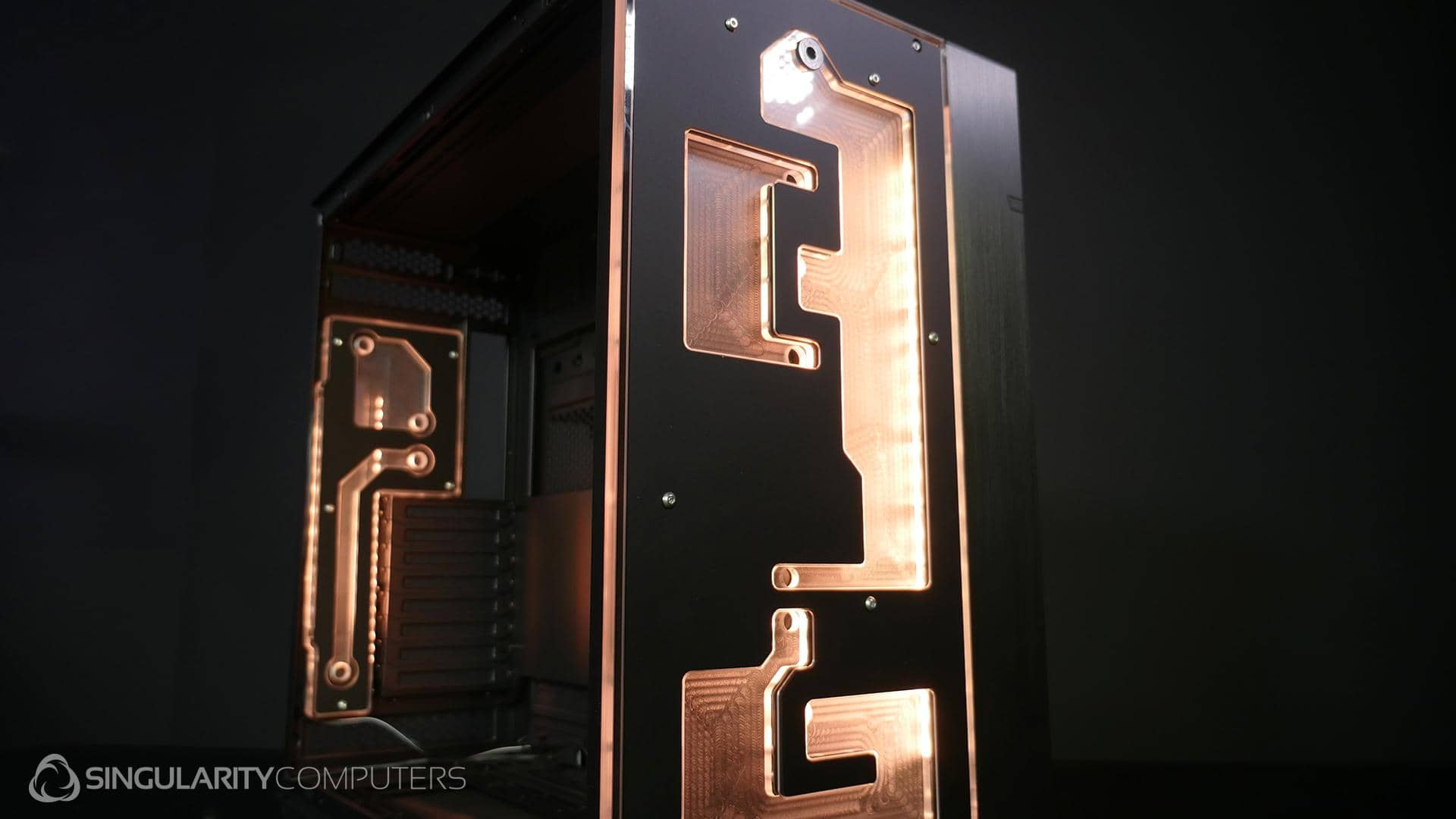

Build Gallery

US$249.00

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror +US$13.00 Silver Mirror +US$13.00 Gold Mirror +US$13.00 Satin Black

CNC milled black anodised pump cover with ARGB lights and Singularity Computers Logo.

Black Silver Black

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00
EAN: 9351182006627 SKU: SC-O11XLE-FD5-C Category:

Manual

Gallery

Lian Li PC-O11 EVO XL Distribution Plate Flow Diagram

Specifications:
Lian Li O11D XL EVO Front D5 Reservoir Distribution Plate.
D5 Pump Top & Cover.
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel. M4 x 12mm x4.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Packaged Dimensions: L: 500mm x W: 400mm x H: 200mm.
Packaged Weight: 5kg.

Installation:

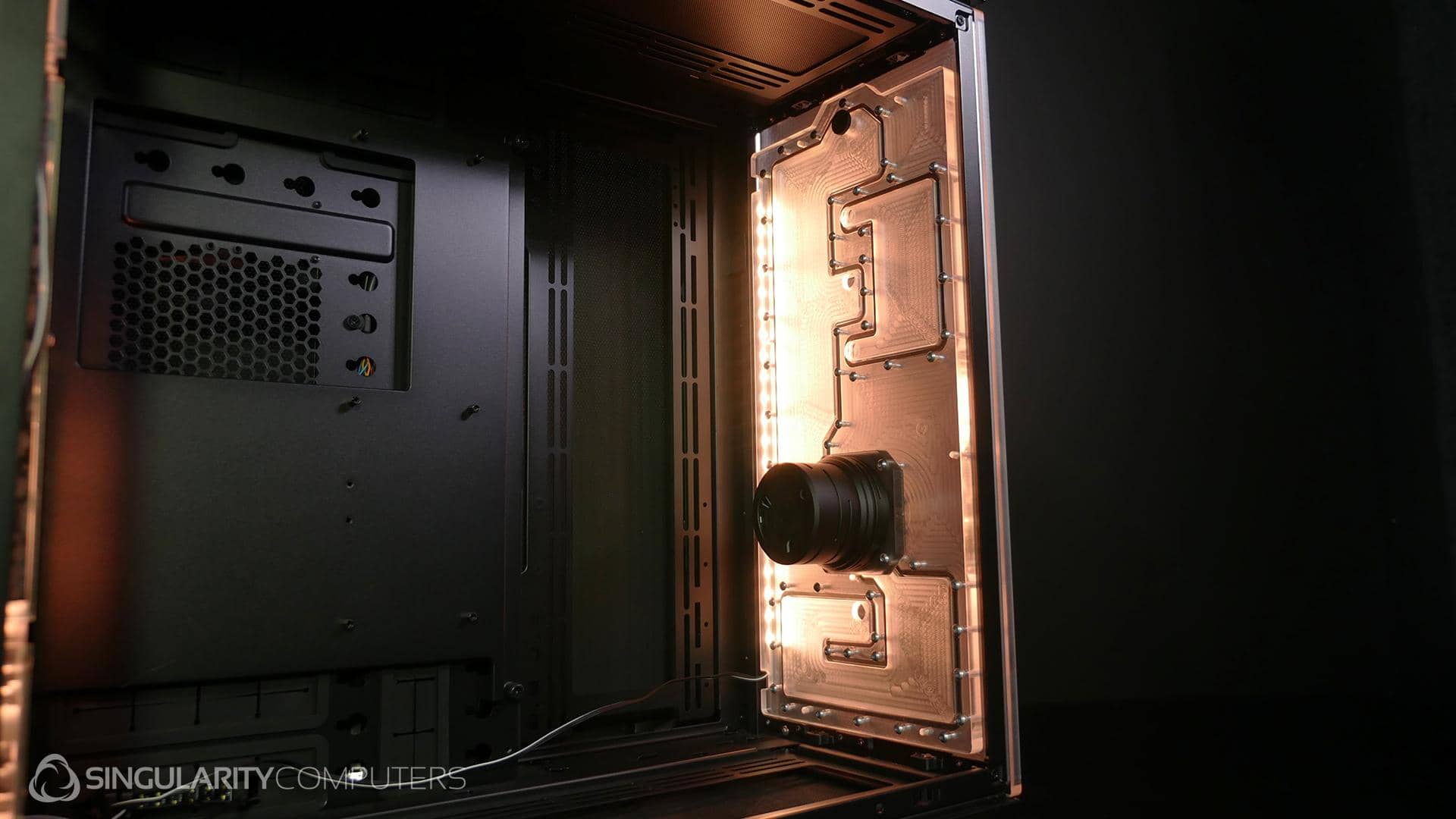

Install onto the front panel of the Lian Li O11D XL EVO. Replaces the existing glass panel and attaches to existing mounting holes.
