Portal Wall Mount Water-cooling Case Advanced White

In stock

Order processing time 1 week.

  • Open wall-mounted display case
  • 2 × 420mm radiators, one per side
  • No limit on radiator or fan thickness
  • Integrated D5 pump top and reservoir
  • GPU mounts vertically or horizontally
  • ATX or E-ATX boards, ATX power supply

Manuals

US$599.00

Select Case Colour Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$49.00 Silver Mirror +US$49.00 Gold Mirror +US$49.00

Front and rear covers, not including PCB covers which are white with silver lines and text.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select GPU Mount USD $29-99
Horizontal GPU Mount +US$29.00 Vertical GPU Mount +US$99.00 Horizontal GPU Mount(+US$29.00)

Horizontal GPU Mount
Horizontal GPU Mount: CNC milled 6061 anodized aluminium Horizontal GPU mount bracket.
Vertical GPU Mount: CNC milled 6061 anodized aluminium and acrylic mount with PCIE 5.0 Riser Cable.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options (optional) USD $39
None White +US$39.00

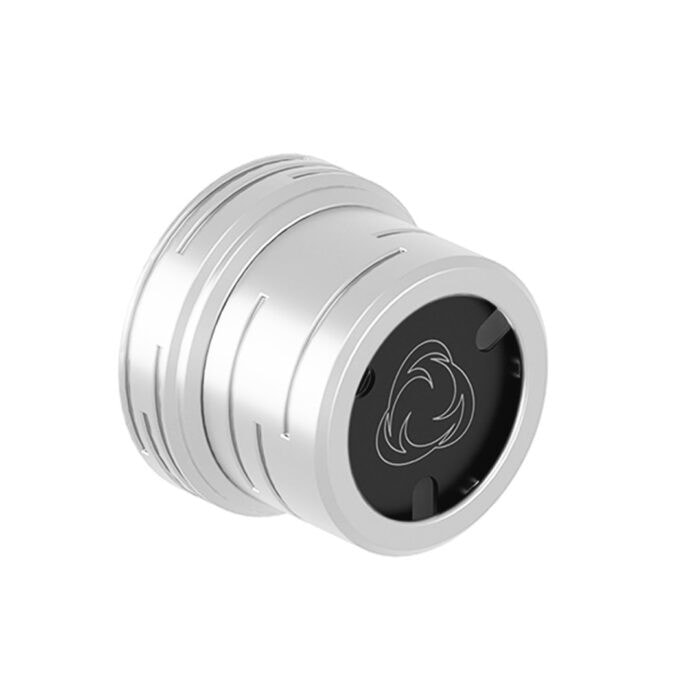

Protium D5 Pump Cover White
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x6 (optional) USD $24
None Yes +US$24.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

SC Fittings Package Portal (optional) USD $204
None Yes +US$204.00

SC Fittings Package Portal
All the fittings needed to build the water-cooling system into this case.
Included Fittings:
– 16mm Hardline Compression: x12.
– 90 Degree Rotary: x9.
– Low Profile Drain Valve: x1.

SC Cerakote Fittings Package Portal
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

PowerBoard

PowerBoard (optional) USD $149
None Yes +US$149.00

Portal PowerBoard
The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Portal PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.

Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Shift Motherboard 24pin 90 Degree Adaptor (optional) USD $24.50
None Yes +US$24.50

Shift Motherboard 24pin 90 Degree Adaptor
The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.

Touch Power Button (optional) USD $29
None Yes +US$29.00

Touch Power Button
Touch Activated Power Button to replace the stock Vandal Switch.

PowerBoard PSU Cable Kit (optional) USD $79
None Yes +US$79.00

PowerBoard PSU Cable Kit
Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs.

Mounting

VESA Mount (optional) USD $29
None Yes +US$29.00

Vesa Mount
Powdercoated Steel VESA Mount Plate for wall mounting.

Additional options

Atlas Stand Set (optional) USD $119
None Yes +US$119.00

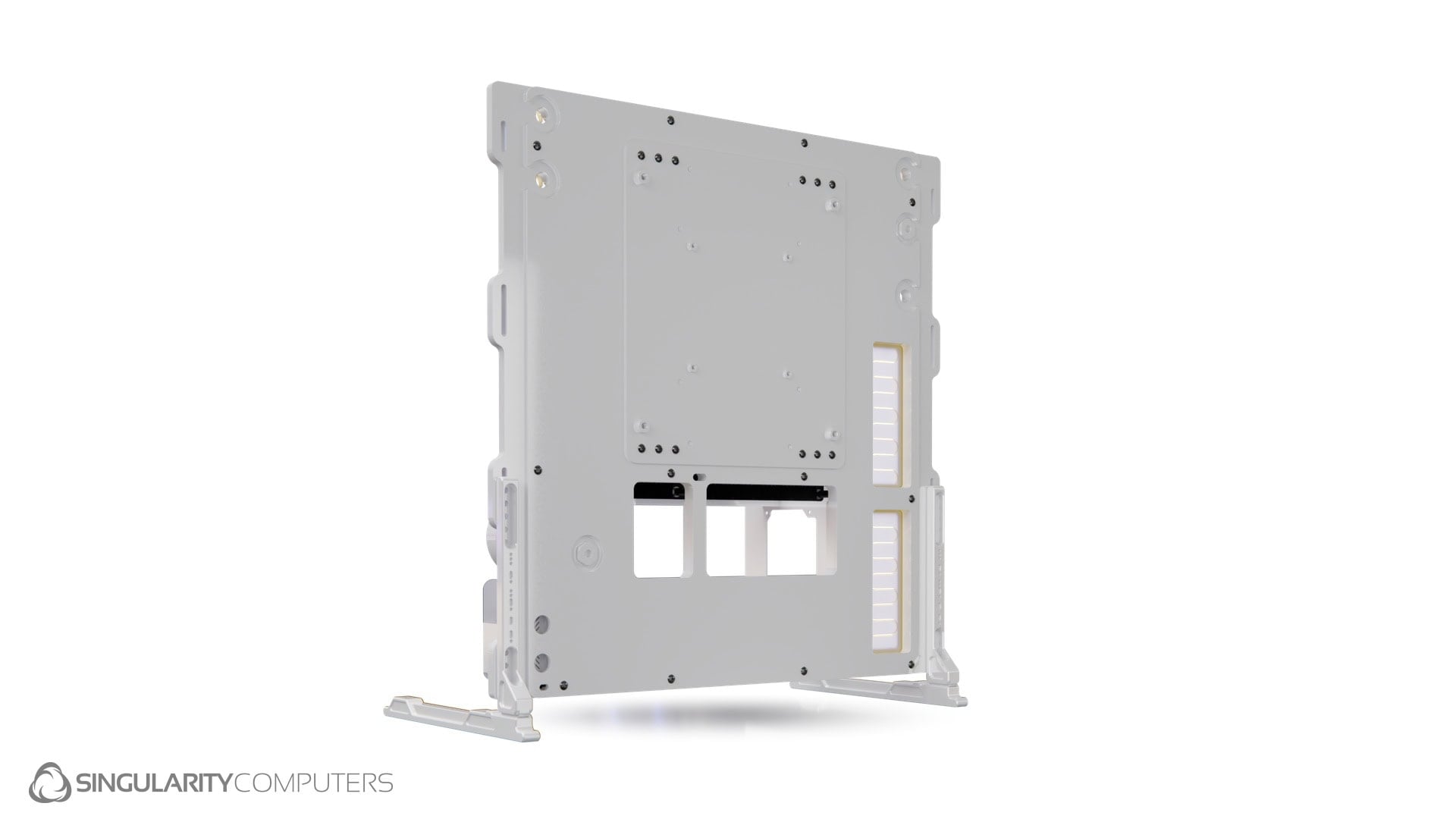

Atlas Stand Set
CNC machined black anodized 6061 aluminum legs and feet for standing the case on a desk if it will not be wall mounted.

  • 1x Portal Wall Mount Water-cooling Case Advanced White
    US$599.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003145 SKU: SC-PORT-WM-A-W Categories: ,

Description

Read More +Read Less − full description

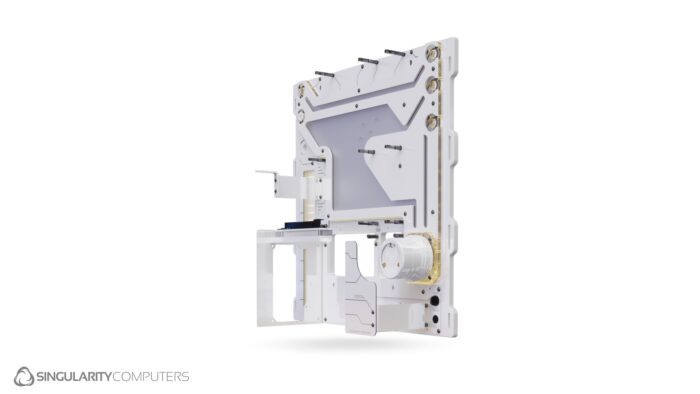

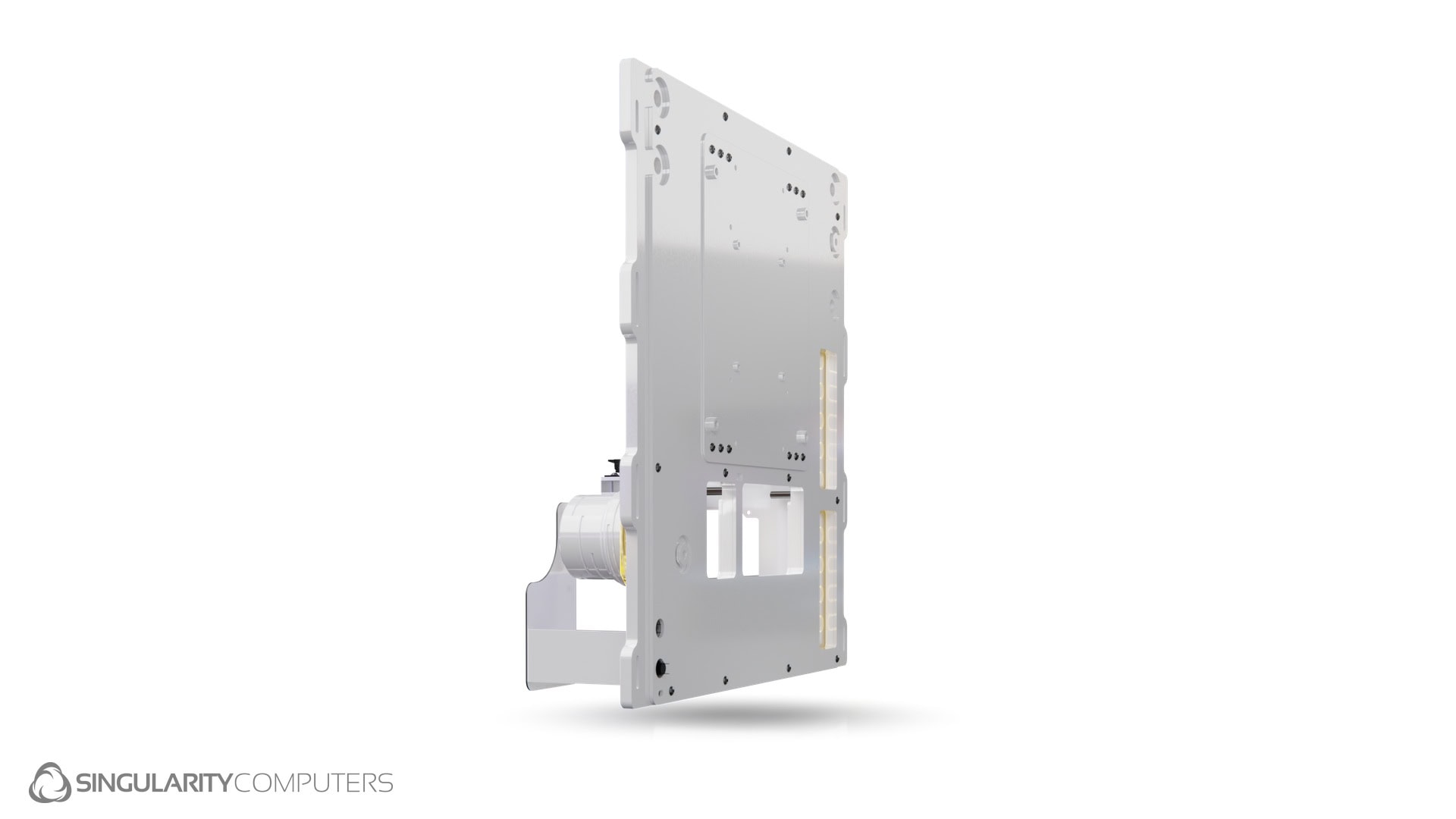

Portal is an open wall mounted display case. It fits 2x 420mm radiators, one on each side of the motherboard. There is no limitation to radiator or fan thickness. It has an integrated distribution plate with D5 pump top and reservoir and parts of the loop are also integrated for short and clean loop routing. The GPU mounts horizontally or vertically depending on the options selected below. Portal fits ATX or E-ATX motherboards and ATX PSUs. The rear IO cables pass through to the back of the case and can be run down the wall or behind the case if it is used with the optional stands. There is a PowerBoard option to improve cable management. Portal has power and reset buttons in the bottom right corner and also has the option of a touch button. Select Acrylic cover color and finish options below.

Portal Wall Mount Water-cooling Case Advanced:
Portal Wall Mount Water-cooling Case Advanced comes with a number of additions compared to the stock version of Portal. There is a full rear cover which you can select the color and finish of below. This doesn’t just color the covers on the front but also on the back and behind the loop routes. It also comes with black PCB covers which have silver graphics and a PSU cable cover.
The white version comes with white PCB covers with silver graphics and all white acrylic covers. The metal components are also powder coated in white.

Portal Wall Mount Water-cooling Advanced White With All Addons



Specifications

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x12 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Motherboard Form Factor: E-ATX, ATX, Mini-DTX, Mini-ITX.
Radiators: 420mm x2 with unlimited thickness for radiators and fans.
Maximum GPU Length: Unlimited.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: 250mm.
Front Panel I/O: No Front I/O. Vandal Switch 16mm Power & Reset.
Vertical GPU Mount: x1 with PCIE 5.0 Riser.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Folding Steel, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 468mm x W: 245mm x H: 506mm. (Without rads.)
Case Weight: 8kg.
Packaged Dimensions: L: 600mm x W: 500mm x H: 100mm. (Case is flat packed and requires partial assembly.)
Packaged Weight: 8kg.
