Portal Wall Mount Water-cooling Case
Order processing time 1-2 days.

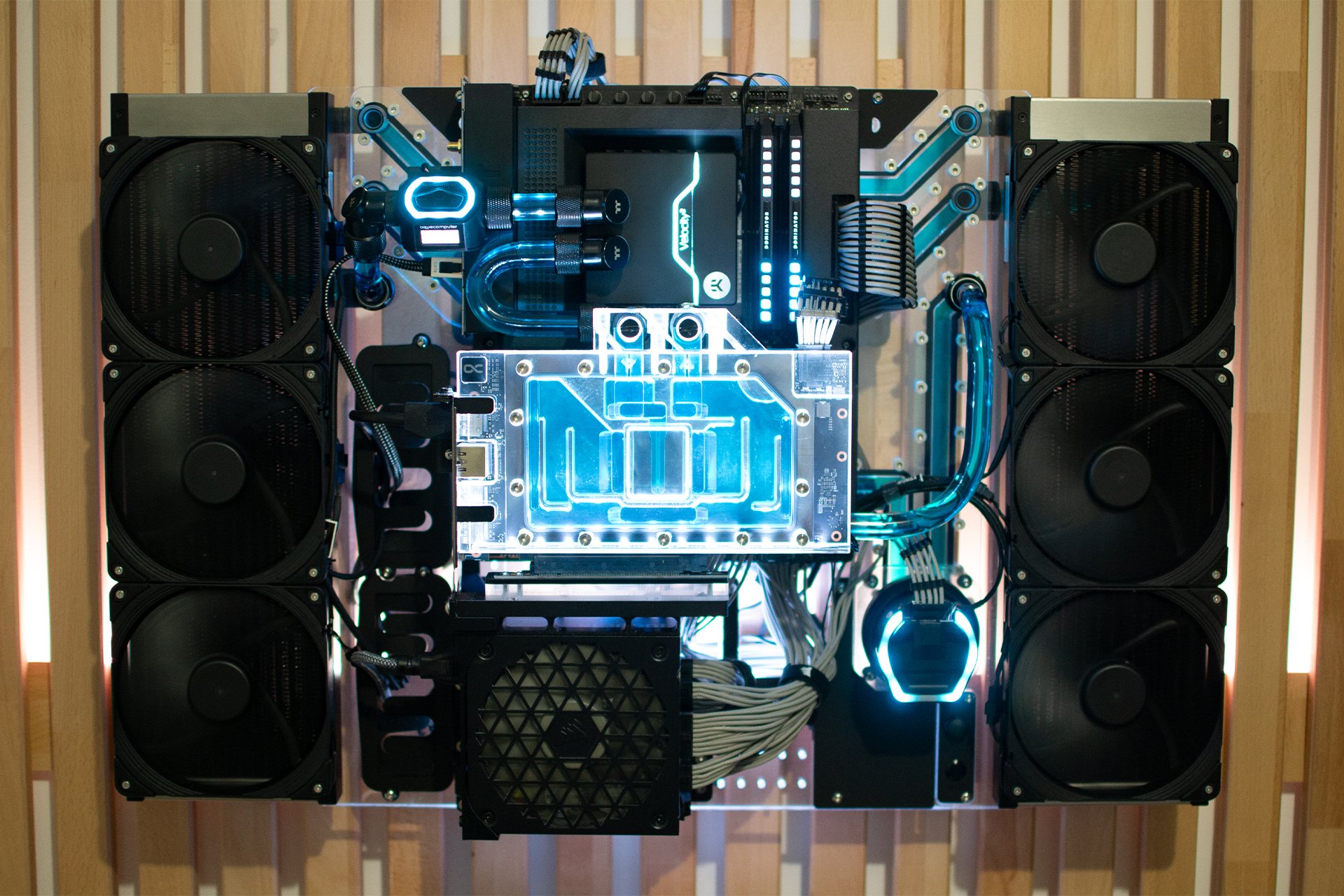

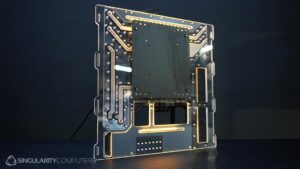

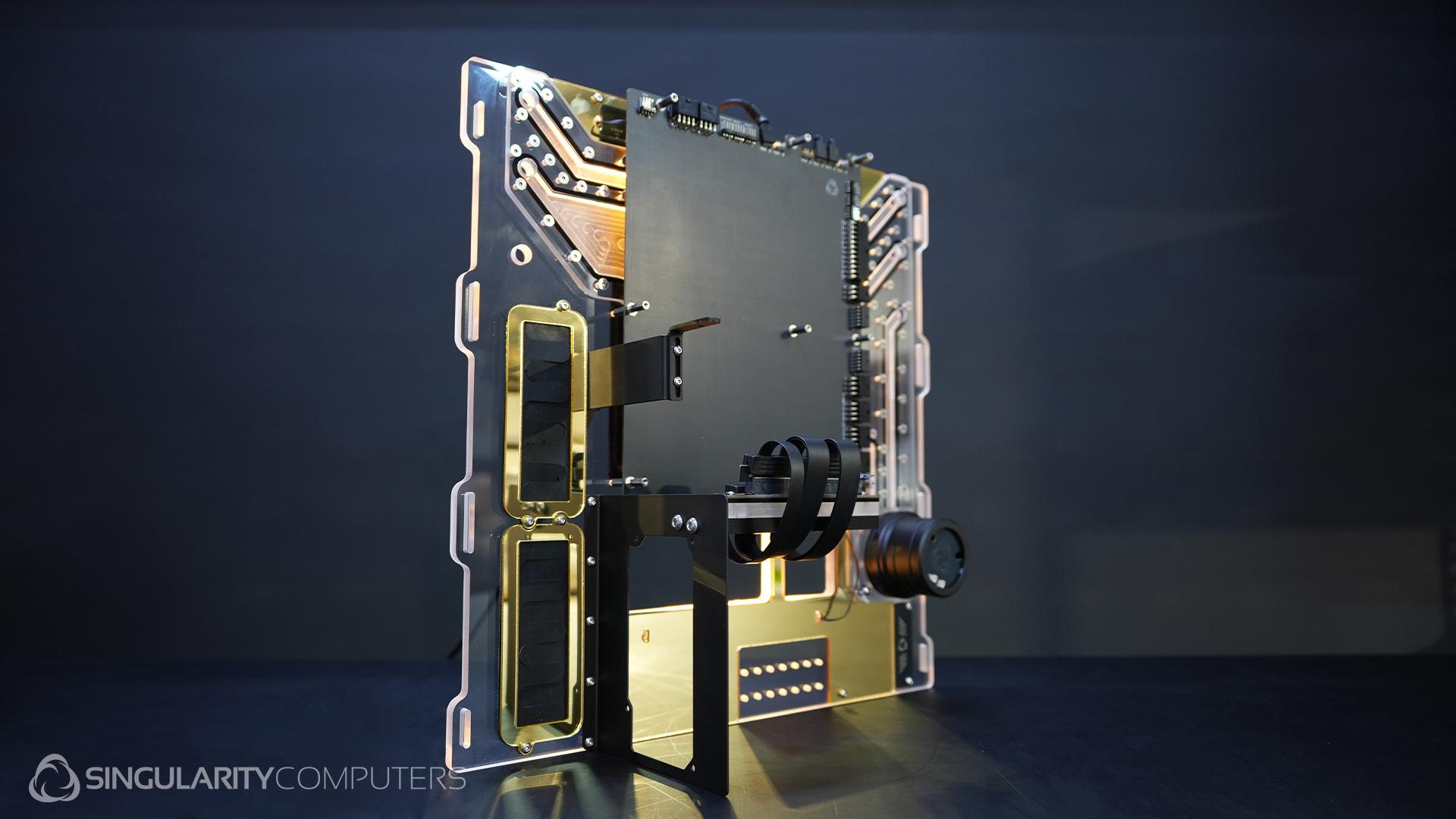

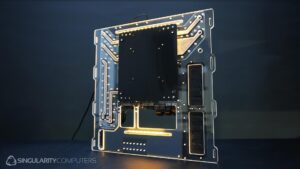

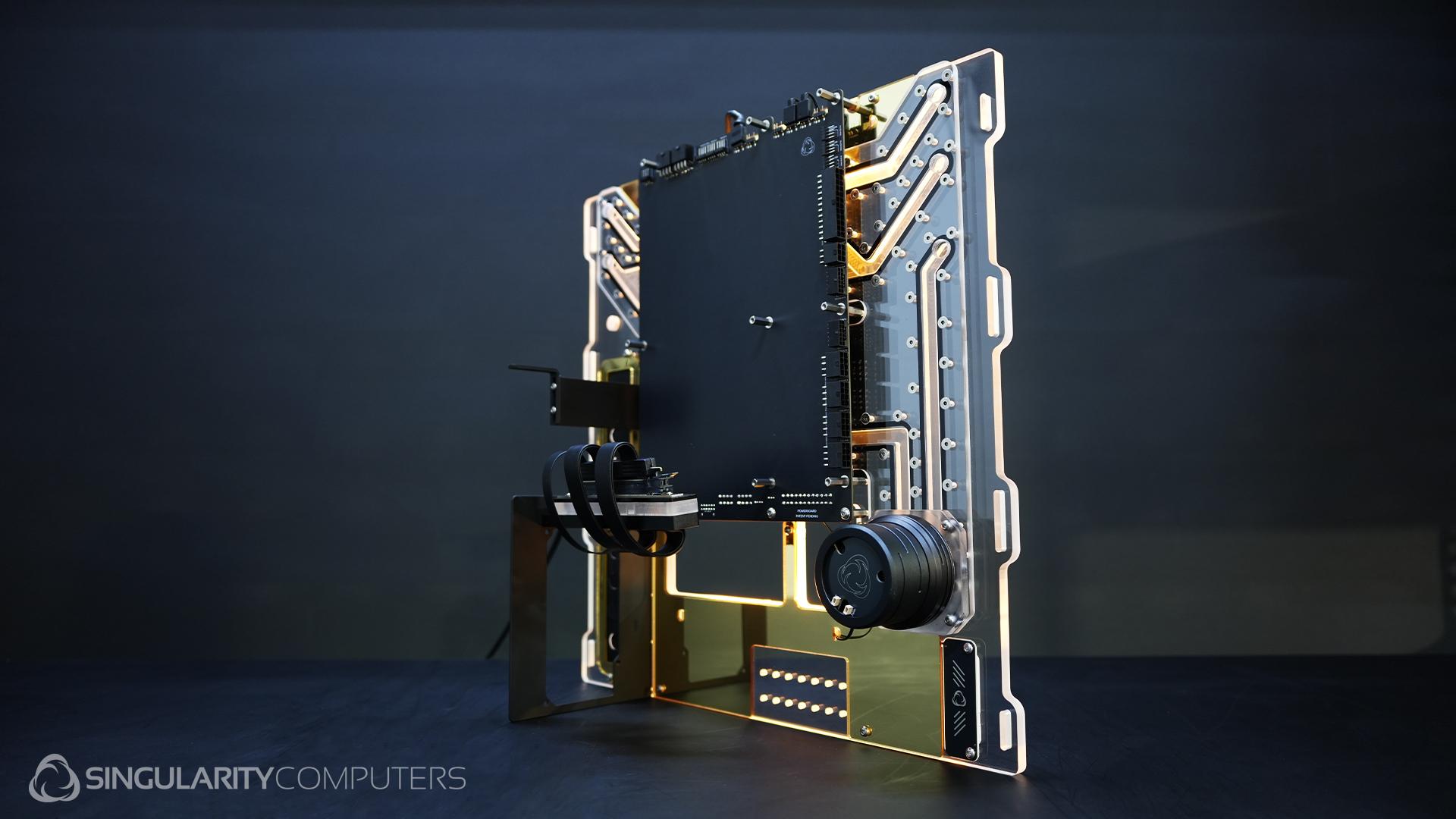

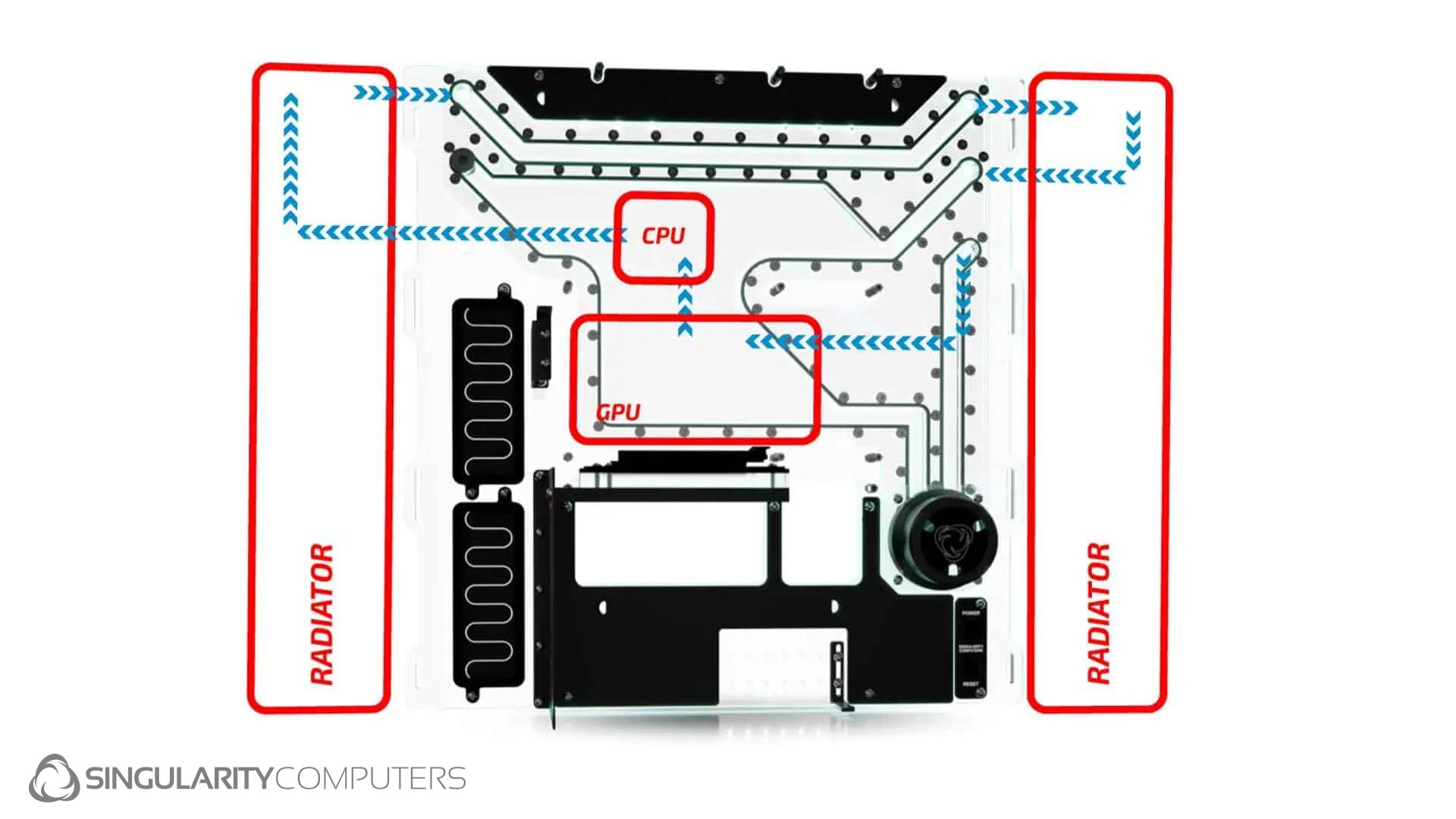

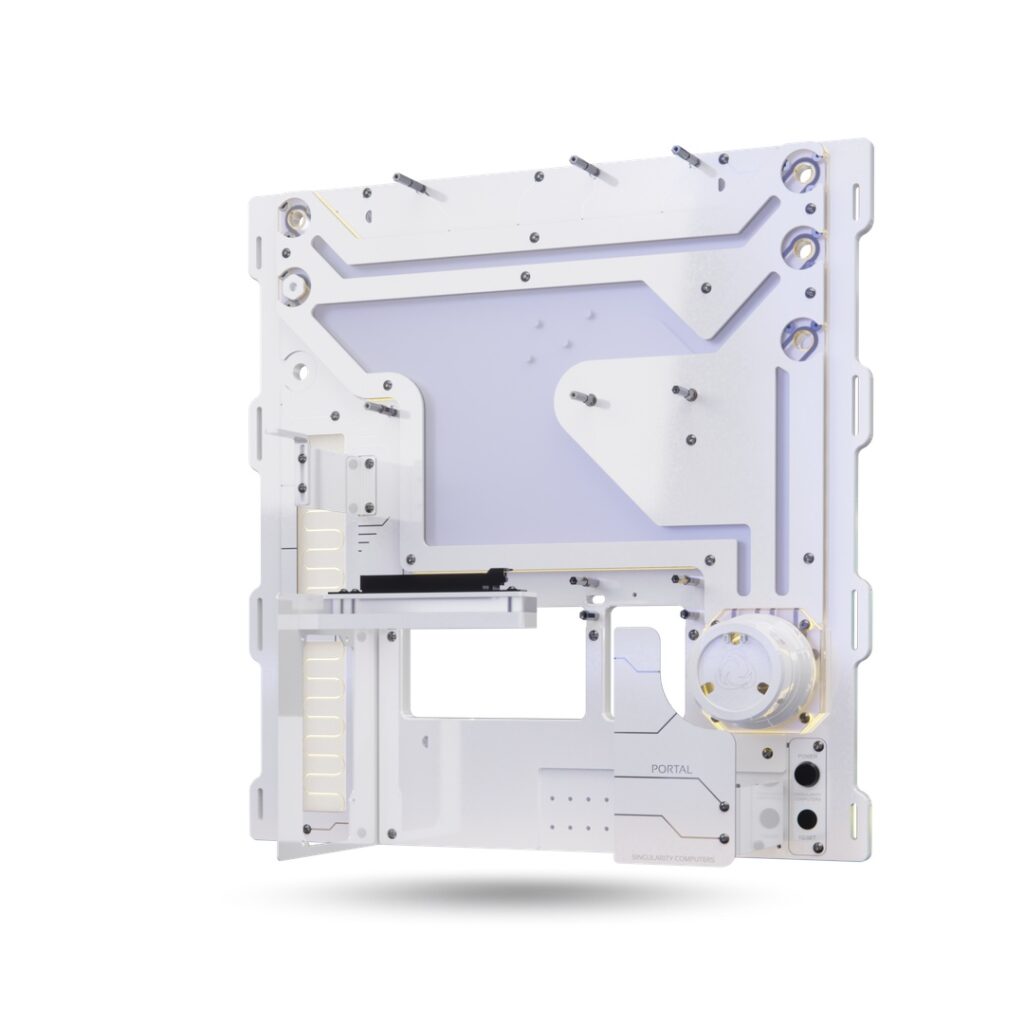

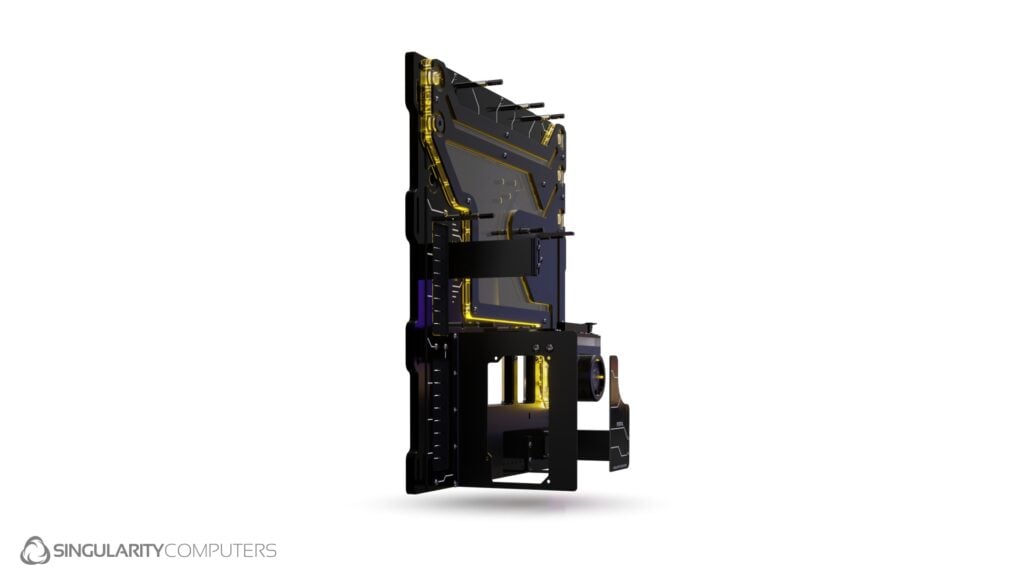

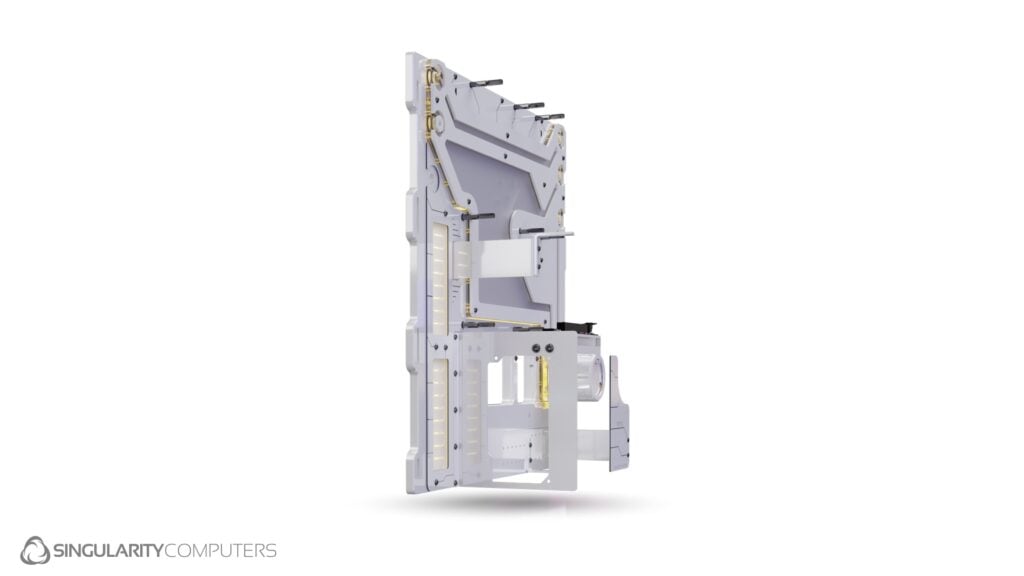

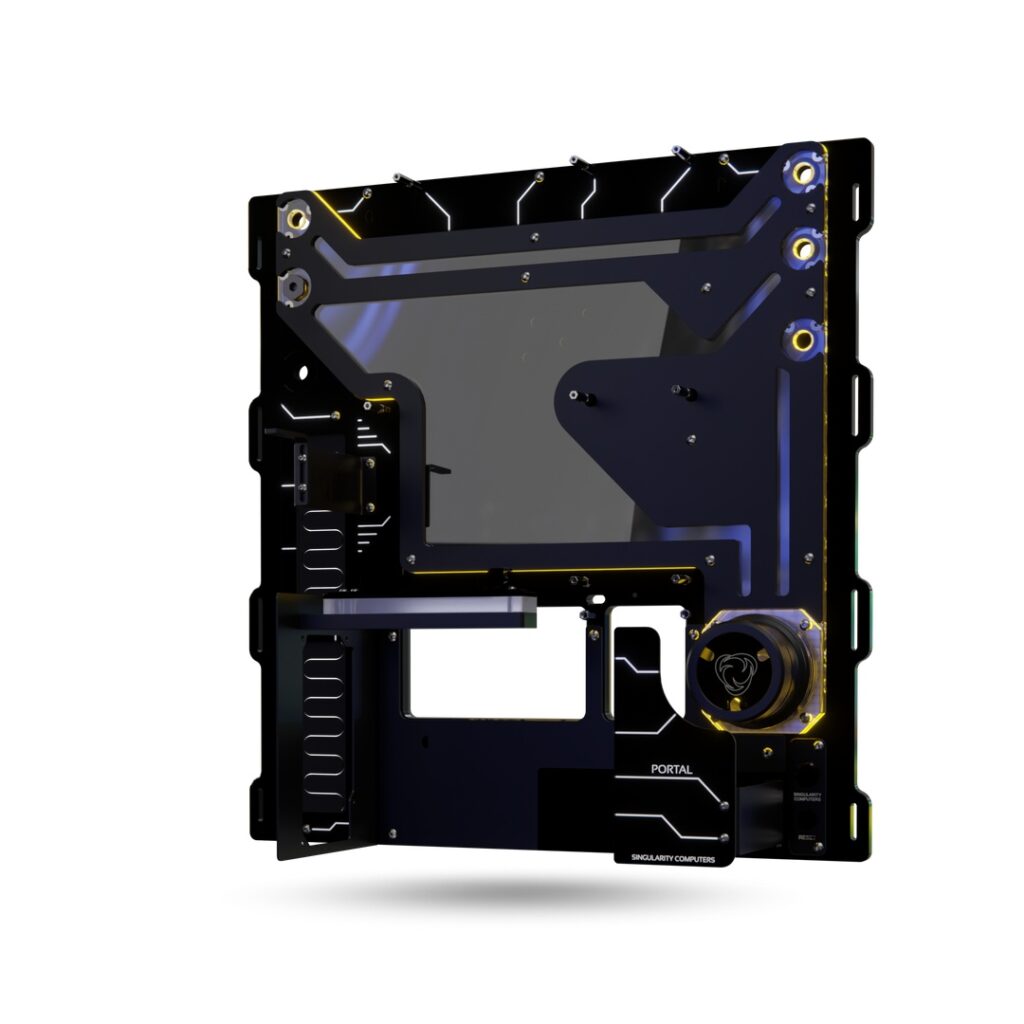

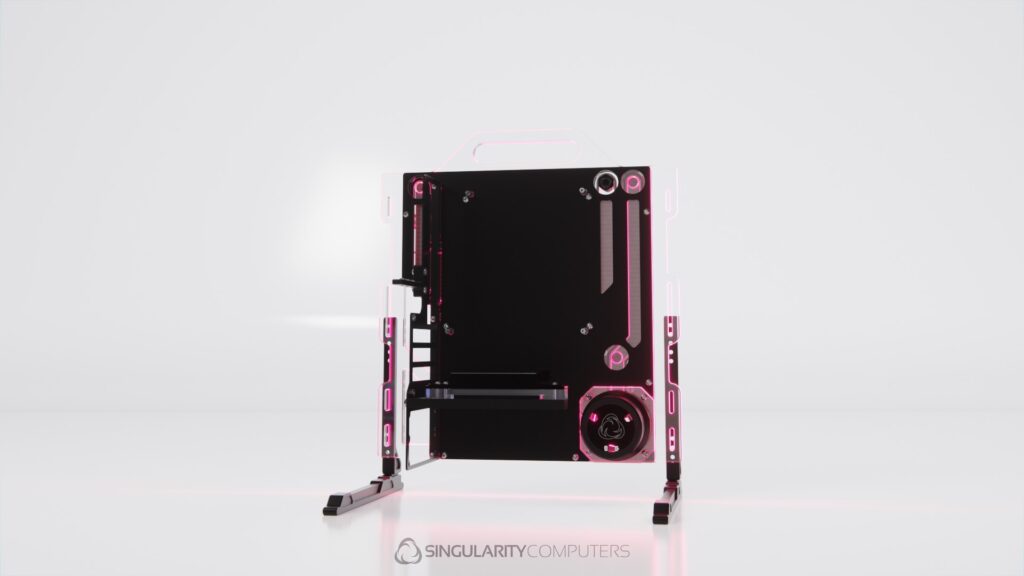

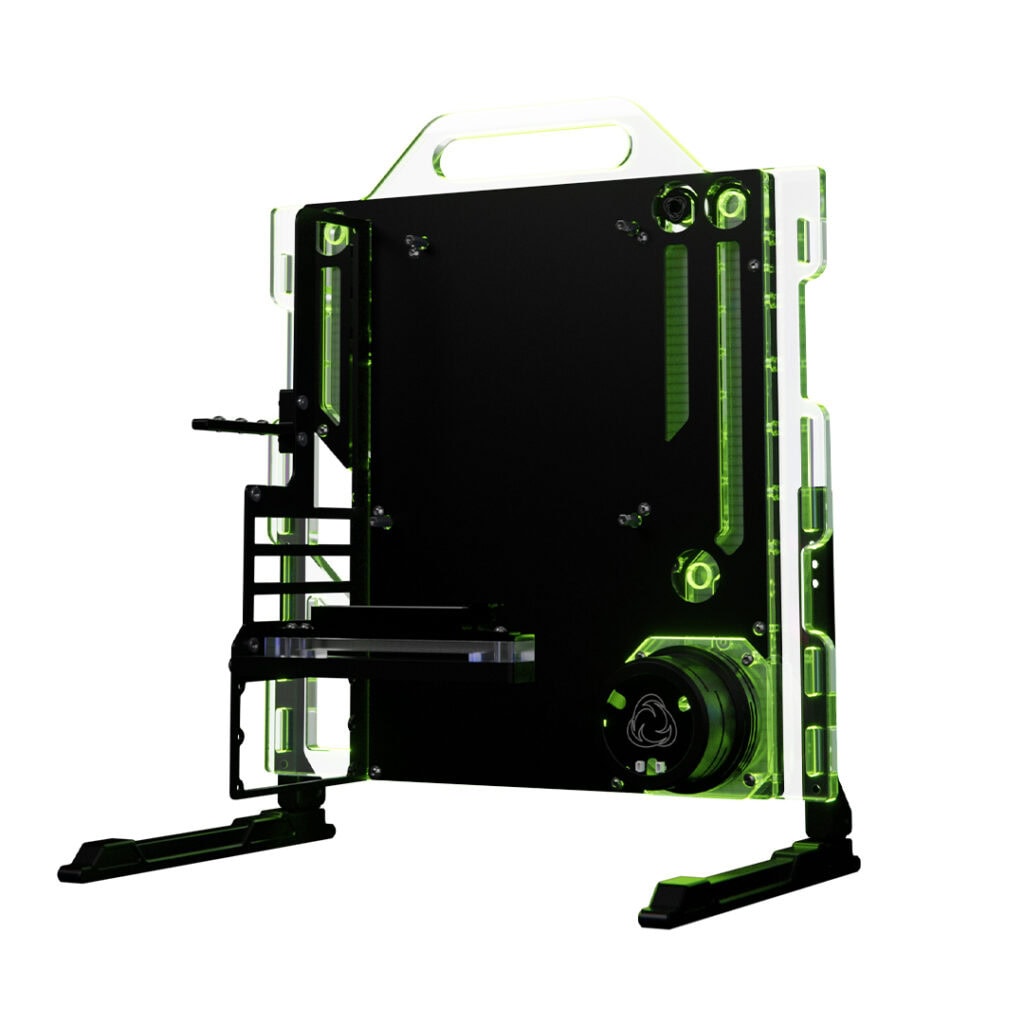

Portal is an open wall mounted display case. It fits 2x 420mm radiators, one on each side of the motherboard. There is no limitation to radiator or fan thickness. It has an integrated distribution plate with D5 pump top and reservoir and parts of the loop are also integrated for short and clean loop routing. The GPU mounts horizontally or vertically depending on the options selected below. Portal fits ATX or E-ATX motherboards and ATX PSUs. The rear IO cables pass through to the back of the case and can be run down the wall or behind the case if it is used with the optional stands. There is a PowerBoard option to improve cable management. Portal has power and reset buttons in the bottom right corner and also has the option of a touch button. Select Acrylic cover color and finish options below.
Pump not included. Compatible with any D5 Pump.
US$399.00
Specifications ▼
Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x12 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Motherboard Form Factor: E-ATX, ATX, Mini-DTX, Mini-ITX.
Radiators: 420mm x2 with unlimited thickness for radiators and fans.
Maximum GPU Length: Unlimited.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: 250mm.
Front Panel I/O: No Front I/O. Vandal Switch 16mm Power & Reset.
Vertical GPU Mount: x1 with PCIE 5.0 Riser.
VESA Mount: 200mm x 200mm M6.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Folding Steel, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: TBA.
Case Weight: TBA.
Packaged Dimensions: L: 600mm x W: 500mm x H: 100mm. (Case is flat packed and requires partial assembly.)
Packaged Weight: 8kg.
Addon Information ▼
Atlas Portal Stand Set
PowerBoard VESA Mount
Vertical GPU Mount Horizontal GPU Mount
Touch Power Button Shift Motherboard 24pin 90 Degree Adaptor
Protium 3.0 D5 Pump PowerBoard PSU Cable Kit

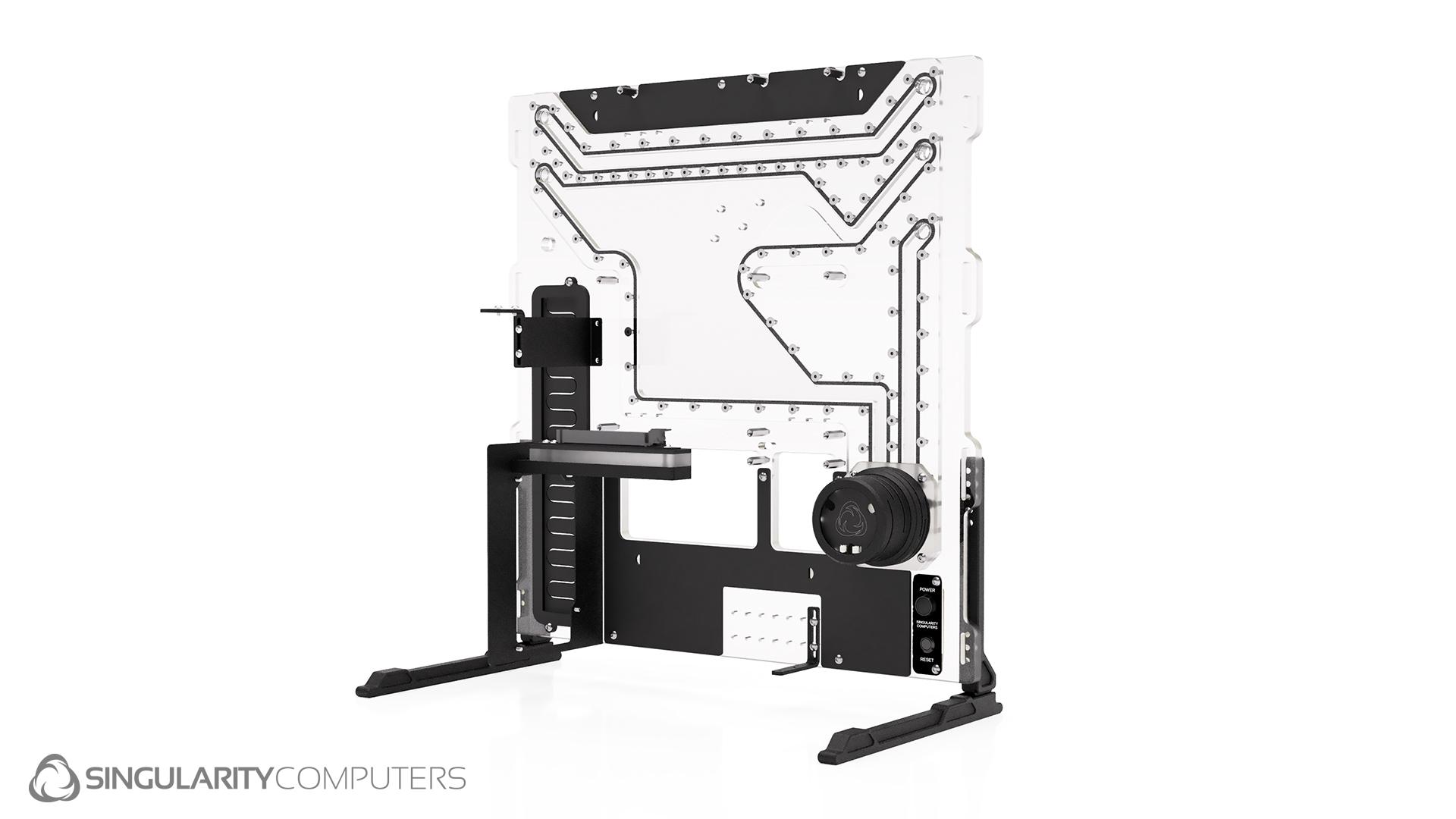

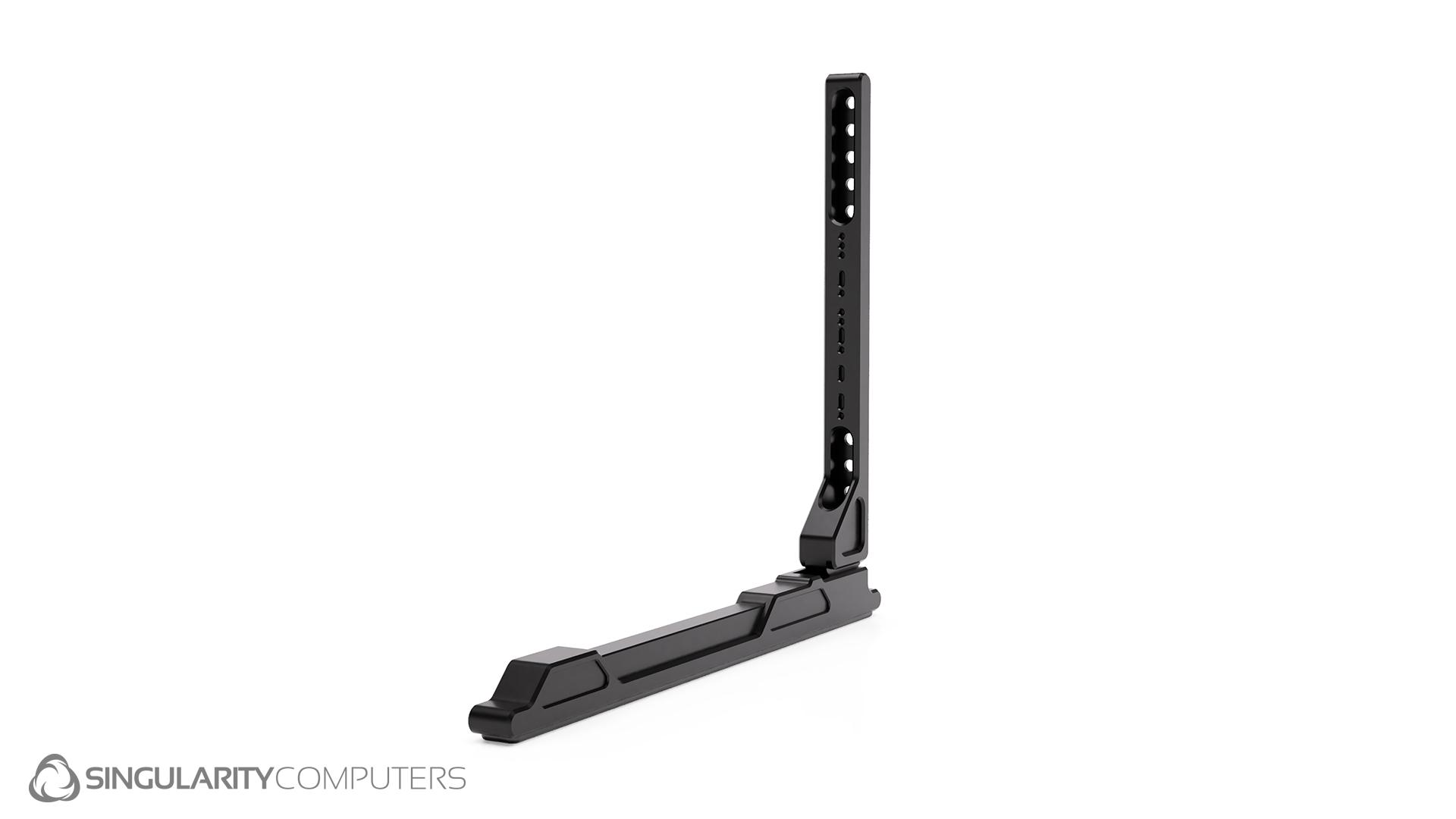

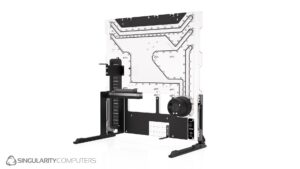

Atlas Portal Stand Set: CNC machined black anodized 6061 aluminum legs and feet for standing the case on a desk if it will not be wall mounted.
PowerBoard: The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Portal PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.
VESA Mount: Powdercoated Steel VESA Mount Plate for wall mounting.
Vertical GPU Mount: CNC milled 6061 anodized aluminium and acrylic mount with PCIE 5.0 Riser Cable.

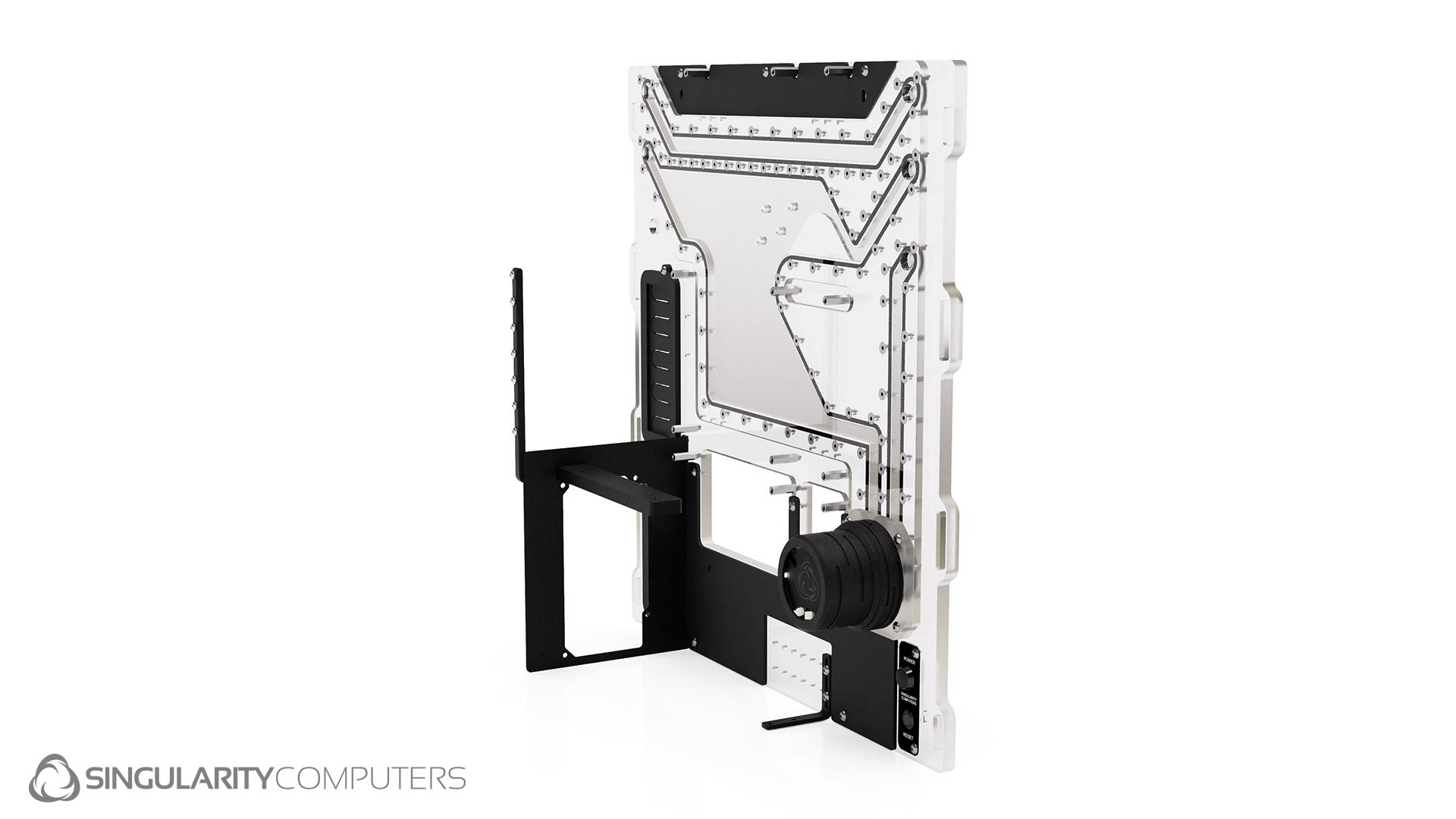

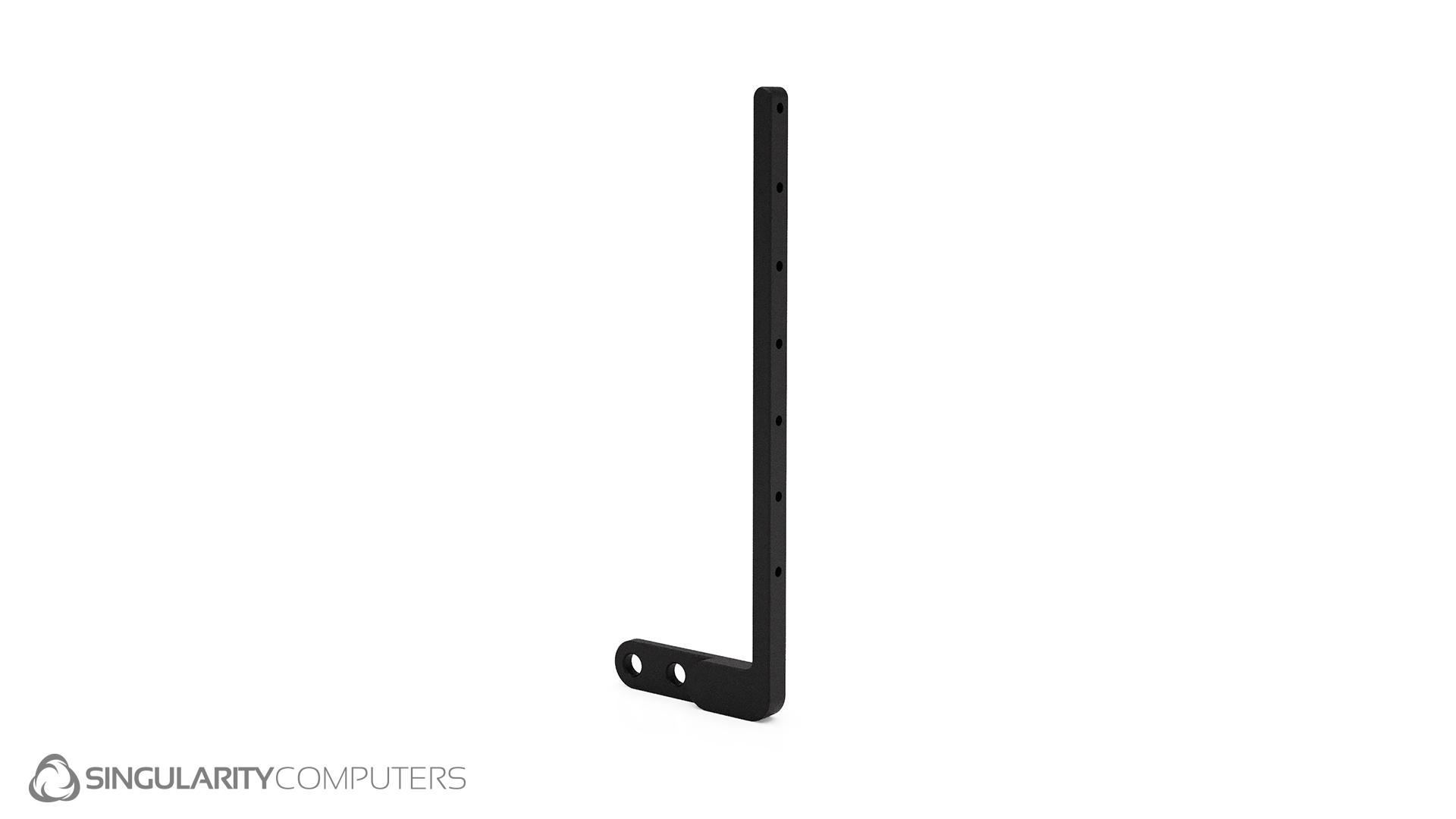

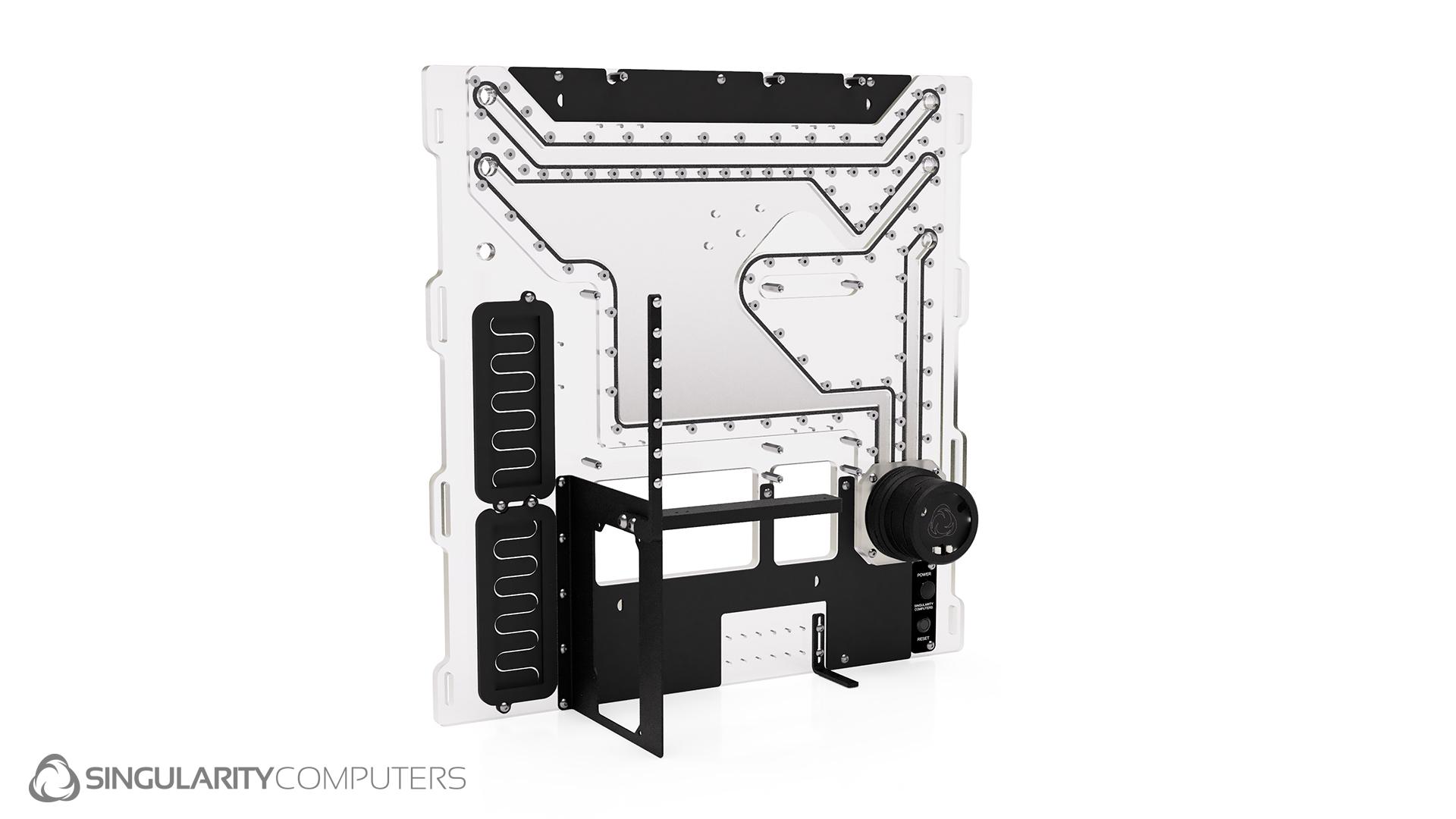

Horizontal GPU Mount: CNC milled 6061 anodized aluminium Horizontal GPU mount bracket.
Touch Power Button: Touch Activated Power Button to replace the stock Vandal Switch.
Shift Motherboard 24pin 90 Degree Adaptor: Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables. Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.
Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.

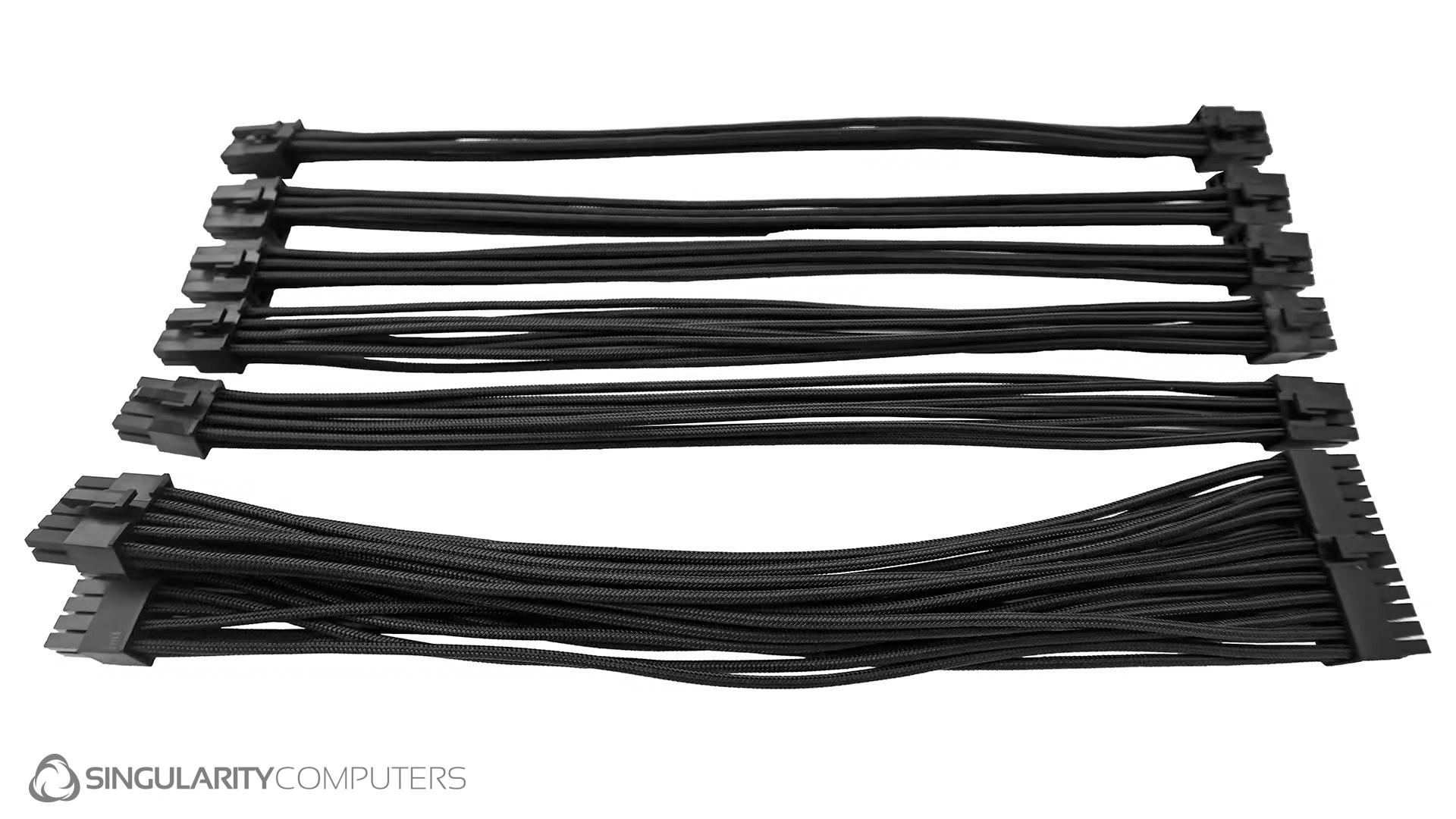

PowerBoard PSU Cable Kit: Designed to be connected from the PSU to the PowerBoard. Stock PSU cables will work with the PowerBoard on the input side but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
SC Fittings Package Portal
Included Fittings:
16mm Hardline Compression x12.
90 Degree Rotary: x9.
Low Profile Drain Valve x1.
