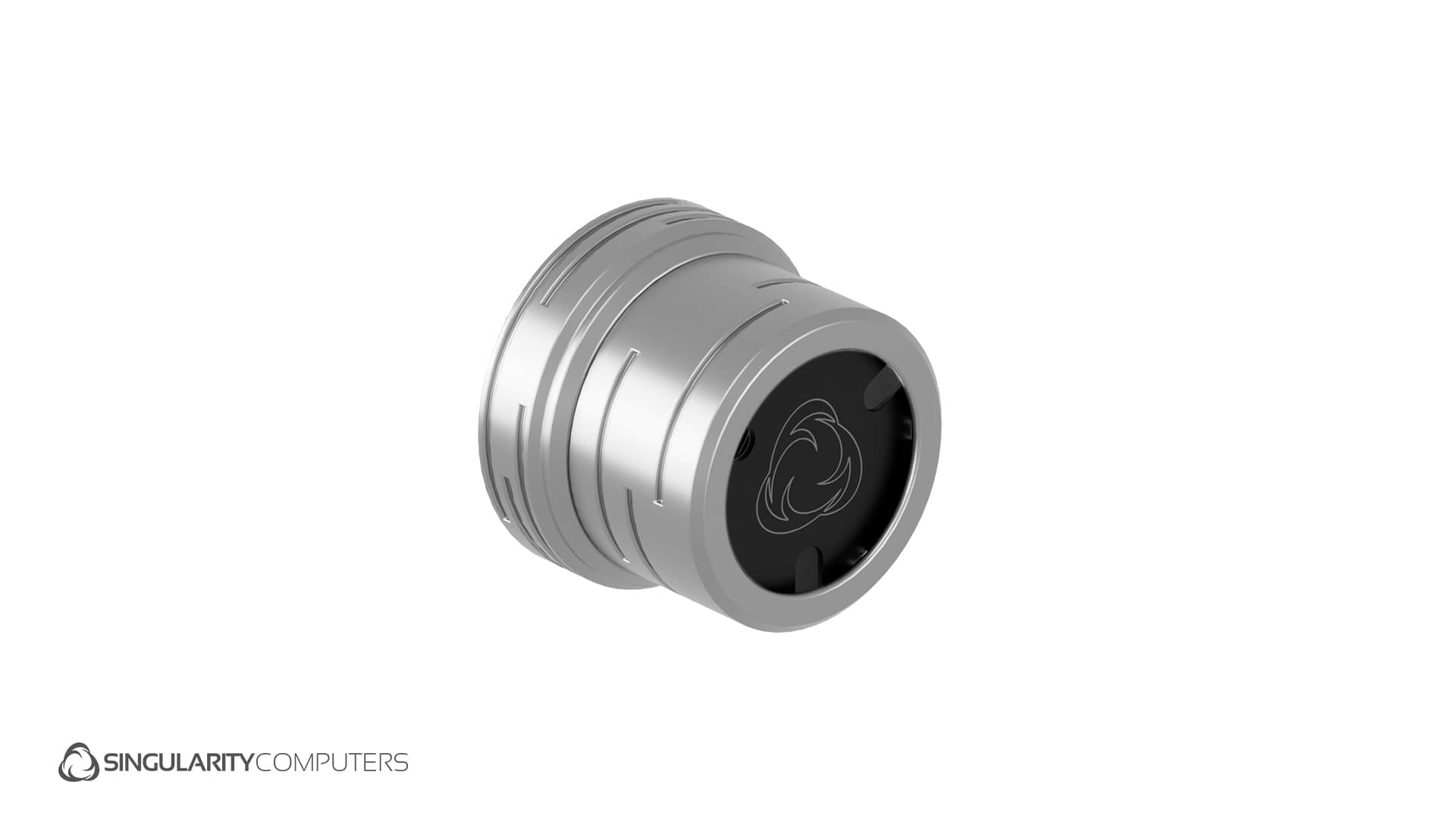

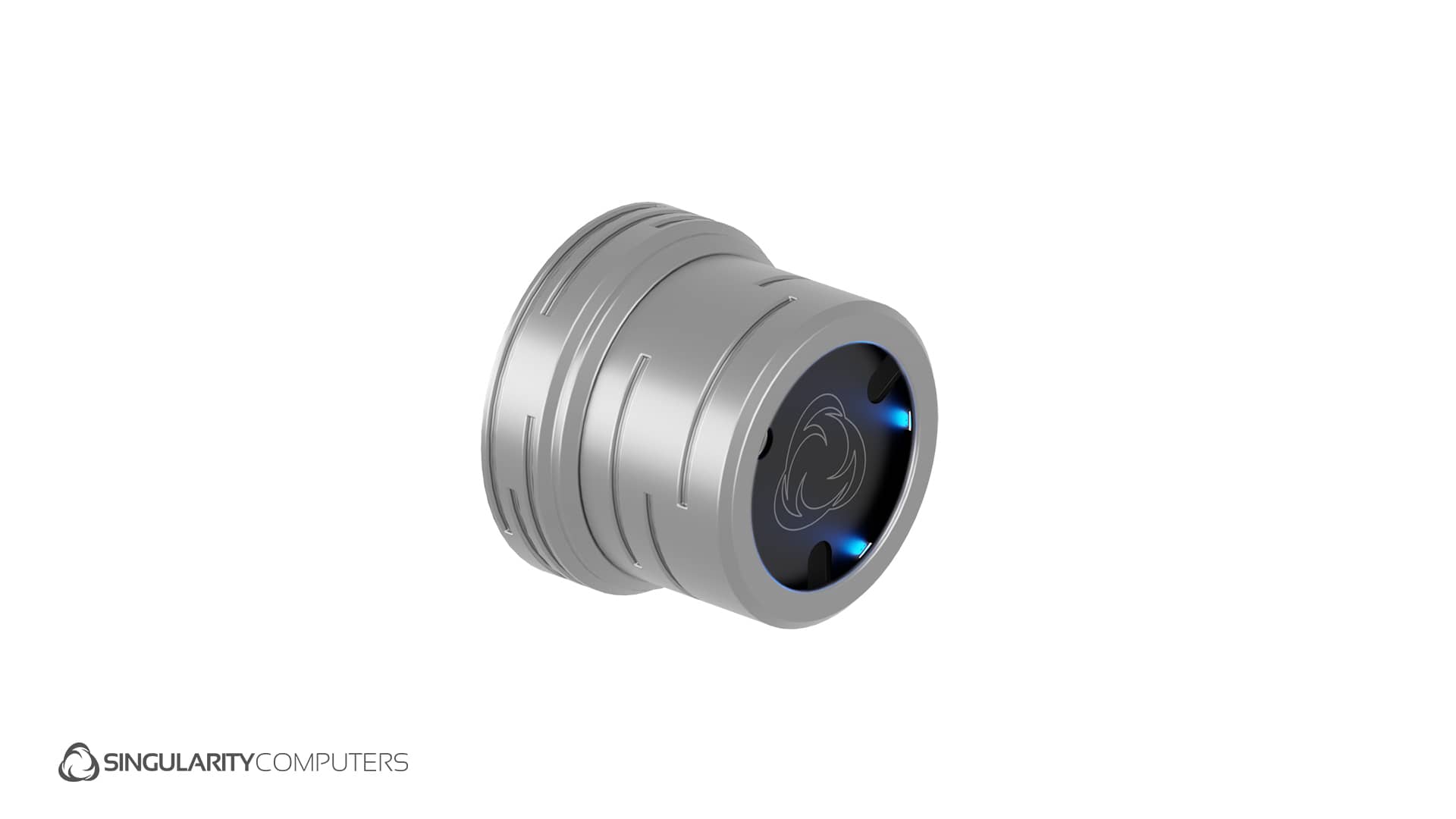

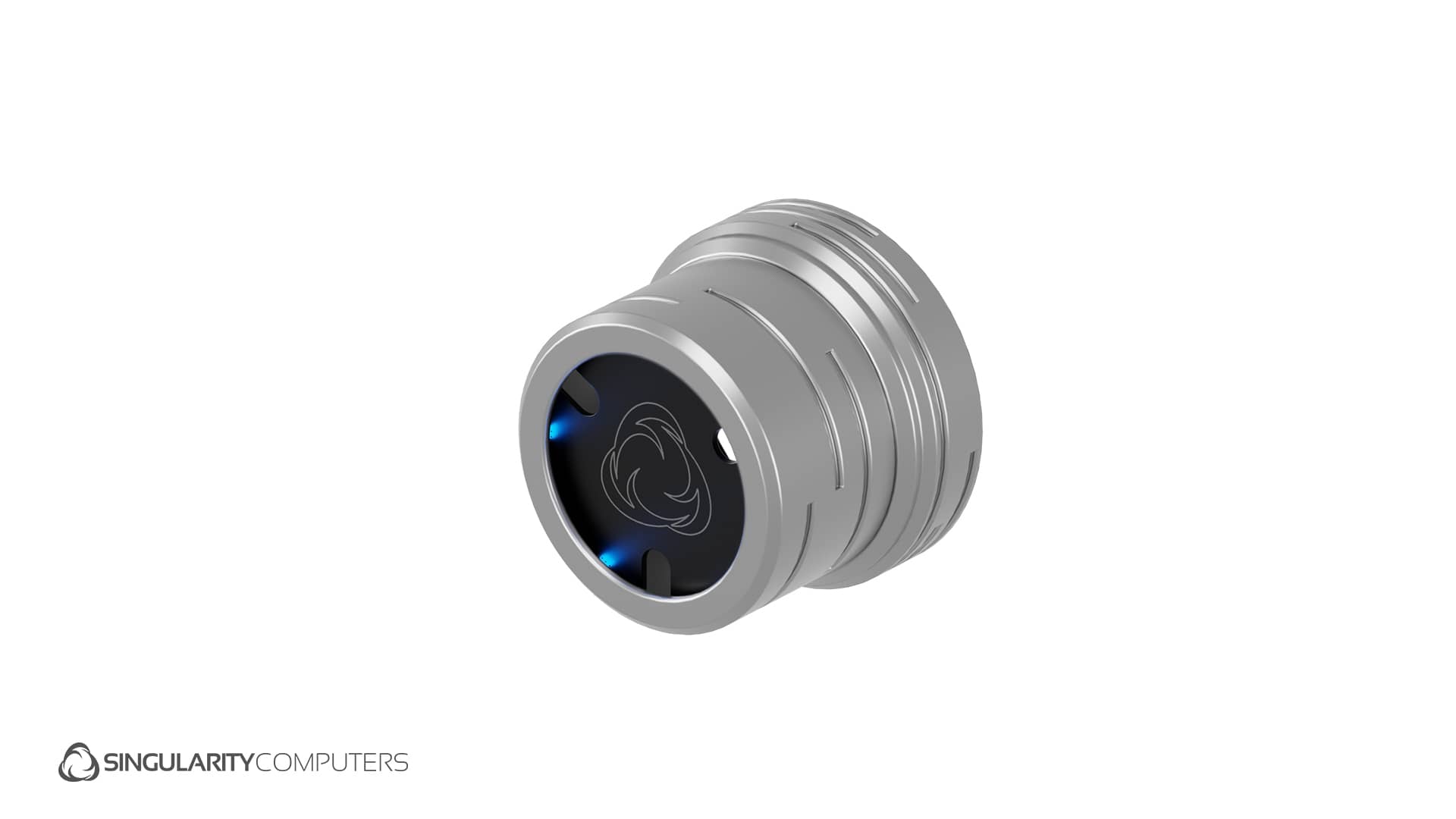

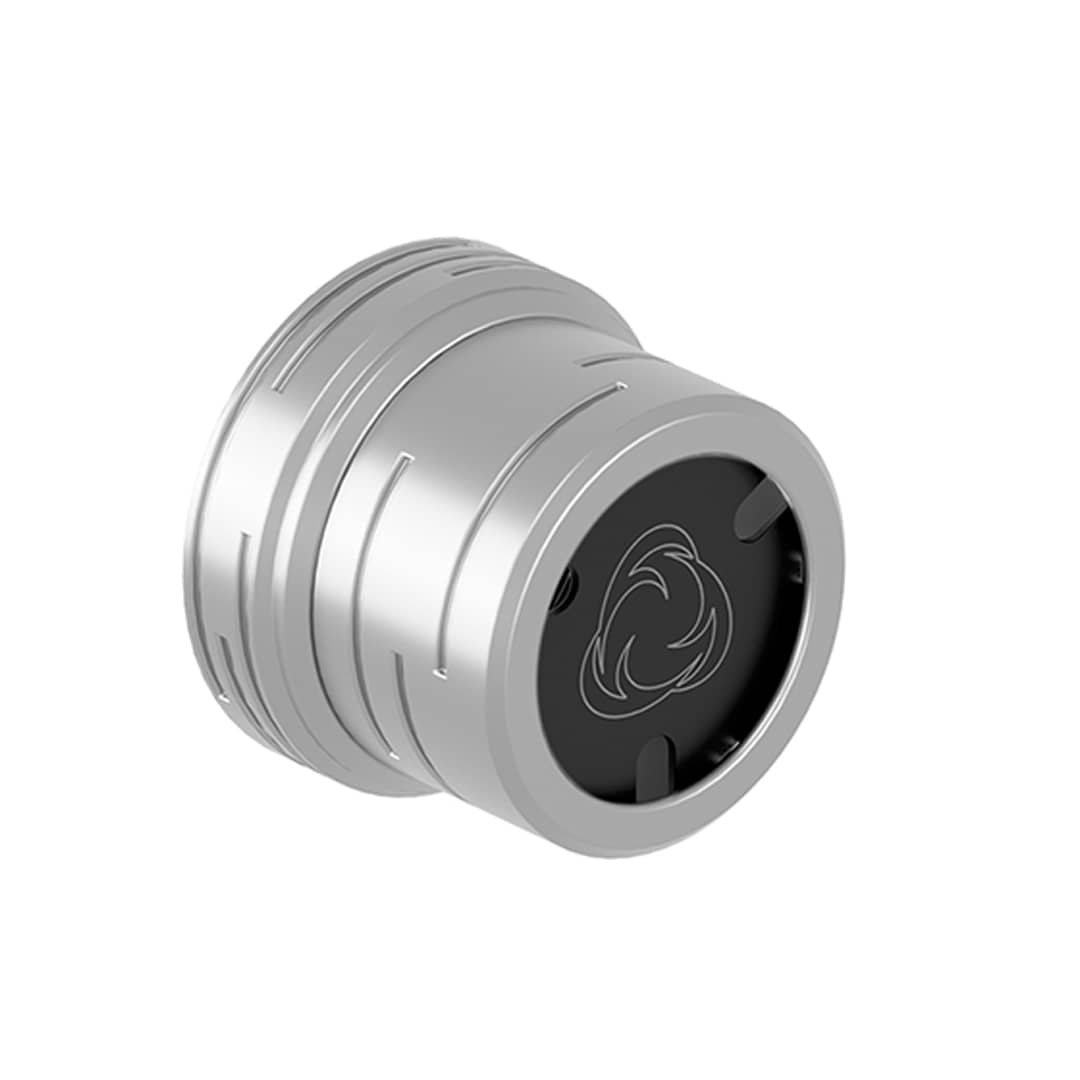

Protium 3.0 ARGB D5 Cover Silver
Order processing time 1-2 days.

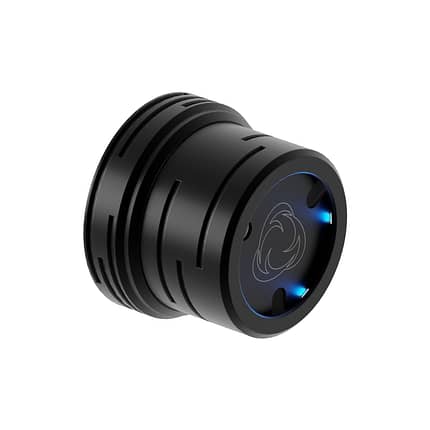

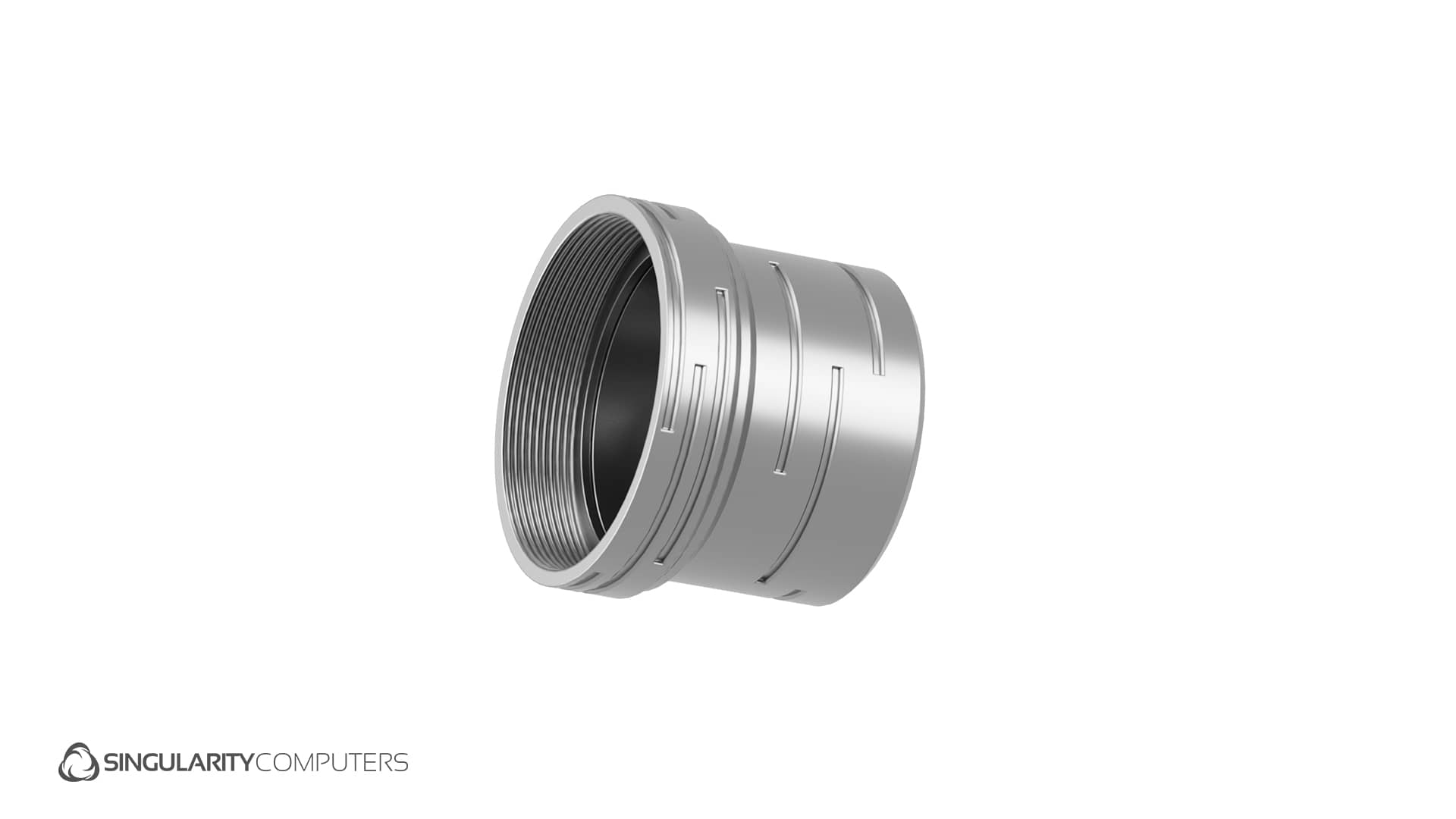

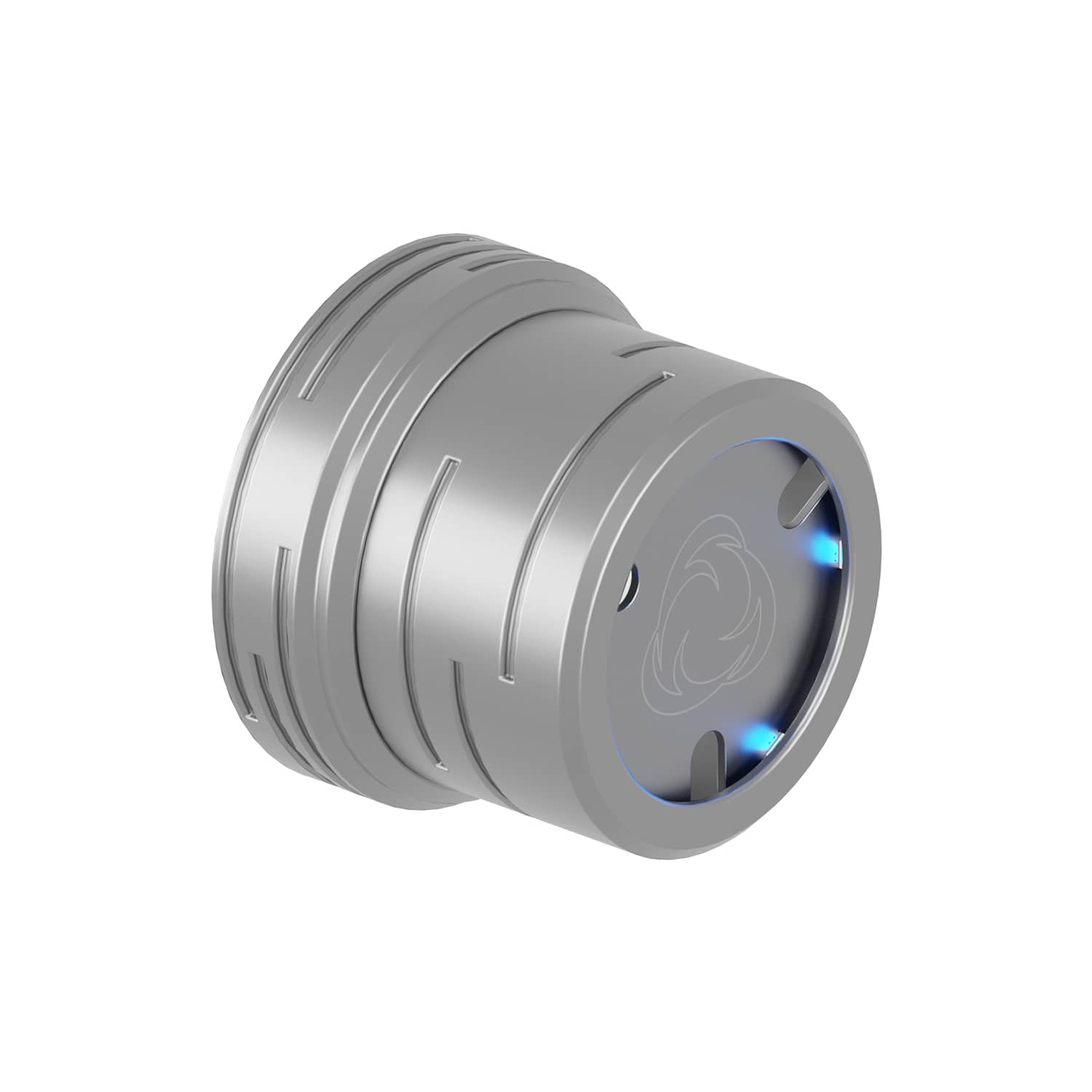

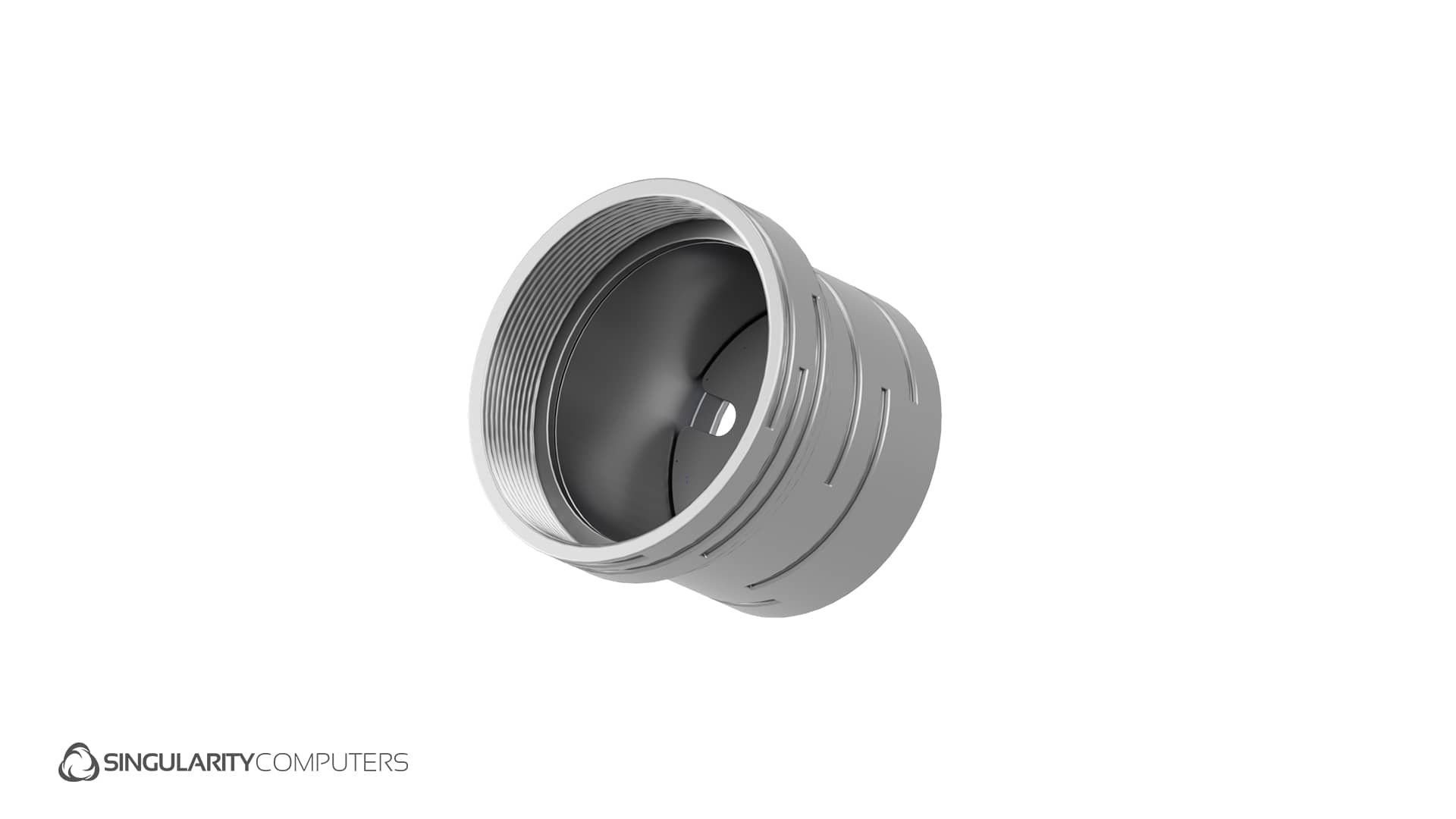

The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.
Note: Compatible with all Singularity Computers Distribution Plates and cases with integrated Distribution Plates. Backwards compatible with Protium 1.0, 2.0.
US$69.00
Specifications:
SC Protium 3.0 ARGB D5 Cover: Black or Silver. Anodized. CNC Machined.
1.6mm PCB Black. Addressable ARGB/DRGB 5V: 6 LEDs. Back 500mm Cable.
D5 Pump Anti Vibration Foam.
Dimensions: L: 76mm x W: 76mm x H: 58mm.
Weight: 0.1kg.
Packaged Dimensions: L: 85mm x W: 85mm x H: 120mm.
Packaged Weight: 0.15kg.
Installation:
Fit the PCB inside of the pump cover with the LEDs facing away from the pump. Push the pump into the pump top (don’t forget the O-Ring) and hold it there while attaching the pump cover via the thread. Tighten firmly.

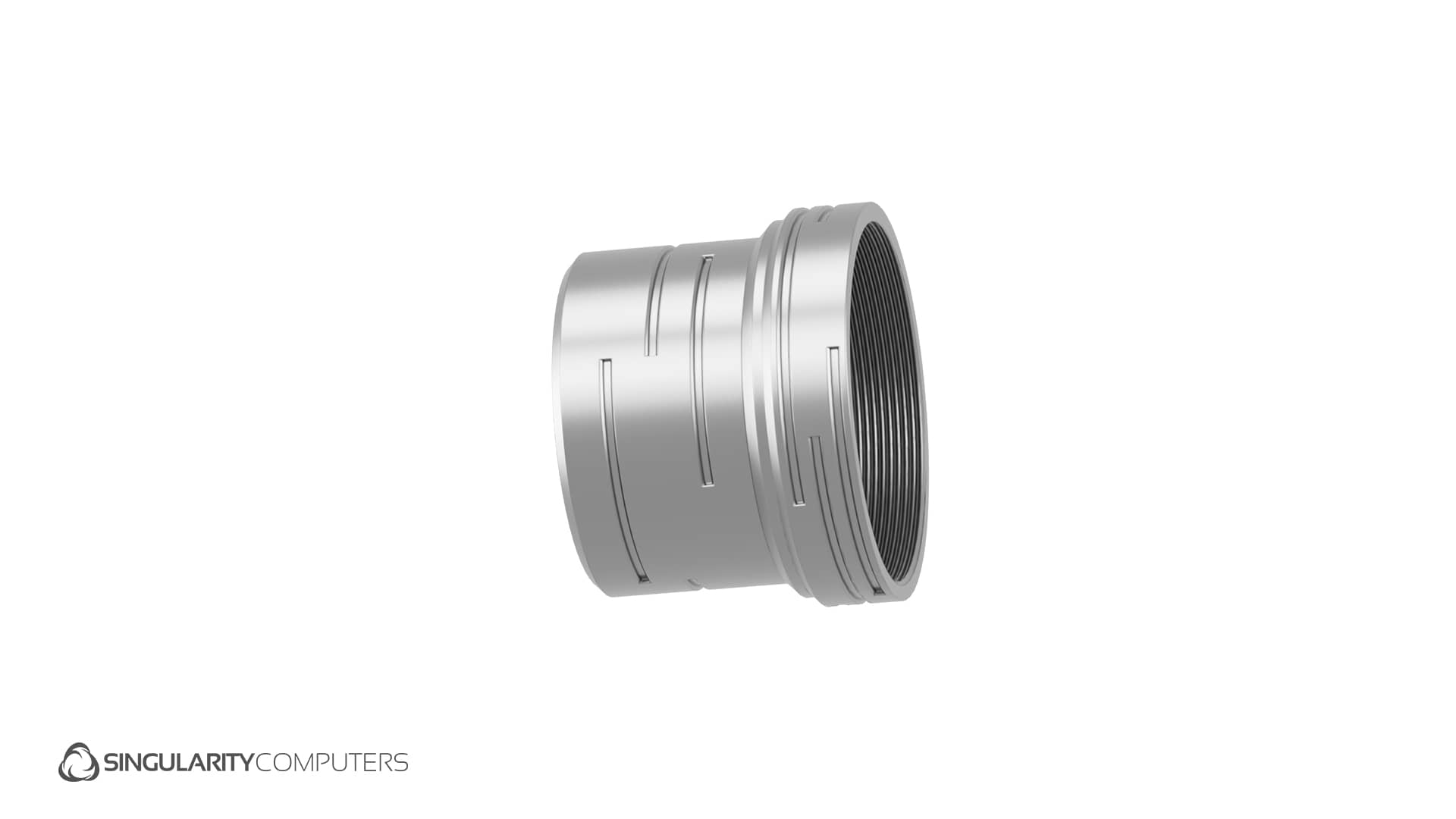

Always air pressure test before filling your loop. The pump cover has a 3-piece design including the retention ring, cover body and rear cover PCB. For pumps such as the Aquacomputer D5 Next the retention ring can be used on its own to mount the pump.
Compatible with Singularity Computers Products Only.
