Spectre 4 Dual Loop Side Panel V2
Order processing time 1-2 days.

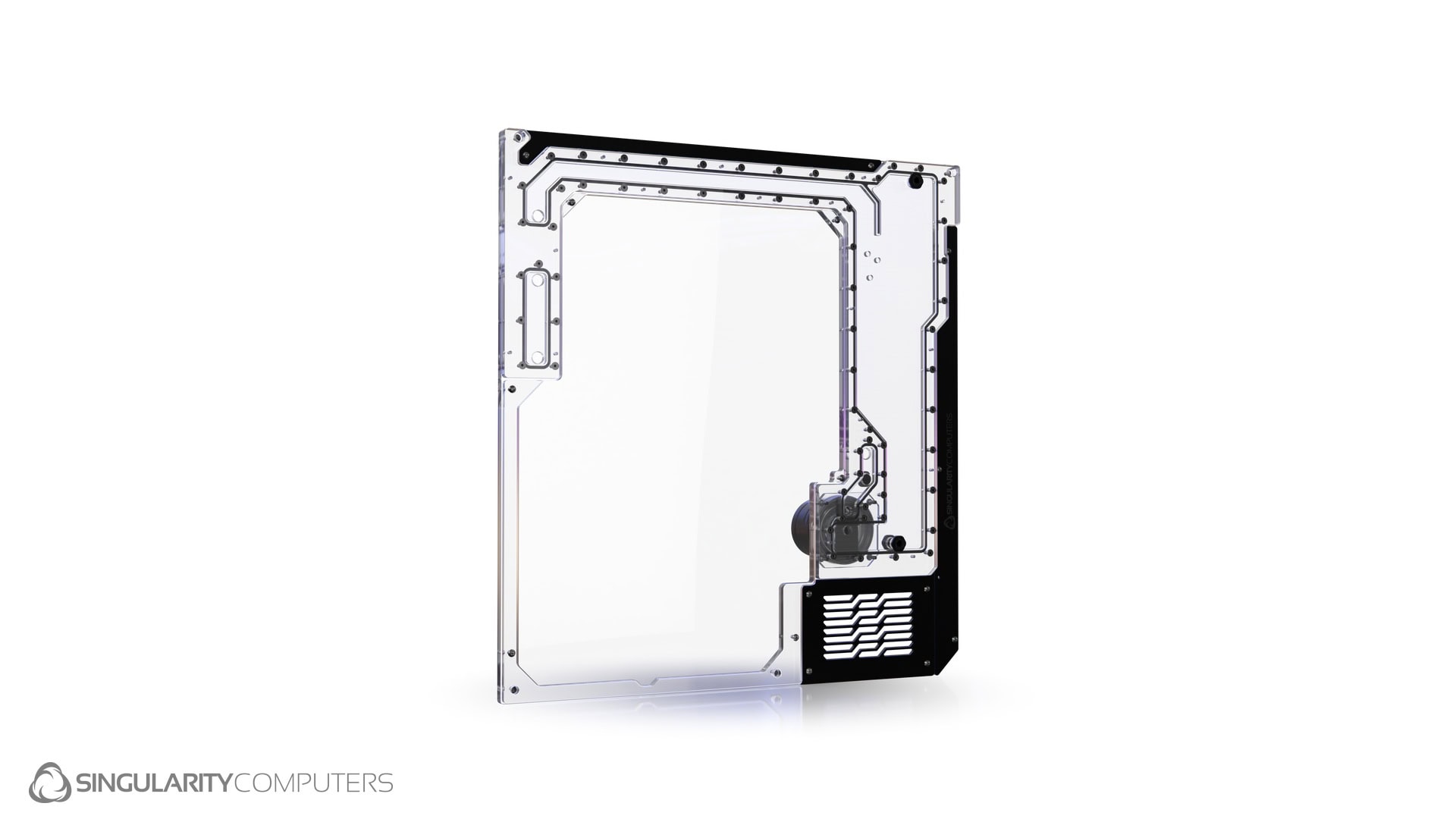

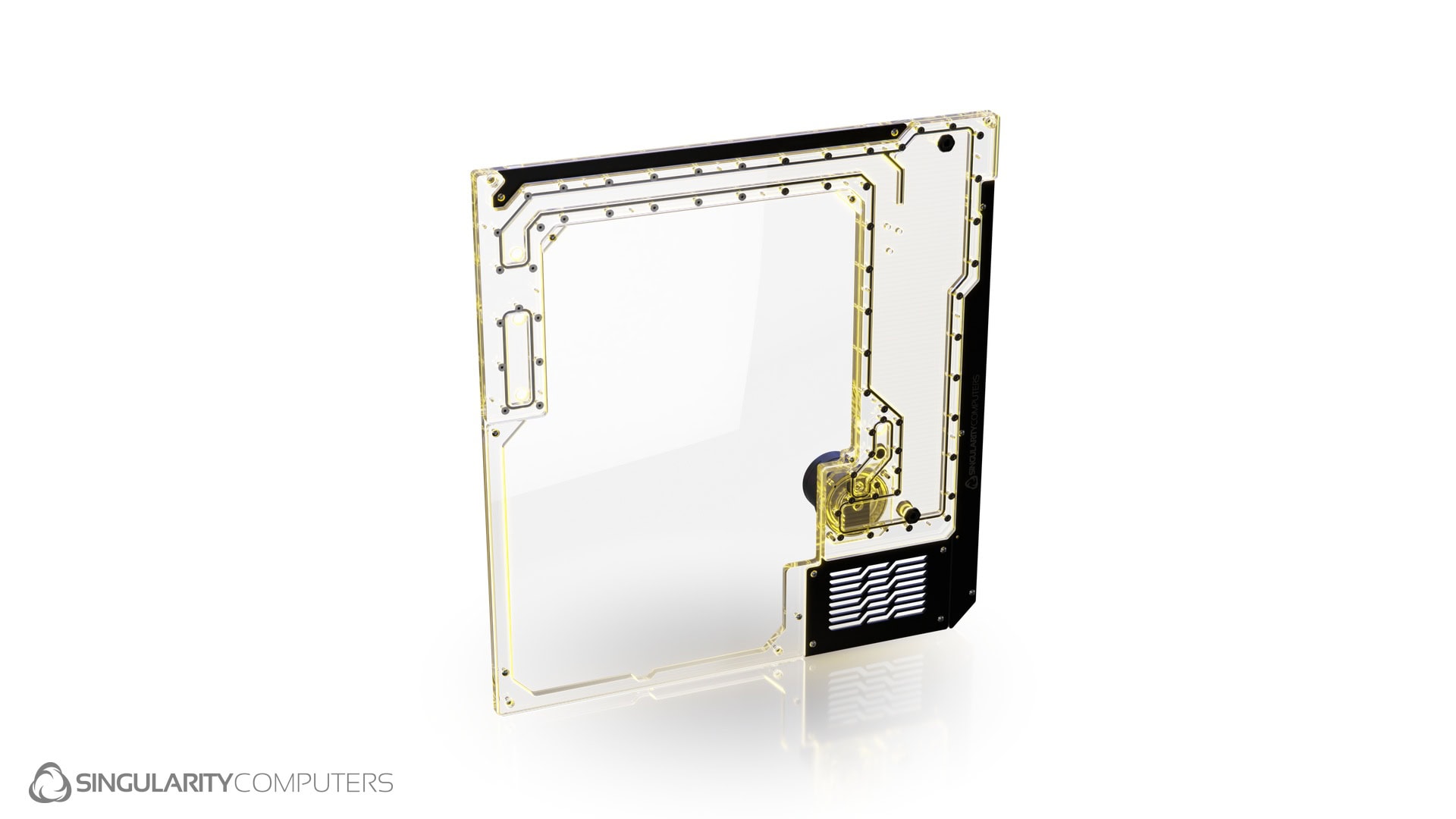

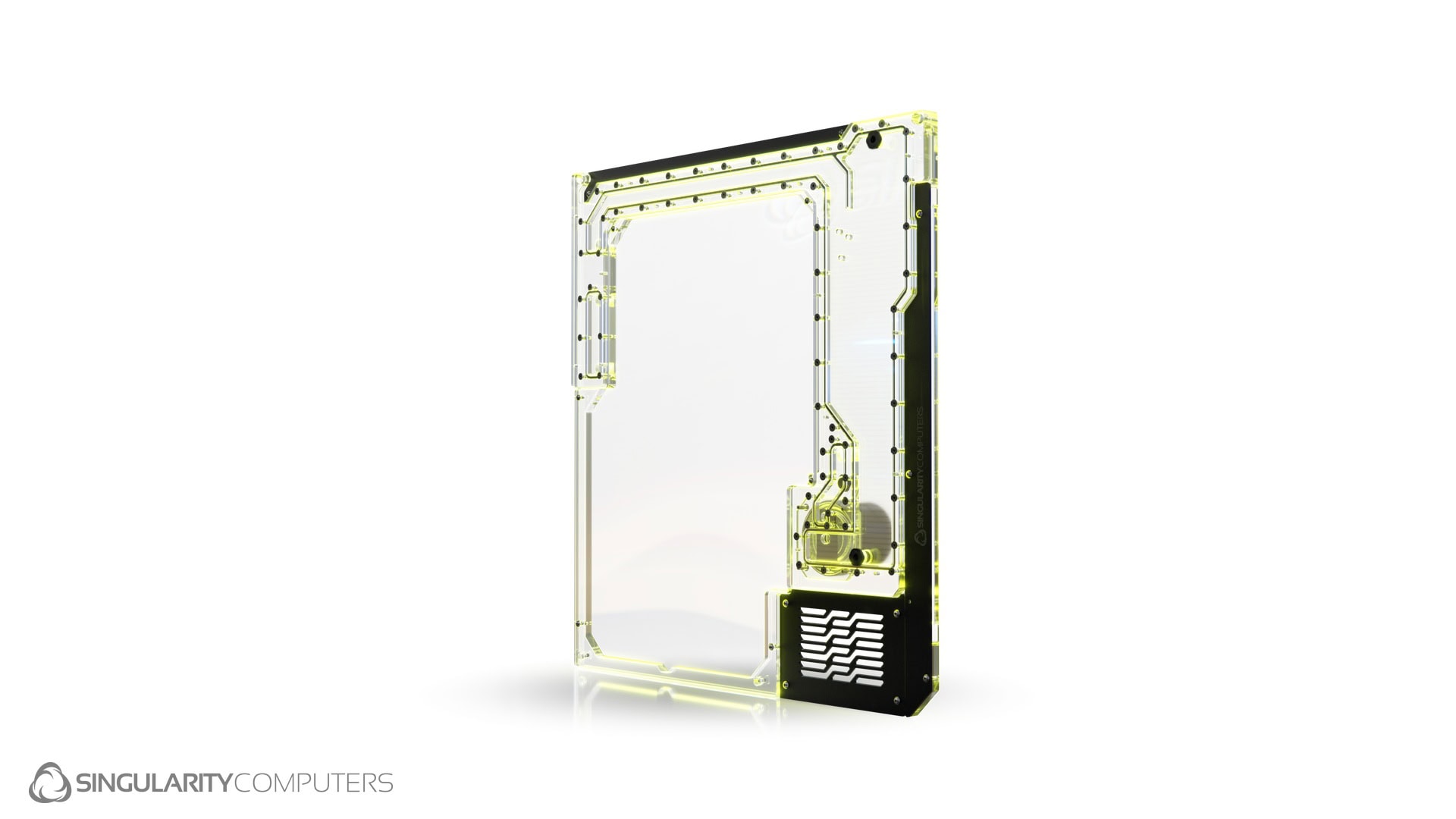

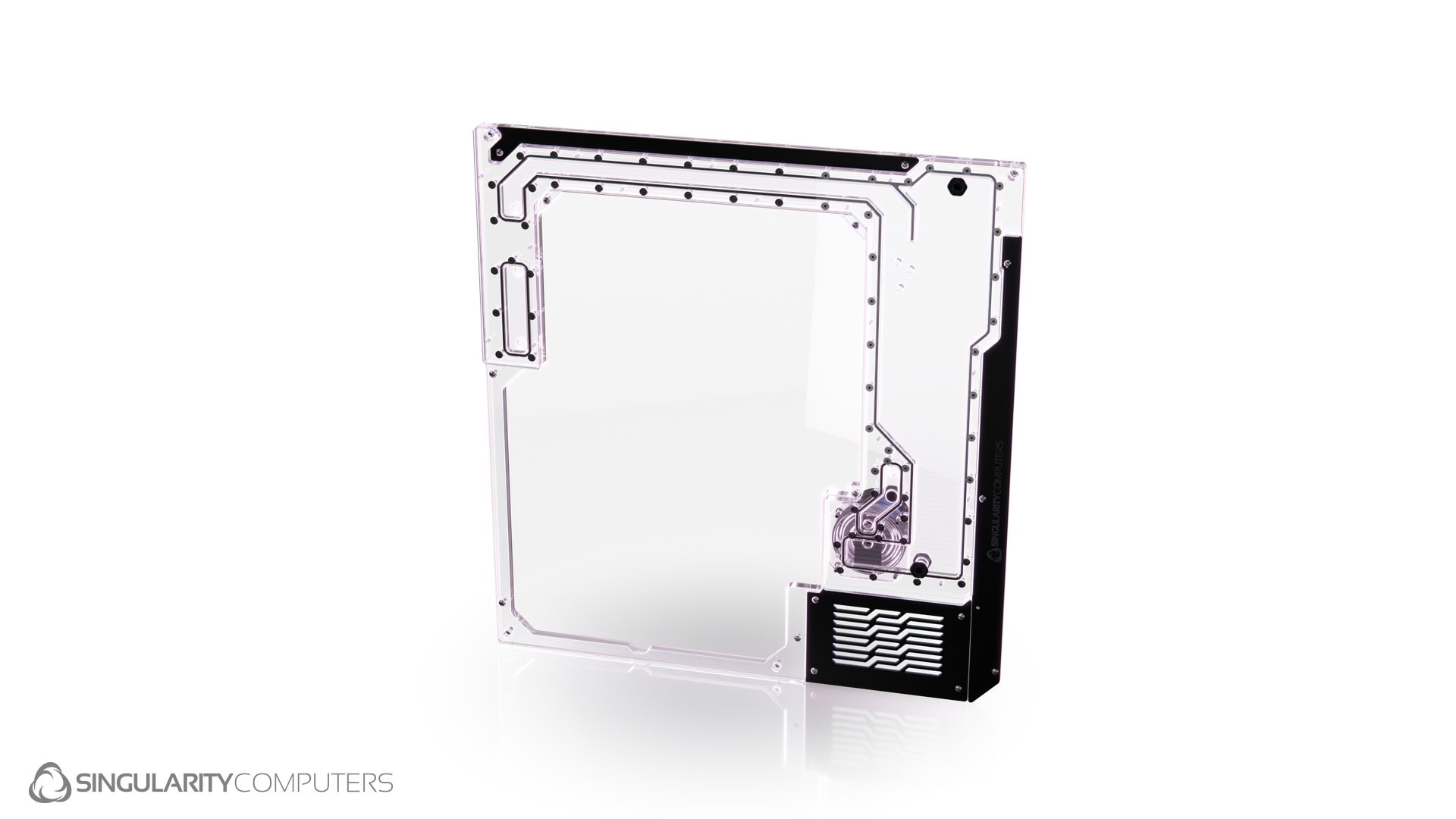

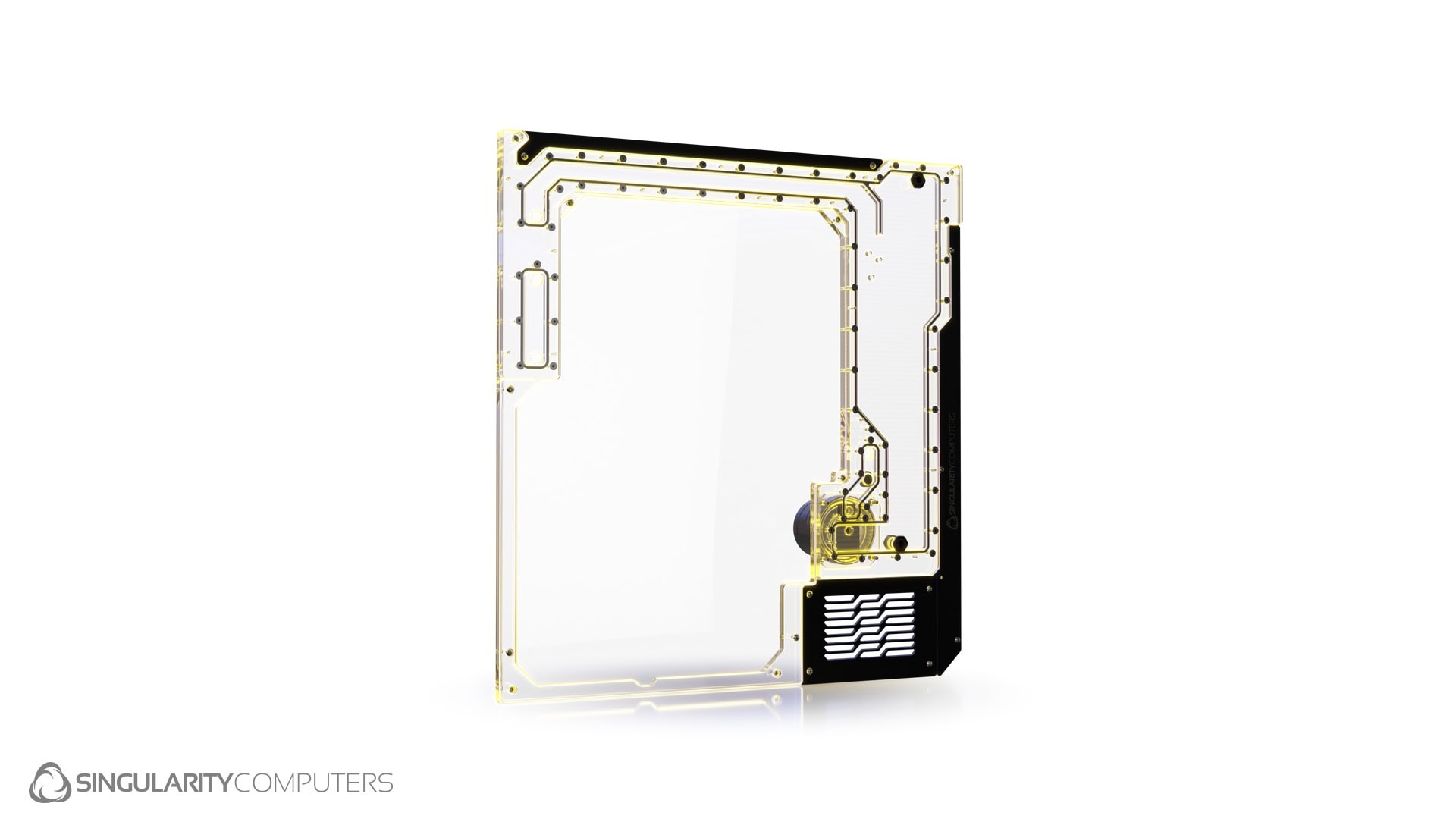

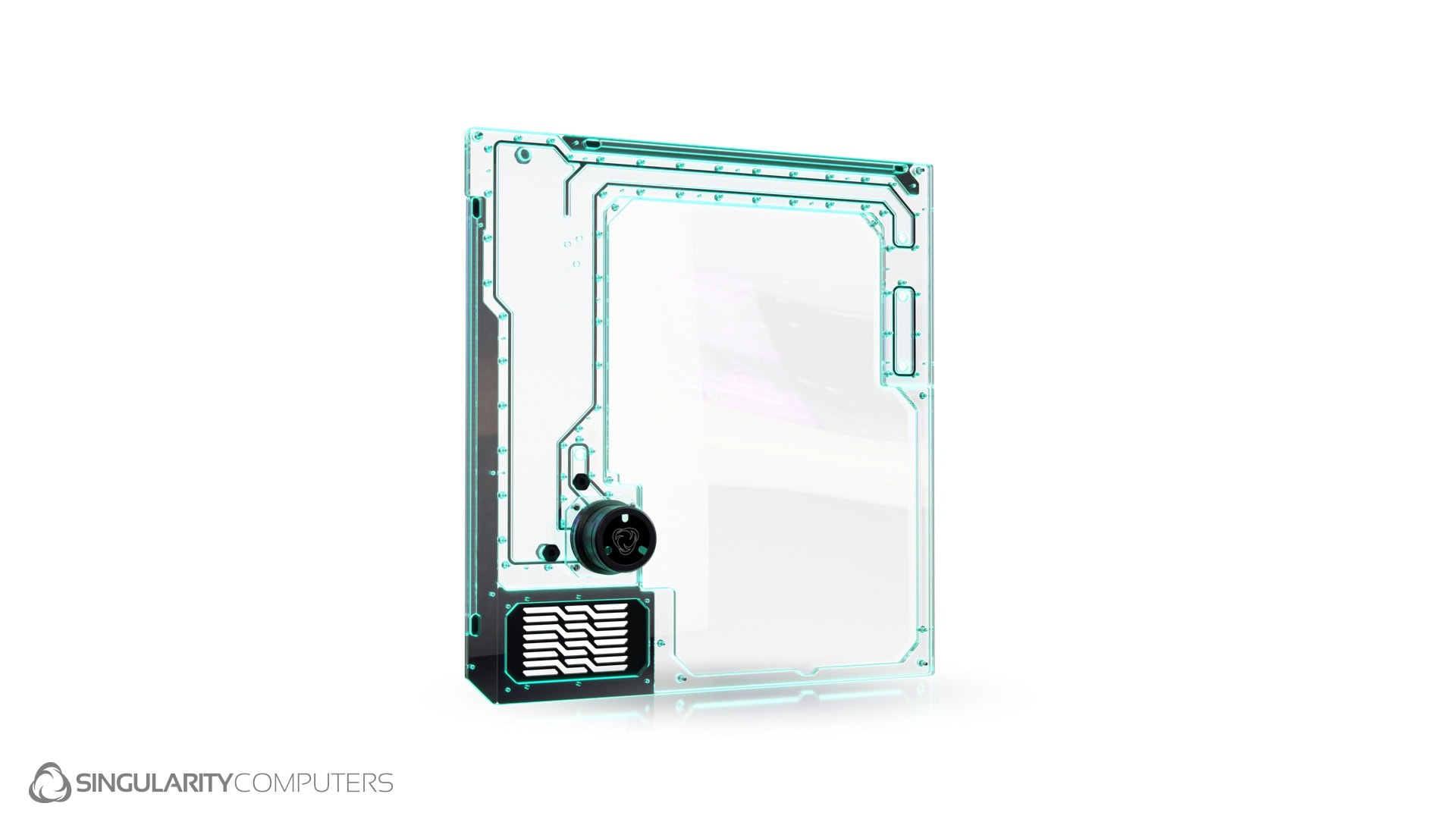

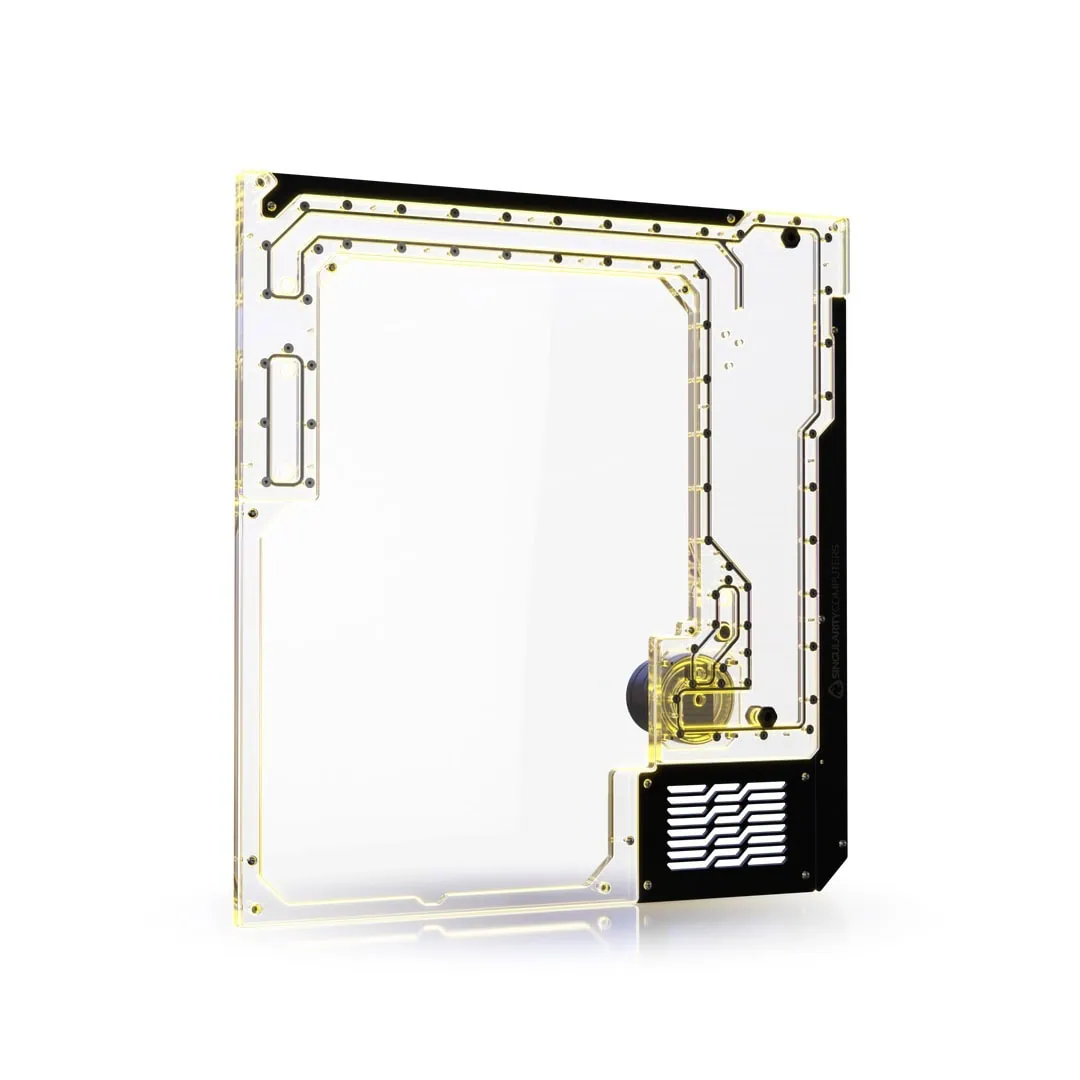

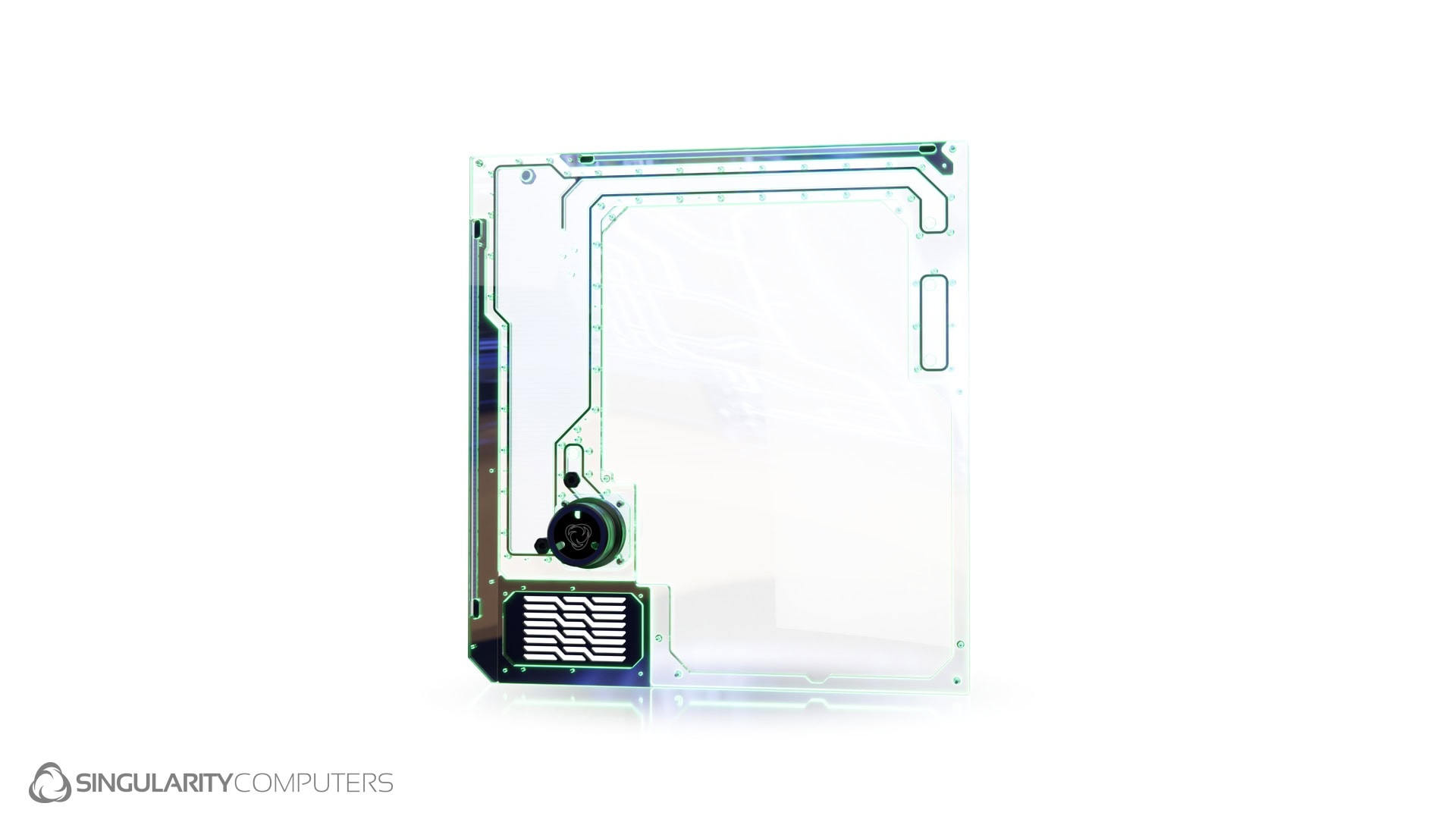

The Spectre 4 Dual Loop Side Panel is an addon for the Spectre 4 and Spectre 4 Carbon Water-cooling Case. This is version 2 of the Spectre 4 Dual Loop Side Panel, and it has an all-new design with a larger window increasing view to the build and allowing more space to work on the build through the window area. It adds another D5 Pump Top and Reservoir to the case which can be used for dual loops, or to add a second pump and reservoir for a single loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated reservoir, D5 pump top, D5 Pump Cover and two ARGB LED strips. There are 7 ports which are positioned for connections to the GPU loop and top radiator. It also has a fill, drain and temperature sensor port.
Pump not included. Compatible with any D5 Pump.
US$629.00
Specifications:
Spectre 4 Dual Loop Side Panel.
Protium 3.0 D5 Pump Cover.
Water-cooling Integration: Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Temperature sensor port, Parts of water-cooling loop.
Ports: x7 G1/4” BSPP. 1x Fill Port. 1x Drain Port. 1x Temperature Sensor Port.
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables (pre-installed).
Product Dimensions: L: 540mm x H: 615mm x W: 23mm.
Product Weight: 5kg.
Packaged Dimensions: L: 600mm x H: 600mm x W: 130mm.
Packaged Weight: 5.5kg.
Materials: Cast Acrylic. 6061 Aluminum. PCB.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Manufacturing Process: CNC Router, CNC Lathe, CNC Mill, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Installation: Installs in the location of the stock side panel window using.
