Stream-M Dual Loop Water-cooling Case
Stream-M Dual Loop Water-cooling Case Original price was: US$1,299.00.Current price is: US$1,104.15.
Back to products

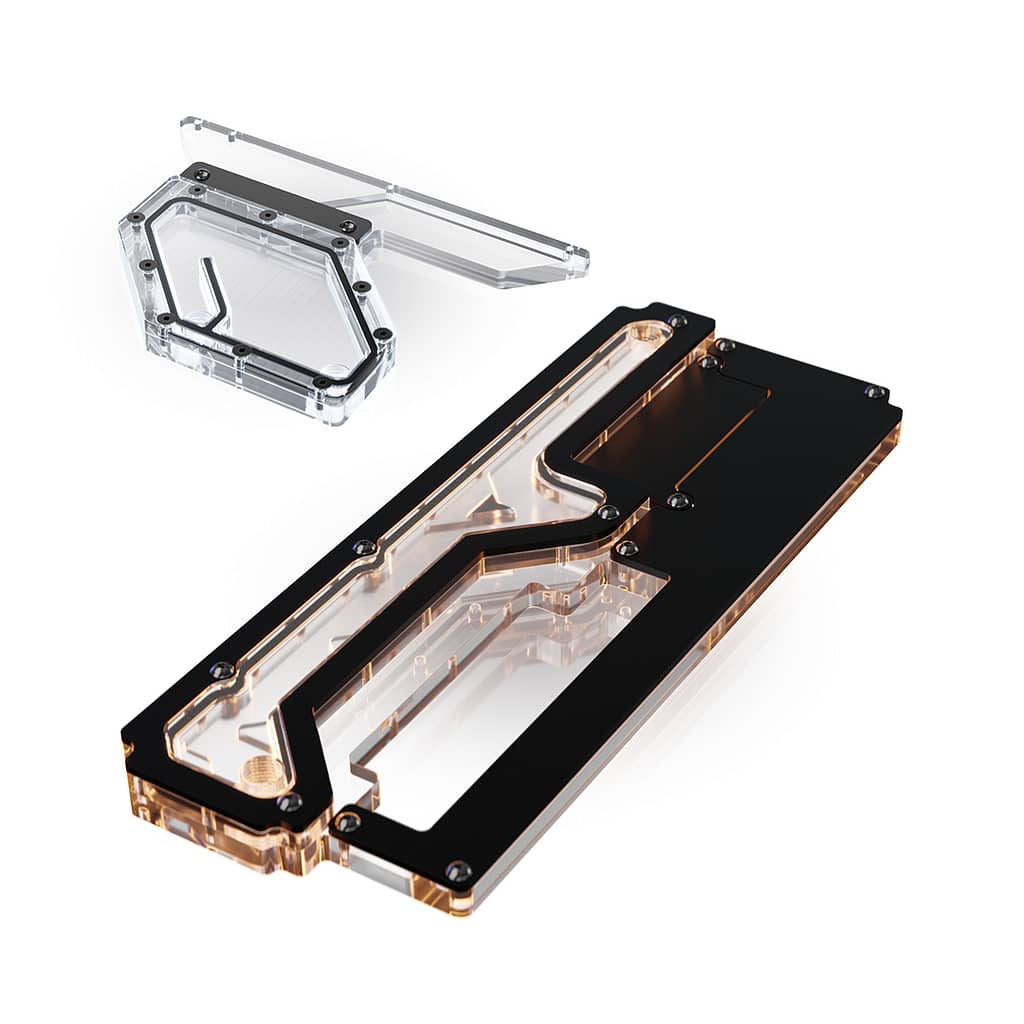

Phanteks Enthoo Elite Dual Loop Distribution Plate Set
Phanteks Enthoo Elite Dual Loop Distribution Plate Set US$249.00 US$599.00Price range: US$249.00 through US$599.00

Stream-M Water-cooling Case

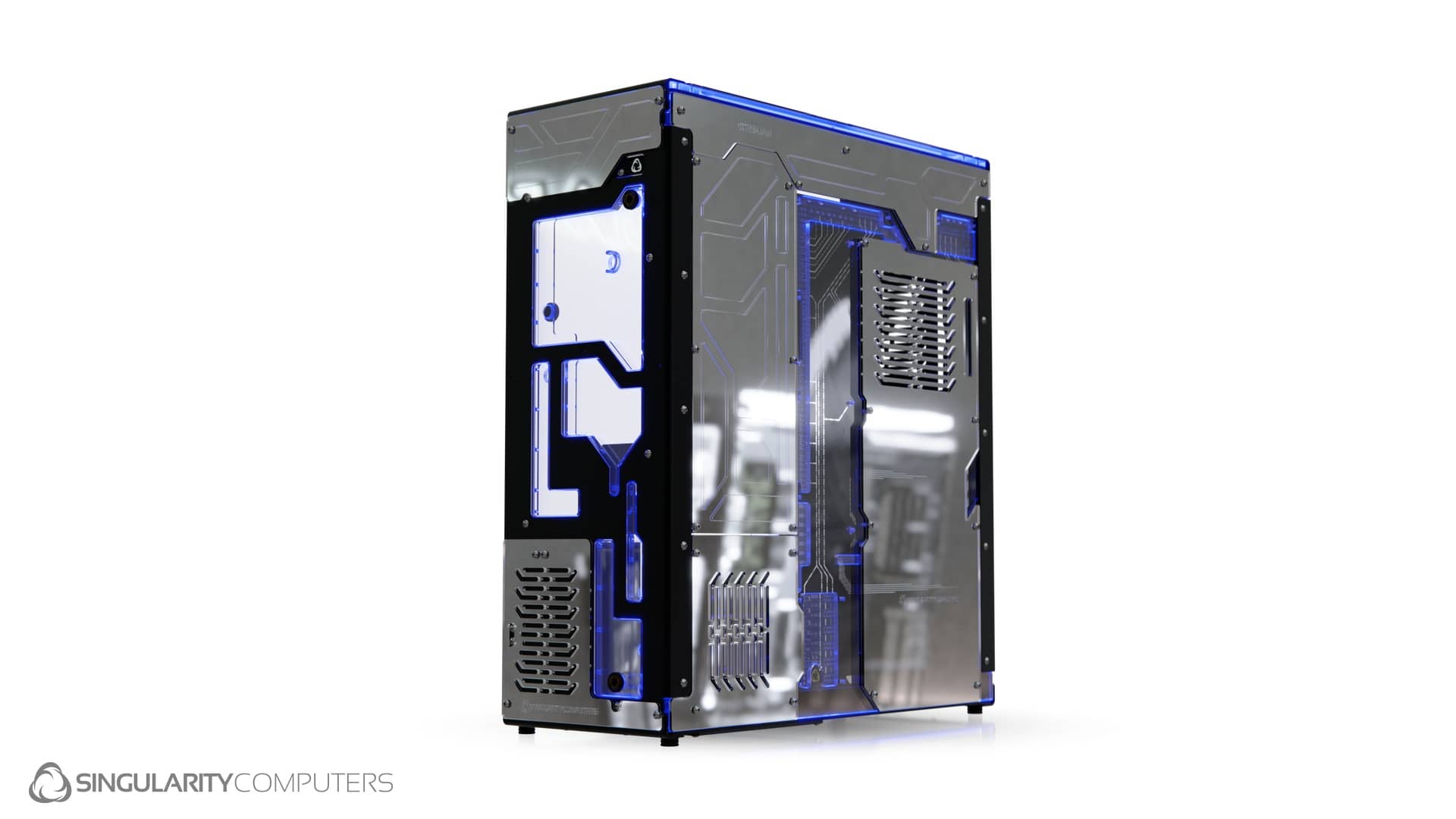

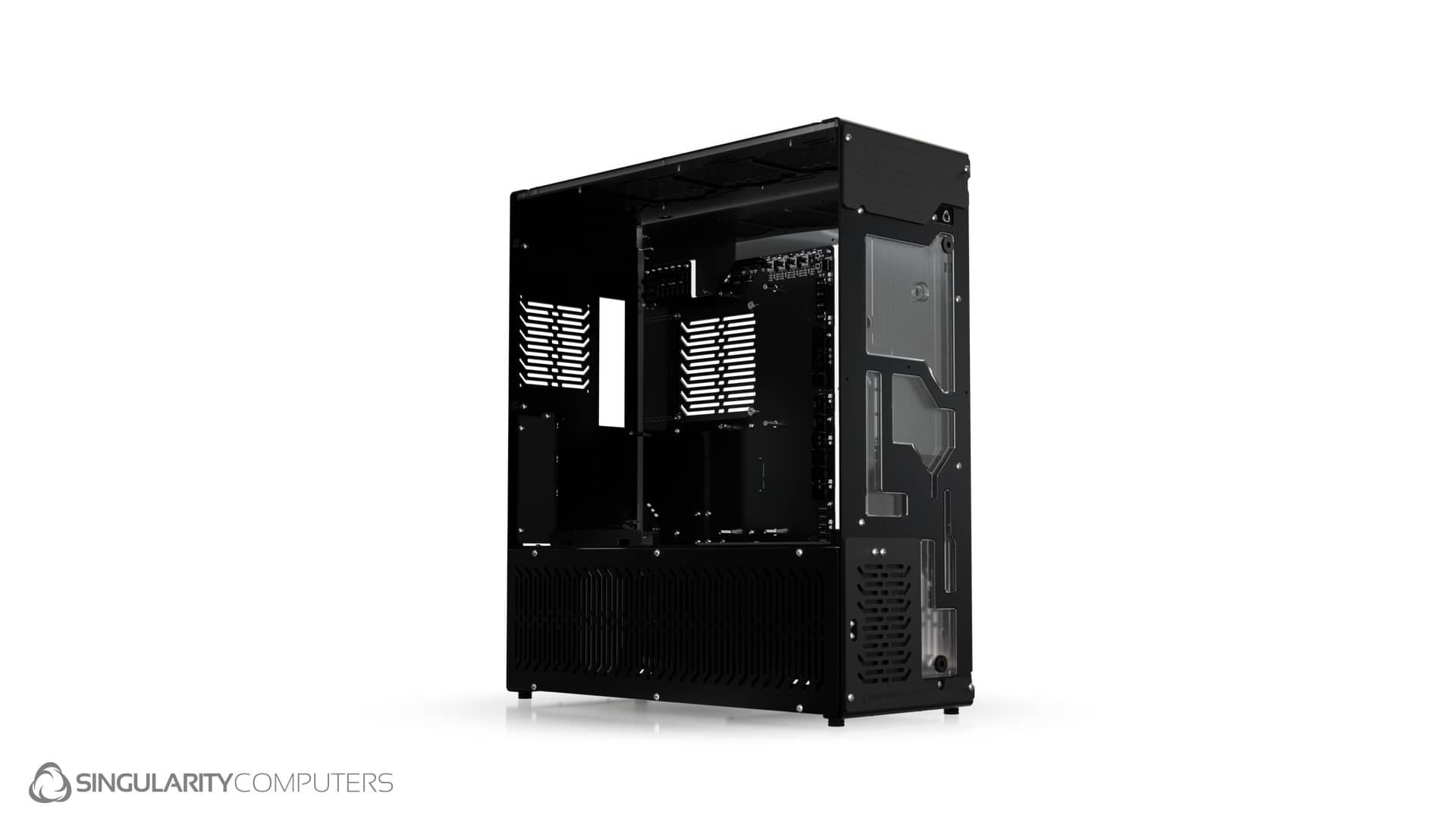

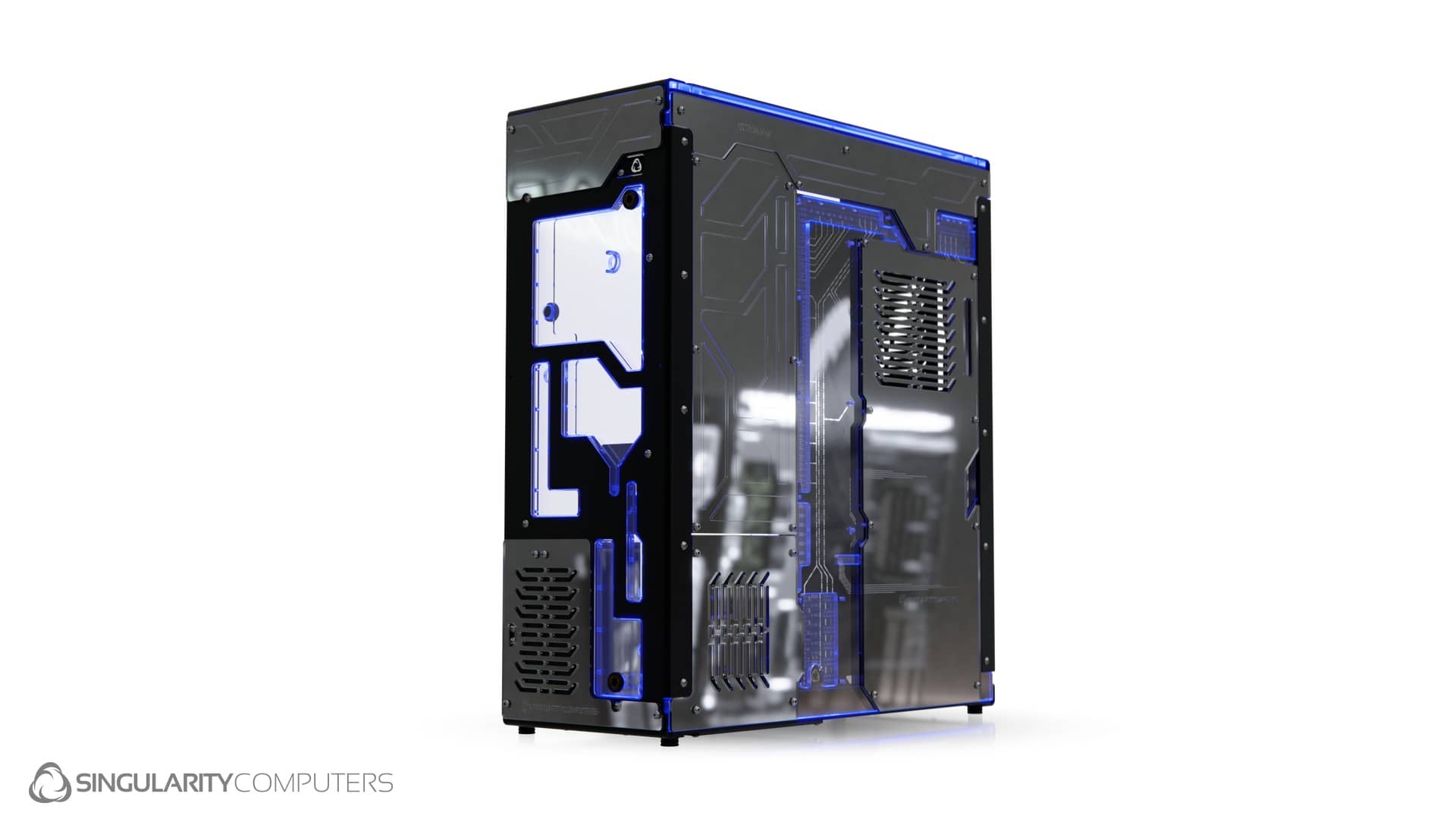

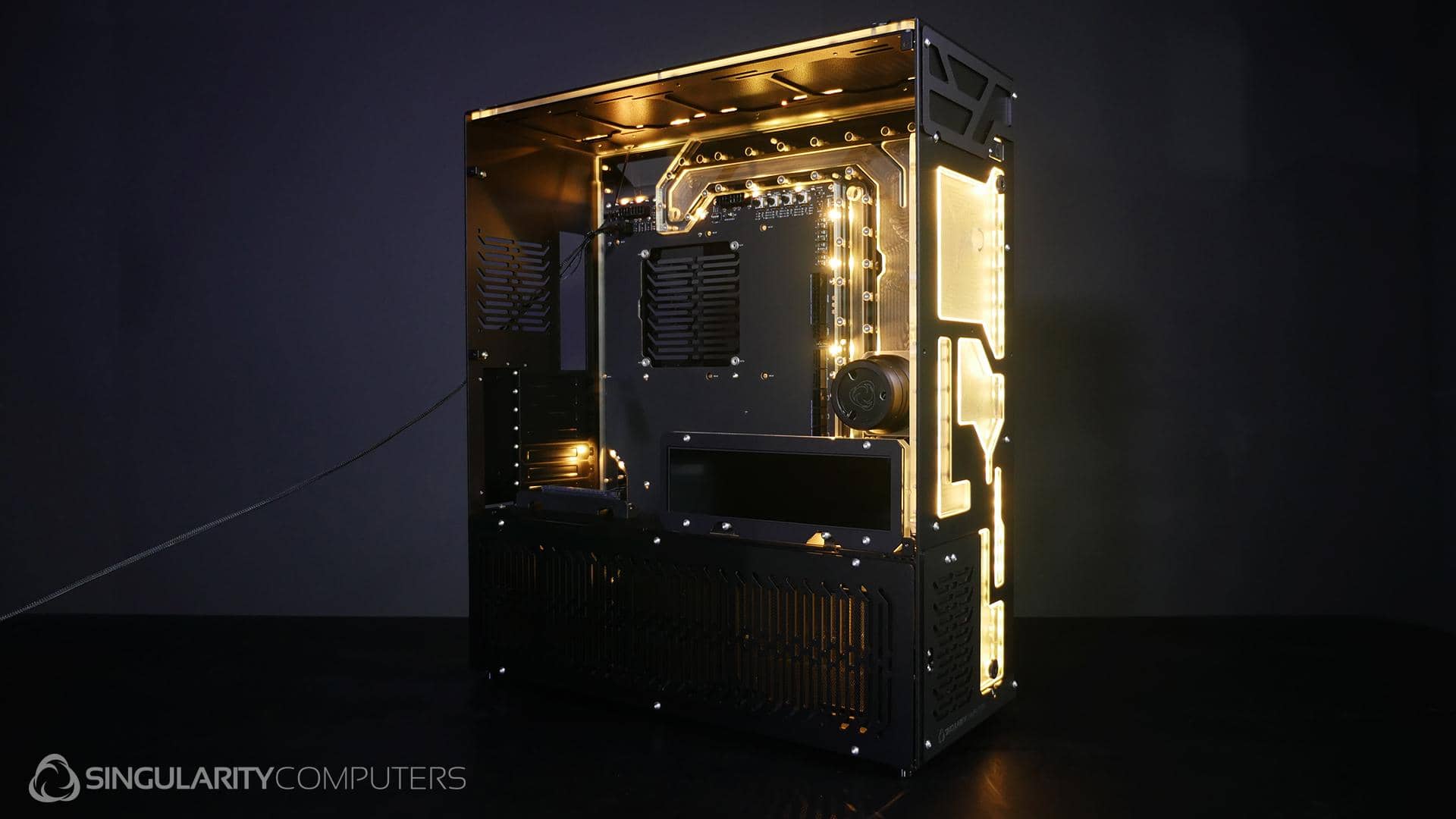

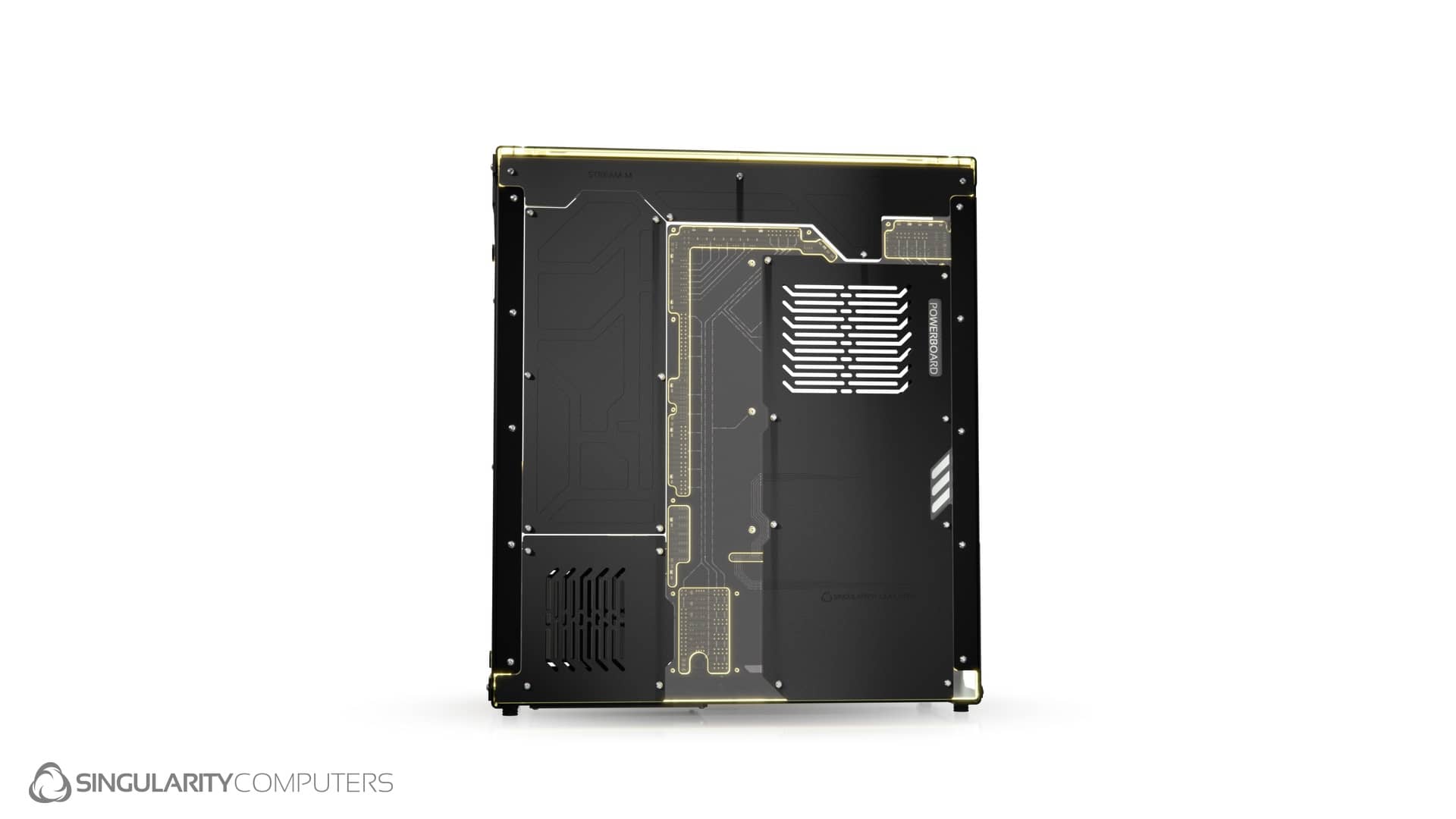

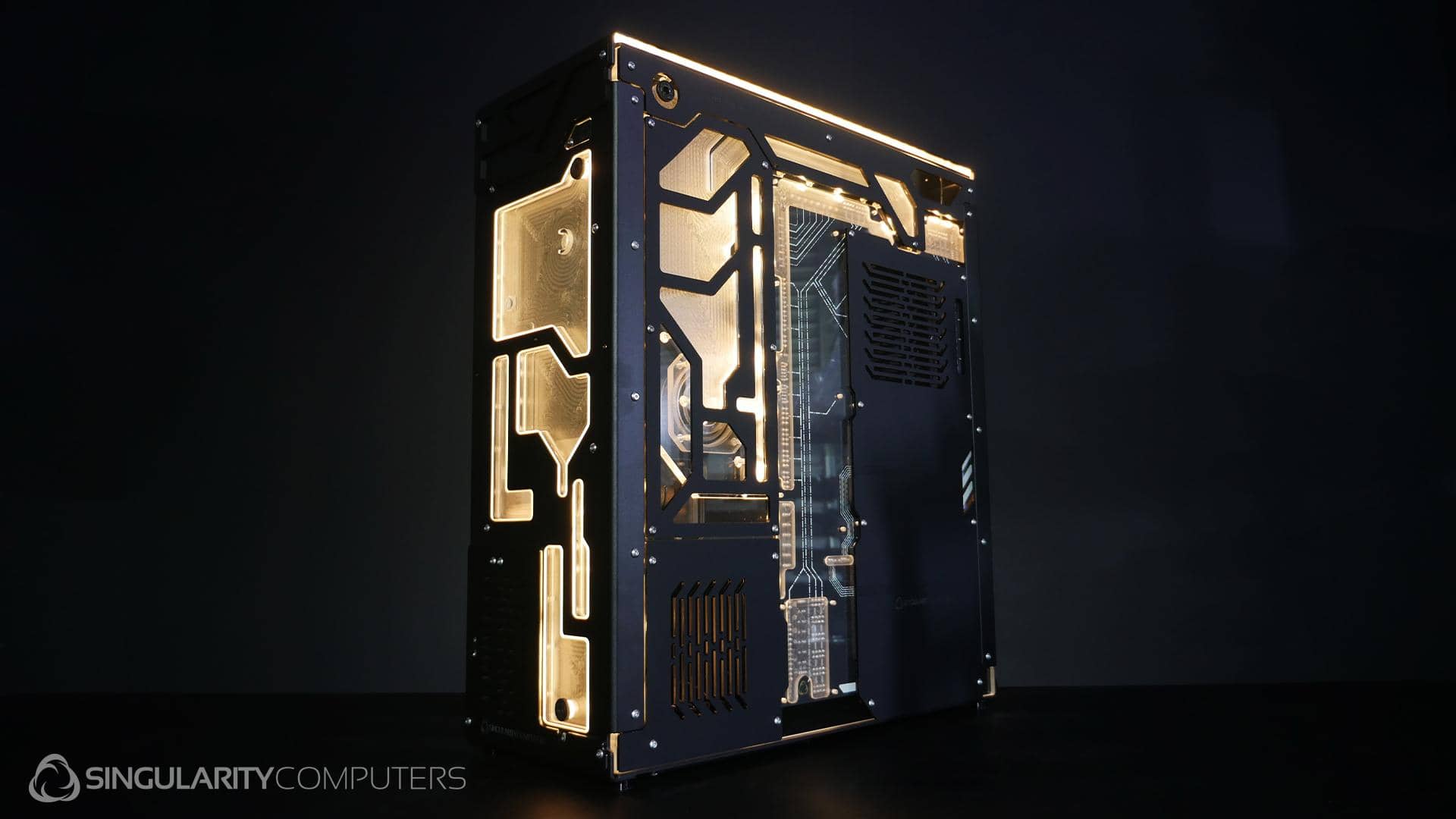

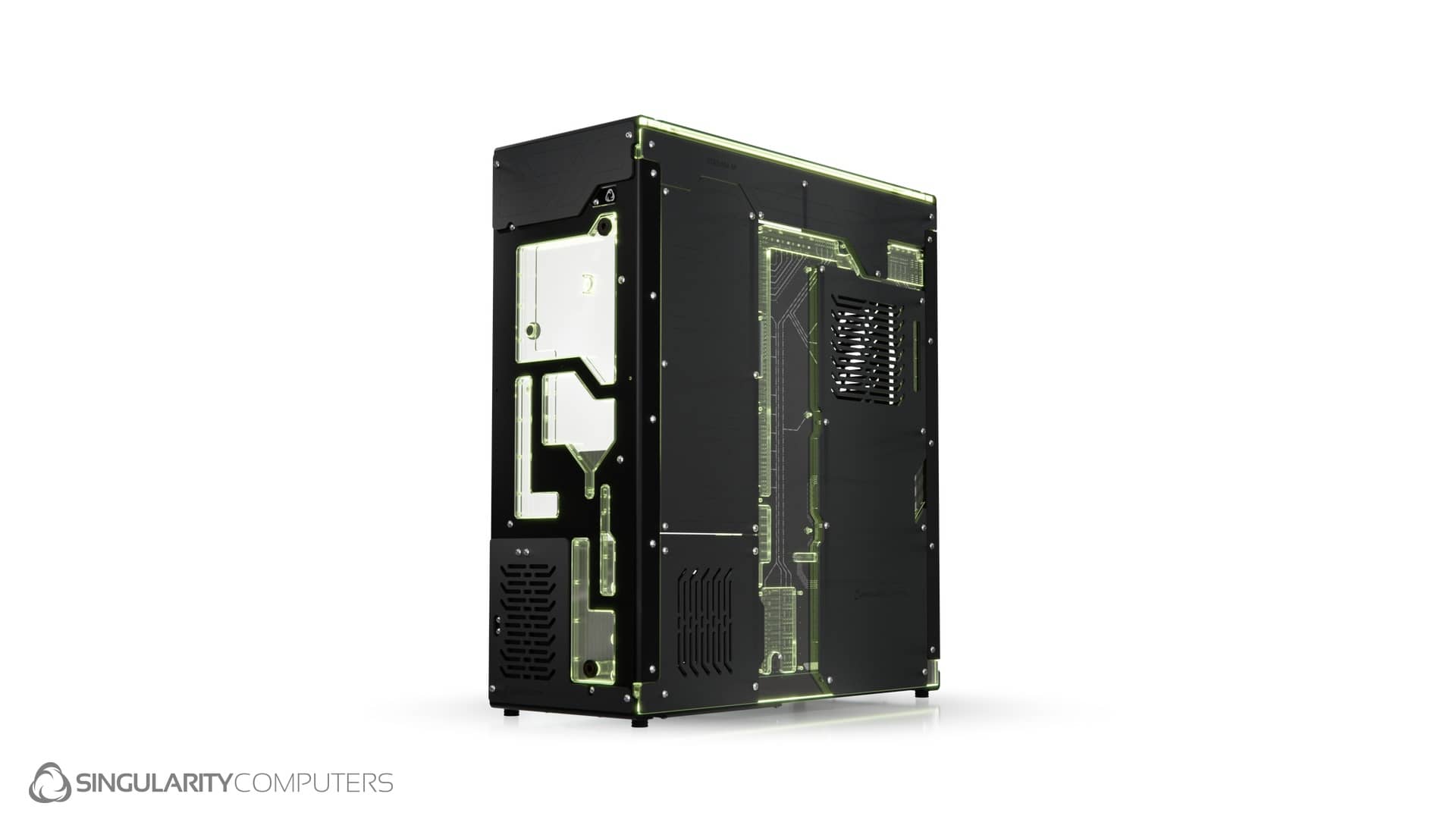

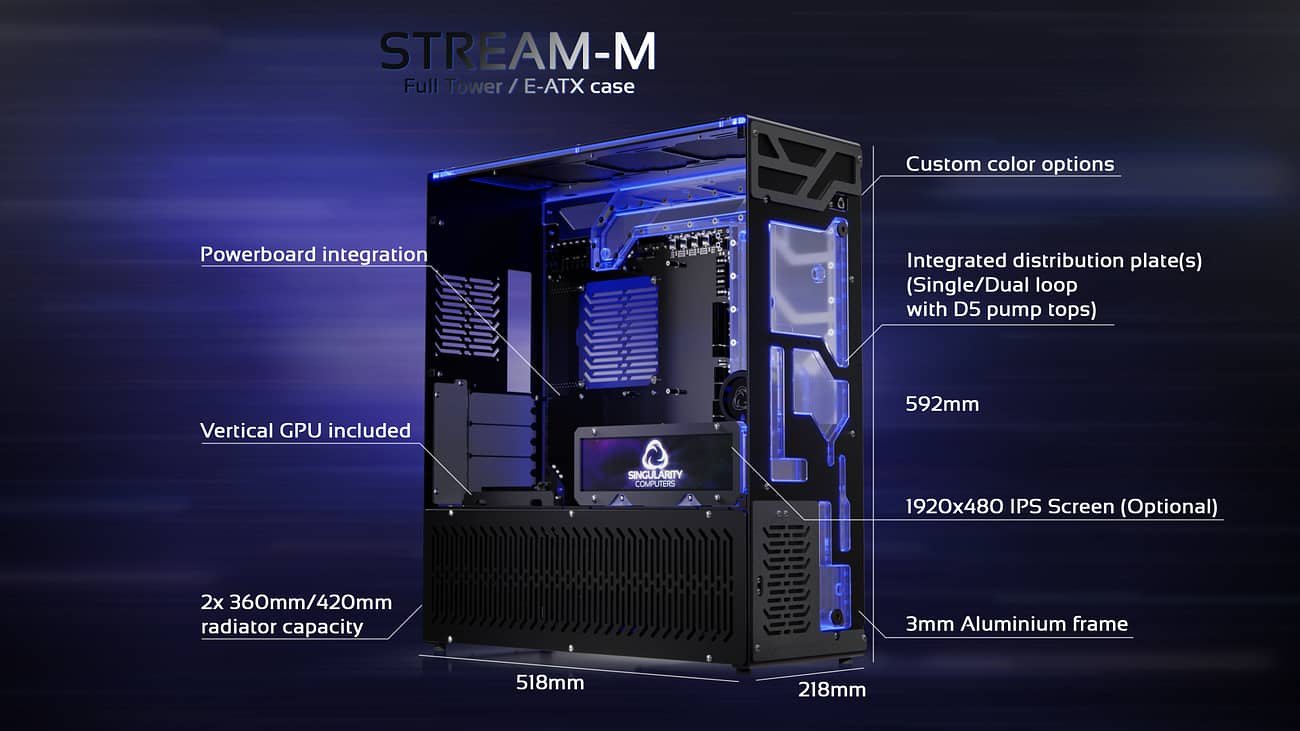

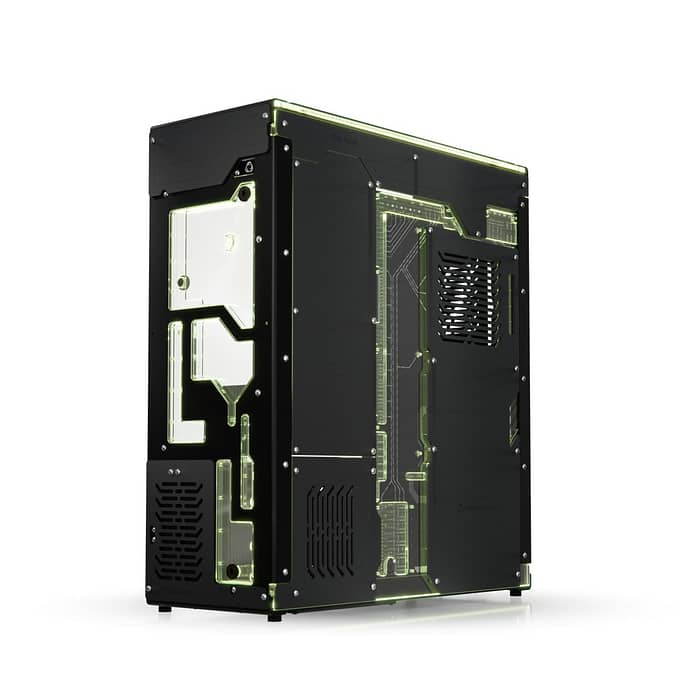

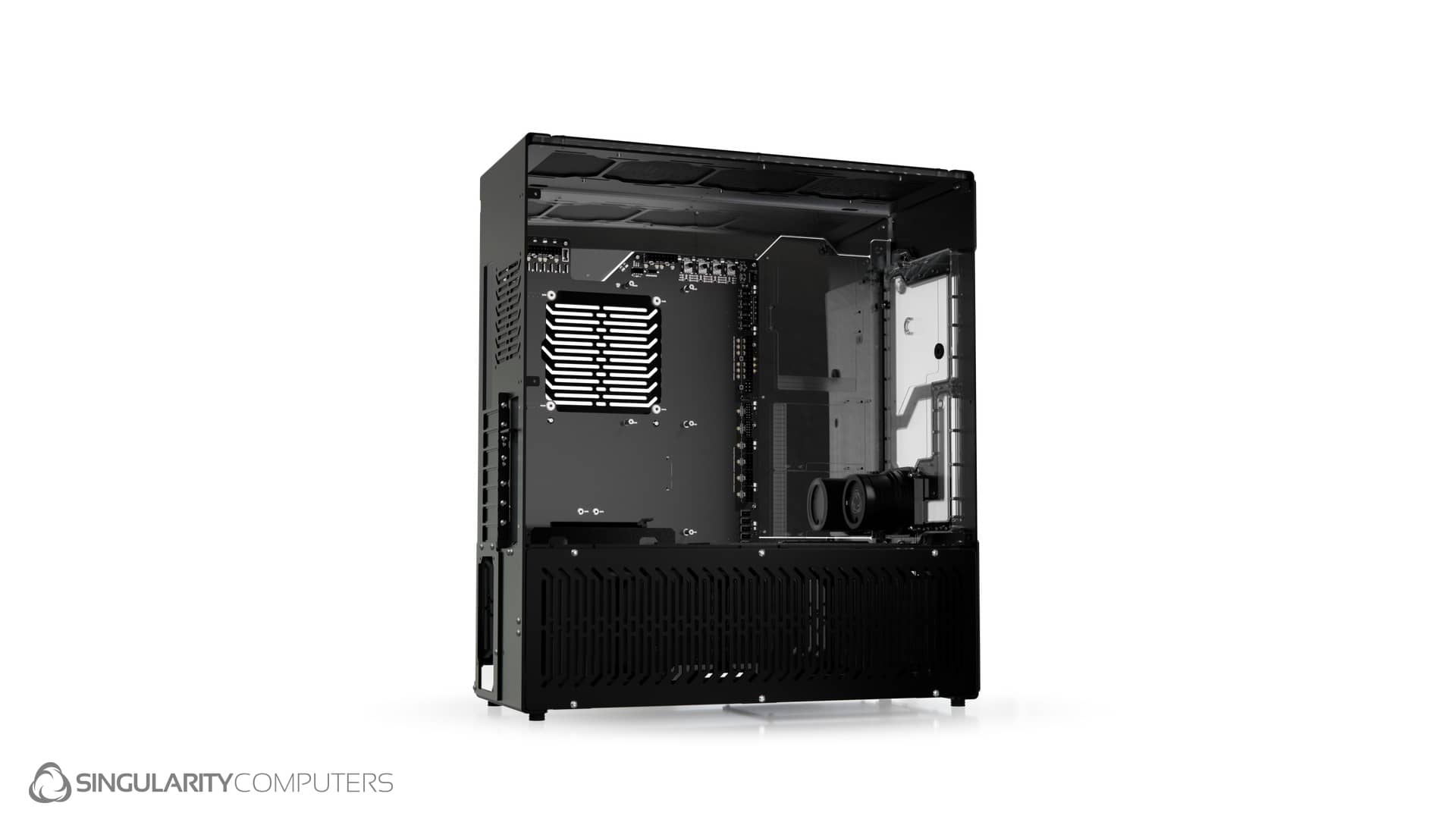

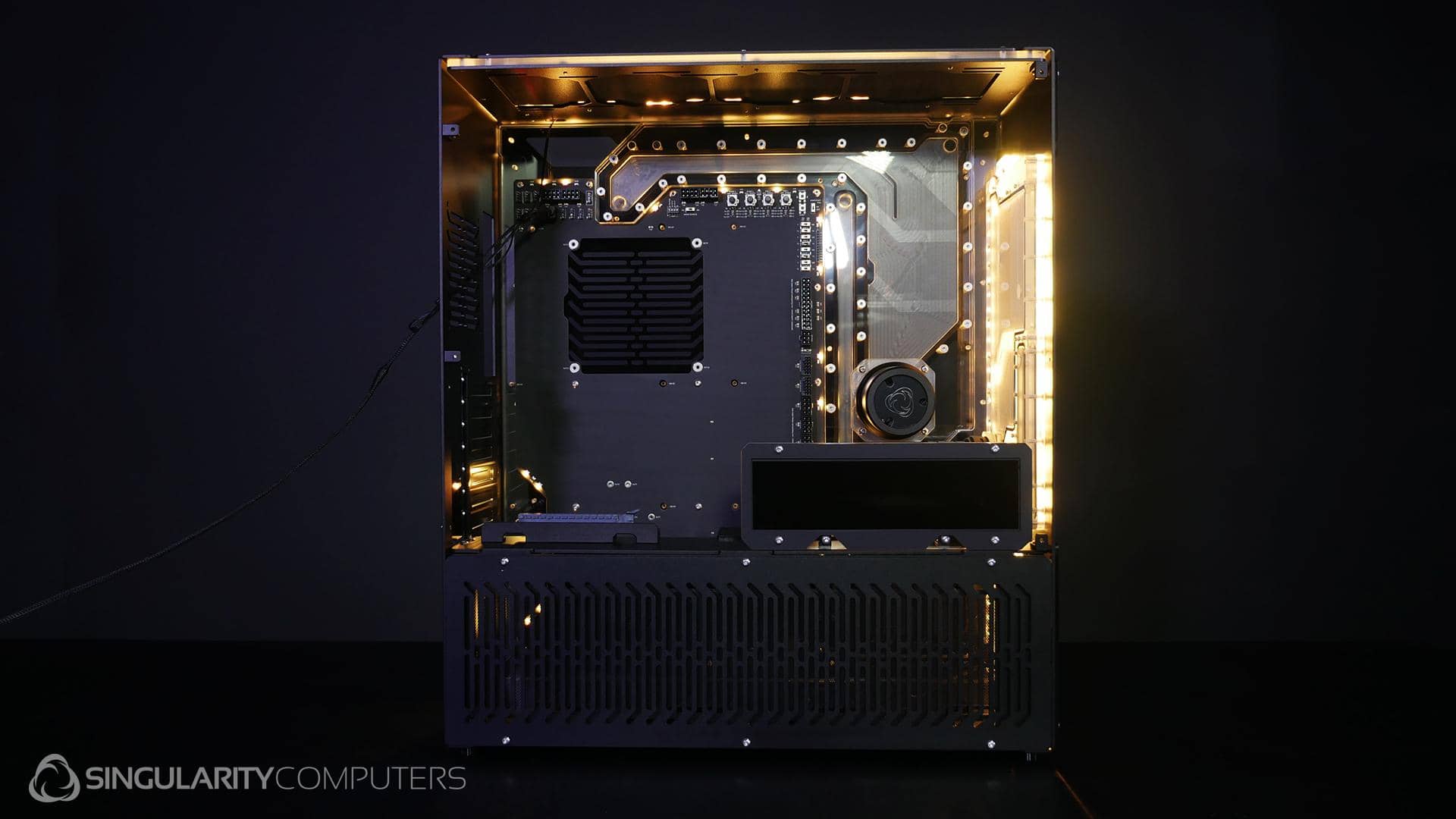

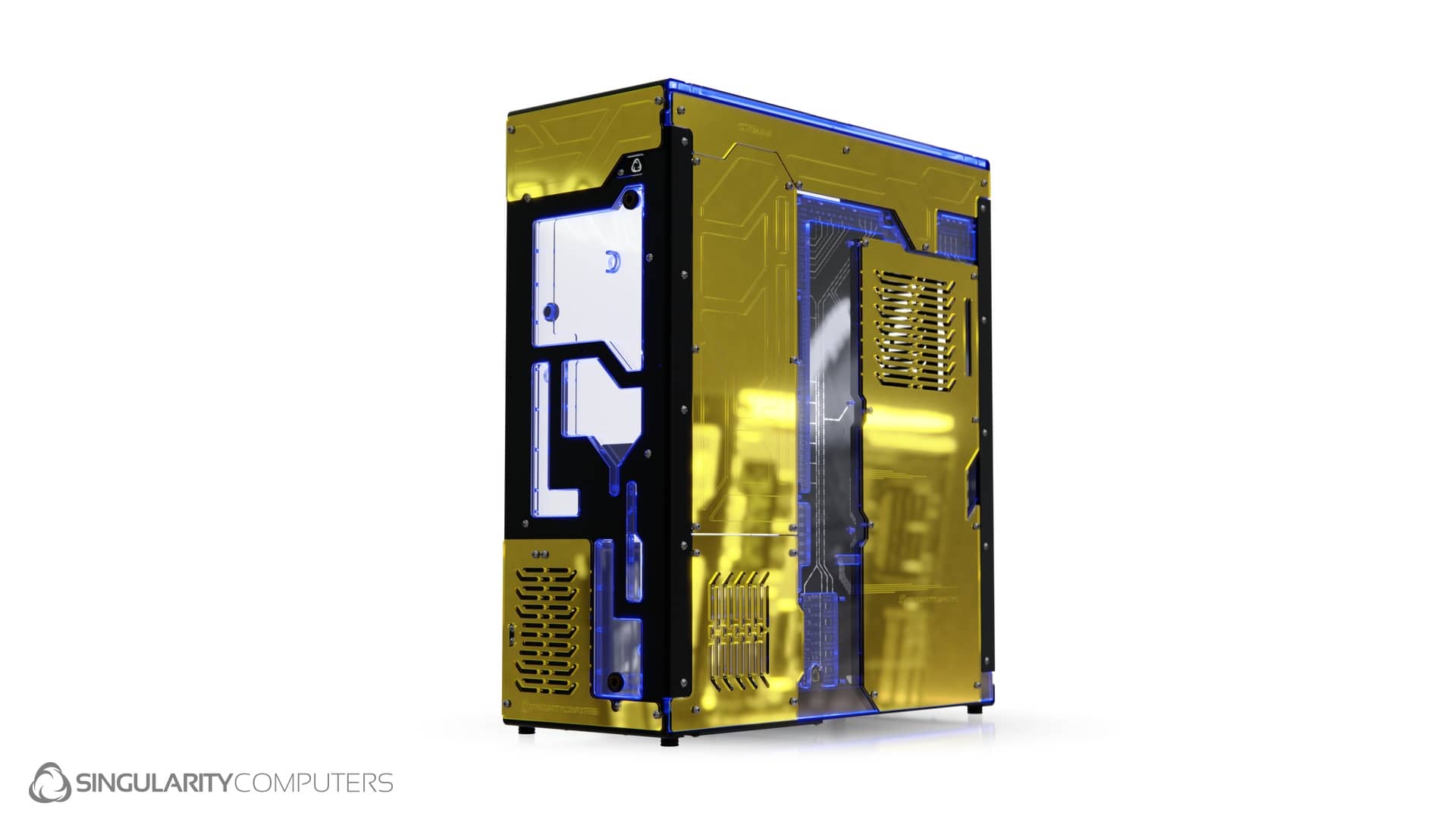

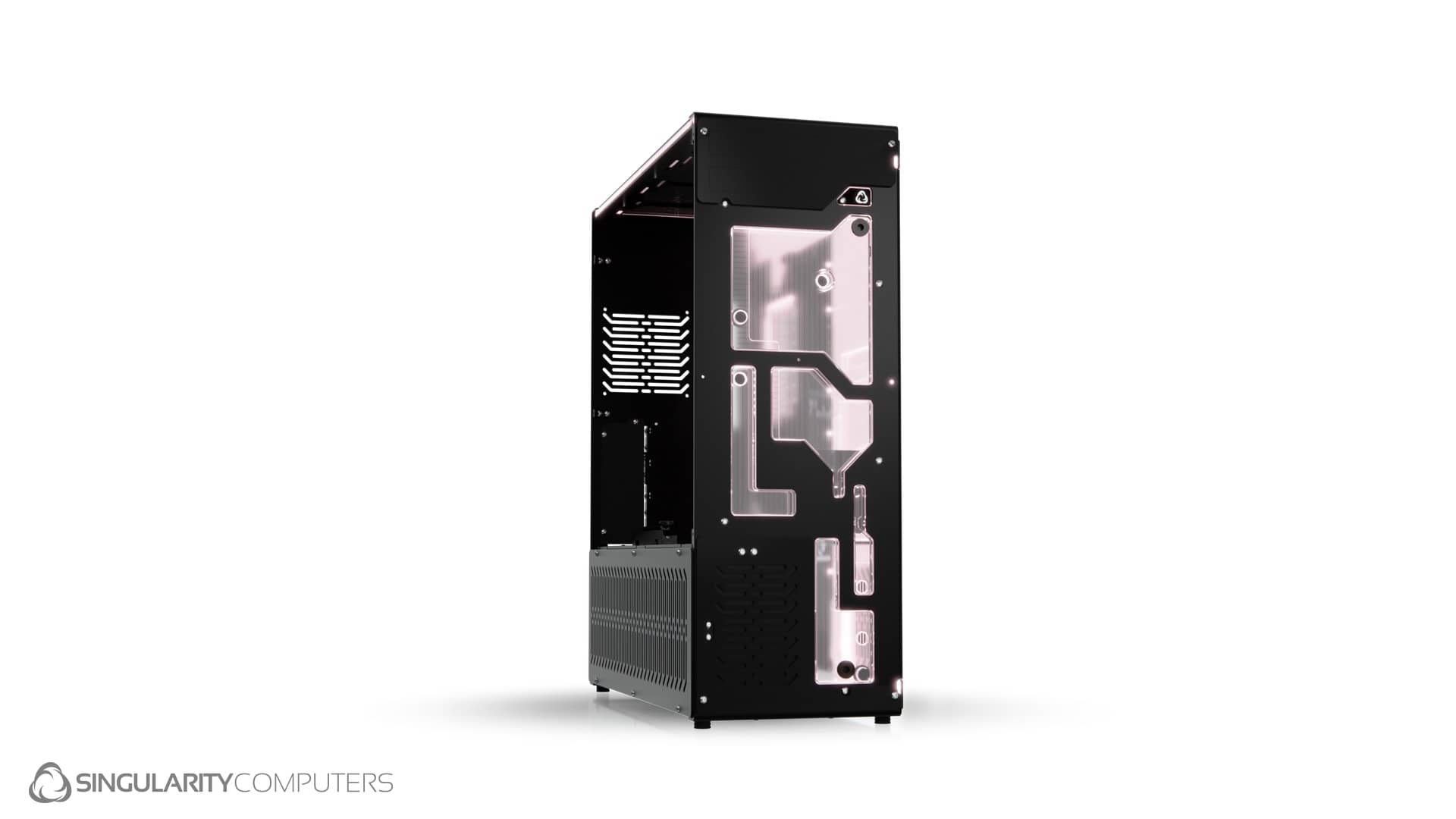

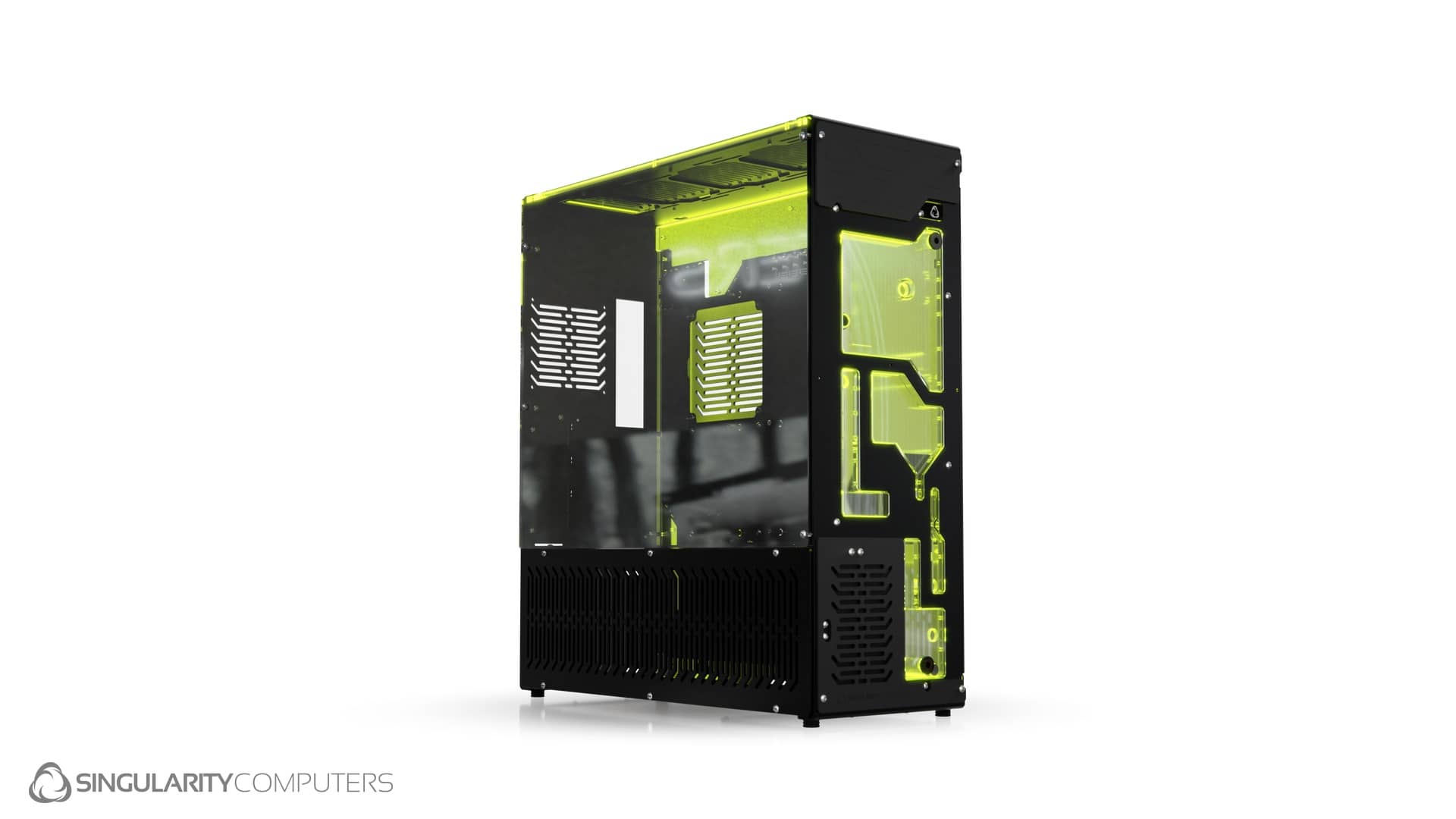

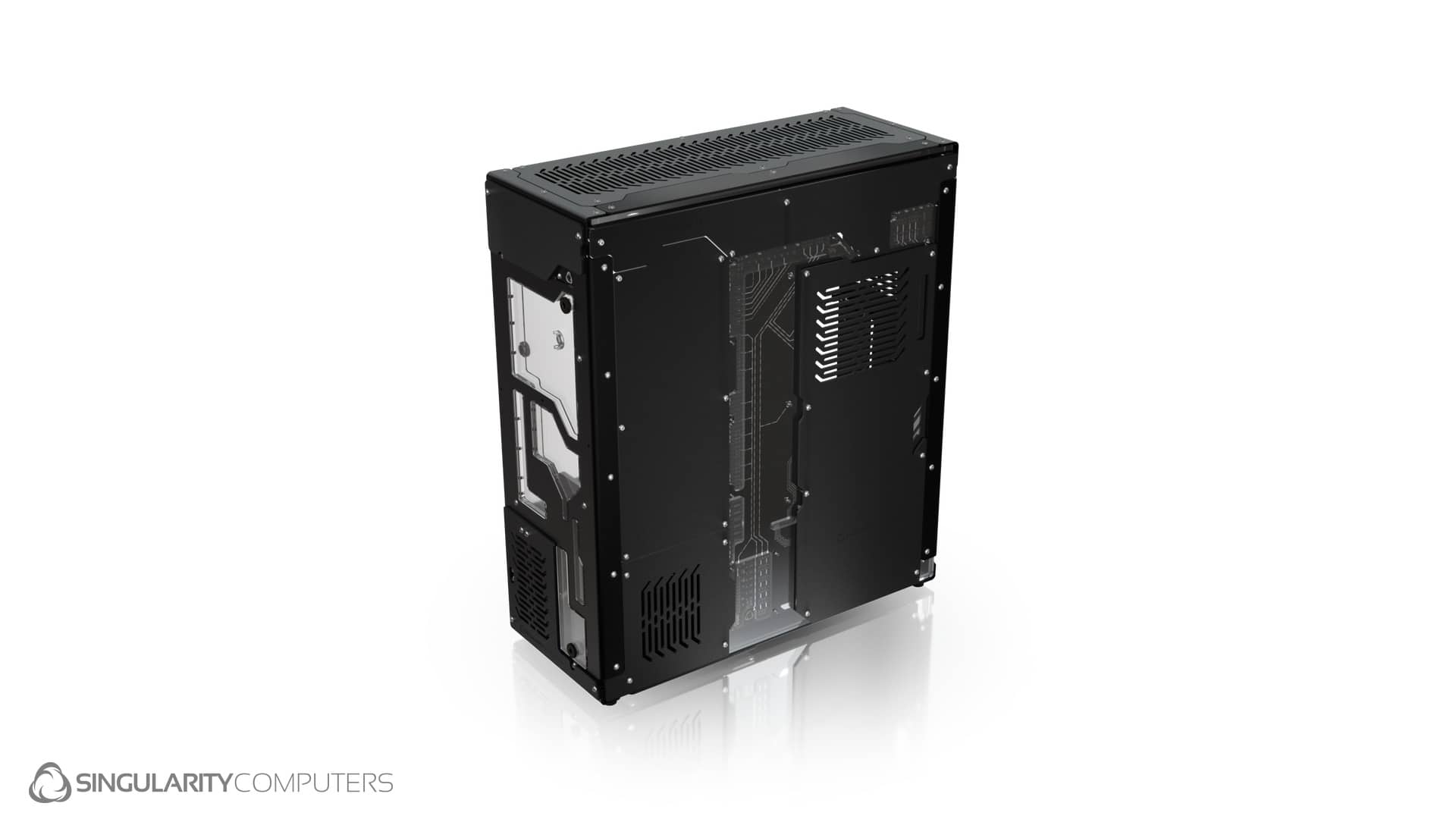

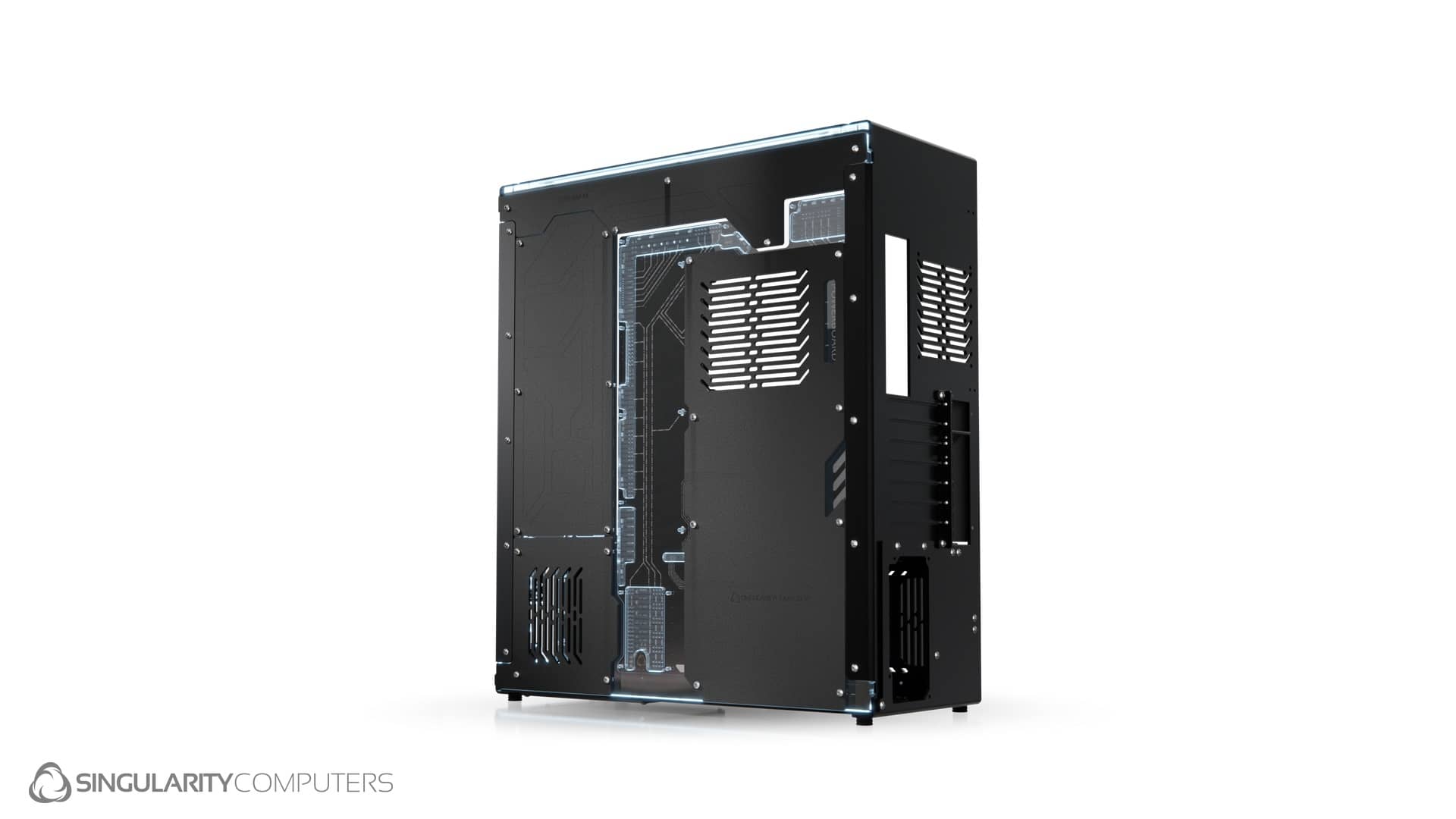

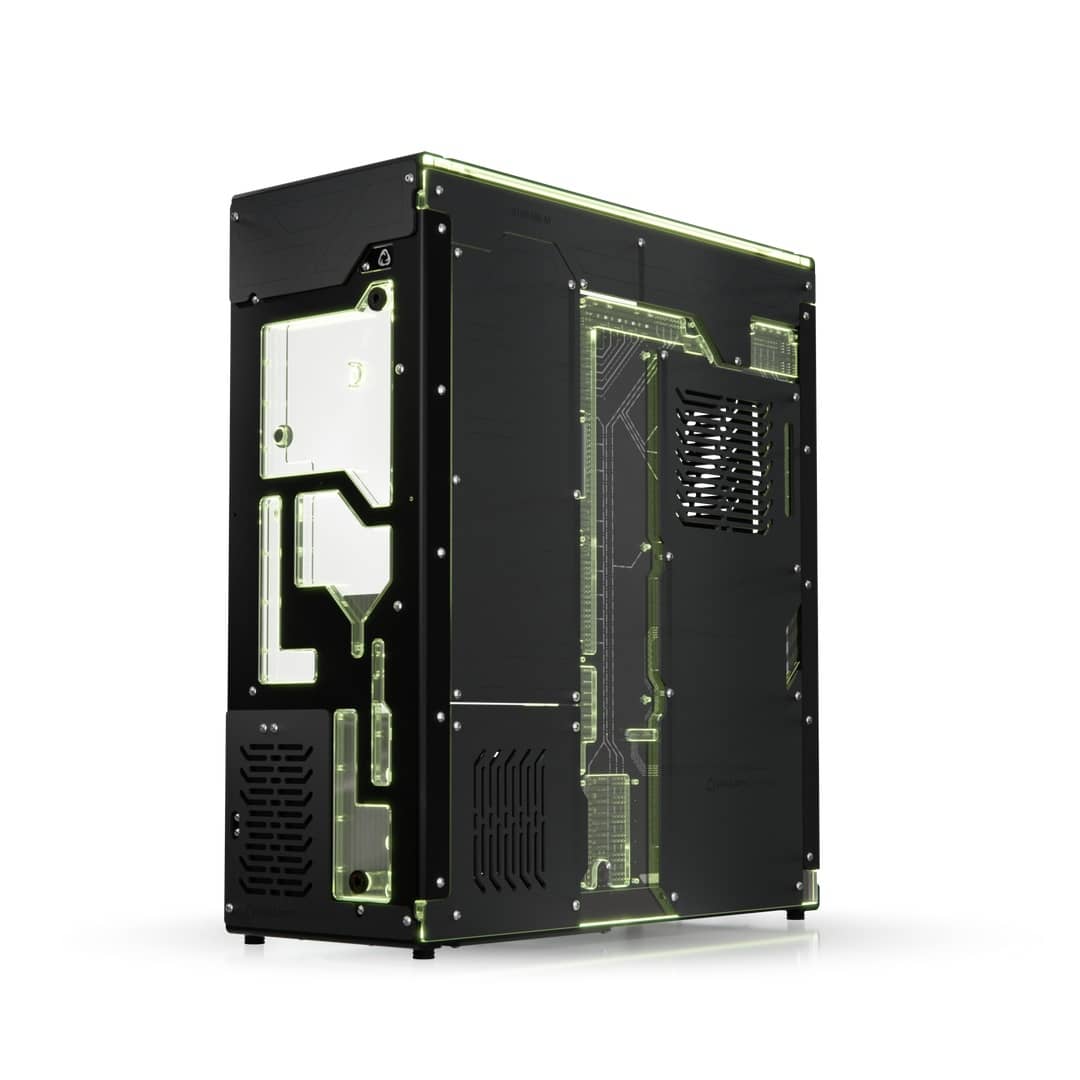

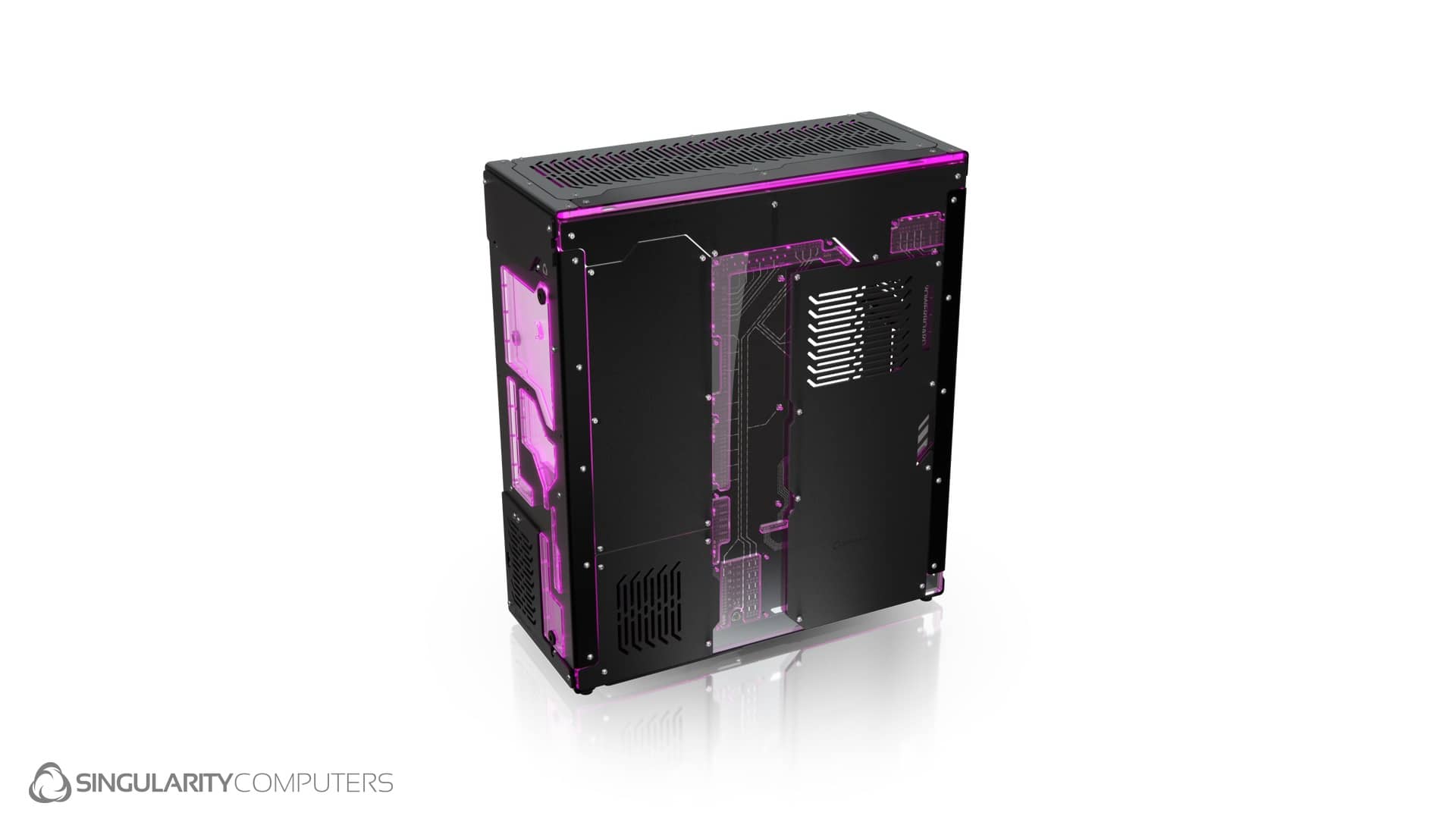

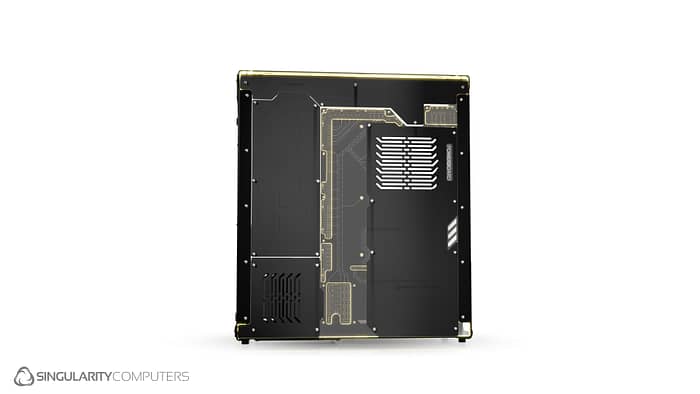

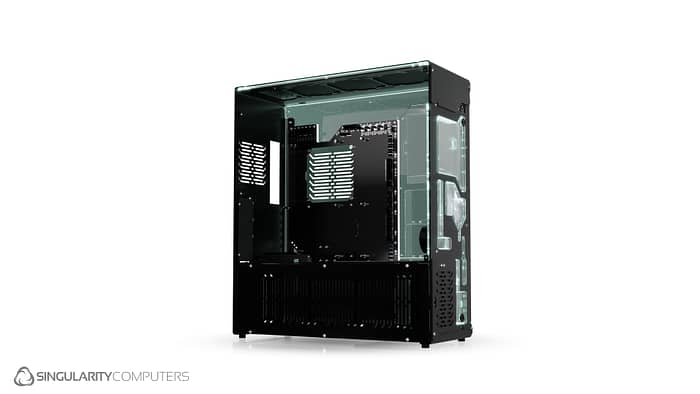

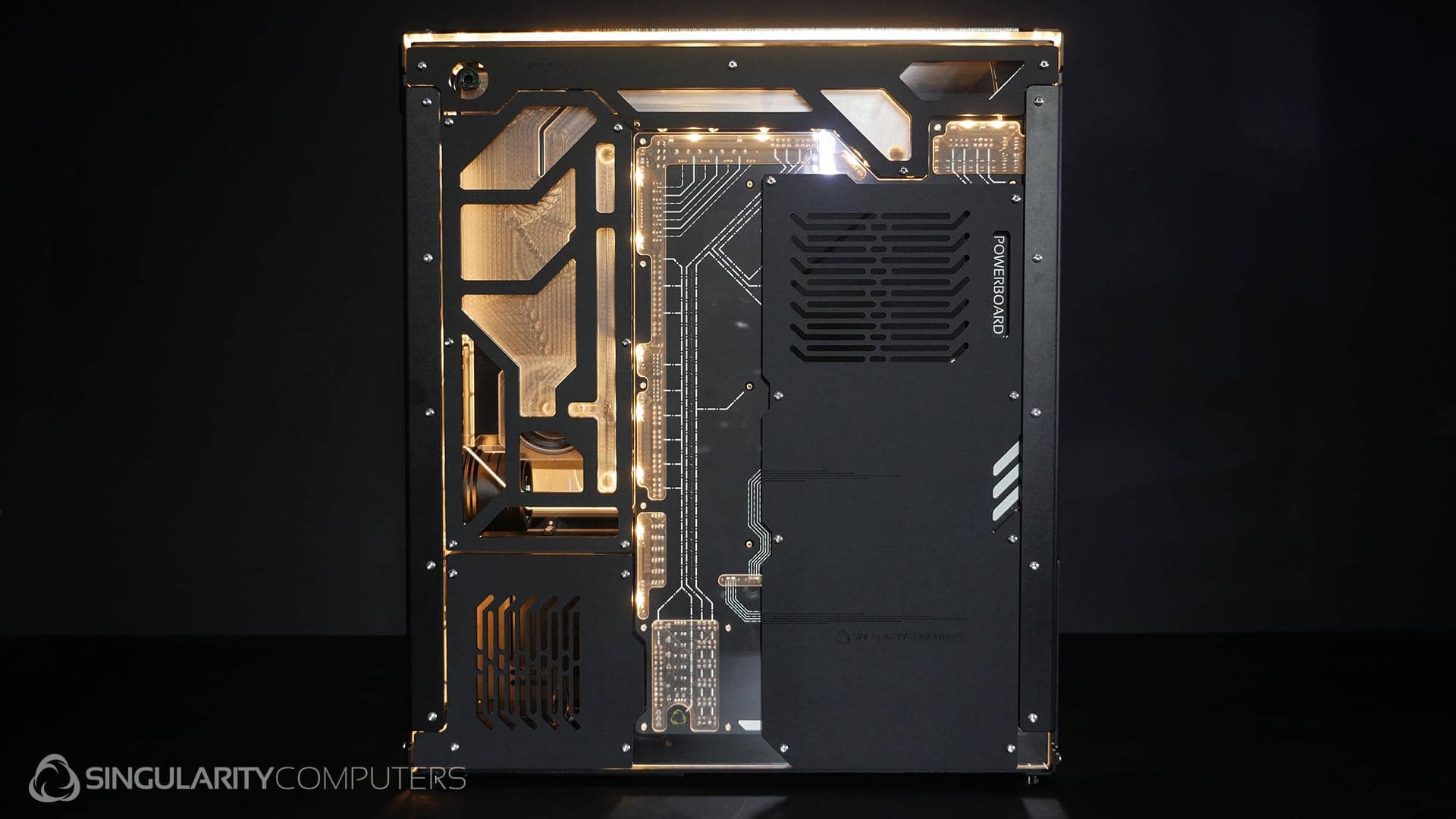

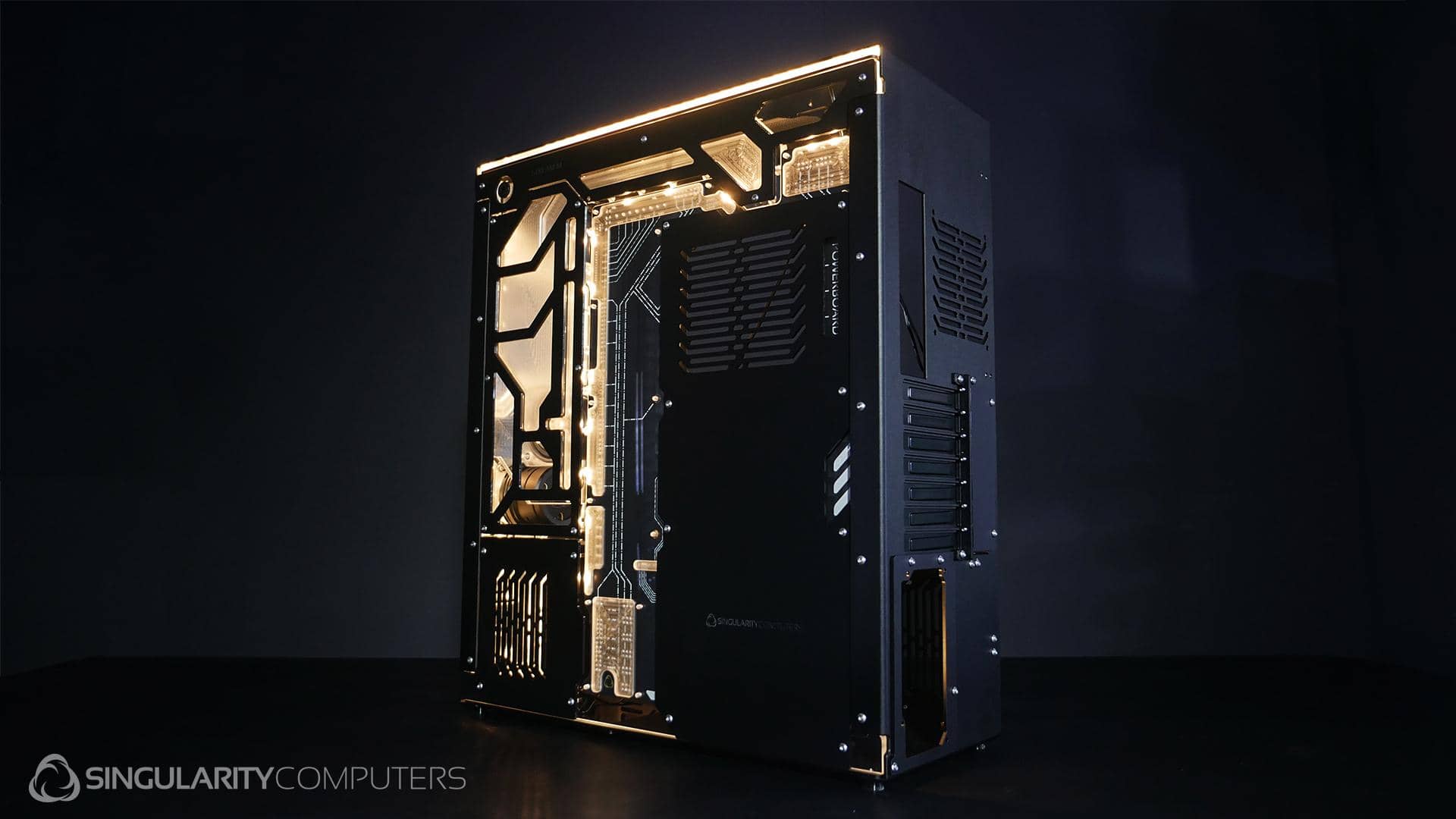

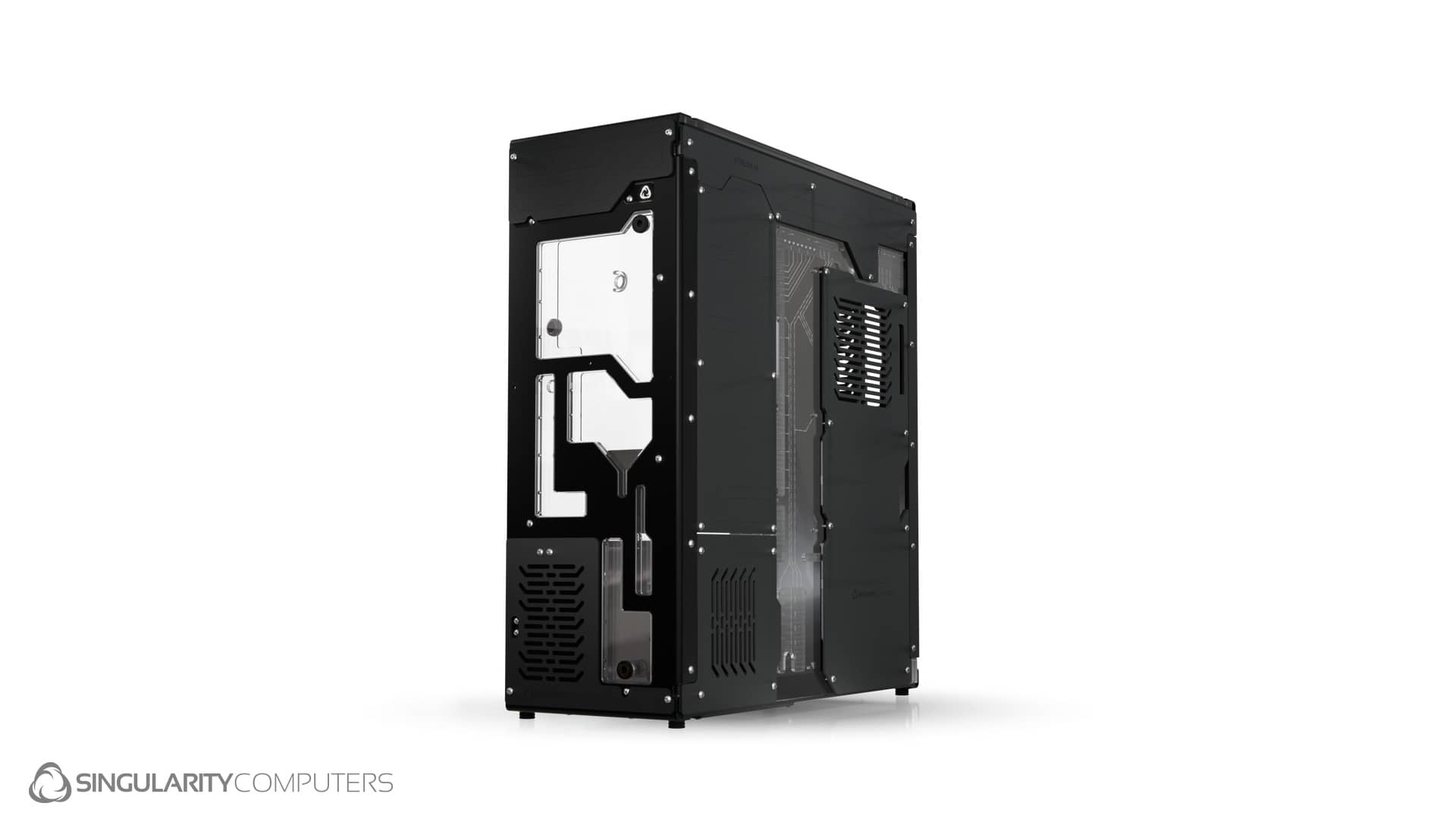

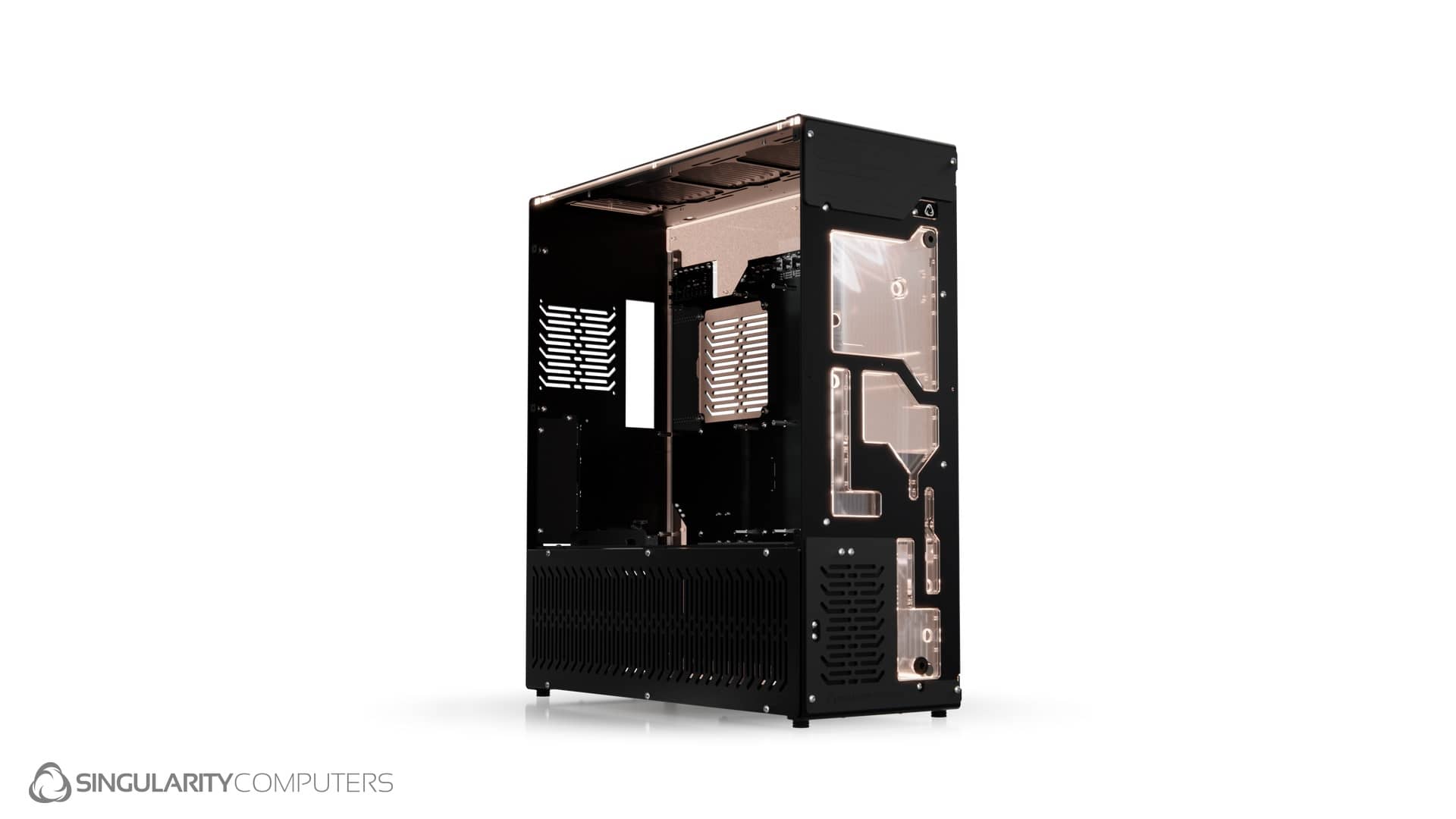

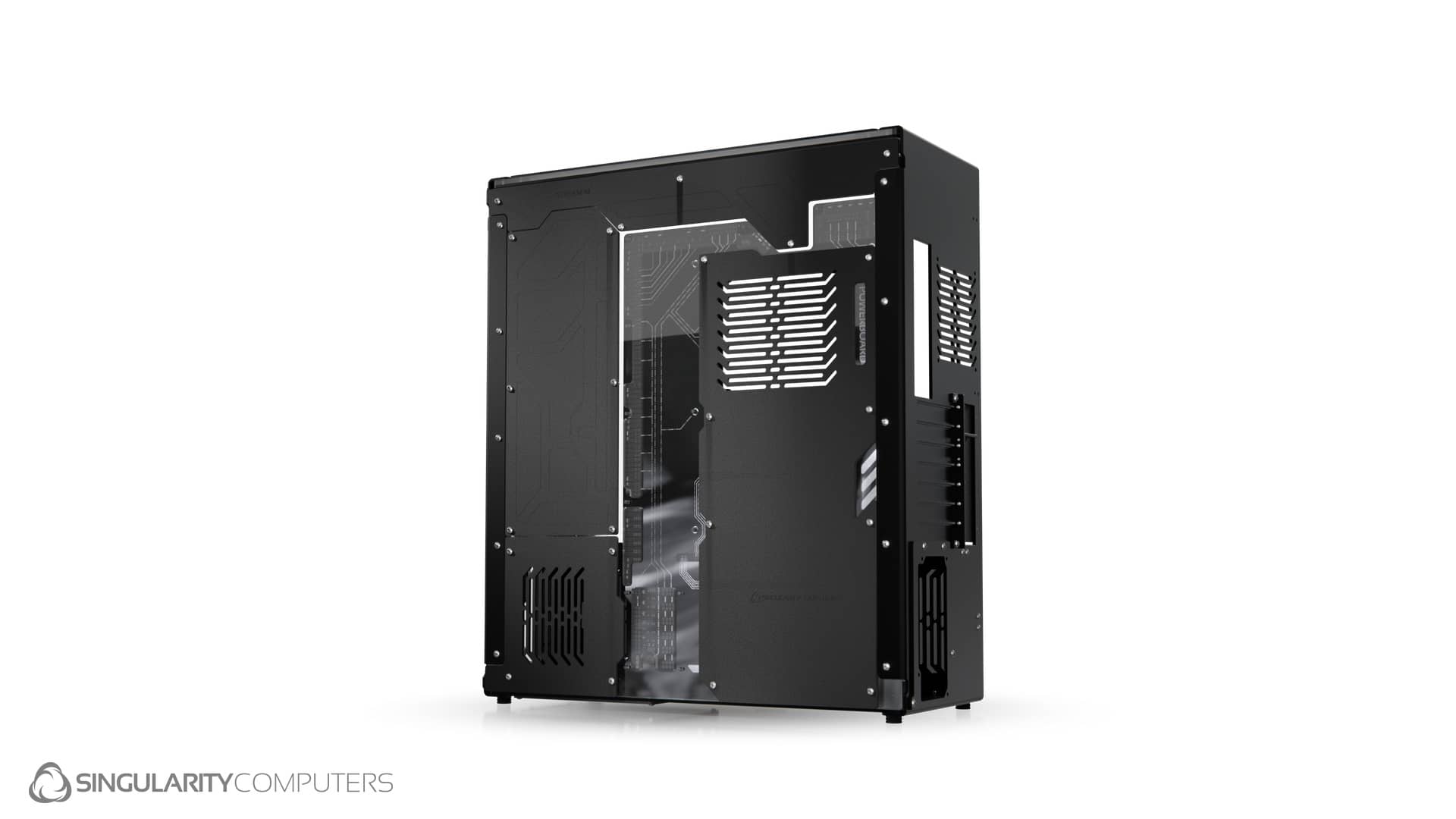

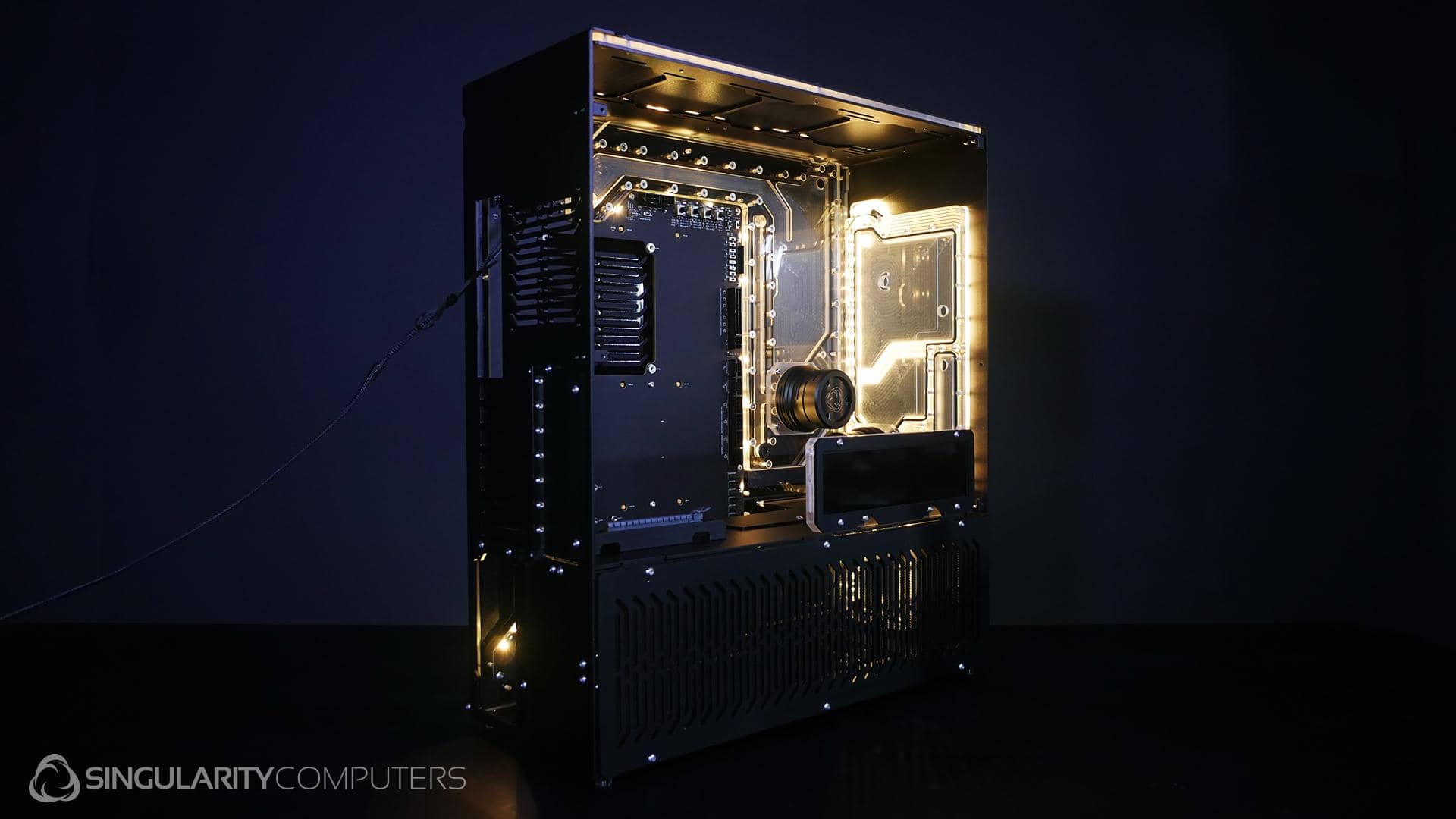

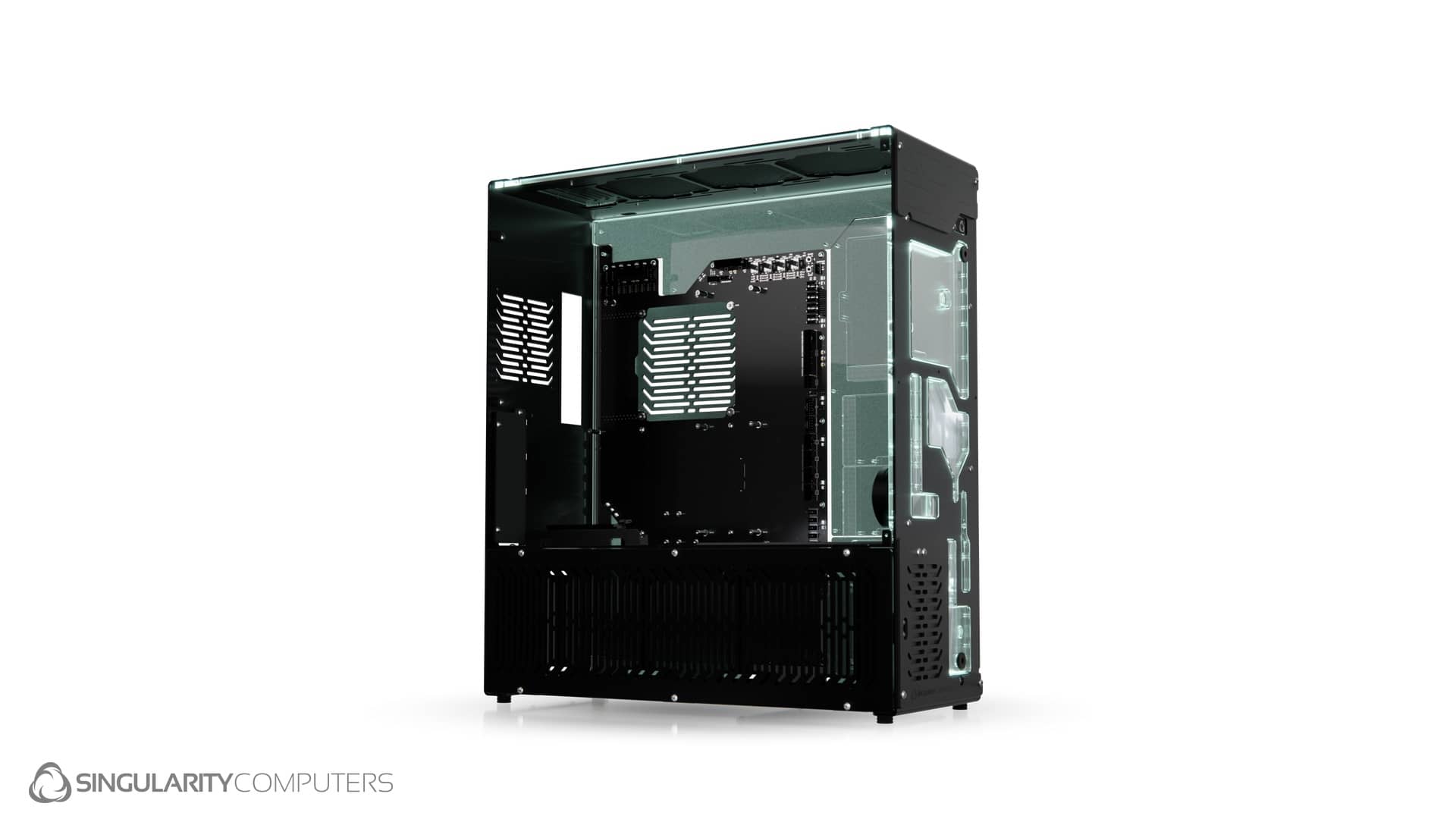

Stream-M is a high end water-cooling focused case which fits E-ATX motherboards and two 360mm or 420mm radiators up to 60mm thick. It has a closed design with dust filters on all intakes. It has a distribution plate built in, with a reservoir, D5 pump top, D5 pump cover and parts of the loop. It has the patented Singularity Computers PowerBoard which removes the need for cable management and comes with a vast range of features including integrated lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more. It also comes with cables. Stream-M has a 140mm fan mount behind the motherboard to cool the rear of the CPU socket, three 2.5”, one 3.5” and one 2.5”/3.5” drive mount. The case construction is extremely high end with all CNC machined components and 3mm anodized aluminum panels.

Pump not included. Compatible with any D5 Pump.

Build Gallery

Original price was: US$999.00.Current price is: US$849.15.

Rear, Top and Front Panel Covers (see image below).

Stock Black Satin Gloss Black Gloss White Carbon Mirror +US$49.00 Silver Mirror +US$49.00 Gold Mirror +US$49.00 Stock Black Satin

Custom black sleeved cables which connect from the PowerBoard to the GPU.

8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

1920×480 60Hz IPS Display for monitoring system statistics.

None Yes +US$189.00

Monitor RPMs, Temperatures, Voltages and control ARGB Lighting.

None Yes +US$129.00

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00
EAN: 9351182005033 SKU: SC-STREAM-M Categories: ,

Manual

Gallery

Specifications

Water-cooling Integration:

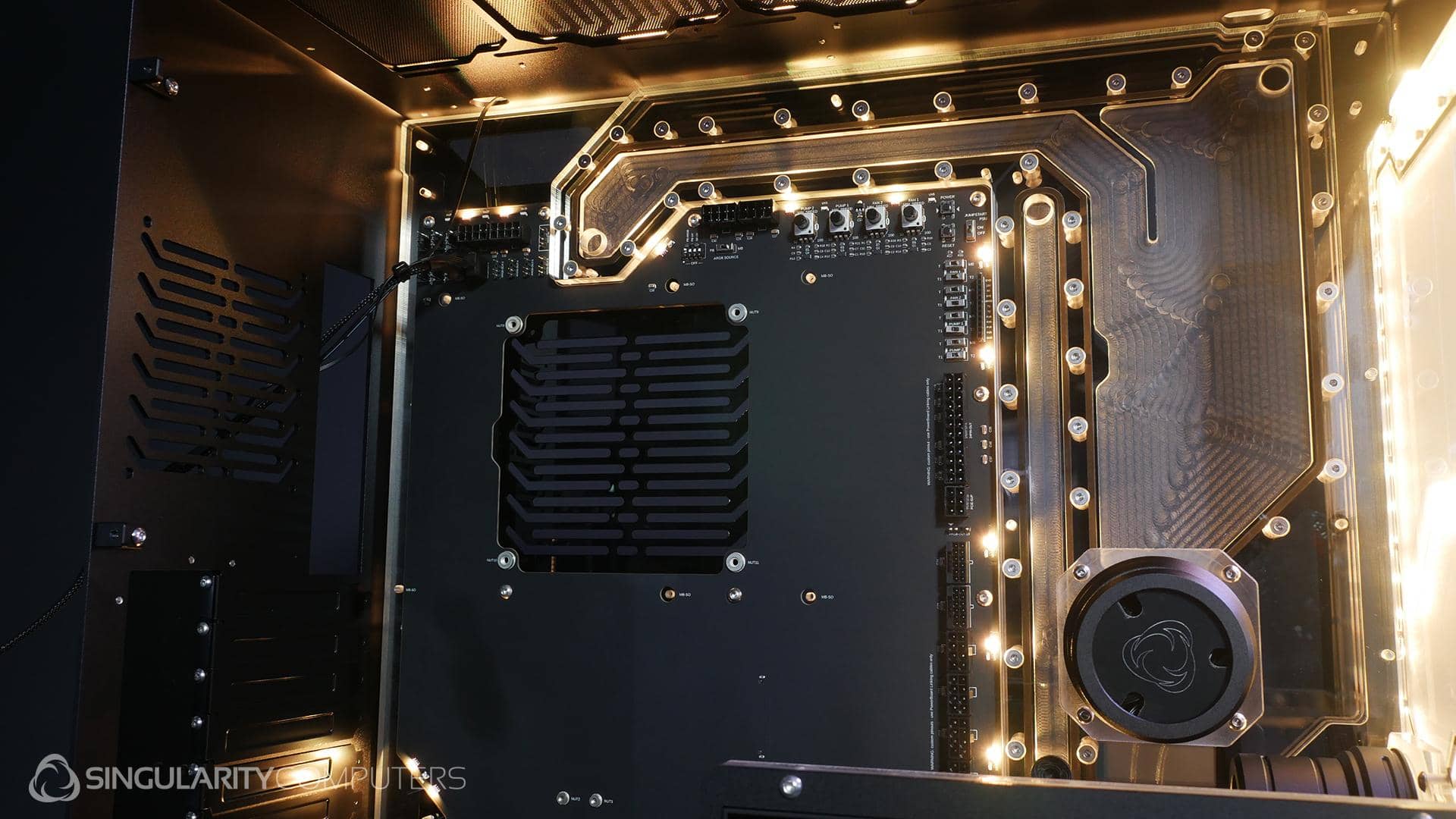

Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of two separate water-cooling loops. Front Distribution Plate.
Ports: x5 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs. With coolant temperature-based RPM control or motherboard control Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control:
4x potentiometers to set the minimum PWM speed.
ARGB:
x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x28 Integrated ARGB 90-degree LEDs and x28 UV 90-degree LEDs around the external perimeter of the PowerBoard. There are dip switches to turn the ARGB and UV LEDs on or off separately and stand-by UV lighting can be disabled.
Power and Reset Buttons.
PowerBoard direct mount 1 x 2.5” and 1 x 2.5”/3.5” SATA 3.0 6Gb/s accessible from the back of the distribution plate.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Pump Power Cable 4pin ATX to SATA & Molex x2
LED Strips: ARGB 5V 50cm x2 (pre-installed).
Motherboard Form Factor: XL-ATX (Up to: 290mm Wide & 350mm High).
E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Full Tower Water-cooling Case.
Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.
Radiators: 420mm/360mm X2 with 85mm of thickness for radiators and fans.
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 4.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 518mm x W: 592mm x H: 218mm.
Case Weight: 13kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm.
Packaged Weight: 14kg.



Addon Information

Stream-M Screen                                                                                                                                                                                         FanGuardian PowerBoard Controller

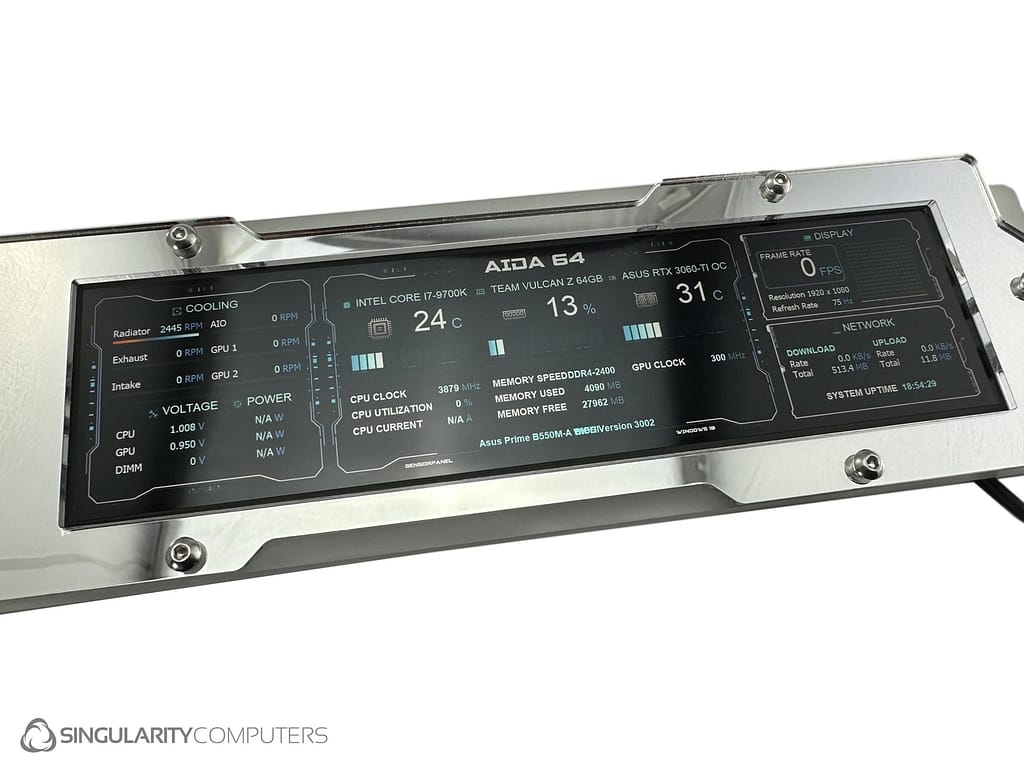

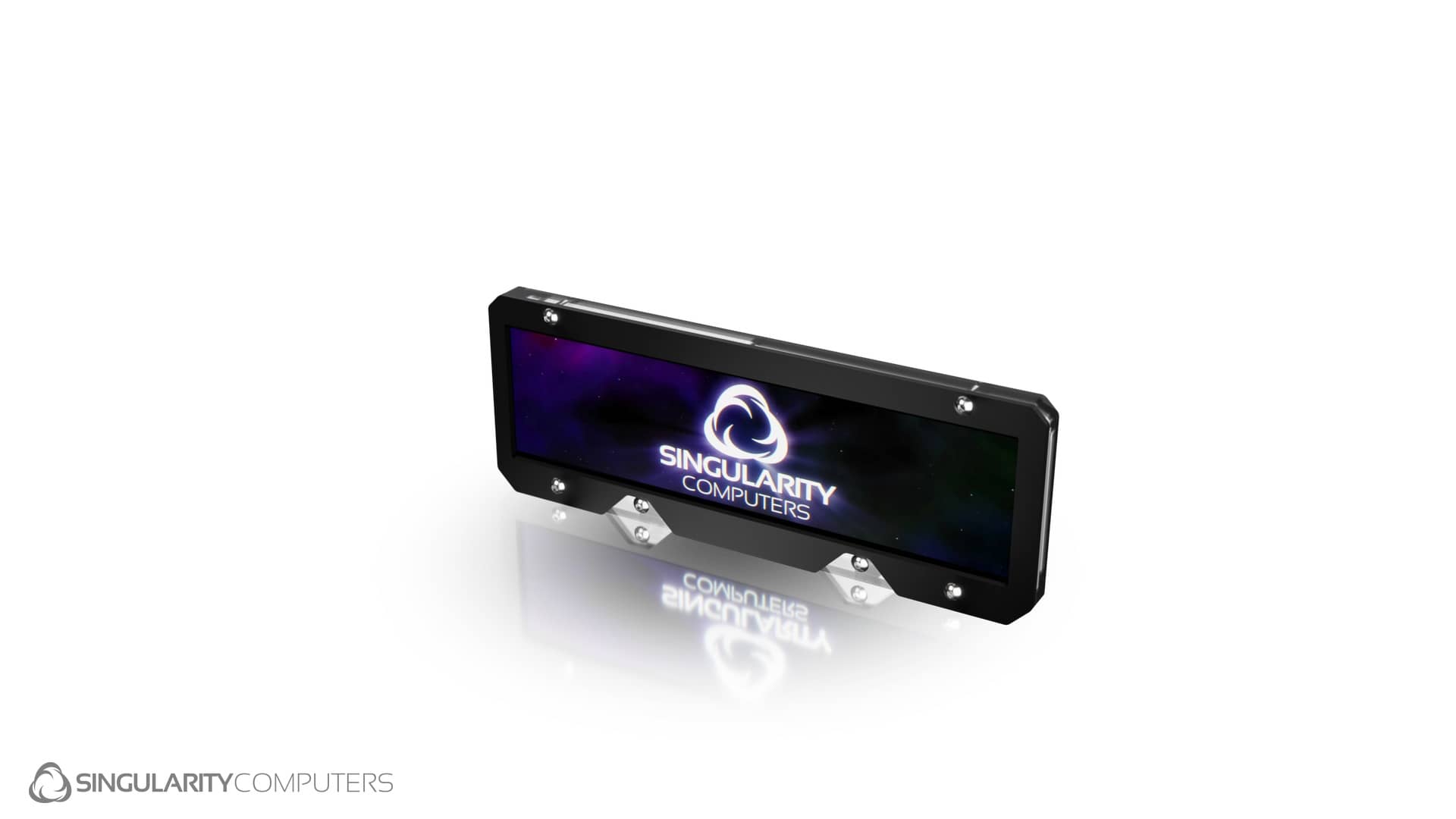

Stream-M Screen: 1920×480 60Hz IPS Display mounted into a CNC machined black cast acrylic panel. It fits onto the front of Stream-M on the mid-plate. It is fully visible through the Stream-M side panel window, and its compatible with both versions of Stream-M. The screen is powered by an included black 0.9m USB-A cable and the signal is from an included black 1m HDMI cable.

FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.

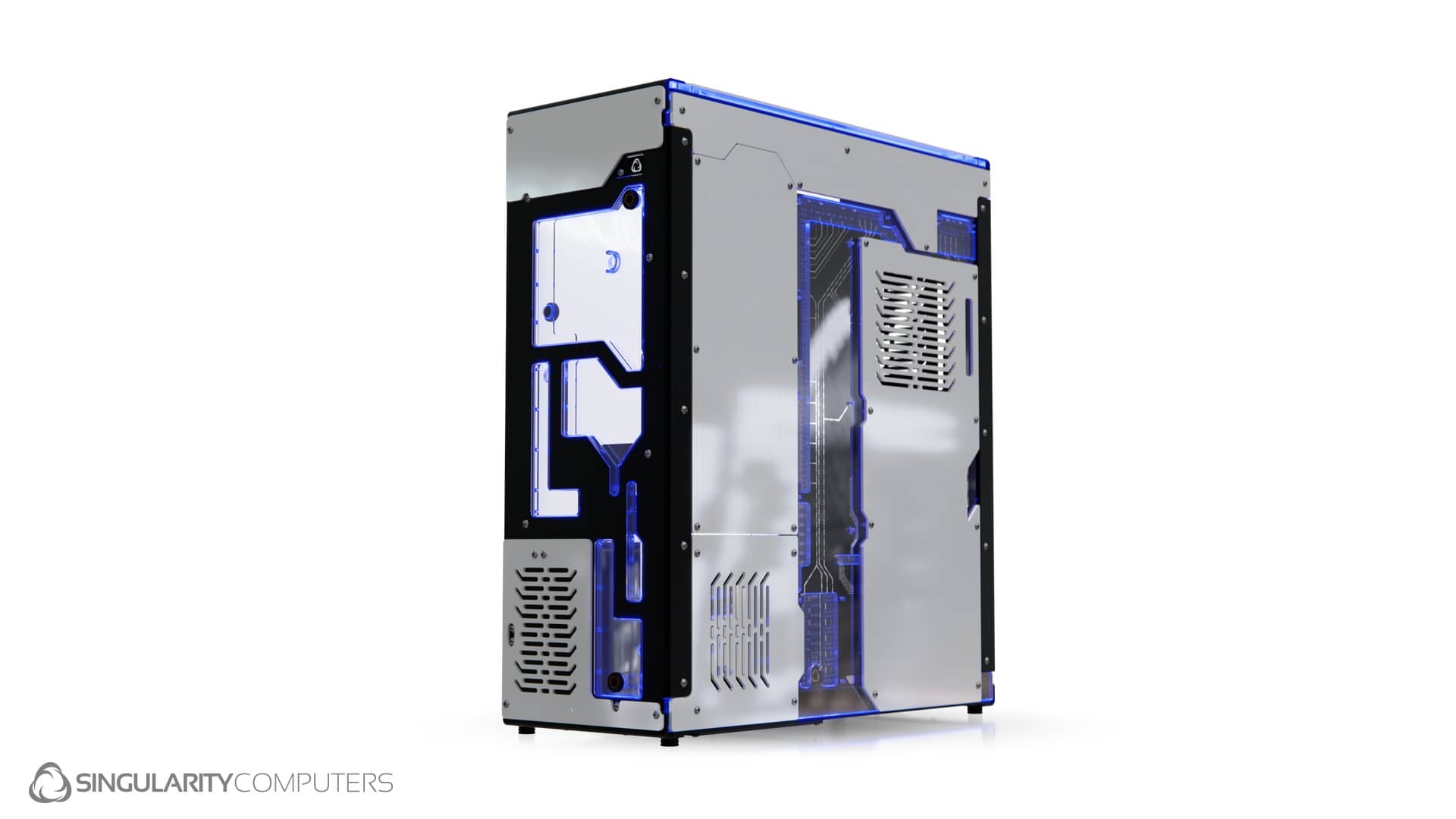

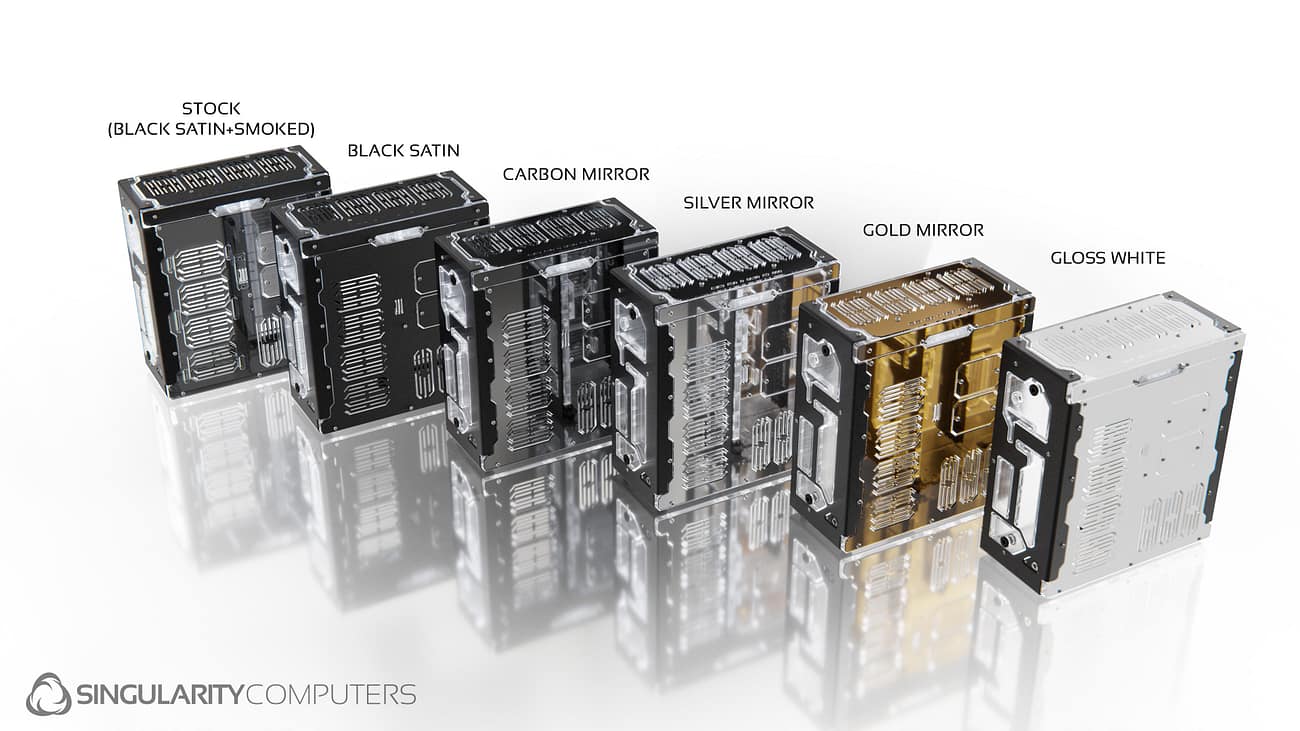

Case Colour Options

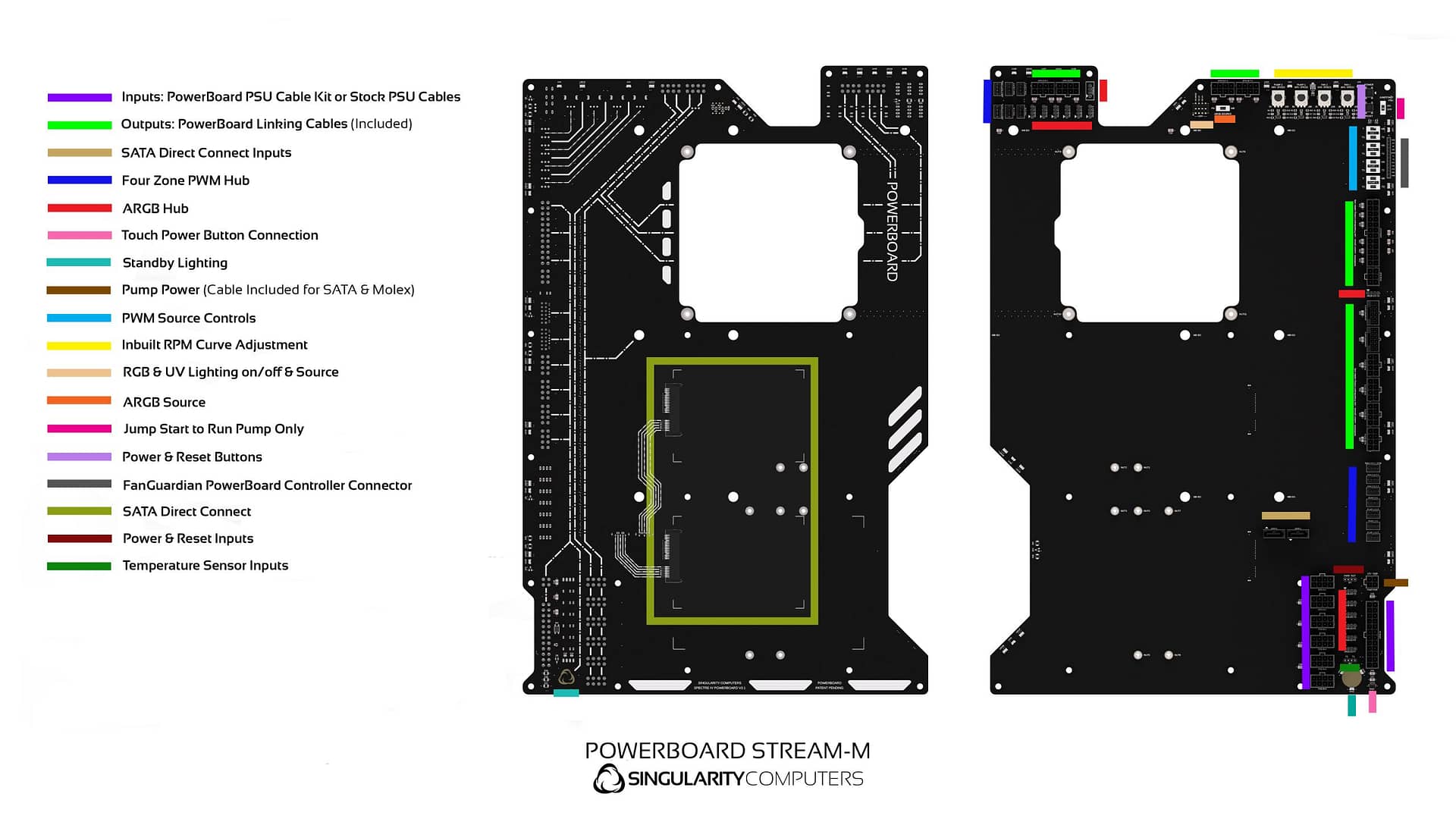

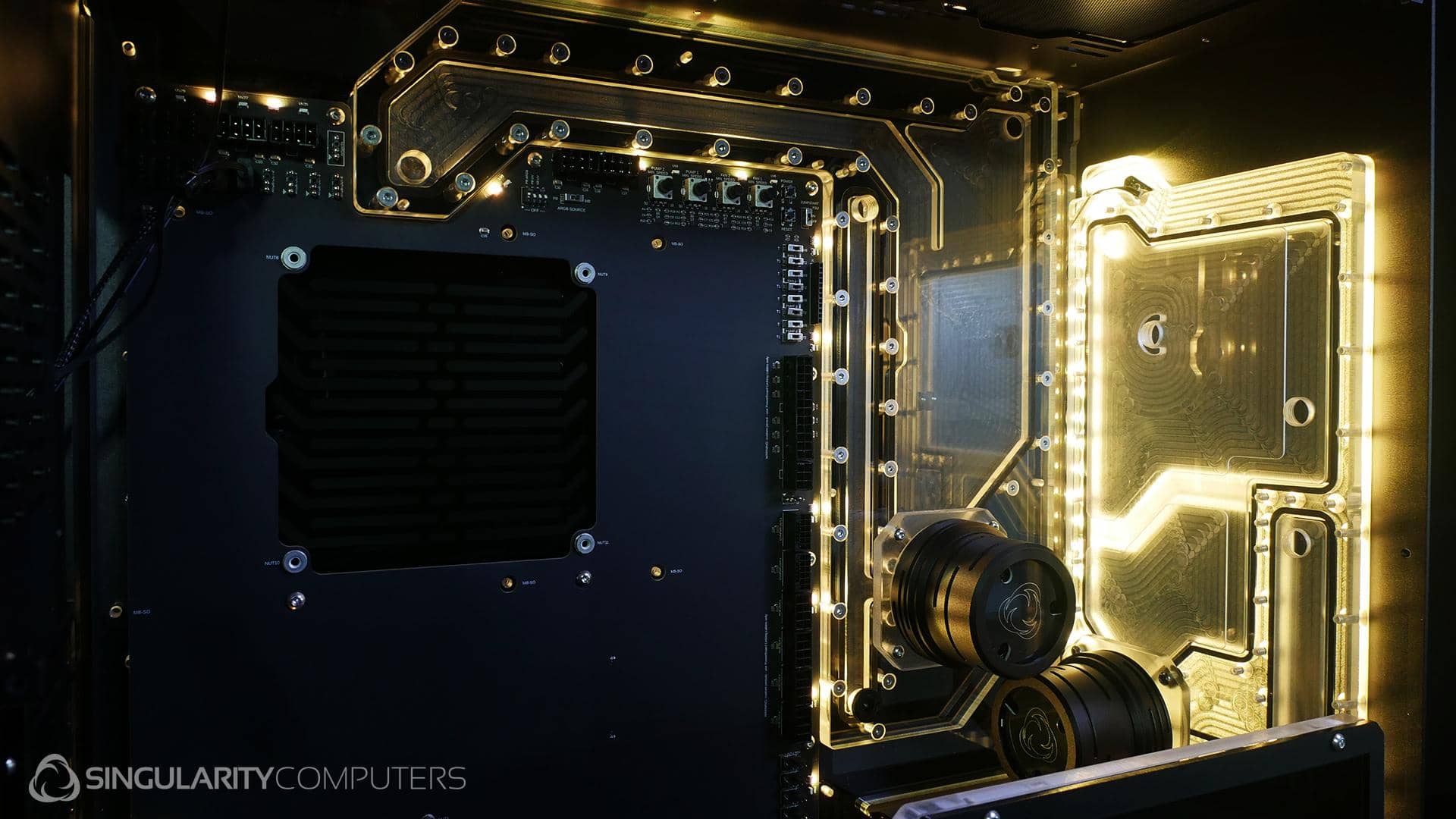

Stream-M PowerBoard
