TCTRL PWM Node
Order processing time 1-2 days.

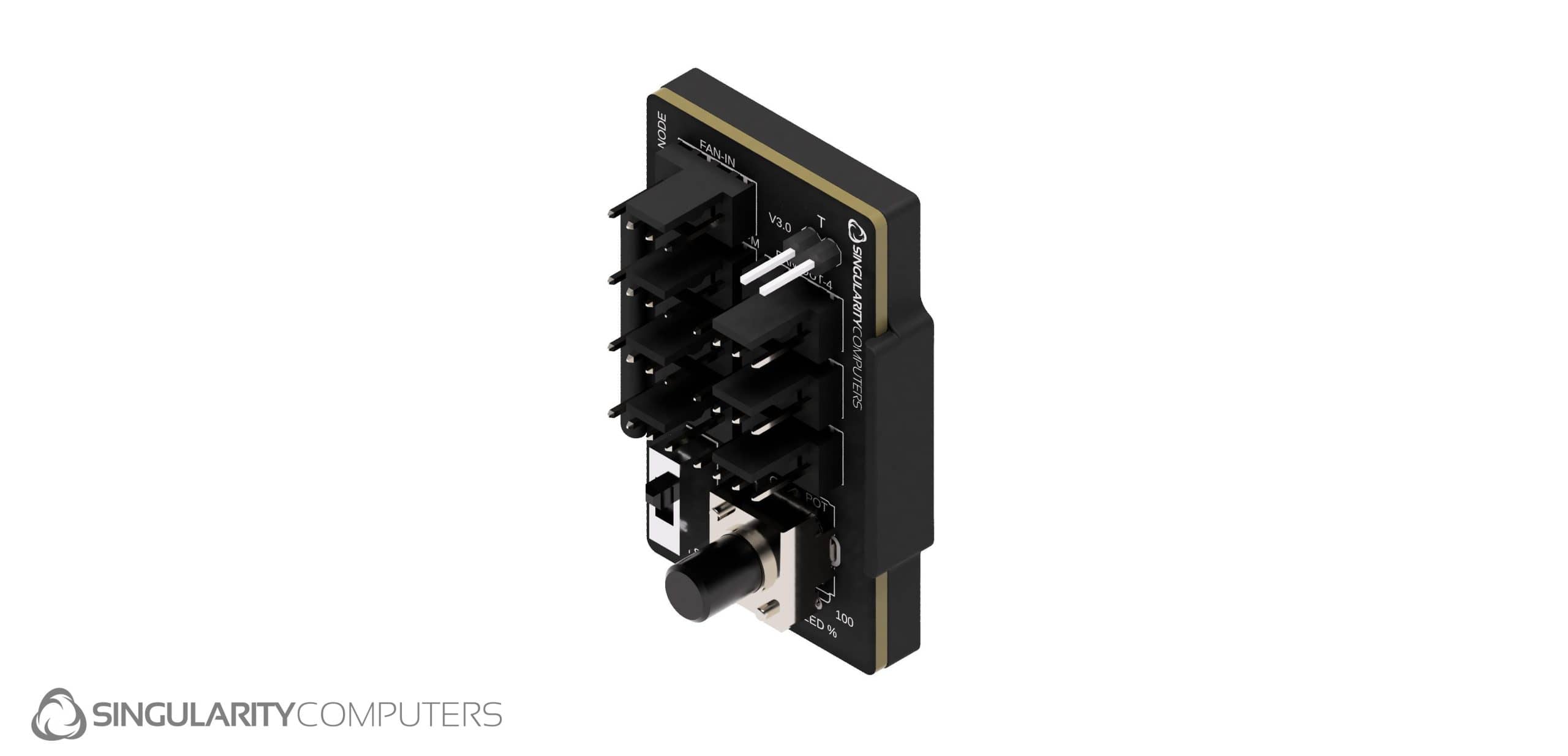

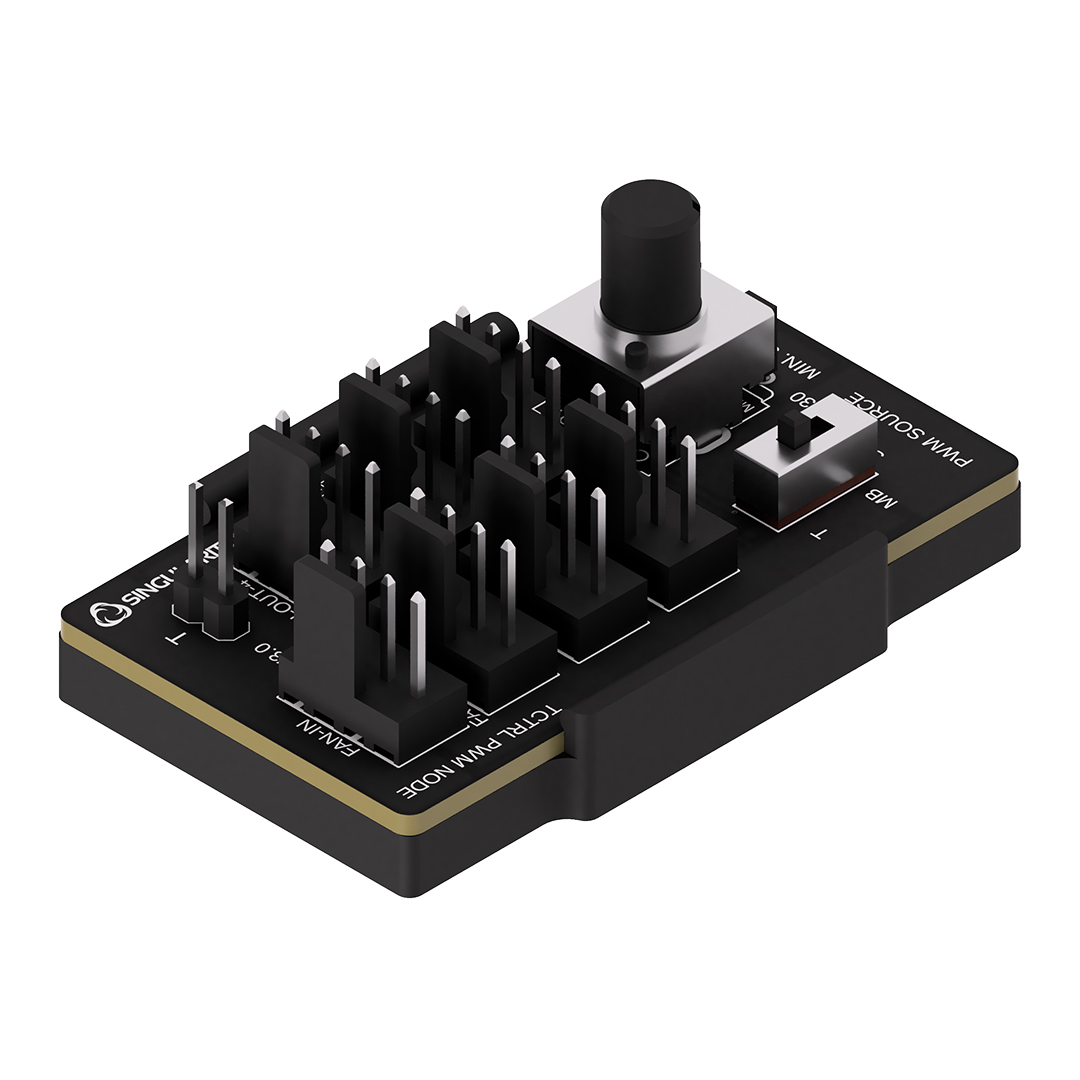

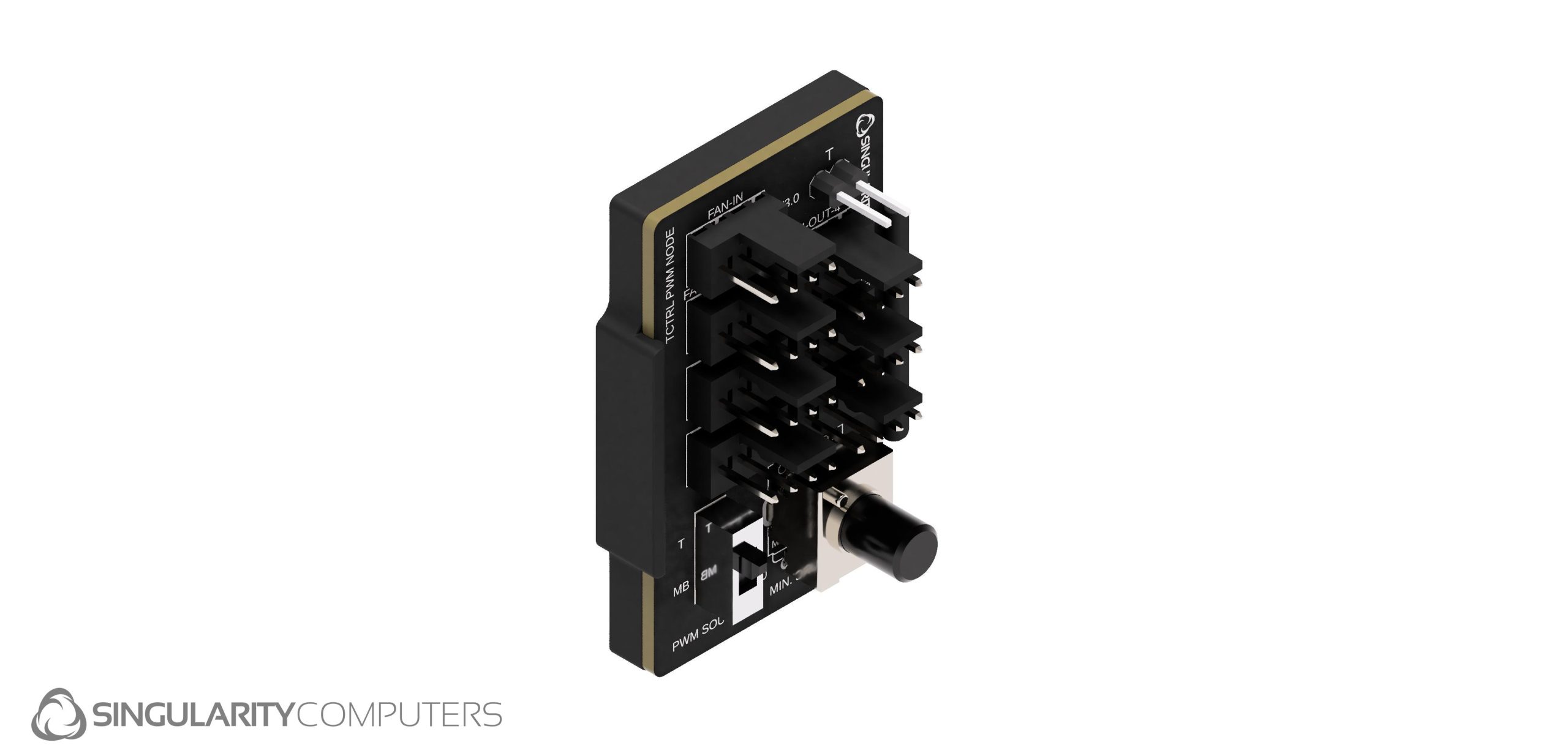

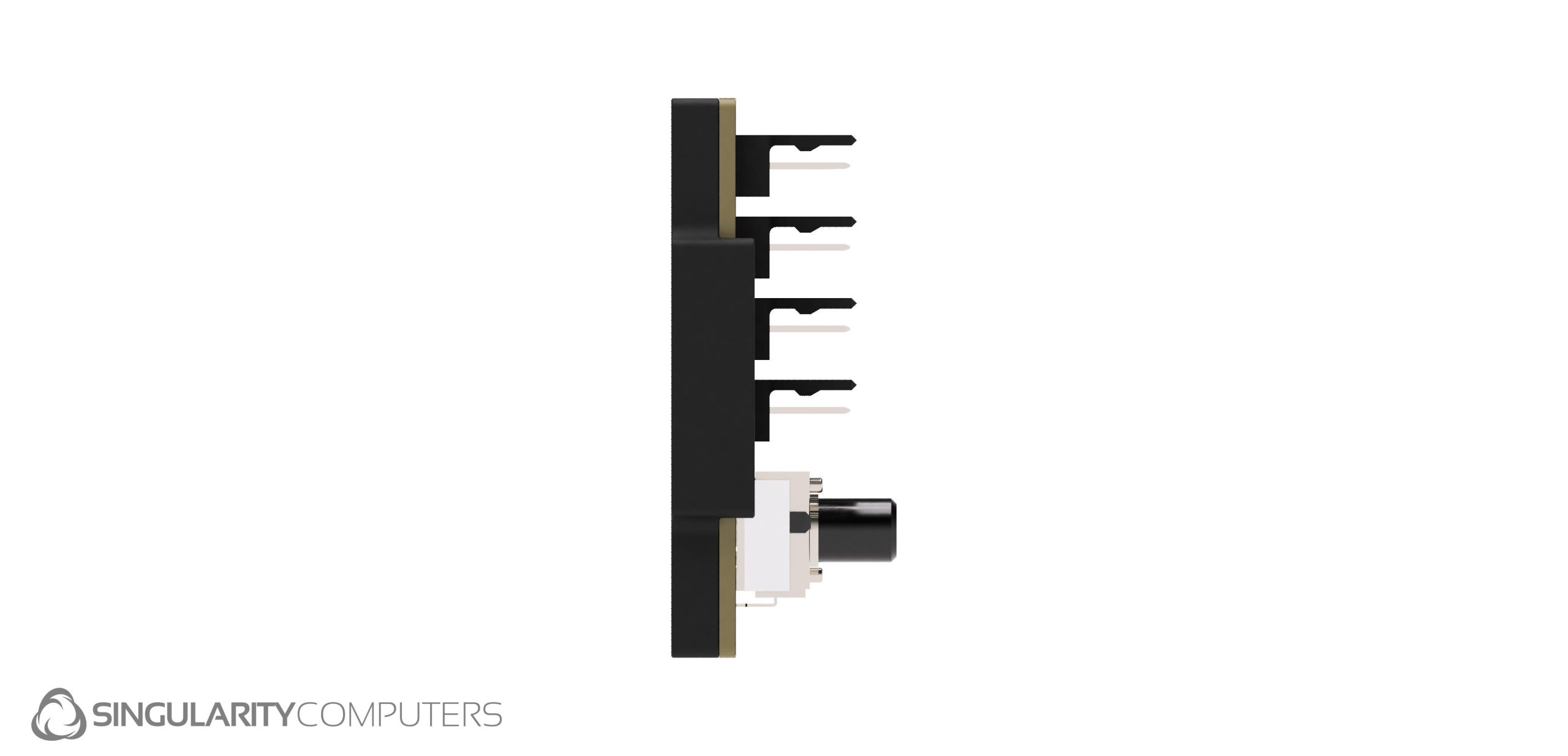

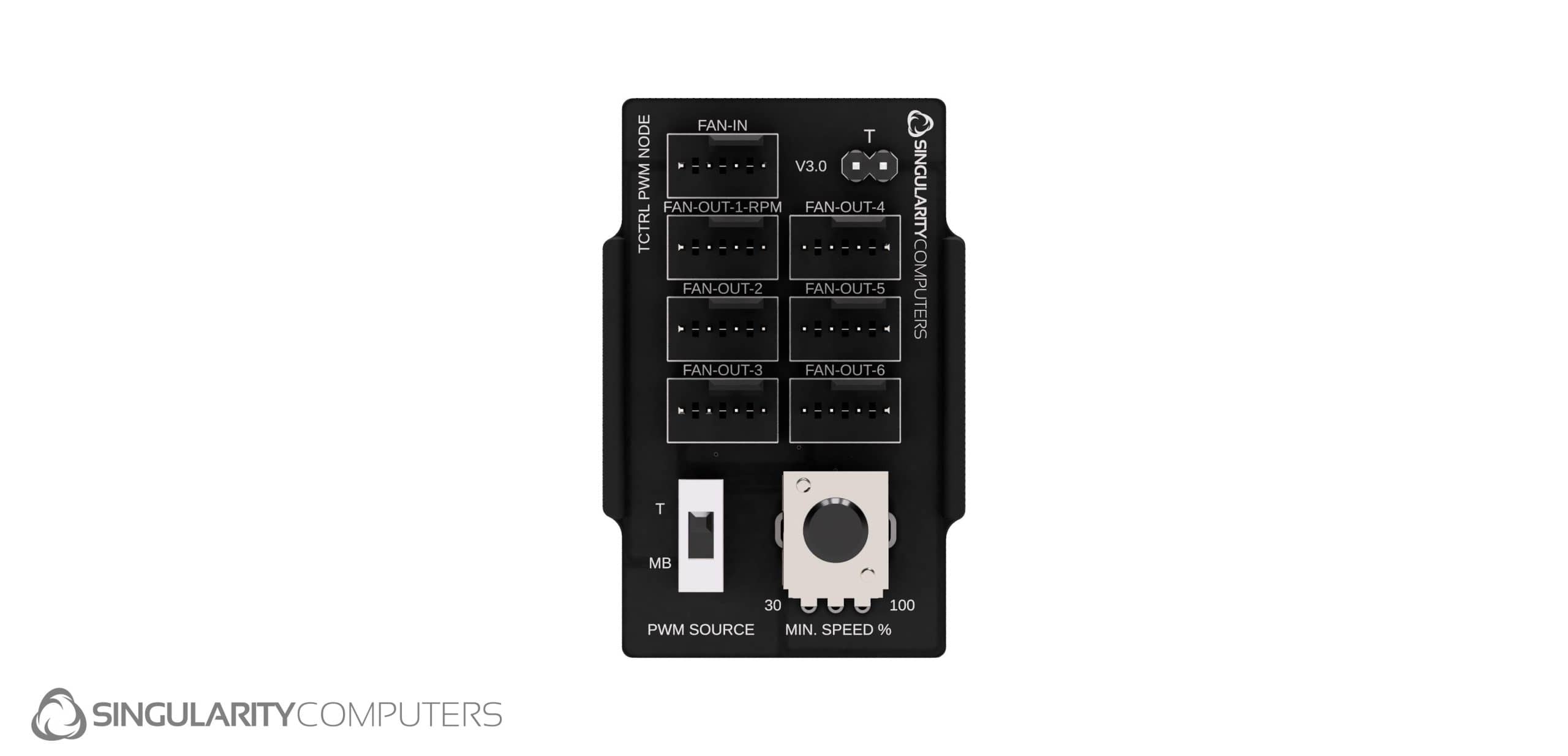

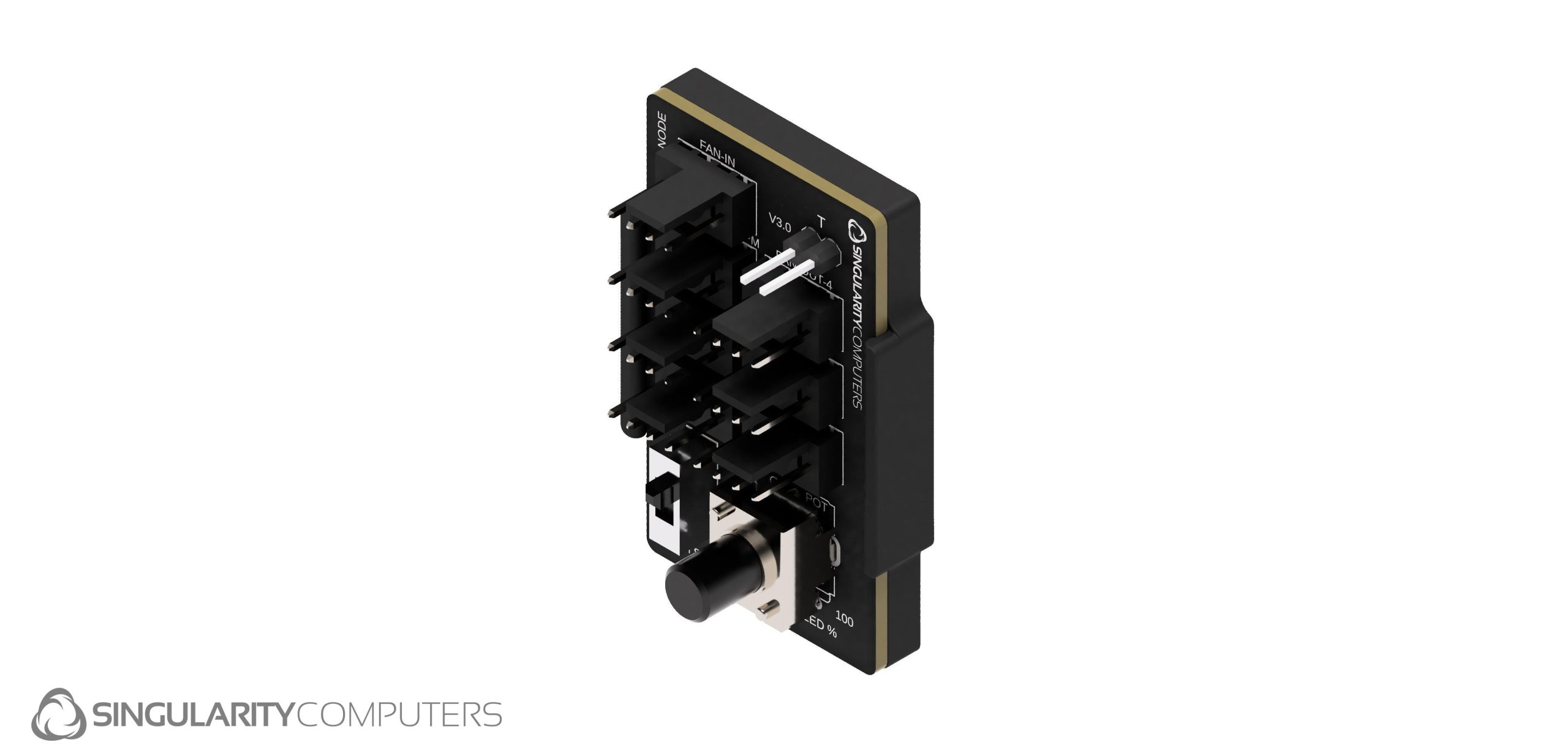

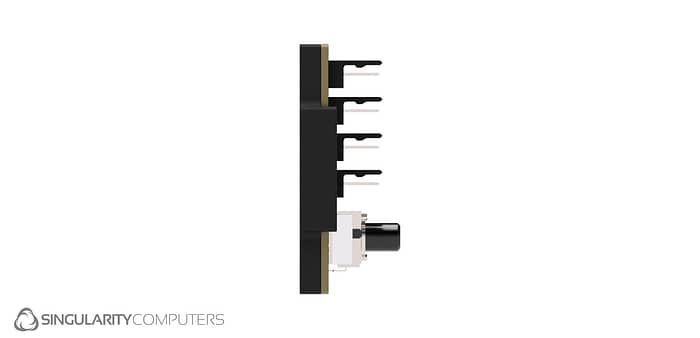

A custom designed Singularity Computers active PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has a PWM input which is split into 6 outputs. Only one of the outputs labeled FAN-OUT-1-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has an active PWM control circuit to adjust the speed of the connected fans based on the temperature of the coolant without the need of a motherboard. The potentiometer adjusts the PWM speed response to the temperature reading while a switch allows choosing between motherboard and temperature-based local PWM speed control.
US$29.00
Specifications:
SC TCTRL-Node. Black Dual Layer PCB.
Plastic tray with adhesive for attachment.
Inputs: PWM x1. T-sensor (10K NTC thermistor).
Outputs: PWM x6.
Cables: Black: PWM 500mm.

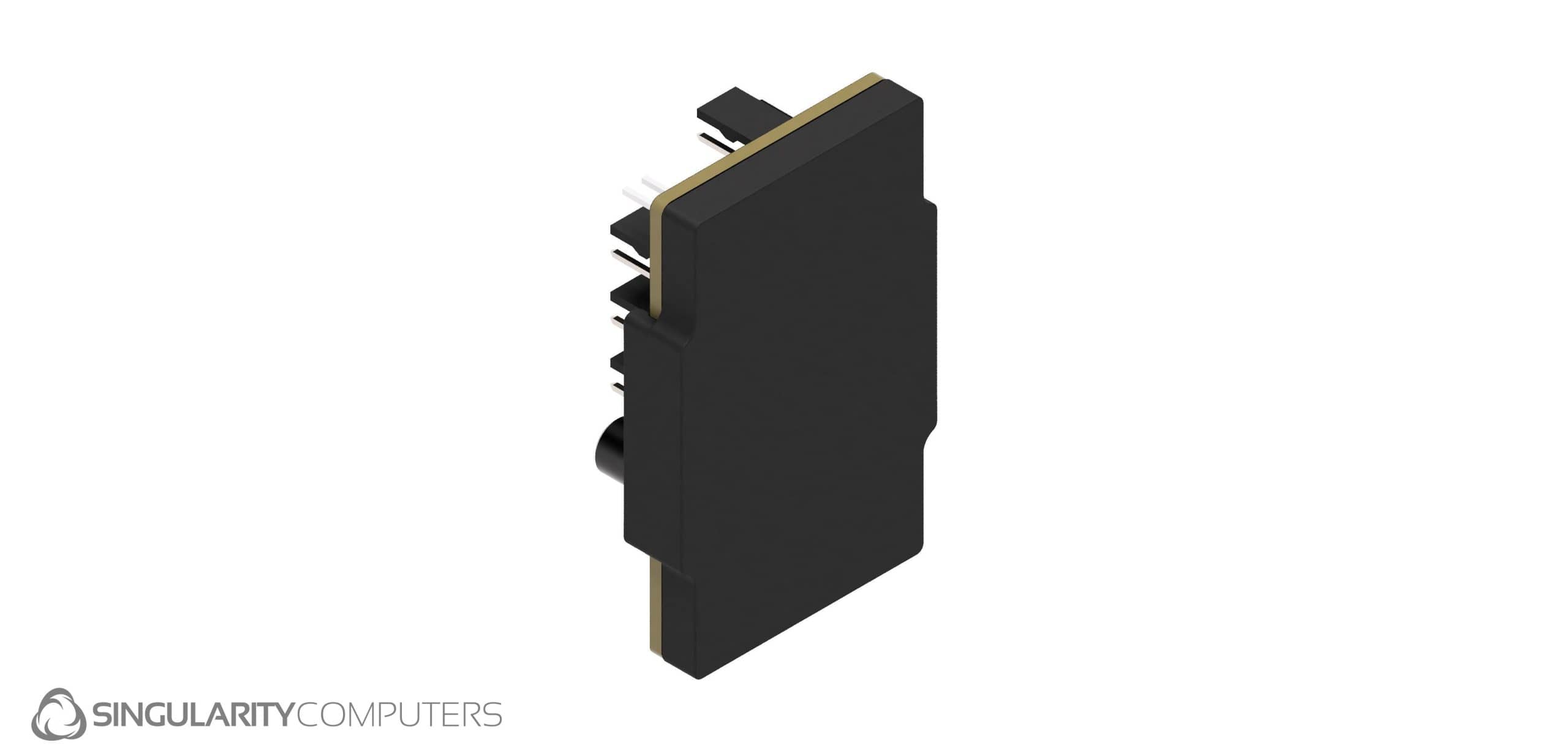

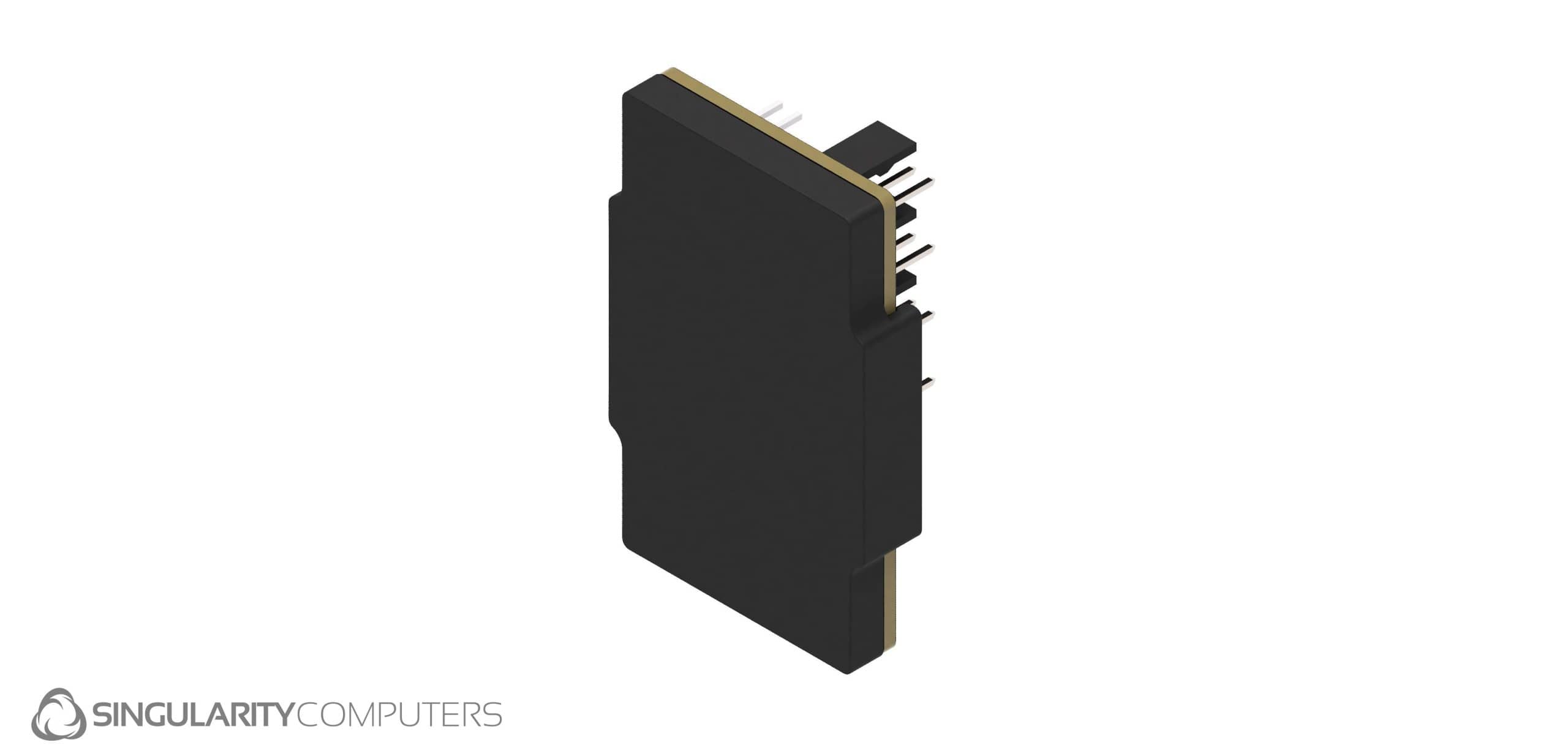

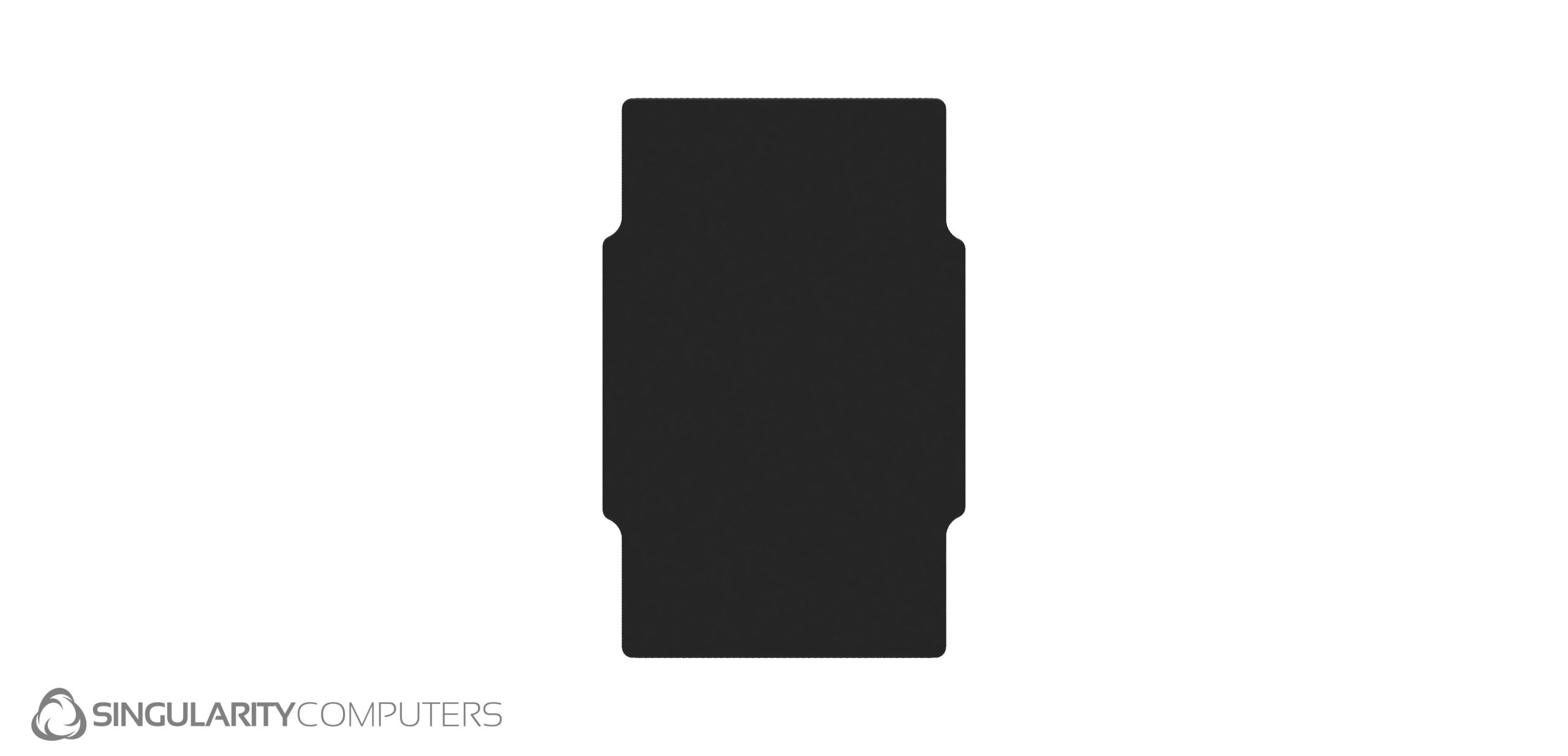

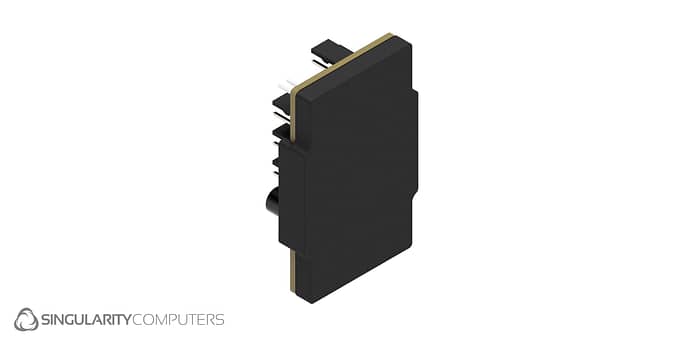

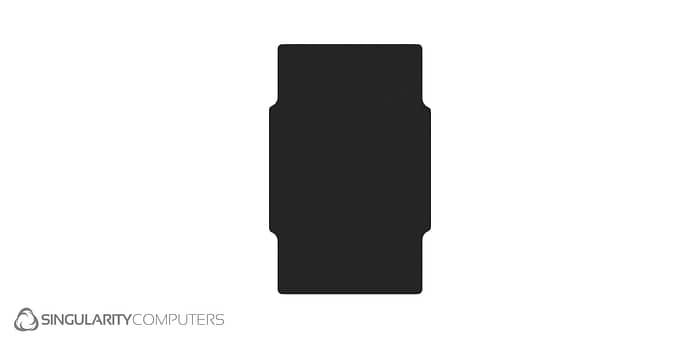

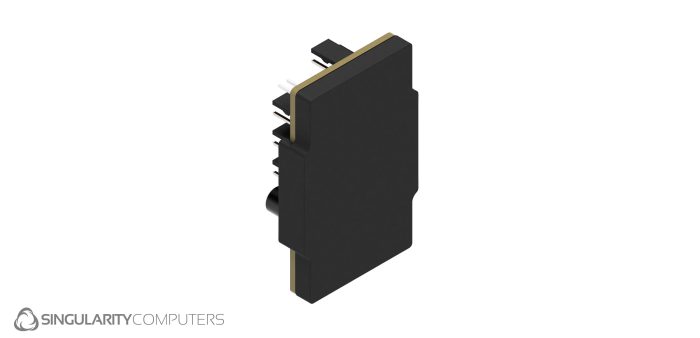

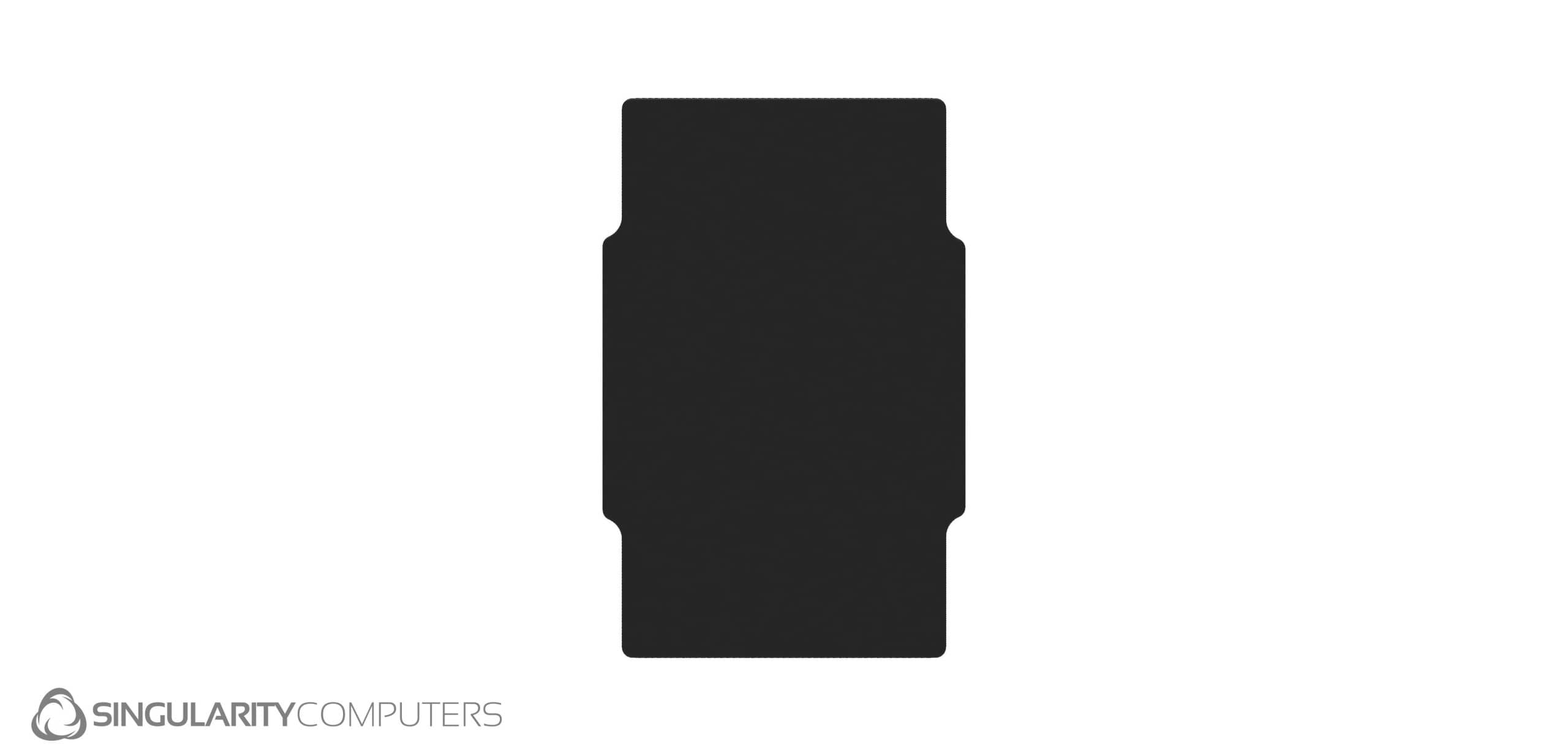

Cover: Black 3D-printed rear cover.
Warning: do not exceed the total current/power draw supported by Your motherboard PWM header.

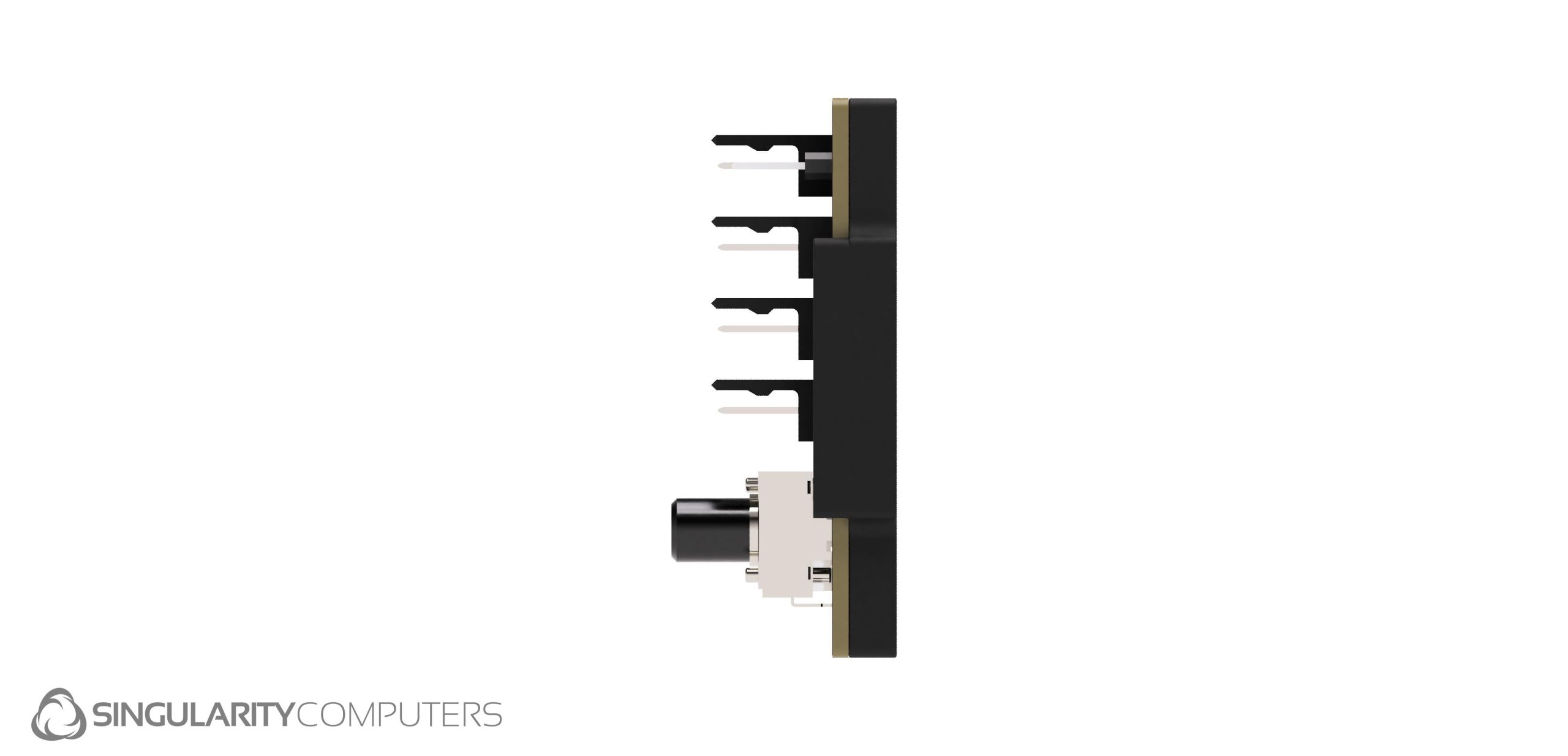

PCB Dimensions: L: 52.3mm x W: 30.2mm x H: 21mm.
Weight: 0.1kg.
Packaged Dimensions: L: 100mm x W: 50mm x H: 30mm.
Packaged Weight: 0.1kg.
Installation:
Connect the PWM input to your motherboard (optional) or another compatible device using the included cable. Connect a general temperature sensor to the “T” header. Connect your fans to the hub.
