Inwin 925 D5 Reservoir Distribution Plate

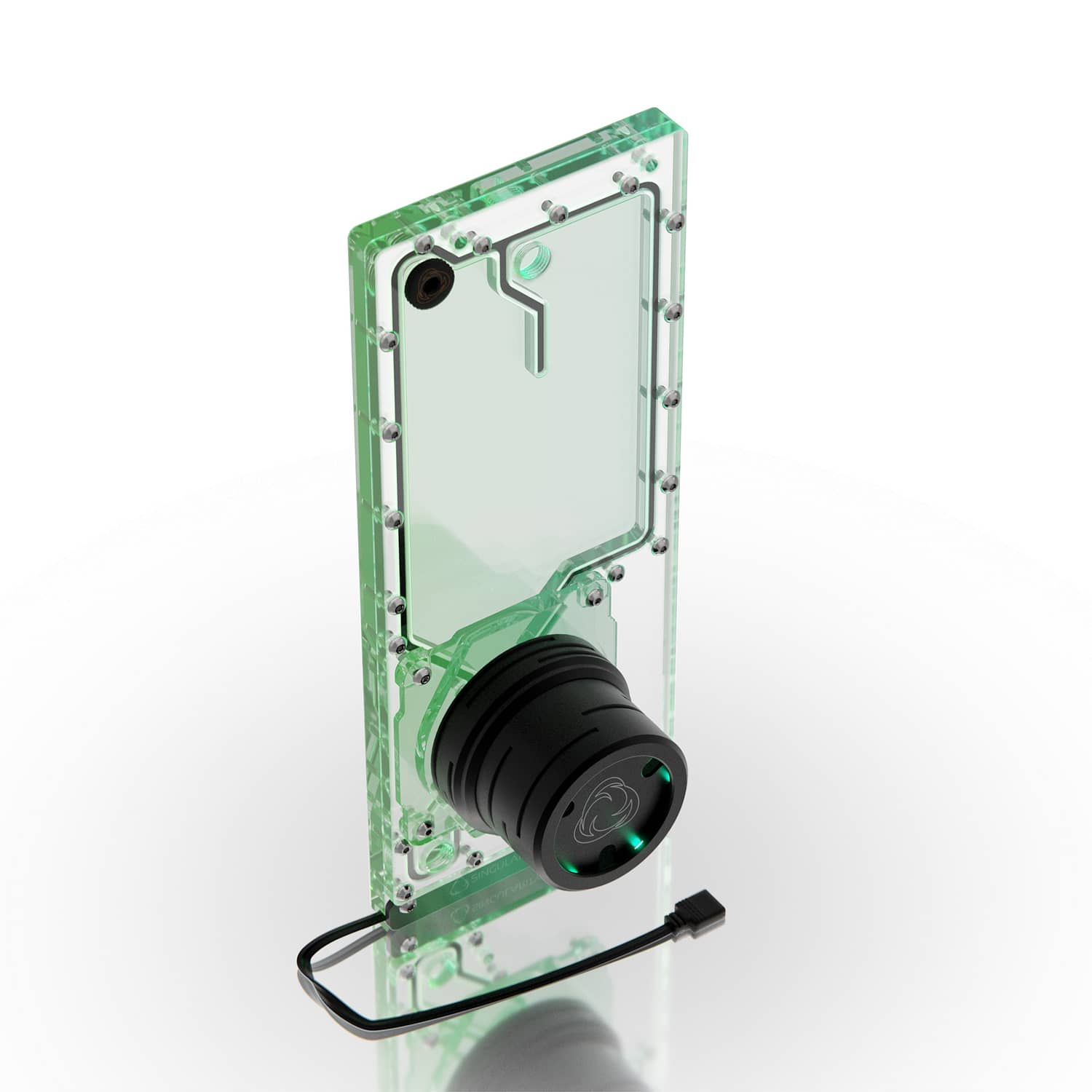

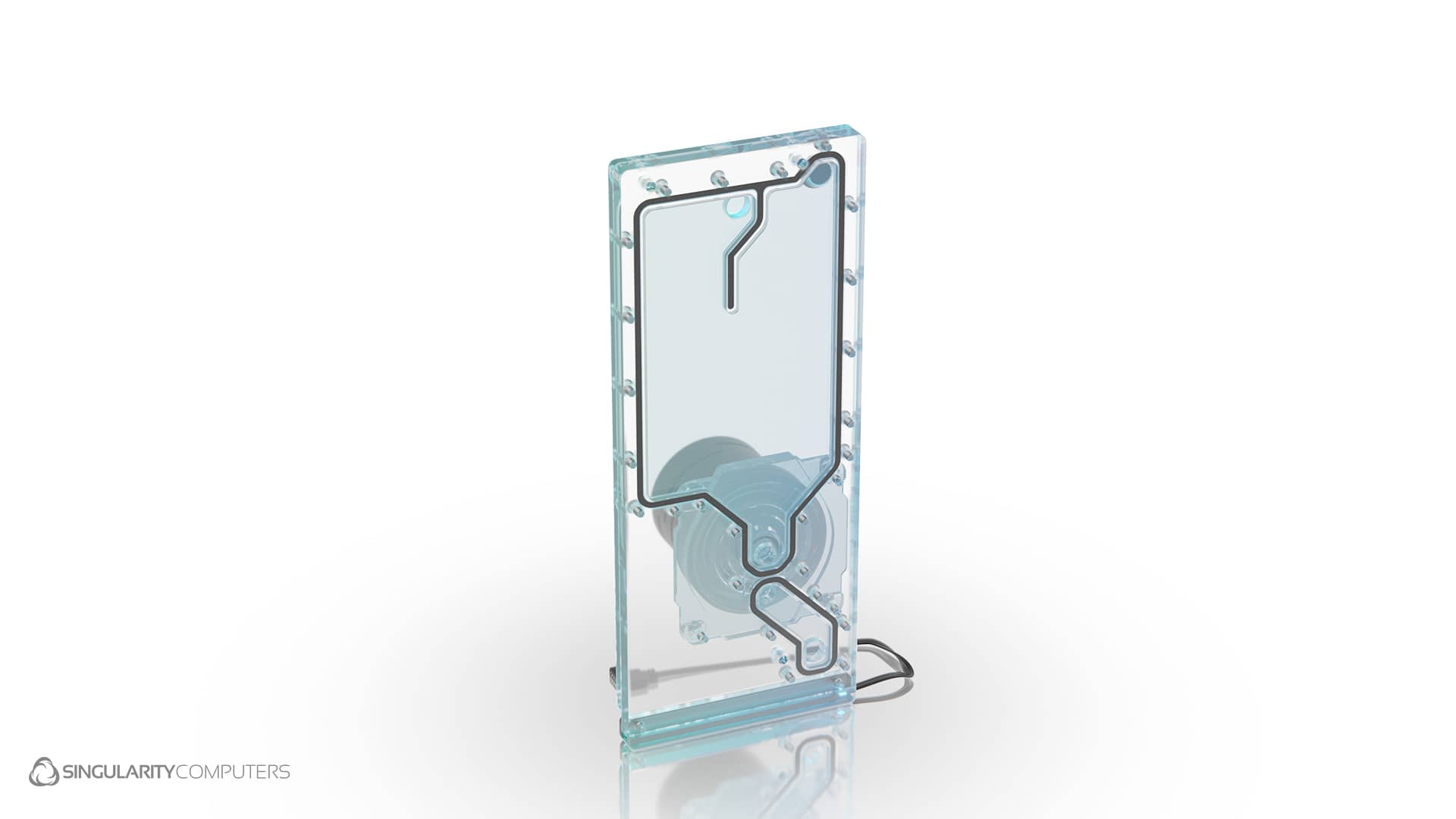

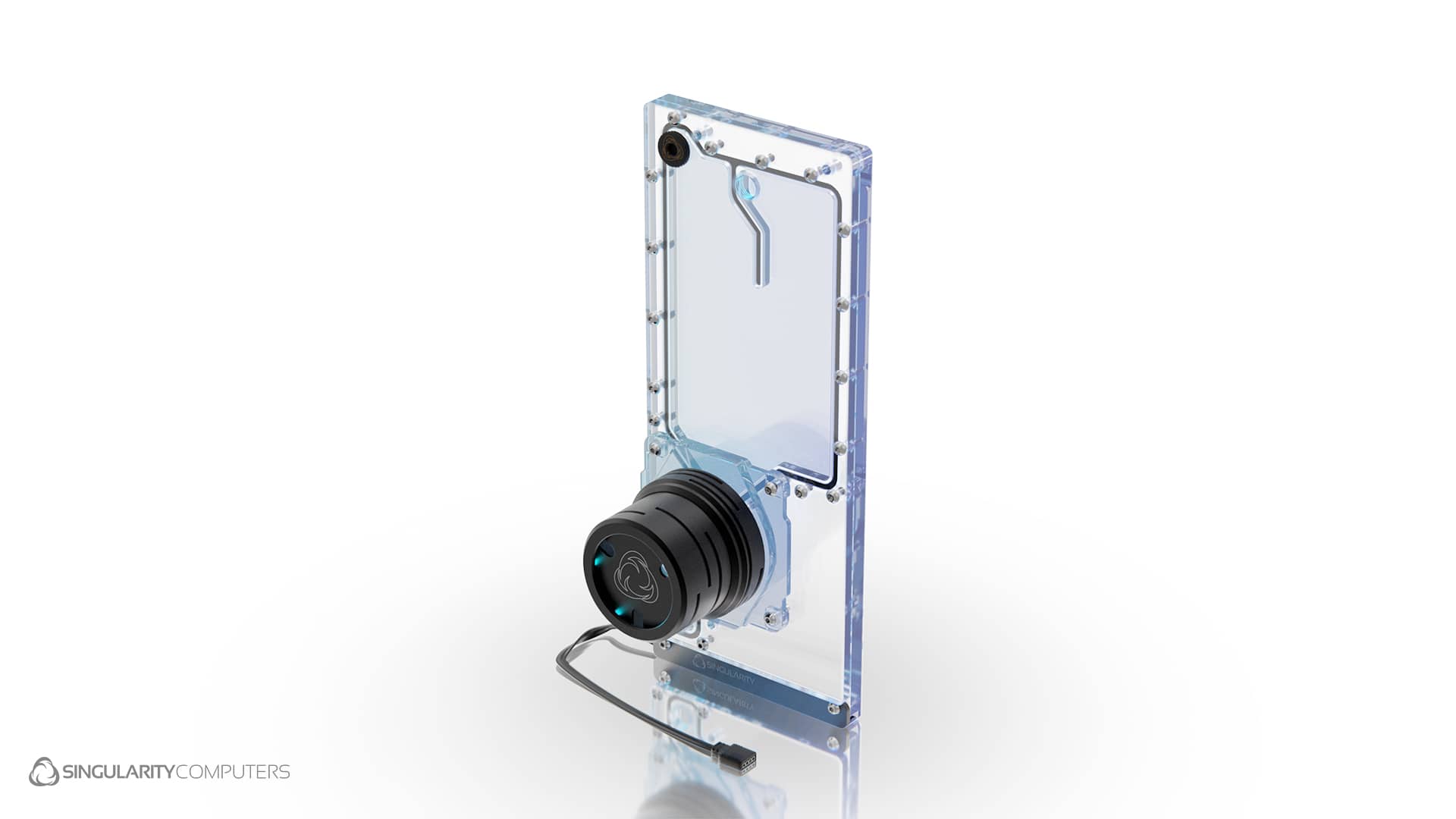

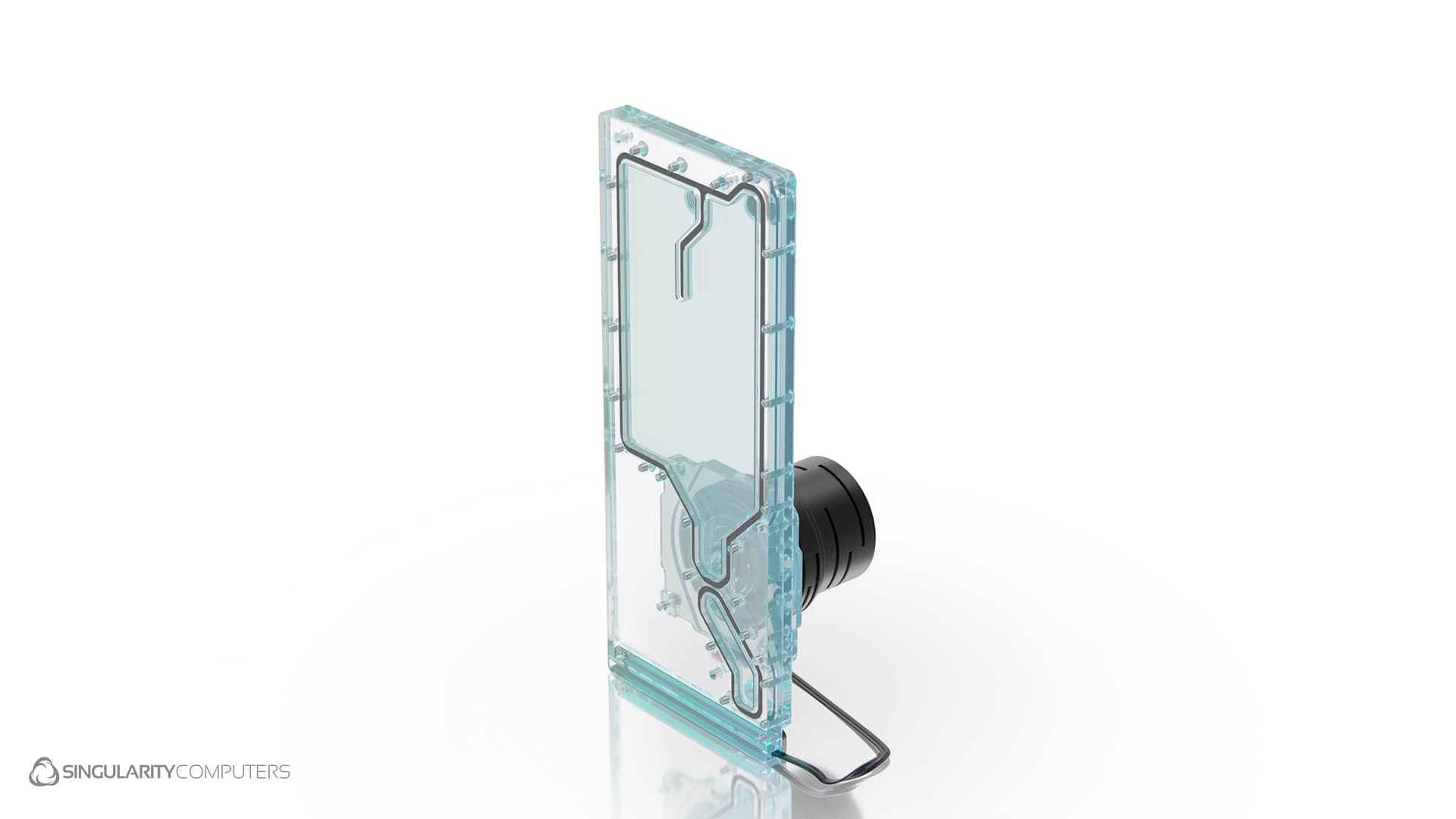

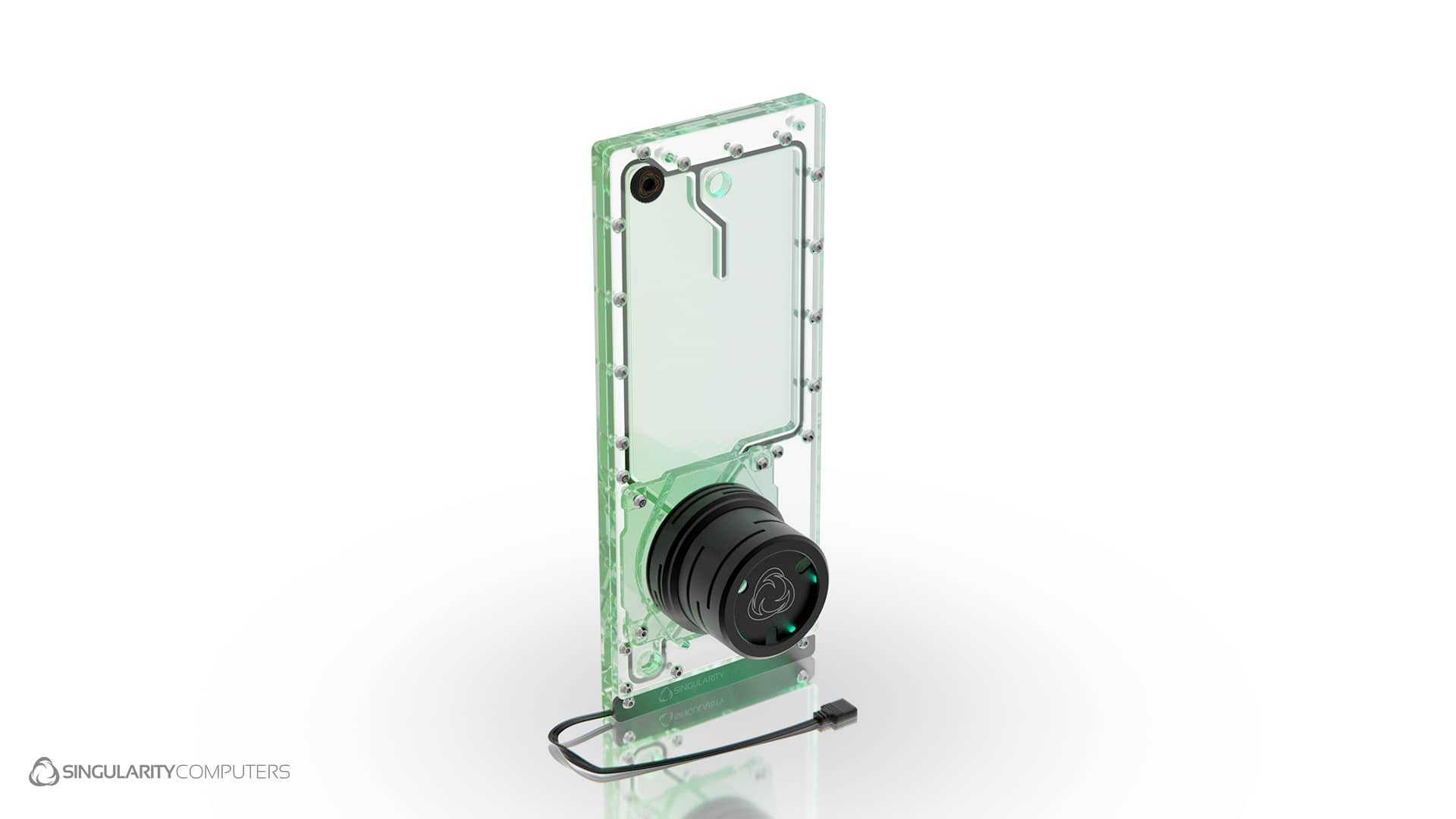

D5 and Reservoir Distribution Plate for the Inwin 925 for installation next to the motherboard. Attaches to existing holes on the case, no need for modifications. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings, for increased durability. Hand assembled with stainless steel fasteners. Designed for maximum reservoir volume to make filling and air removal easier. There is an integrated ARGB LED strip with an Accent Cover. There is also a Back Plate included to cover the rear side of the Distribution Plate so that you can’t see the case panels behind it. Choose from various color options for the Accent Cover and Back Plate to suit your preferences.
US$169.00
SKU:
SC-DIST-I925-D5RES
Category: Distribution Plates
Frequently bought together
Diffusion Coolant & Dye Kit
Specifications & Included Items:
Inwin 925 D5 Reservoir Distribution Plate.
Inwin 925 D5 Reservoir Distribution Plate rear cover.
Integrated Reservoir.
Integrated Pump Top D5.
Pump Covers: D5 Black or Silver (select above).
Ports: x2. Fill Port x1.

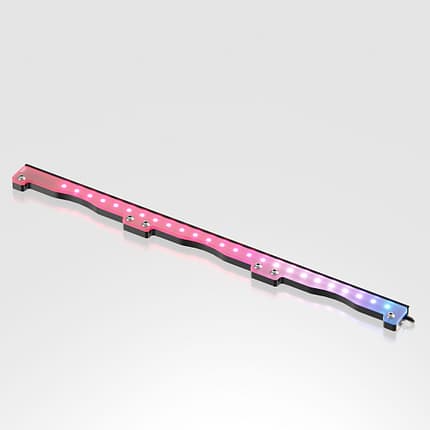

Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel. M3 x 25mm x 4. M3 Nuts x4. M3 Washers x4.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Packaged Weight: 1.5kg.
Packaged Dimensions: 30mm x 120mm x 100mm
Installation:
Install into the Inwin 925. Align with existing mounting holes on the case and use the included M3 x 25mm Fasteners and M3 Nuts and Washers to attach the Distribution Plate.
