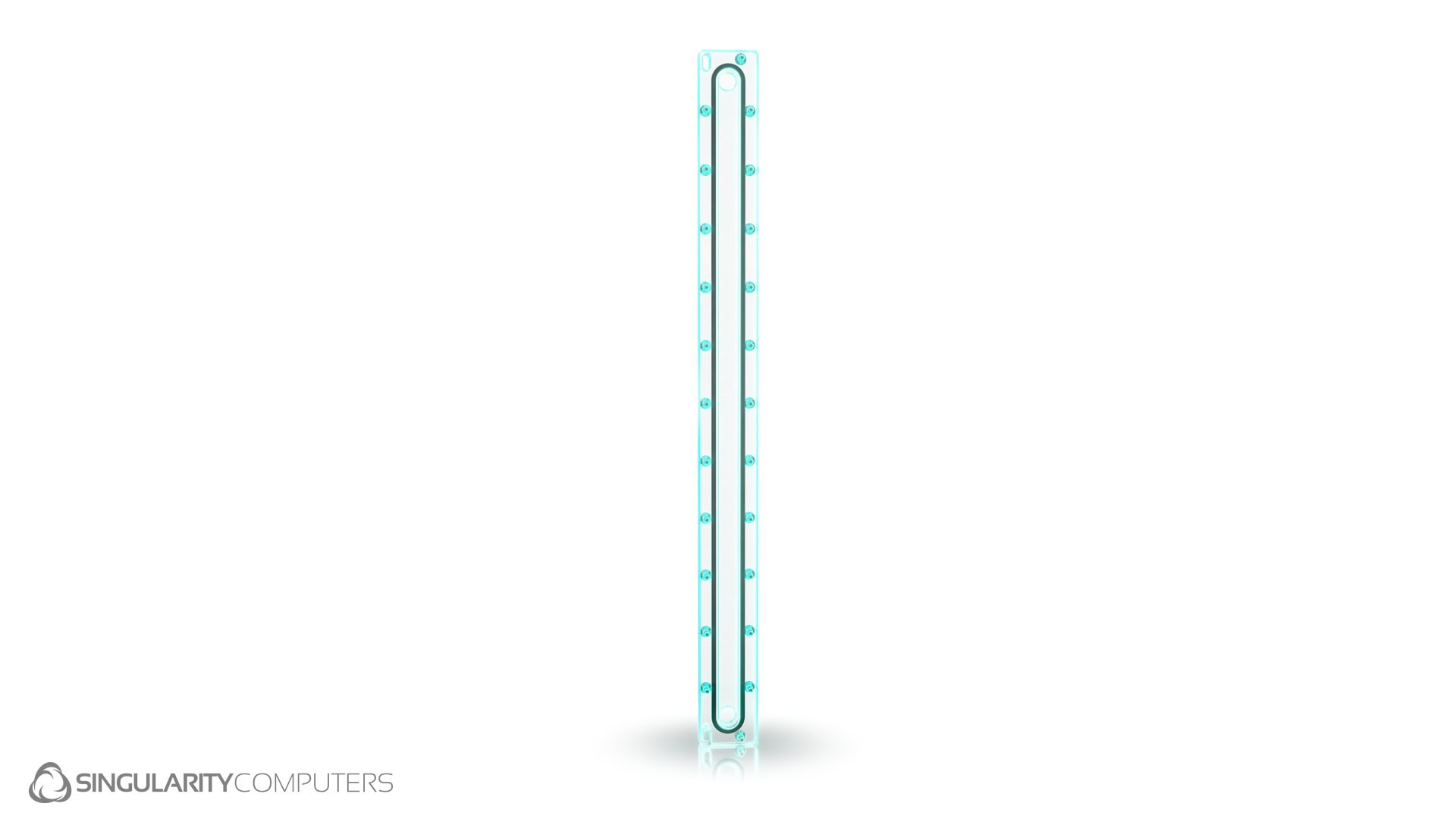

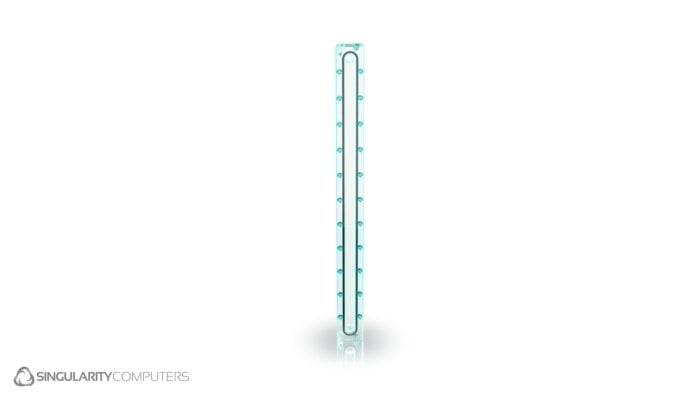

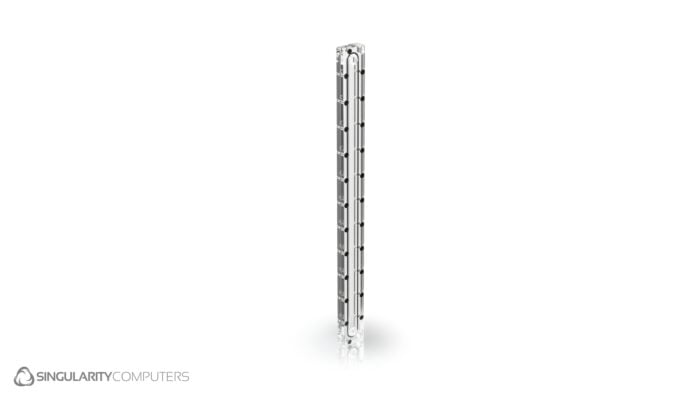

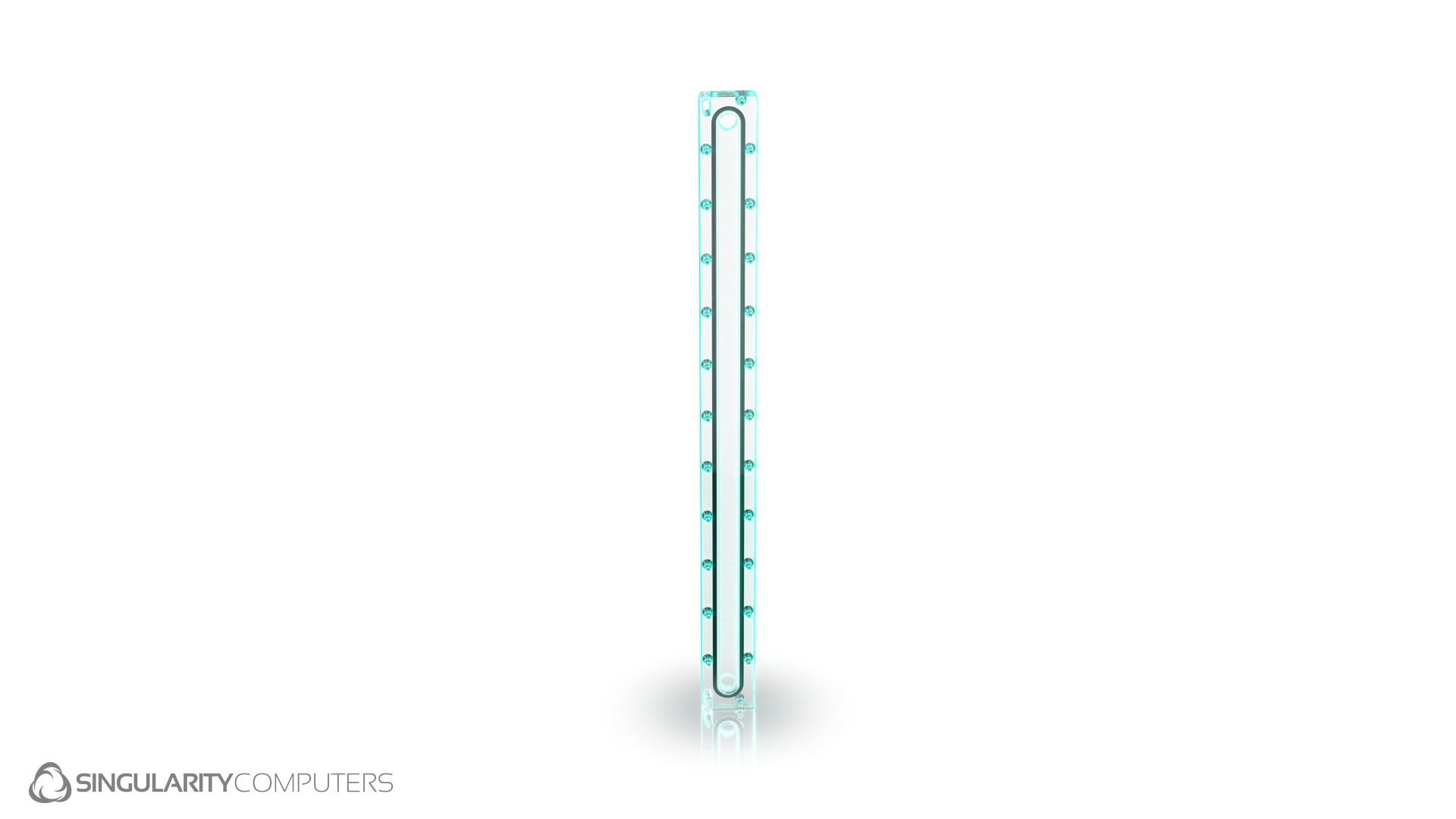

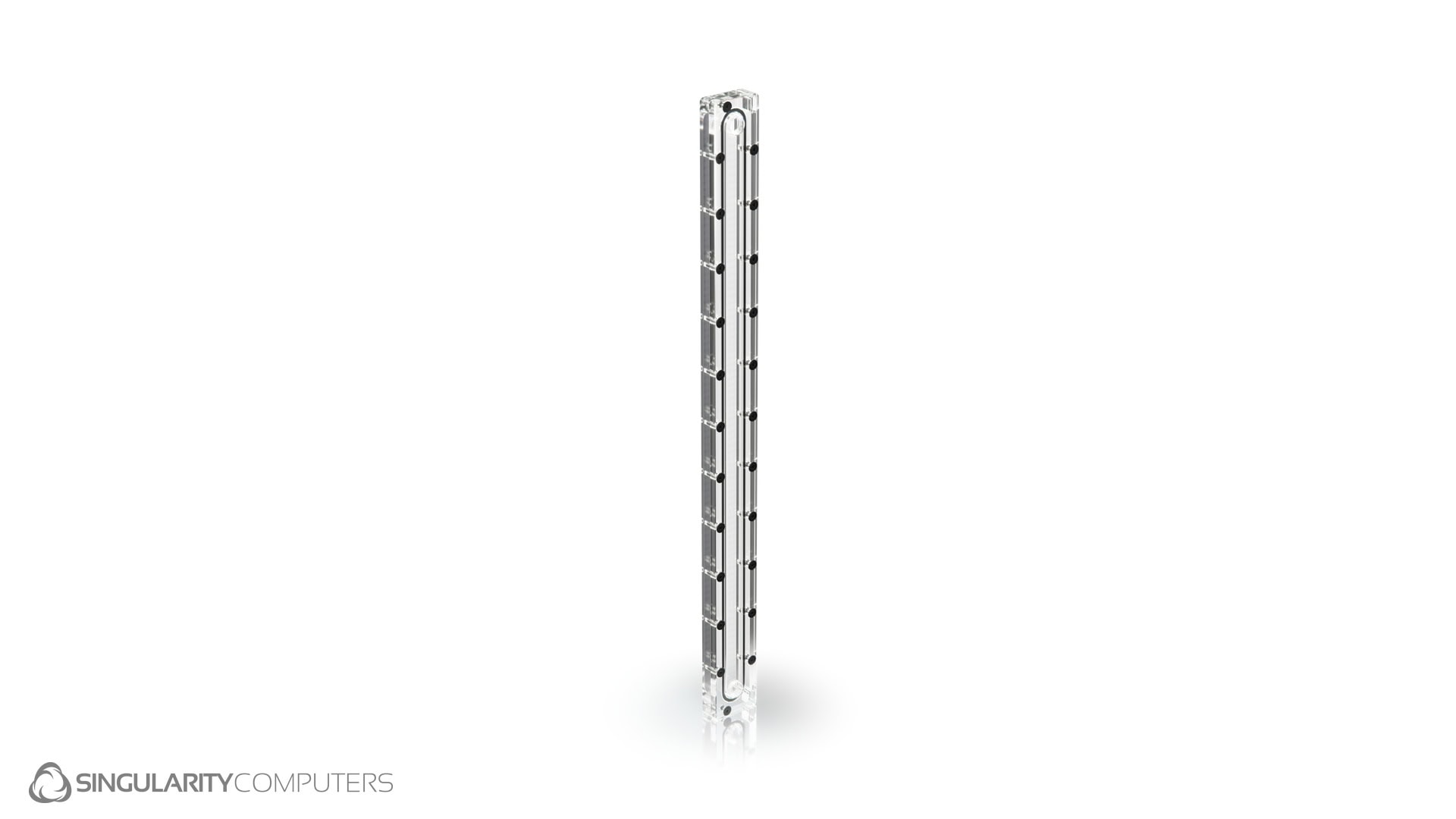

Edge Mounted Radiator Distribution Plate

In stock

Order processing time 1-2 days.

  • Available in 360mm, 420mm, 480mm and 560mm versions
  • Mounts directly to the edge of a radiator
  • Replaces long tube runs for cleaner loop routing
  • Reduces potential failure points in the loop
  • CNC-machined clear cast acrylic with durable gasket seals

Manuals

US$49.00 US$69.00Price range: US$49.00 through US$69.00

For mounting to a radiator mount select ‘Standard mounting’. For mounting to fans select ‘Fans’. For mounting to a radiator select the fastener size your radiator uses.

  • 1x Edge Mounted Radiator Distribution Plate
    US$49.00 US$69.00Price range: US$49.00 through US$69.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

The Radiator Distribution Plate is designed to be mounted onto the edge of a radiator, there is a 360mm, 420mm, 480mm and 560mm version available. Long lengths of tube make a build look less clean and they introduce more points of failure and weaknesses in the water-cooling loop. These distribution plates can be used instead of longer lengths of tube, and instead you can run them in a component which is cleanly mounted to the outsides of the case and radiators.  It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.

Specifications

Radiator Distribution Plate 360mm, 420mm, 480mm and 560mm.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 360/420/480/560mm x W: 40mm x H: 16mm.
Weight: 1kg.
Packaged Dimensions: L: 380/440/500/580mm x W: 60mm x H: 36mm.
Packaged Weight: 1kg.

Installation:
360mm, 420mm, 480mm and 560mm radiator options available. Installs onto the radiator directly or onto fans mounted onto a radiator depending on the options selected above.
