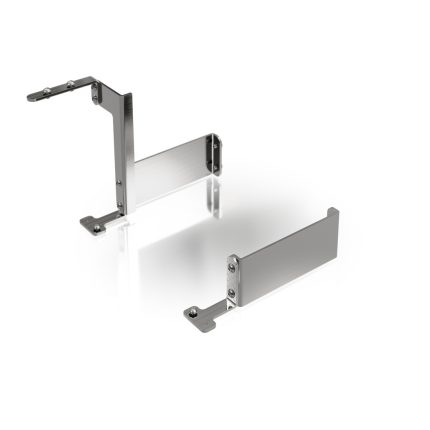

Phantom 2 Vertical GPU Mount
US$99.00
Dual D5 Radiator Distribution Plate
US$129.00
SC Test Bench D5 Reservoir Distribution Plate
Order processing time 1-2 days.

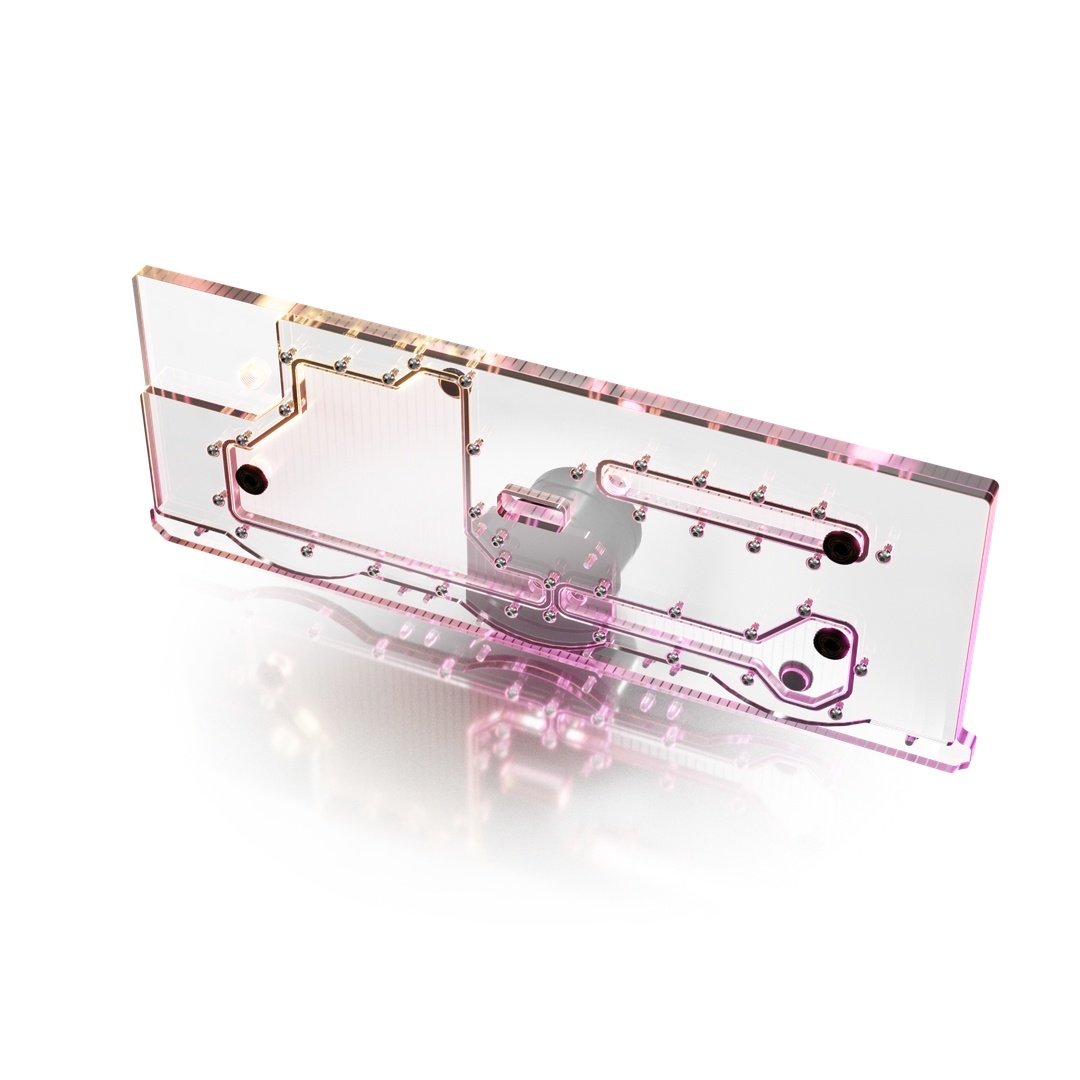

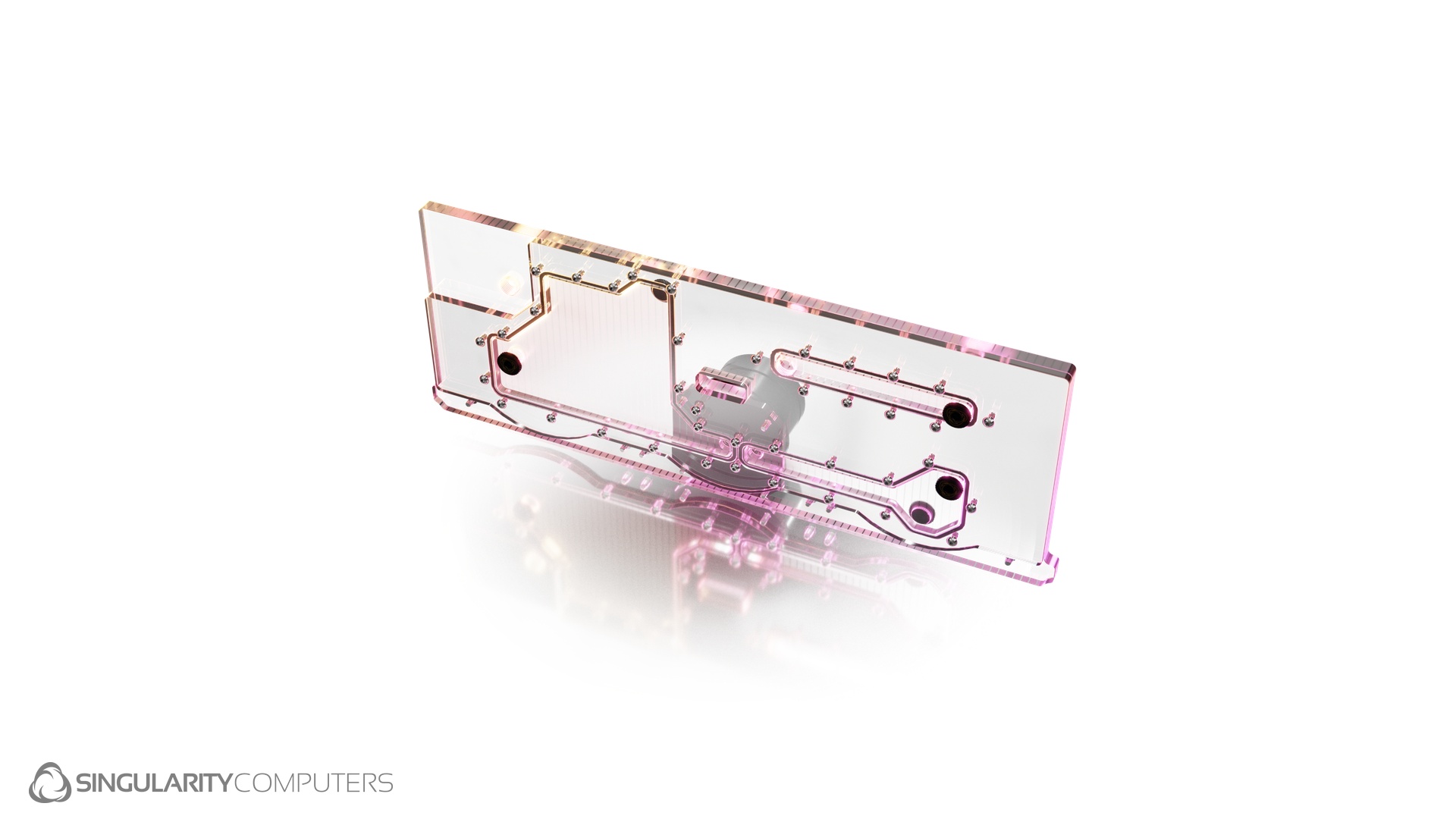

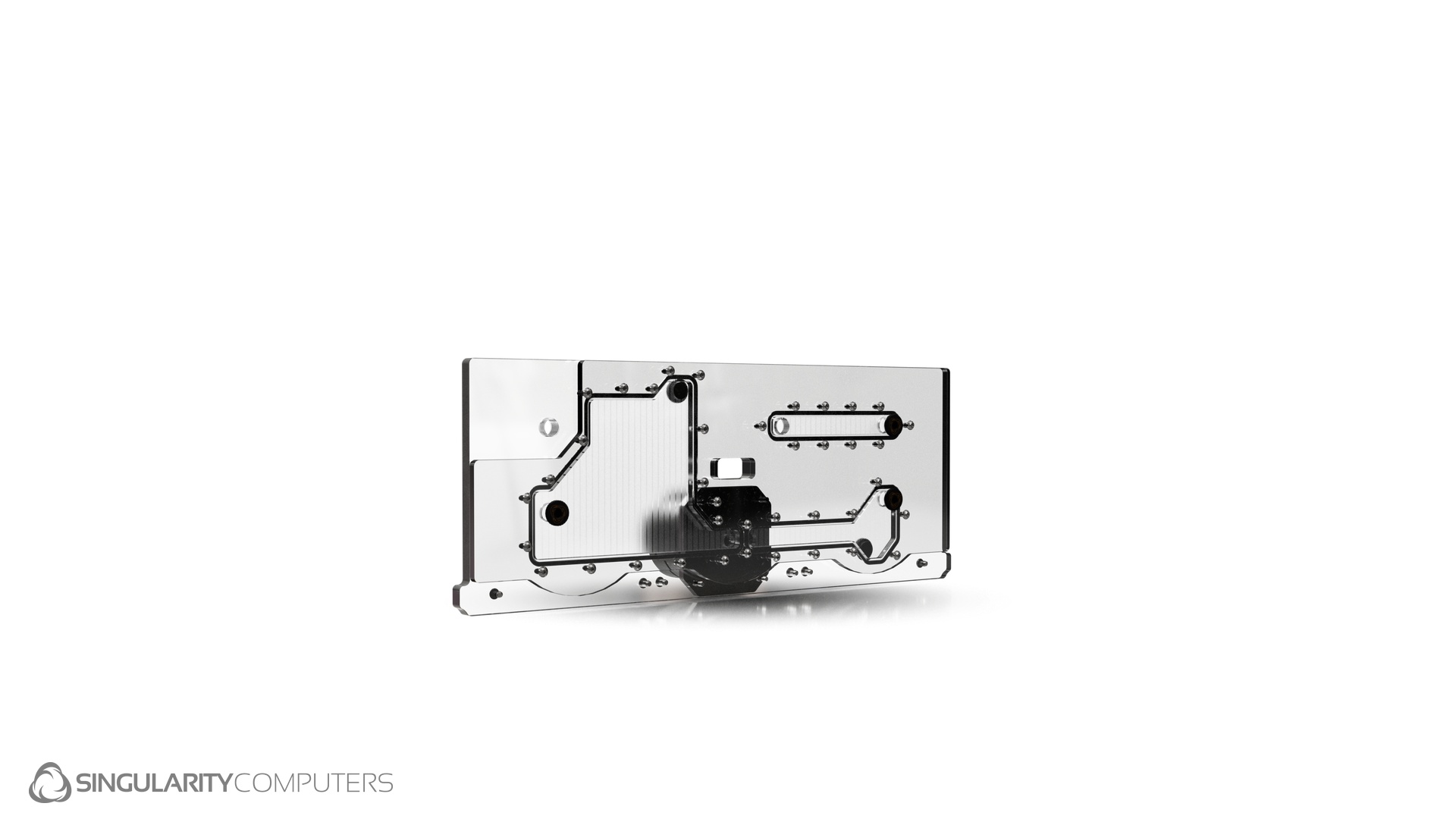

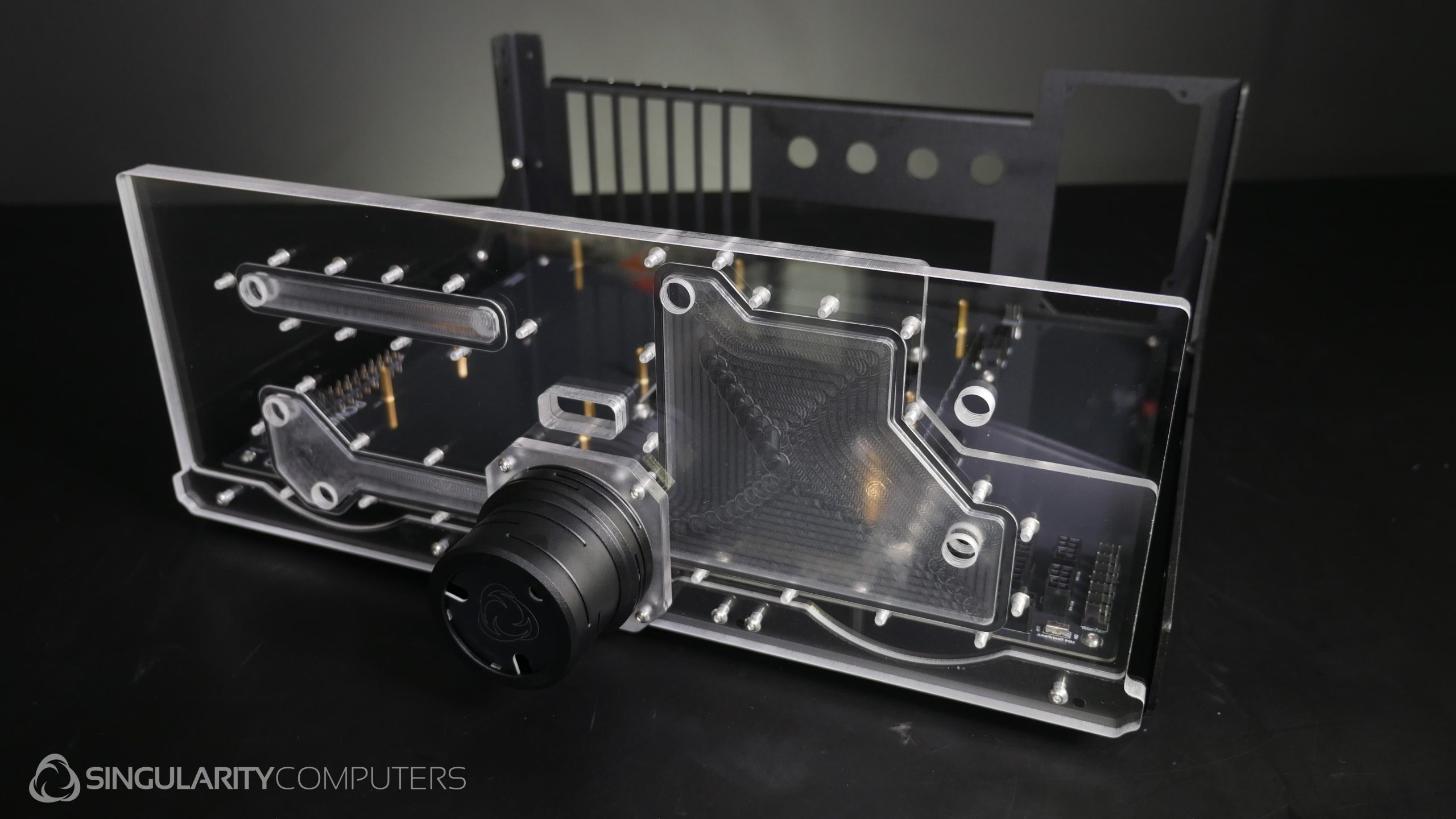

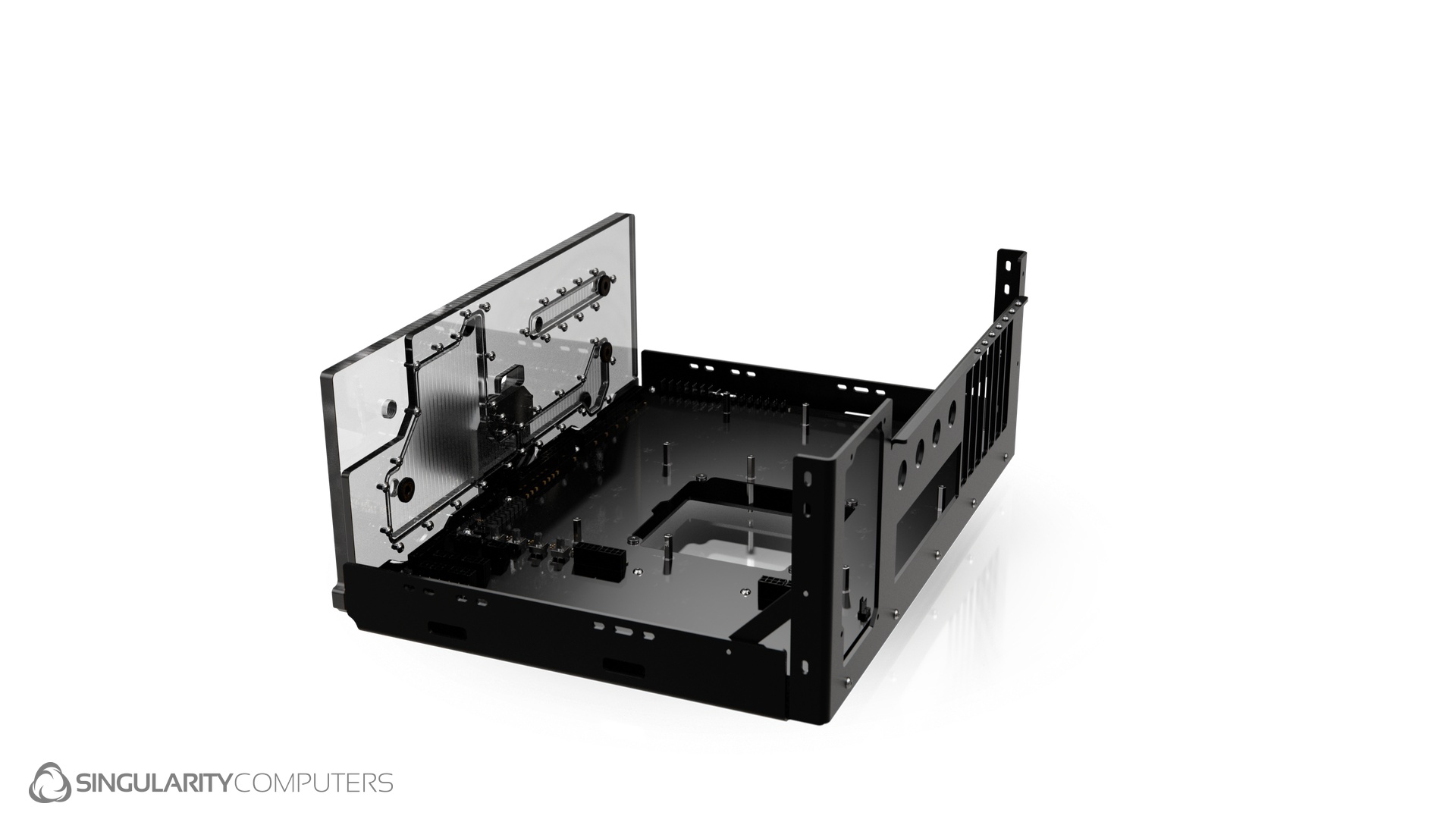

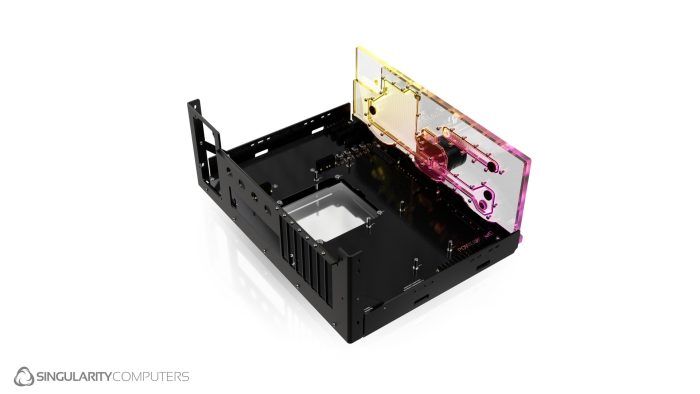

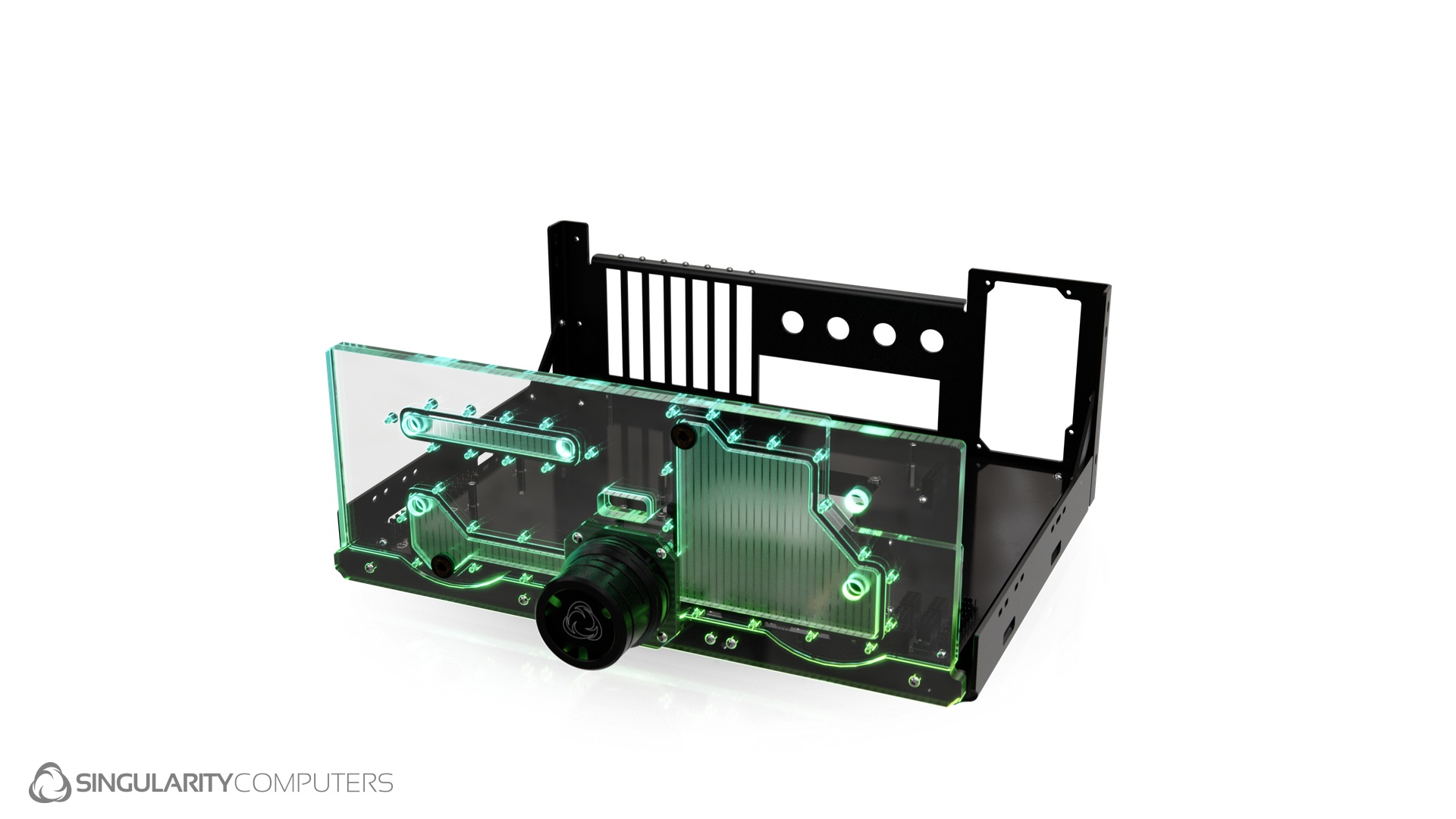

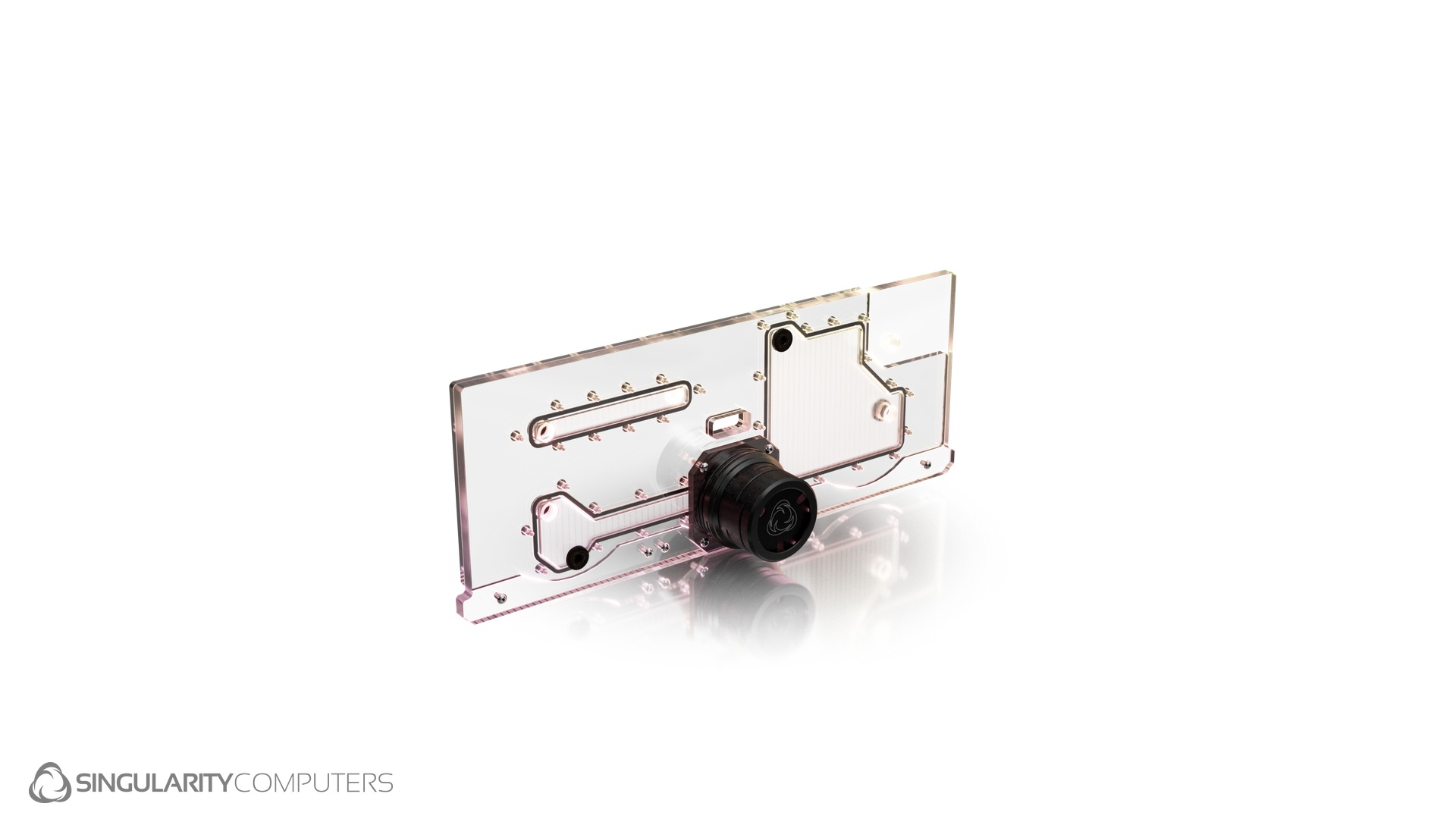

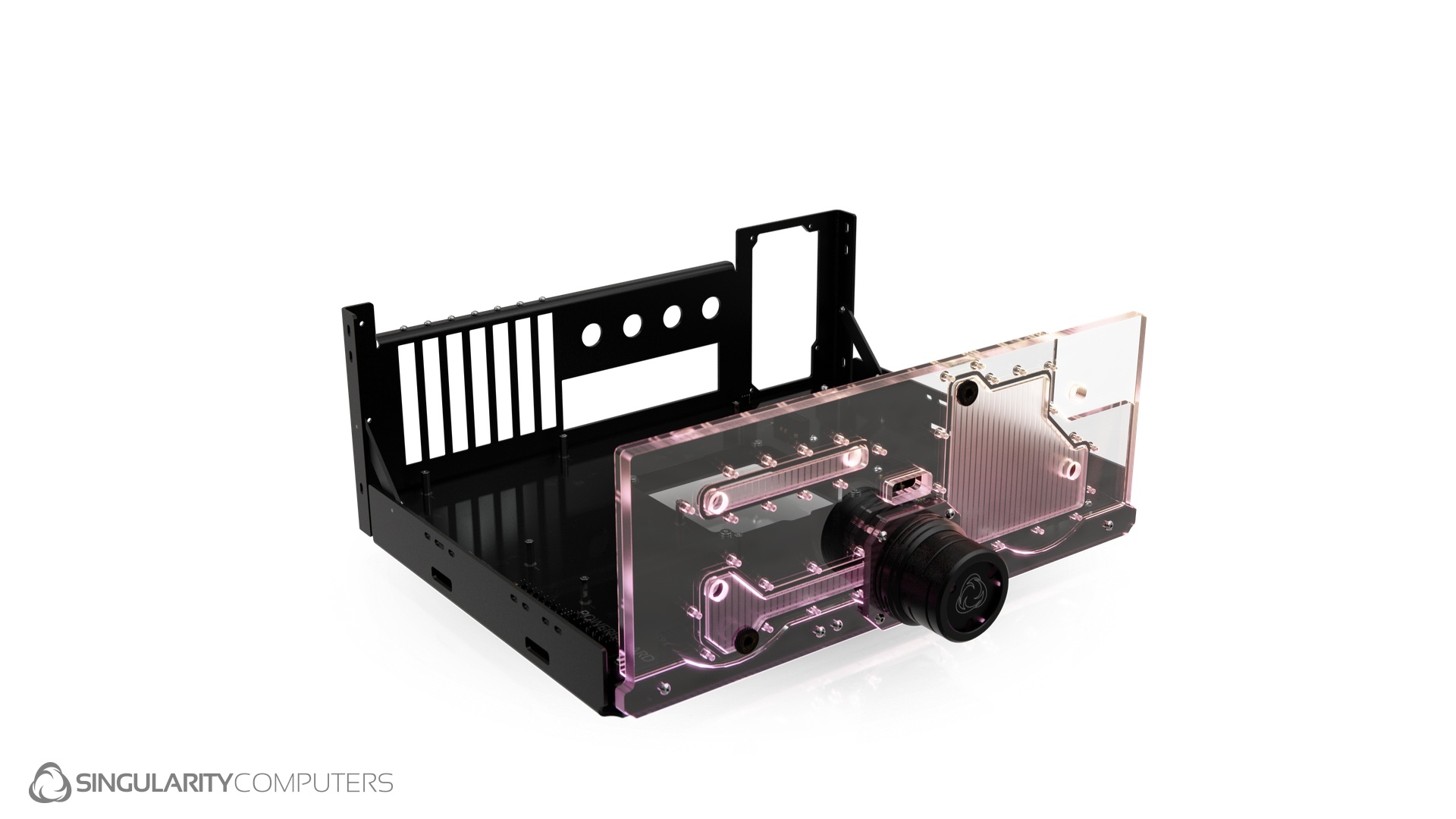

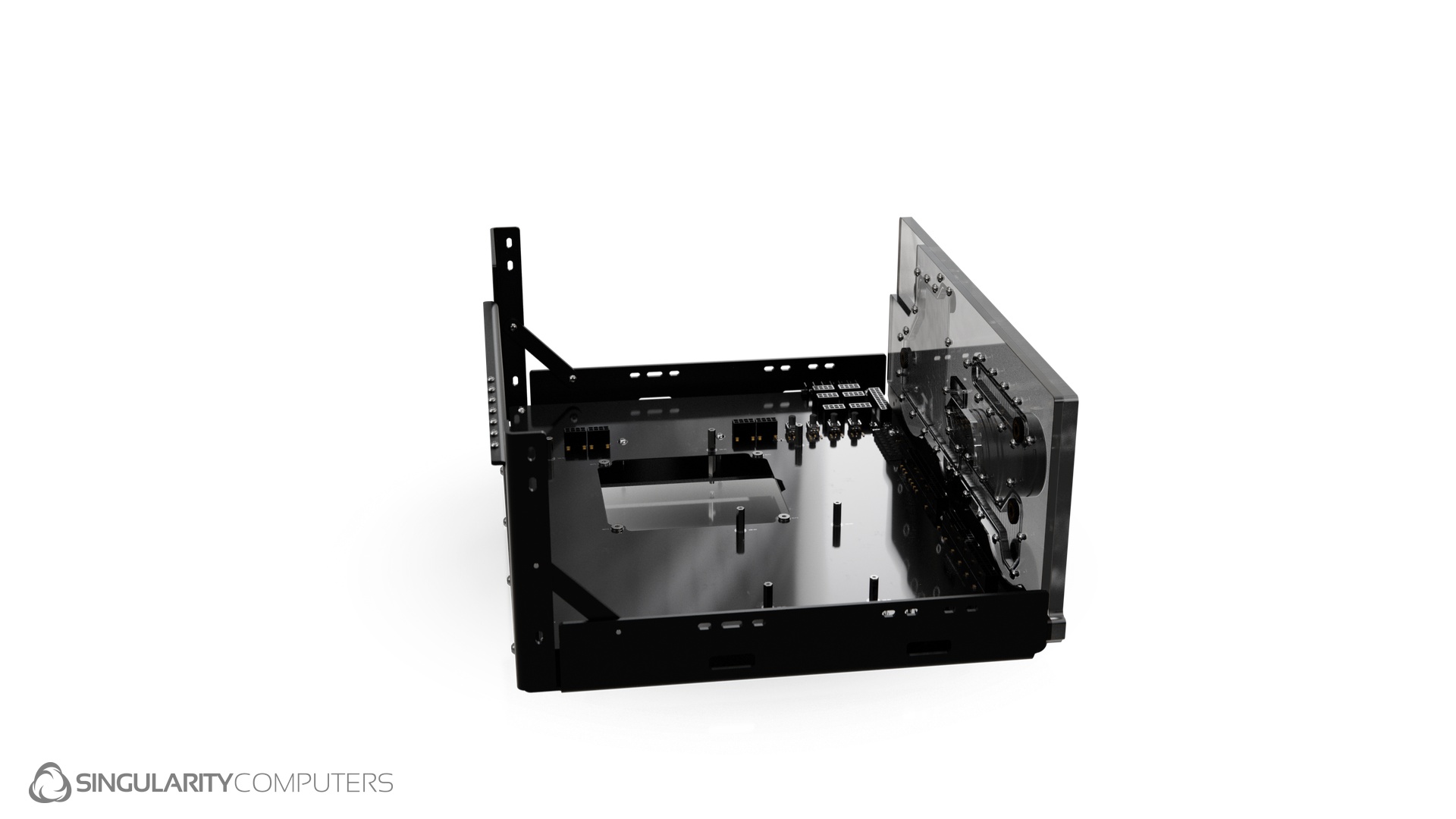

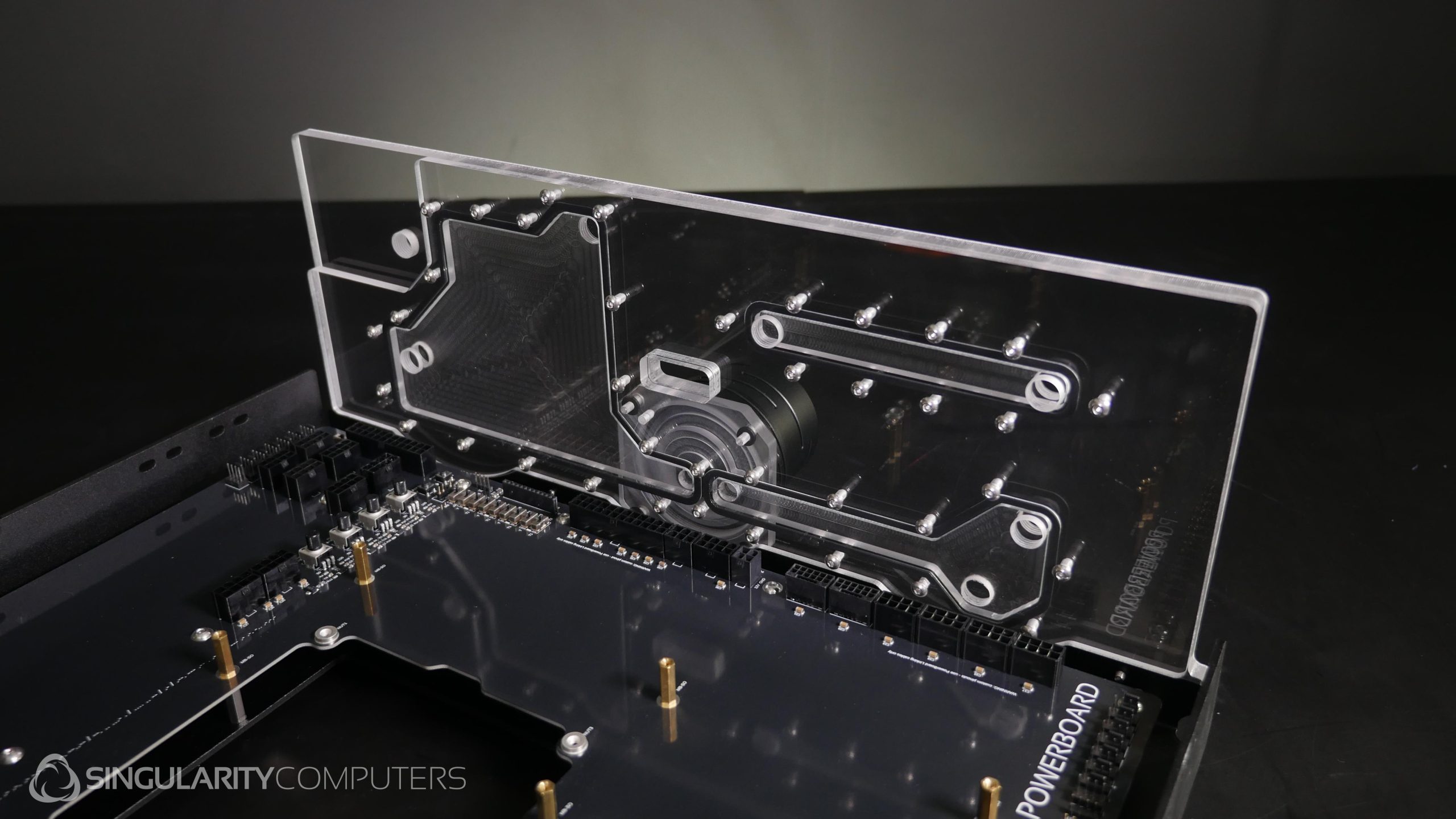

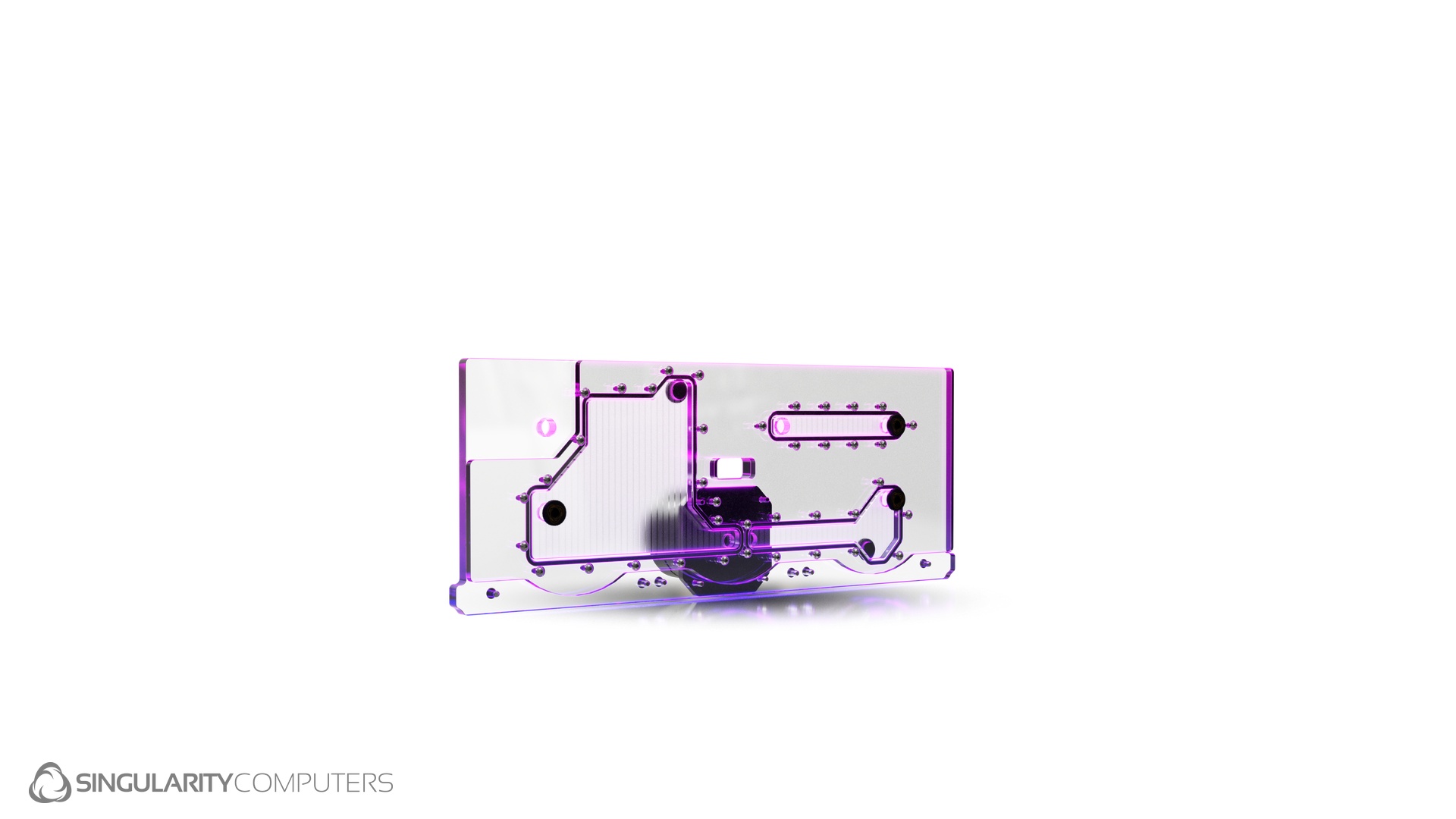

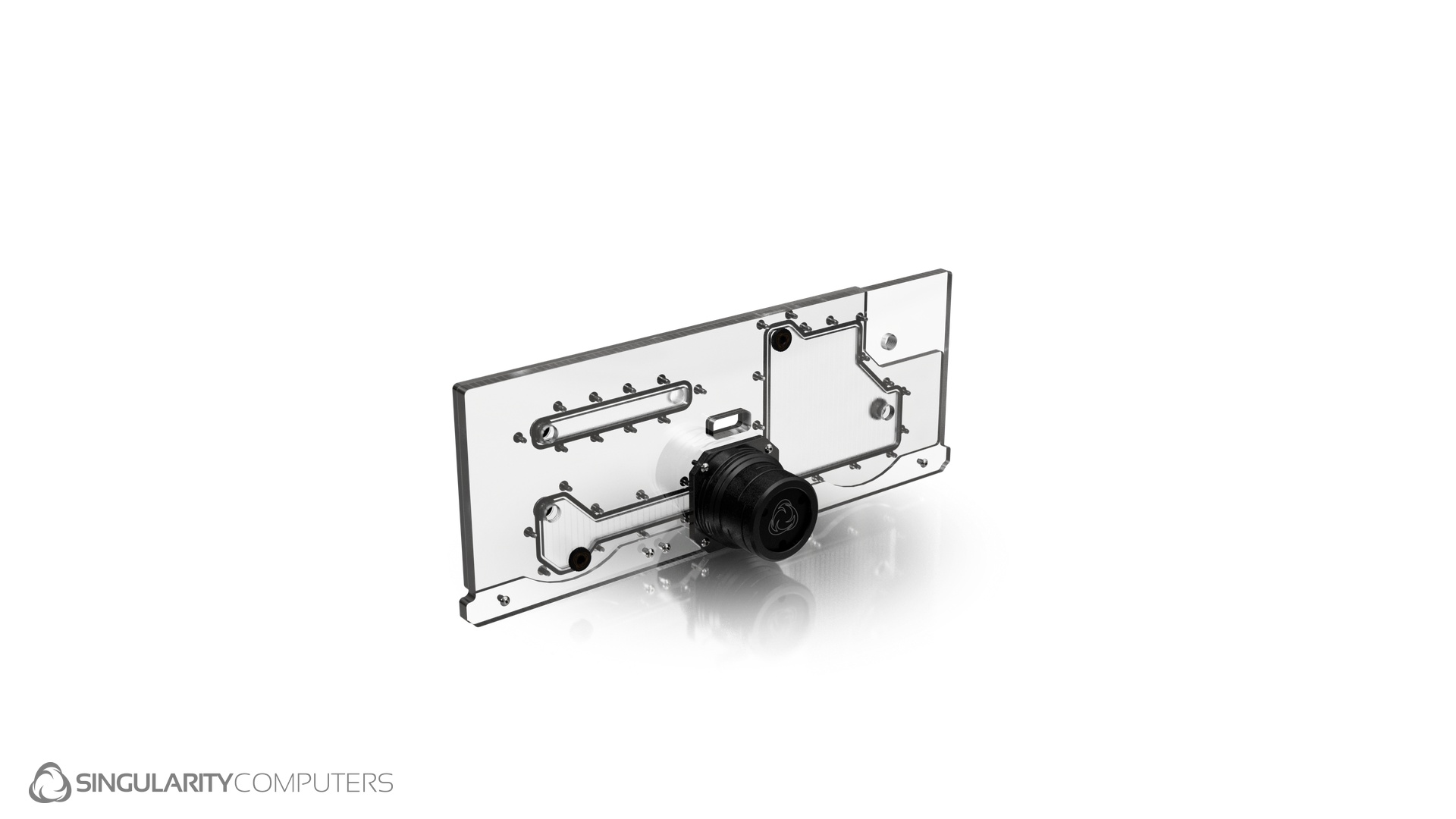

The SC Test Bench D5 Reservoir Distribution Plate adds a D5 and Reservoir Combination to the SC Test Bench. A Distribution Plate is the most compact way to add a pump and reservoir which is important for a test bench to keep things out of the way for easy access to the other components. It also improves the loop routes and is a major visual feature. This distribution plate installs on one side and has a loop route for easy connections to and from the side mounted radiators. It has an integrated reservoir, D5 pump top, D5 cover and a LED strip built in so that the distribution plate glows. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.
Pump not included. Compatible with any D5 Pump.
US$199.00
Specifications:
SC Test Bench D5 Reservoir Distribution Plate: Cast Acrylic, Clear, CNC Machined.
Integrated Reservoir.
Integrated Pump Top D5.
D5 Pump Cover CNC Machined Anodized Aluminum Black.
Pump Power Cable 4pin ATX to SATA & Molex x2.
LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone.
Dimensions: L: 476.5mm x W: 190mm x H: 90mm.
Weight: 2.5kg.
Packaged Dimensions: L: 500mm x W: 200mm x H: 120mm.
Packaged Weight: 3kg.
Installation:

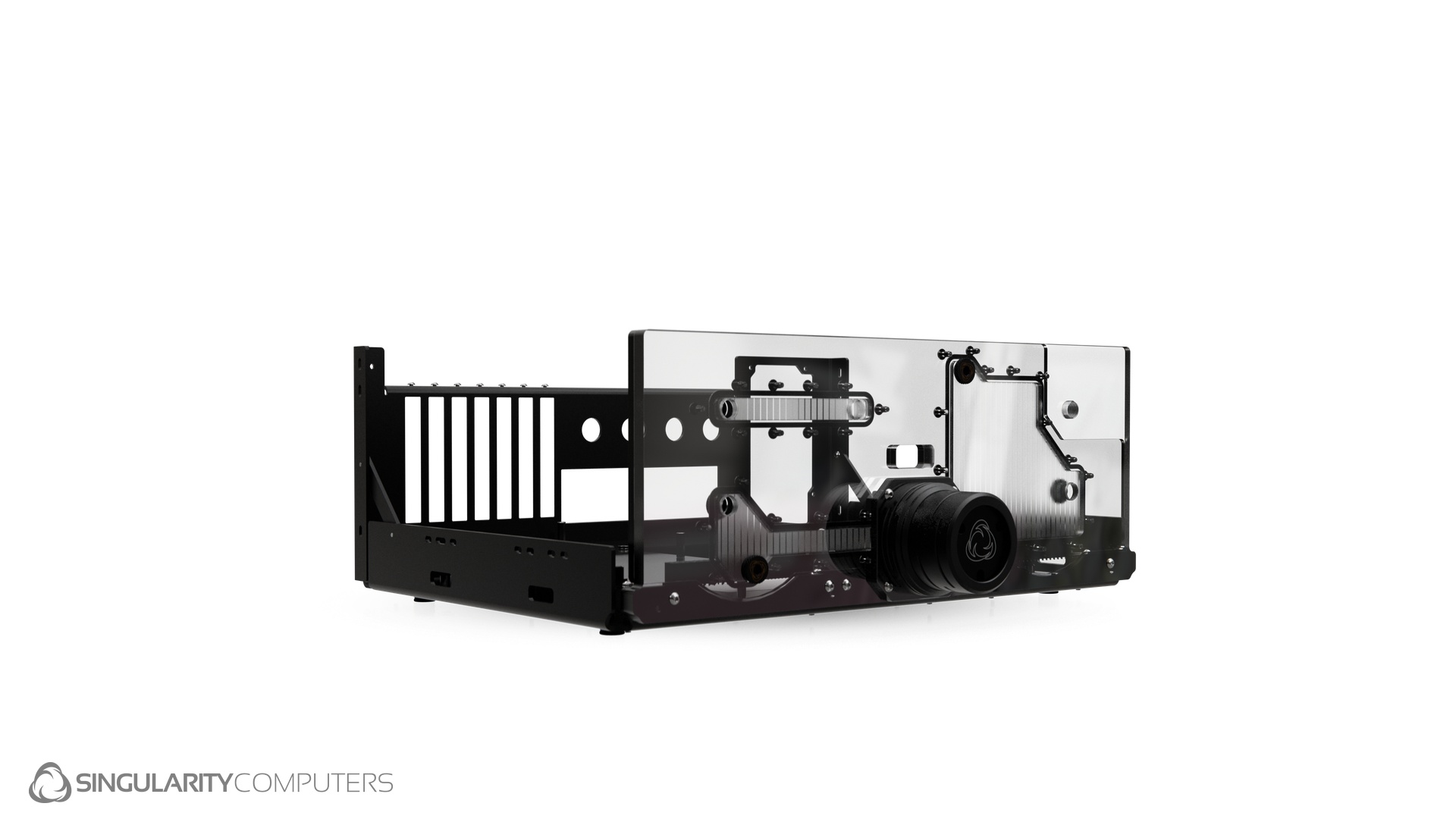

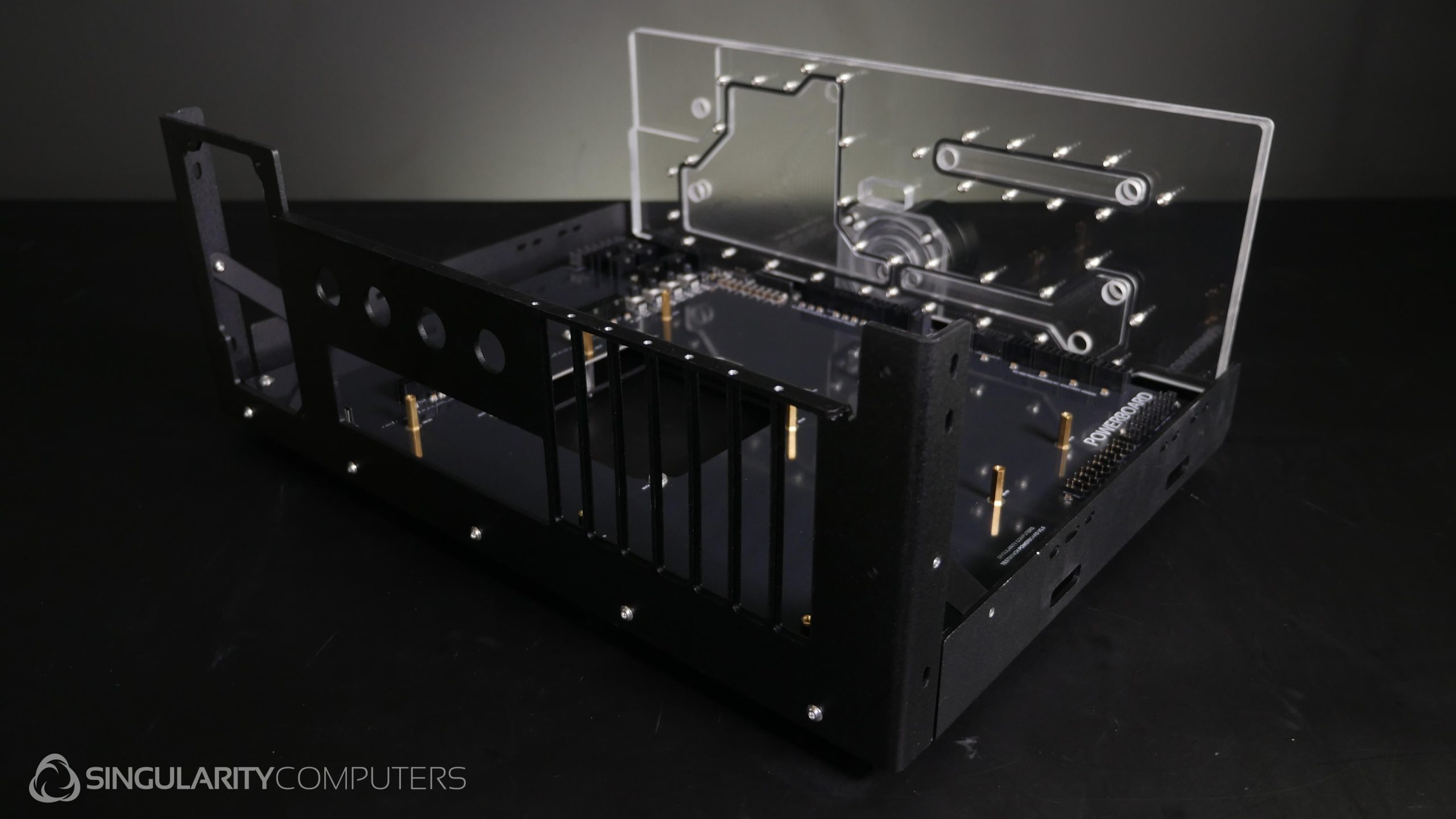

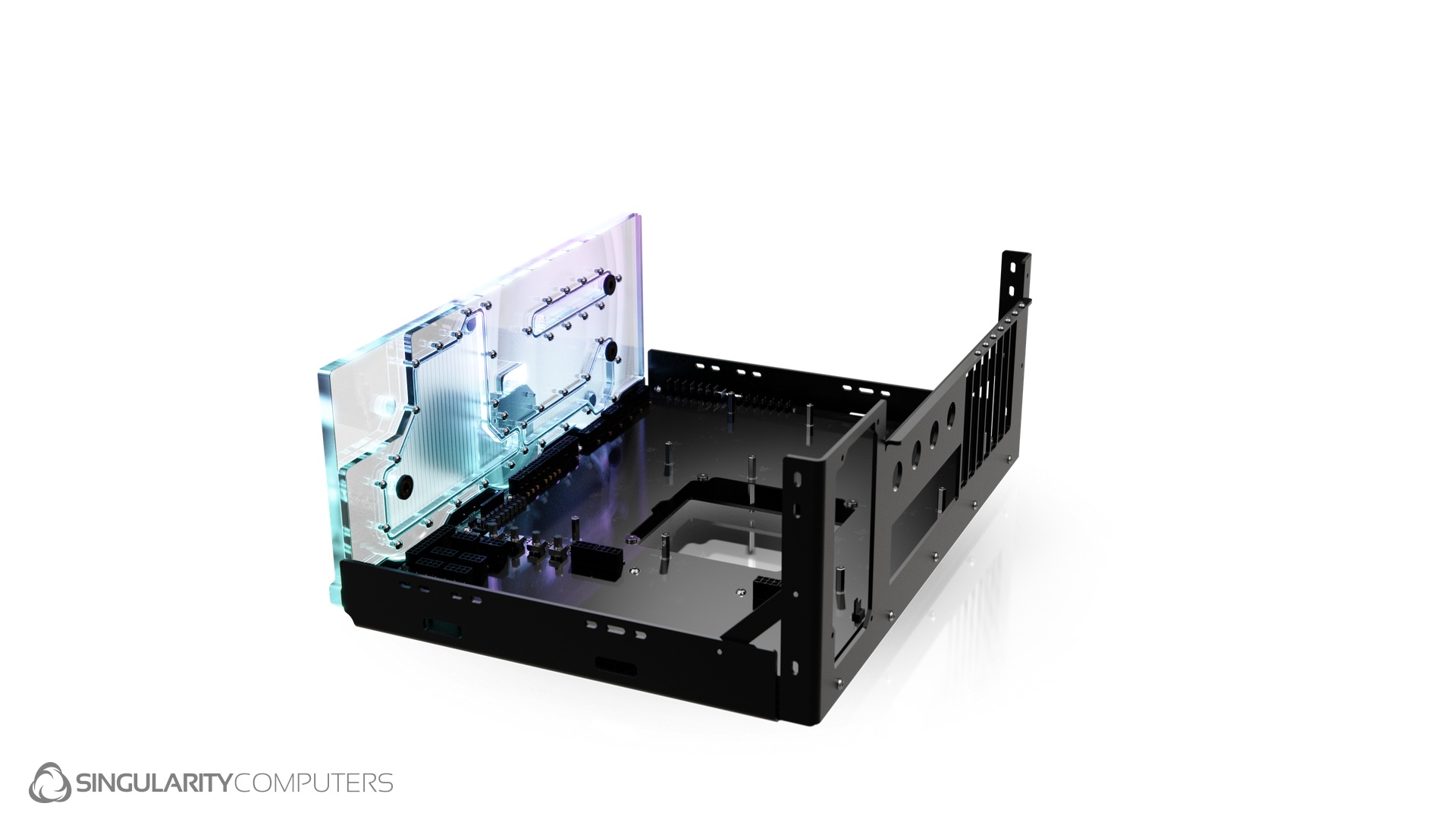

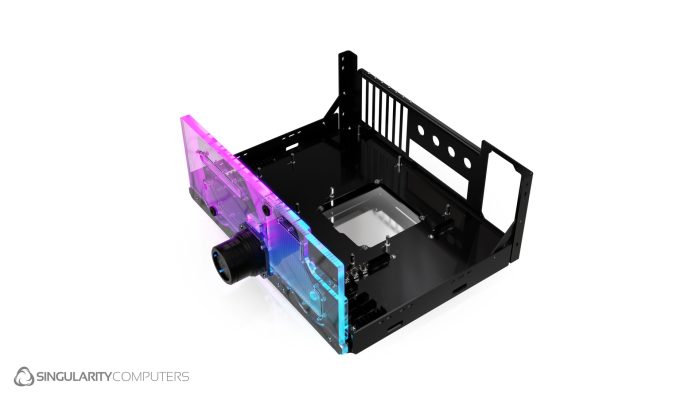

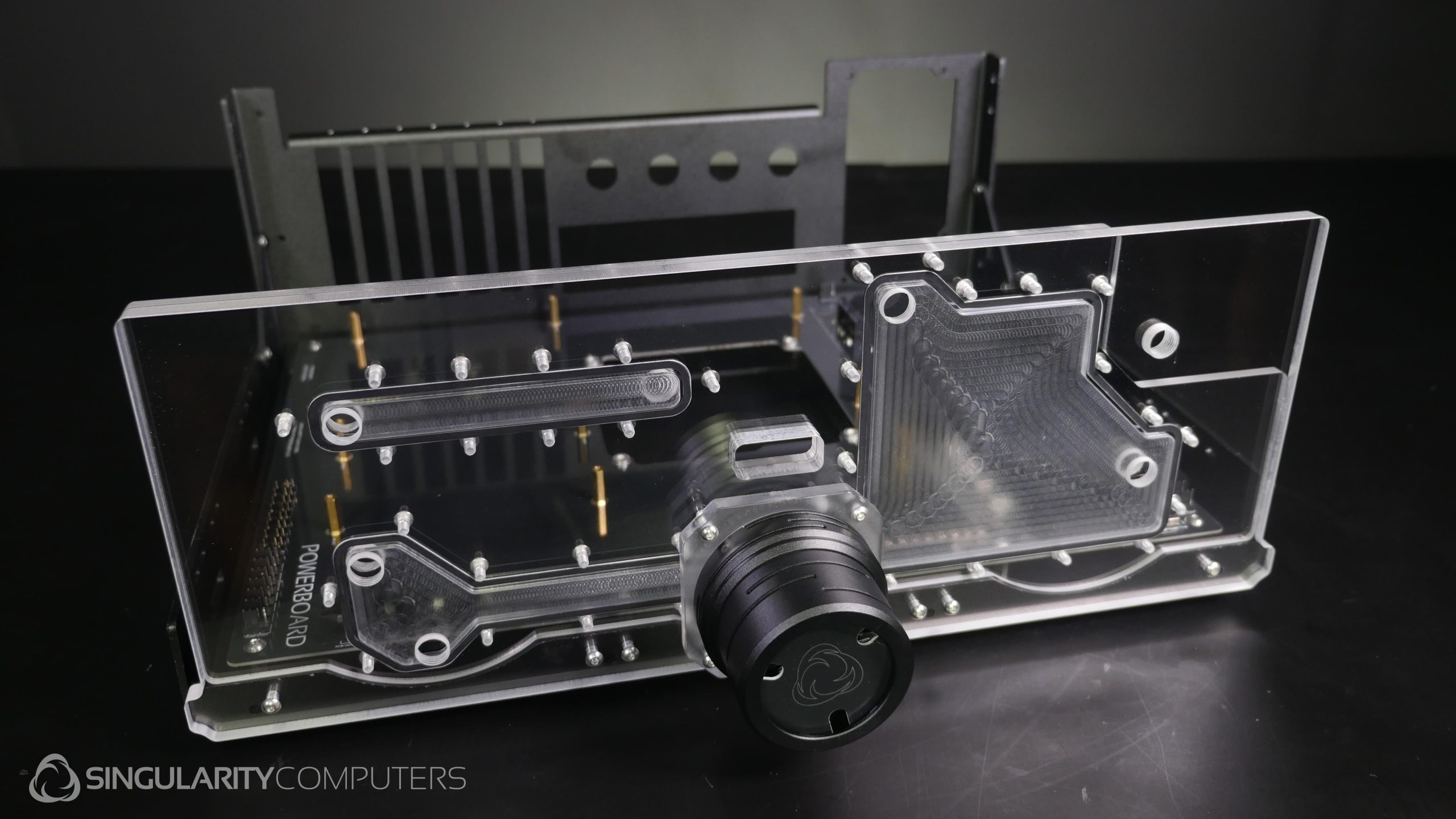

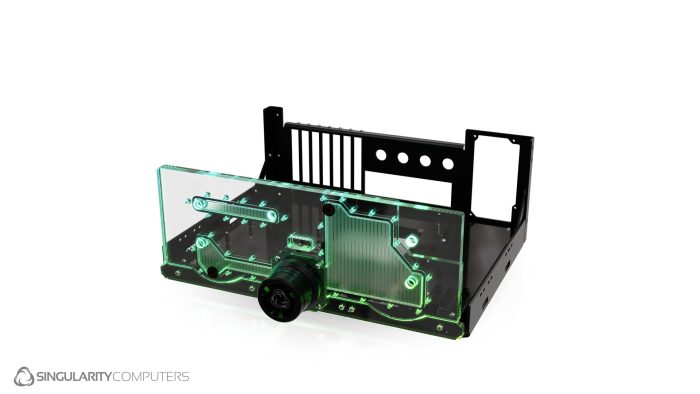

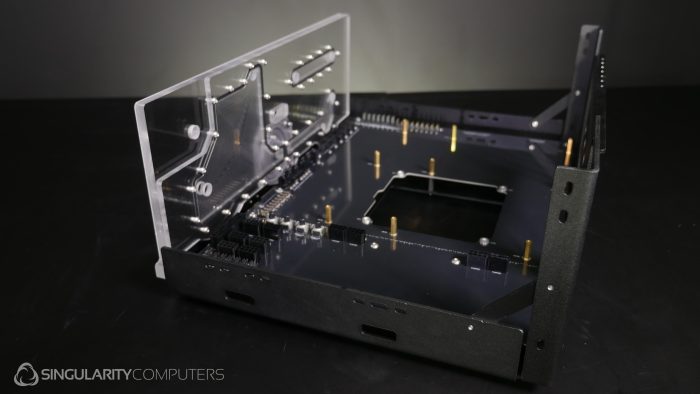

Installs on the SC Test Bench on the side where the 3 fans are mounted between the two radiators. See installation manual link above.
Addon Information ▼
Protium 3.0 ARGB D5 Cover
Protium 3.0 D5 Pump
Protium 3.0 ARGB D5 Cover: The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.
Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.
