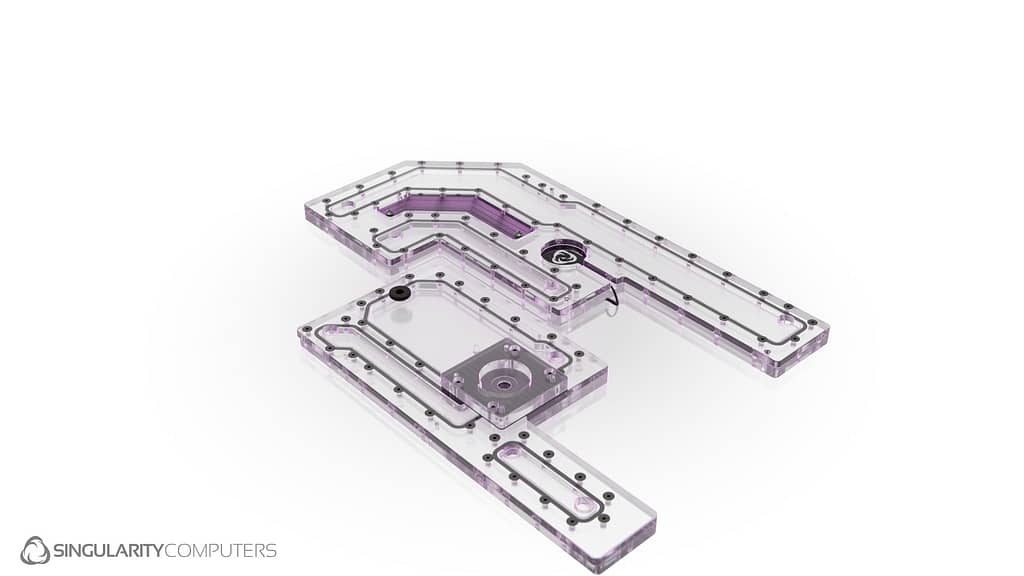

Hyte Y70 Distribution Plate Set Limited Edition
Hyte Y70 Distribution Plate Set Limited Edition US$179.00 US$399.00Price range: US$179.00 through US$399.00
Back to products

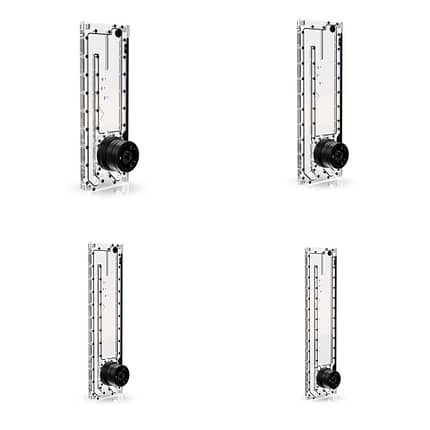

Radiator Distribution Plates
Radiator Distribution Plates US$279.00 US$349.00Price range: US$279.00 through US$349.00

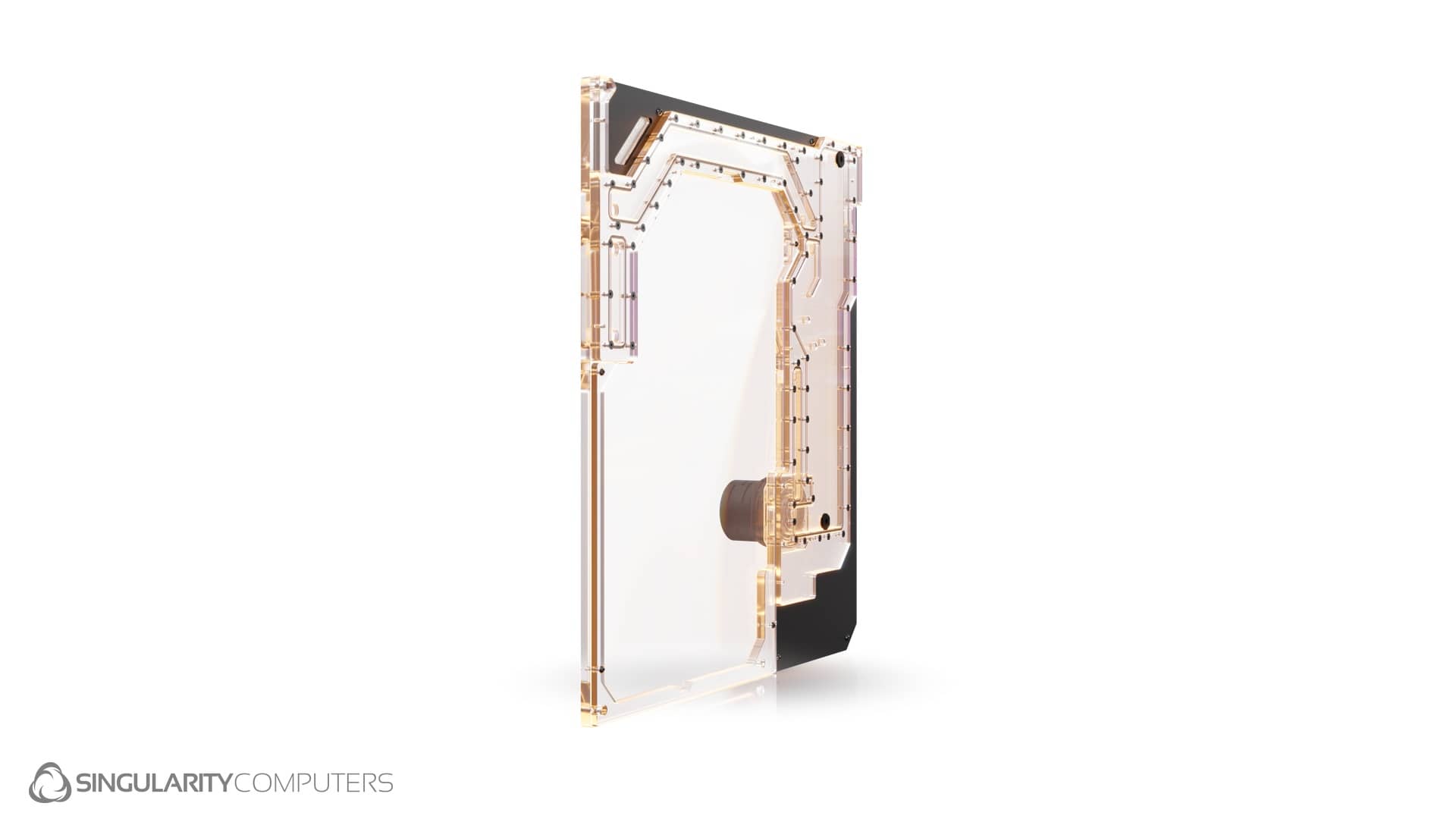

Spectre 4 Enterprise & Quantum Dual Loop Side Panel

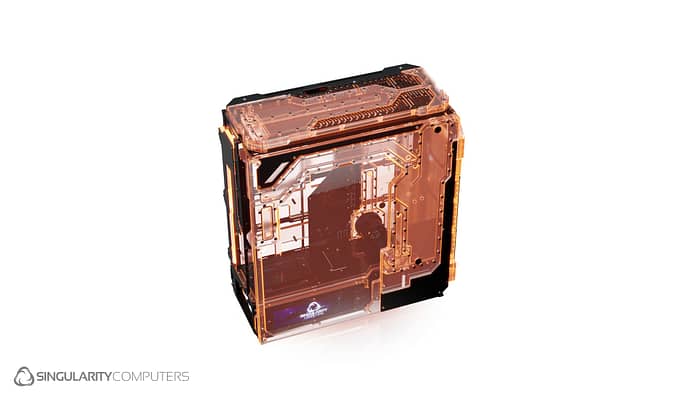

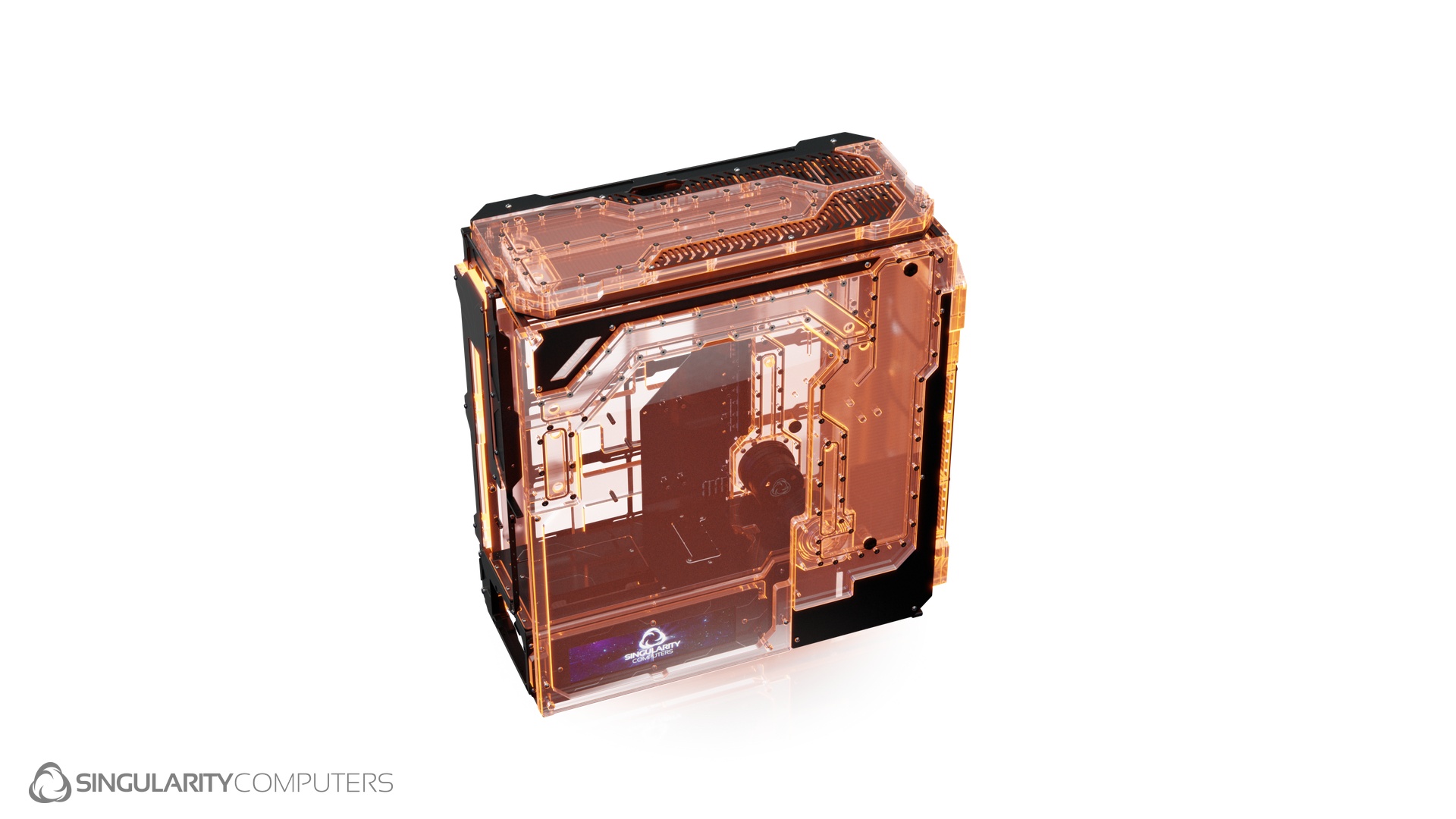

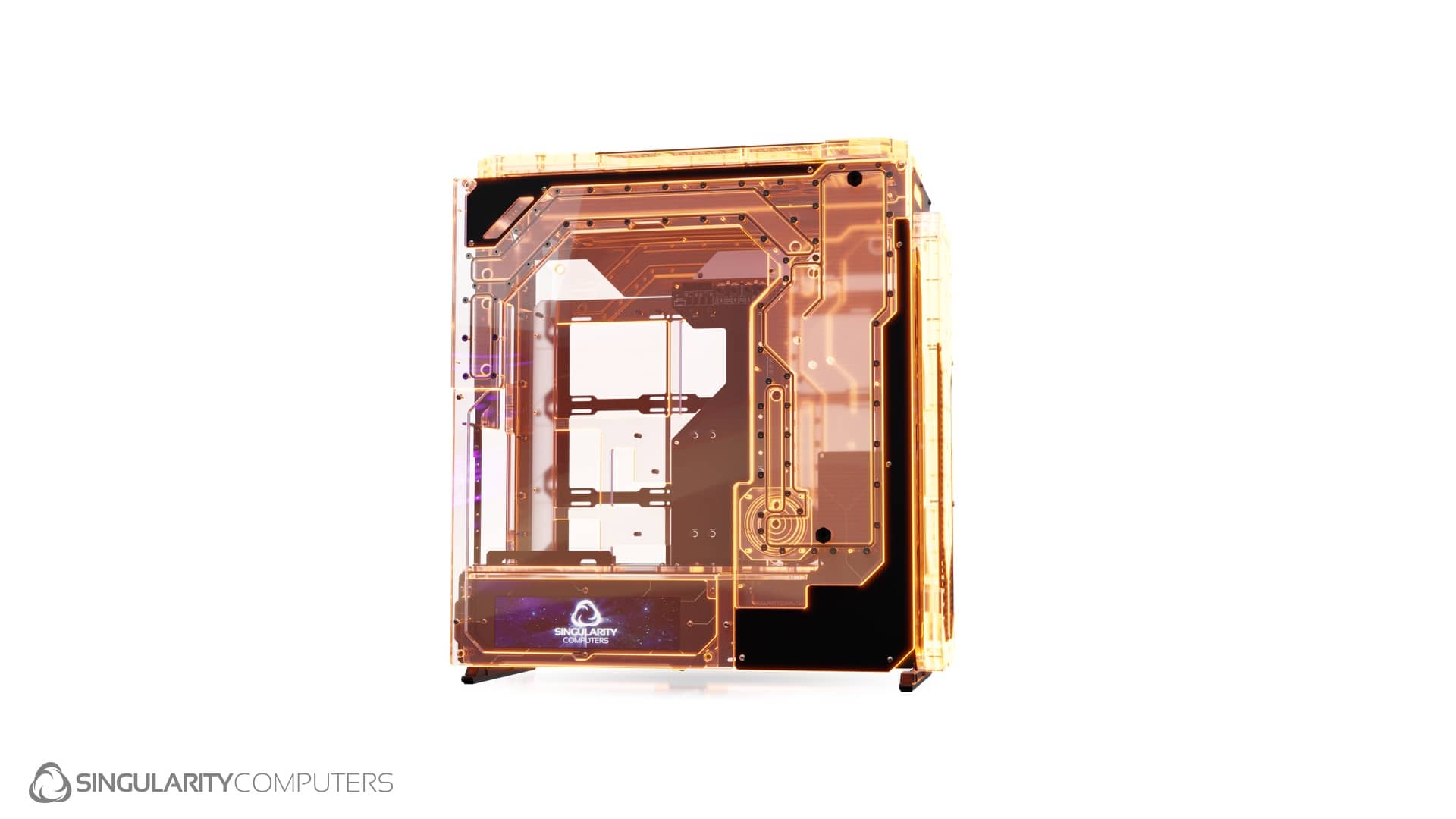

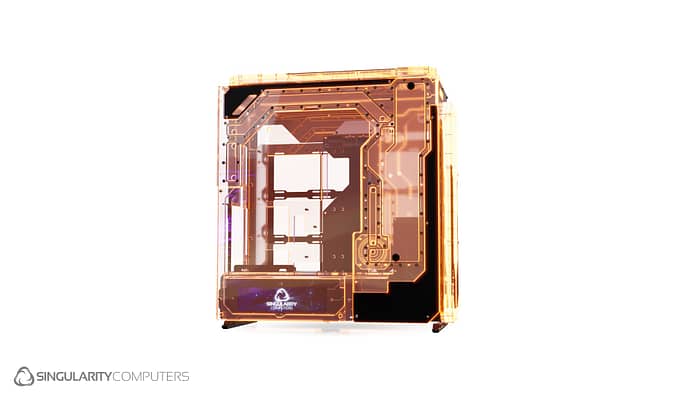

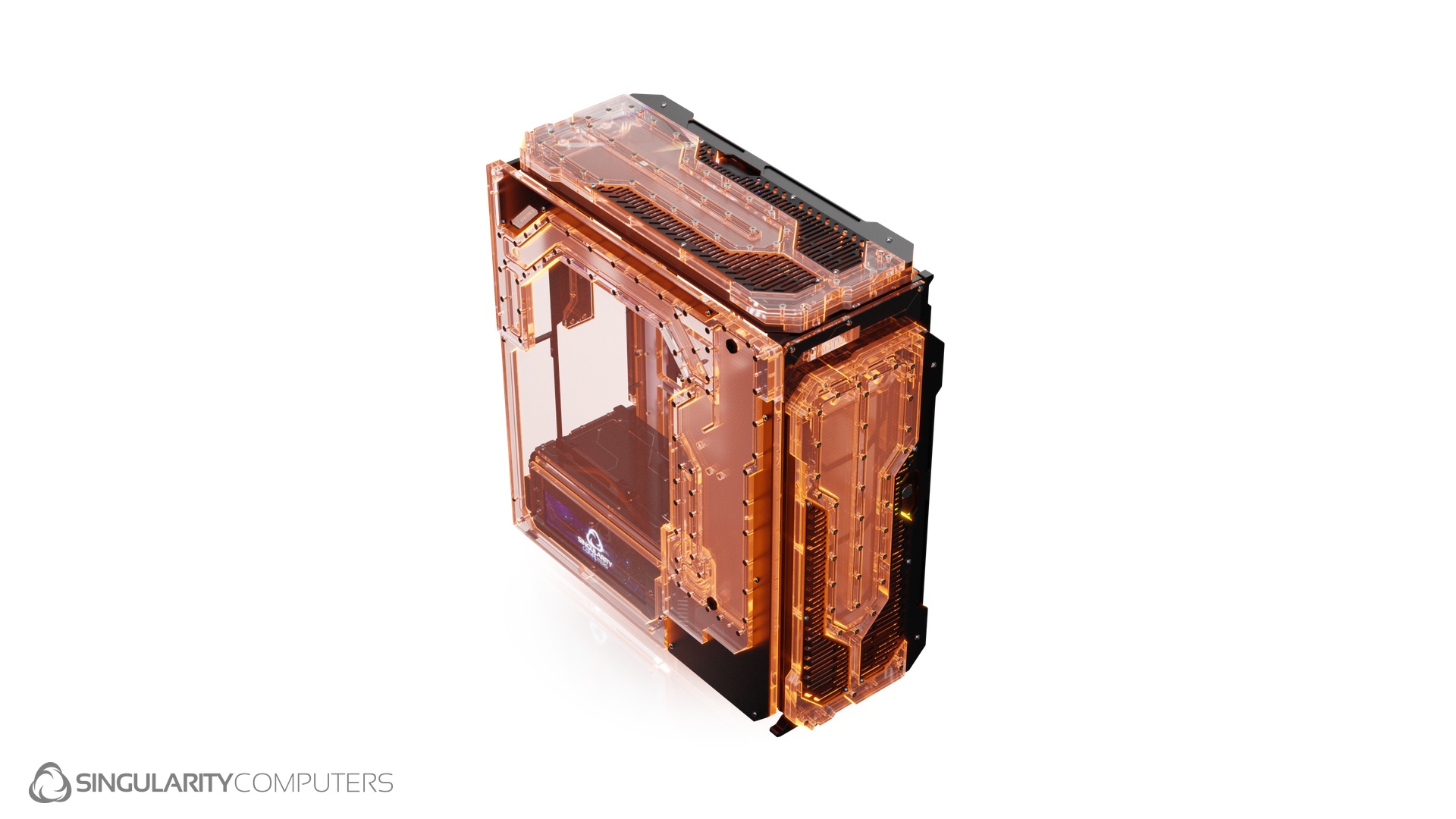

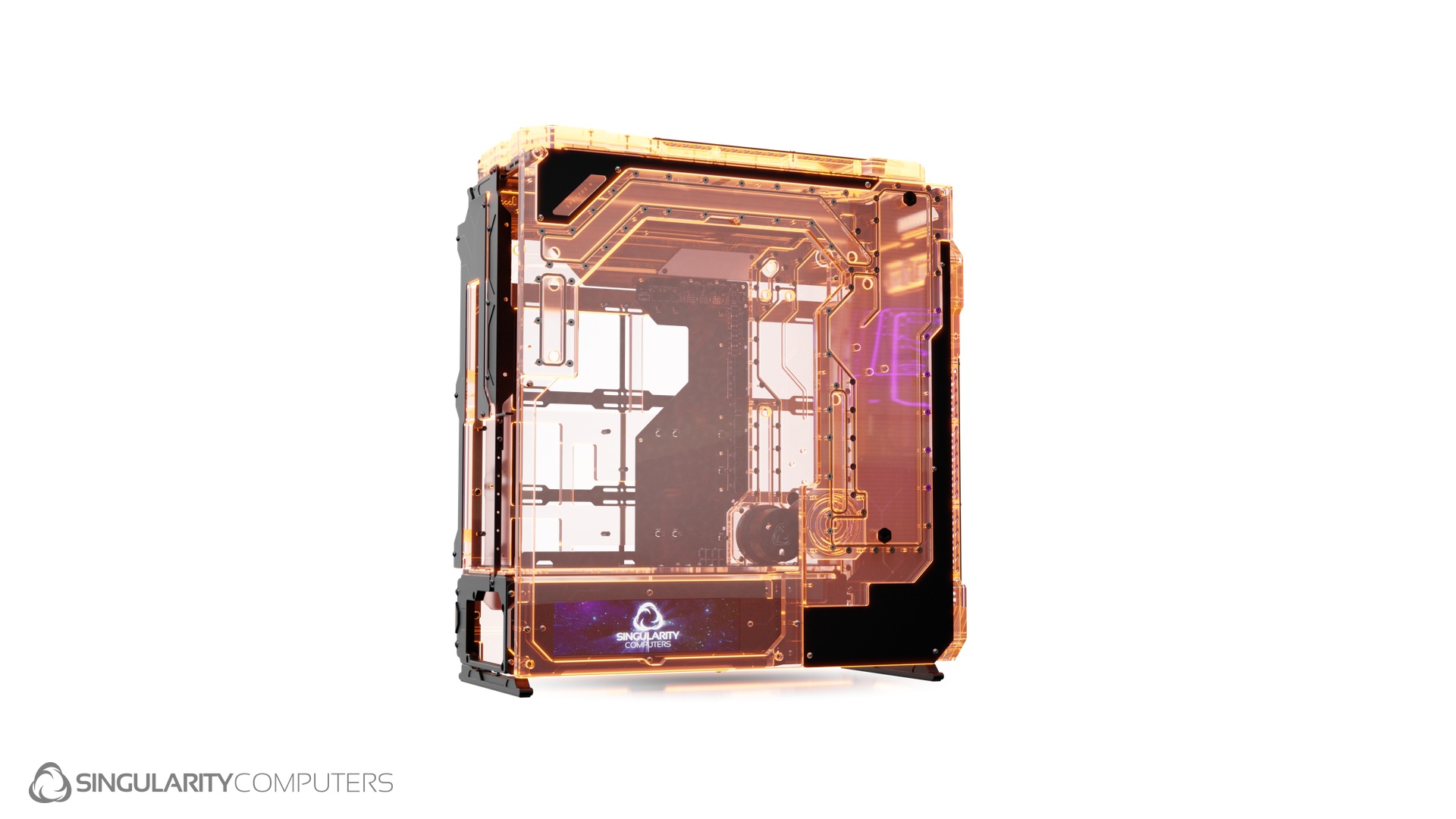

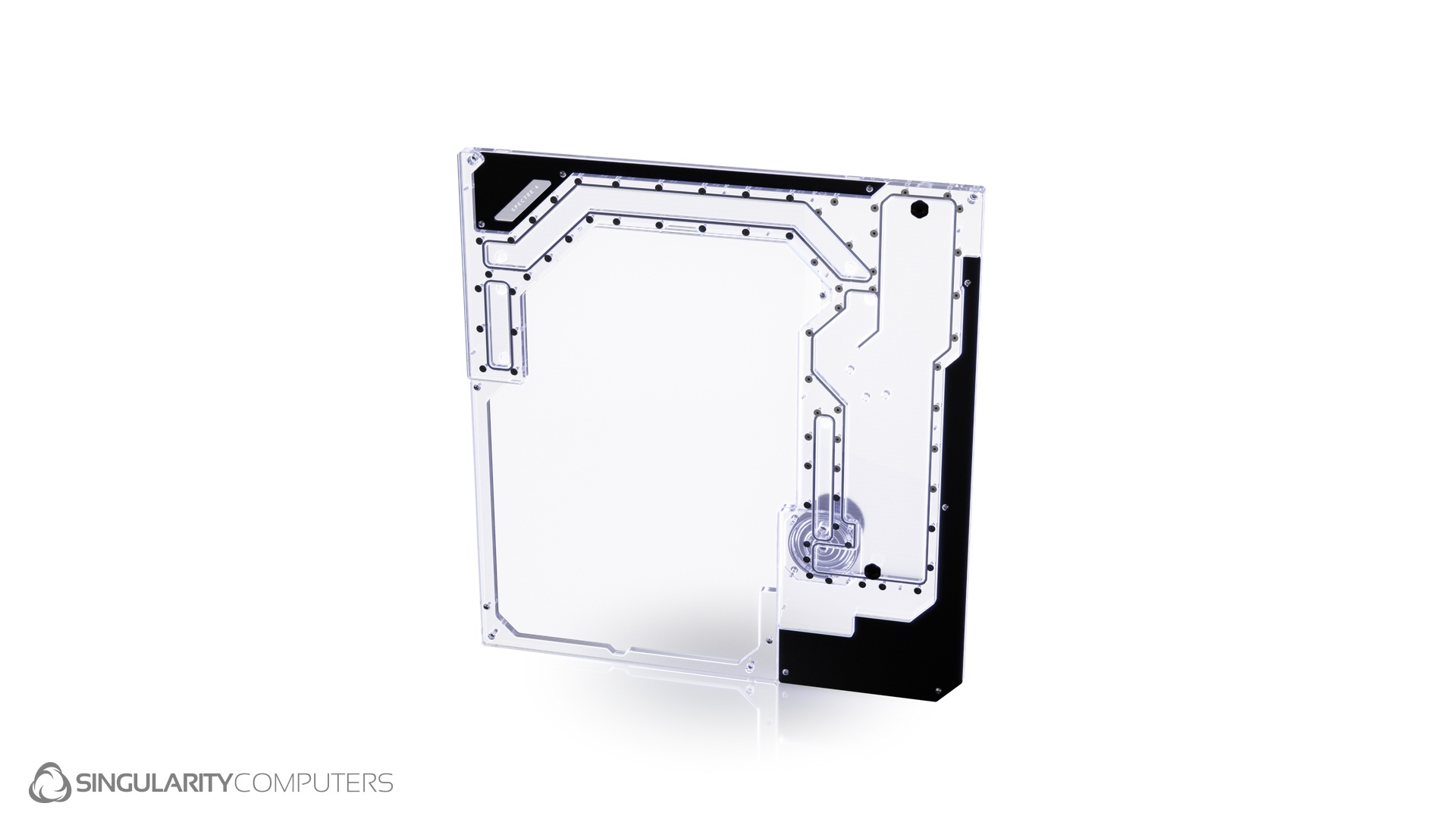

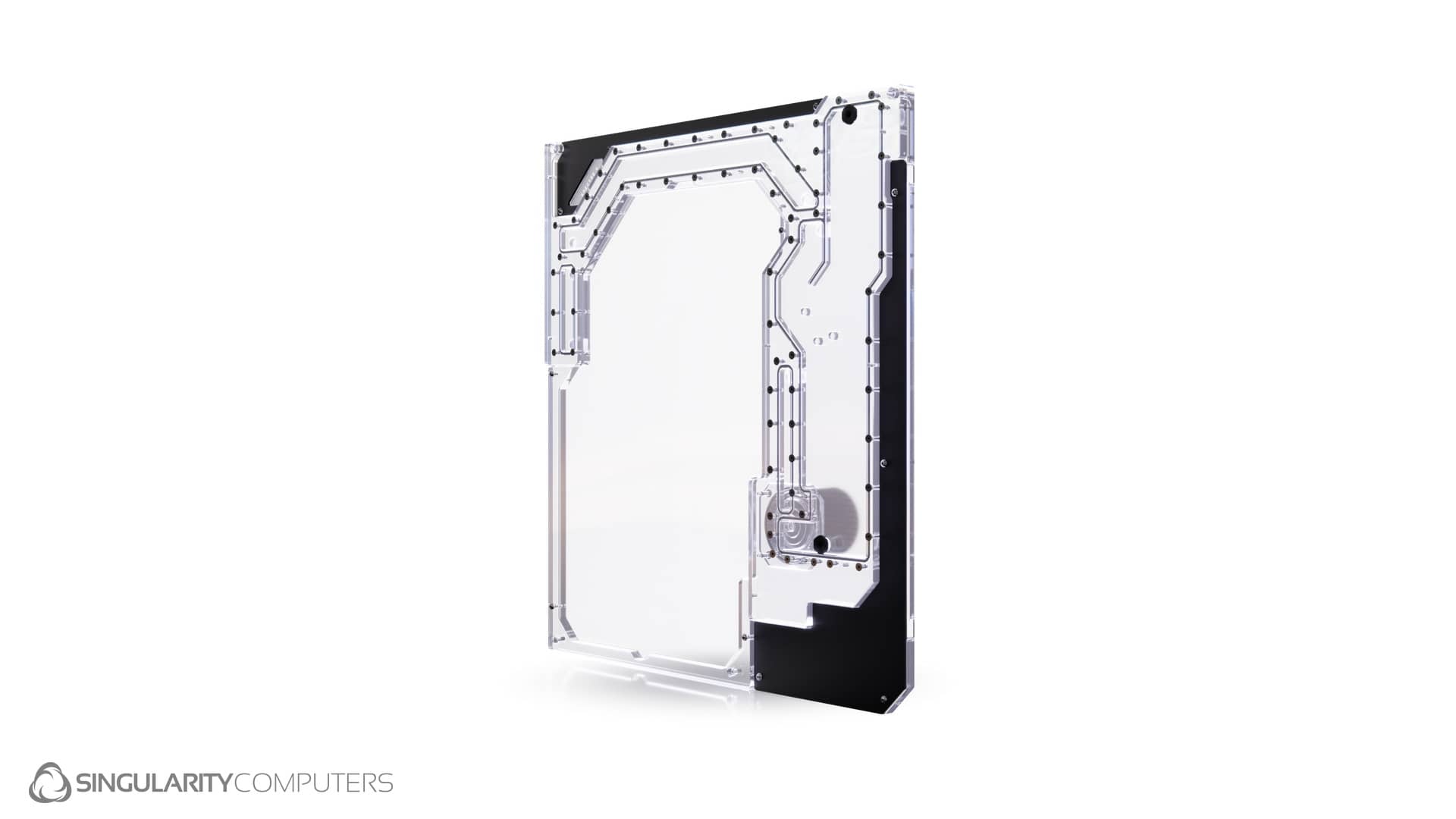

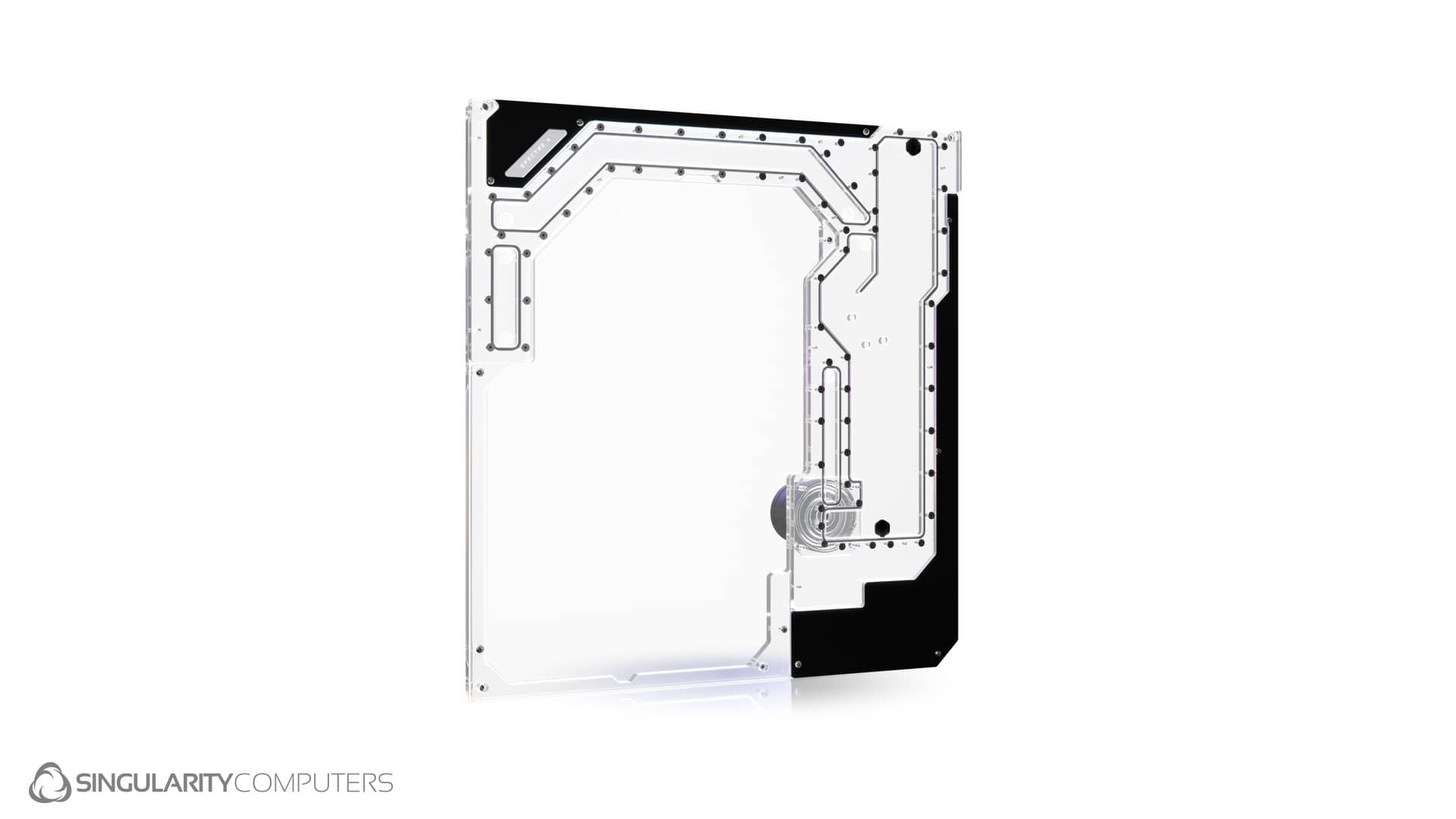

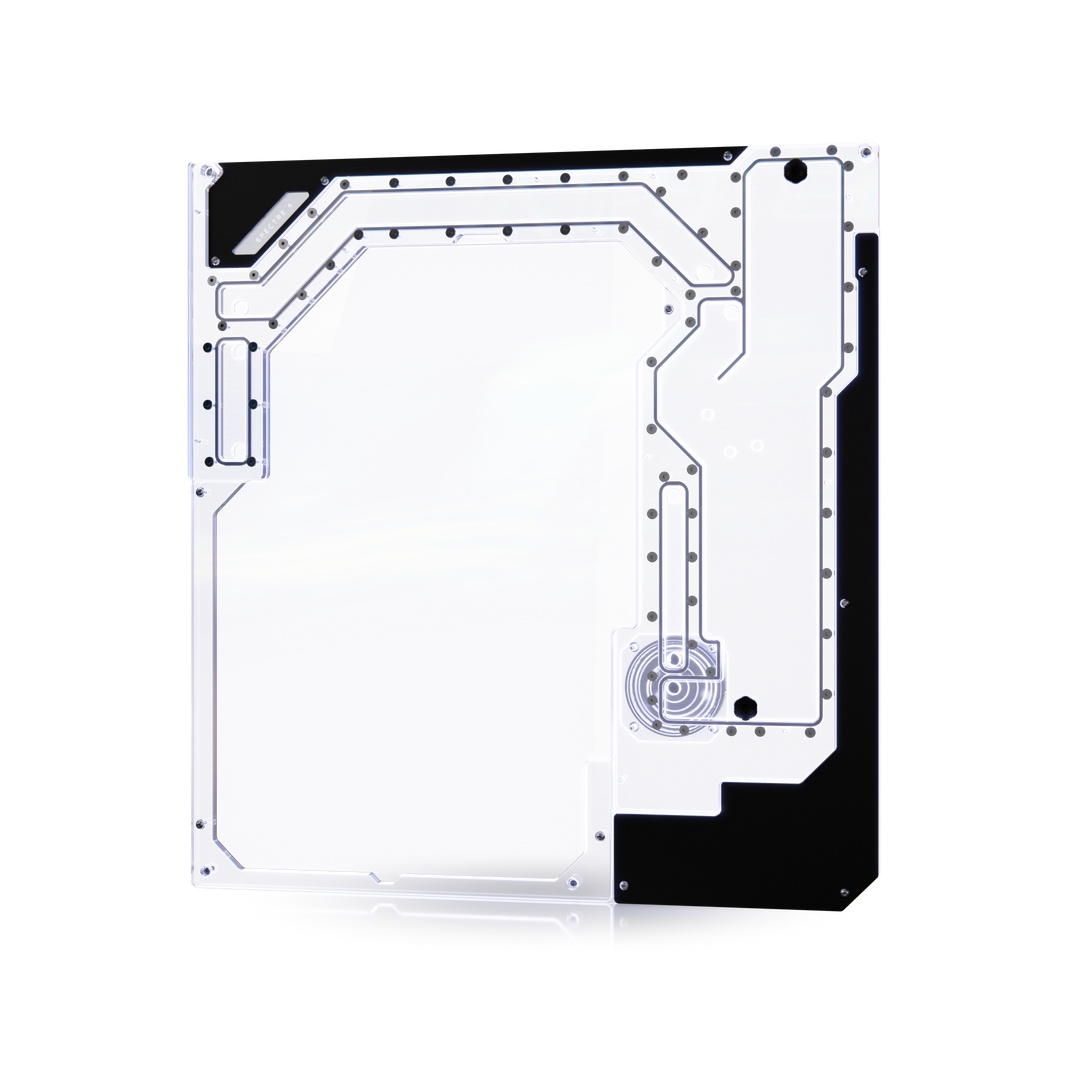

The Spectre 4 Enterprise & Quantum Dual Loop Side Panel is an addon for the Spectre 4 Enterprise and Quantum Water-cooling Cases. It is special designed for these cases with a different layout to allow the Dual Loop Side Panel to be used for the CPU loop and the main distribution plate for the GPU loop. This is so that the 3x 360mm radiators or MORA IV which fits onto the back of the case can be used for the GPU/s and the 2x 420mm radiators inside the case can be used for the CPU.
It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the CPU loop, top and front radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.

Pump not included. Compatible with any D5 Pump.

Build Gallery

US$629.00

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00
EAN: 9351182007020 SKU: SC-SPEC4-EQ-DLSP Categories: ,

Manual

Gallery

Specifications:
Spectre 4 Enterprise & Quantum Dual Loop Side Panel.
Protium 3.0 D5 Pump Cover.
Water-cooling Integration:
 Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x7 G1/4” BSPP. 1x Fill Port. 2x Drain Ports (x1 inside & x1 outside).
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables (pre-installed).
Product Dimensions: L: 486mm x W: 80mm x H: 528mm.
Product Weight: 2.5kg.
Packaged Dimensions: L: 536mm x W: 130mm x H: 578mm.
Packaged Weight: 3kg.
Materials: Cast Acrylic. 6061 Aluminum. PCB.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Manufacturing Process: CNC Router, CNC Lathe, CNC Mill, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.

Installation:
Installs in the location of the stock side panel window using.
