Spectre 4 Enterprise Water-cooling Case

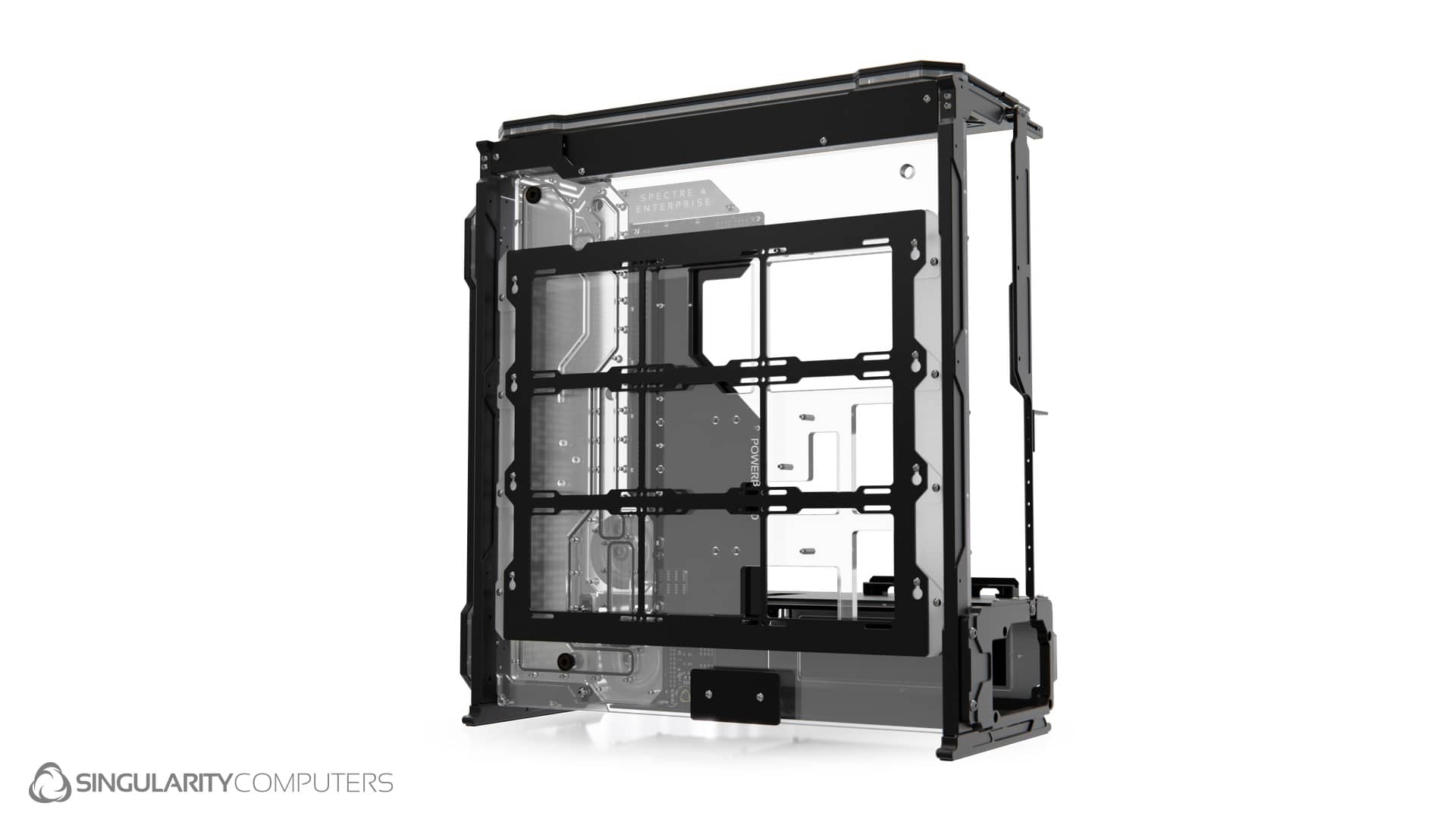

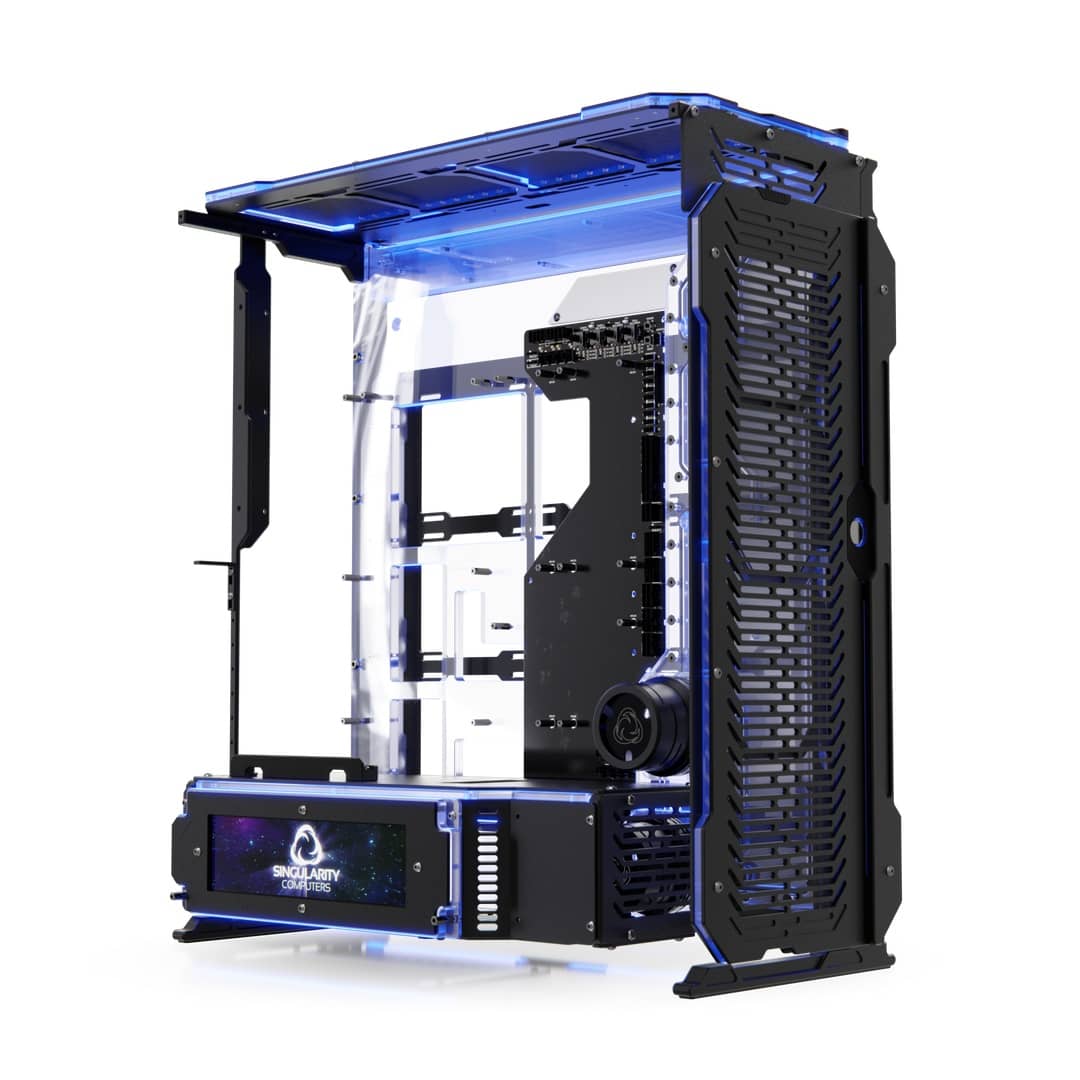

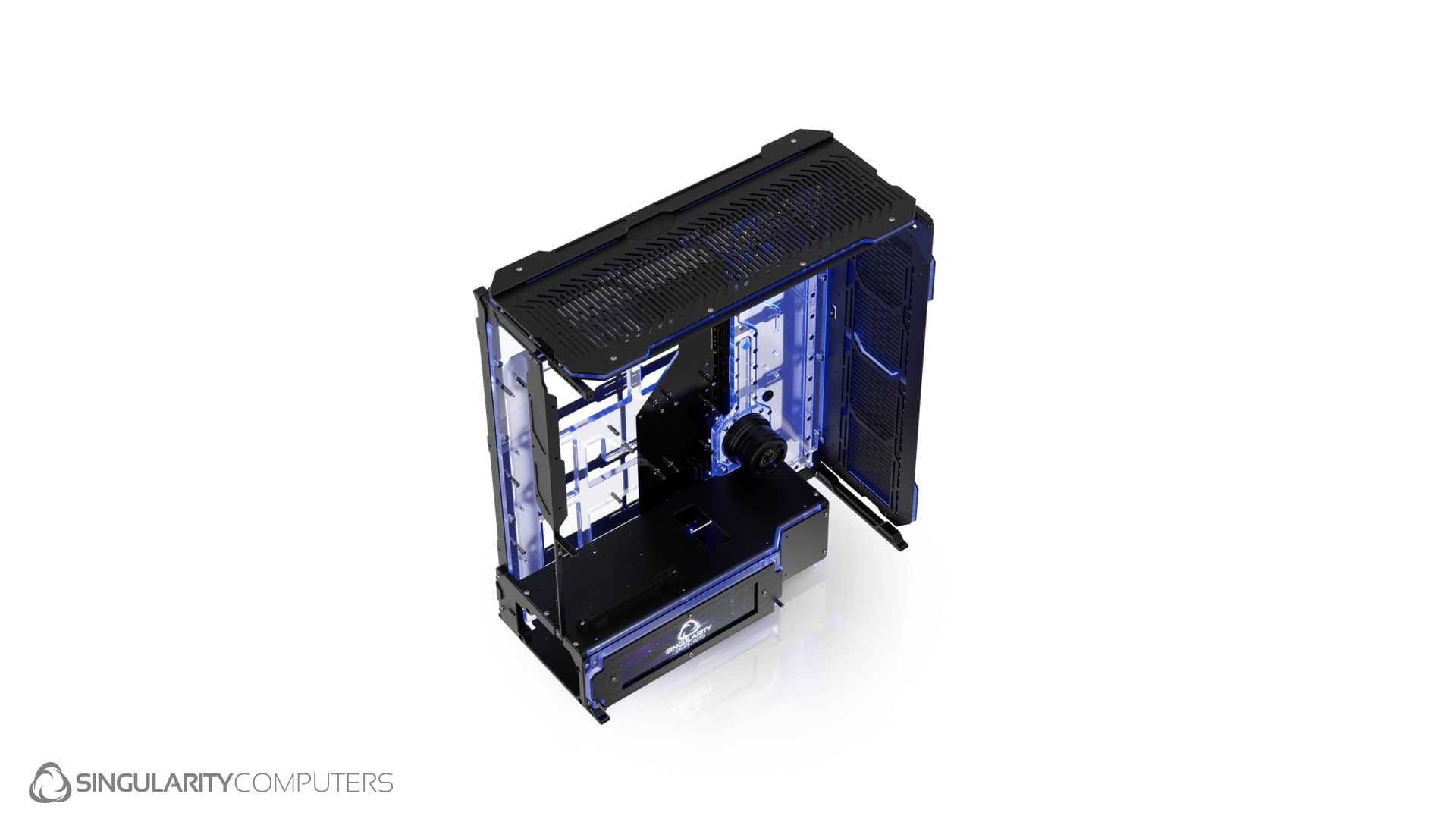

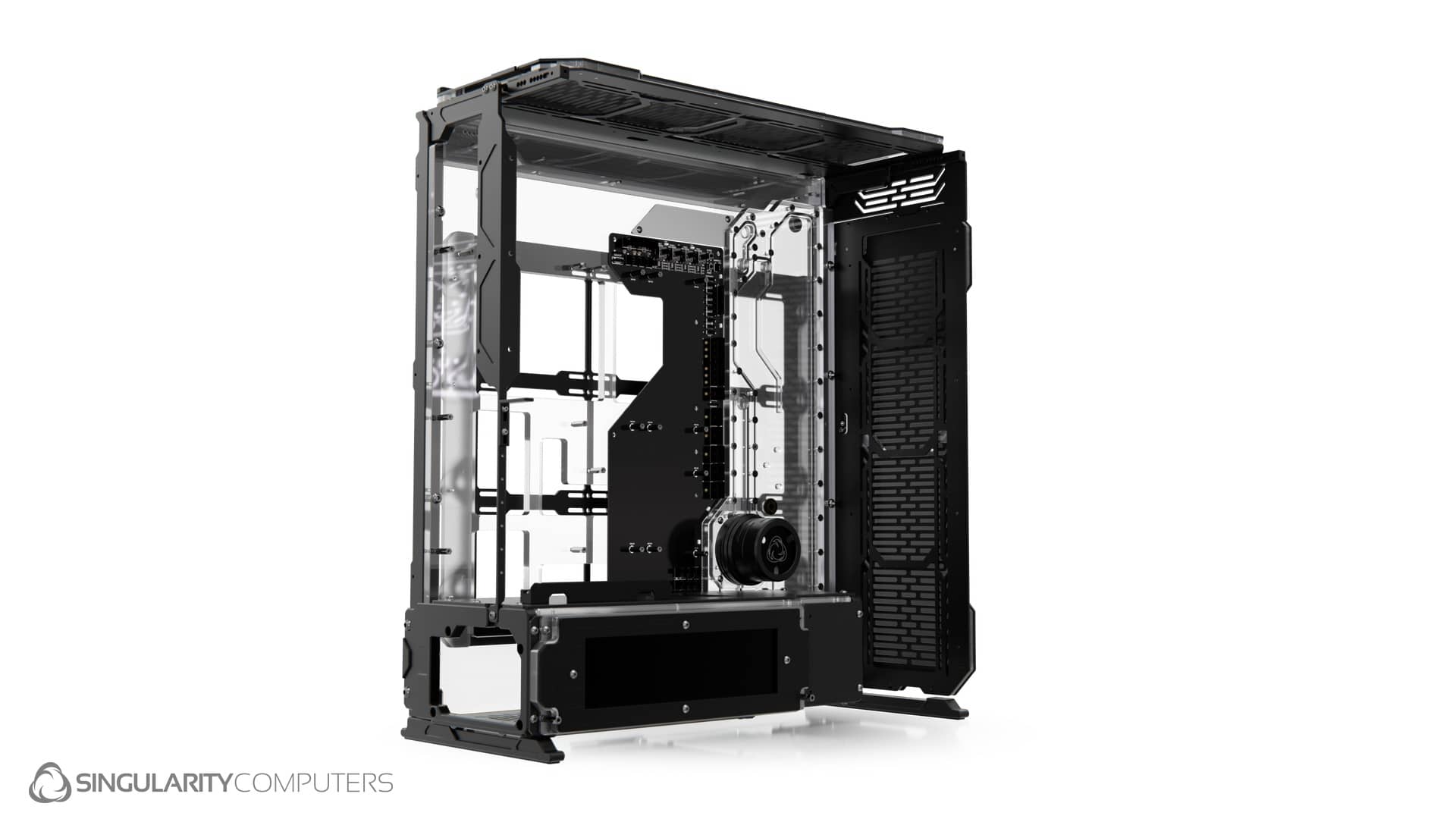

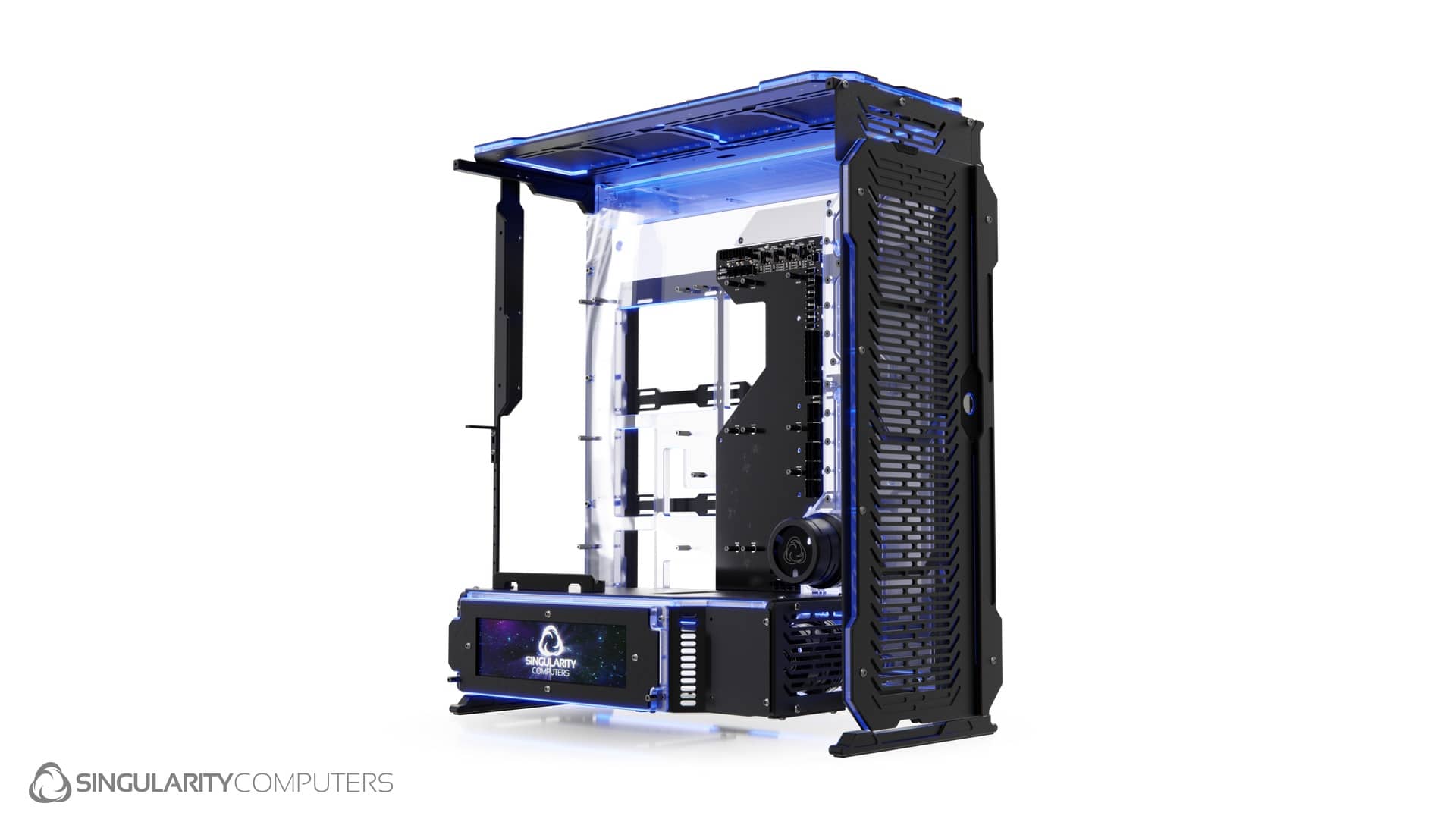

Spectre 4 Enterprise is an extreme water-cooling case designed for workstations. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features.
Spectre 4 Enterprise is designed for larger E-ATX, SSI-EEB and SSI-CEB motherboards. It fits x2 360mm or 420mm radiators internally and 3x 360mm radiators, or a MO-RA3 120 Externally. The main distribution plate fits Dual D5 Pumps for increased performance and a second water-cooling loop can be added with Spectre 4 Dual Loop Side Panel Addon. The case comes included with a 1920×480 60Hz IPS screen mounted on the PSU Shroud.
Spectre 4 Enterprise introduces a new distribution plate design with two thicker layers and countersunk fasteners which enhances durability, quality, and aesthetics. The design for the 6061 CNC machined frame is completely new with greatly improved strength and updated aesthetics.
The PowerBoard comes with a vast range of new features including improved lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more.
Pumps not included. Compatible with any D5 Pumps.
Note: The default included cables will not work for all SSI-EEB and CEB configurations, contact support(at)singularitycomputers.com with any questions.
US$1,999.00
Spectre 4 Enterprise Single Loop Flow Diagram
Features new to Spectre 4 Enterprise
New frame design with greatly improved strength and updated aesthetics.
420mm internal radiators.
100mm thickness for internal radiators and fans.
Much larger PSU shroud for long PSUs and cables.
PSU shroud covers the pump and improves cable management.
New distribution plate design with two 10mm layers and countersunk bolts.
Dust filters on PSU and front and top panels.
Full glowing top and front panel layers.
Multi layered top and front panels.
Multi zone PWM hubs.
Temperature based RPM control.
RPM curve adjustment.
Dedicated pump RPM and power headers.
Temperature sensor inputs.
12pin header for addon devices.
Standby lighting.
Integrated PowerBoard 2.5” mount plus a 2.5”/3.5” mount.
PSU jump-start for powering pumps only.
Temperature sensor port.
Internal drain port.
Protective covers for feet.
Case Dimensions: L: 550mm x W: 250mm x H: 615mm.
Case Weight: 13kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm.
Packaged Weight: 15kg.
Spectre 4 Versions
| Spectre 4 | Spectre 4 Aevum | Spectre 4 Aevum Chrome | Spectre 4 Aevum Dark | Spectre 4 Aevum Gold | Spectre 4 Aevum Valhalla | Spectre 4 Enterprise | Spectre 4 Quantum | Spectre 4-M | Spectre 4-M Dark | |
| Distribution Plates | x1 | x2 | x2 | x2 | x2 | x3 | x1 | x2 | x1 | x2 |
| Distribution Plate Layers | x2 | x4 | x4 | x4 | x4 | x4 | x2 | x2 | x3 | x3 |
| PowerBoard | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Motherboard Form Factor | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX, SSI-EEB, SSI-CEB | Up to E-ATX, SSI-EEB, SSI-CEB | Up to E-ATX | Up to E-ATX |
| IO Slots | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 7 | 7 |
| Radiators | 2x 360mm/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360mm/420mm + 3x 360mm or MO-RA3 | 2x 360mm/420mm + 3x 360mm or MO-RA3 | 2x 360mm | 2x 360mm |
| Radiator Thickness | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 45mm | 45mm |
| Pump/s | D5 | D5 | D5 | D5 | D5 | D5 | 2x D5 | 2x D5 | D5 | D5 |
| Reservoir | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Case Dimensions | 610mm x 245mm x 560mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 560mm | 610mm x 245mm x 560mm | 486mm x 245mm x 528mm | 506mm x 245mm x 528mm |
| 1920×480 60Hz Screen | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | Yes |
| Limited Edition | No | Yes | Yes | Yes | Yes | Yes | No | No | No | No |
| Individually Numbered | No | Yes | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| Rear CPU Socket Fan | Yes | Yes | Yes | Yes | Yes | Yes | No | No | Yes | Yes |
| Dust Filters | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Multi Zone PWM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated Pump PWM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated Pump Power | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Temperature Based RPM Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RPM Curve Adjustment | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PSU Jump Start | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PSUs | x1 | x1 | x1 | x1 | x1 | x1 | x1 (2nd can be added with optional addon) | x1 (2nd can be added with optional addon) | x1 | x1 |
| Water-cooling Loops | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x2 | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) |
| Color | Black | Black & Graphite | Silver Mirror | Black & Grey Tinted | Gold | White | Black | Black and Silver or Black and Gold | Silver | Black & Grey Tinted |
| Drives | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x2 2.5” if GPU/s not vertically mounted | x2 2.5” if GPU/s not vertically mounted | x2 x2.5” | x2 x2.5” |
| PCB Covers with integrated ARGB | No | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes |
| Personalised etched name and serial number | No | No | Yes | Yes | Yes | No | No | Yes | No | No |
Addon Information
Dual Loop Side Panel Distribution Plate Elite Top and/or Front Distribution Plate
Rear IO Distribution Plate FanGuardian PowerBoard Controller
Dual Loop Side Panel Distribution Plate: The Spectre 4 Dual Loop Side Panel is an addon for the Spectre 4 Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.
Elite Top and/or Front Distribution Plate: The Spectre 4 Elite has an all-new design with greatly increased ventilation, and it is larger to fit onto the 420mm radiator panels of Spectre 4. It has two thicker acrylic panels and countersunk fasteners to improved durability, quality, and aesthetics. It replaces the front radiator panel which enhances the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. The main purpose is an aesthetic feature, although it does increase fluid volume. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached and there is ventilation around the perimeter of the distribution plate and through the ventilated sections on the front. There is an LED strip positioned on the edge of the distribution plate so that it glows.
Rear IO Distribution Plate: The Spectre 4 Rear IO Distribution Plate is designed for both Spectre 4 & Spectre 4 Aevum Water-cooling Cases and is compatible with all addons. It can be used in single or dual loop mode, with or without the Spectre 4 & Spectre 4 Aevum Dual Loop Side Panel. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. Similar to the Spectre Elite Front and Top Panel Distribution Plates, this Distribution Plate is primarily designed to improve aesthetics although it can improve the loop layout in some scenarios.
FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.
