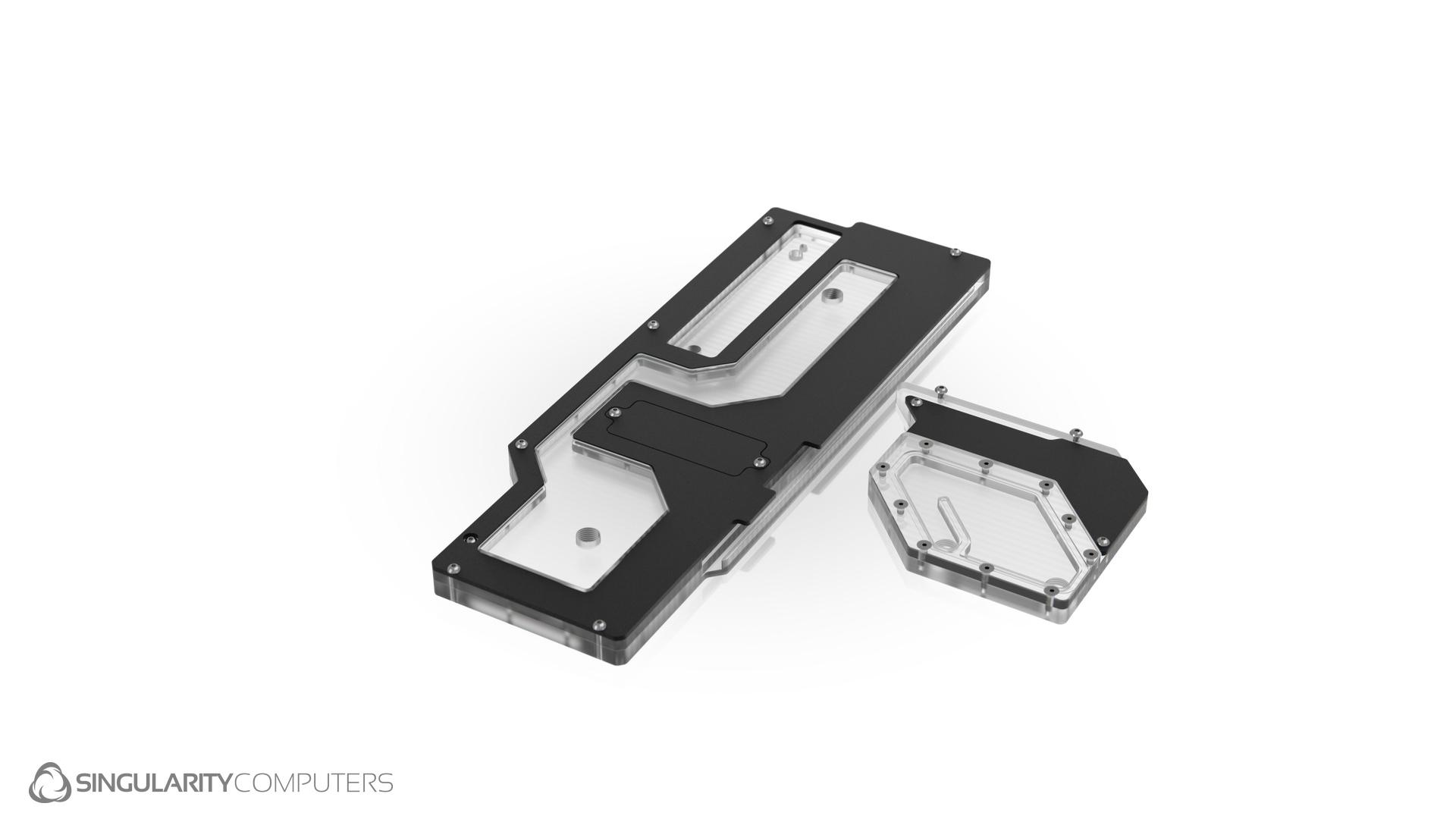

Spectre 4 PSU Shroud & Rear IO Distribution Plate Set

The Spectre 4 PSU Shroud & Rear IO Distribution Plates are designed for both Spectre 4 & Spectre 4 Aevum Water-cooling Cases and are compatible with all addons. They can be used in single or dual loop mode, with or without the Spectre 4 & Spectre 4 Aevum Dual Loop Side Panel. They can also be used independently of each other. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. The PSU Shroud Distribution Plate can be used with horizontal or vertically mounted GPUs. It sits on top of the PSU shroud and works well with GPU water-blocks which have ports on the end. Similar to the Spectre Elite Front and Top Panel Distribution Plates, these Distribution Plates are primarily designed to improve aesthetics although they can improve the loop layout in some scenarios.

Build Gallery

US$99.00 US$299.00Price range: US$99.00 through US$299.00

None Spectre 4 Spectre 4 Aevum Spectre 4 Aevum Dark Spectre 4 Aevum Valhalla
None Spectre 4 Enterprise Spectre 4 Quantum
SKU: N/A Category:

Manual

Gallery

Specifications:

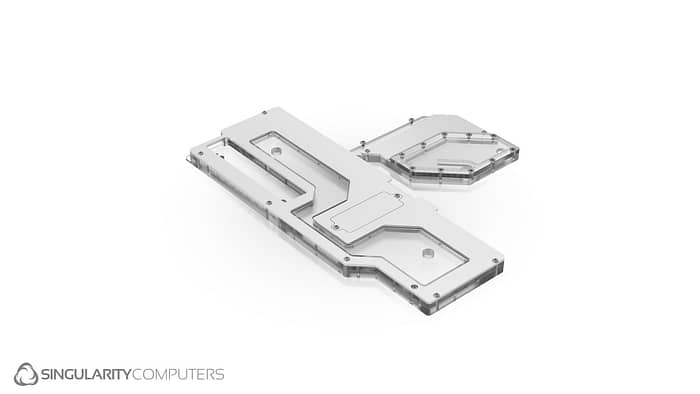

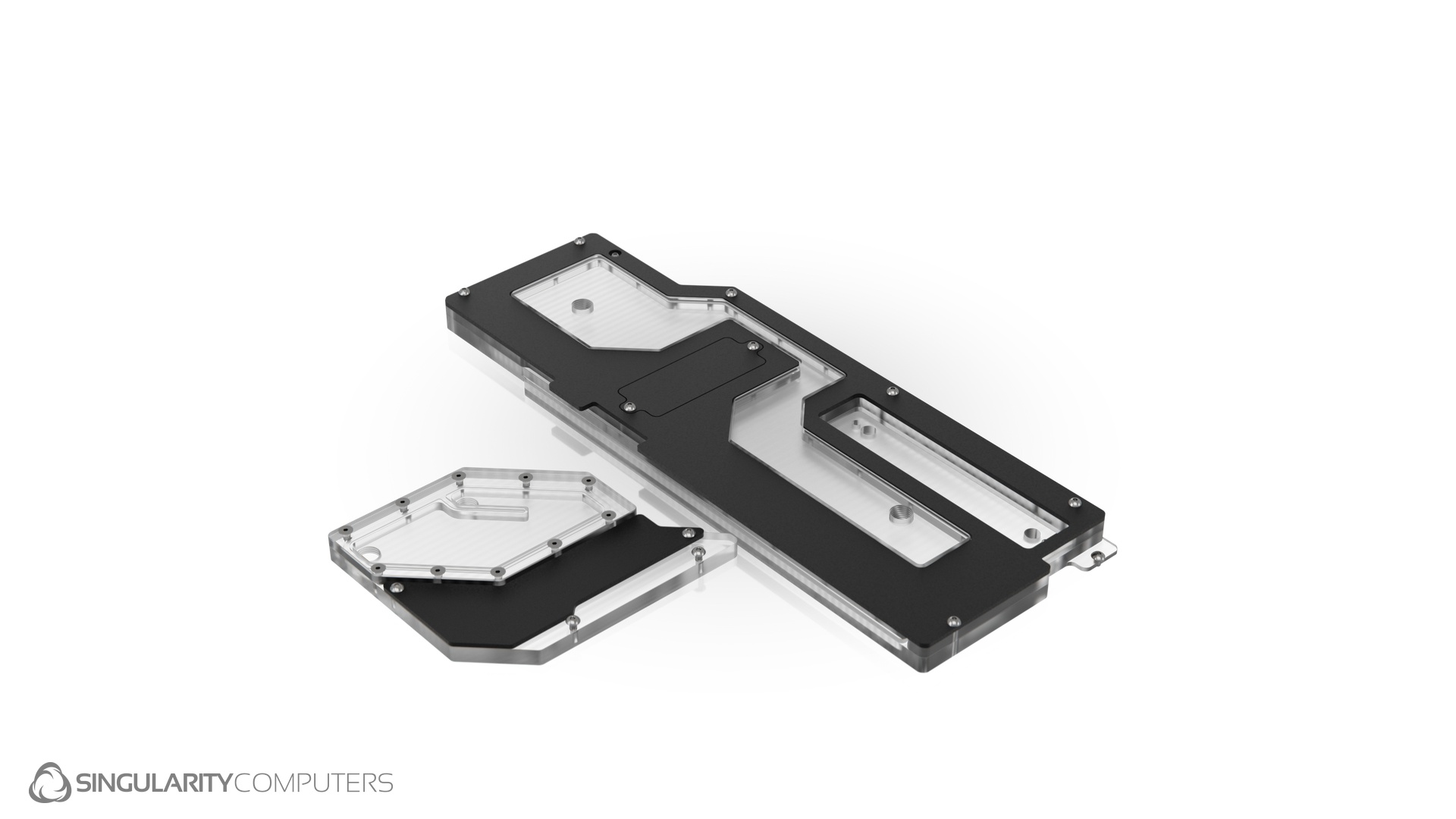

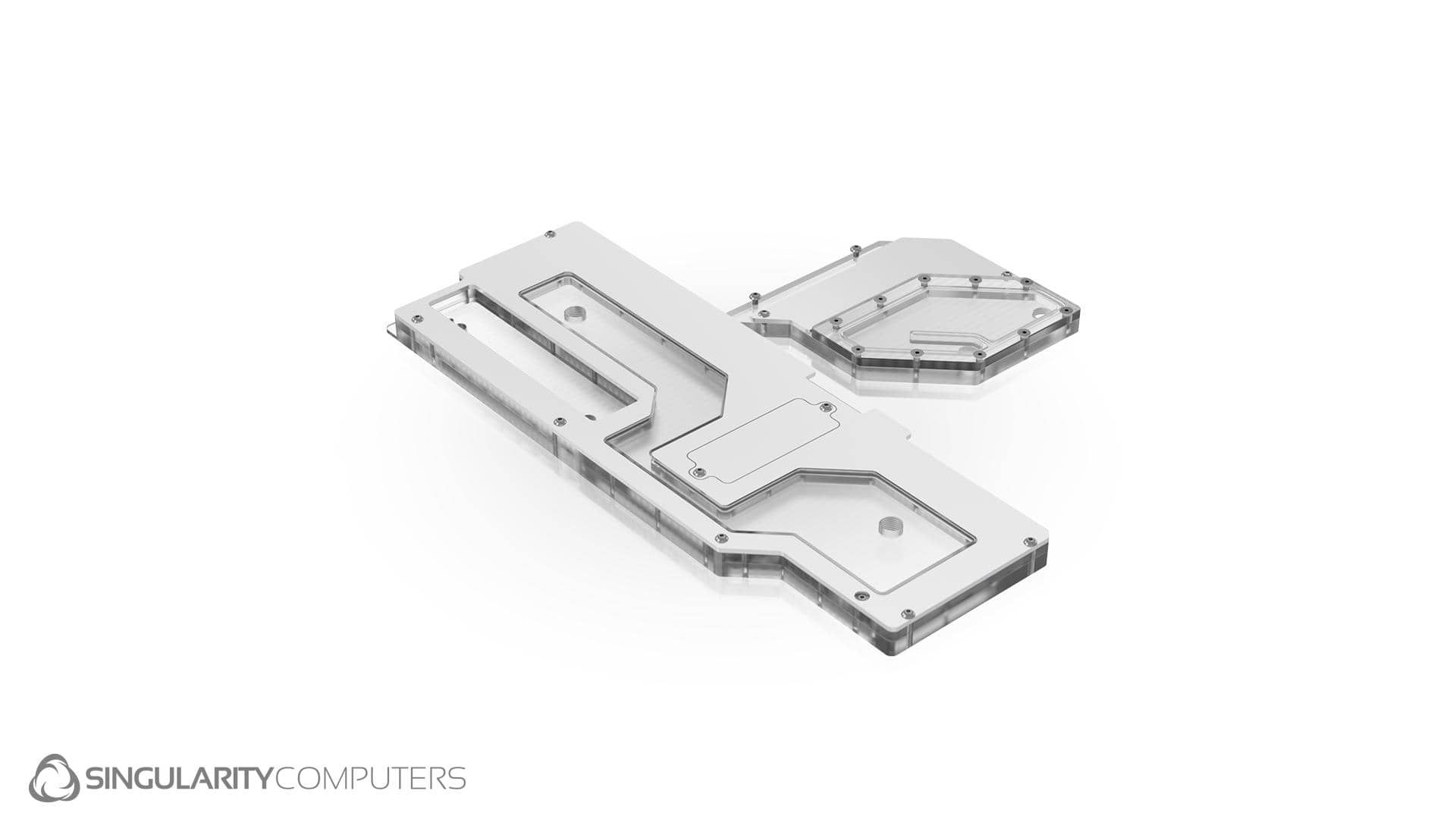

Spectre 4 PSU Shroud & Rear IO Distribution Plate Set.
LED Strip: 30cm ARGB 5V with 50cm black cable.
Materials: Cast Acrylic.
Gaskets: Silicone Black.
Fasteners: Stainless Steel Silver.
Manufacturing Process: CNC Mill. CNC Router. Laser Cutter.
Assembly: Assembled by hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Dimensions: L: 320mm x W: 120mm x H: 36mm.
Weight: 2kg.
Packaged Dimensions: L: 400mm x W: x150mm x H: 50mm.
Packaged Weight: 2.5kg.

Compatibility:
Spectre 4 Water-cooling Case.
Spectre 4 Aevum Limited Edition Water-cooling Case.
Spectre 4 Aevum Valhalla Limited Edition Water-cooling Case.
Spectre 4 Aevum Dark Water-cooling Case.
Rear IO Distribution Plate Only:
Spectre 4 Enterprise.
Spectre 4 Quantum.

Installation:
Both Distribution Plates are designed for both Spectre 4 and Spectre 4 Aevum Limited Edition Water-cooling Cases and are compatible with all addons. They can be used in single loop or dual loop scenarios also with the Spectre 4 and Spectre 4 Aevum Dual Loop Side Panels. When the dual loop side panel is used the cover can be removed on the Rear IO Distribution Plate to reveal two extra pass throughs underneath for tubes.

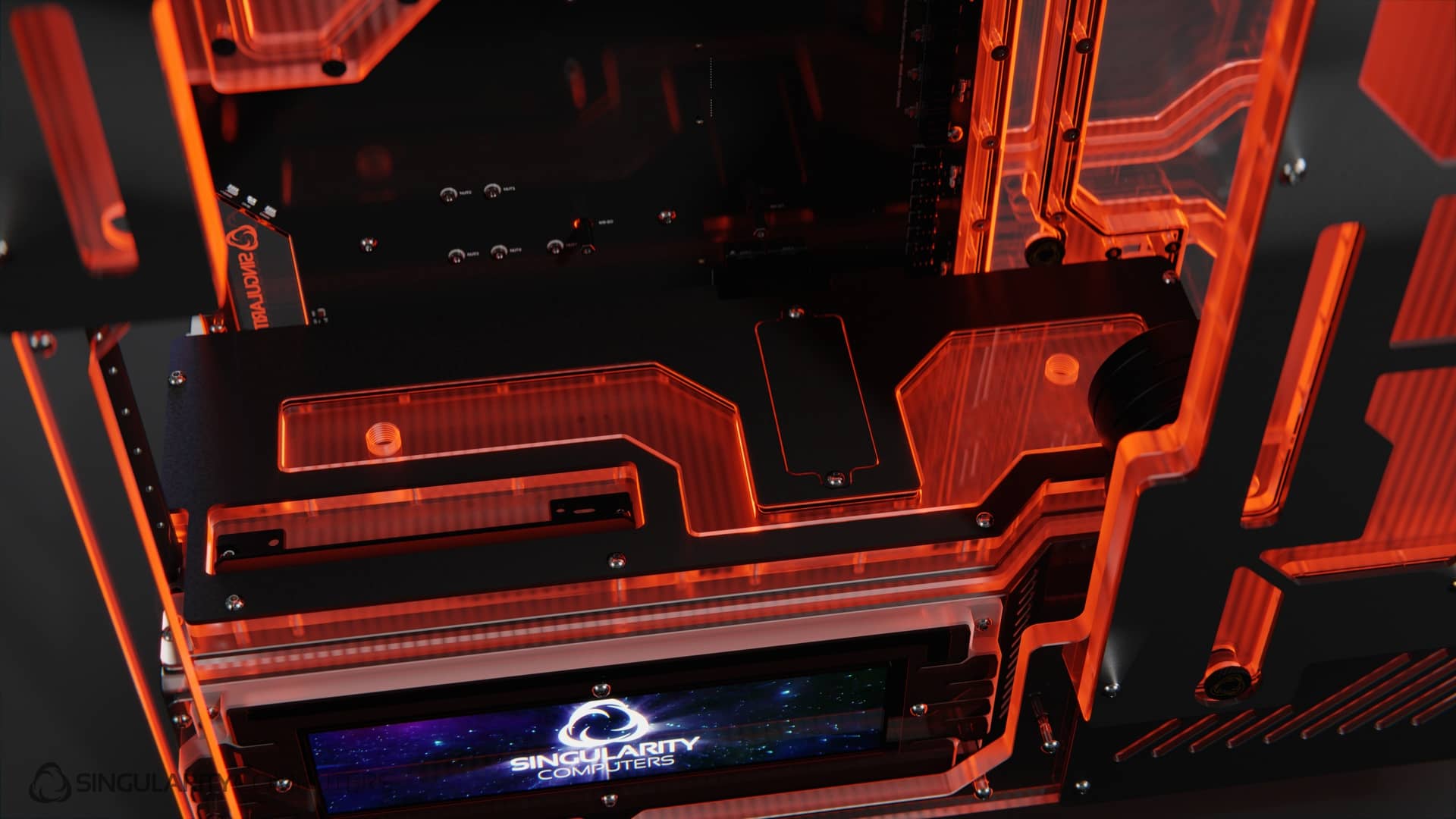

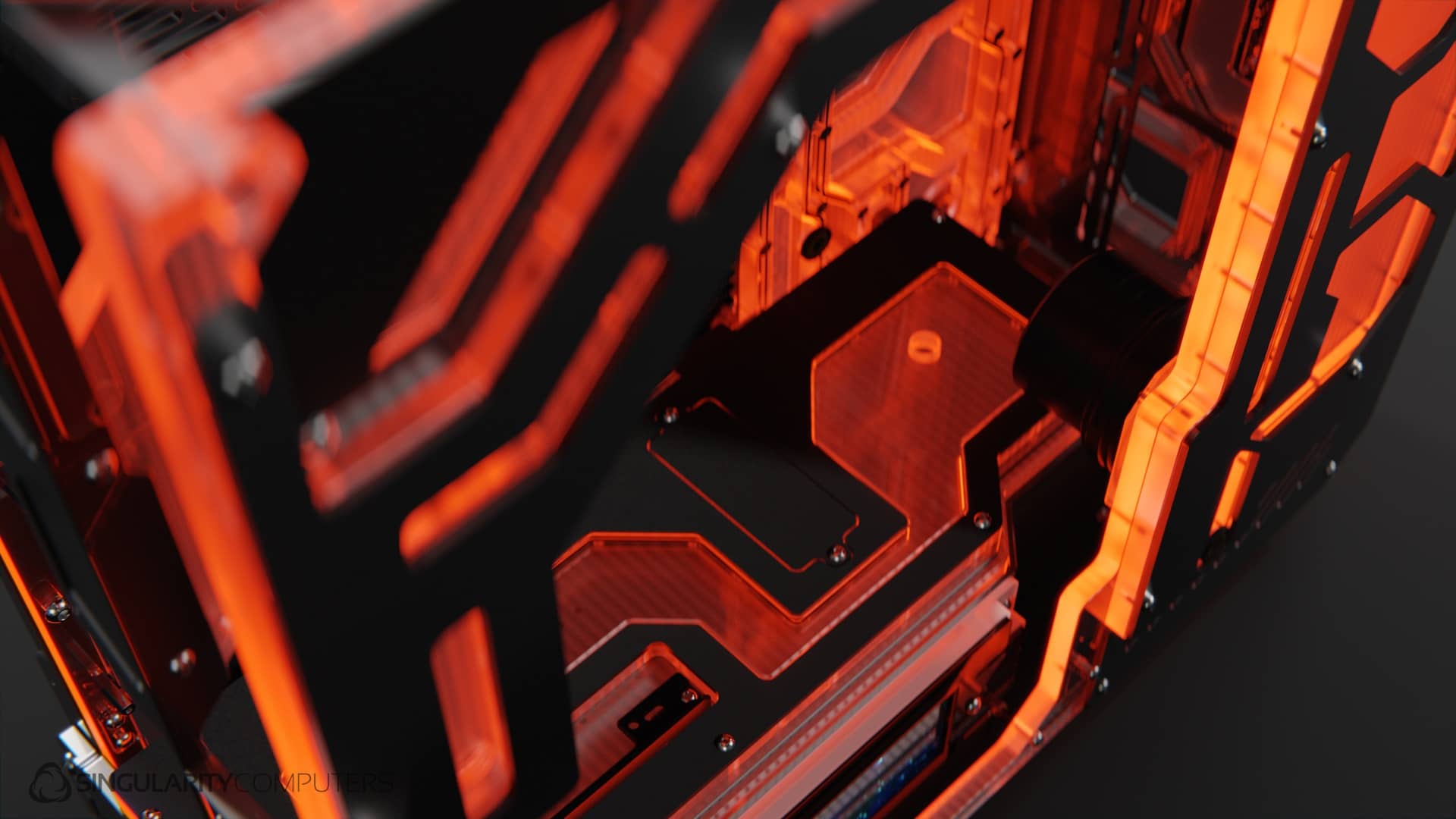

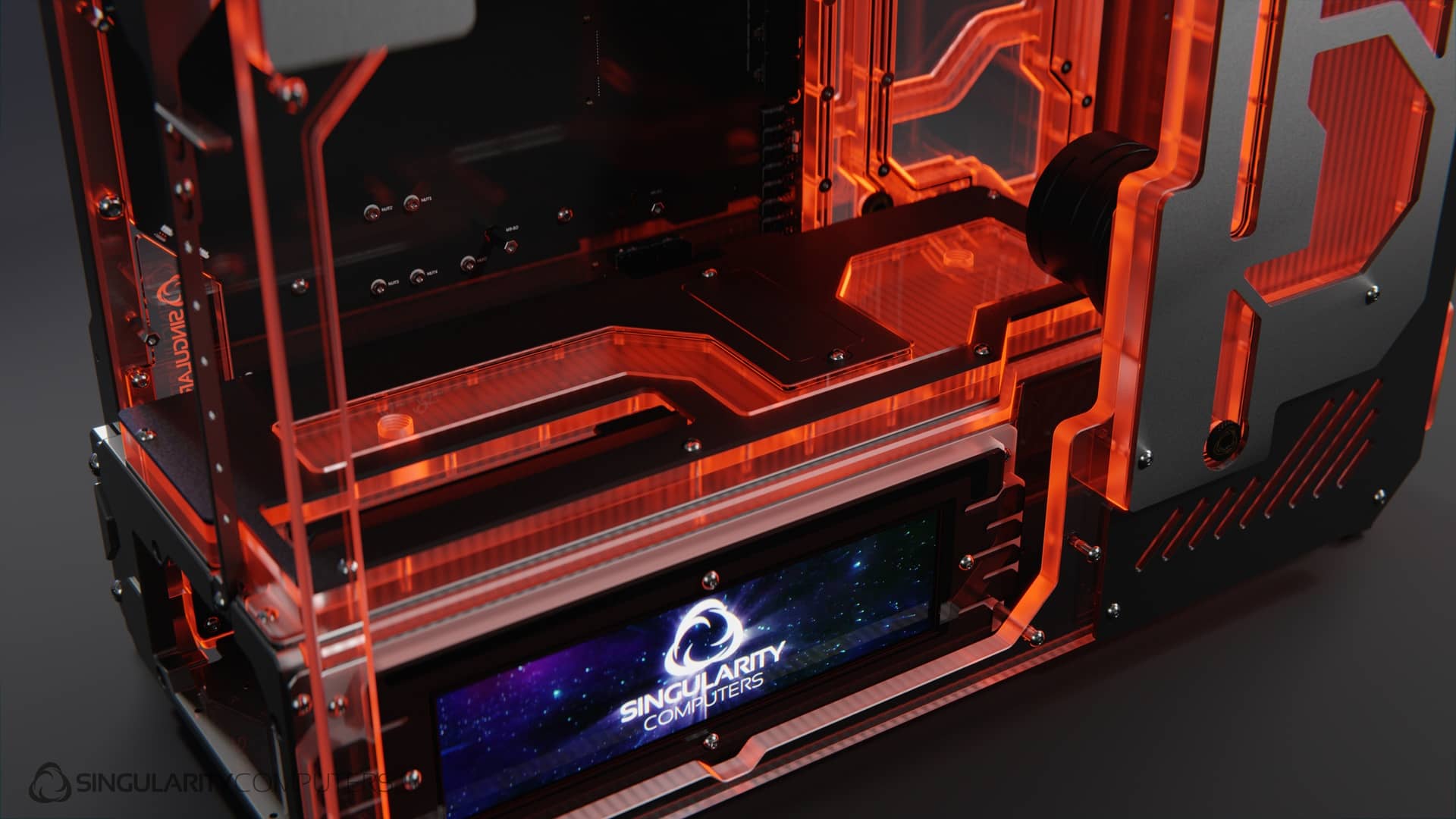

The PSU Shroud Distribution Plate replaces the original PSU Top Shroud Acrylic parts on Spectre 4 Aevum Water-cooling Case and installs onto the aluminum PSU Top Shroud. On Spectre 4 it installs directly onto the Aluminum PSU Top Shroud.

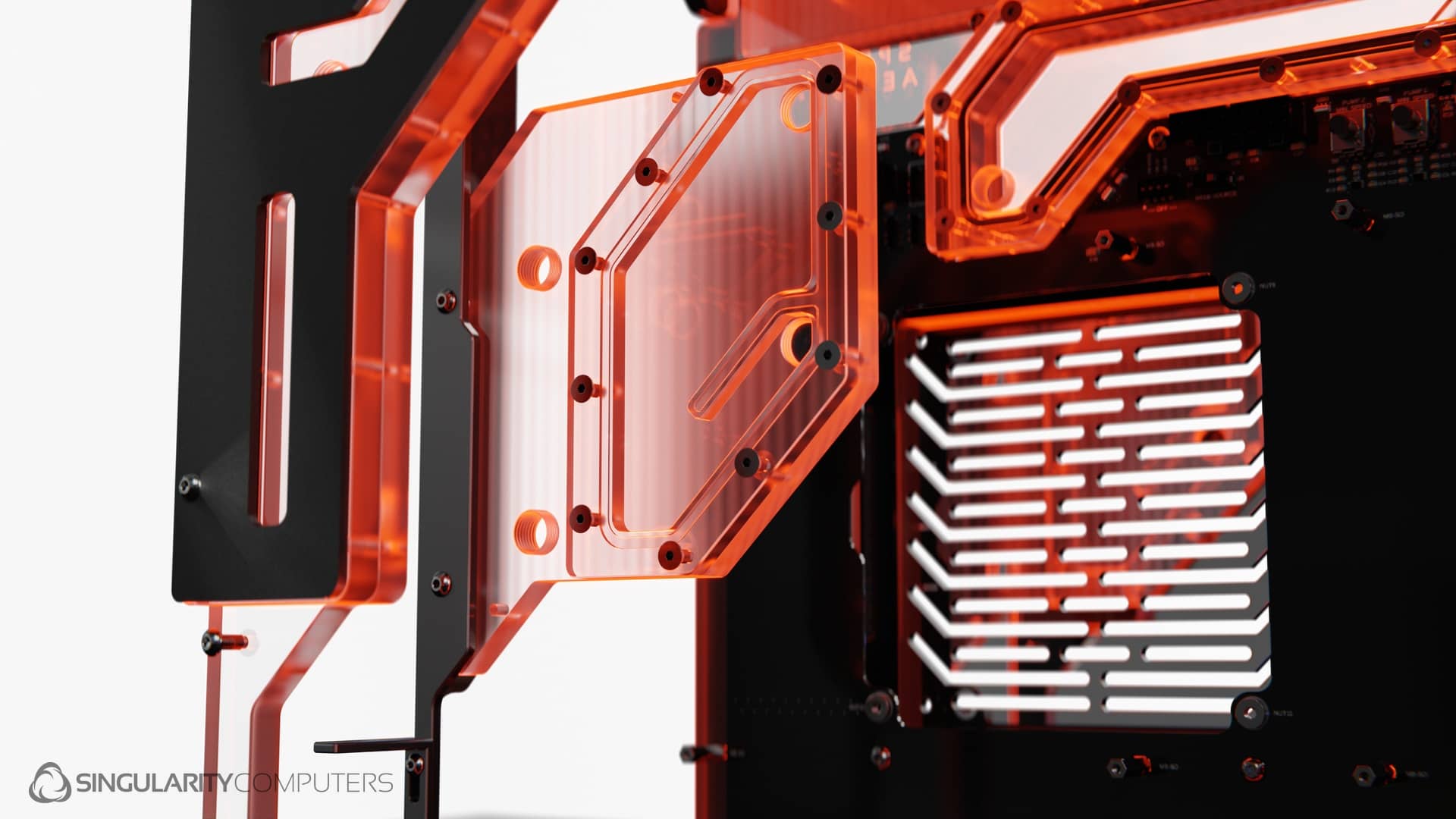

The Rear IO Distribution Plate installs onto the inside of the Rear IO Panel on both Spectre 4 and Spectre 4 Aevum Limited Edition Water-cooling Cases.
