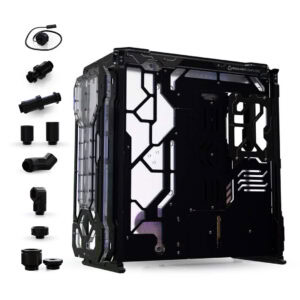

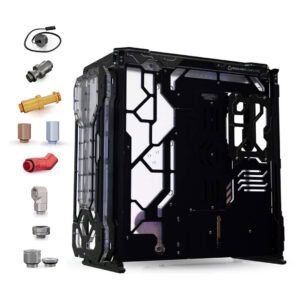

Spectre 4-M Dark Water-cooling Case
Spectre 4-M Dark Water-cooling Case Original price was: US$1,499.00.Current price is: US$1,274.15.

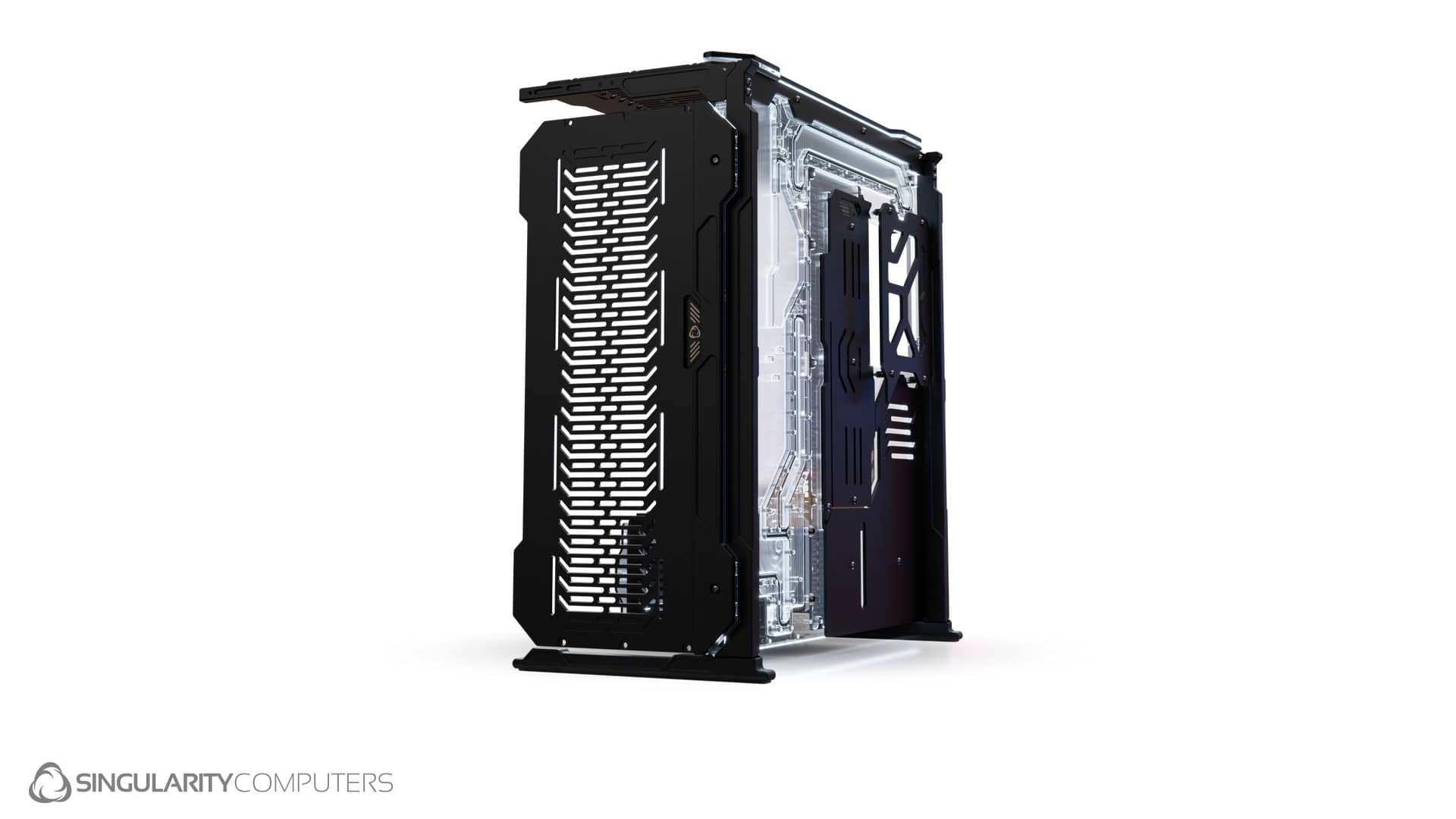

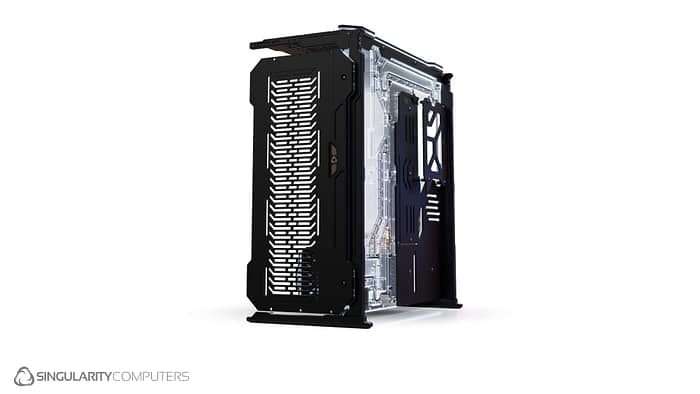

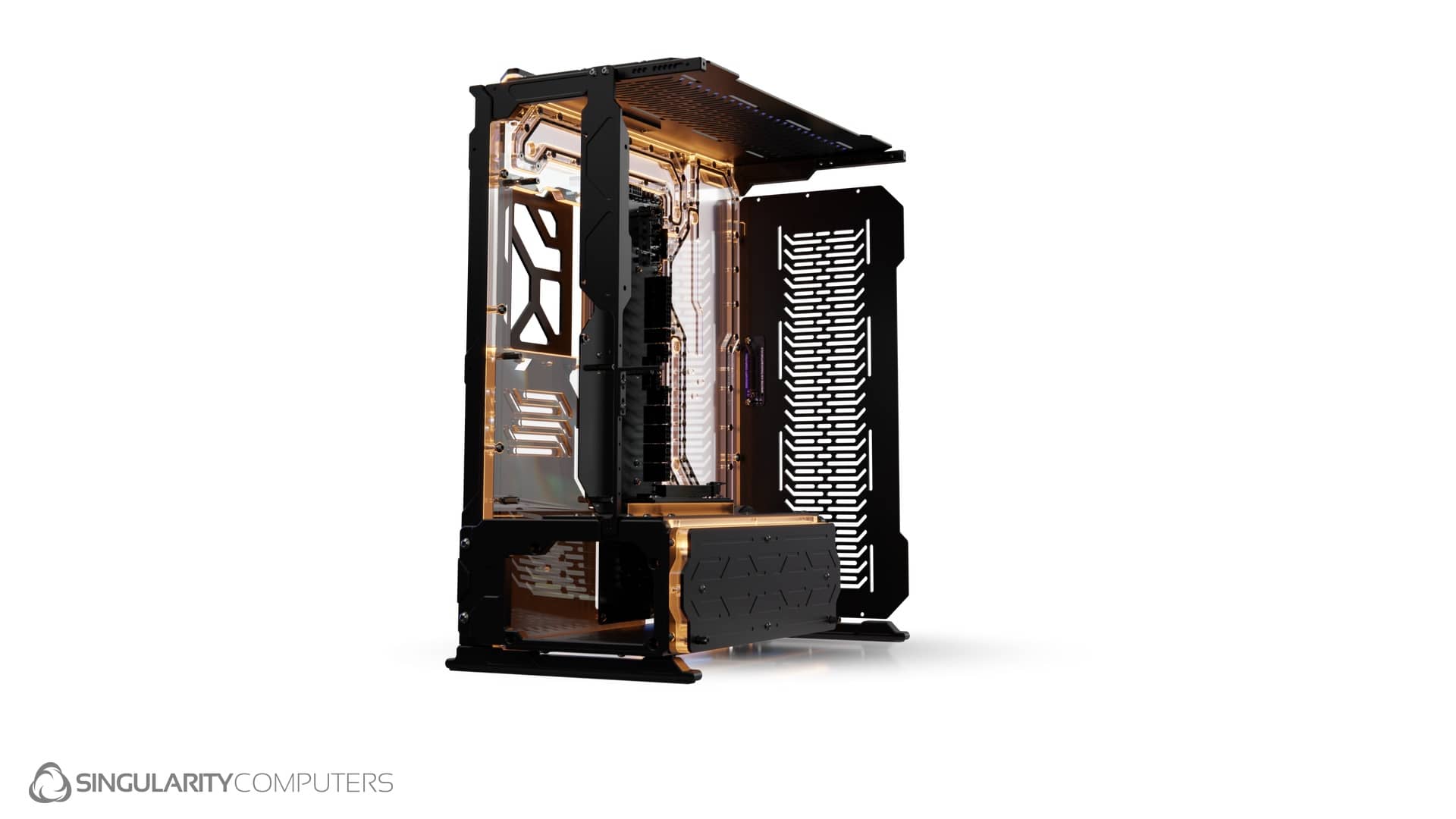

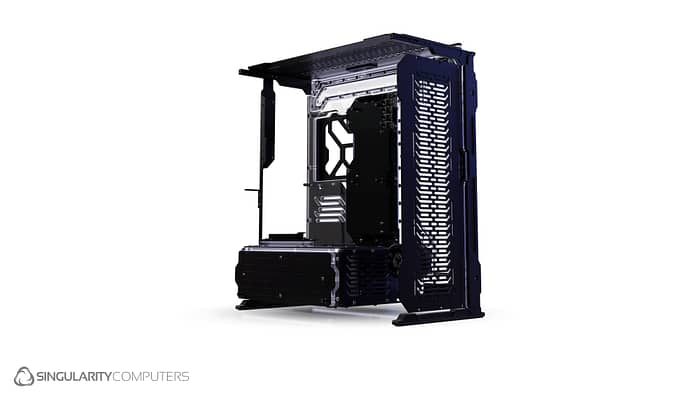

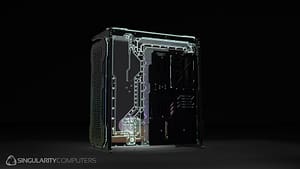

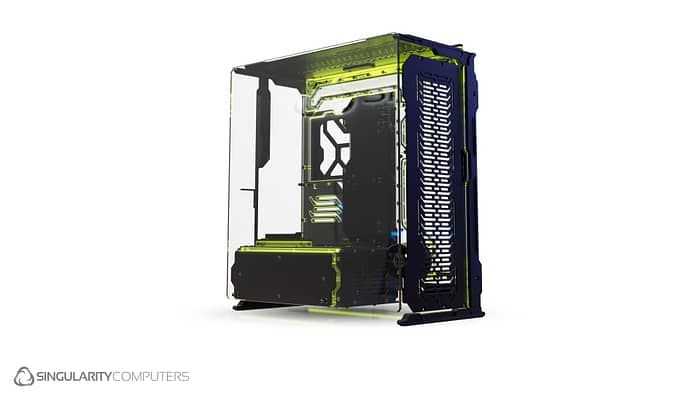

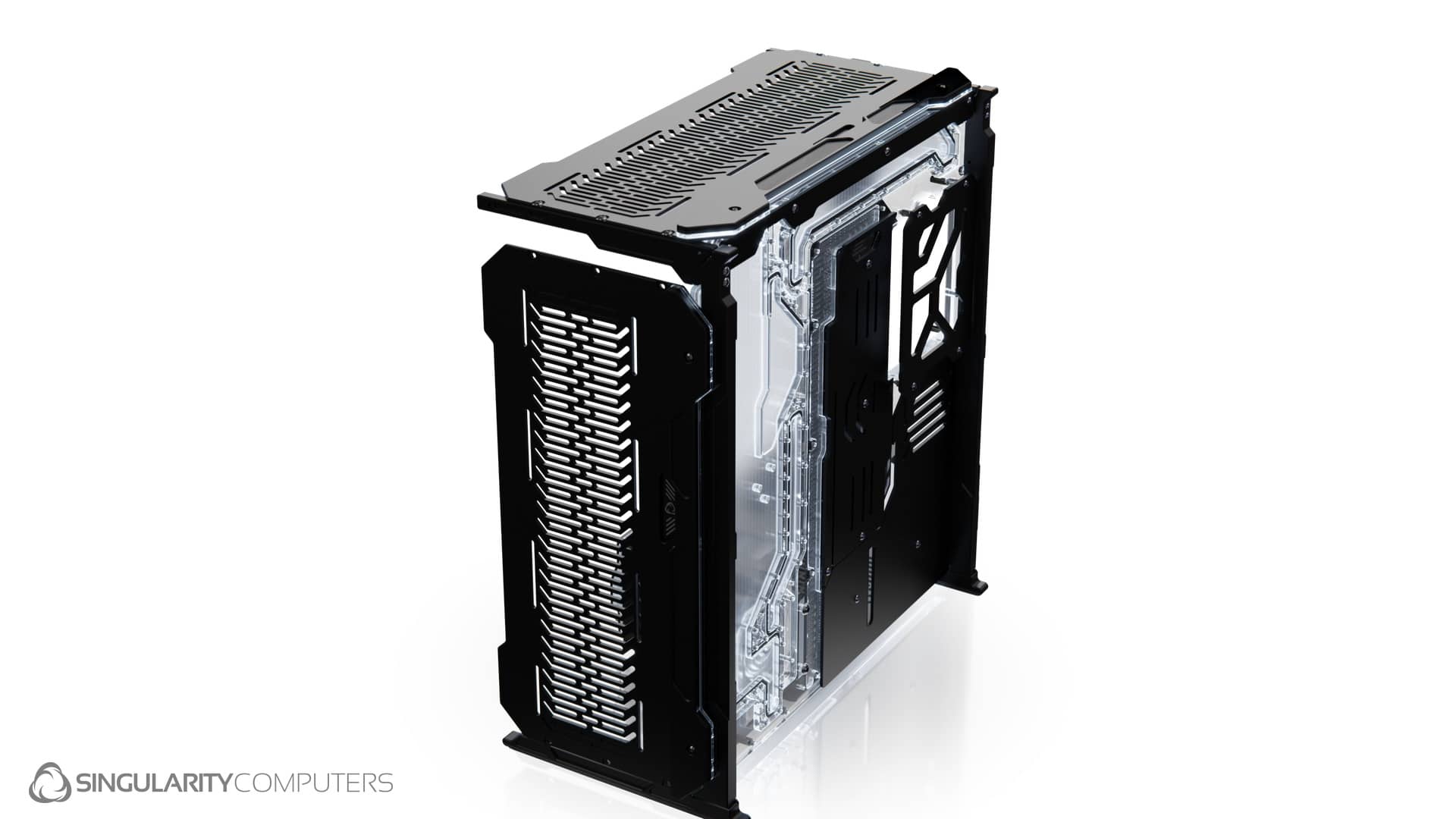

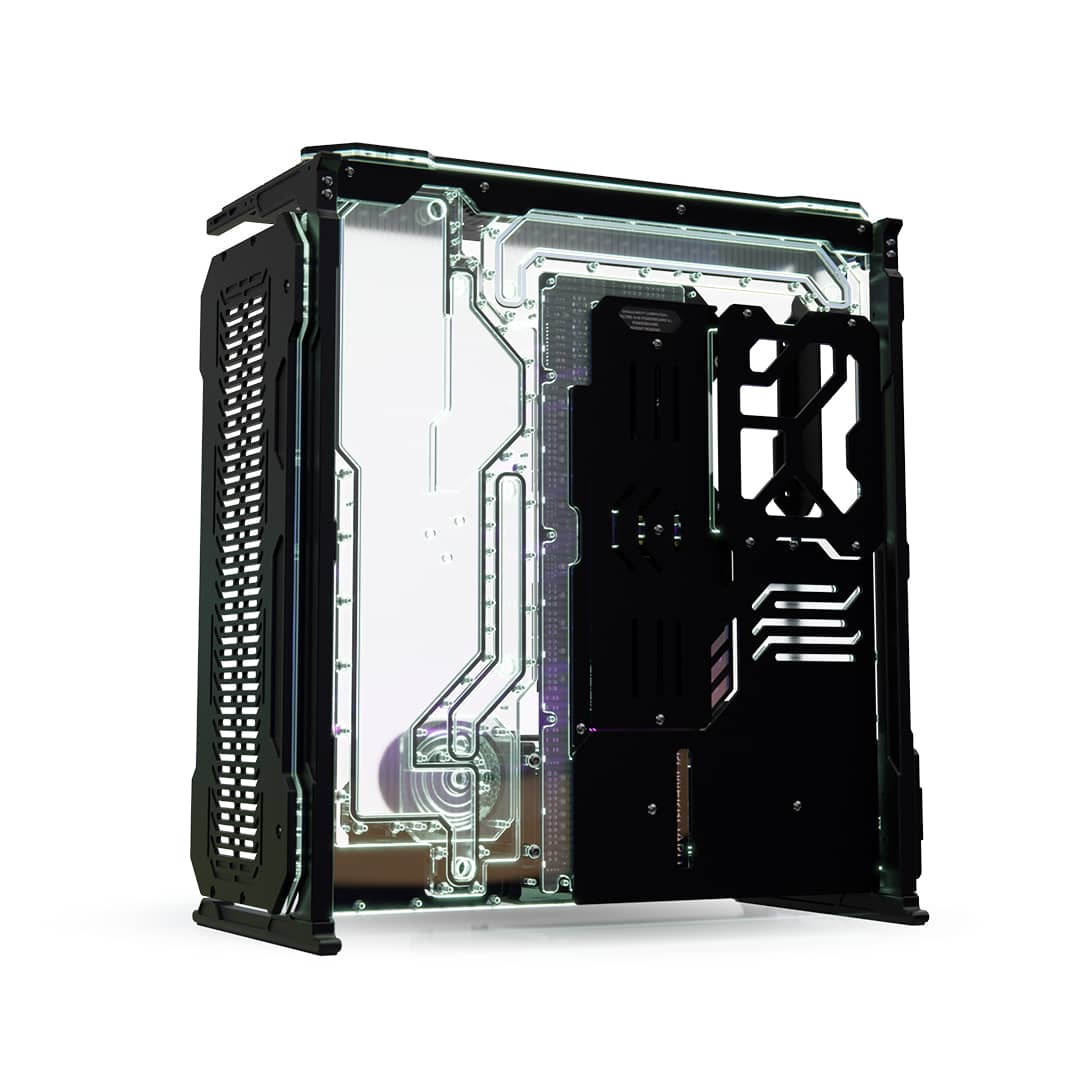

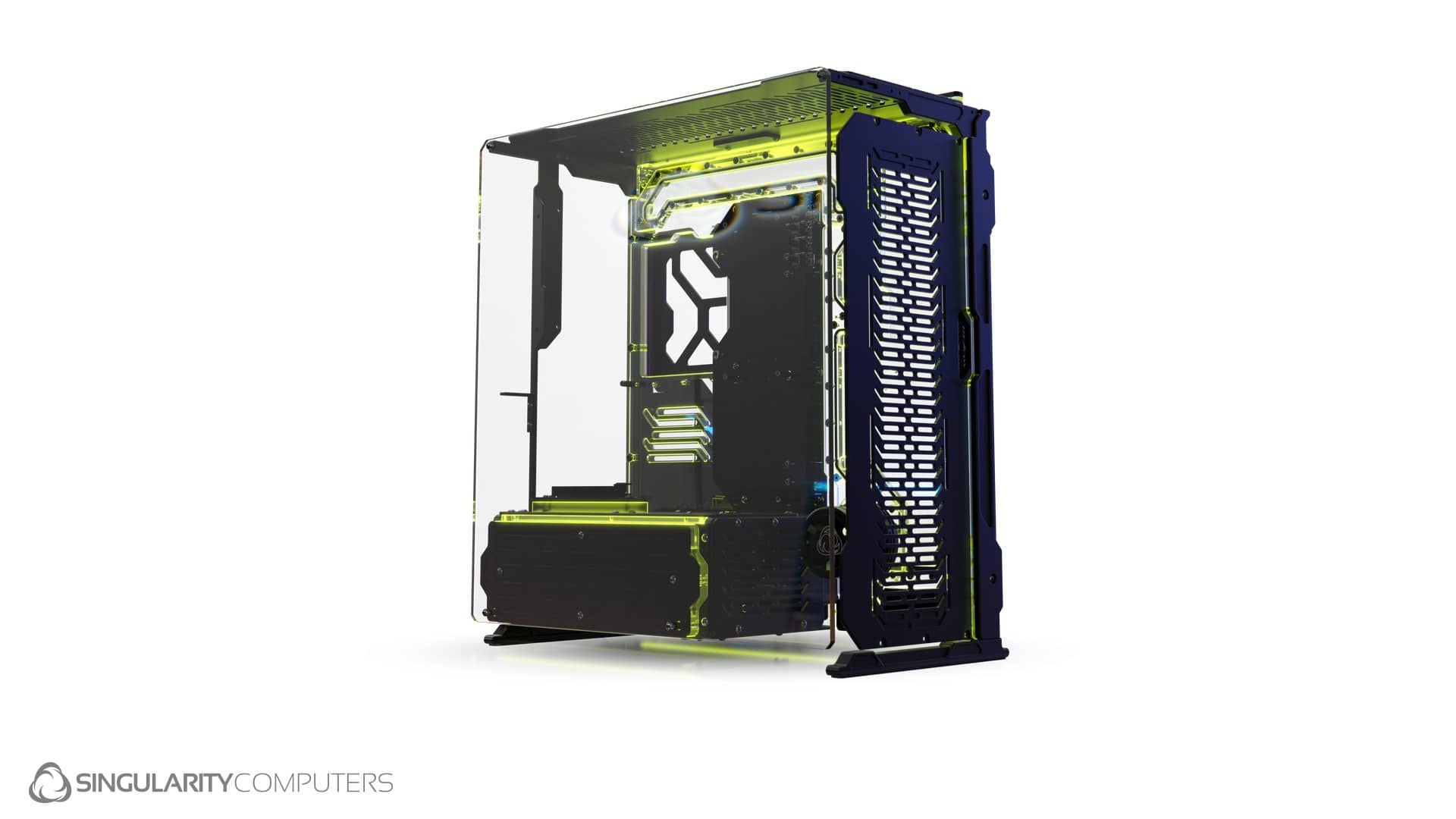

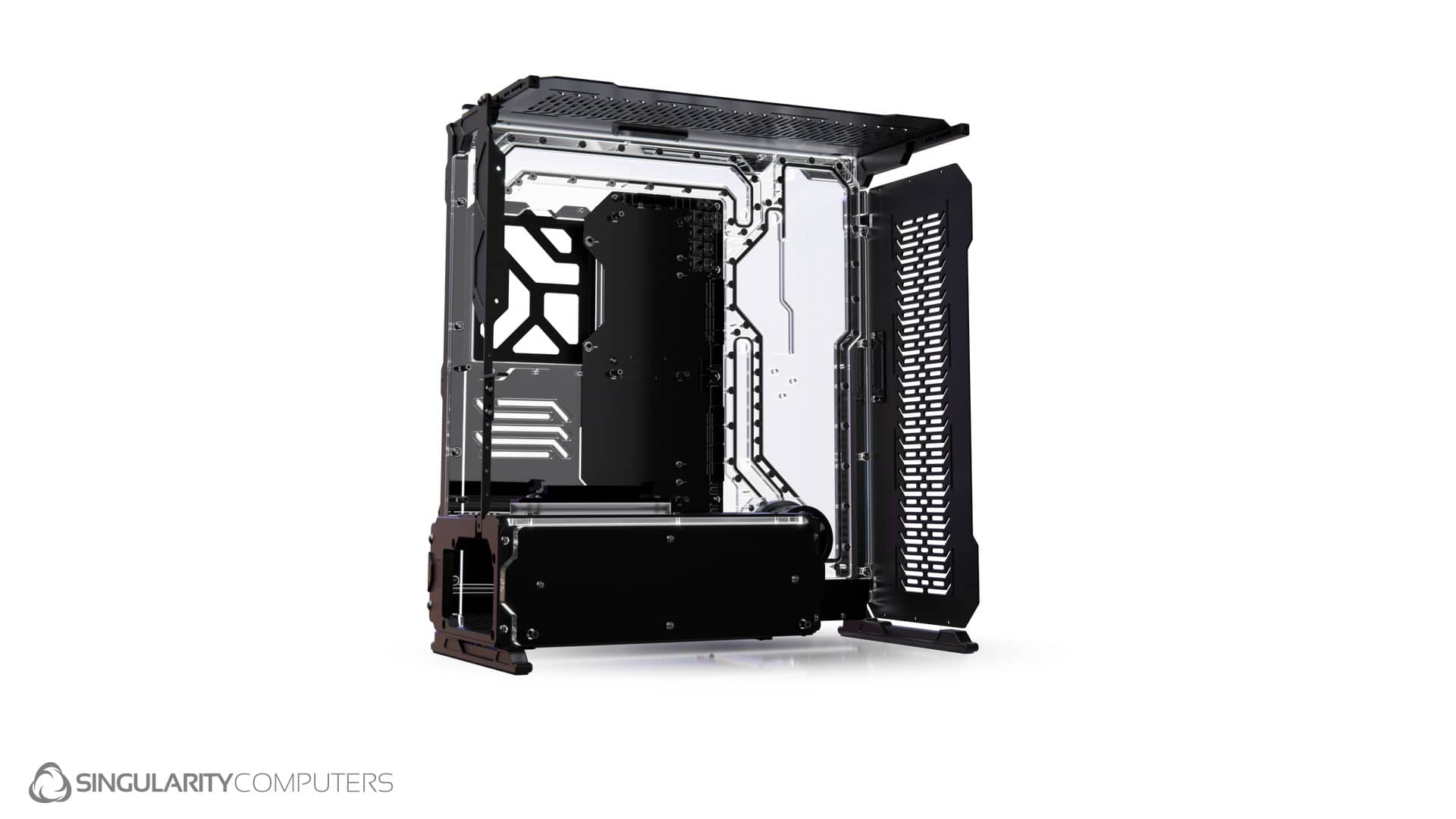

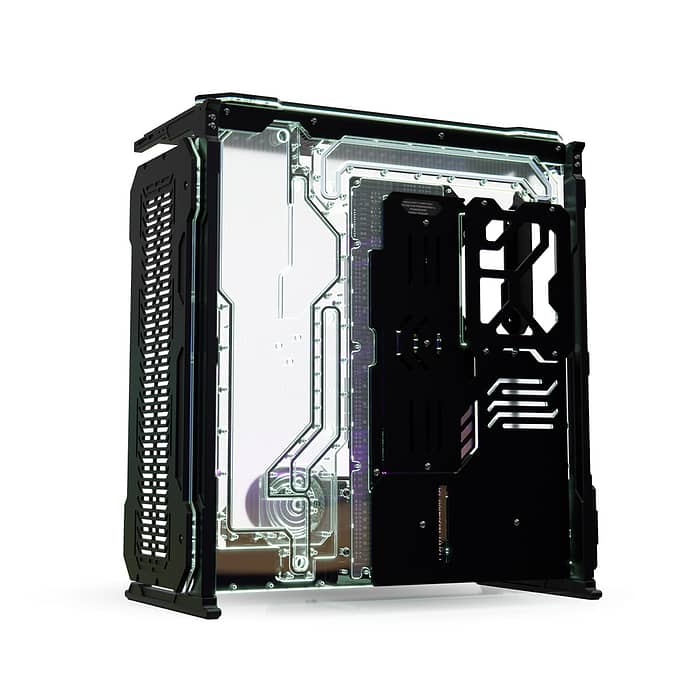

Spectre 4-M Water-cooling Case

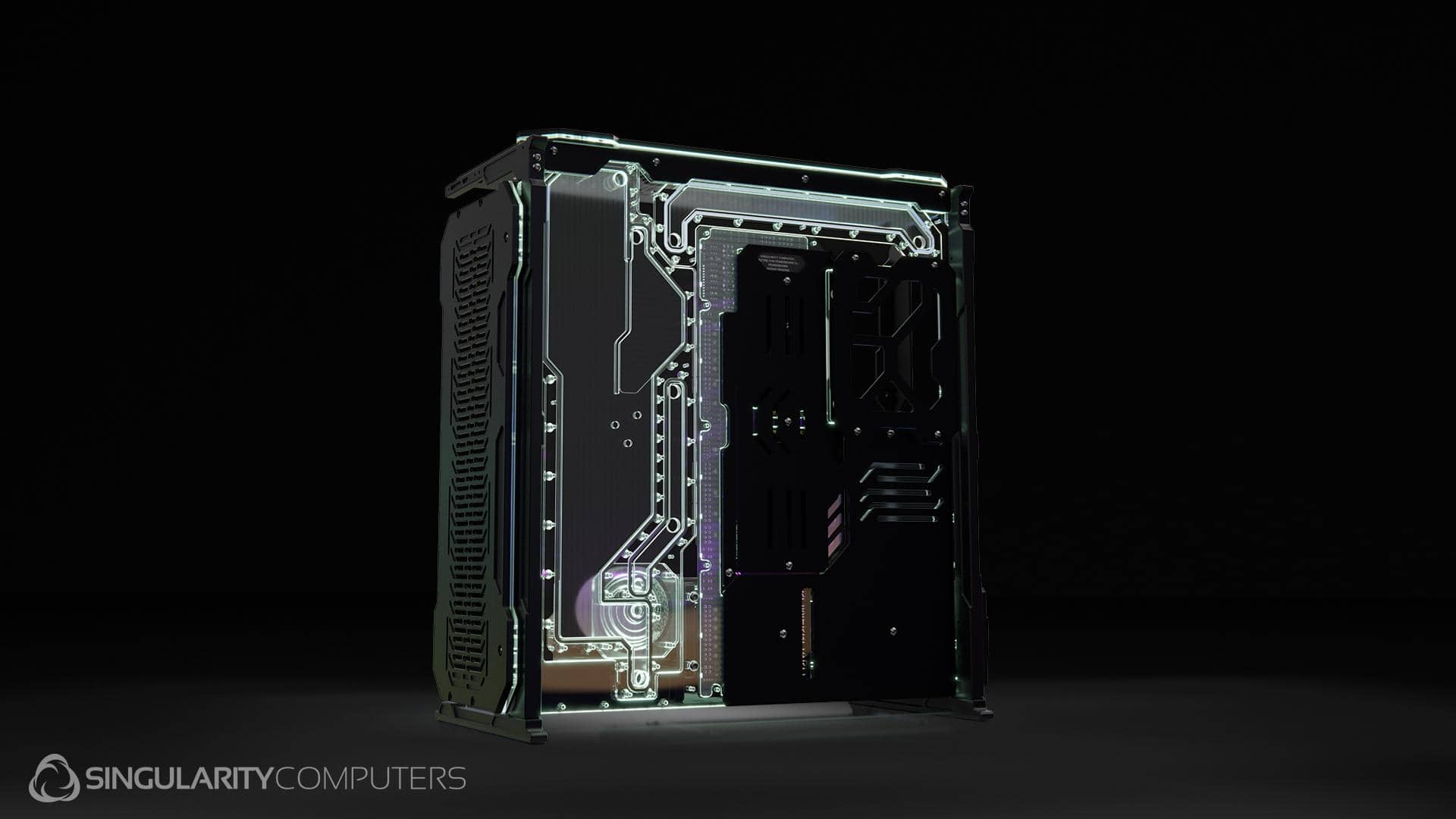

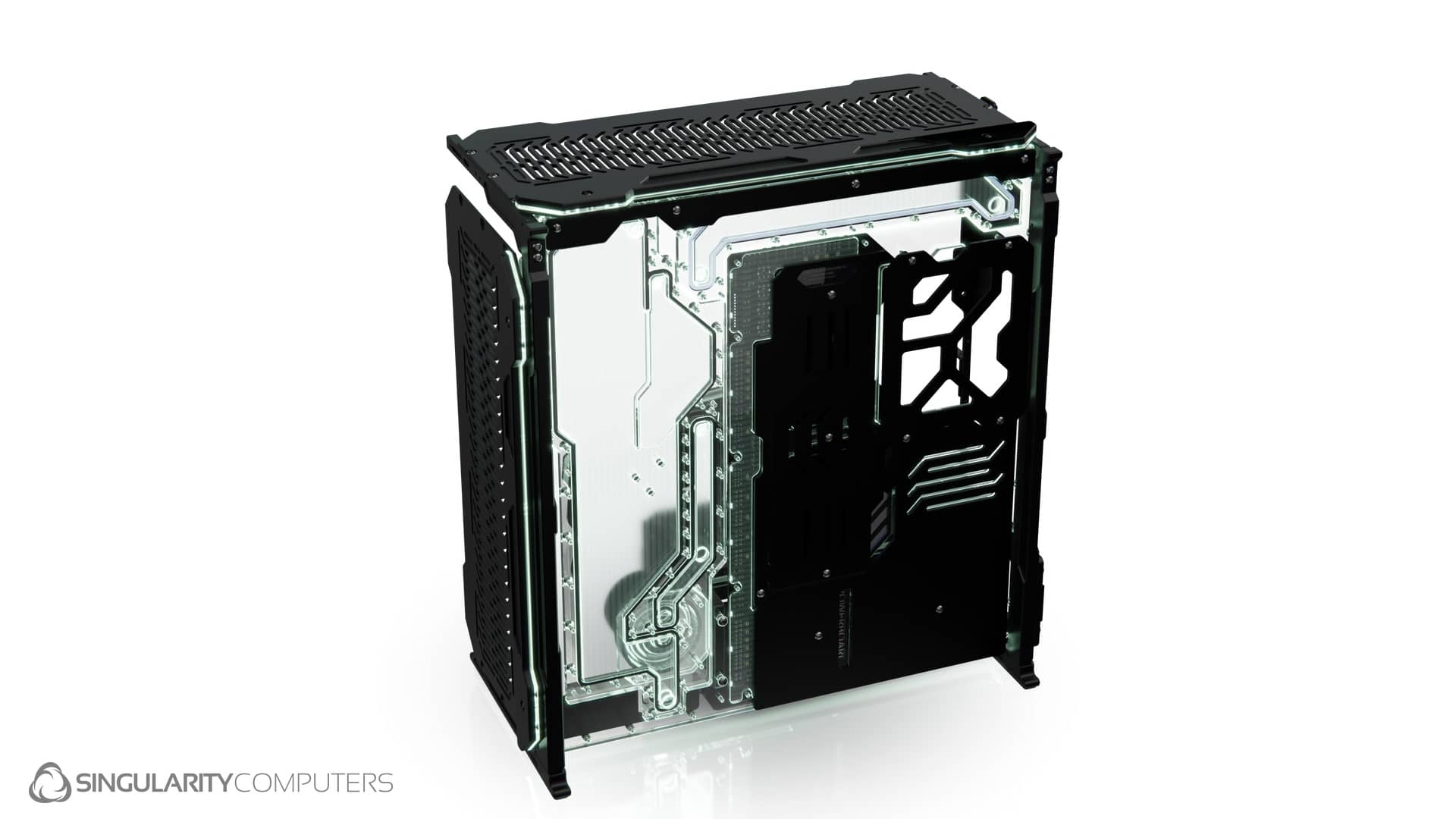

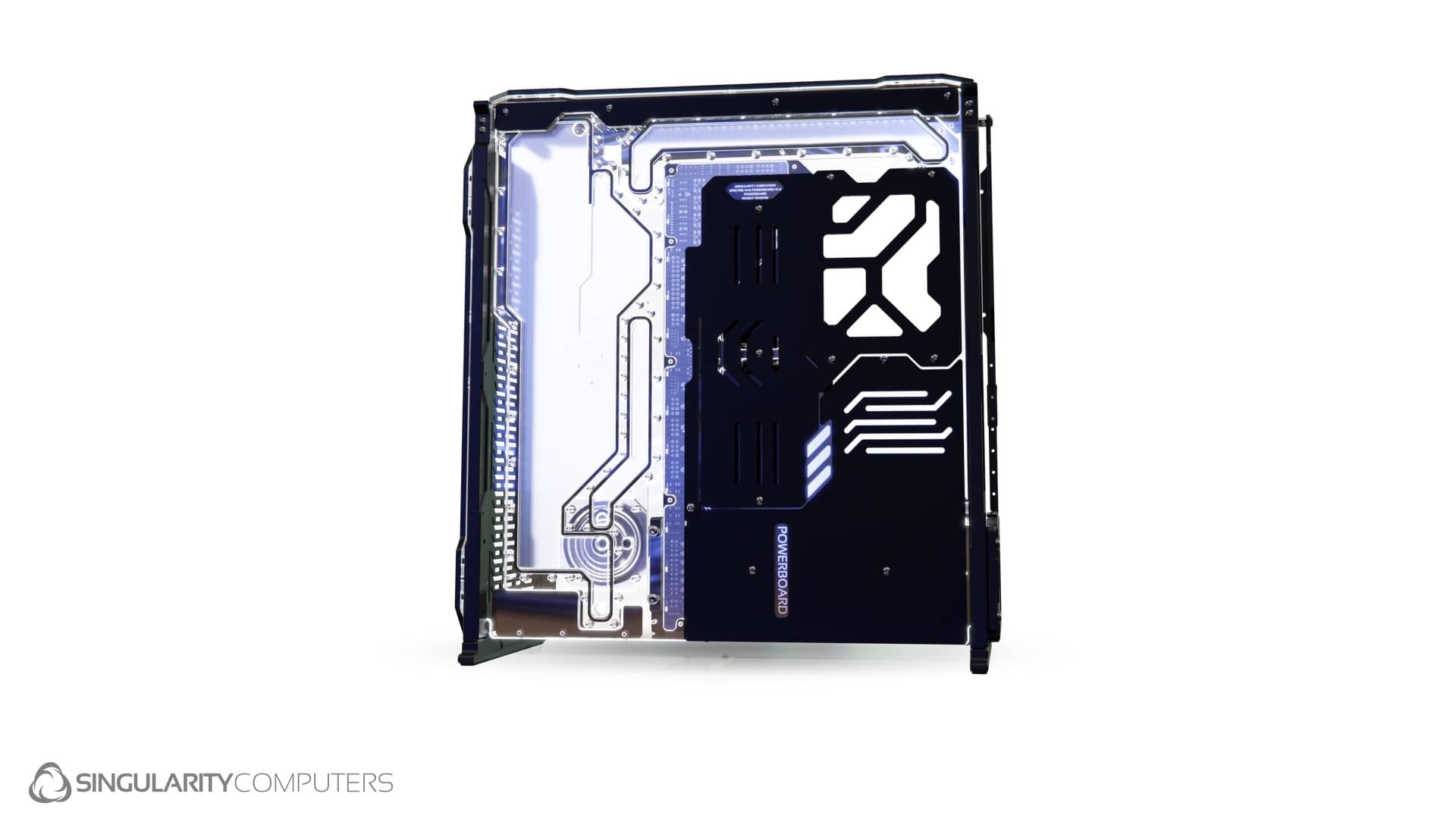

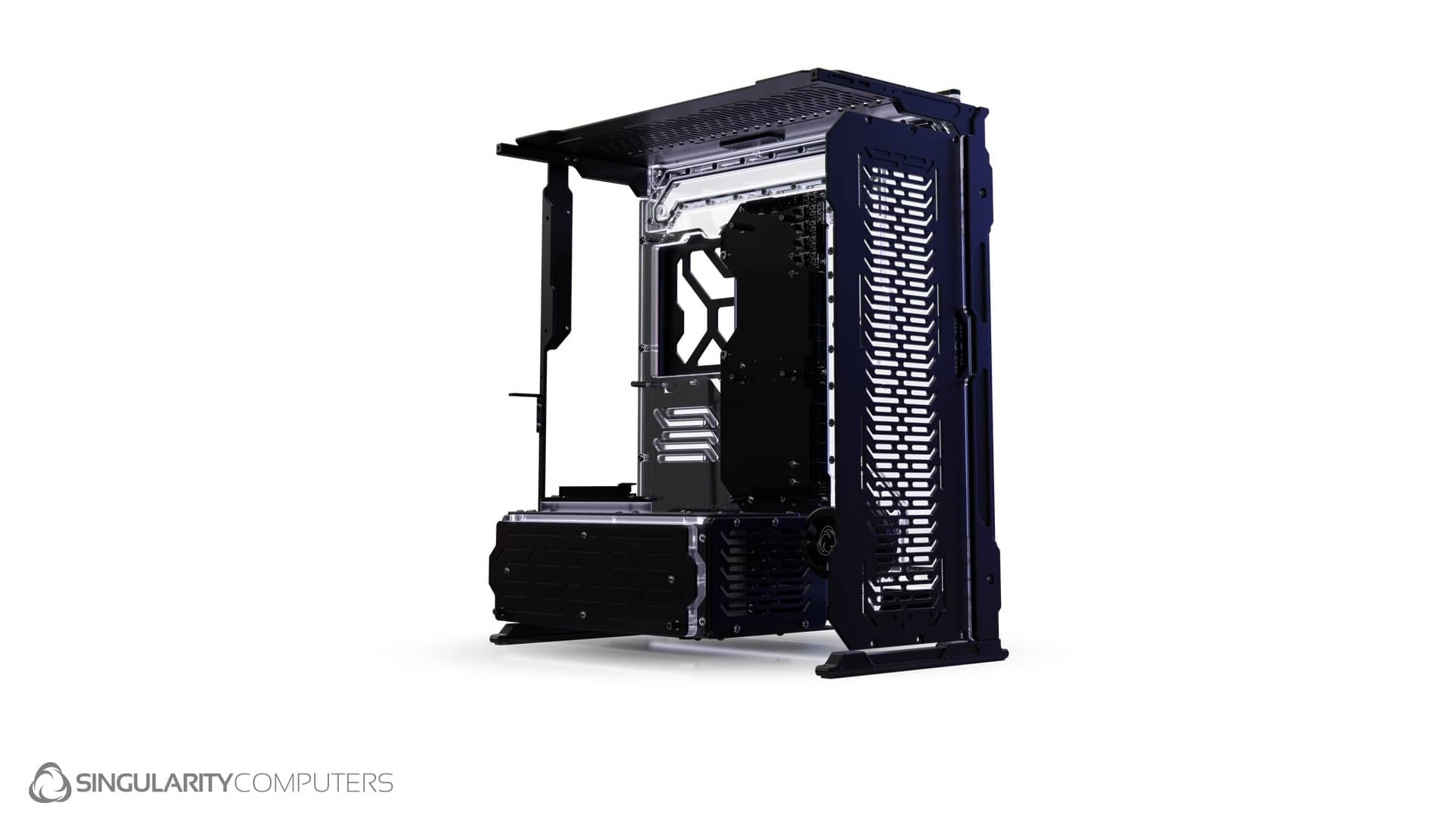

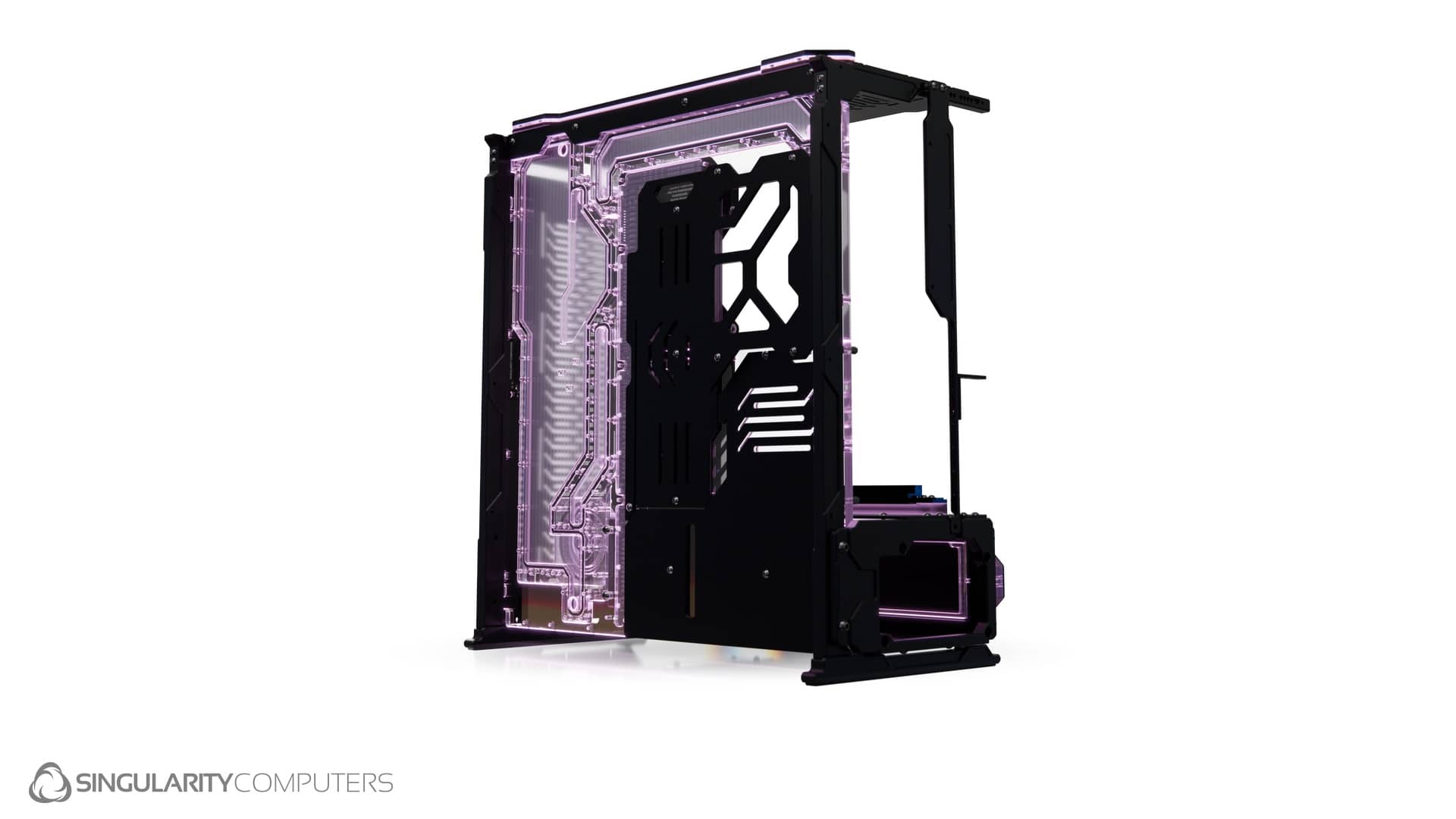

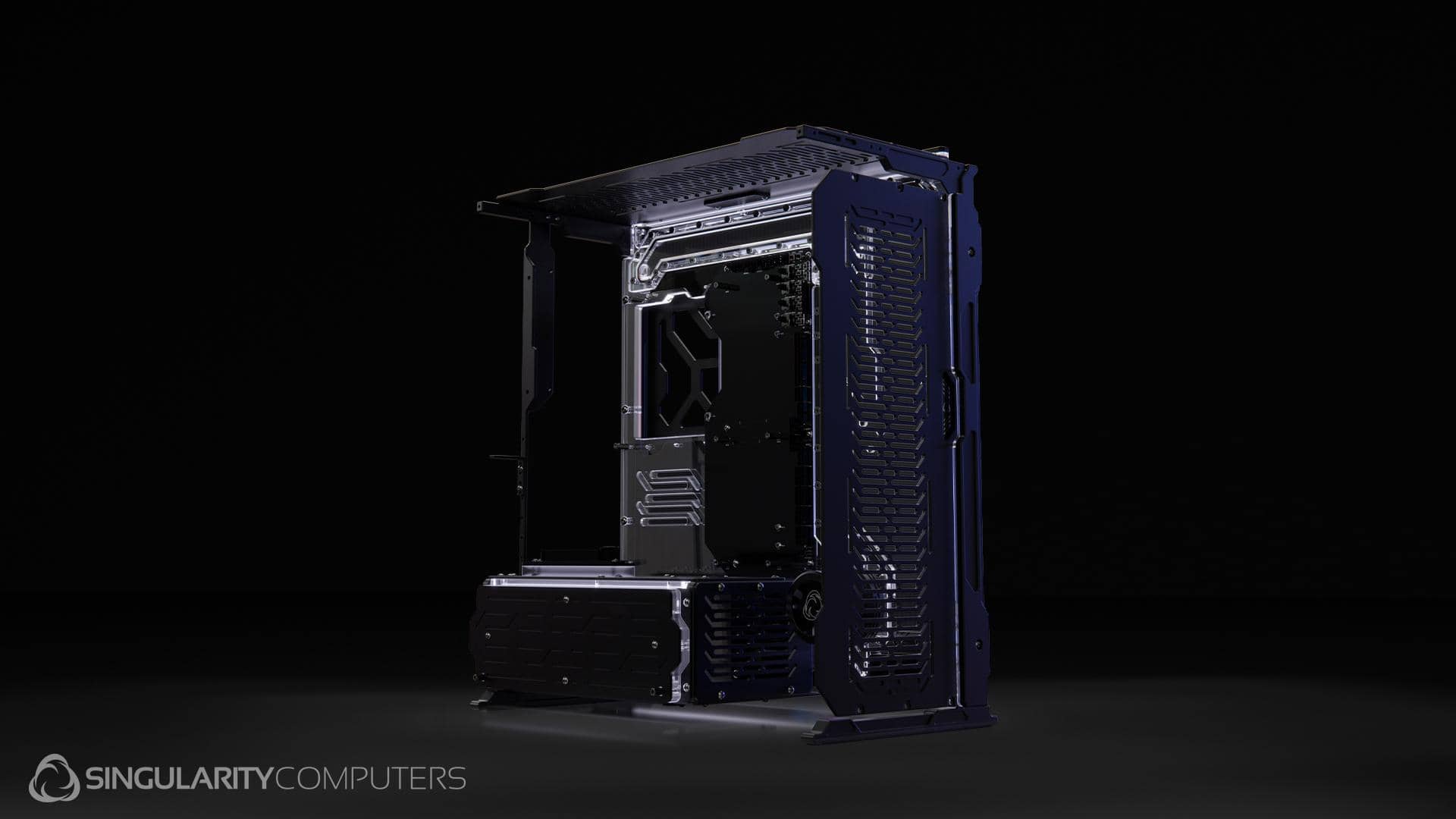

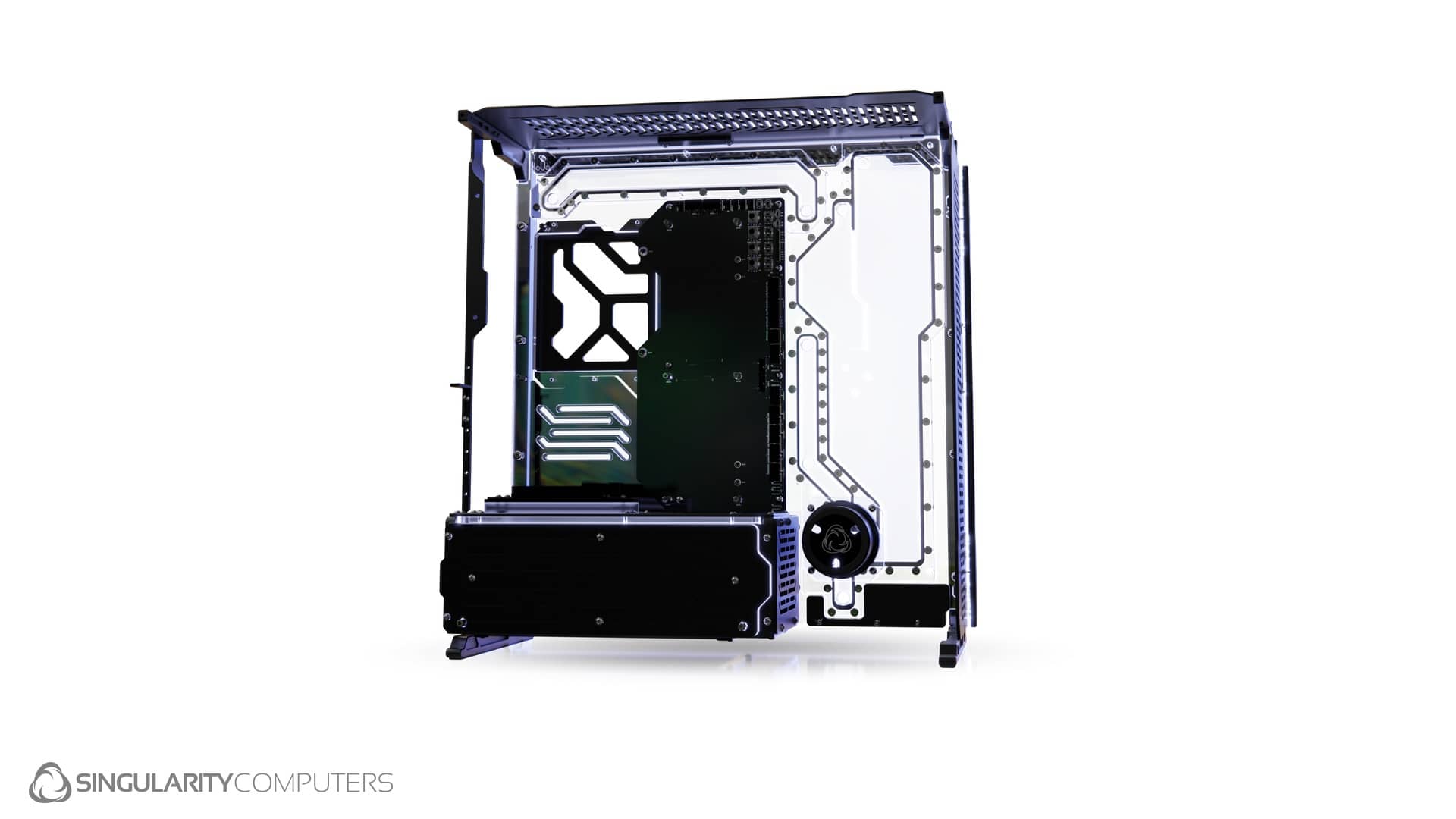

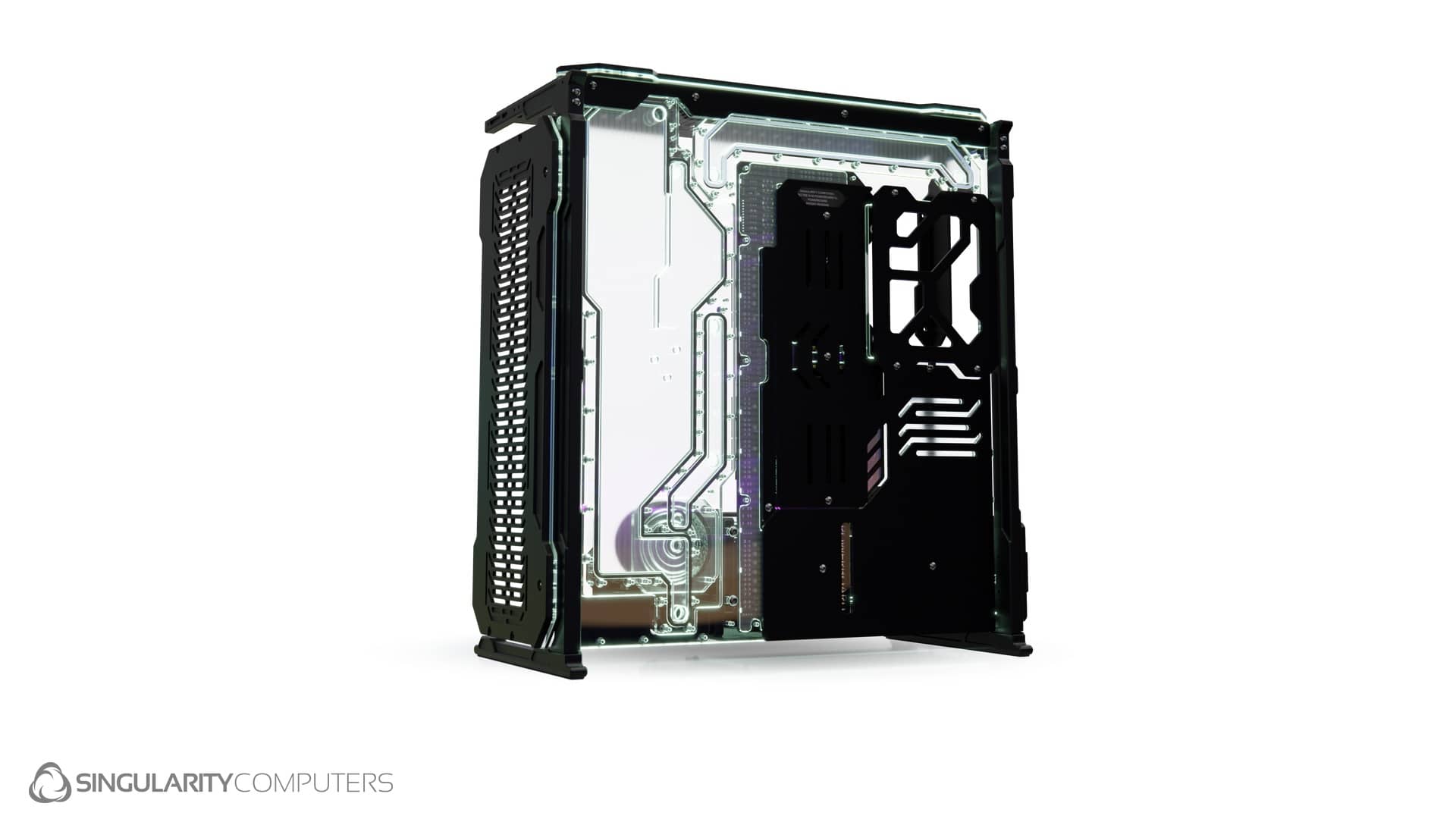

Spectre 4-M is the ultimate extreme water-cooling case with more water-cooling features than any case on the market. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features.
Spectre 4-M introduces a new distribution plate design with countersunk fasteners and the 6061 CNC machined frame is new with greatly improved strength and updated aesthetics.
The PowerBoard comes with a vast range of new features including improved lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more.
Spectre 4-M fits x2 360mm radiators, it fits a 120mm fan behind the motherboard to cool the rear of the CPU socket, two 2.5” drive mounts integrated on the PowerBoard and a touch activated power button. It also comes with dust filters on all fans’ positions.

Pump not included. Compatible with any D5 Pump.

Build Gallery

Original price was: US$1,199.00.Current price is: US$1,019.15.

Custom black sleeved cables which connect from the PowerBoard to the GPU.

8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

Replaces the side panel window with a distribution plate which adds a second separate water-cooling loop.

None Yes +US$449.00
None Yes +US$329.00

Monitor RPMs, Temperatures, Voltages and control ARGB Lighting.

None Yes +US$129.00

D5 Pump 1500LPH 3.7m head pressure.

None Pump x1 +US$94.00 Pump x2 +US$179.00

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00
EAN: 9351182006221 SKU: SC-S4-M Categories: , ,

Manual

Gallery

Features new to Spectre 4-M

New frame design with greatly improved strength and updated aesthetics.
New distribution plate design with countersunk bolts.
120mm fan to cool the rear of the CPU socket.
Multi zone PWM hubs.
Temperature based RPM control.
RPM curve adjustment.
Dedicated pump RPM and power headers.
Temperature sensor inputs.
12pin header for addon devices.
Improved ARGB and UV lighting.
PSU jump-start for powering pumps only.
Temperature sensor port.
Internal drain port.
Protective covers for feet.
Touch activated Power Button.
Integrated PowerBoard 2.5” Mounts x2.

Specifications

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x9 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x2. Supplementary power x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2, one with 3 outputs and one with 4 outputs. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. There are two temperature sensor inputs. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
PWM Control:
4x potentiometers to set the minimum PWM speed (bottom of the RPM curve).
ARGB:
x11 with one input.
Temperature sensor inputs:
x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x15 Integrated ARGB 90-degree LEDs. LEDs can be switched on or off and their control can be switched from motherboard to PowerBoard control (PowerBoard control requires FanGuardian PowerBoard Controller).
Power and Reset Buttons.
PowerBoard direct mount 2.5” x2 accessible from the back of the distribution plate.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for FanGuardian PowerBoard Controller Addon (available separately).
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
LED Strips: ARGB 5V 50cm x4 (pre-installed).
Motherboard Form Factor: ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Mid Tower Water-cooling Case.
Case Dimensions: L: 486mm x W: 245mm x H: 528mm.
Case Weight: 12kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 14kg.
Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.
Radiators: 360mm X2 up to 45mm. 70mm of thickness for radiators and fans
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested, and precise fastener tension is applied.

Spectre 4 Versions
Spectre 4 Spectre 4 Aevum Spectre 4 Aevum Chrome Spectre 4 Aevum Dark Spectre 4 Aevum Valhalla Spectre 4 Enterprise Spectre 4 Quantum Spectre 4-M Spectre 4-M Dark
Distribution Plates x1 x2 x2 x2 x3 x1 x2 x1 x2
Distribution Plate Layers x2 x4 x4 x4 x4 x2 x2 x3 x3
PowerBoard Yes Yes Yes Yes Yes Yes Yes Yes Yes
Motherboard Form Factor Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX, SSI-EEB, SSI-CEB Up to E-ATX, SSI-EEB, SSI-CEB Up to E-ATX Up to E-ATX
IO Slots 8 8 8 8 8 8 8 7 7
Radiators 2x 360mm/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm 2x 360mm
Radiator Thickness 60mm 60mm 60mm 60mm 60mm 60mm 60mm 45mm 45mm
Pump/s D5 D5 D5 D5 D5  2x D5  2x D5 D5 D5
Reservoir Yes Yes Yes Yes Yes Yes Yes Yes Yes
Case Dimensions 610mm x 245mm x 560mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 560mm 610mm x 245mm x 560mm 486mm x 245mm x 528mm 506mm x 245mm x 528mm
1920×480 60Hz Screen No Yes Yes Yes Yes Yes Yes No Yes
Limited Edition No Yes Yes Yes Yes No No No No
Individually Numbered No Yes Yes Yes Yes No Yes Yes Yes
Rear CPU Socket Fan Yes Yes Yes Yes Yes No No Yes Yes
Dust Filters Yes Yes Yes Yes Yes Yes Yes No No
Multi Zone PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump Power Yes Yes Yes Yes Yes Yes Yes Yes Yes
Temperature Based RPM Control Yes Yes Yes Yes Yes Yes Yes Yes Yes
RPM Curve Adjustment Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSU Jump Start Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSUs x1 x1 x1 x1 x1 x1 (2nd can be added with optional addon) x1 (2nd can be added with optional addon) x1 x1
Water-cooling Loops x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x2 x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel)
Color Black Black & Graphite Silver Mirror Black & Grey Tinted White Black Black and Silver or Black and Gold Silver Black & Grey Tinted
Drives x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x2 2.5” if GPU/s not vertically mounted x2 2.5” if GPU/s not vertically mounted x2 x2.5” x2 x2.5”
PCB Covers with integrated ARGB No No Yes Yes No No Yes Yes Yes
Personalised etched name and serial number No No Yes Yes No No Yes No No
Addon Information

Elite Top Panel Distribution Plate                                                                                                                                                     FanGuardian PowerBoard Controller

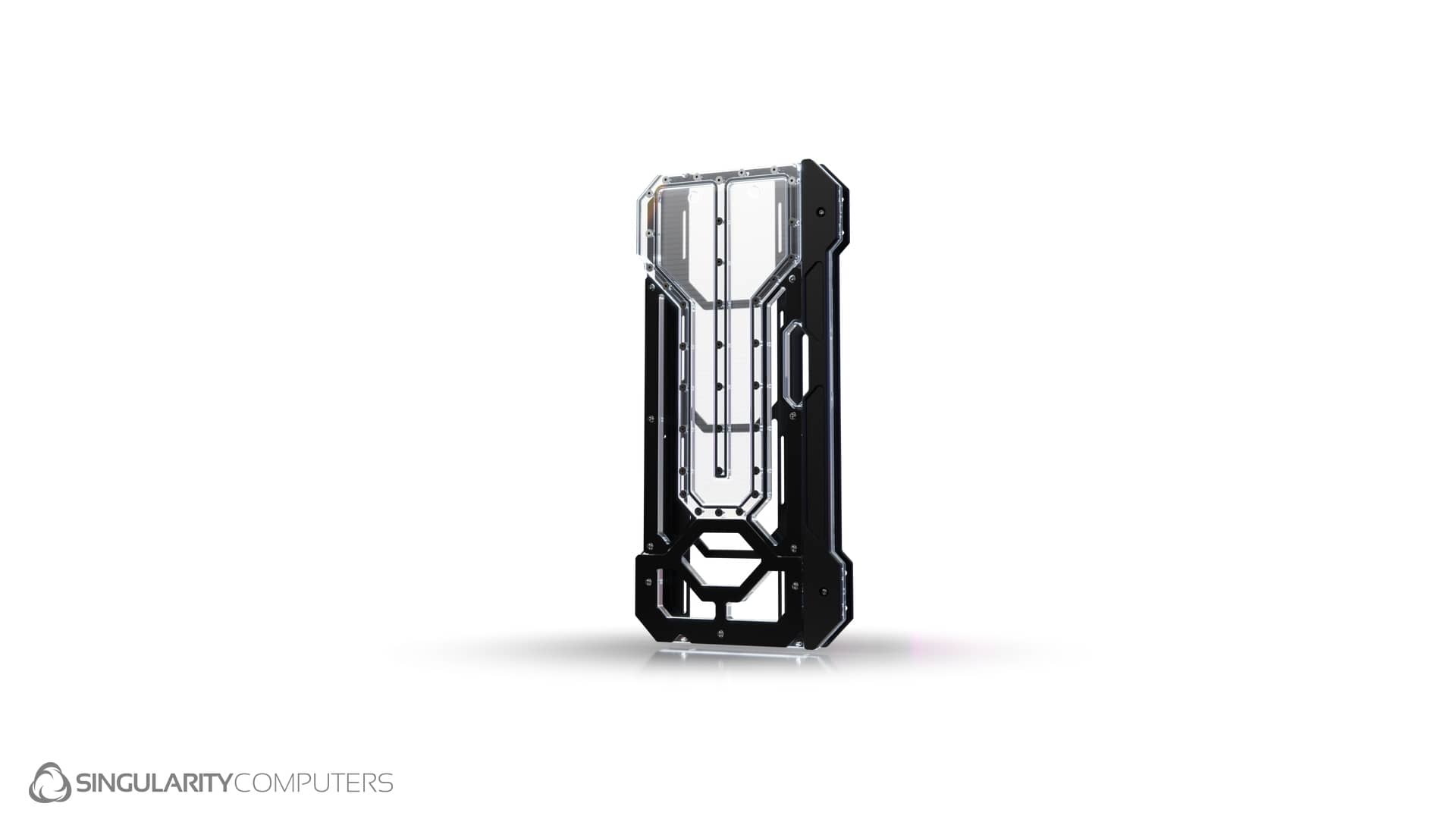

Spectre 4-M Elite: The Spectre 4-M Elite has an all-new design with increased ventilation. It has two thicker acrylic panels and countersunk fasteners to improved durability, quality, and aesthetics. It replaces the front radiator panel which enhances the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. The main purpose is an aesthetic feature, although it does increase fluid volume. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached and there is ventilation around the perimeter of the distribution plate and through the ventilated sections on the front. There is an LED strip positioned on the edge of the distribution plate so that it glows.

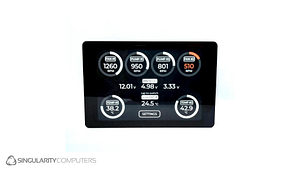

FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.
